HRS S3 Isolation Base for SXR/VXR Audio Stand

Sale price$4,500.00
Colour: Black


Model: S3-1719

Pickup available at Audio Connection

Usually ready in 5+ days

HRS S3 Isolation Base for SXR/VXR Audio Stand

HRS S3 Isolation Base for SXR/VXR Audio Stand

Black / S3-1719

Audio Connection

Pickup available, usually ready in 5+ days

515 Parramatta Road
Leichhardt NSW 2040

  • Live Chat Support (8am - 8pm)
  • Free Australia Wide Shipping
  • 02 9561 0788. We speak English, Mandarin, Cantonese, Vietnamese


  • Split your payments over 2, 6, 12 or 18 months.
  • 0% on your purchase, zero fees.
  • No minimum spend.
  • All you need is a valid credit card (Visa, Mastercard, Amex).
  • Choose "More Payment Options" below and choose "Monthly credit card payments" on the checkout screen.

Need Help?

If you have any questions or need advice - give us a call on 02 9561 0788 during business hours or use our live chat service AEST 8am - 8pm everyday (you'll chat with a real person, not a bot!).

HRS S3 Isolation Base for SXR/VXR Audio Stand

The S3 Isolation Base is a highly innovative design that eliminates noise, revealing a new level of musical performance. The S3 is manufactured from seven different materials including a proprietary resonance control stage with billet-machined aircraft aluminum trim and a plinth construction that increases plinth mass by seven pounds. The S3 Isolation Base is configured at HRS to optimize the performance of a specific component and can be changed in your home to optimize the performance of a different component at any time.

The 51 lb S3 (1921 size) plinth construction is manufactured by laminating in a vacuum press alternating layers of high-density fabric reinforced resin and non-magnetic stainless steel plates on both sides of a decoupled mass energy dissipation core system. The very top skin of the S3 plinth is the same high-quality, scratch-resistant surface layer used in the R3X and E1 Isolation Bases providing an identical cosmetic match in systems that utilize different isolation base models in the same system. Encompassing the S3 is a billet-machined heat-treated aluminum alloy stiffening trim which is finished to exacting HRS standards for cosmetic elegance. The low profile (3-inch height) design also minimizes space requirements and keeps the visual focus of your system on the components you have selected.

The S3 Isolation Base is produced in two standard sizes and is available in a black or silver finish. Each size can be purchased with any of our different footer options to optimize performance for all components.

  • Broadband noise reduction systems maximize performance
  • Highly effective on wide range of surfaces and structures
  • Low-profile compact design minimizes space requirements
  • Standard sizes ensure full system integration
  • Can be use on any existing surface
  • Integrates directly into HRS Audio Stands without modification
  • Easily modified to optimize performance for different component types
  • Exceptional performance, great value

Every HRS Isolation Base model series can be set to either transfer and dissipate energy coming to and from the component or isolate the component from the supporting structure. Each HRS Isolation Base includes either our Broadband Isolation Feet (SF2 & SF3), our Extended Low Frequency Feet (LF2 & LF3), or our Bi-Directional Noise Reduction Feet. The selection of the footer type is made to optimize the performance of each component. You can also adjust or change the footer type on each isolation base at any time to keep your system at peak performance.

SF2 / SF3:  HRS Broadband Isolation Feet – Isolates components from below 20 Hz to above 40k Hz. Excellent starting point for tube amplifiers, tube pre-amplifiers, DAC’s, phono pre-amps, and many turntables.  Select proper component range from chart below. For large amplifiers and turntables, please contact HRS for custom settings.

LF2 / LF3:  HRS Low Frequency Feet – Isolates component from below 10 Hz to above 40k Hz. Use for non-suspended turntables and when subsonic content is present and presents a potential feedback issue with the system. Also used for custom applications where they provide sonic benefit. Custom setup required for each component.

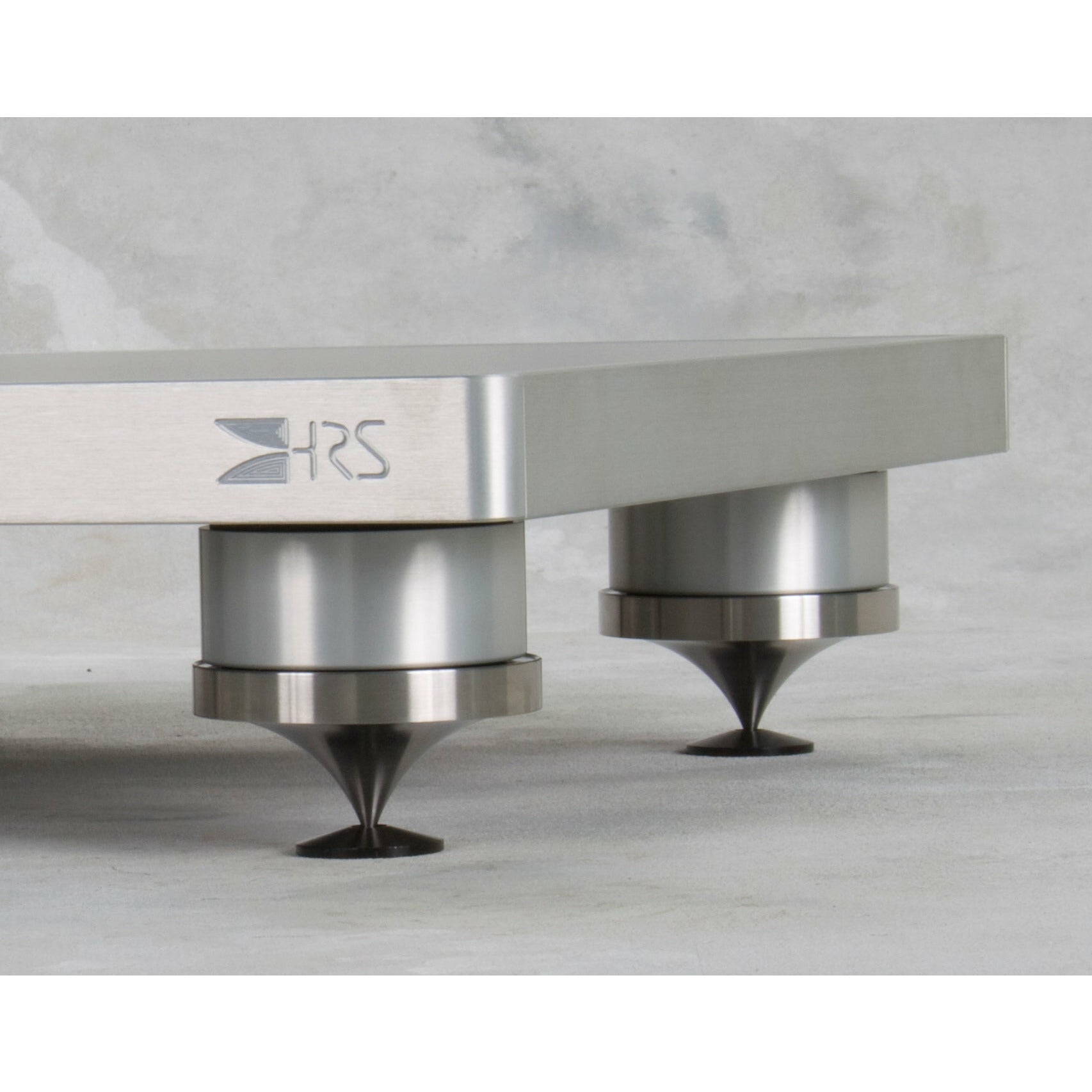

G7:  HRS Bi-Directional Noise Reduction Feet –  Transfers and dissipates energy coming to and from the component. Used for solid-state power supplies, power conditioners, tape machines, vacuum pumps, solid-state amplifiers, and solid-state pre-amplifiers. These can also be used if you prefer to not deal with different load ranges or where the use of chassis noise reduction products is not desired or possible. The HRS G7 feet do not have any load limit and can be used for any component.

Introducing the G-Link:  The G-Links act as an ideal interface between the HRS G7 Bi-Directional Noise Reduction Feet and any floor where you do not already have an HRS frame system.  The G-Link will ensure excellent coupling of the G7 equipped HRS Isolation Base to a carpeted surface or an uneven floor.

Please contact us to make your final footer selection to optimize performance of your system.



Dimensions (W X D X H) 43.2 x 48.3 x 7.6 cm
Base Weight 19.1 kg
Load Range & Supported Equipment Weight
Orange (OR) 0 – 13.8 kg
Red (RD) 13.9 – 22.8 kg
Green (GN) 22.9 – 41 kg
Blue (BL) 41.1 – 75 kg


Dimensions (W x D x H)
Base Weight 23.1 kg
Load Range & Supported Equipment Weight
Orange (OR) 0 – 11.5 kg
Red (RD) 11.6 – 20.6 kg
Green (GN) 20.7 – 38.7 kg
Blue (BL) 38.8 – 70.5 kg
