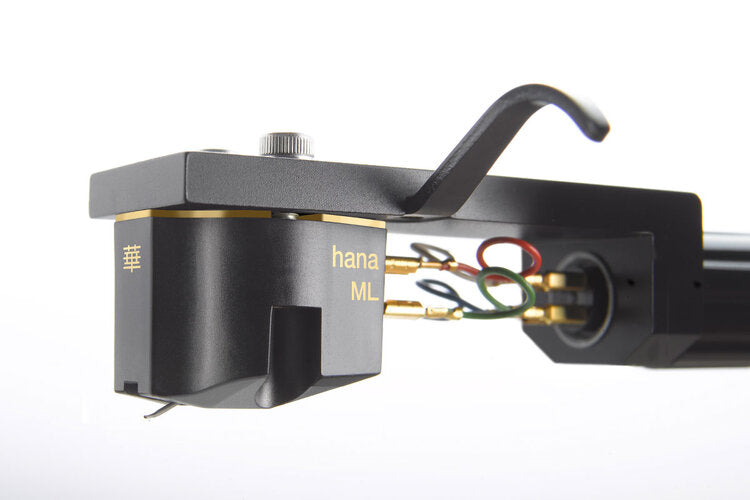

Hana ML Microline Moving Coil Cartridge (Low Output)
Overview
Building upon the foundation of the critically acclaimed HANA sound, the ML aspires toward affordable perfection and represents the further evolution of the “Brilliant and Gorgeous” quality that has earned HANA its worldwide reputation.
M Series Nude Microline stylus – Higher Specification Part
Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.
High Purity copper wire – Higher Specification Part
Very high-purity copper wire is used for winding the ML coil with a new low-impedance generator for optimized performance with a broader range of phono preamps
*Cartridge only, head shell not included.
Specifications
| Stylus | Microline |
|---|---|
| Cantilever | Aluminium |
| Magnetic Circuitry | Pure Iron/Cryo Treatment |
| Coil Wire | High Purity Copper |
| Cartridge Housing | POM (Delrin) / Brass |
| Output Level | 0.4mv/1kHz |
| Output Balance | <1dB/1 KHz |
| Trackability | 70 µm/2g |
| Channel Separation | 30dB/1kHz |
| Frequency Response | 12-45,000Hz |
| Impedance | 7Ω/1kHz |
| Suggested Load Impedance | >100Ω |
| Magnet | Alnico |
| Vertical Tracking Force | 2g |
| Cartridge Weight | 9.5g |
| Height | 16.3mm |
| Body Colour | Black w/Brass Plate |
| Warranty | 2 years |
