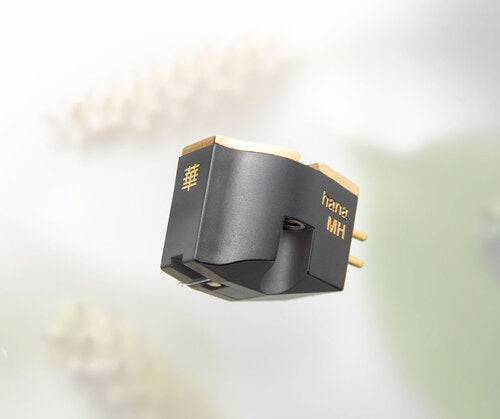

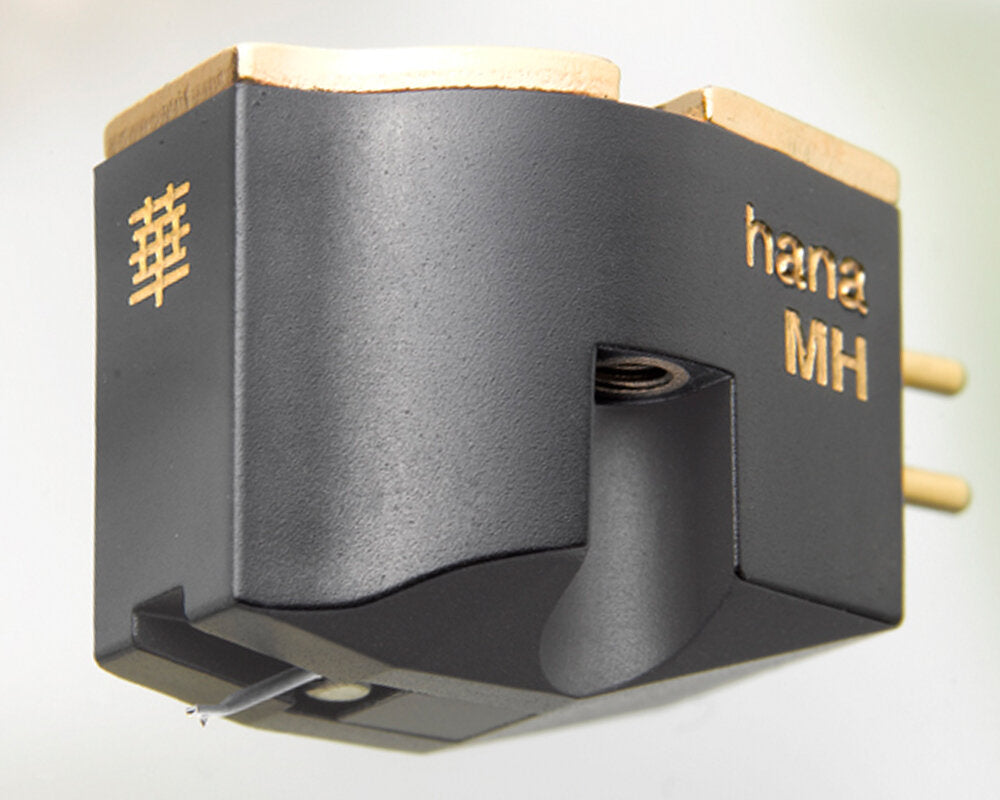

Hana MH Microline Moving Coil Cartridge (High Output)
Hana MH Microline Moving Coil Cartridge (High Output)
One of the world’s best High Output Moving Coil cartridges, the MH combines the technological advances of the Hana M Series with the optimal interface for moving magnet phono stages.
M Series Nude Microline stylus – Higher Specification Part
Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.
Delrin© cartridge body – Advanced Materials
The M Series cartridge body is injection molded from Delrin©, a high-tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low-level information and enhance dynamic range.
Cryogenic Processing - Unique Technical Treatment
Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as centre and rear components.
Specifications
Stylus | Microline |
---|---|
Cantilever | Aluminium |
Magnetic Circuitry | Pure Iron/Cryo Treatment |
Coil Wire | High Purity Copper |
Cartridge Housing | POM (Delrin) / Brass |
Output Level | 2mv/1kHz |
Output Balance | <1dB/1 KHz |
Trackability | 70 µm/2g |
Channel Separation | 30dB/1kHz |
Frequency Response | 12-45,000Hz |
Impedance | 130Ω/1kHz |
Suggested Load Impedance | 47kΩ |
Magnet | Alnico |
Vertical Tracking Force | 2g |
Cartridge Weight | 9.5g |
Height | 16.3mm |
Body Color | Black w/Brass Plate |
Warranty | 2 years |
