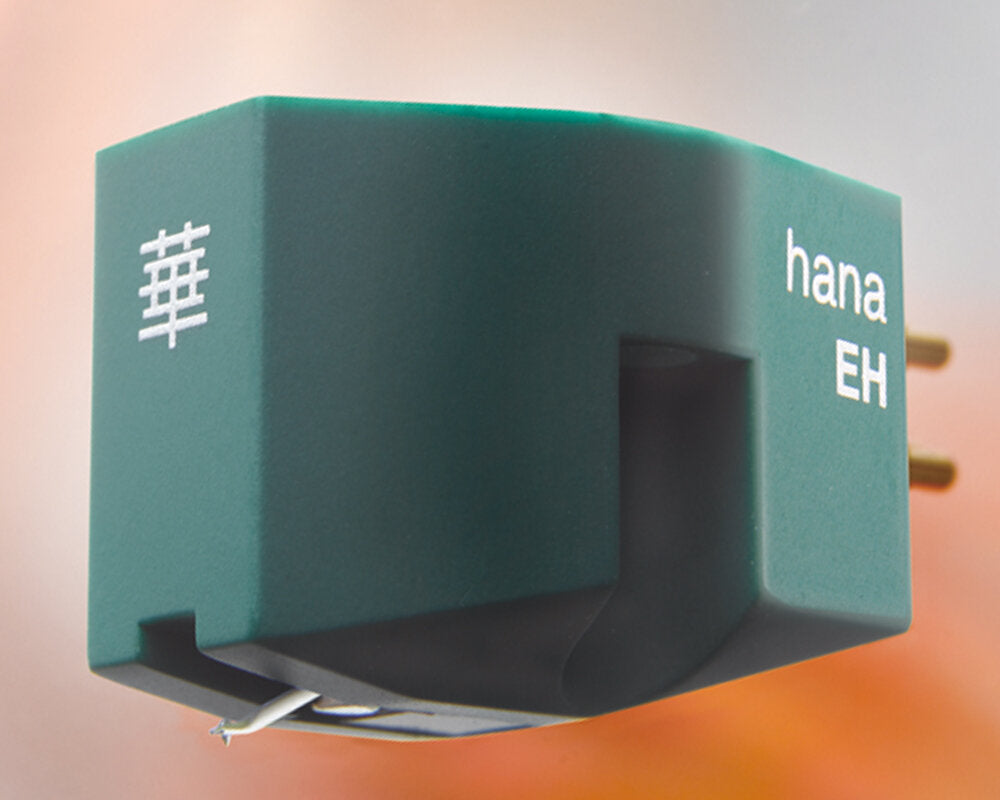

Hana EH Elliptical Moving Coil Cartridge (High Output)

Overview

The Hana EH high-output moving coil cartridge represents the best way to upgrade from “starter” MM cartridges that typically come packaged with most entry-level turntables. Weighing in at only 5 grams, and possessing great tracking ability, the Hana EH cartridge’s distinctive moss green body houses a special cross-coil generator, reproducing great bass and dynamics. The elliptical stylus mounted to an aluminum cantilever easily extracts the music in the groove as it effortlessly traces you LPs.

The EH is plug-and-play compatible with MM phono stages found in integrated amplifiers and AV receivers.

Specifications

Stylus Synthetic Elliptical
Cantilever Aluminium
Output Level 2mv/1kHz
Output Balance <2dB/1 KHz
Vertical Tracking Force 2g
Trackability 70 µm/2g
Channel Separation 25dB/1kHz
Frequency Response 15-25,000Hz
Impedance 130Ω/1kHz
Suggested Load Impedance >47kΩ
Cartridge Weight 5g
Body Colour Moss Green
Warranty 2 years
