Gryphon Mirage Preamplifier - Consignment

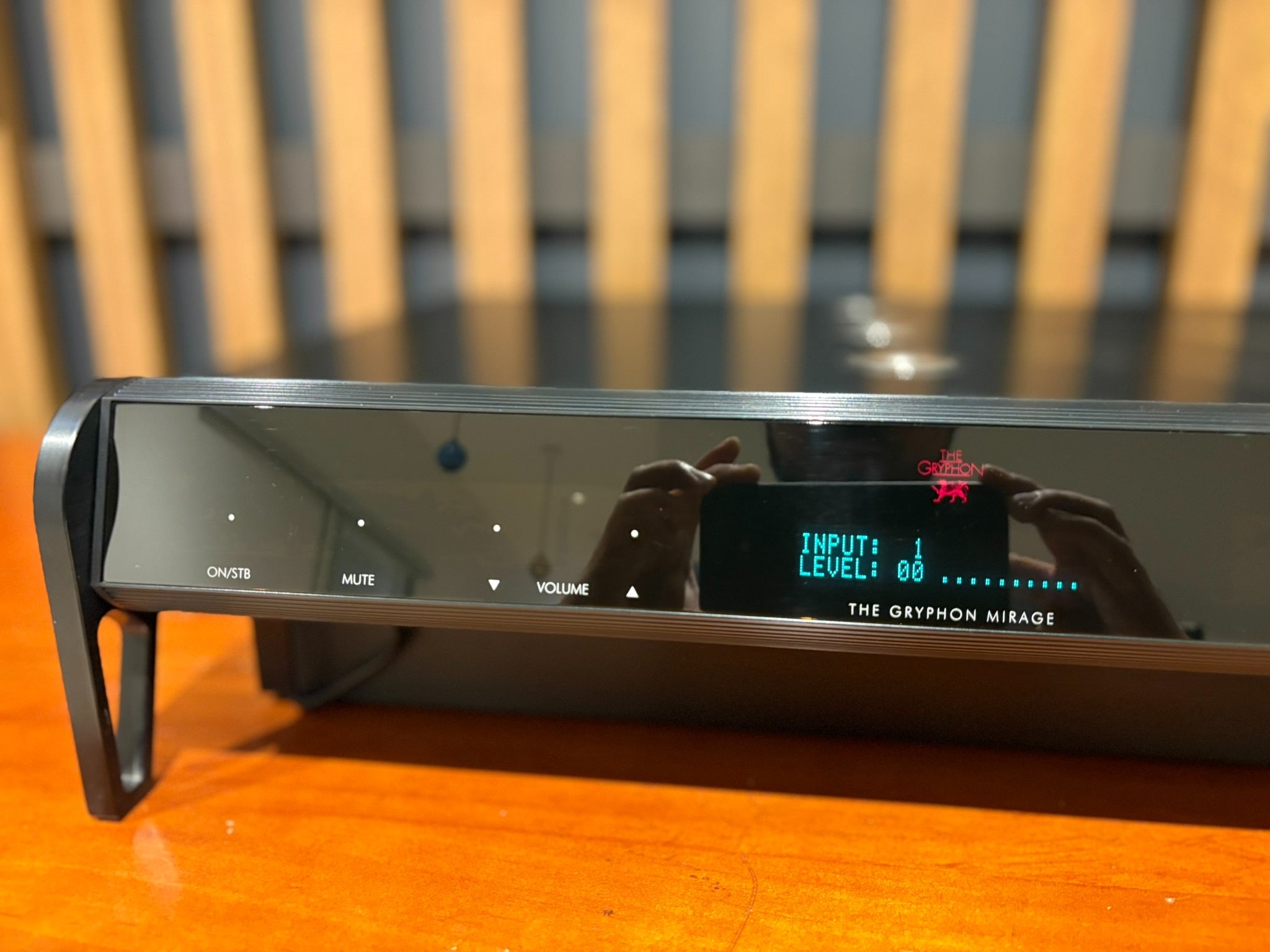

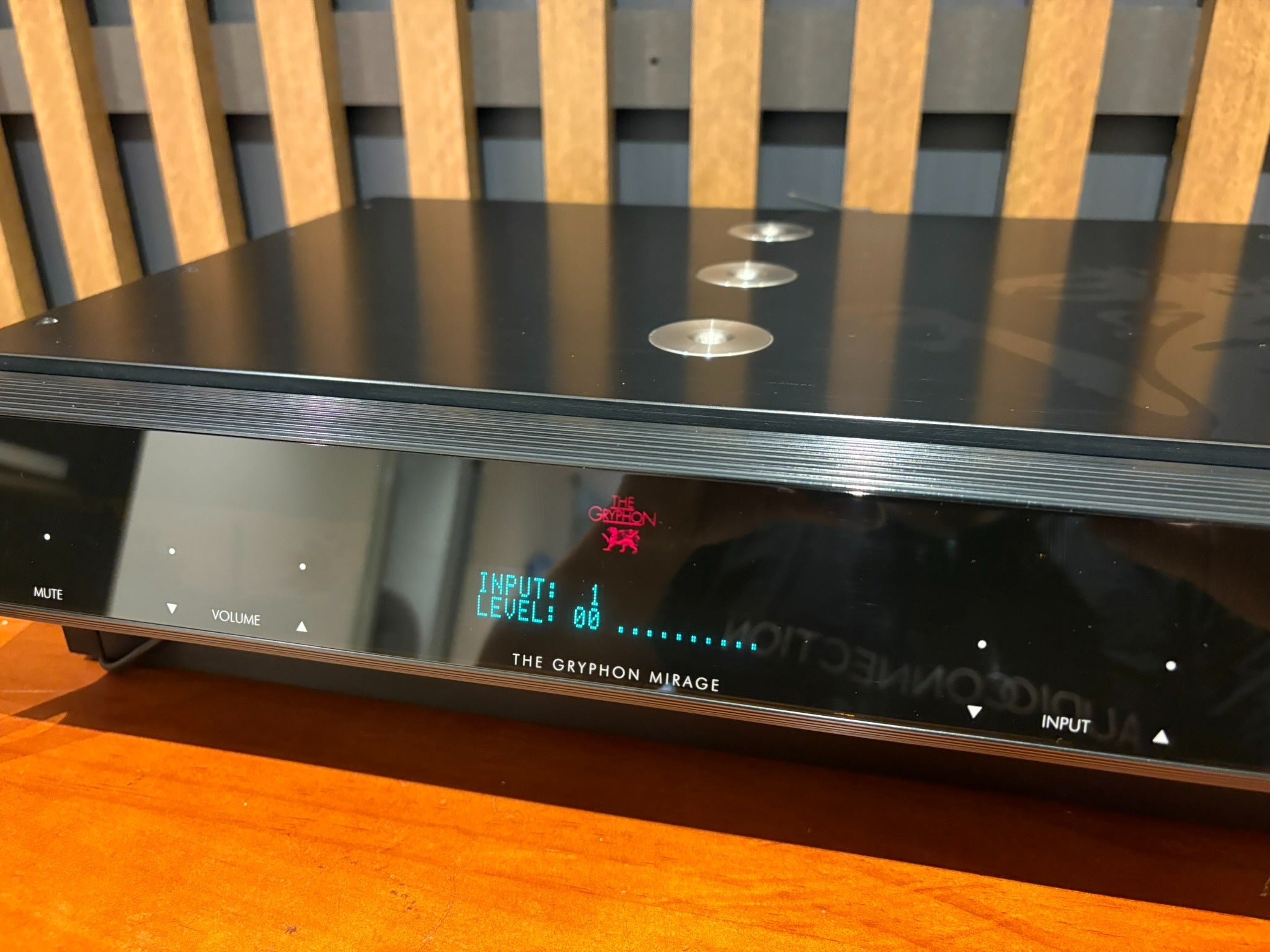

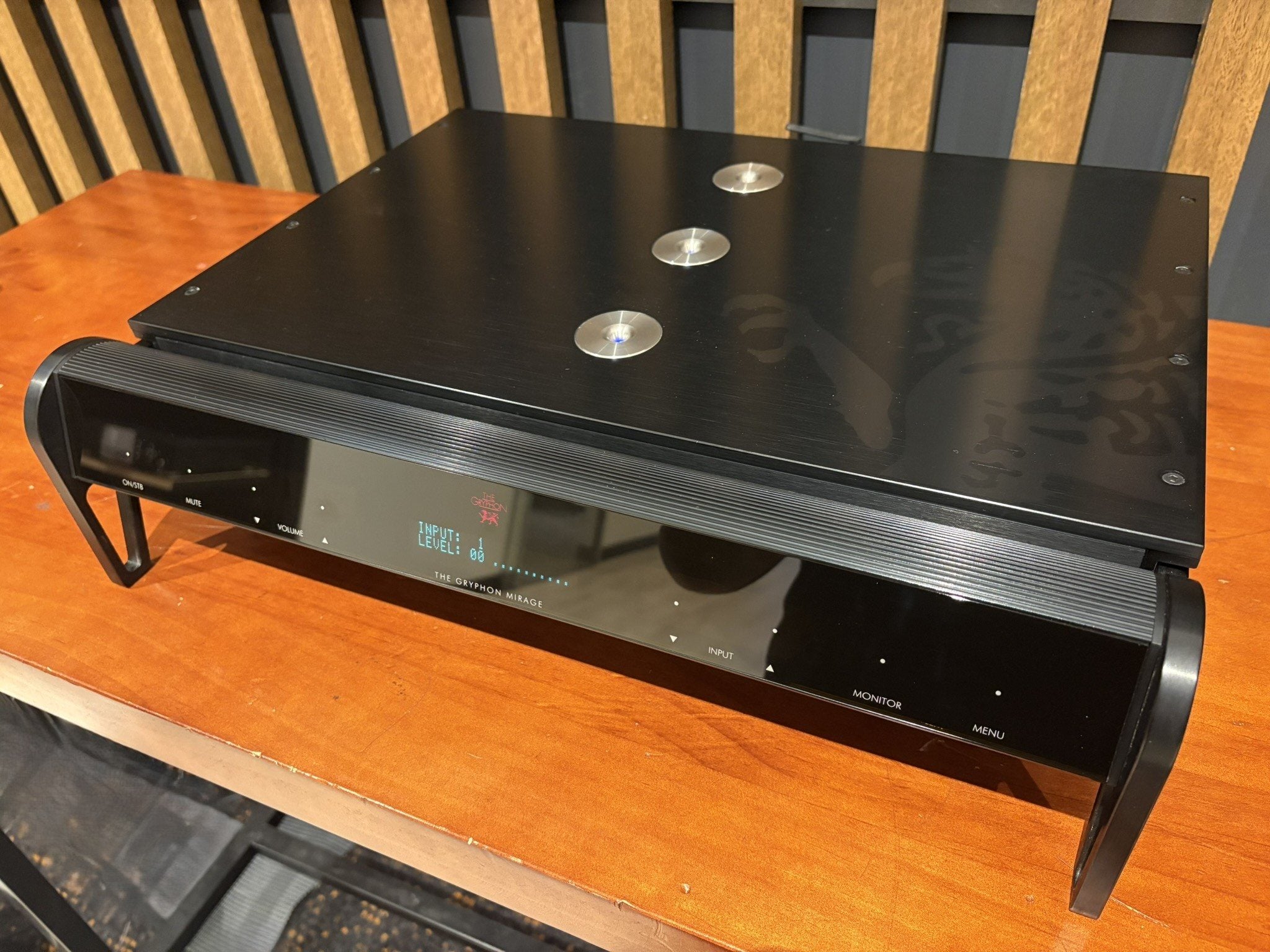

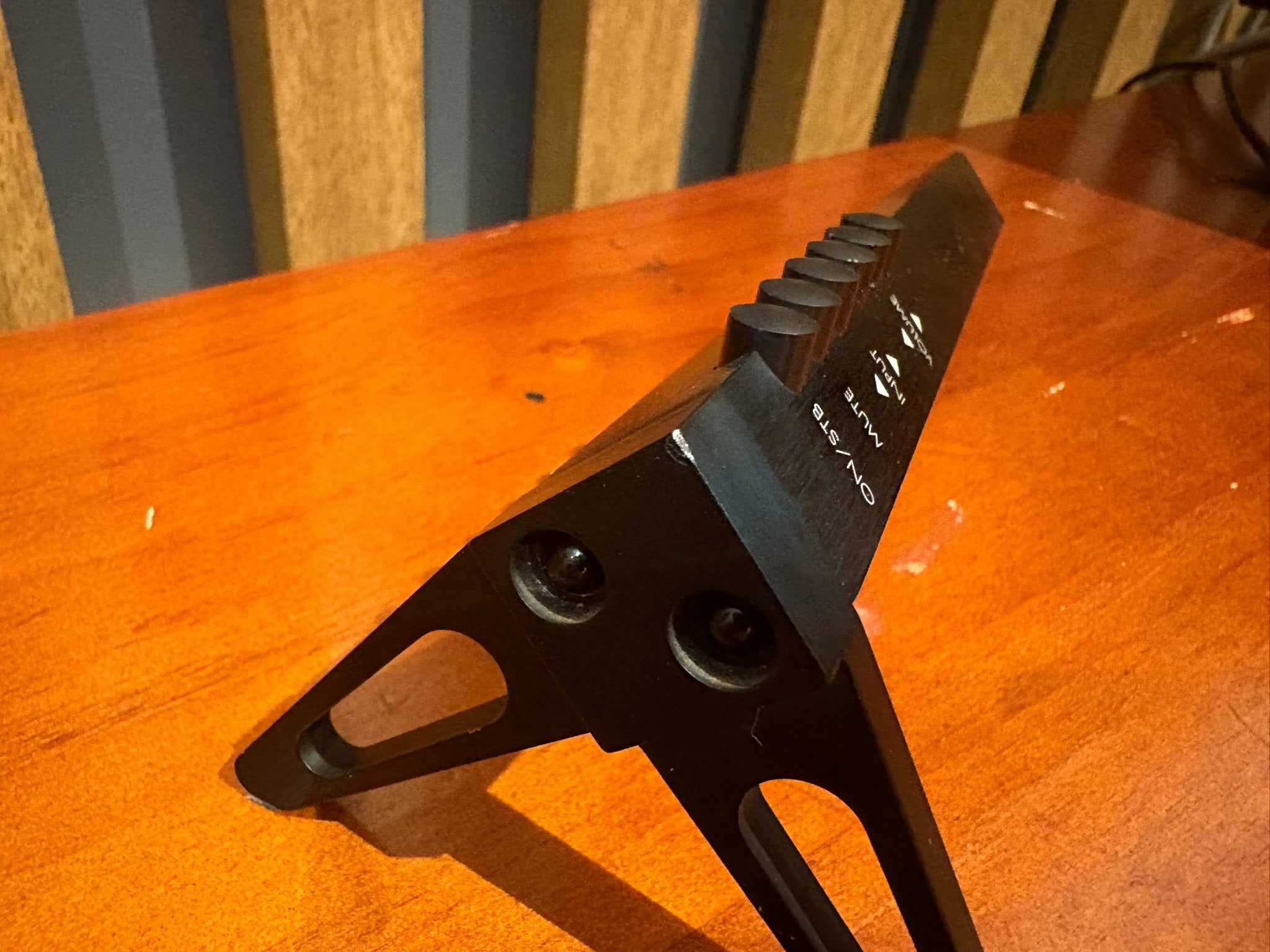

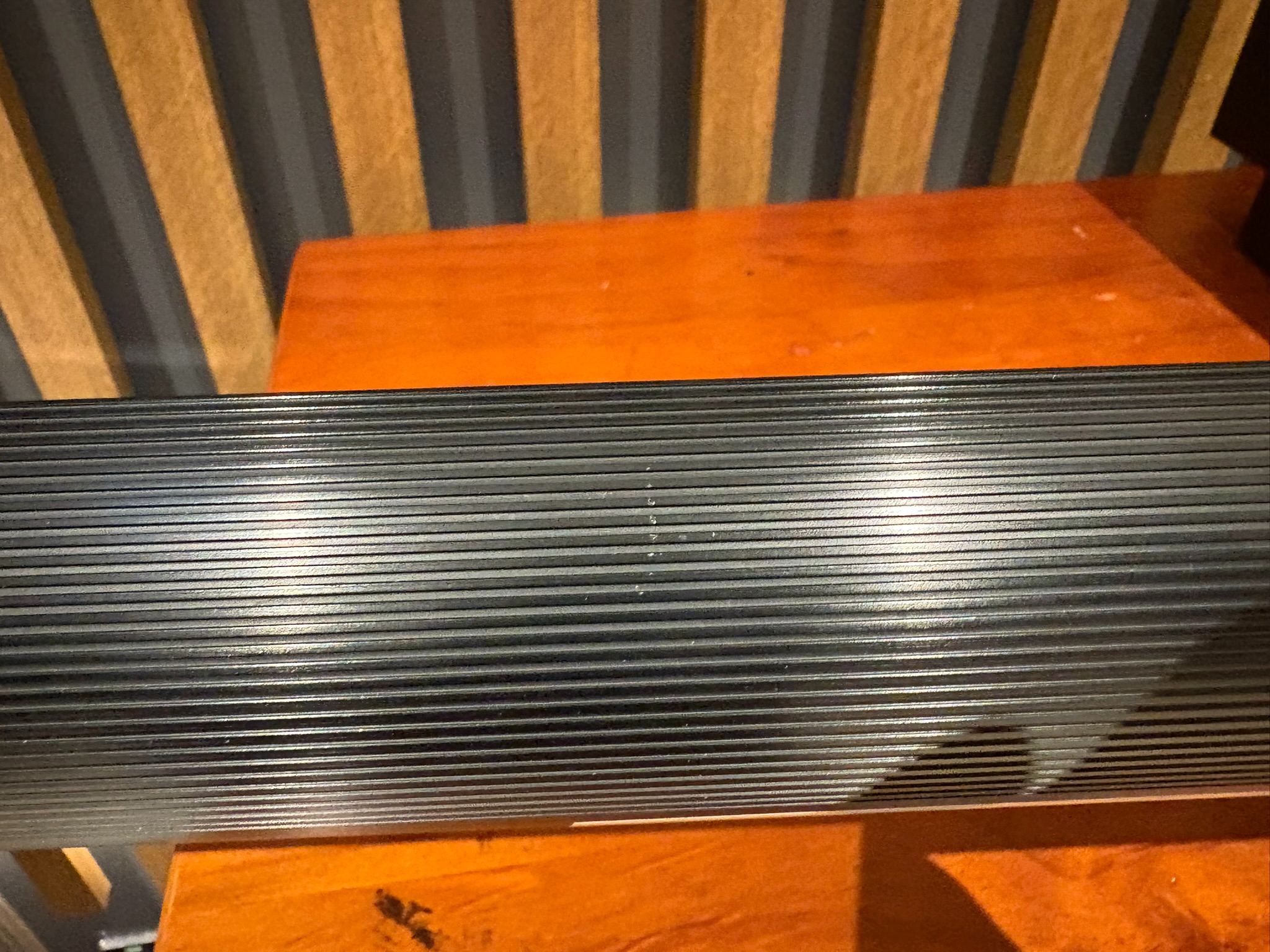

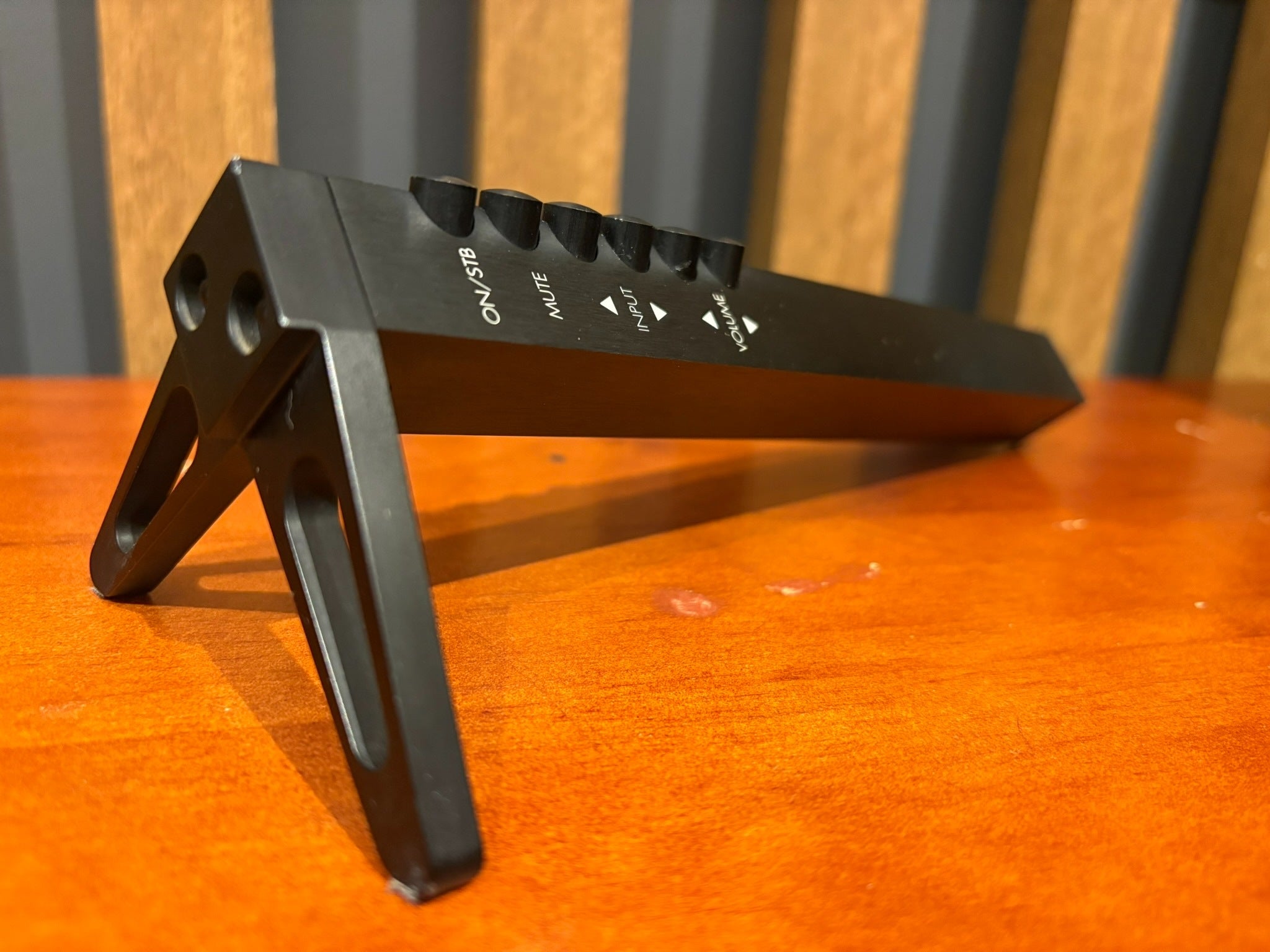

Condition: Very Good, scratch to control unit top and remote (See photos)

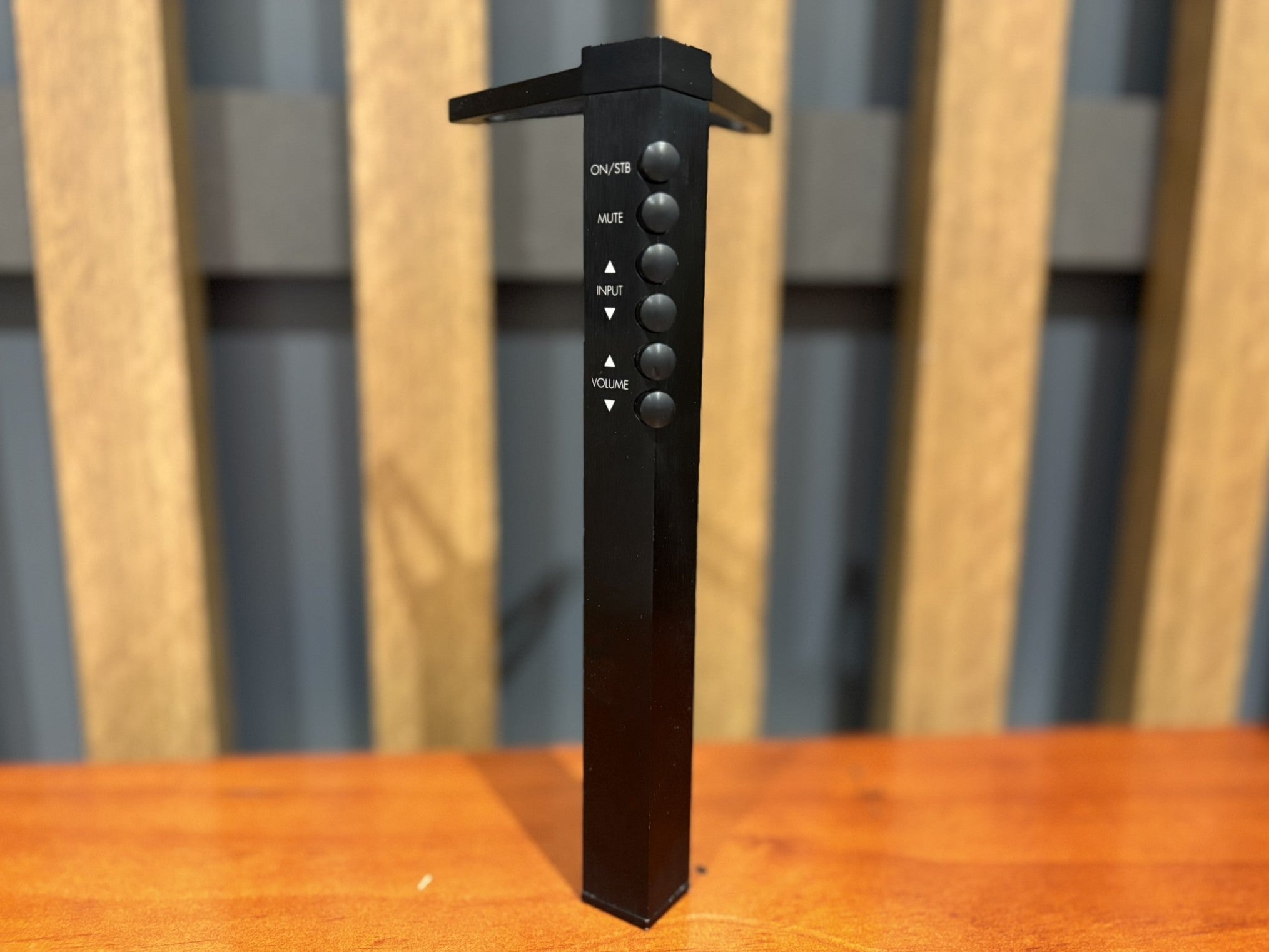

Includes: Remote and Power Cable (No Box)
SN: 1906121
Made in Denmark
Overview
From the mind of Gryphon’s founder and designer Flemming E. Rasmusssen, Mirage utilises a host of tried-and-true audio design standards, while pushing the edges. From the initial set-up ("How do I connect the control unit to the main chassis?") it's obvious no expense has been spared.
Built upon a double-sided military spec printed circuit board, and using the highest quality componentry including Holmgren toroidal transformers, Gold-plated PCB-mounted Swiss Neutric XLR sockets and Vishay Bulk Metal Foil ultra-precision resistors, Mirage is unlikely to end up bottlenecking your signal flow while providing Gryphon's beloved black-as-night signature sound profile.
- True Dual Mono configuration
- Pure Class A operation
- 63,000 microFarad capacity
- Ultra-wideband 3 MHz frequency response
- Zero negative feedback
- DC-coupling with servo-control
- Isolated power supply for non-audio circuits
- Extensive mechanical decoupling
- Extensive local voltage regulation
- Microprocessor-controlled 50-step relay volume attenuator for best sonic performance featuring Vishay Bulk Metal Foil ultra-precision resistors and ultra low capacitance relays
- Fully discrete circuitry using Ultra-short signal path
- Military spec. double-sided up to 70um copper printed circuit boards
- Two separate Holmgren toroidal transformers, one for each channel
- Gold-plated input-isolating relays
- PCB-mounted sockets eliminate wiring and shorten signal path

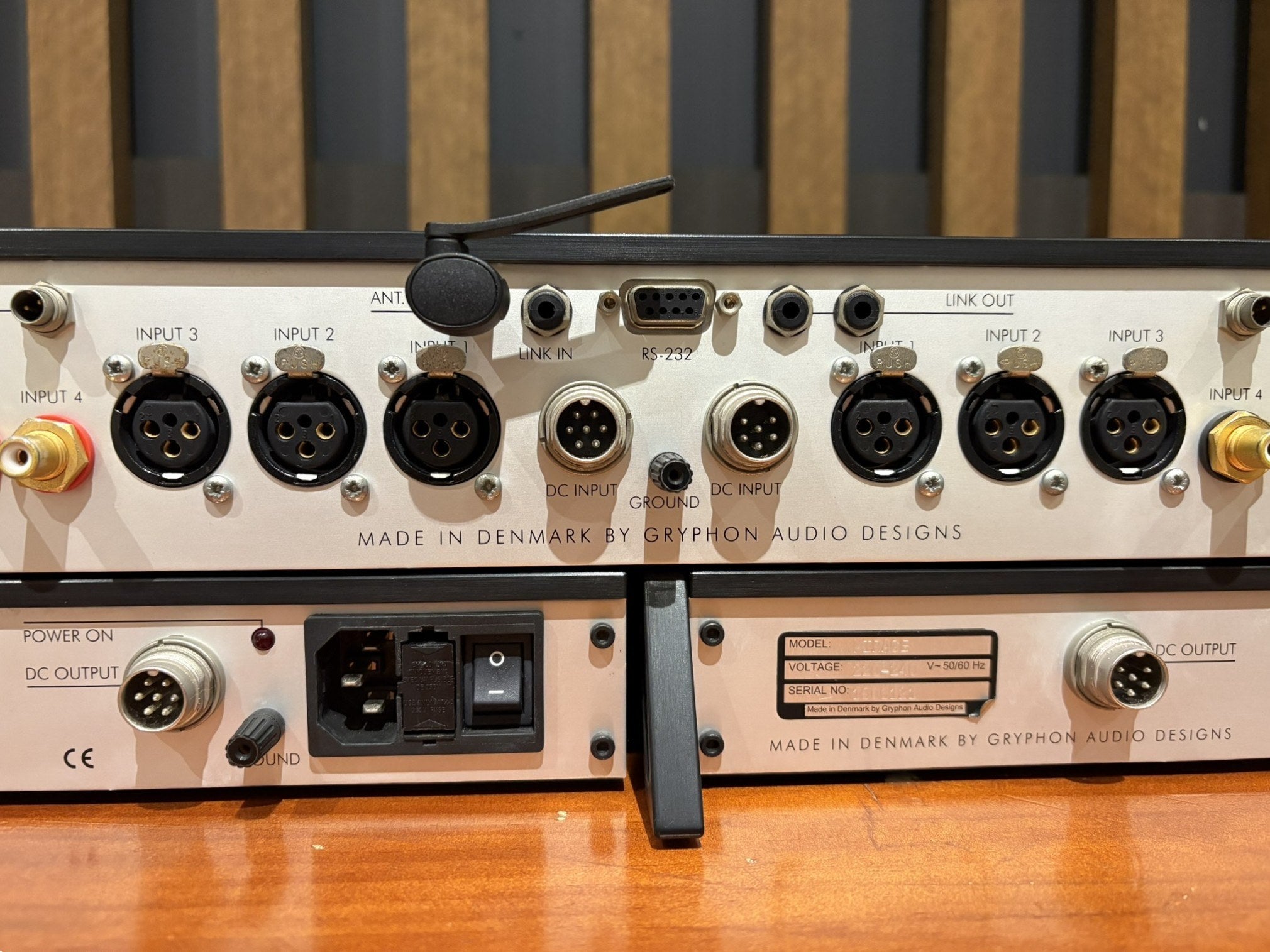

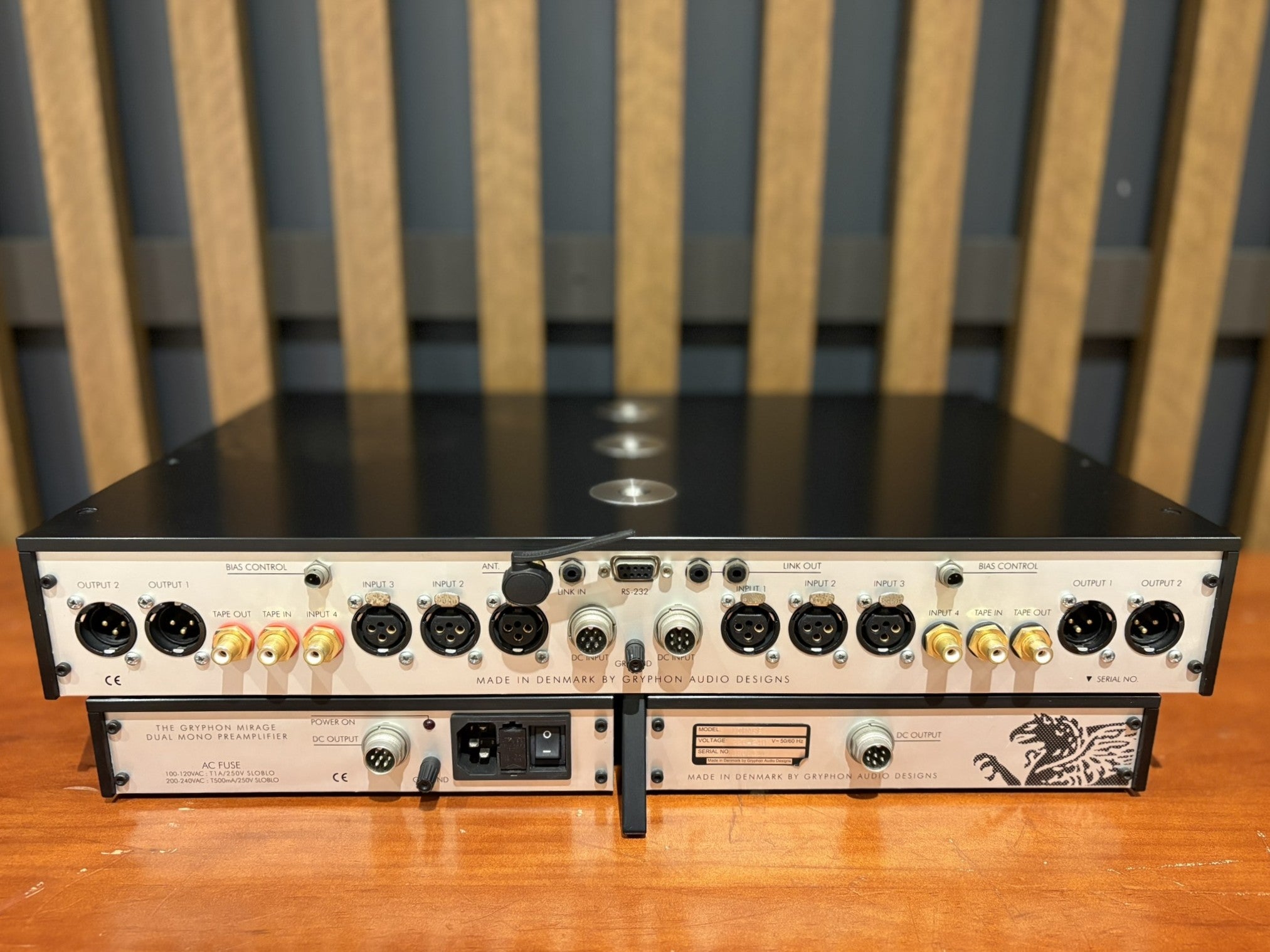

- Gold-plated PCB-mounted Swiss Neutric XLR sockets for three balanced sources and two outputs

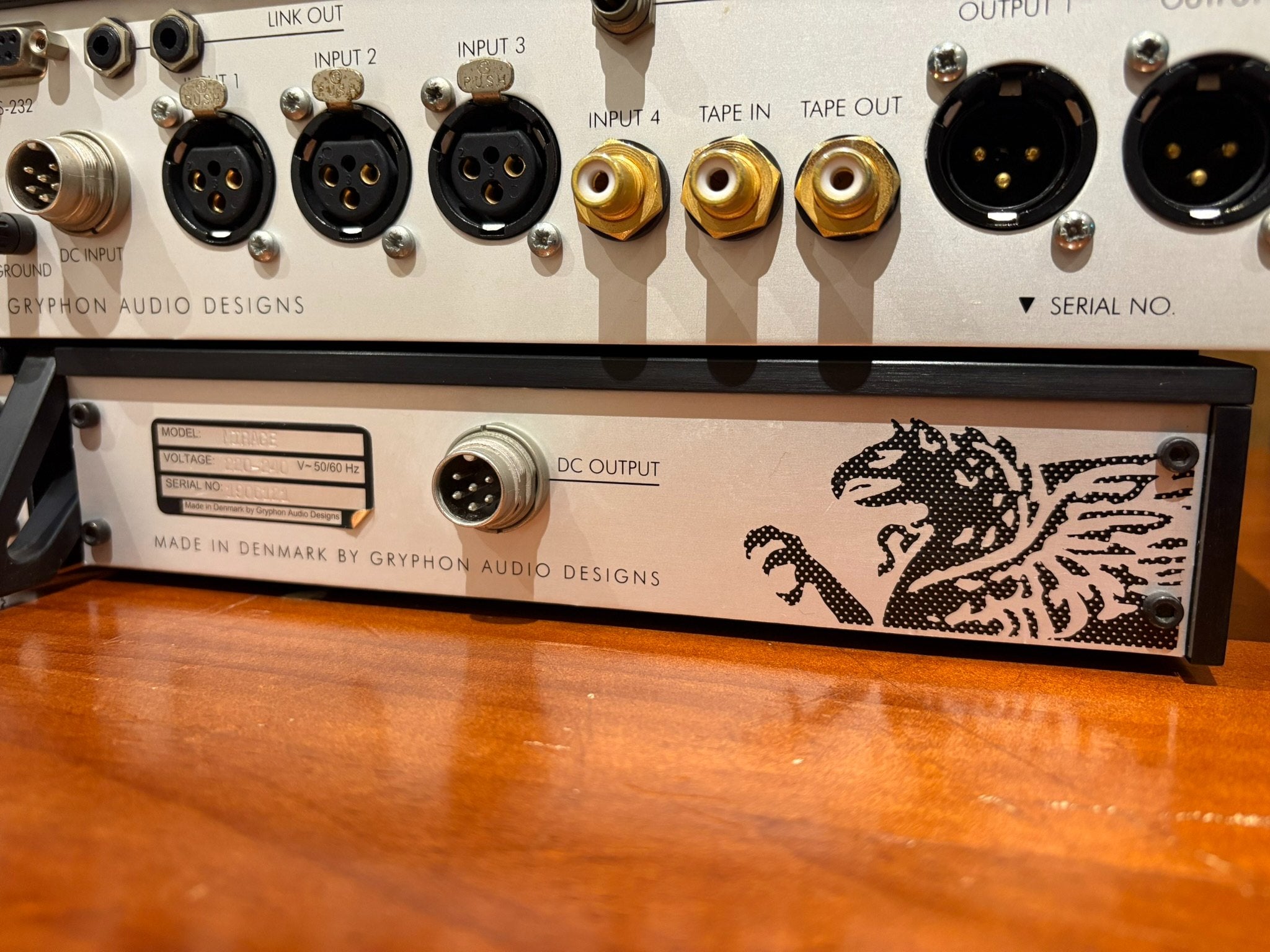

- Gold-plated PCB-mounted phono sockets with Teflon insulation for 2 inputs and one Tape output
- Wireless communication between Mirage Control unit and Mirage Preamplifier
- Fixed-level AV throughput for uncompromising integration with surround systems
- Microprocessor-controlled menu functions
- Adjustable channel balance, source level matching, start-up and maximum level
- Green Bias control for Gryphon Power Amplifiers

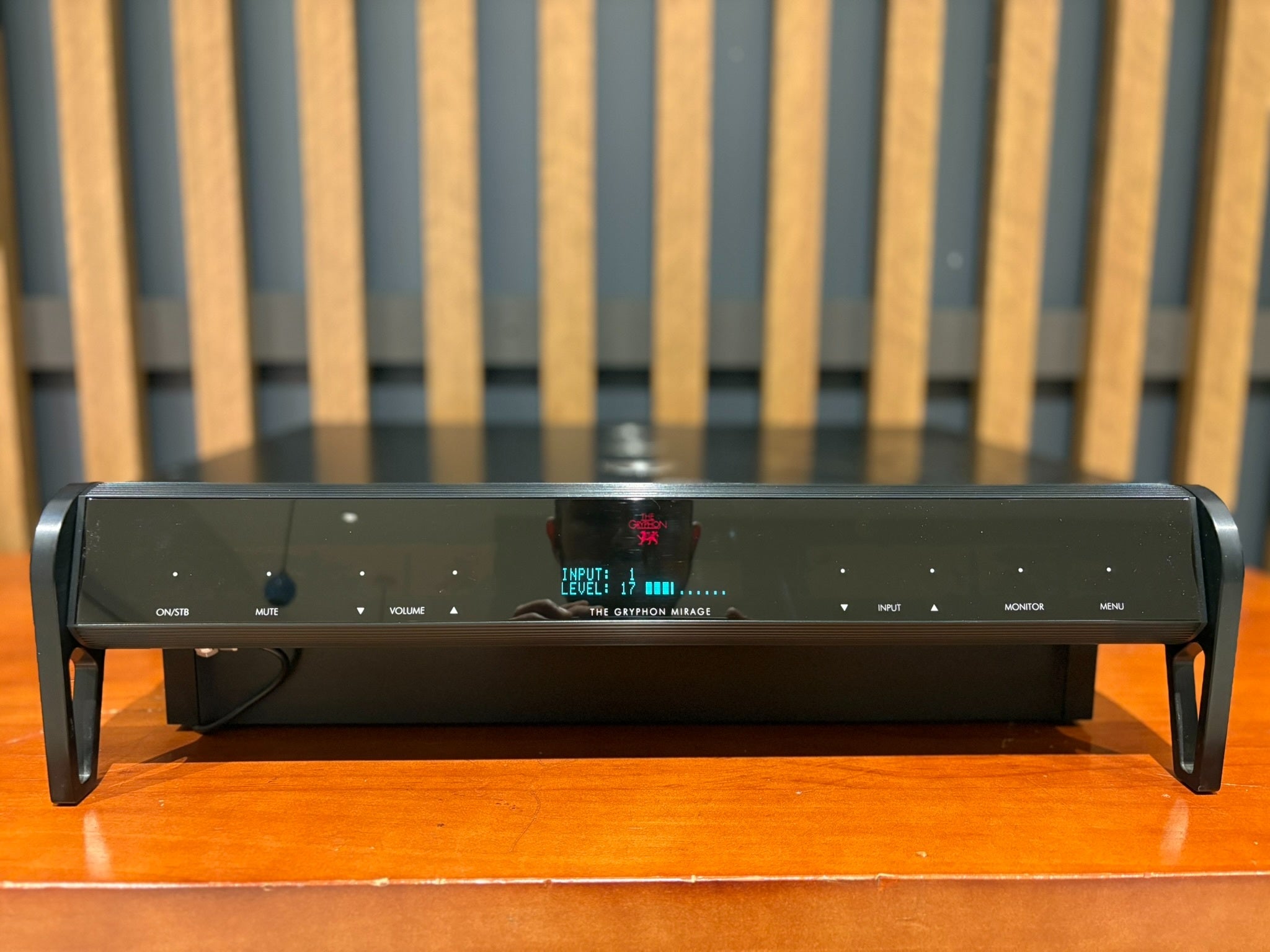

- Vacuum Fluorescent Display with 2 lines and 50 characters
- Adjustable display Lighting (High, Medium, Low or Off)
- Non-magnetic, non-resonant aluminum cabinets
- 12VDC link input and output
- Infrared remote control
- Designed and built in Denmark
Specification
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.007%
Inputs : 3 x XLR, 2 x RCA
Gain: 29.5dB (line)
Signal to noise ratio: 94dB (line)
Input impedance, balanced (20-20000Hz 50KOhm
Input impedance, single ended (20-20000Hz)) 25KOhm
Output: 23V (Pre out Max)
Power Supply Capacity, preamp 2 x 25000uF
Power Supply Capacity 2 x 47000 uF
Dimensions: 480 x 130 x 400mm
Weight: 16.5kg
AUDIO CONNECTION QUALITY GUARANTEE
✔️ Seven day warranty on Consignment*
✔️Passed our checks for functionality
✔️A full inspection noting for any defects
✔️A full completeness check for all included parts and accessories
