Gryphon Audio Kalliope DAC - As Traded

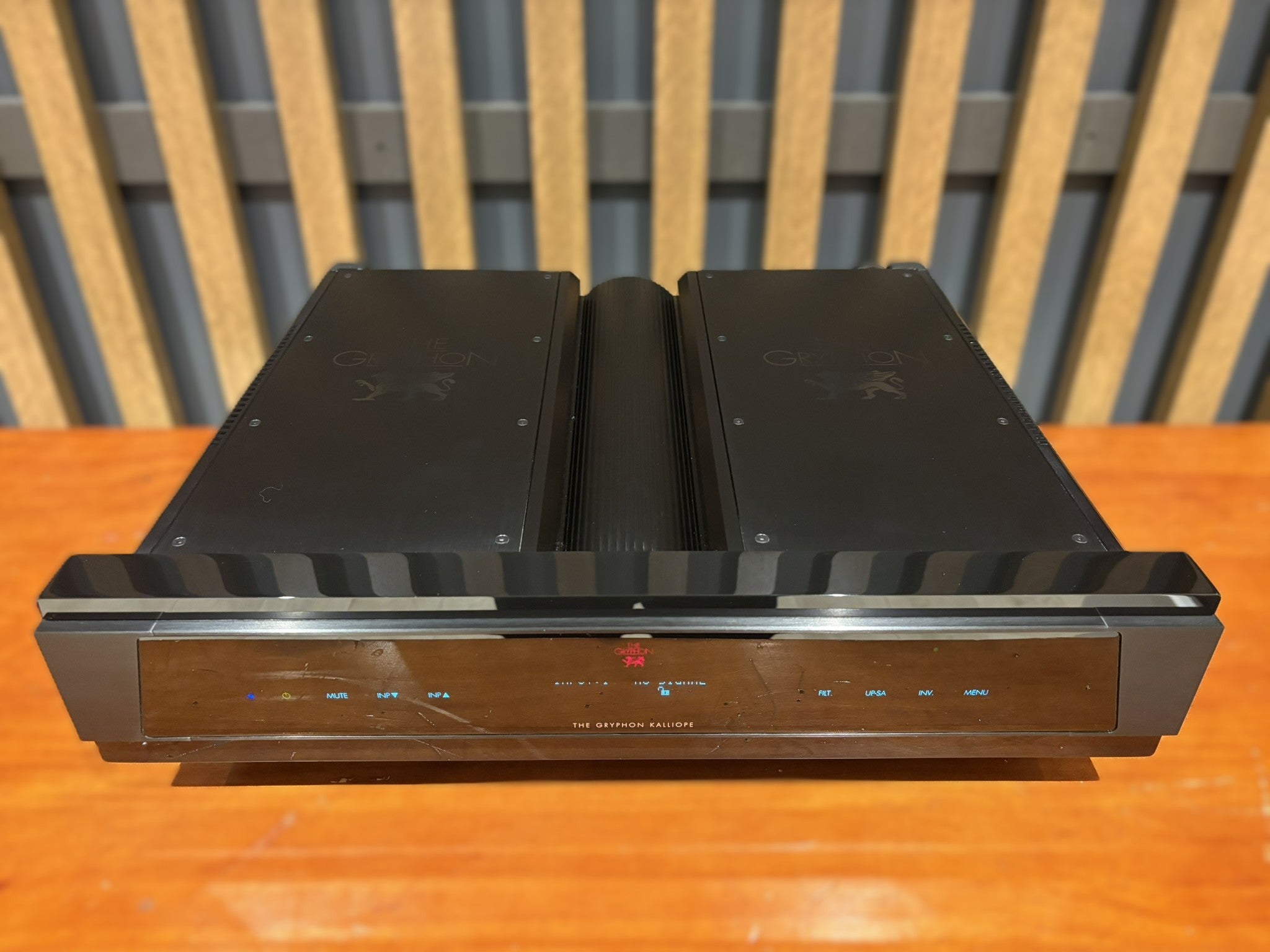

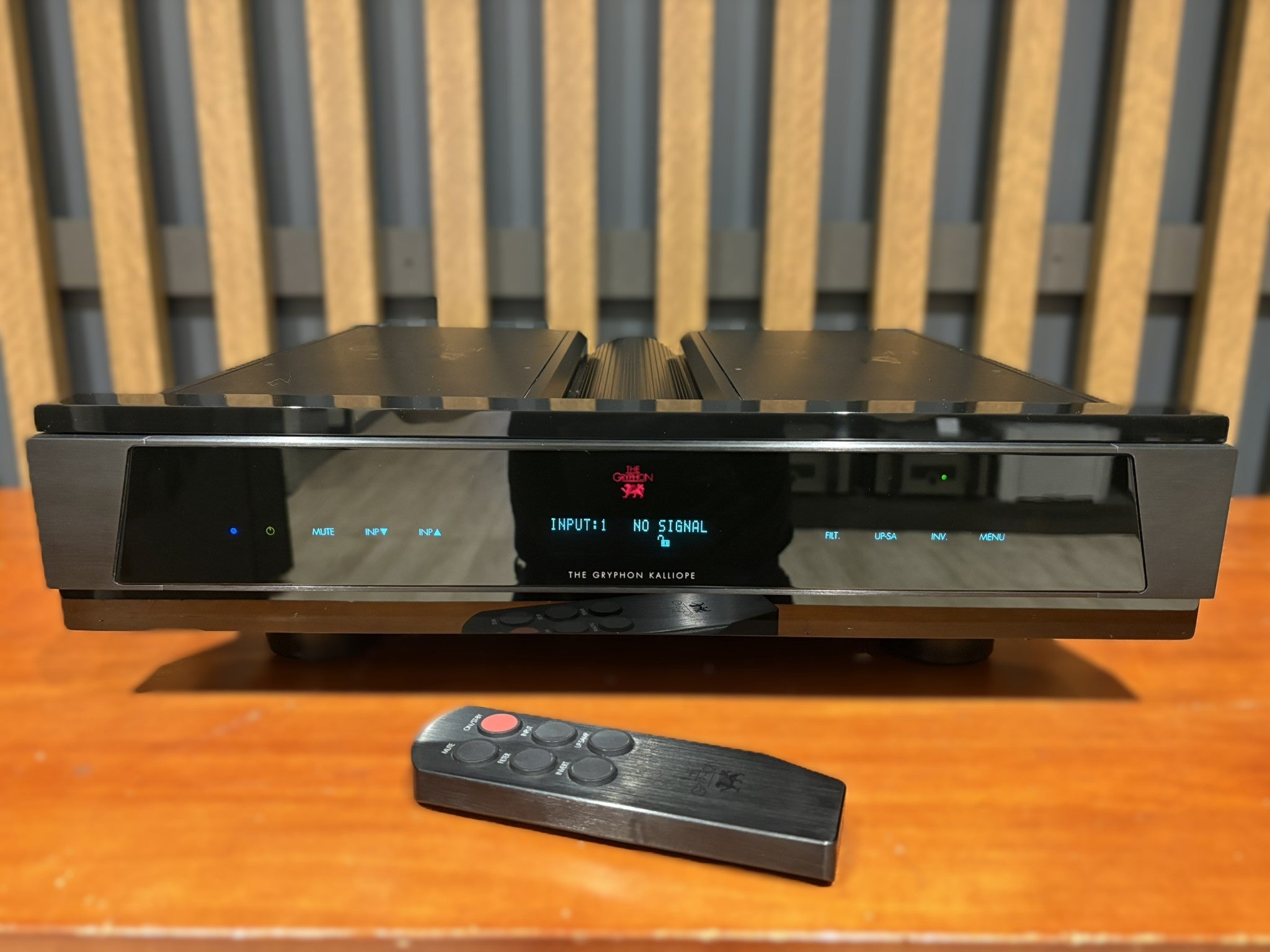

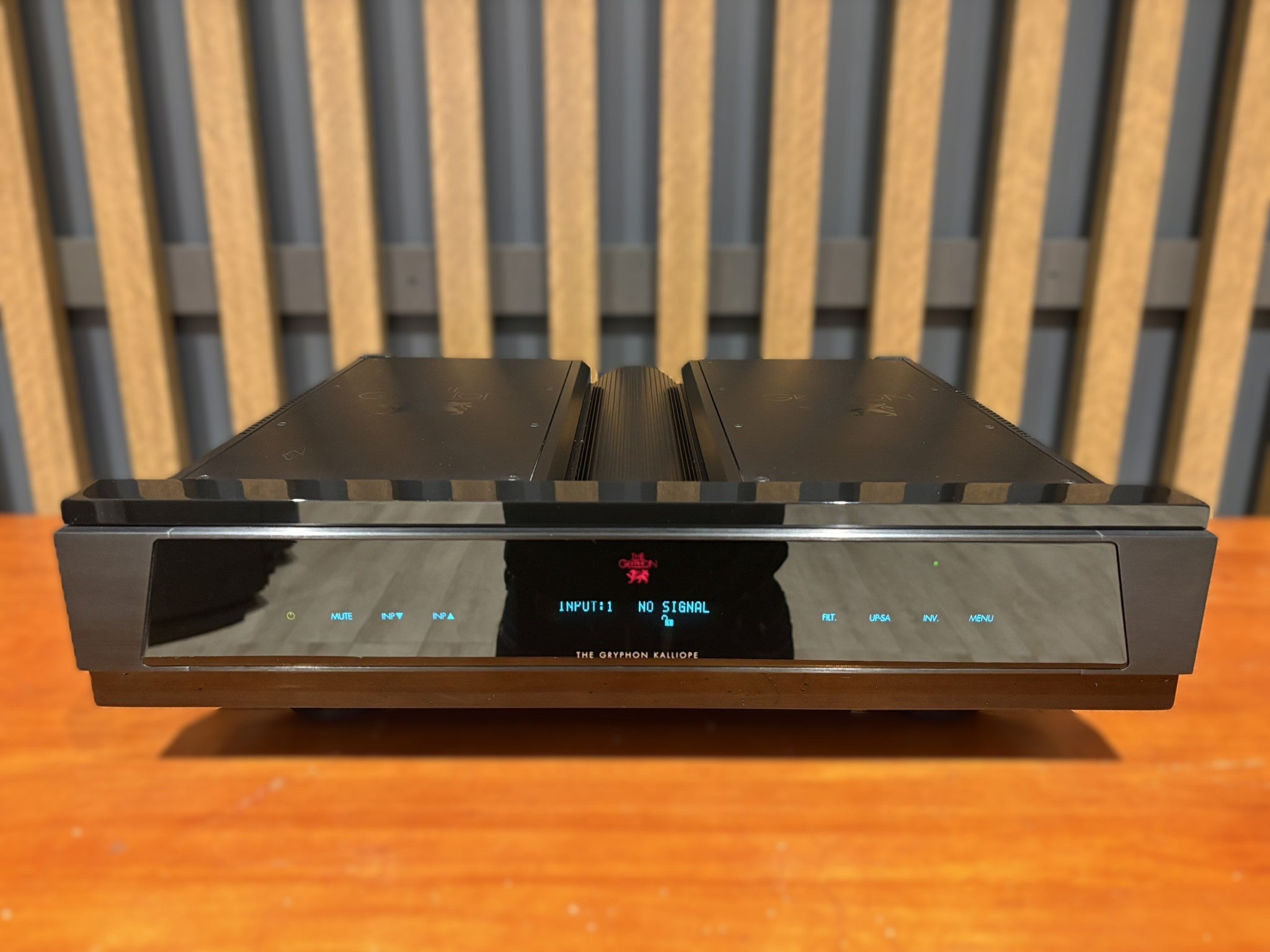

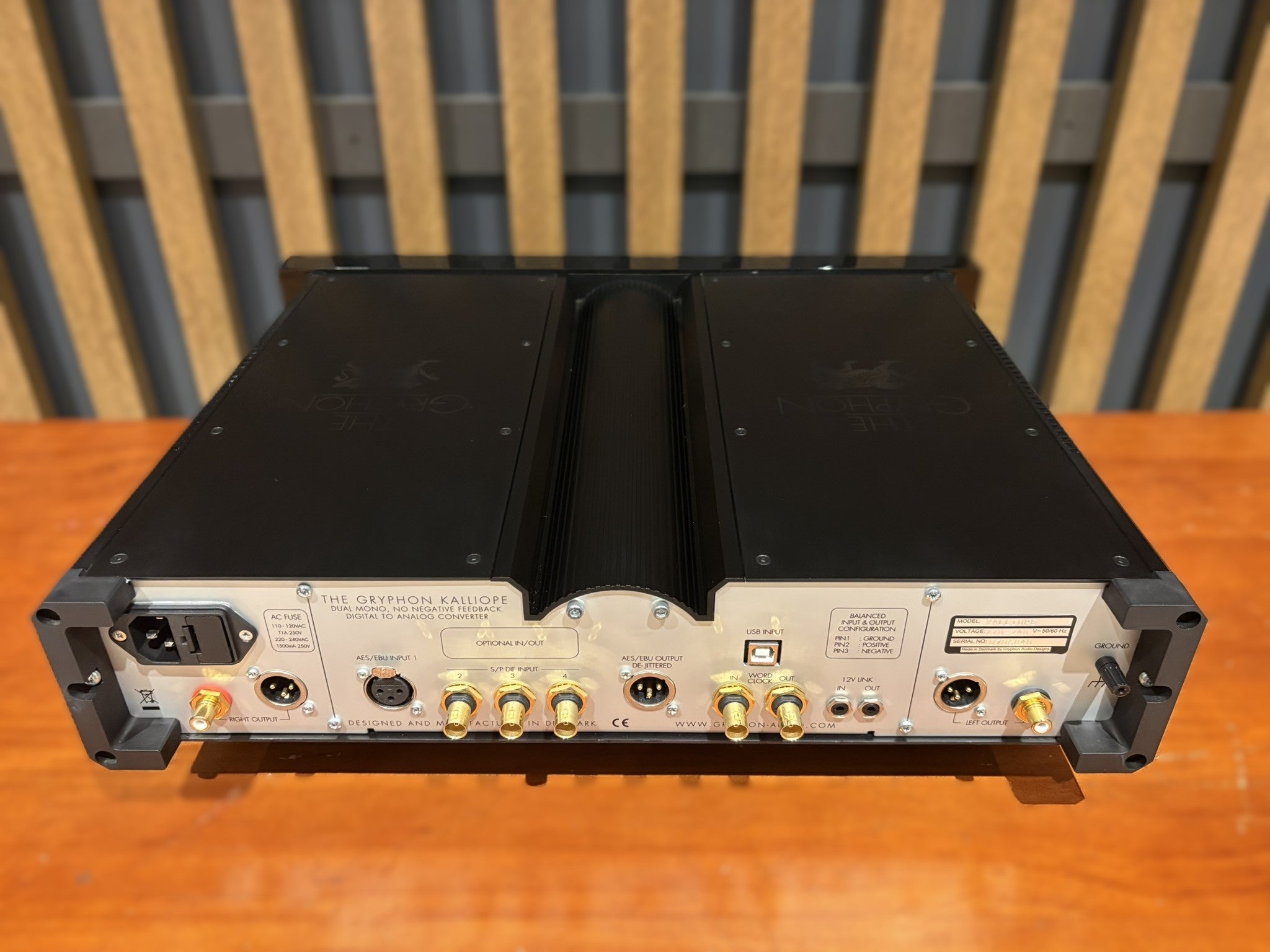

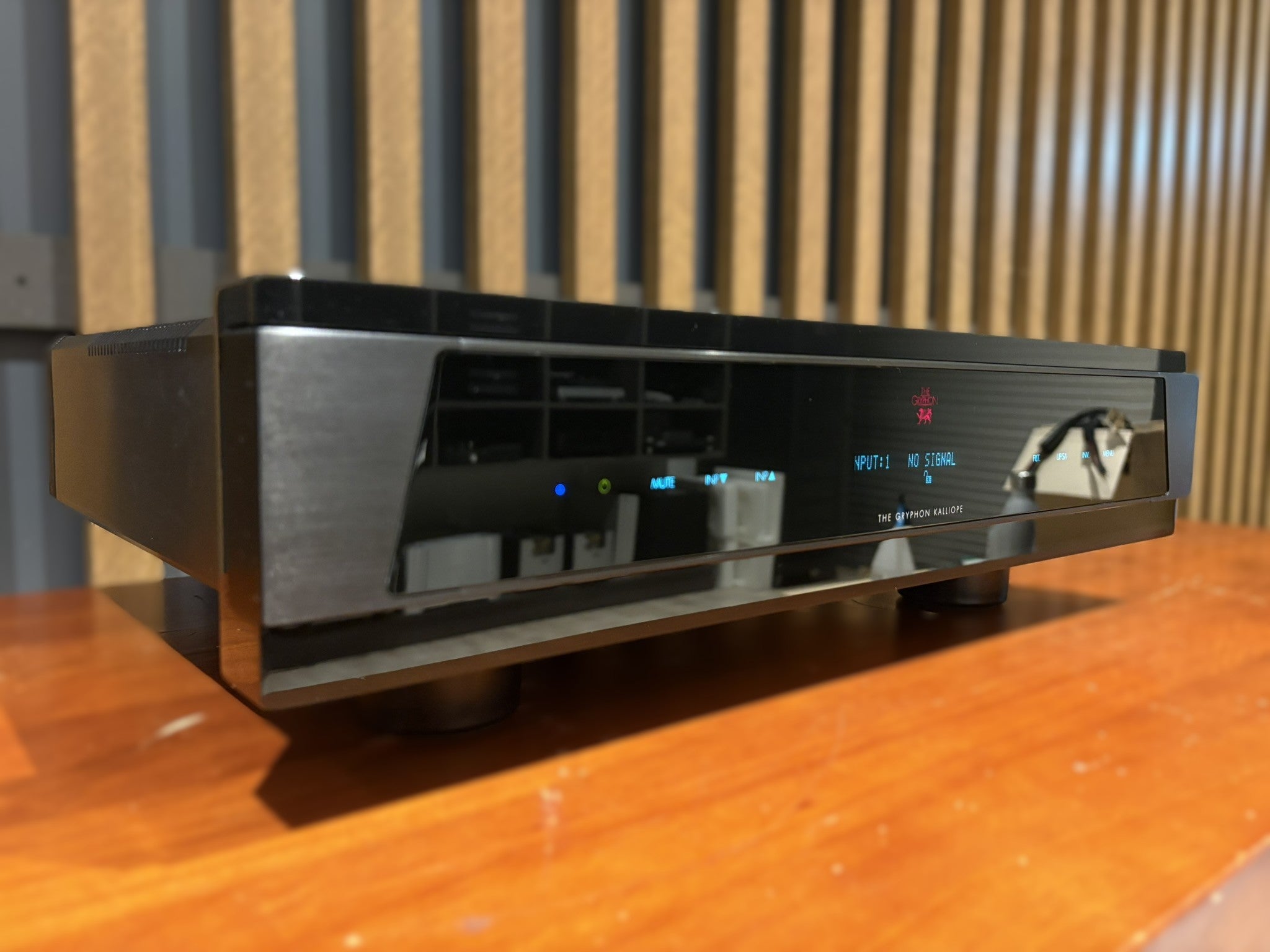

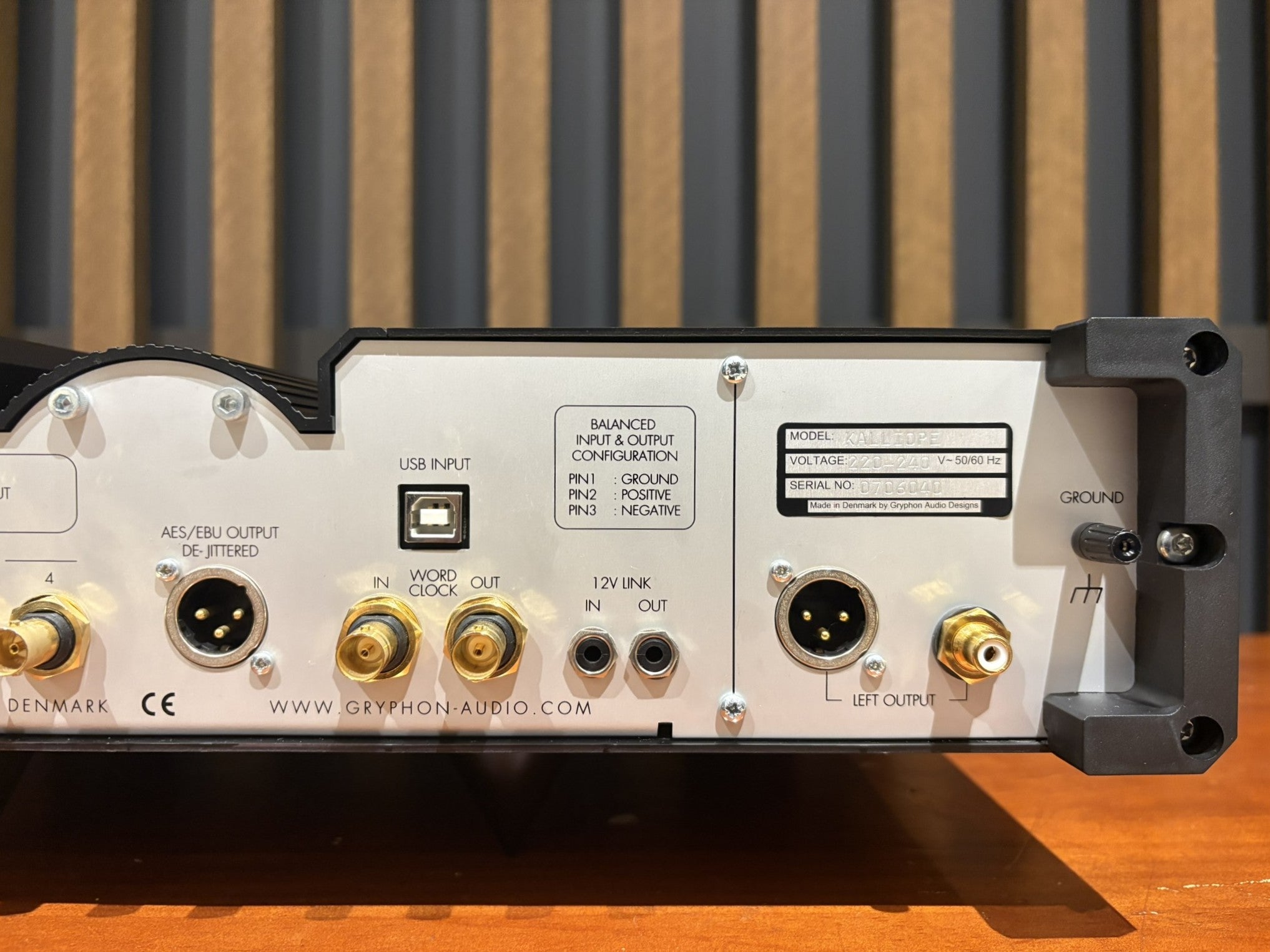

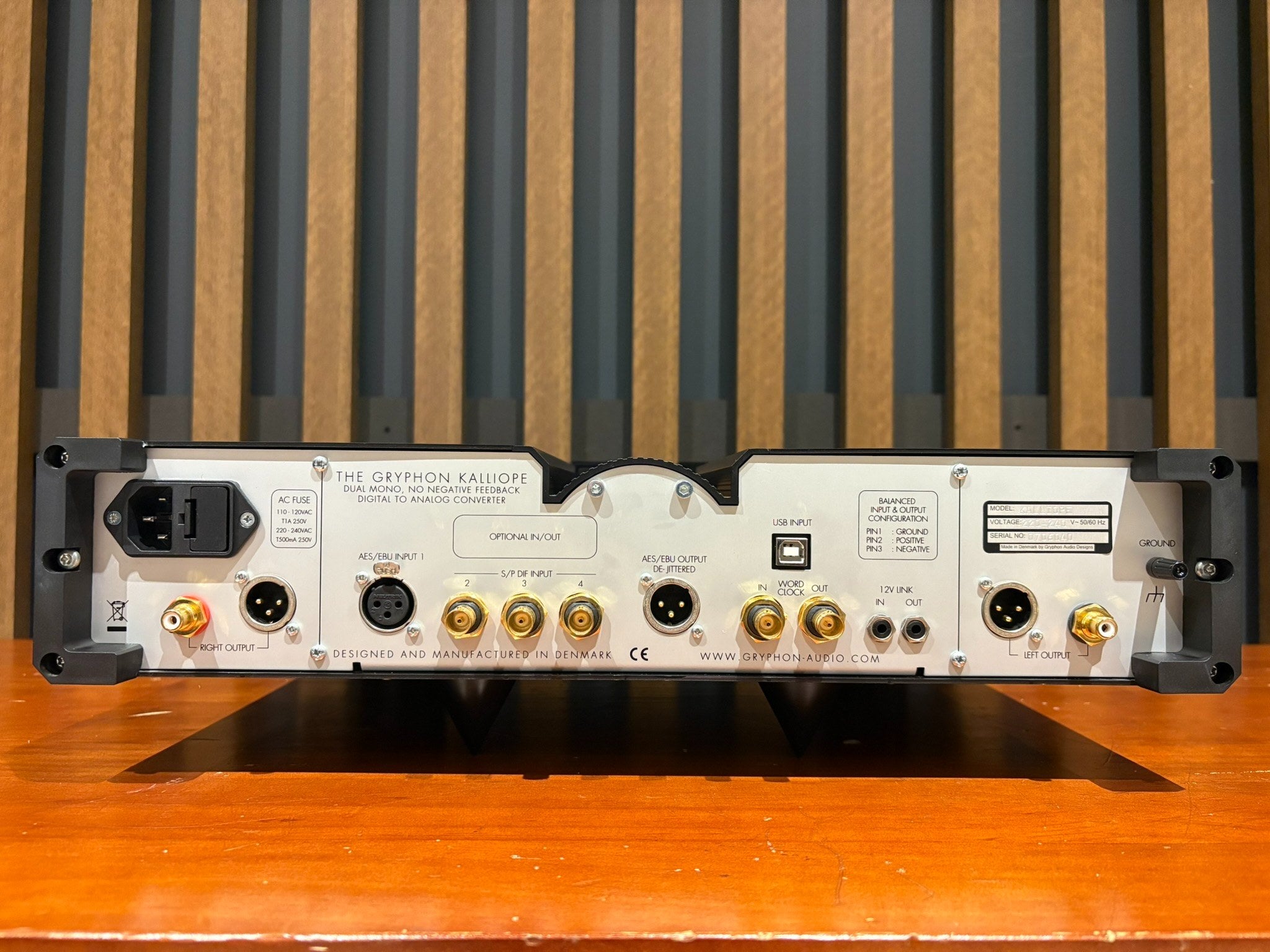

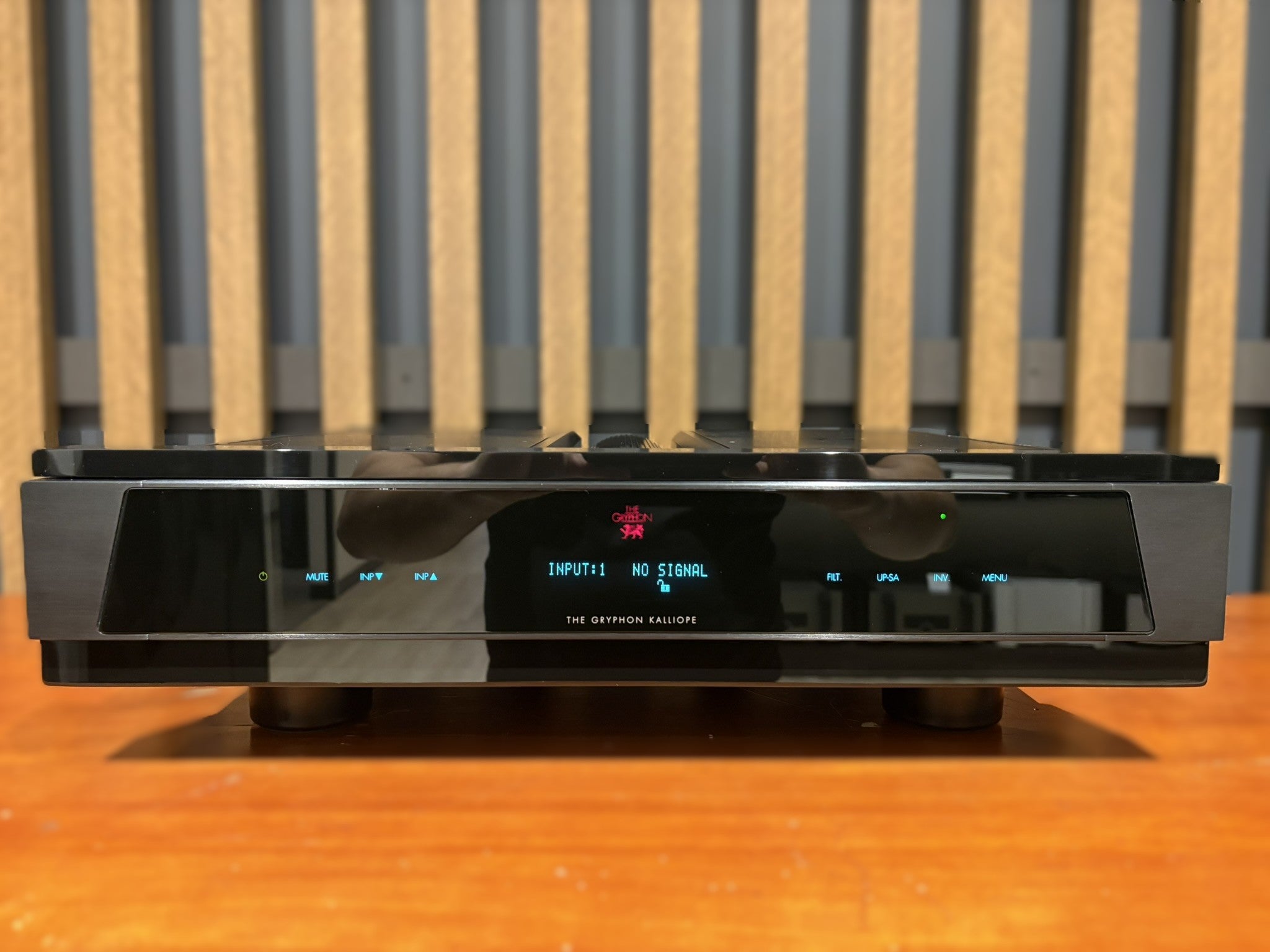

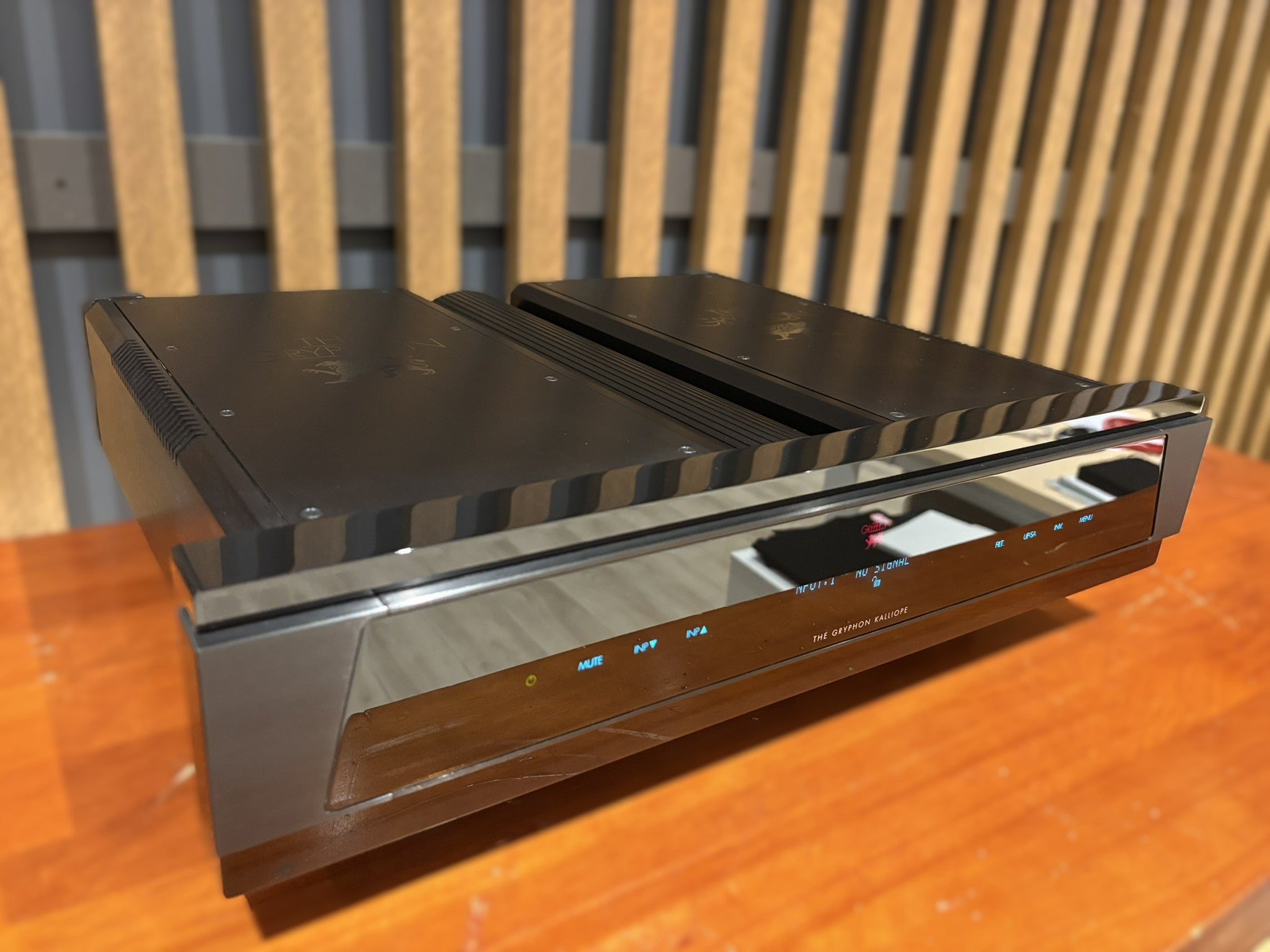

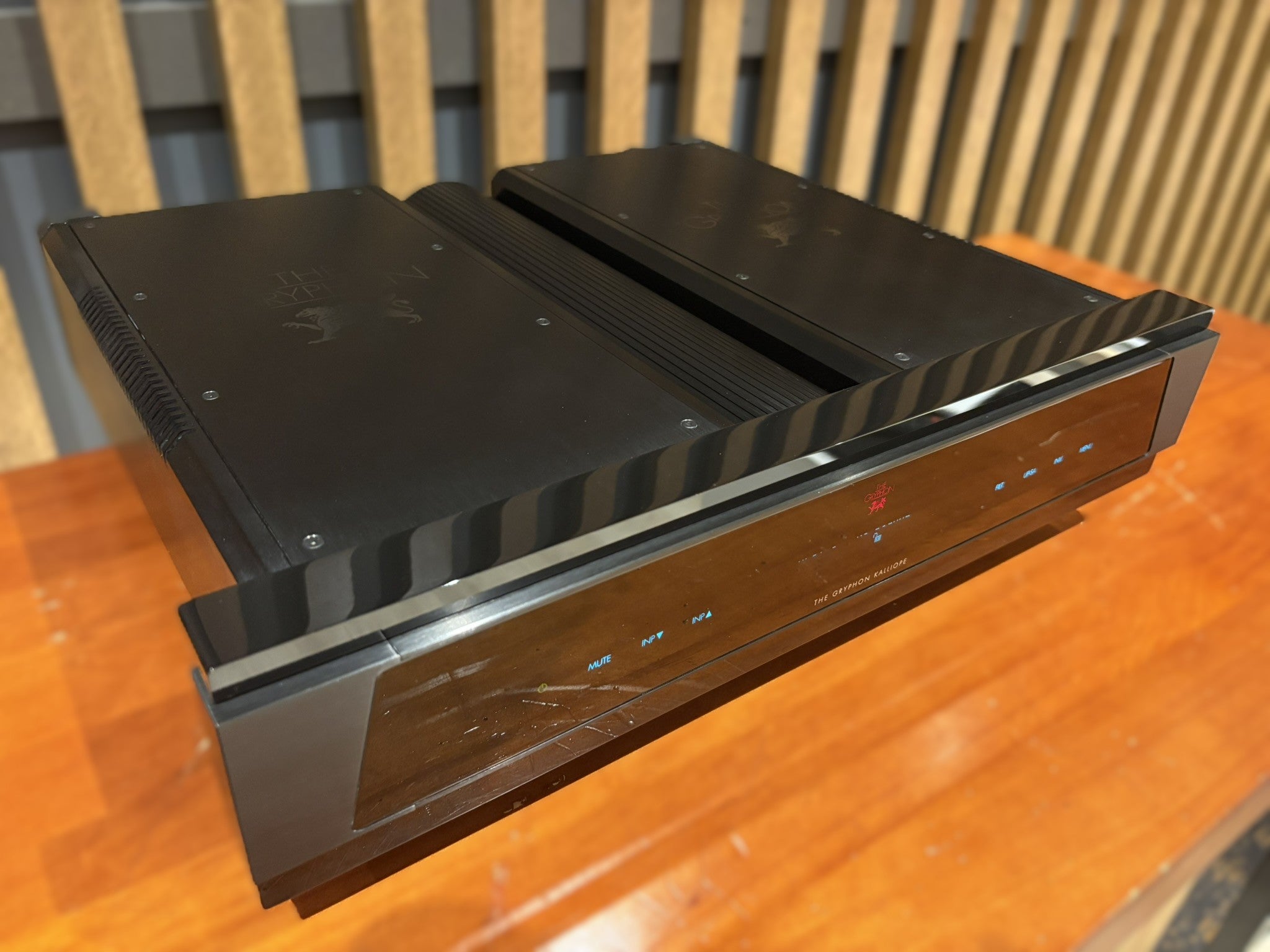

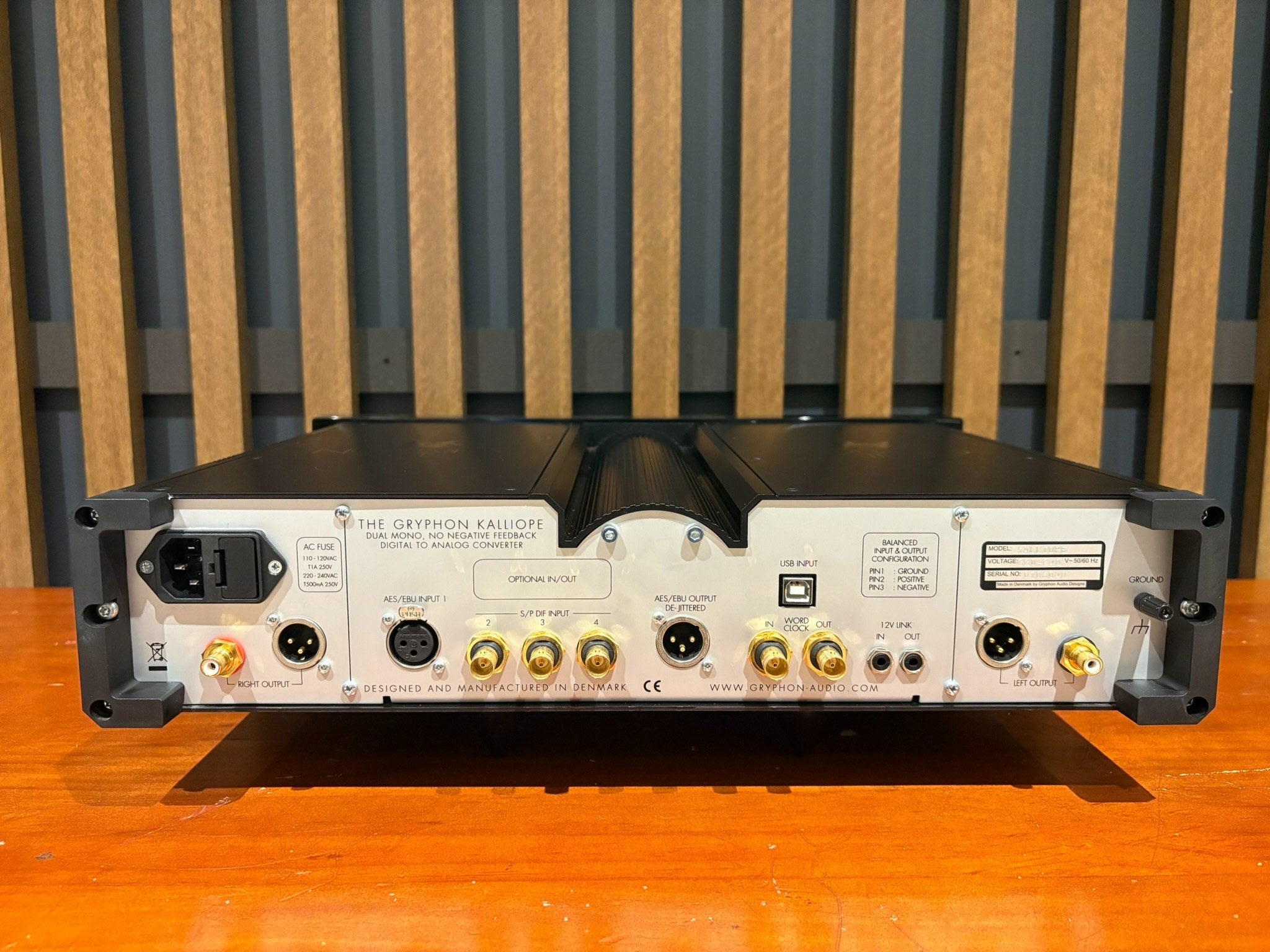

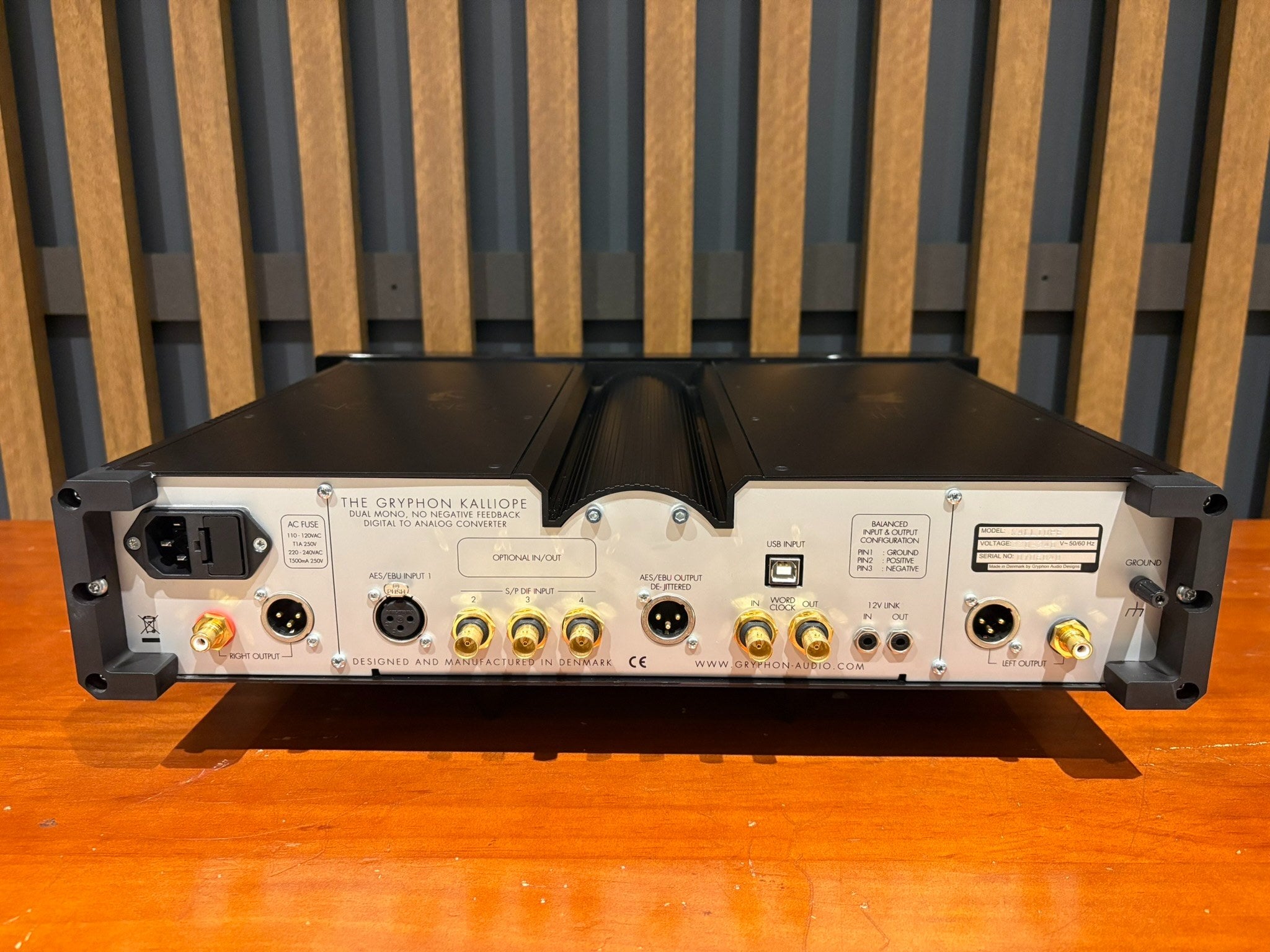

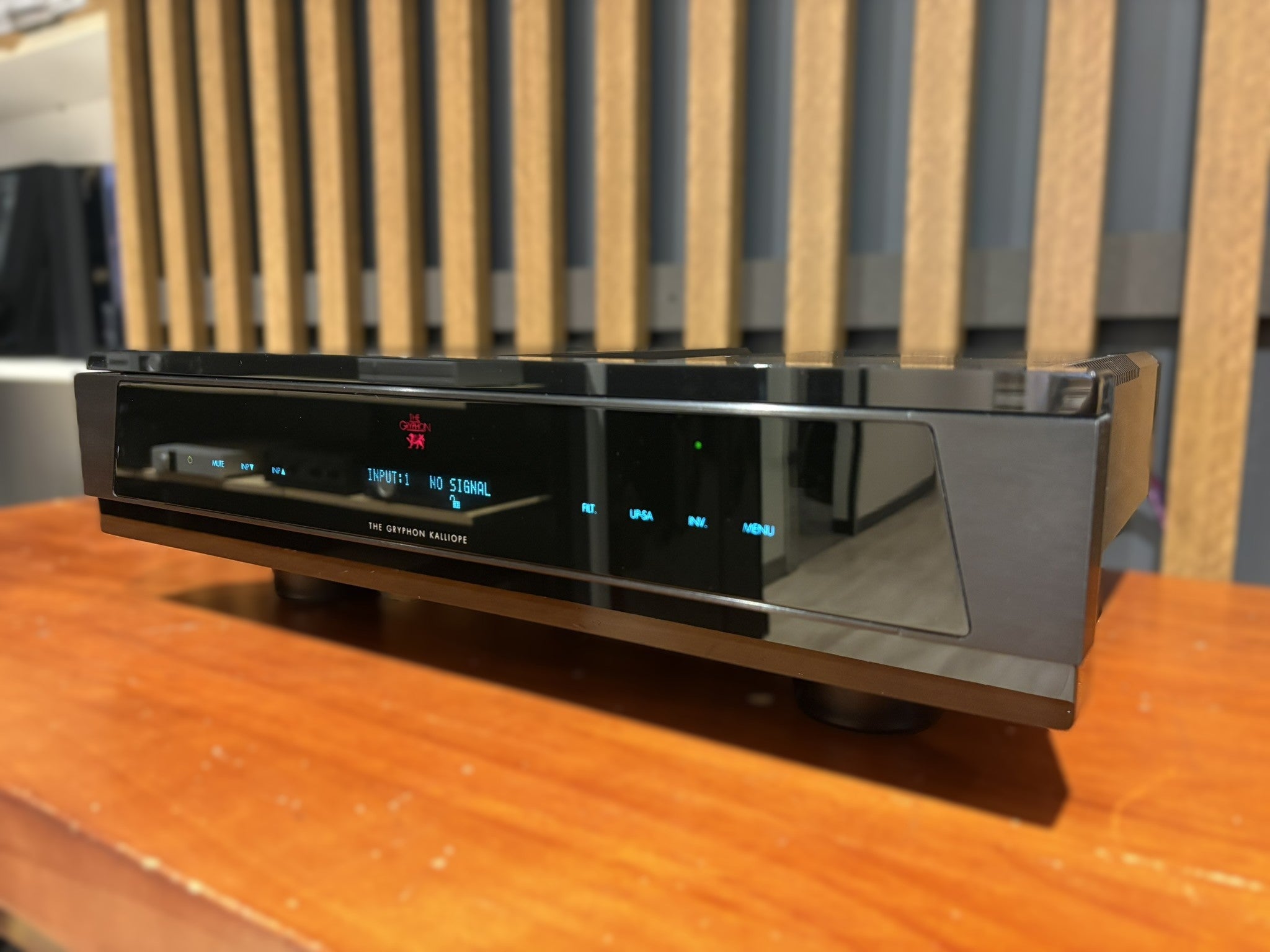

Condition: Excellent, no obvious damage (See photos)

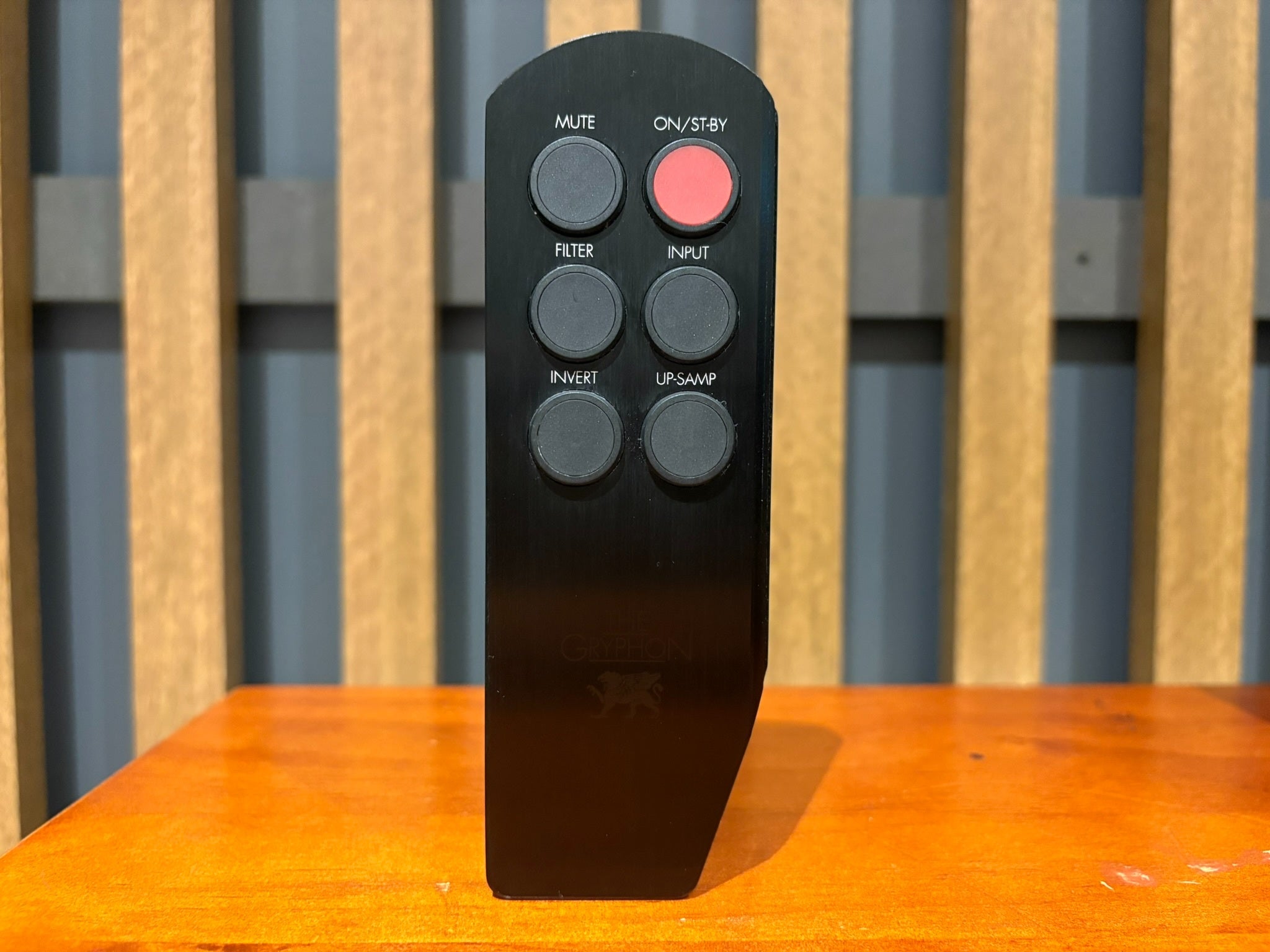

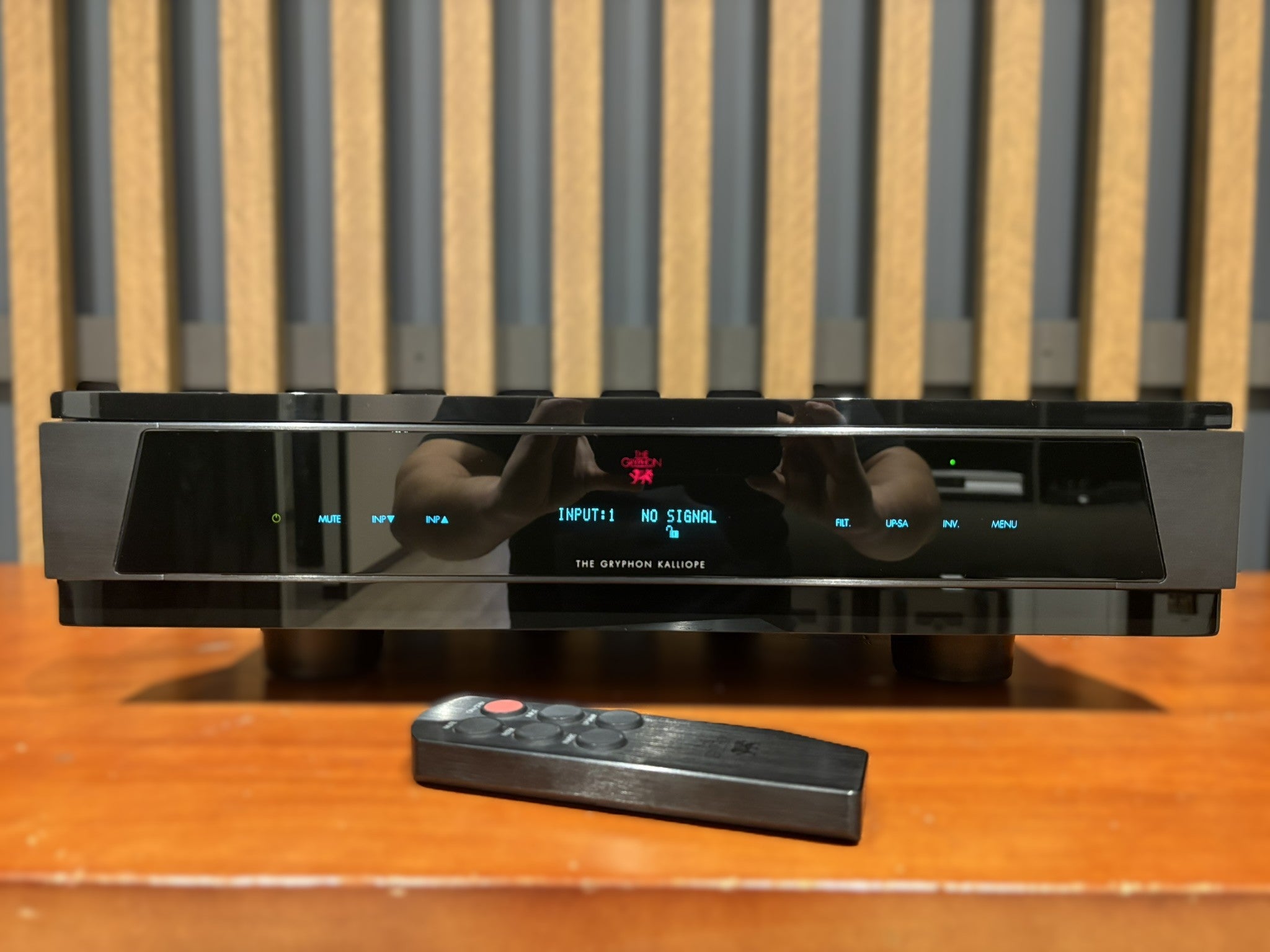

Includes: Original box, remote, manual, gloves, power cable
SN: 0706040
Warranty: 90 days (3 months)
Made in Denmark
Overview
The Gryphon Kalliope is capable of high-resolution PCM audio up to 32-bit/384kHz together with native DSD playback via asynchronous USB. AES/EBU, coaxial S/PDIF and optical inputs are also included for easy integration into your existing set up.
The analogue output stage is fully balanced and DC coupled, employing discrete Class A circuitry with XLR and single-ended RCA connections.
A dual-mono layout and independently regulated power supplies preserve signal symmetry.

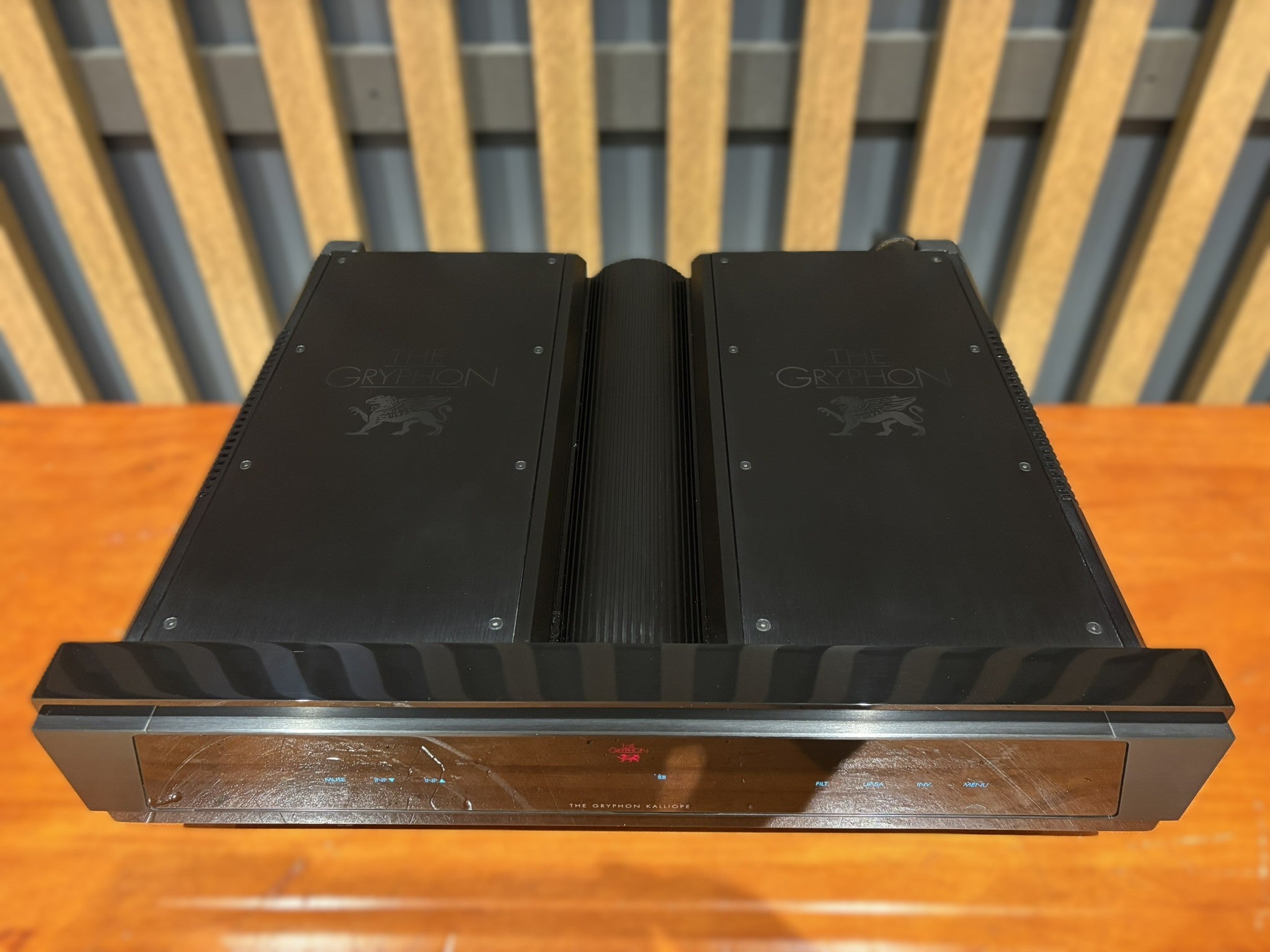

The gorgeous mechanical rigid aluminium chassis offers effective shielding against vibration and electromagnetic interference.
Specification
Dual mono YES
Class A YES
DC-coupling YES
MultiVoltage Operation NO
Negative Feedback NO
Modular built YES
Upsampling (PCM) Selectable to 384kHz PCM or DSD128
Remote control YES
+12V link YES
Microprocessor controlled YES
Software upgradeable YES

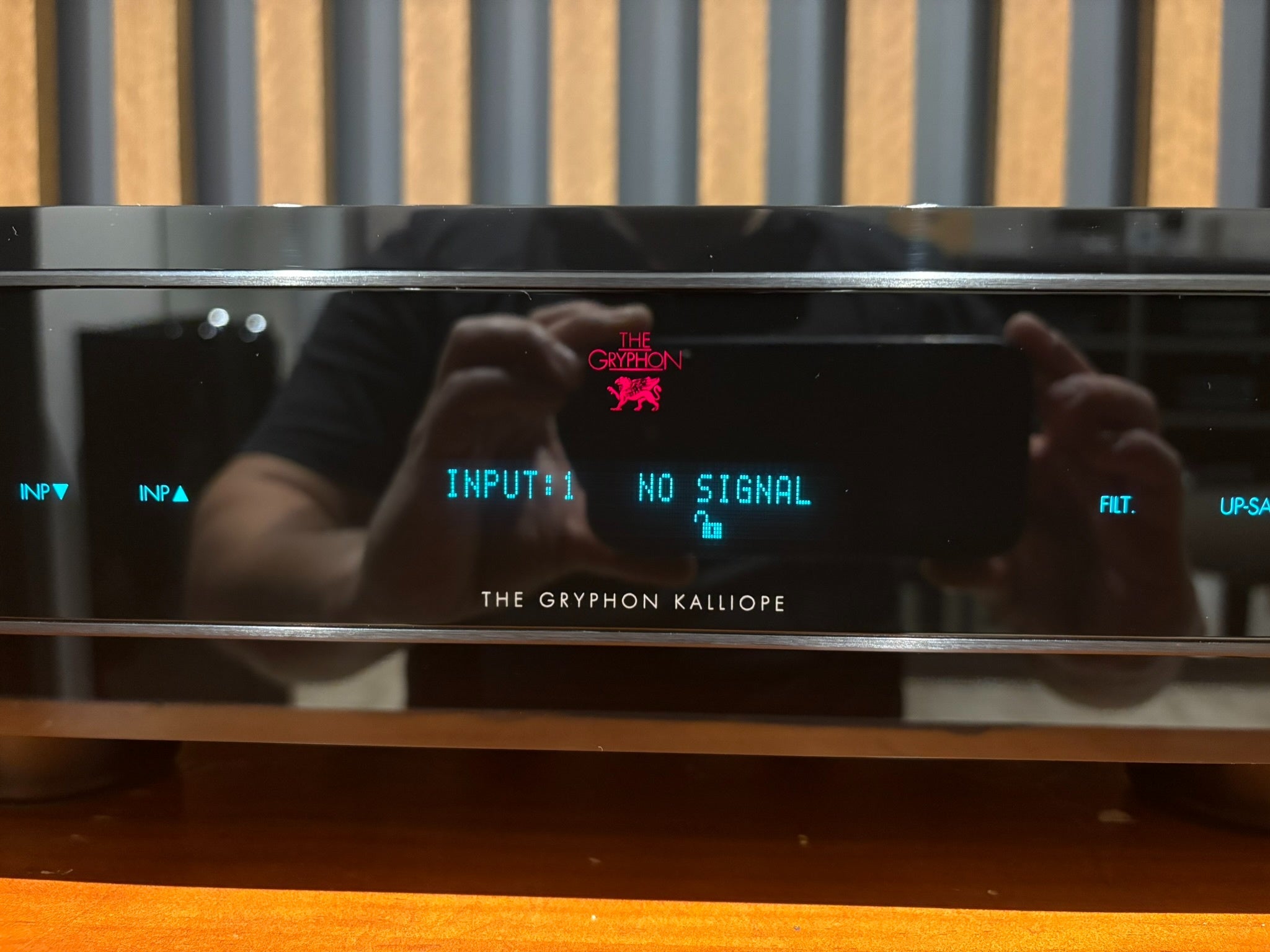

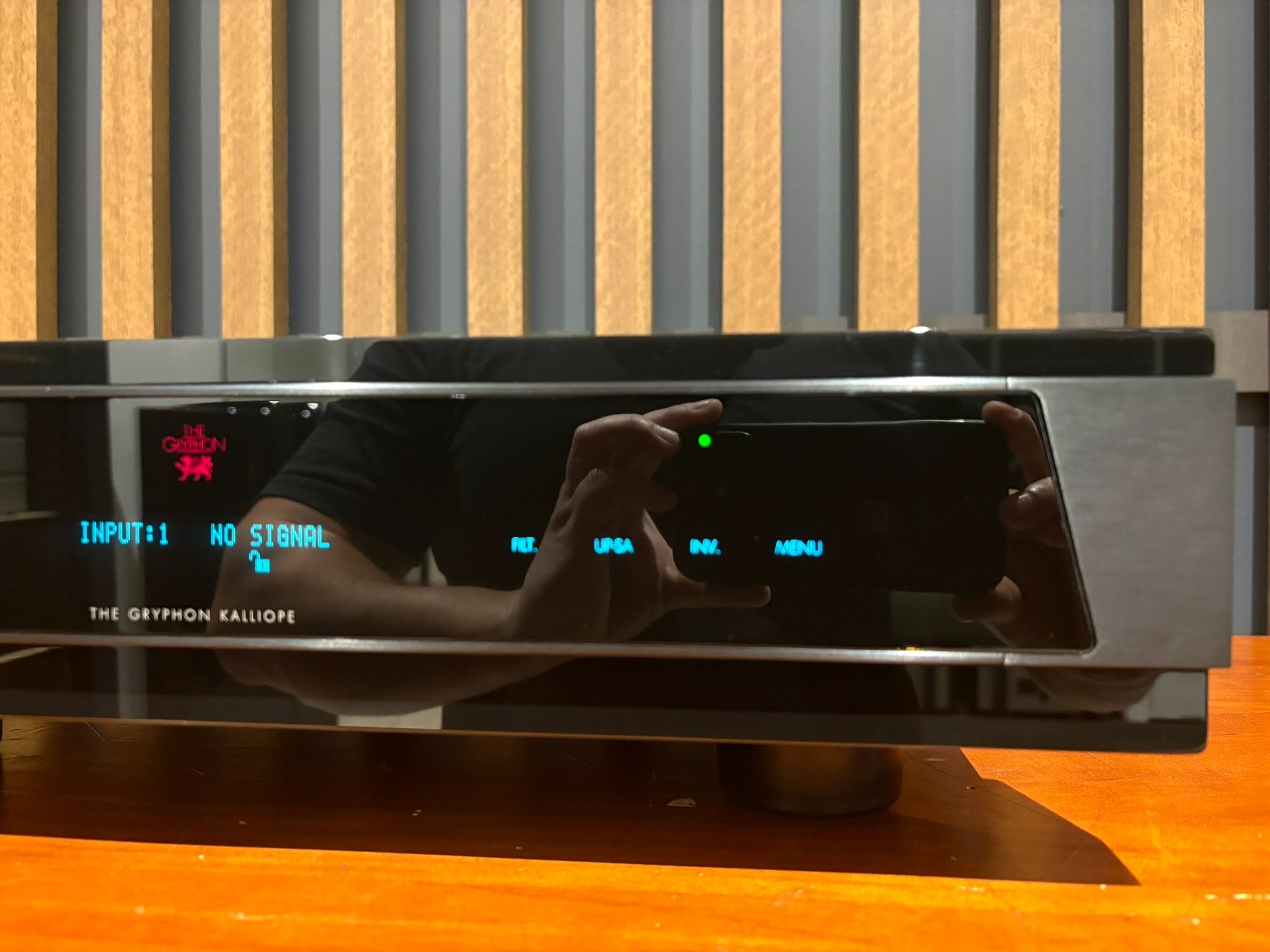

Vacuum Fluorescent Display YES
Dimmable Display intensity YES

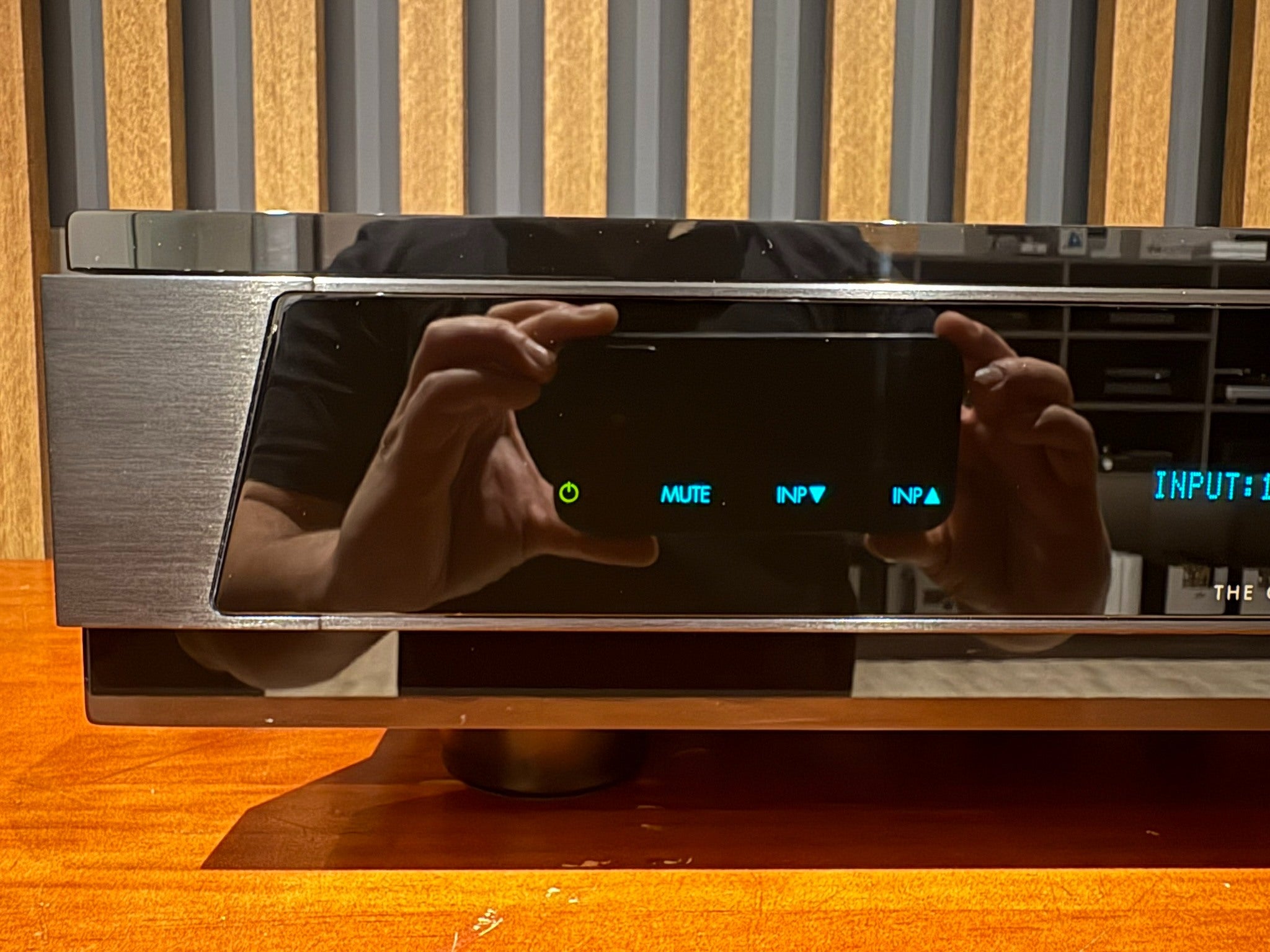

Touch Buttons YES
Balanced analog/DAC circuit YES
Converters 2 x ES9038PRO 32bit/768kHz
Formats PCM & DSD
PCM via inputs 22kHz to 192kHz
PCM via USB 32kHz to 384kHz
DSD via USB DSD64/128/256/512
Word Clock Sync YES
Balanced output level 4.3Vrms (+/-6.08Vpp)
Single-ended output level 2.15Vrms (+/-3.04Vpp)
S/N Unweighted < -117dB
S/N A-weighted < -120dB
THD+N <0.0070% @0dB; <0.0025% @-6dB
Channel Separation Infinite

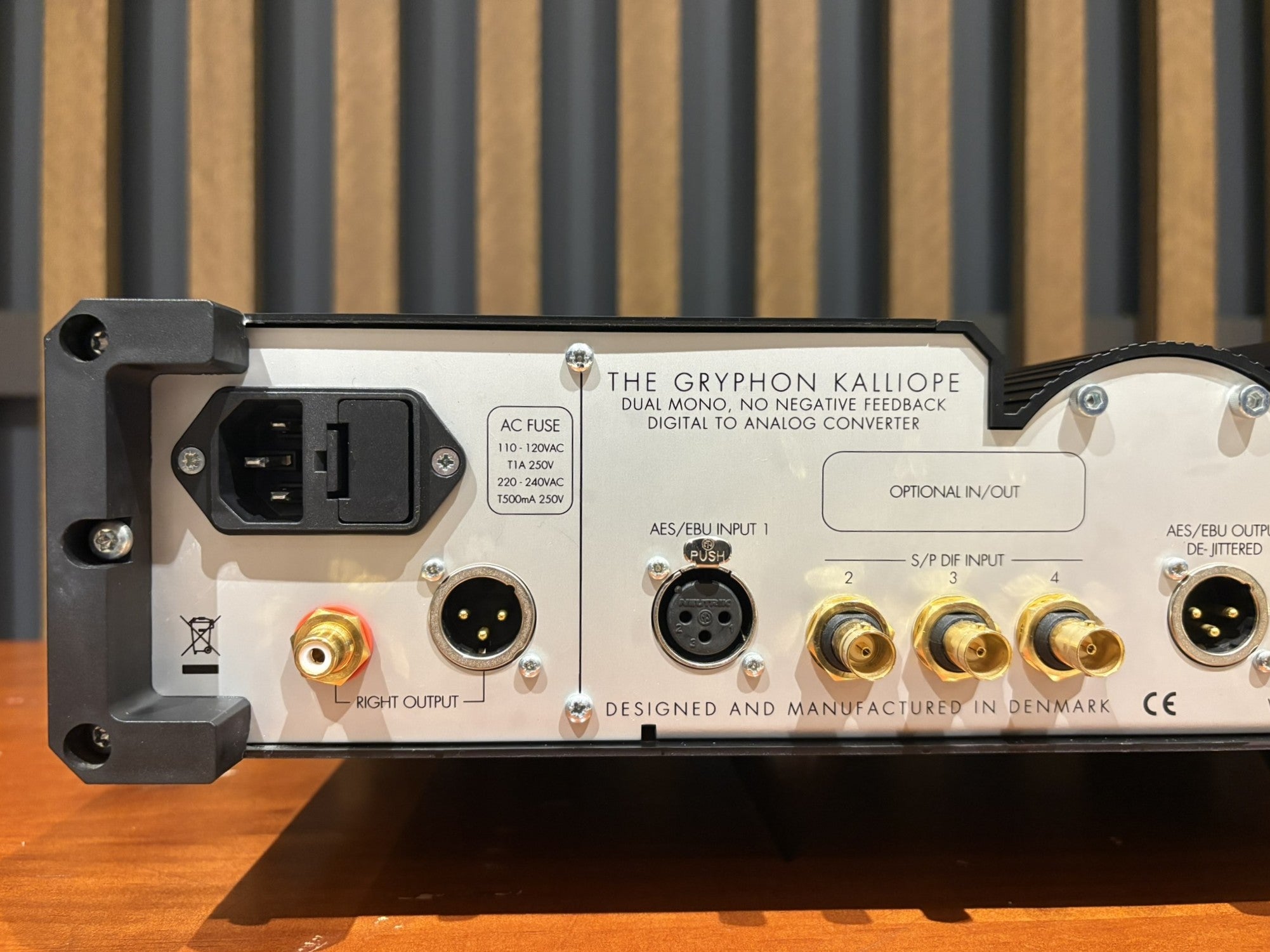

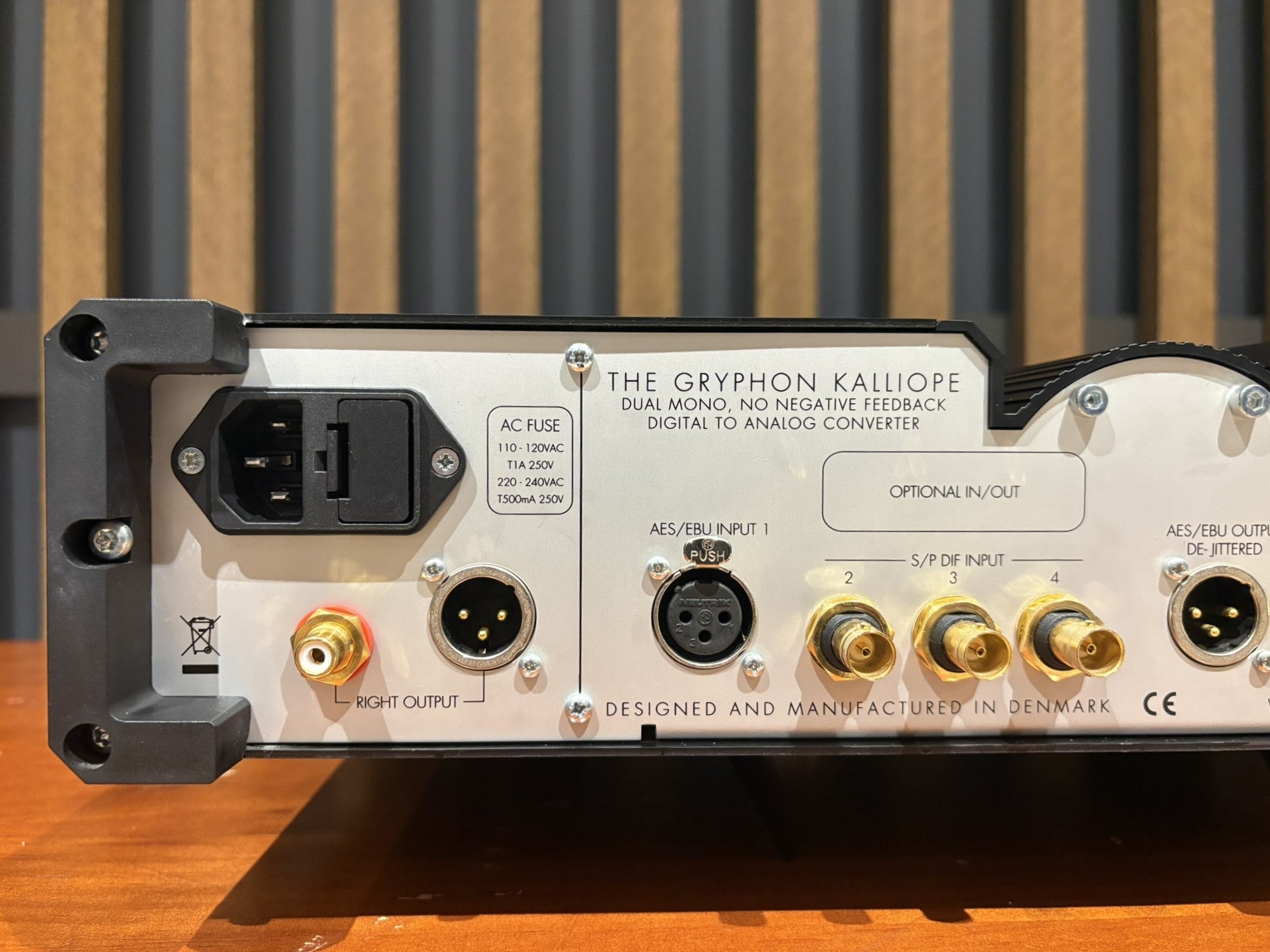

AES/EBU input impedance 110 Ohm
SPDIF input impedance 75 Ohm

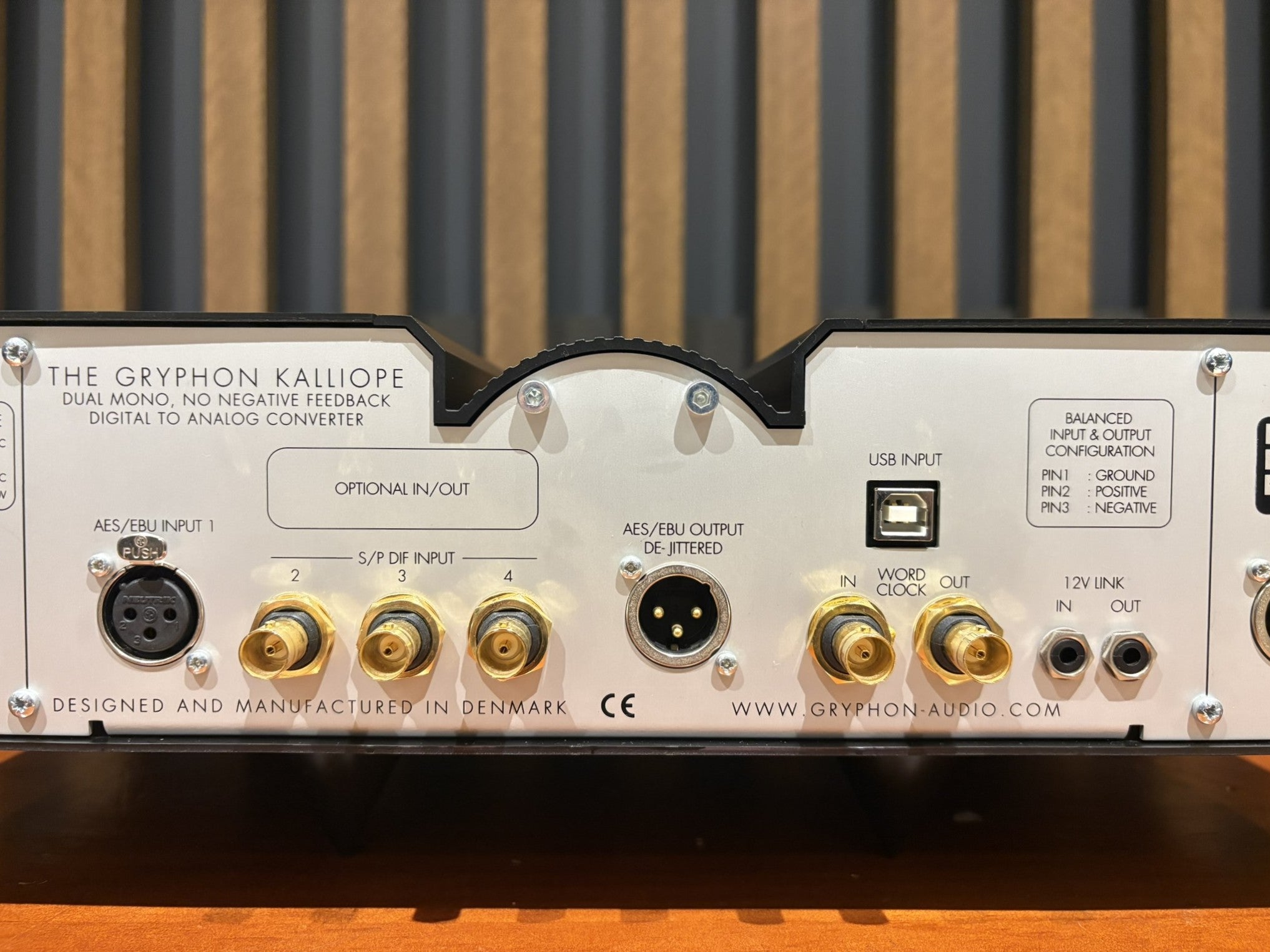

AES/EBU inputs 1
SPDIF inputs 1
AES/EBU output 1 x XLR (110 Ohm)
Toslink input 1
Analog output impedance 30 Ohm
Balanced analog outputs 1 x XLR per channel
Single-ended analog outputs 1 x RCA per channel
Bandwidth 0–192kHz
Standby power <0.5W
Maximum power 39W
Idle power 34W
Power supply capacity 2 x 20,000uF
AC inlet 1 x IEC C13
Size 48 x 17.6 x 45.3 cm
Weight 13.7 kg
