Gryphon DM-100 Power Amplifier - As Traded

Gryphon DM-100 Power Amplifier - As Traded

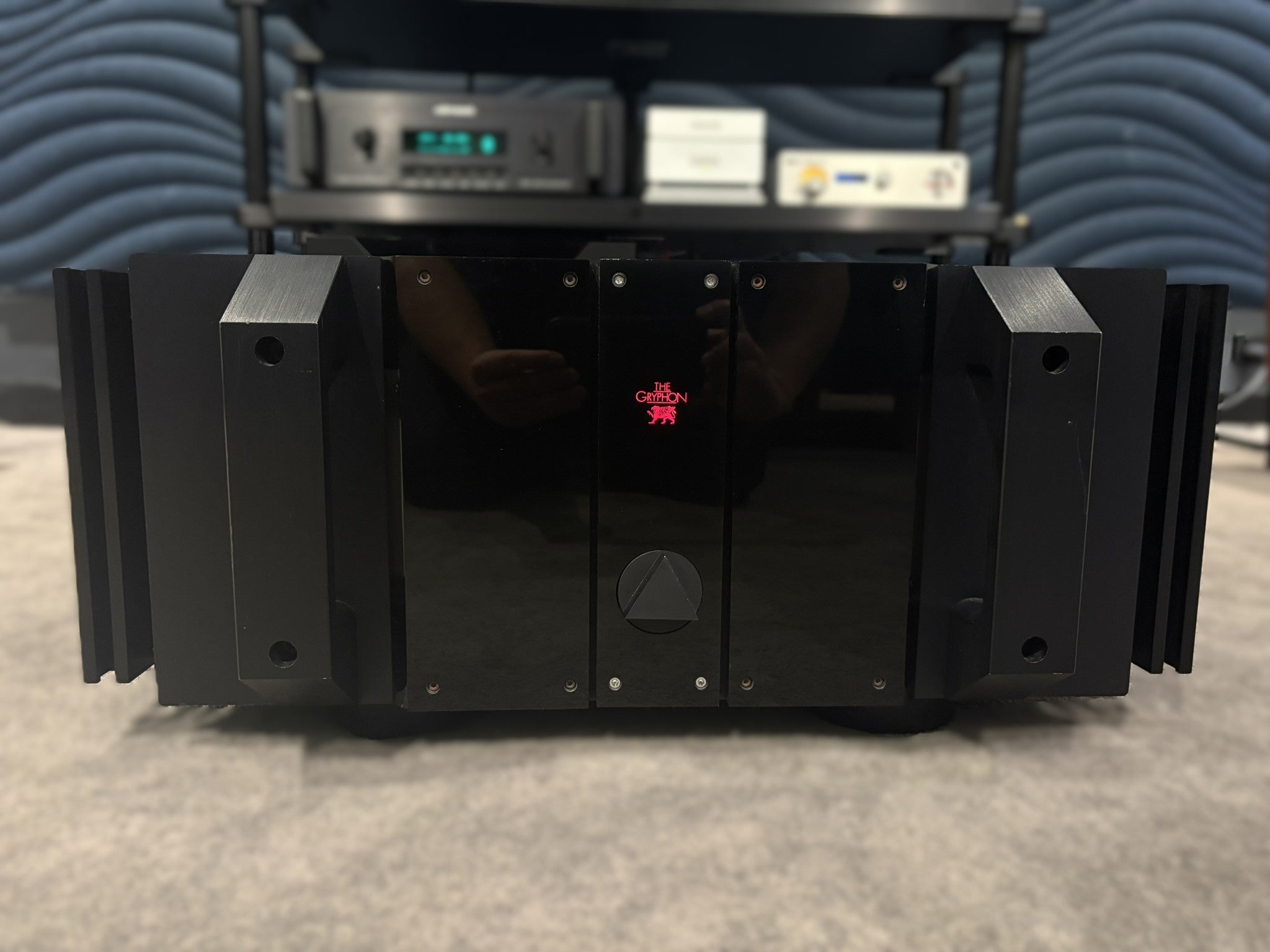

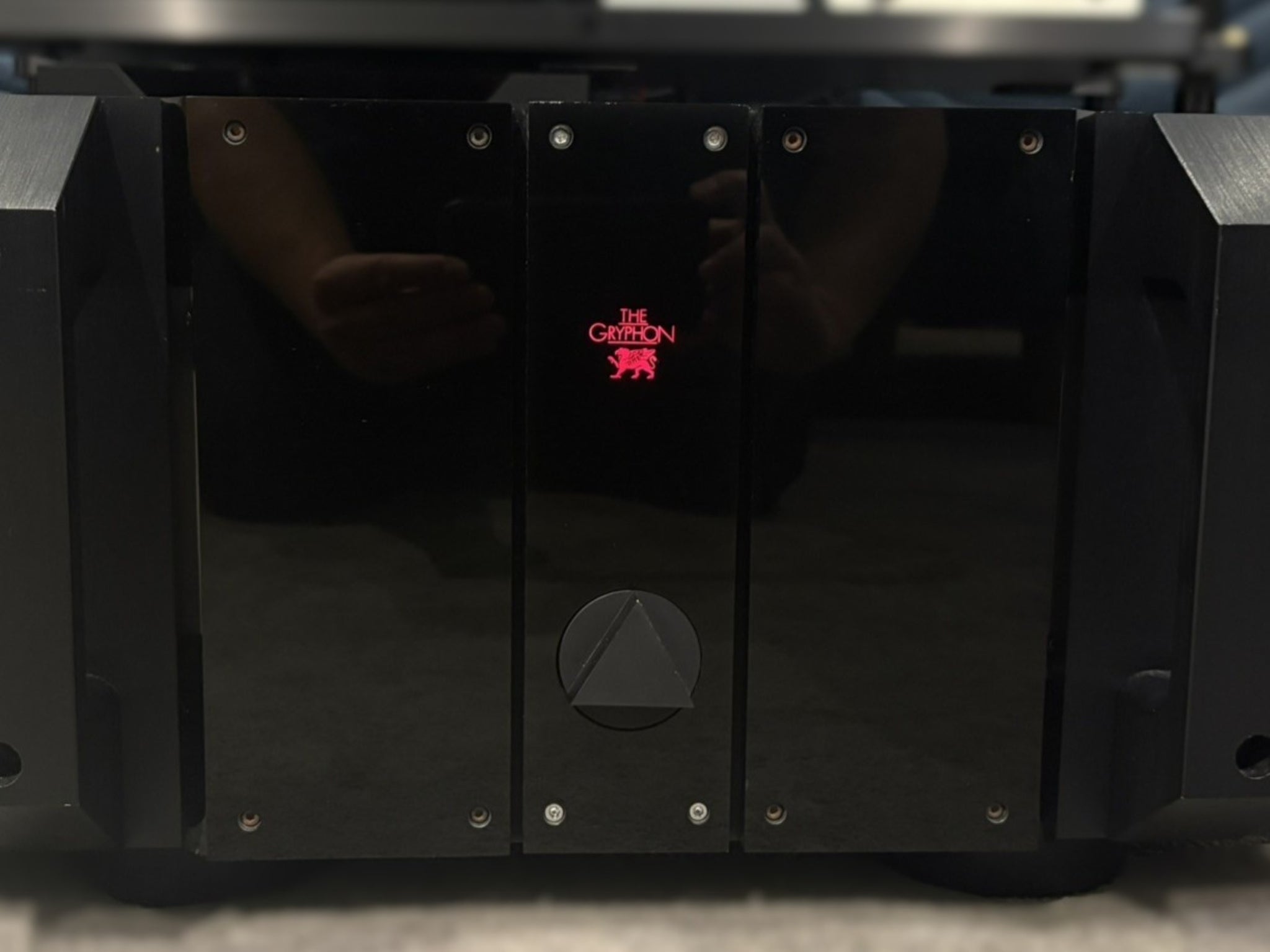

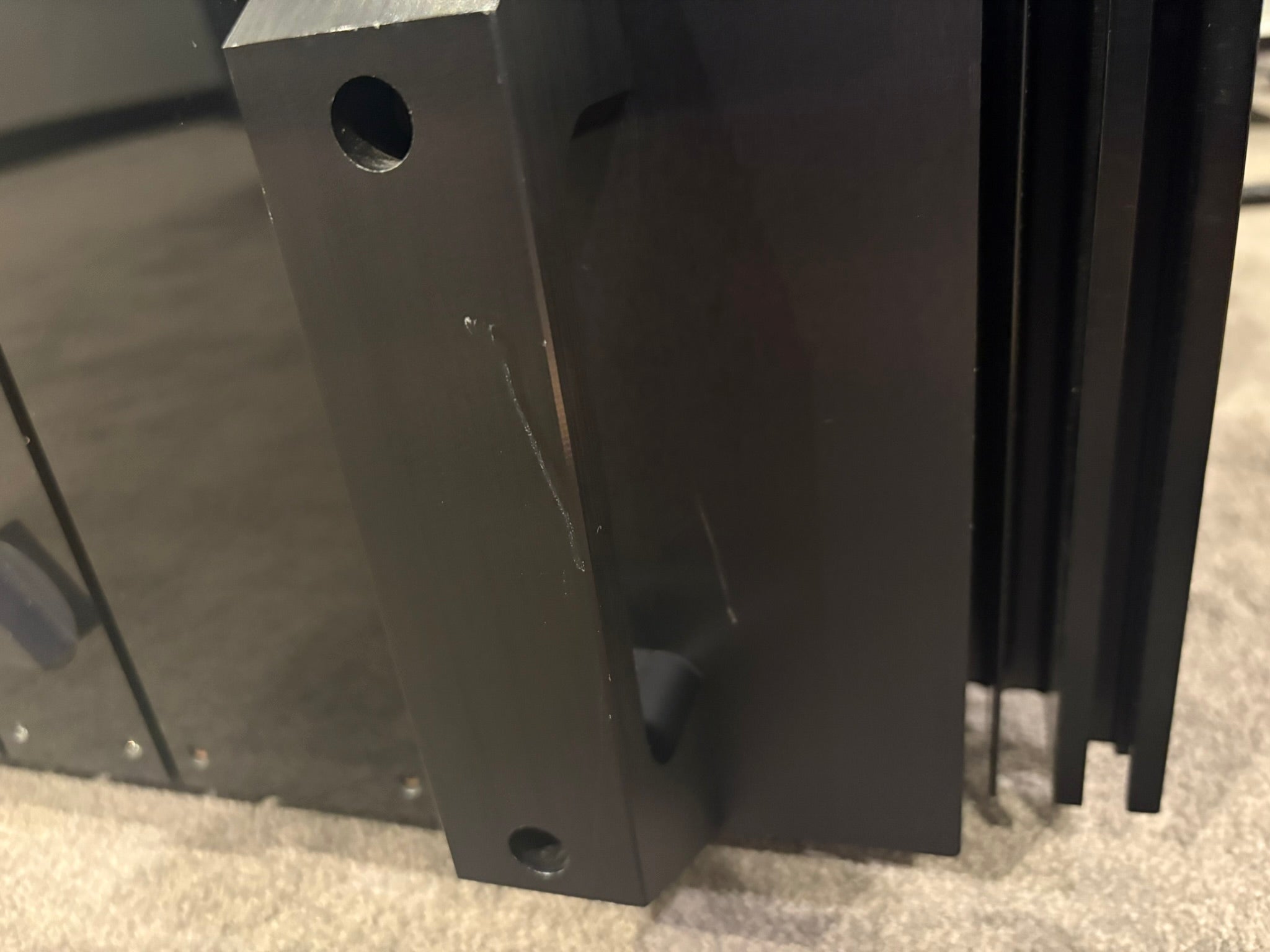

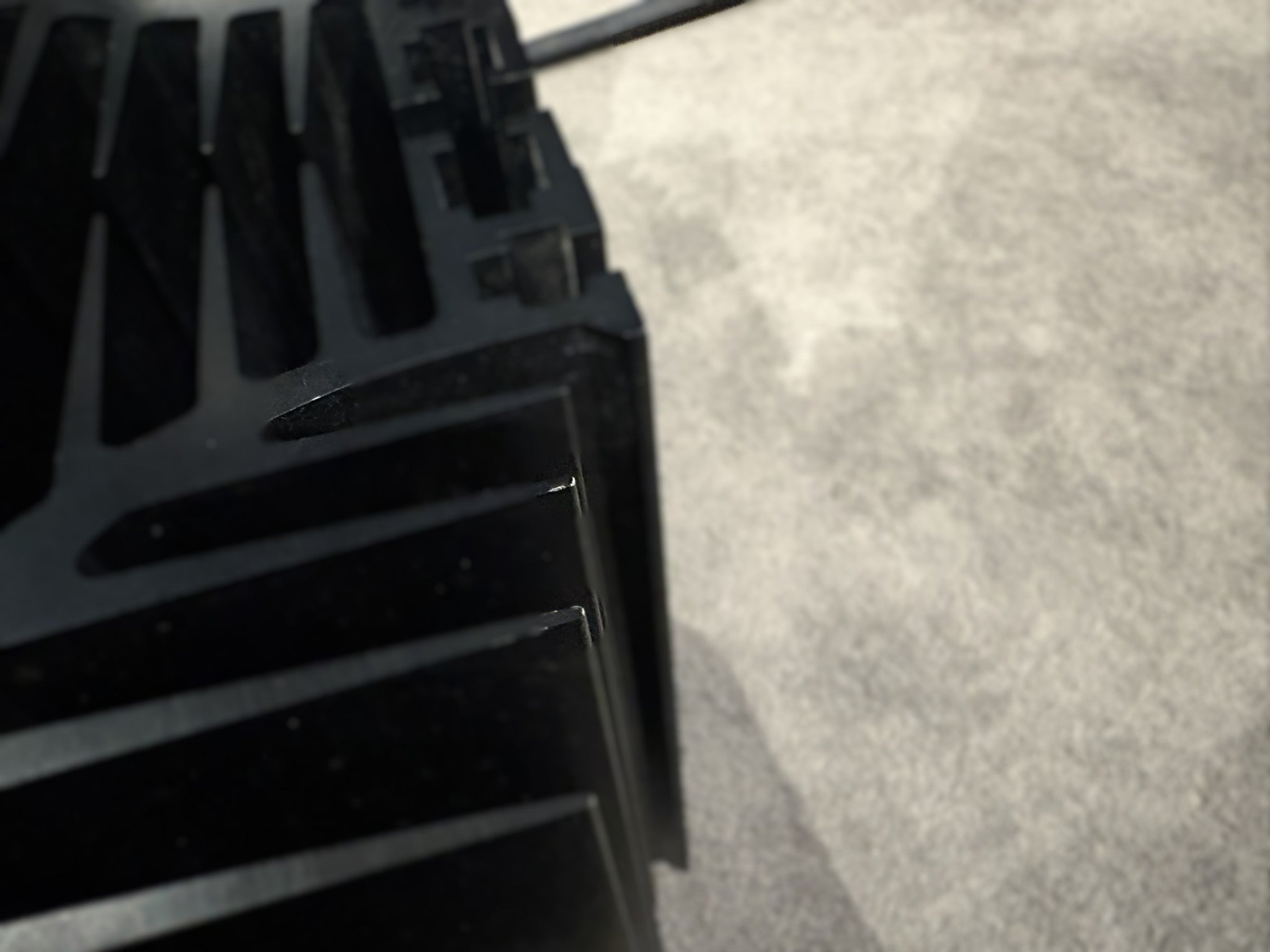

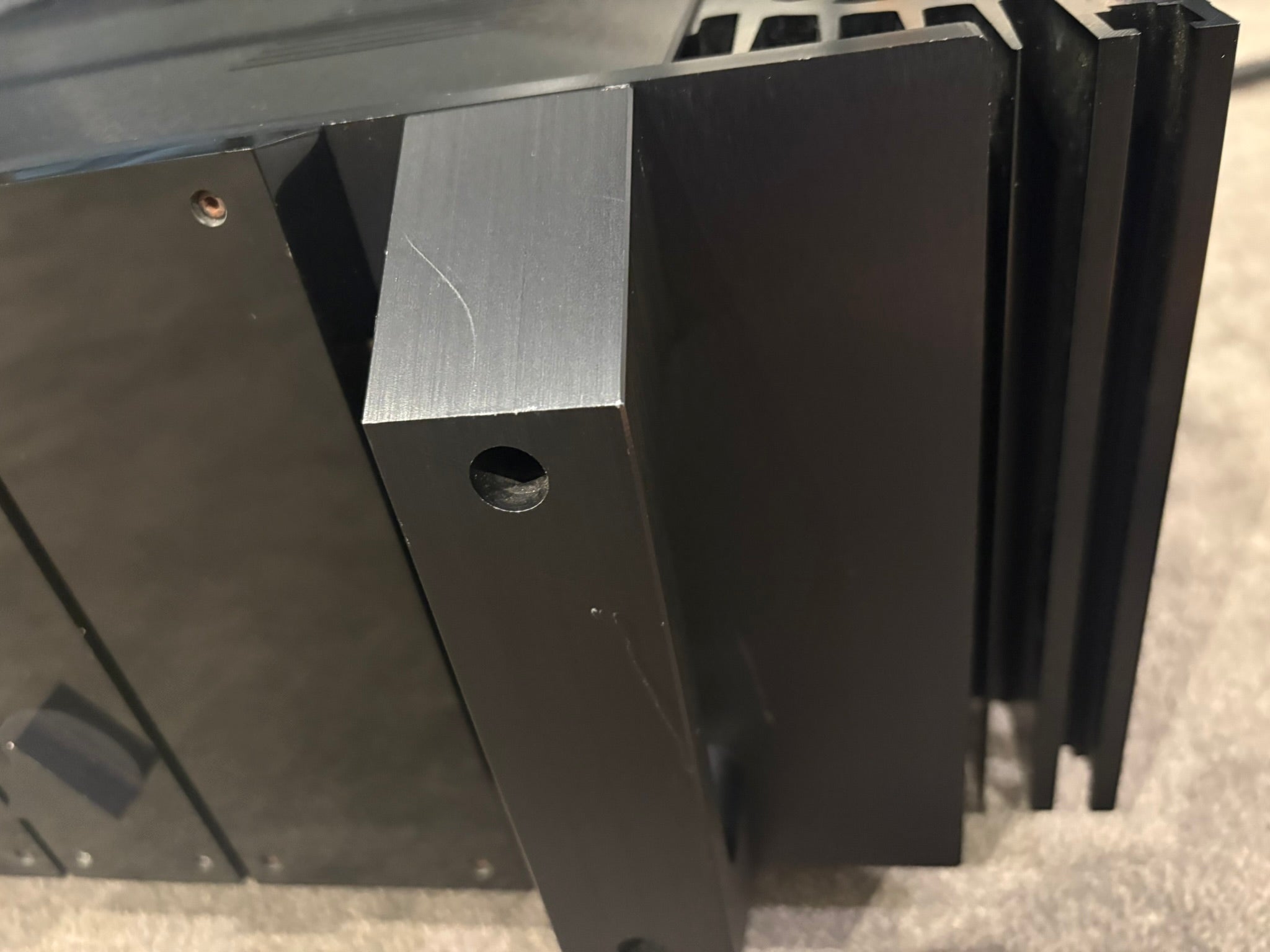

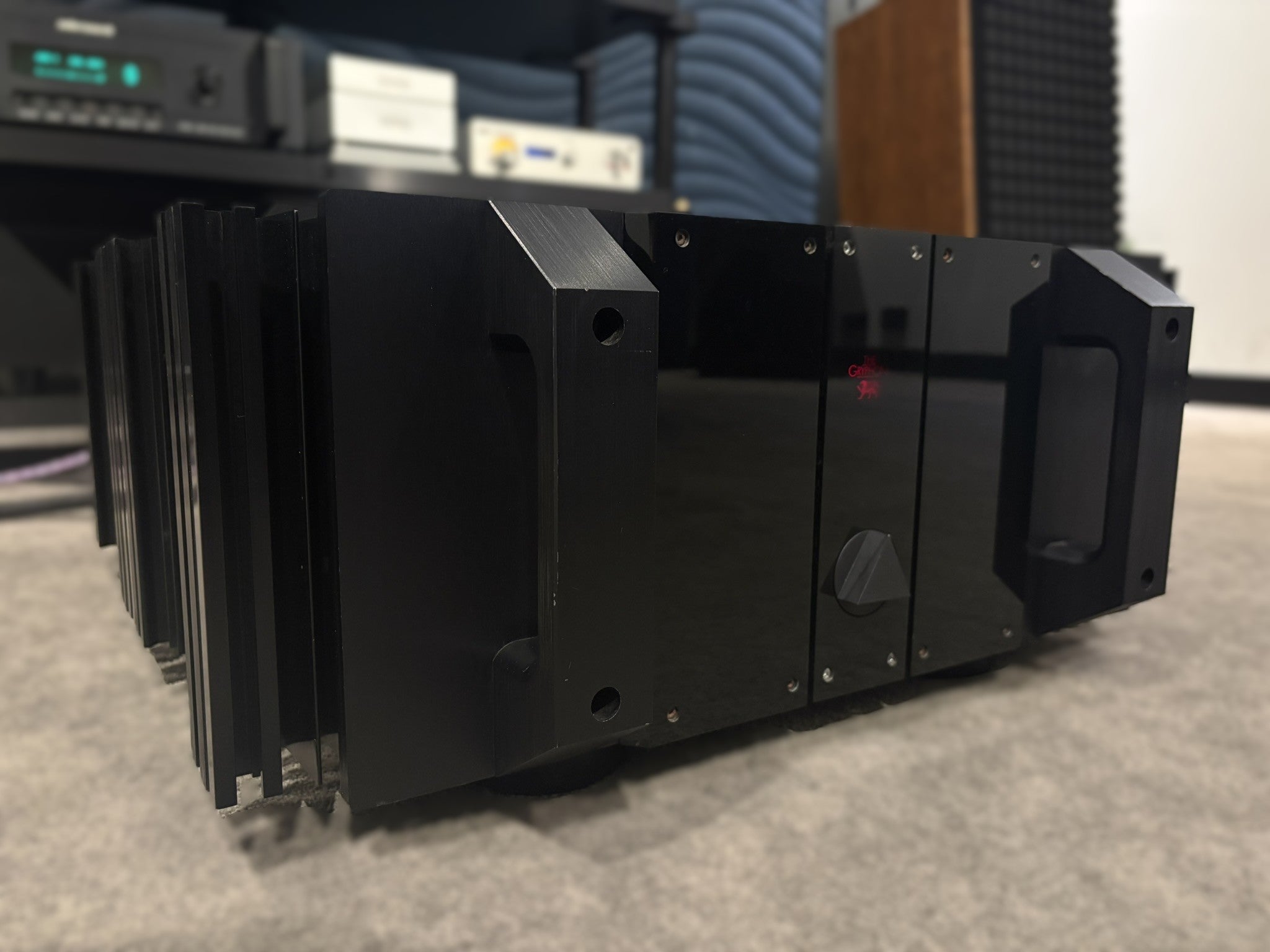

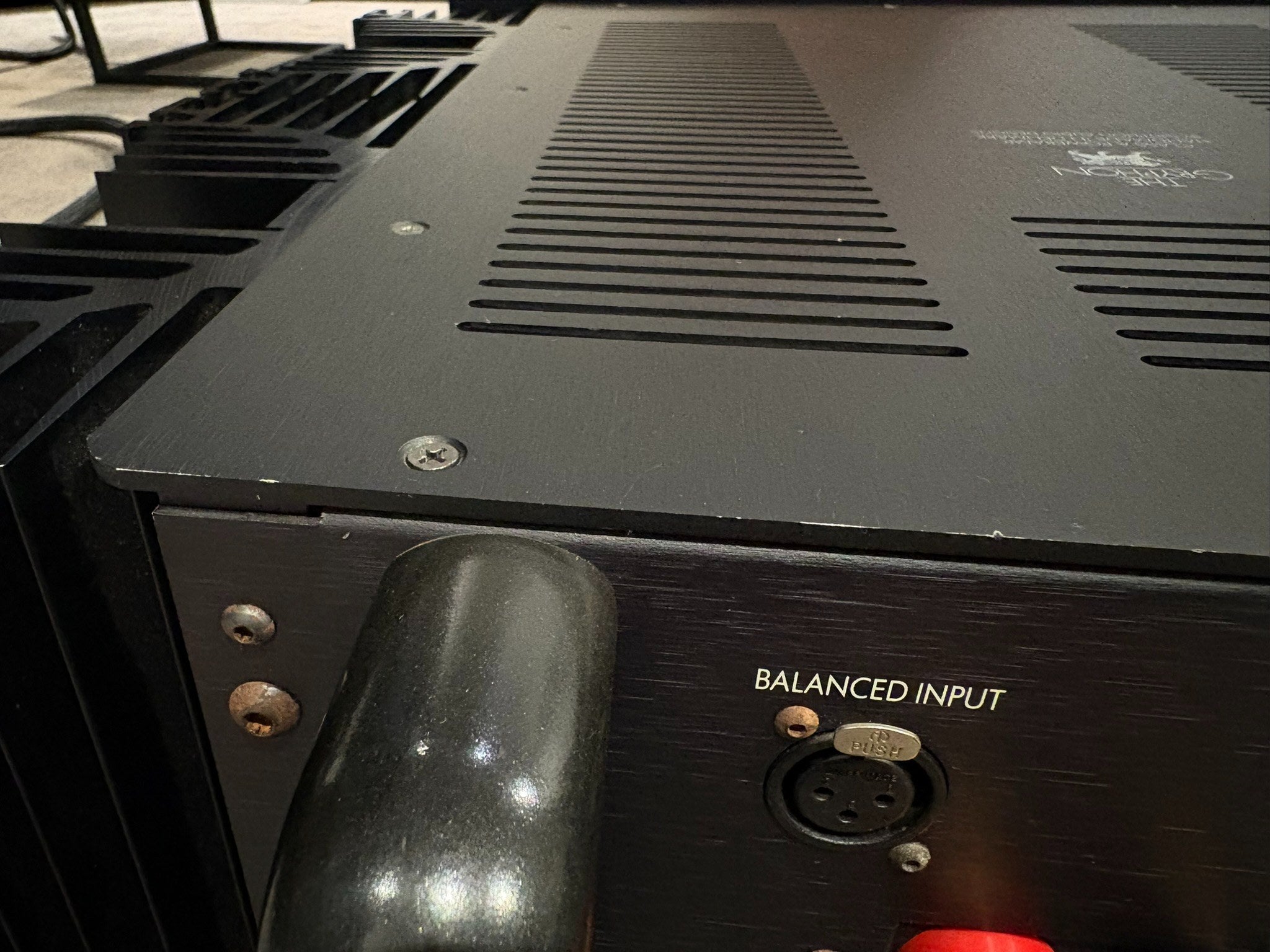

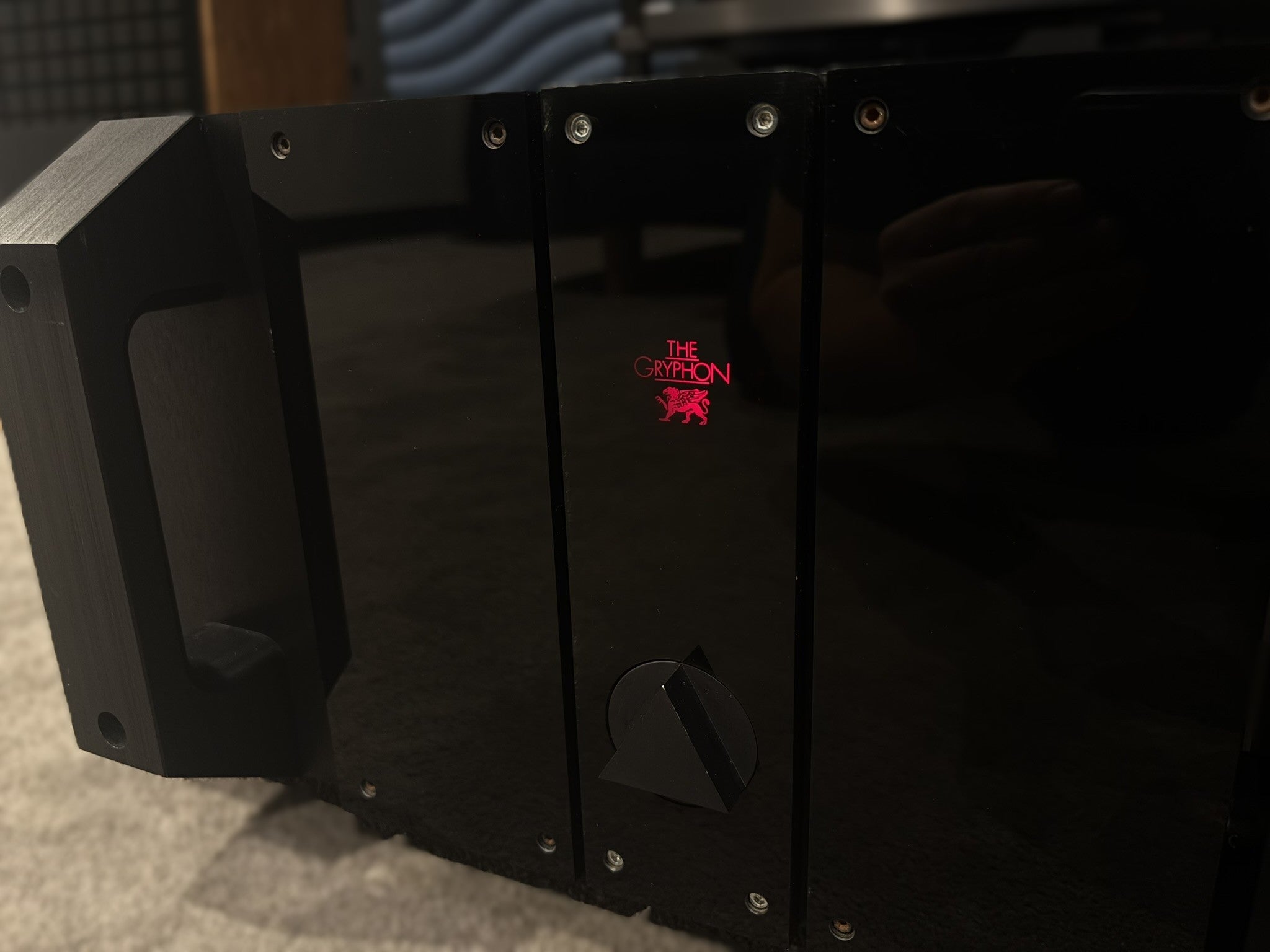

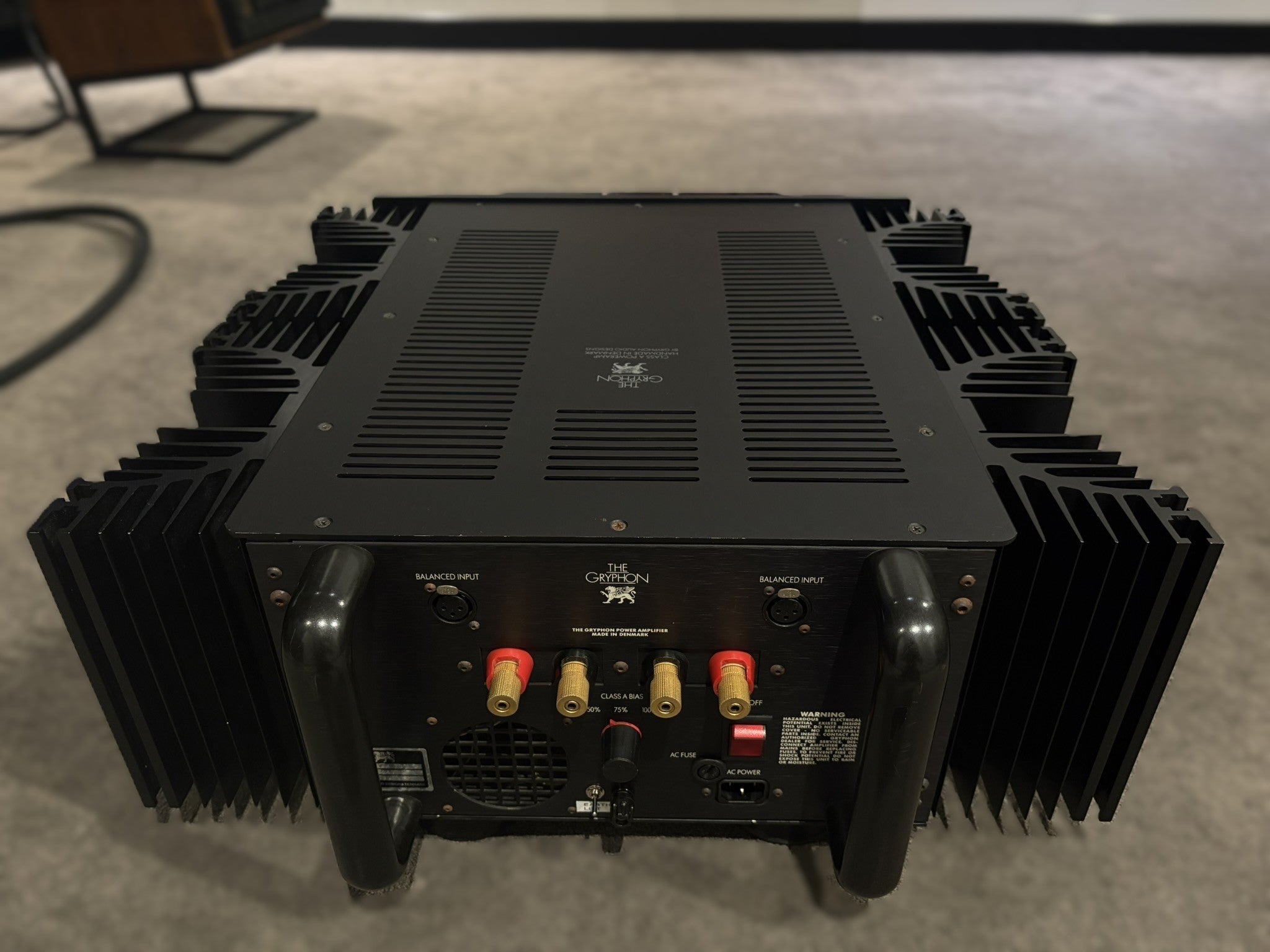

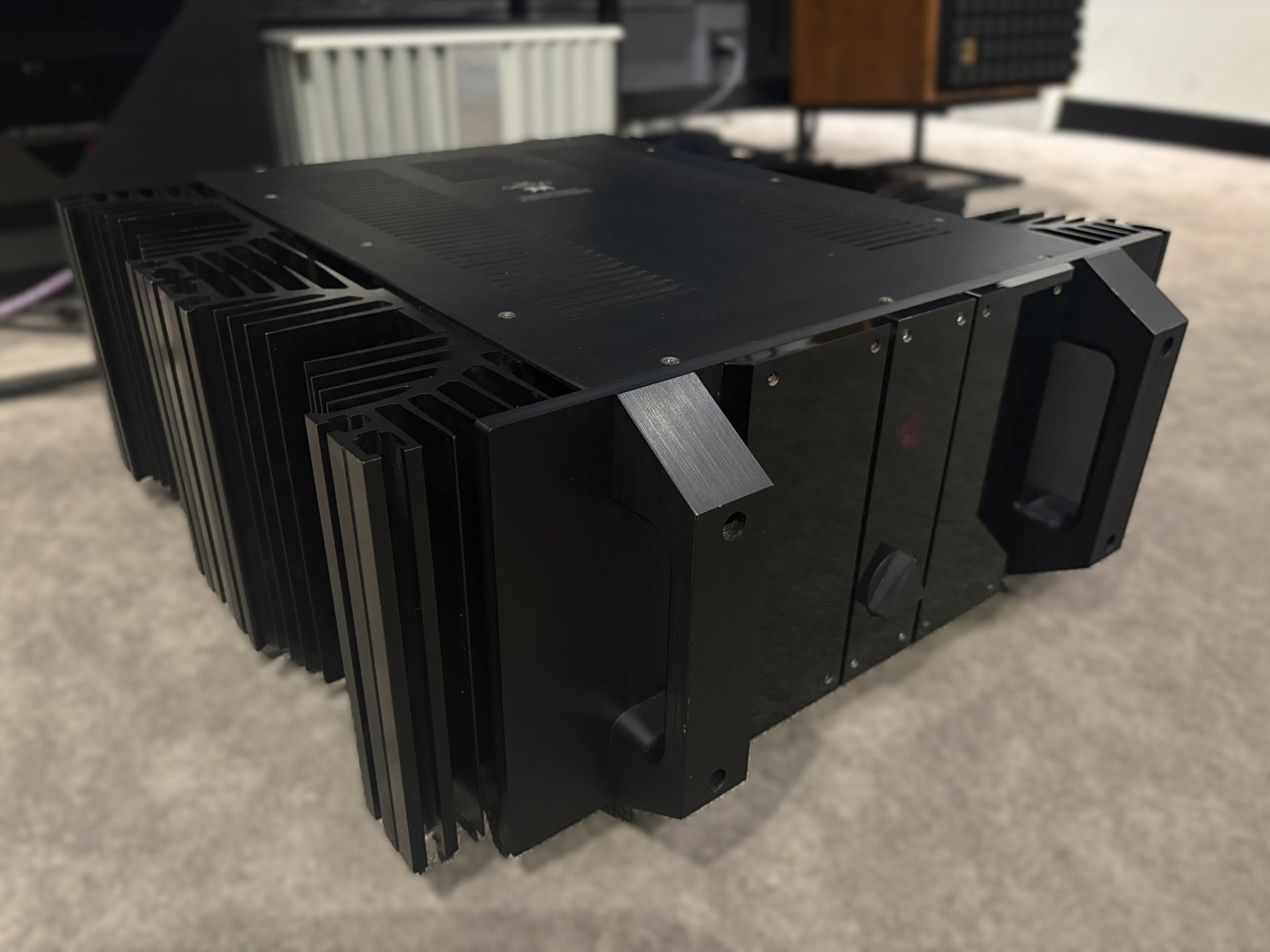

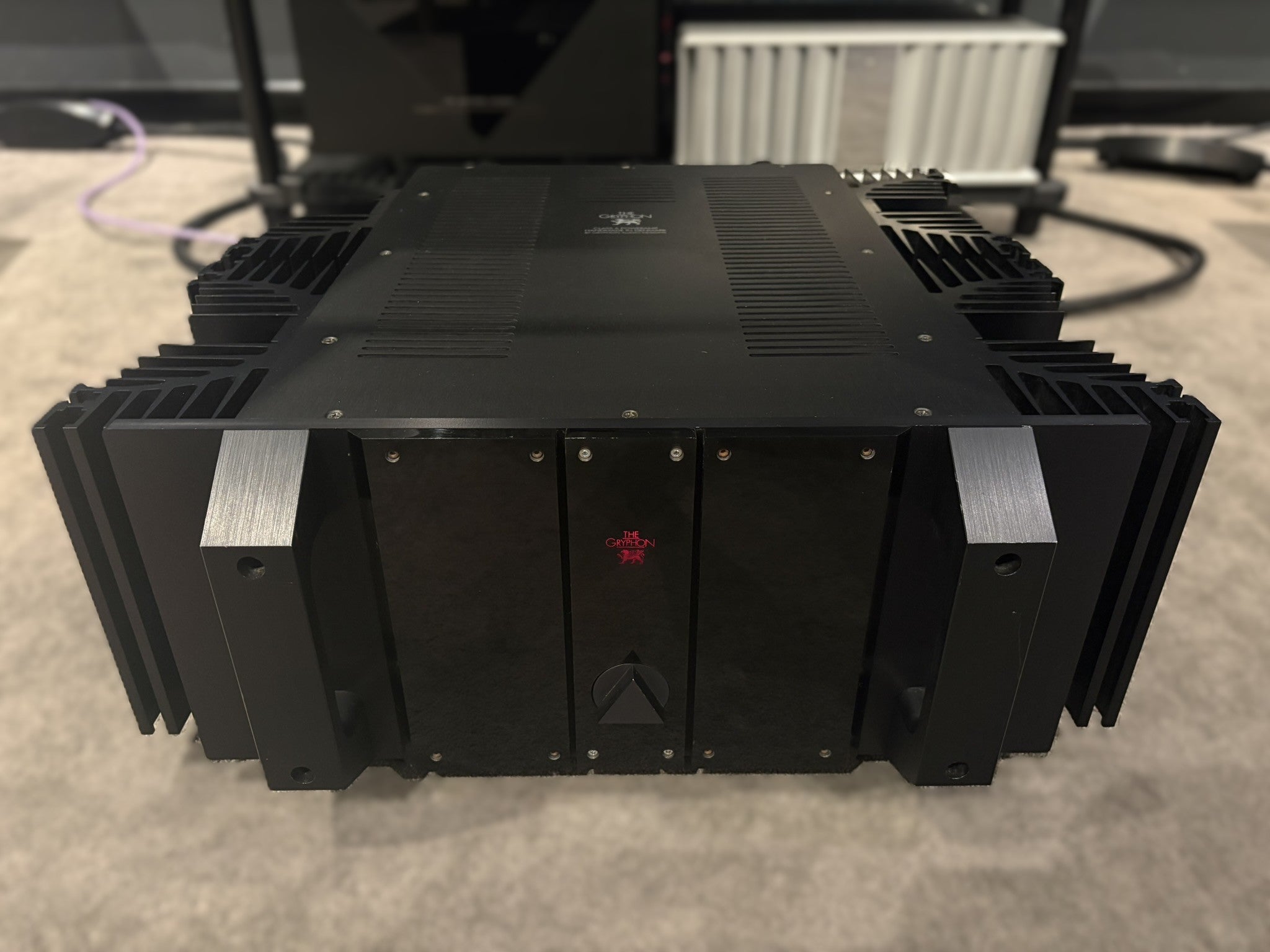

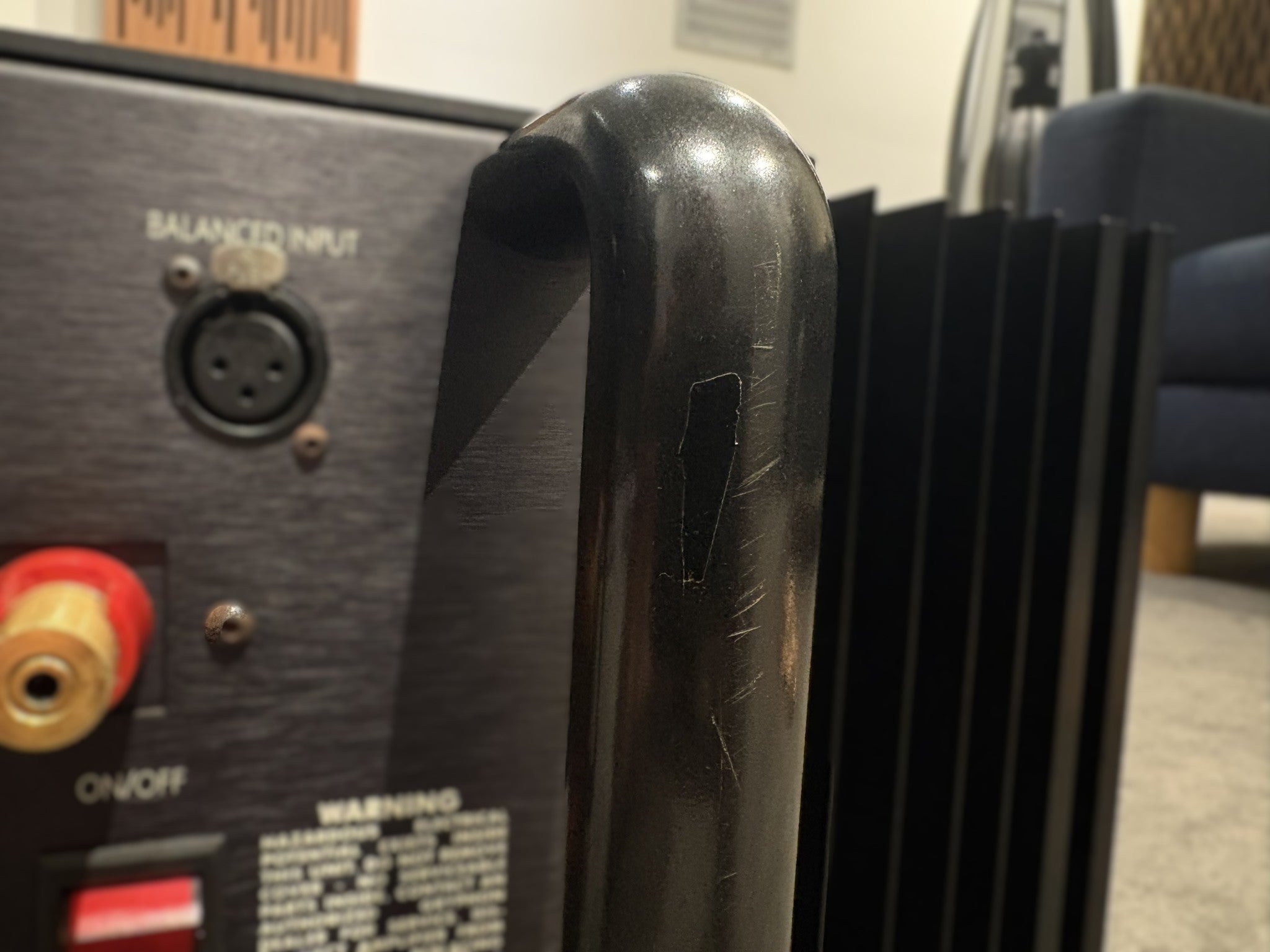

Condition: Used. Some minor chips to front and rear panel edges, scratches on handles, some chips to fins (See photos)

Includes: Power cable only (No box)

SN: 7913167

Warranty: 90 days (3 months)

Local Sydney Metro Delivery Only, Contact for Freight Quote

Overview

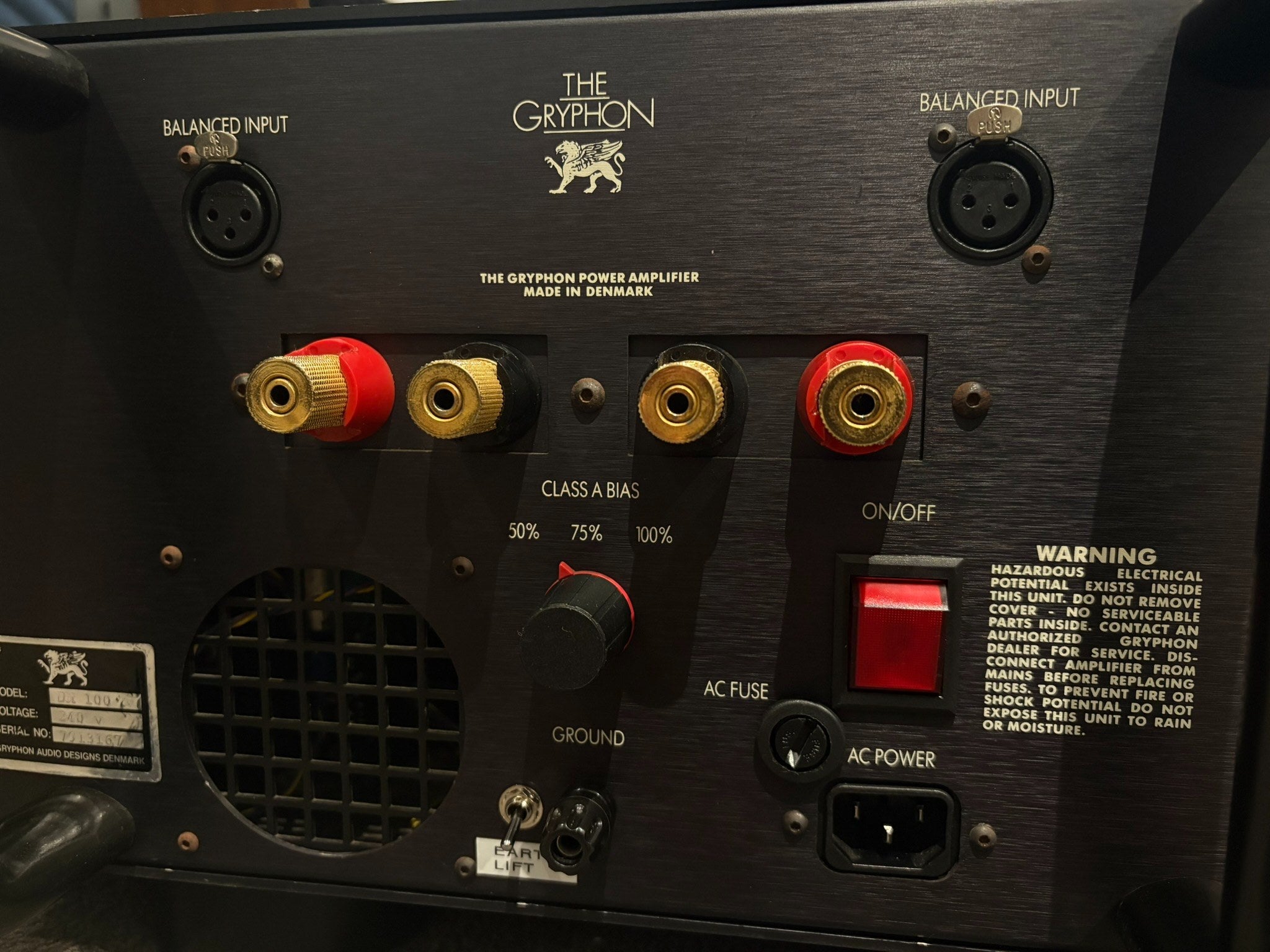

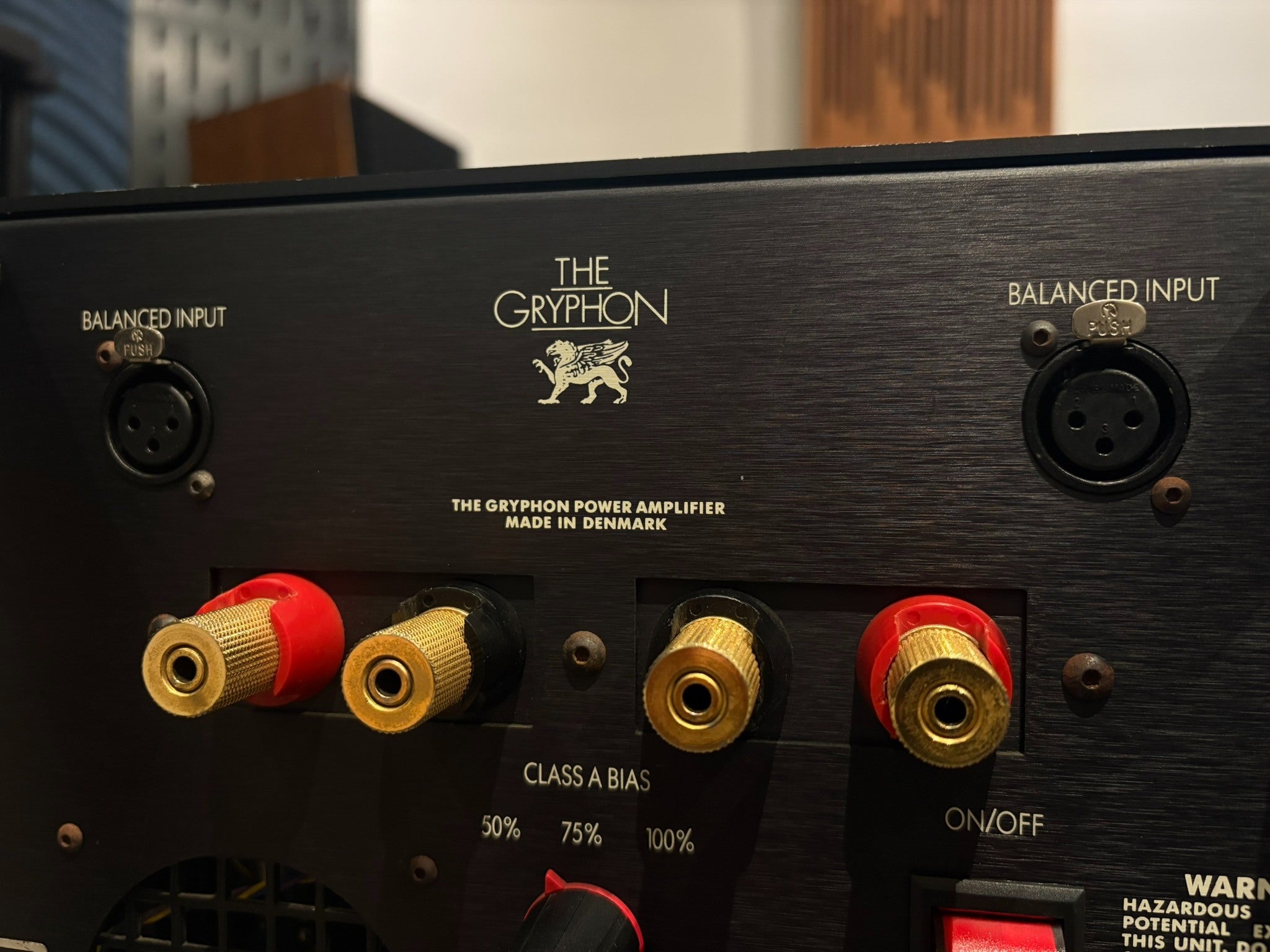

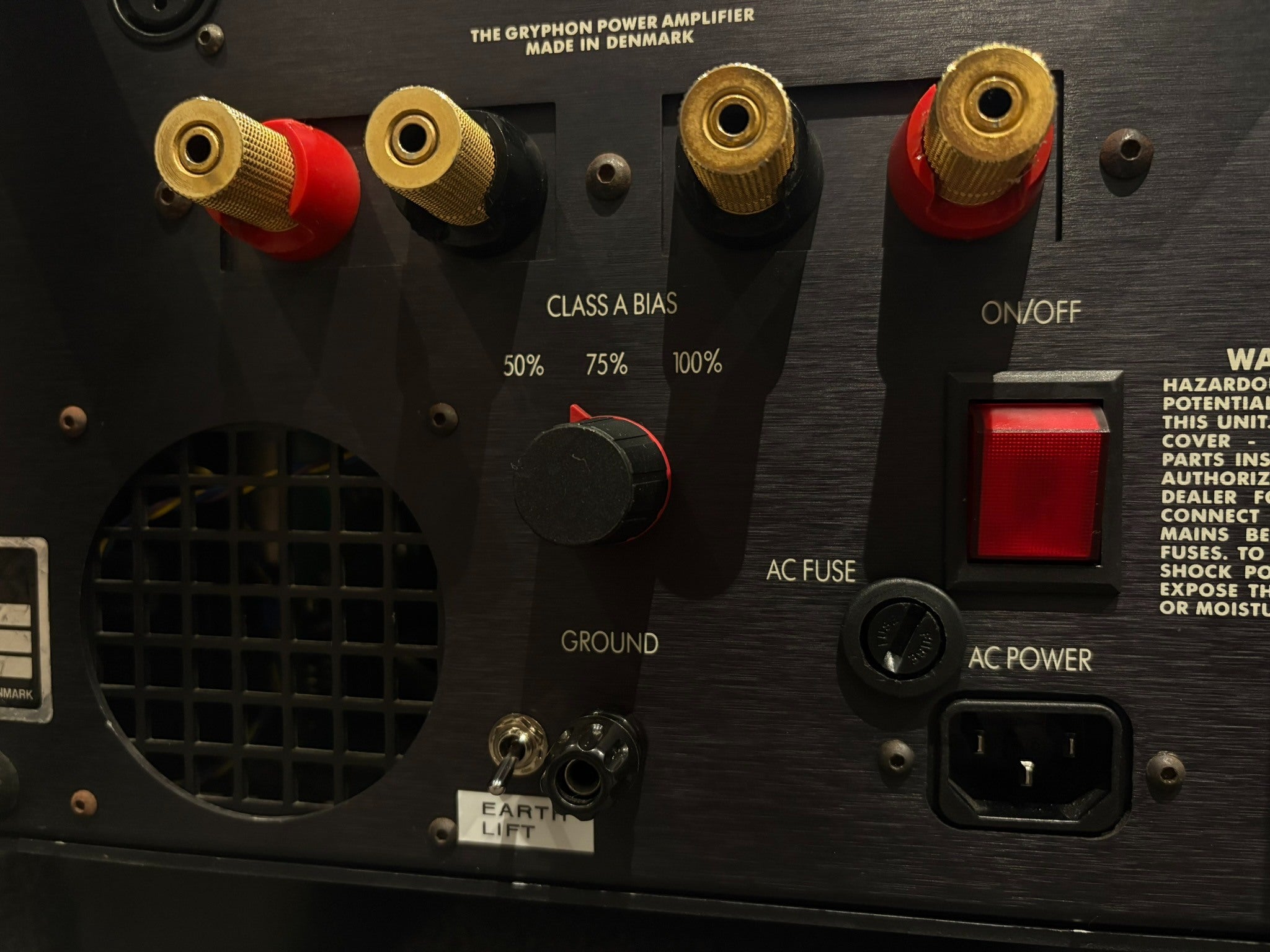

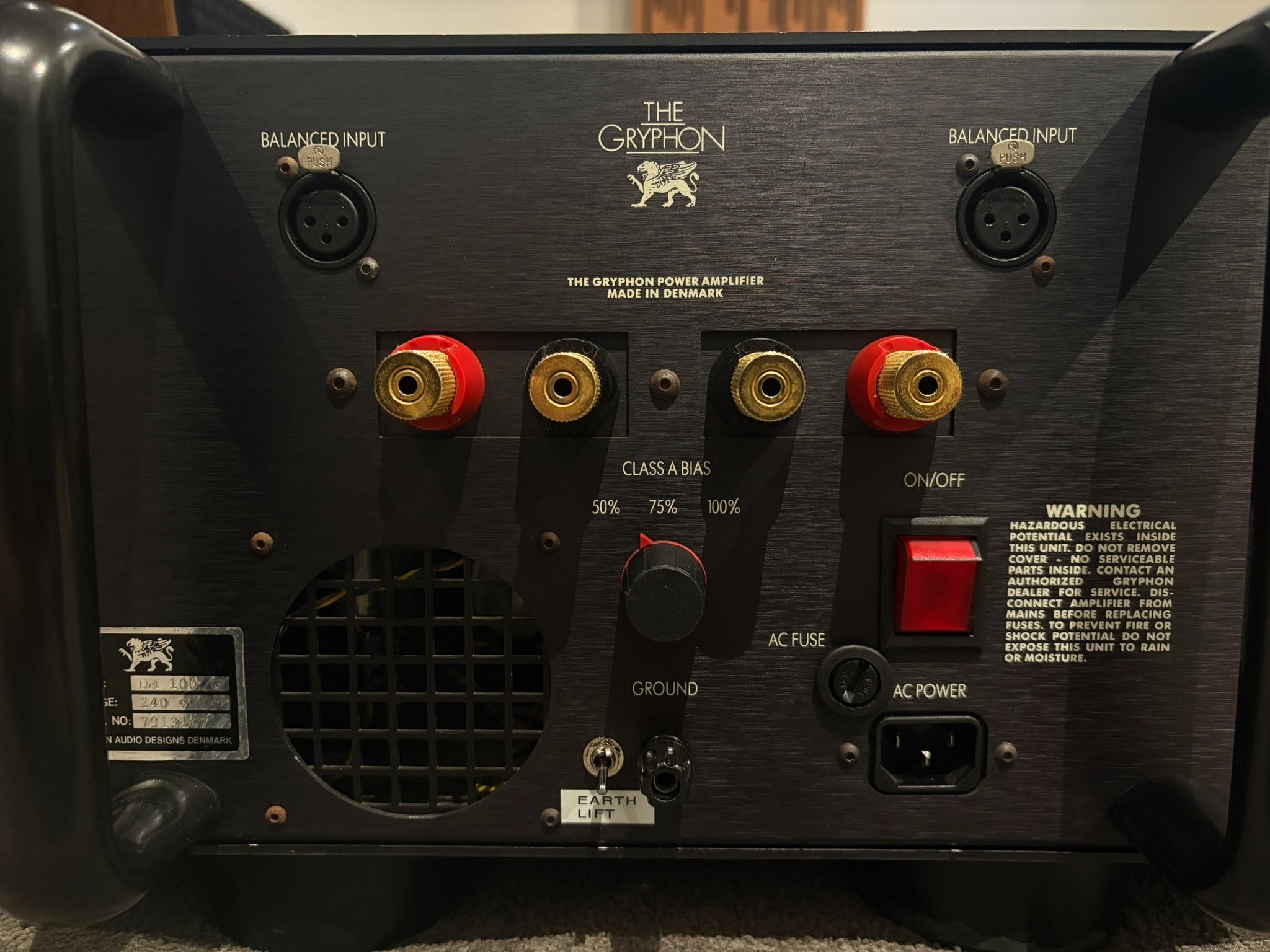

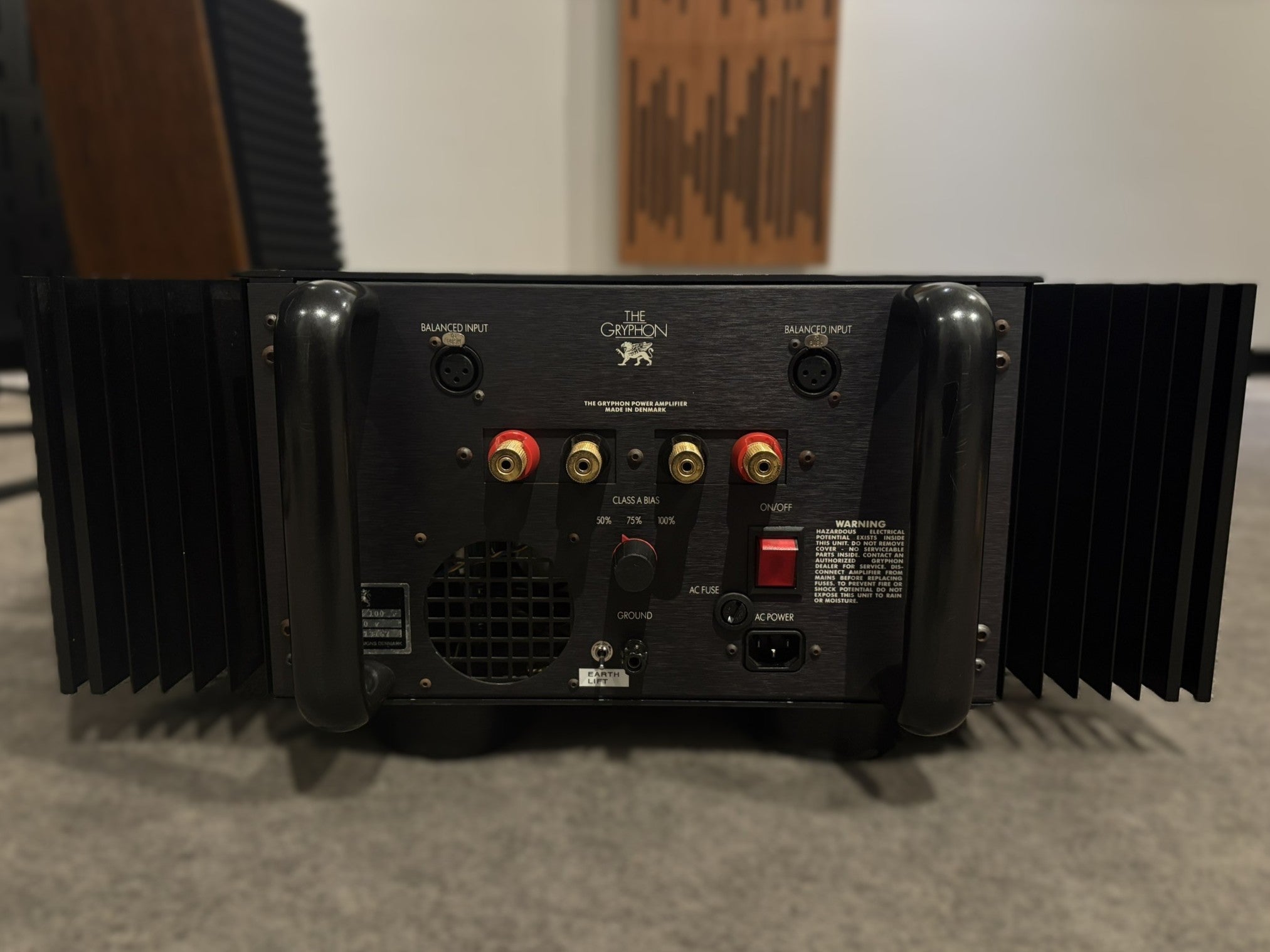

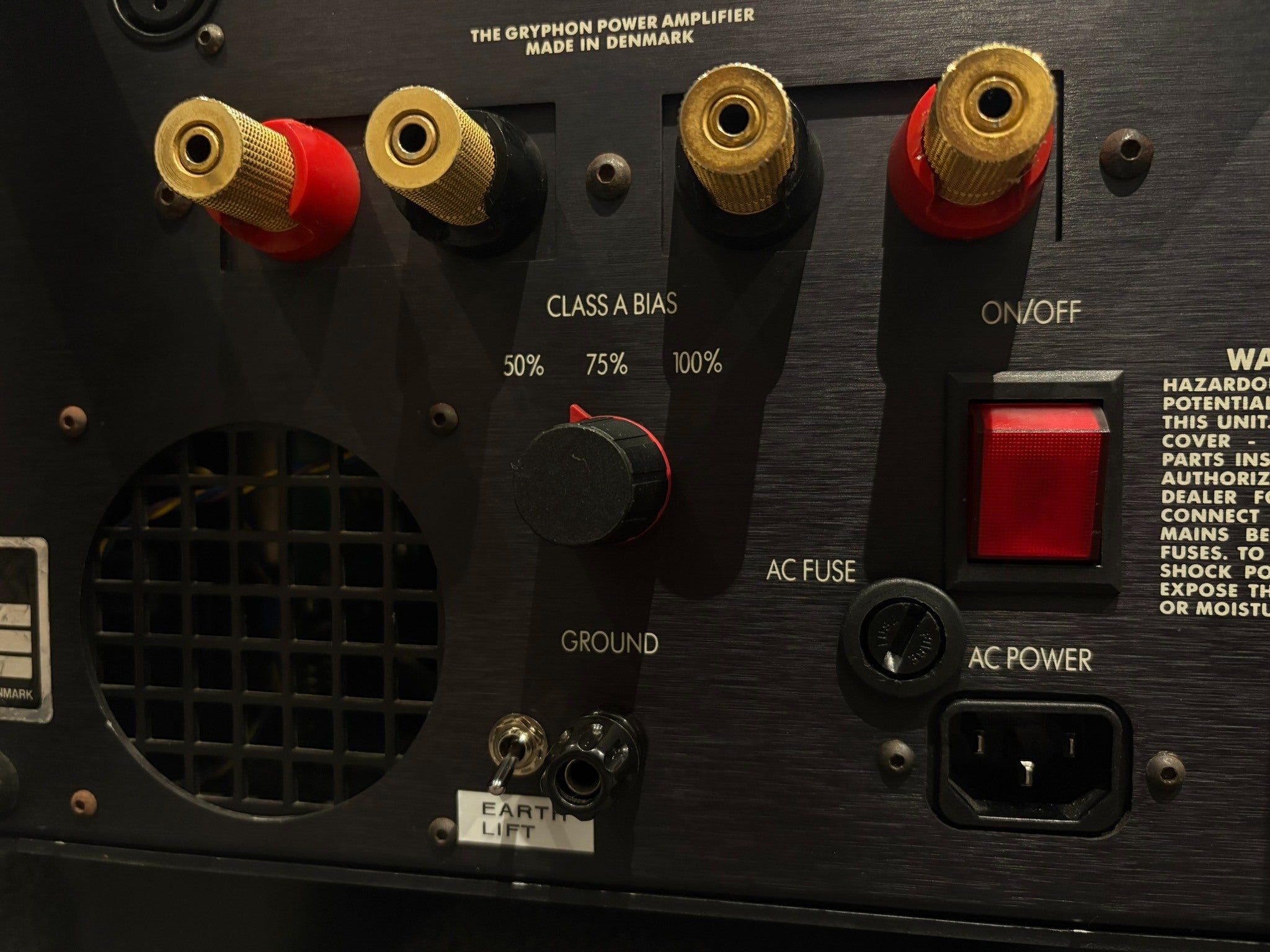

Gryphon's DM-100 dual mono power amplifier provides 100W of pure class A into 8ohms. A switch on the rear panel allows for bias adjustment, which drives the output more heavily towards Class A/B to manage a wide array of speakers.

Transistors are mounted on a single, large, double-sided printed circuit board with 105 mu of copper per side. The output board is connected to the speaker terminals via a solid, gold-plated copper busbar. Gryphon's exclusive long crystal silver cable design feeds the balanced inputs.

The vertical array transformers feature extensive shielding between the primary and secondary sides, with AC power line conditioning. Four high-current bridge rectifiers, hard-wired for maximum current transfer, are used per channel, followed by a pair of 48,000 µF computer-grade RIFA capacitors. Solid copper busbars and heavy gauge wire distribute power to outputs and gain stages. The driver section has it's own 20,000 uF capacitor bank, fed from separate windings on the transformer's secondary side, connects directly to the output boards without wiring.

With the exception of the transformer shield box, all cabinet parts are made of
non-magnetic materials.

Specification

Dual mono configuration
100 Watts Pure Class A
Programmable bias
Custom-made 1,200 Watt transformer for each channel
DC coupling Independent, regulated power supplies with RF and HF noise filtering
Select premium-grade components
Non-magnetic chassis chossis
Comprehensive, non-invasive protection circuitry
No output relays
Non-resonant, mechanically grounded chassis
Modular design

Weight: 76.5kg
Dimensions: 56x25x62cm (WDH)
