Gryphon DAC3 Diablo 333 DAC Module
Special Order 4-6 weeks
Internal module for Diablo 333 model, must be installed by qualified technician, please contact for details
The DAC3 is the perfect match for the new Diablo 333 integrated amplifier, adding five high performance digital inputs to the Diablo 333’s existing four analog inputs and optional phono stage input.
Based on the newest ESS Technology Sabre flagship digital-to-analog converter, ES9039PRO it is capable of extracting every musical detail for ultimate realism. The ES9039PRO has seven built-in pre-programmed digital filters which allows discerning users to tune the sound to their own personal taste.
Multiple local Ultra-low noise voltage supply stages together with discrete analog circuitry driven in full Class A, ensures the best possible sound performance.
With the DAC3 module built in, the Diablo 333 displays the chosen digital input Sampling frequency, PCM/DSD format and chosen digital filter setting. The DAC3 is an updated version of our renowned DAC 300 module, offering an extended range of digital filter settings and next-level performance.
The DAC3 module can be optionally added to the Diablo 333 at any time, separate or together with the PS3 Phono Stage module
- True Dual Mono discrete build Class A Analog configuration
- Zero global negative feedback
- Sabre High-Performance ES9039PRO D/A converter
- USB input compatible with following audio formats via PC/MAC/Linux: PCM: 44.1, 48, 88.2, 96, 176.4, 192, 352.8 and 384 kHz, up to 32 bits DSD via USB: DSD64, DSD128, DSD256 and DSD512
- XLR and BNC inputs compatible with PCM: 22.05, 24, 32, 44.1, 48, 64, 88.2, 96, 176.4 and 192 kHz, up to 32 bits
- TOSLINK input compatible with PCM: 22.05, 24, 32, 44.1, 48, 64, 88.2, 96 kHz, up to 24 bits
- Seven user-selectable PCM digital roll-off filters
- Temperature-compensated, ultra-low jitter crystal oscillator with better than 5 parts per million accuracy
- Super-Capacitor (12.5 Farad!) power supply for USB module – acts like a true battery supply
- First-order PCM analogue filters and second-order DSD analogue filters with Polypropylene capacitors
- Analogue output stages with ultra-low noise +/- 22VDC regulated voltage supplies for best analogue THD and noise suppression
- Multiple Local Voltage regulators for best digital noise suppression
- Separate left/right channel ultra-low noise power supply for analogue section of ES9039PRO DAC
- Ultra-short signal path
- Minimal internal wiring
- Six-layer printed circuit boards

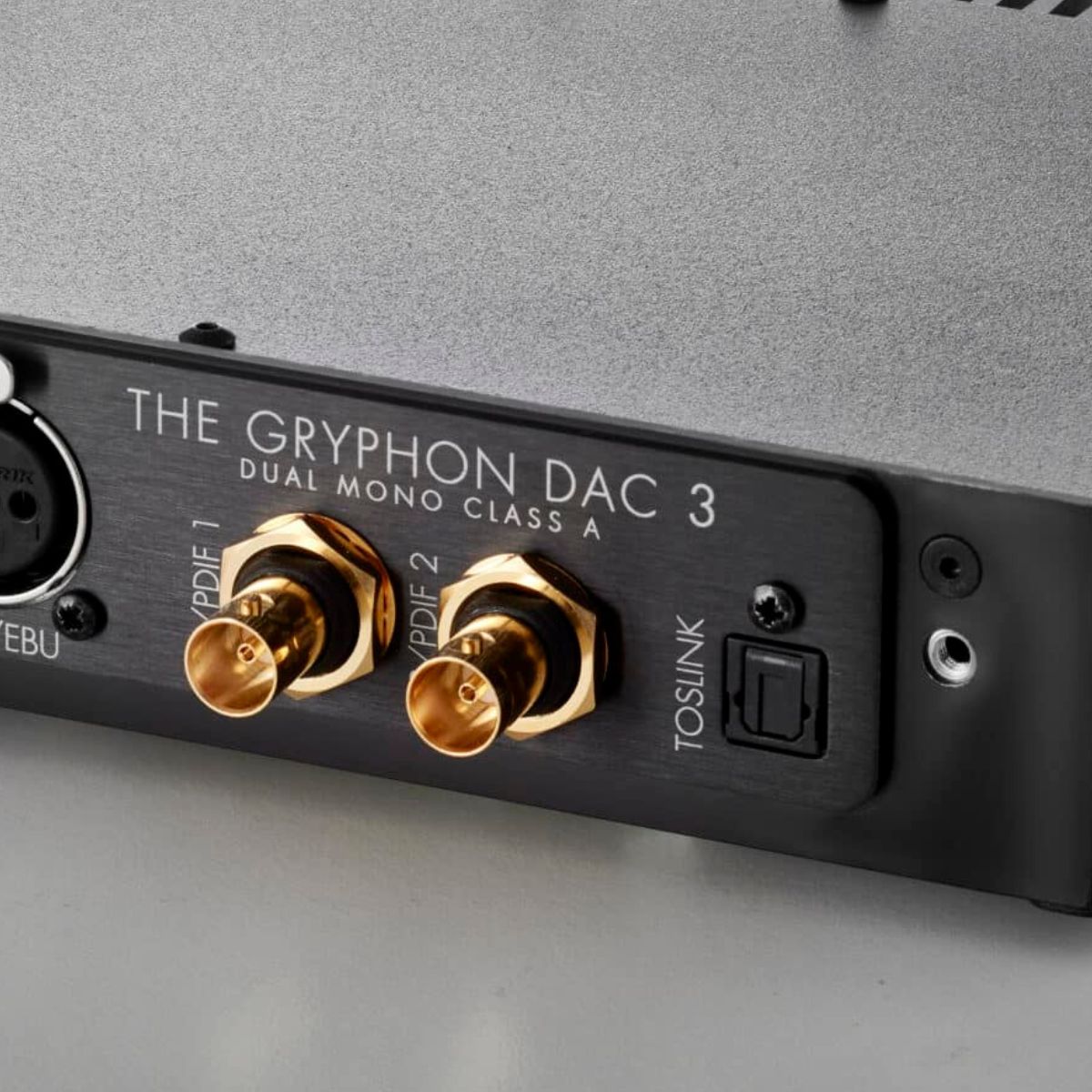

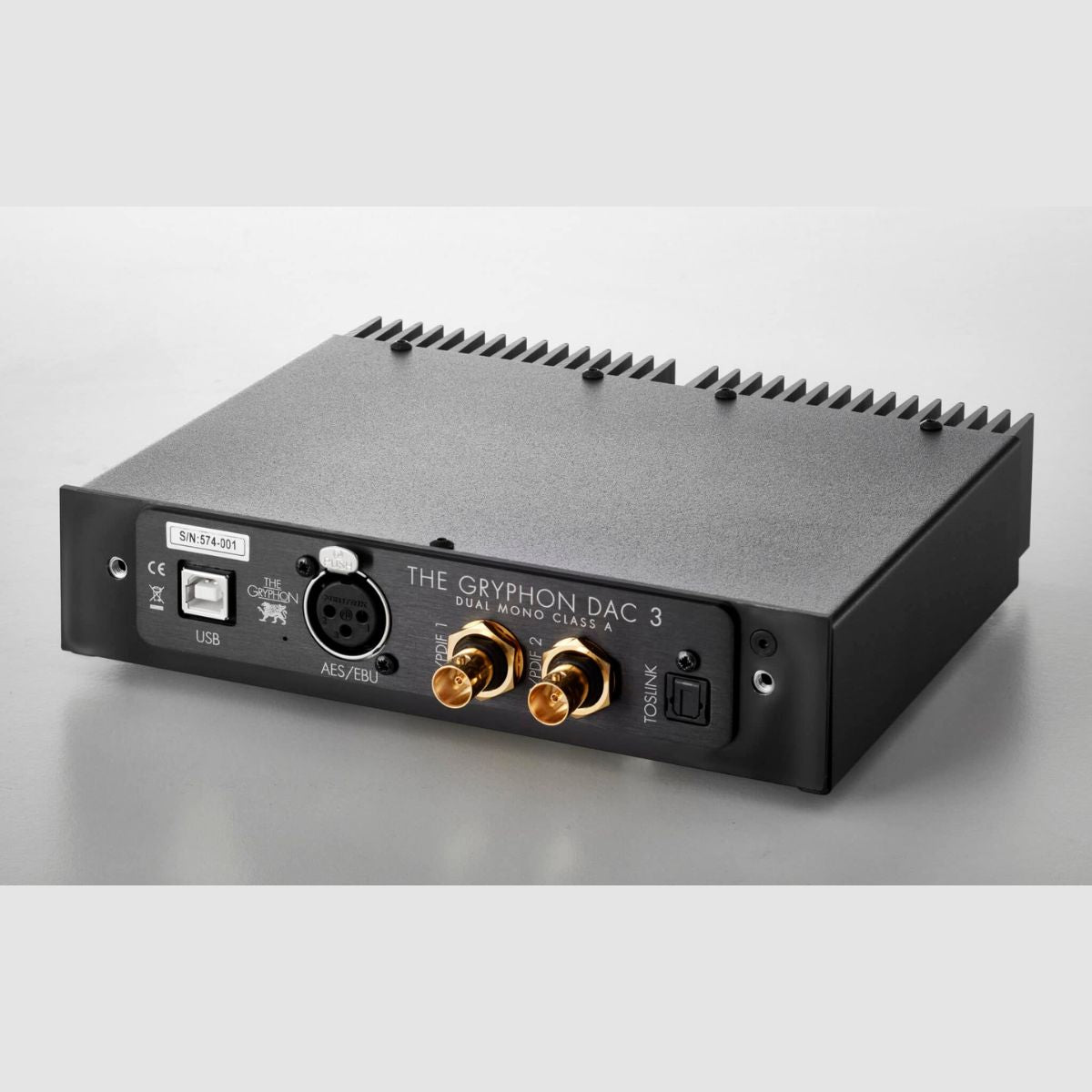

- PCB-mounted input sockets eliminate wiring and shorten signal path
- Gold-plated Neutric XLR socket for one balanced 110Ω AES source
- Gold-plated 75Ω BNC sockets with Teflon insulation for 2 S/PDIF sources
- One TOSLINK optical fiber input
- Designed and built in Denmark
