Features, Mono version:
• Exterior design by Flemming E. Rasmussen
• Electronics design by Tom Møller
• Pure Dual Mono configuration
• Zero global negative feedback
• 128 very high current bipolar output transistors (64 per Mono channel)
• 2,080,000 μF (>2 Farad) capacitor bank (1,040,000 uF per Mono channel)
• Four separate, custom made 2000VA toroidal transformers (2 per Mono channel)
• Extremely low capacitance Class A J-FET input buffer
• Balanced dual differential class A input circuitry followed by a very fast symmetrical voltage amplifying Class A stage
• Fully regulated low noise power supply for all voltage amplifying stages
• DC servo coupling
• Frequency-independent damping factor
• Gryphon silver internal signal and power wiring
• Premium, massive Zn foil capacitors used for local power supply decoupling, with a loss factor ten-times lower than of metallized Polypropylene-film capacitors.
• 4-layer up printed circuit boards with pure copper traces up to 105 um thick
• Two separate, custom made 2000VA toroidal transformers
• Individual, mechanically-decoupled left/right transformer castings
• Separate linear power supplies for both digital and analogue circuits
• “Soft Start” turn-on prevents triggering of fuses or circuit breakers in home electrical systems

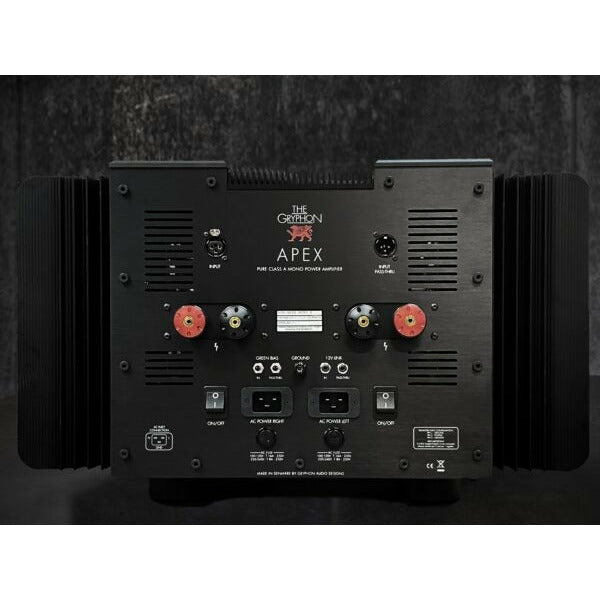

• One Gold-plated Neutrik XLR socket input signal pass-thru for each channel
• NEW Gryphon Gold-plated, Custom-built binding posts
• AC polarity indicator
• 12VDC link for remote power on and off
• Automatic Green Bias setting via Green Bias link or manual Low/Mid/High bias switch
• Firmware upgradeable via USB stick
• Non-intrusive protection system
• Standby power consumption < 0.5W
• Designed and manufactured in Denmark
Specifications, MONO version (one channel):
• 1 x 225W @ 8Ω, 1 x 450W @ 4Ω, 1 x 880W @ 2Ω and 1 x 1690W @ 1Ω at 115V/230V ac supply
• Output impedance: 0.010Ω
• Bandwidth (-3dB): 0.3Hz to 330KHz
• Power Supply Capacitance: 1.040.000uF
• Gain: +31.0dB
• Input Impedance, balanced (20-20000Hz): 10KΩ
• Dimensions: 593mm X 371mm X 886mm (W x H x D), 202kg net., each Stereo or Mono cabinet.
