Gryphon Antileon Signature Stereo Power Amplifier - As Traded

Gryphon Antileon Signature Stereo Power Amplifier - As Traded

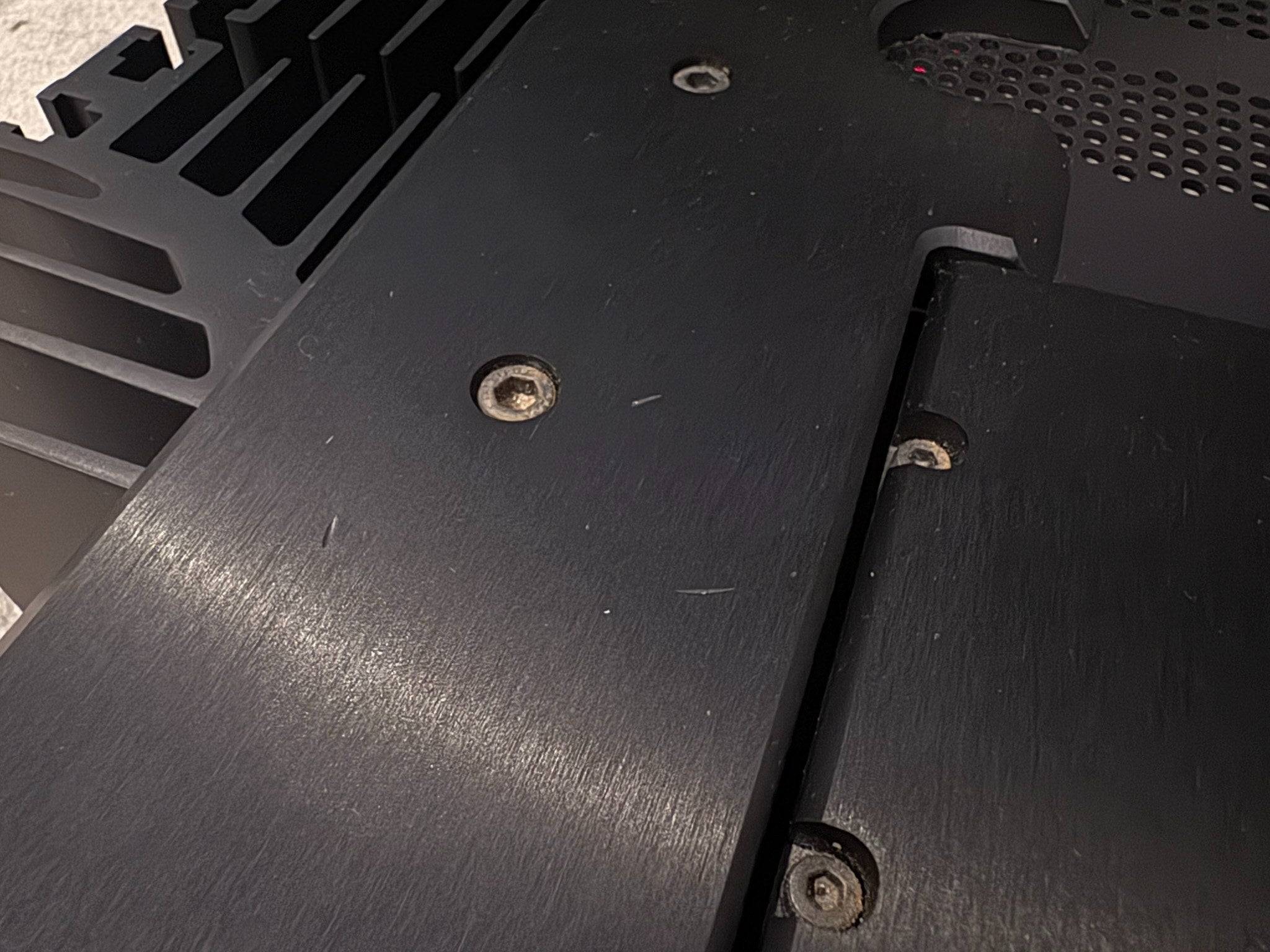

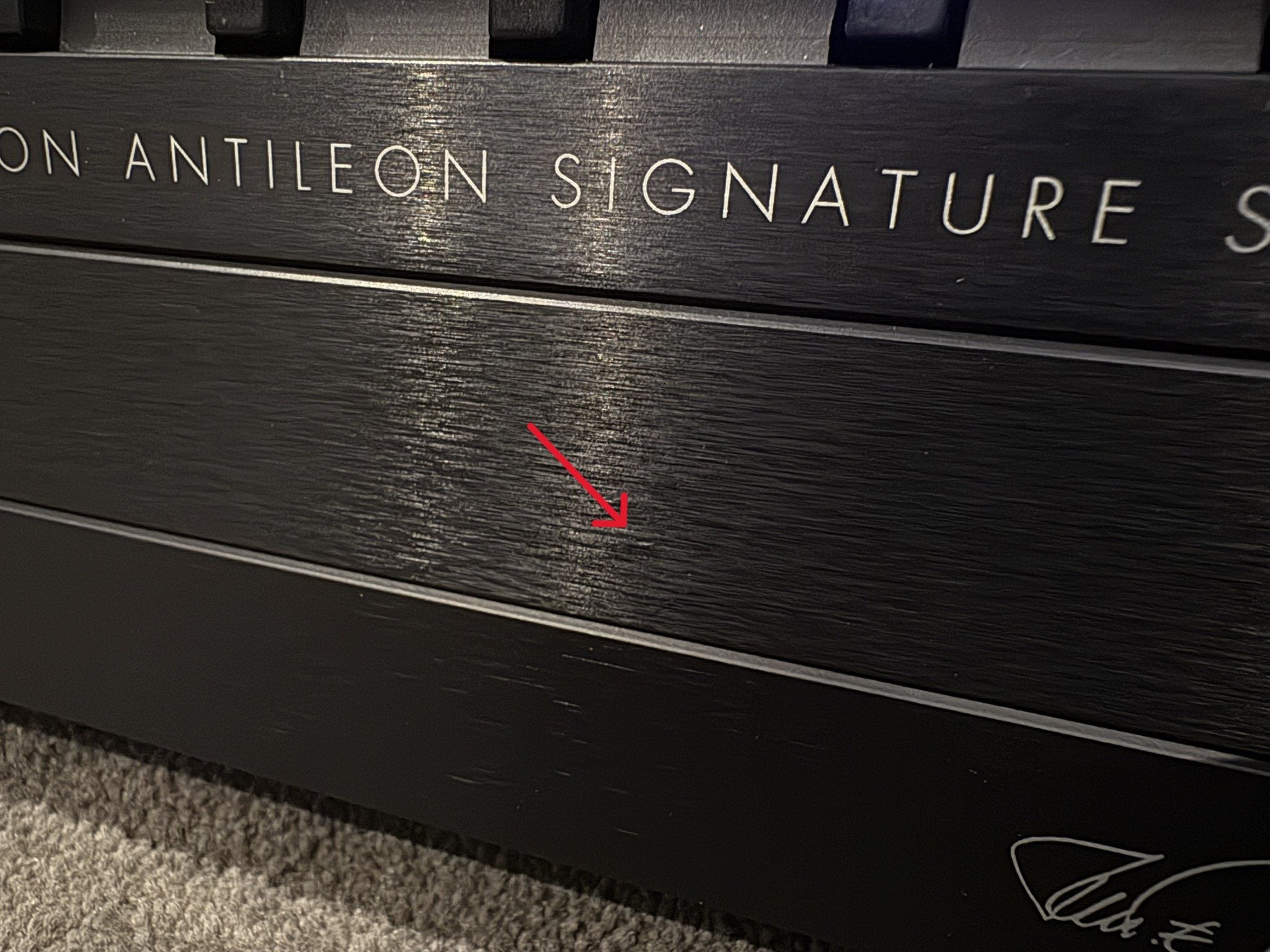

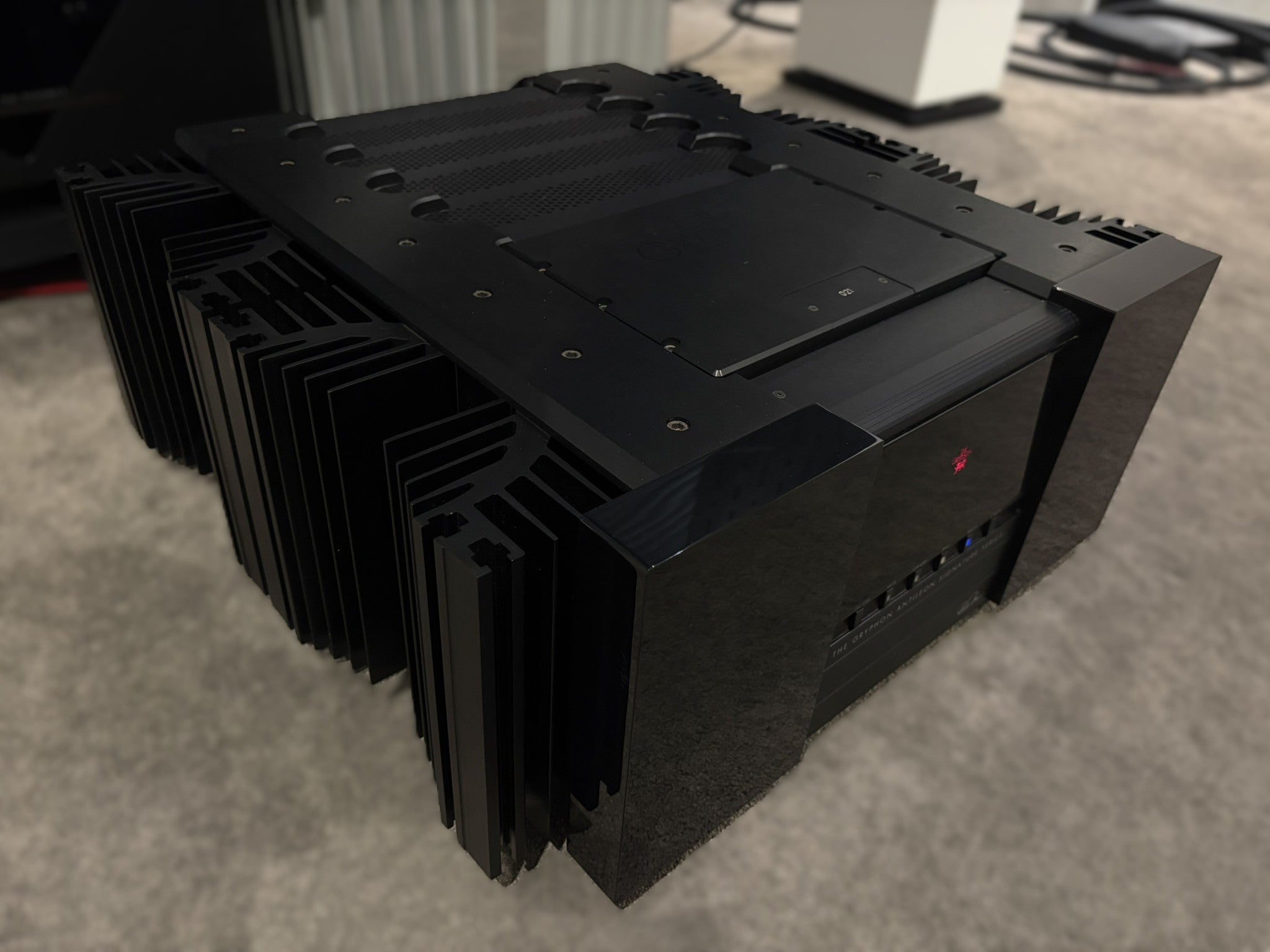

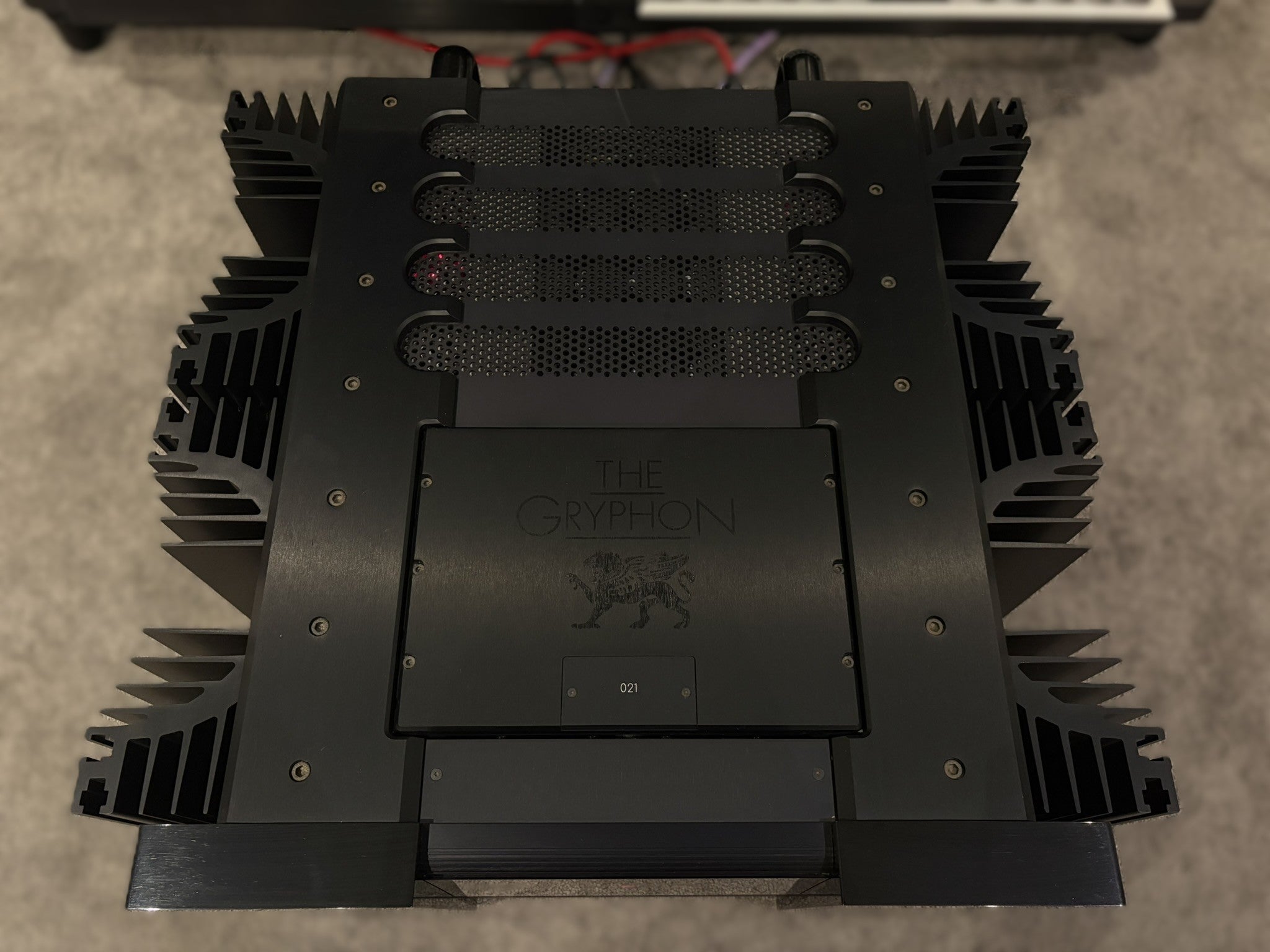

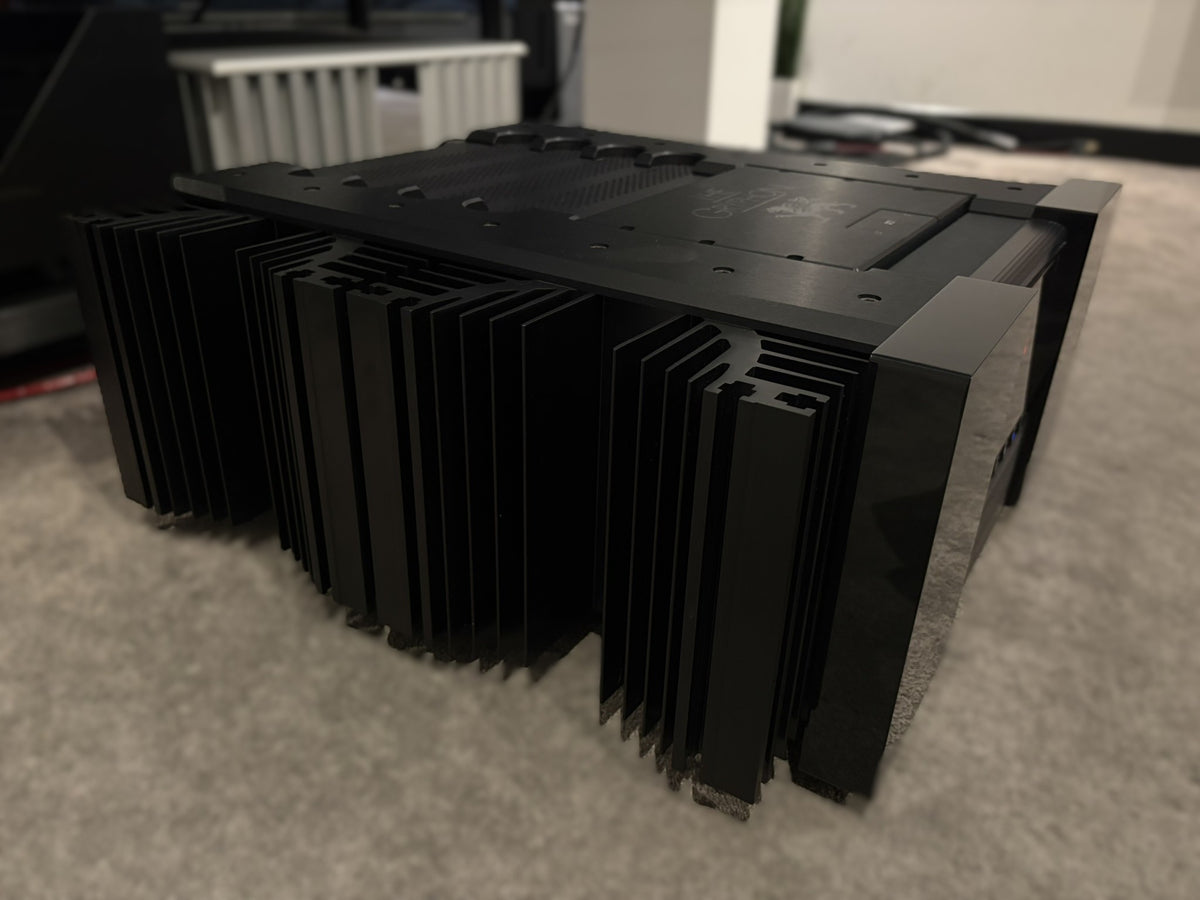

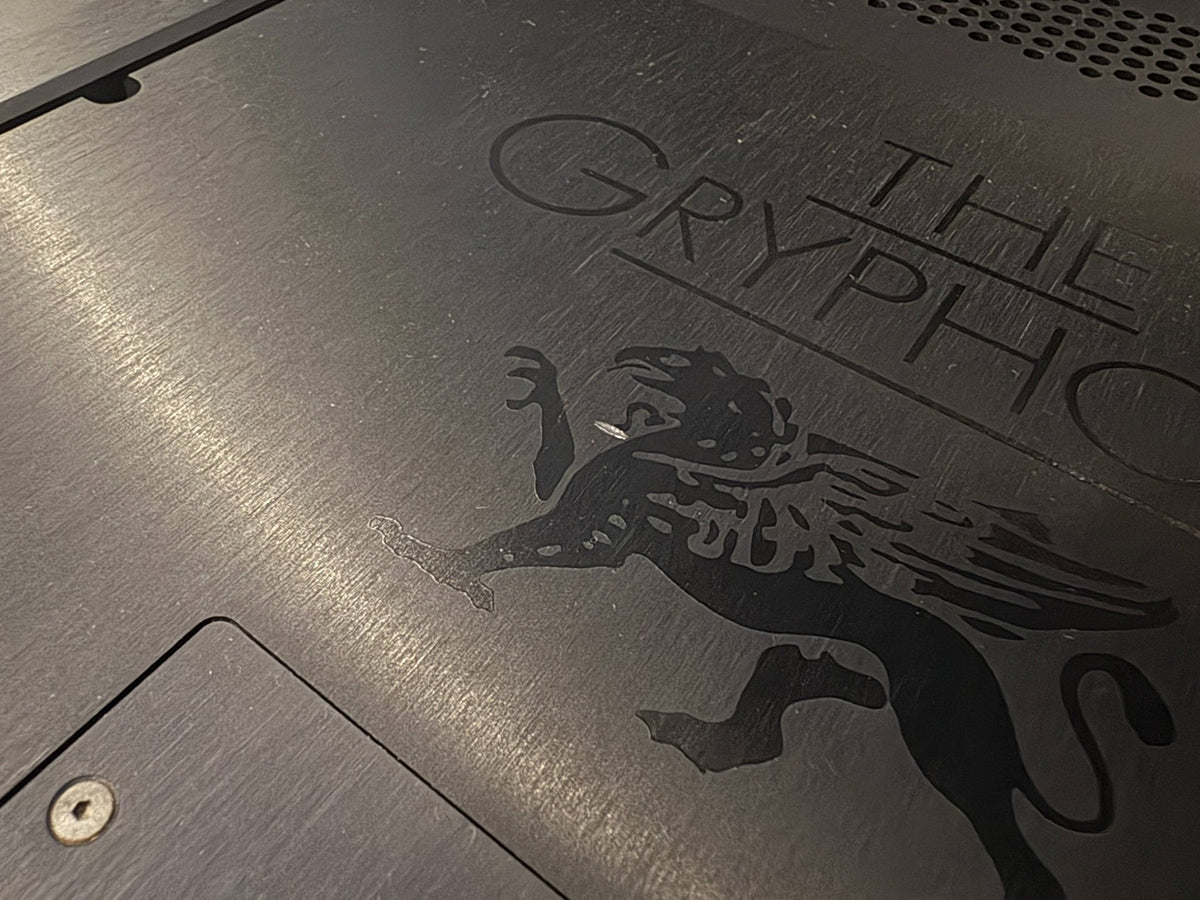

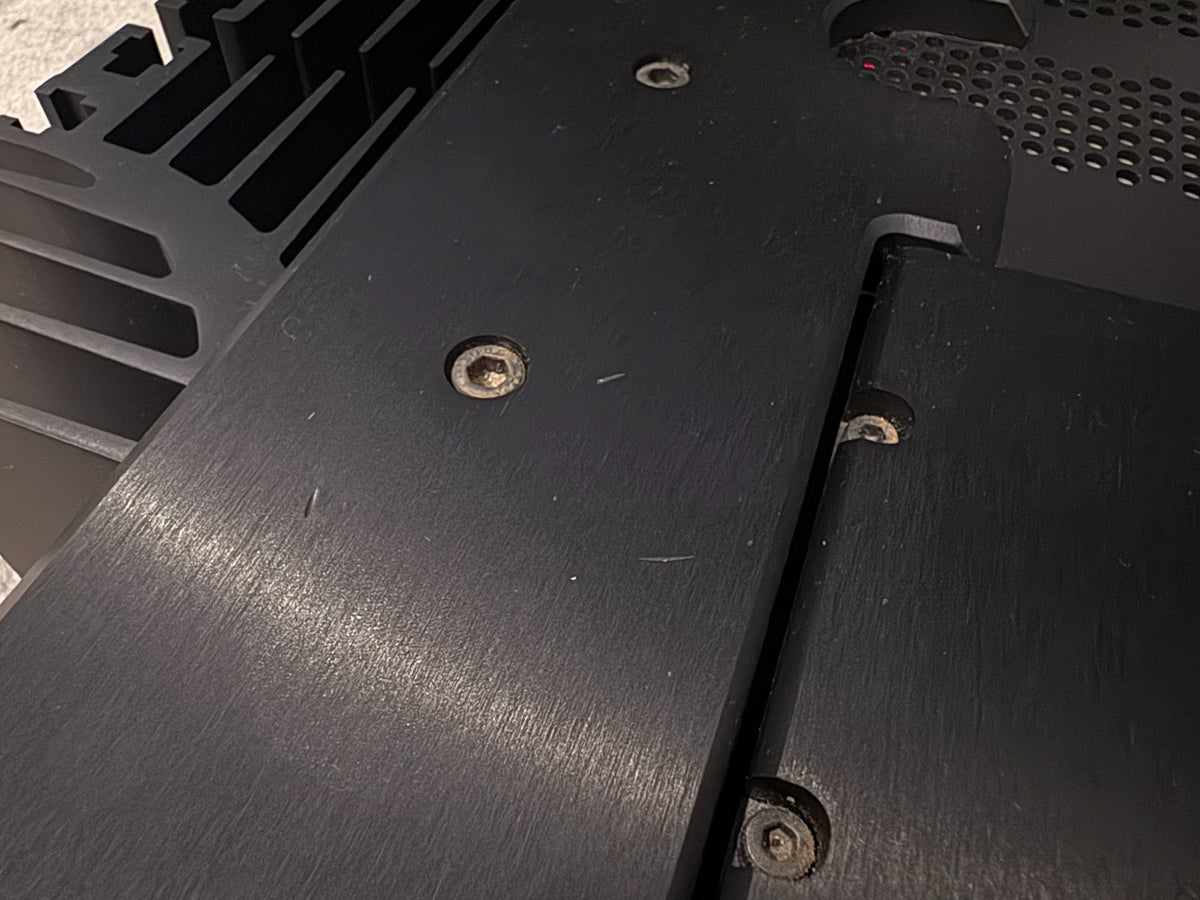

Condition: Used. Good, some chips and scratches (See photos)

Includes: Power Cables Only (No Box)

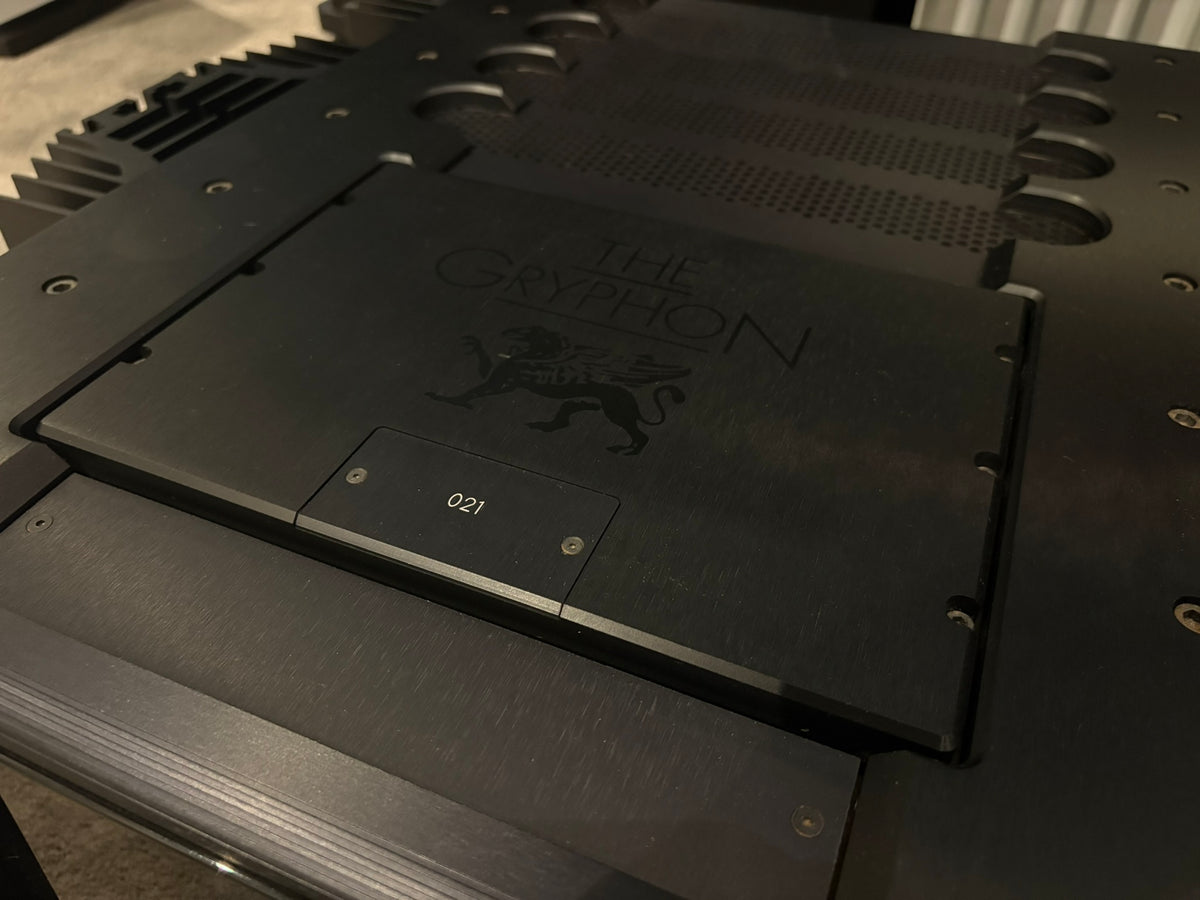

SN: 021

Made in Denmark

Includes 90 day (3 month) warranty

Local Sydney Metro Delivery Only, Contact for Freight Quote

Overview

Gryphon's Antileon Signature is a fully balanced, dual-mono stereo power amplifier designed around a high-current Class A output stage with ultra-wide bandwidth. 40 specially selected bipolar output transistors provide high-frequency and high-current capability.

Twin 1,500 W toroidal transformers, separately supplying each channel, are shielded and epoxy-damped, with independent supplies for the output, driver, control and display circuits. A 440,000 µF capacitor bank provides substantial energy storage for the output stages.

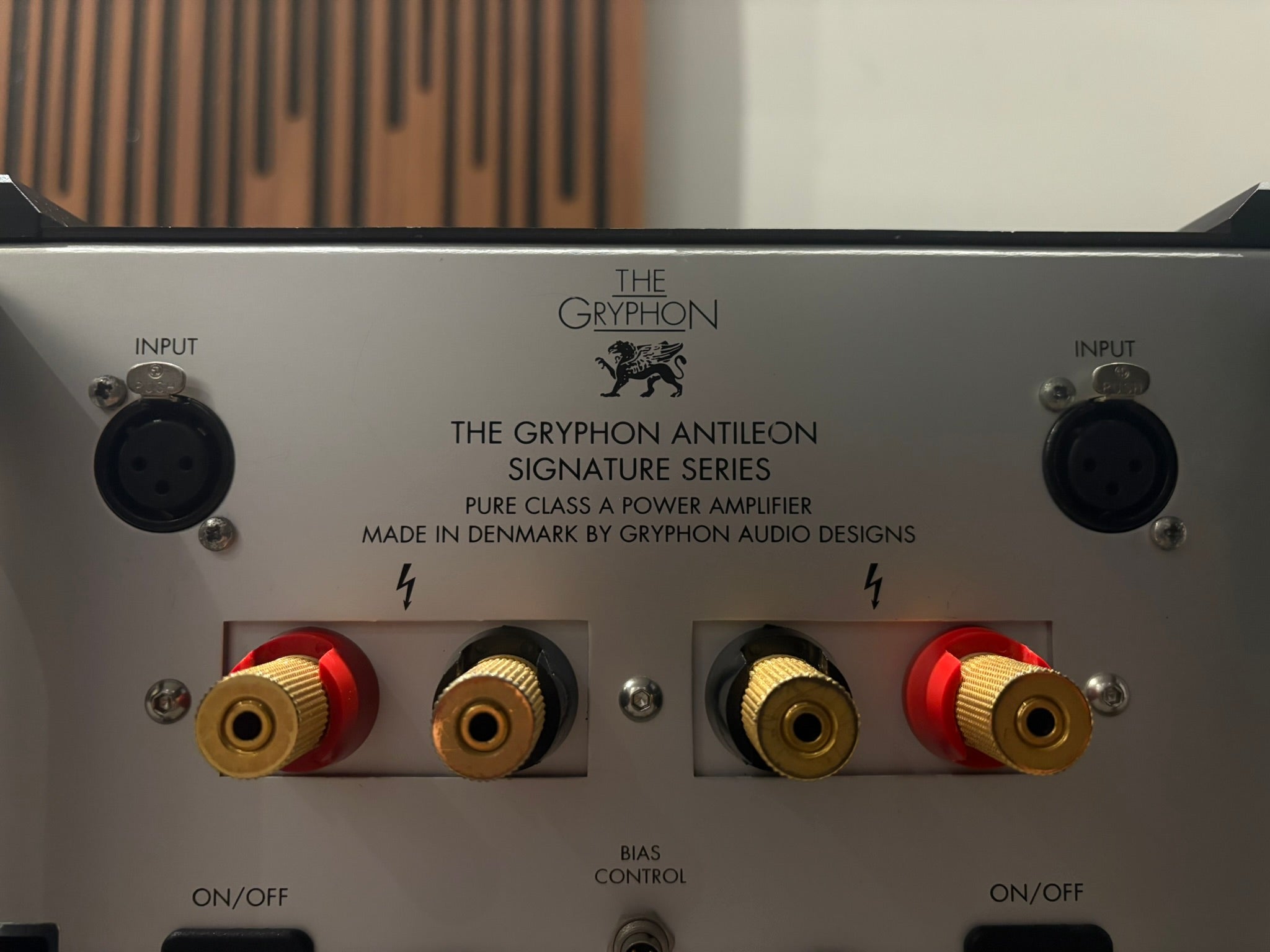

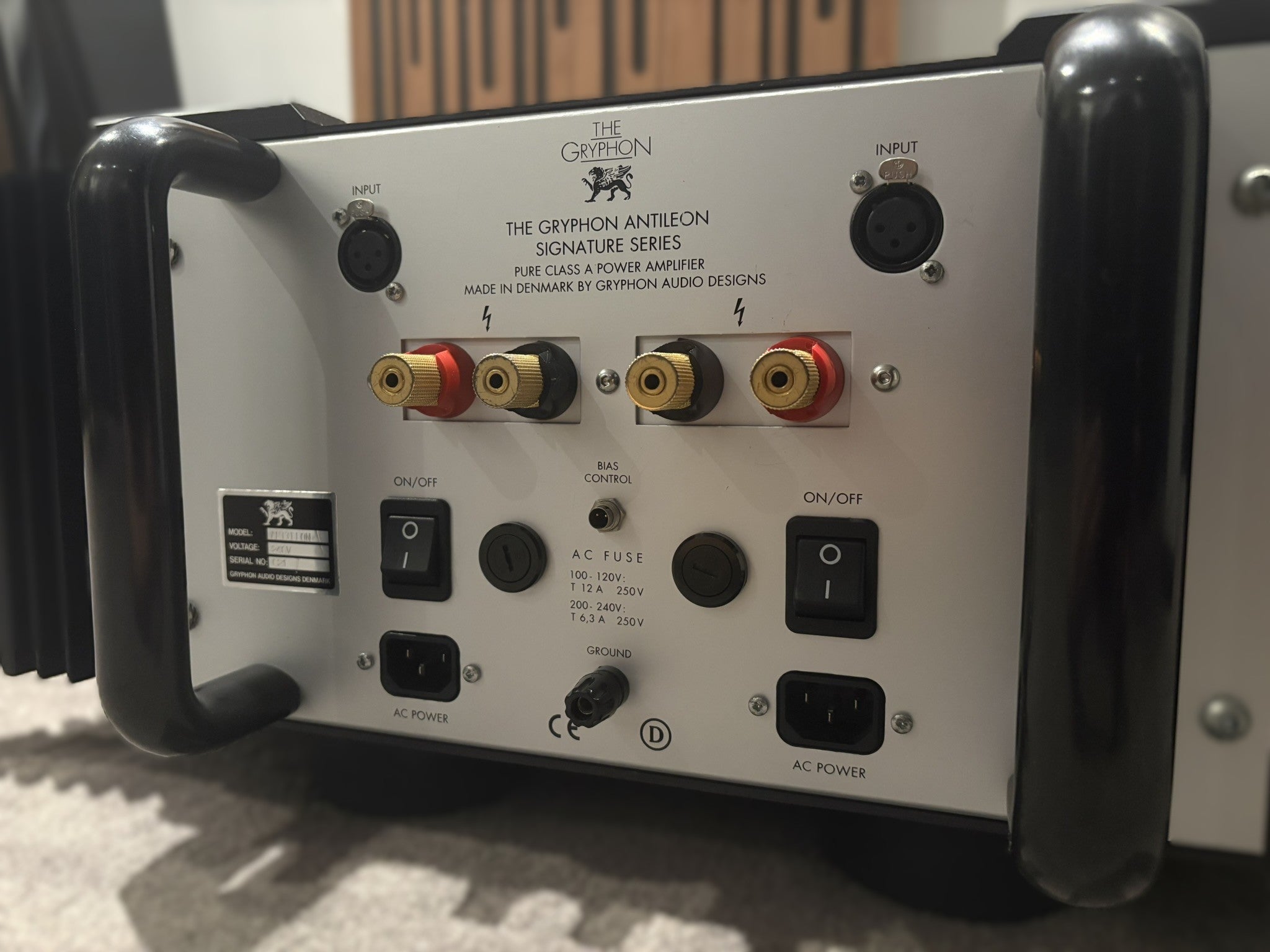

A circuit with zero global feedback uses no output relays and no contacts, sockets or current-limiting circuitry in the signal path. Solid copper busbars and 105 µm copper PCB traces manage the internal signal transfer, and Gryphon's Guideline Reference gold-embedded silver wiring connects the balanced XLR inputs.

Custom zero-inductance resistors, custom-built binding posts, DC servo coupling and a frequency-independent damping factor complete the signal-path. Microprocessor-controlled protection continuously monitors DC, high-frequency conditions, overheating, short circuits and low AC voltage without placing protection circuitry in the signal path.

Bias can be set automatically through Green Class A operation or manually using Low/High settings.

Fully balanced circuit
2 x 150 Watts Class A
40 High current bipolar output transistors
440,000 µF power capacitor bank
Flat frequency response to beyond 350 kHz
Gryphon Guideline Reference gold-embedded silver internal wiring
Zero global feedback
Custom-built separate toroidal transformers
Custom-built power capacitors
Shielded, epoxy-damped transformer casings
Separate power supply for display and control circuits
DC servo coupling
No output relays
Frequency-independent damping factor
Custom-built binding posts

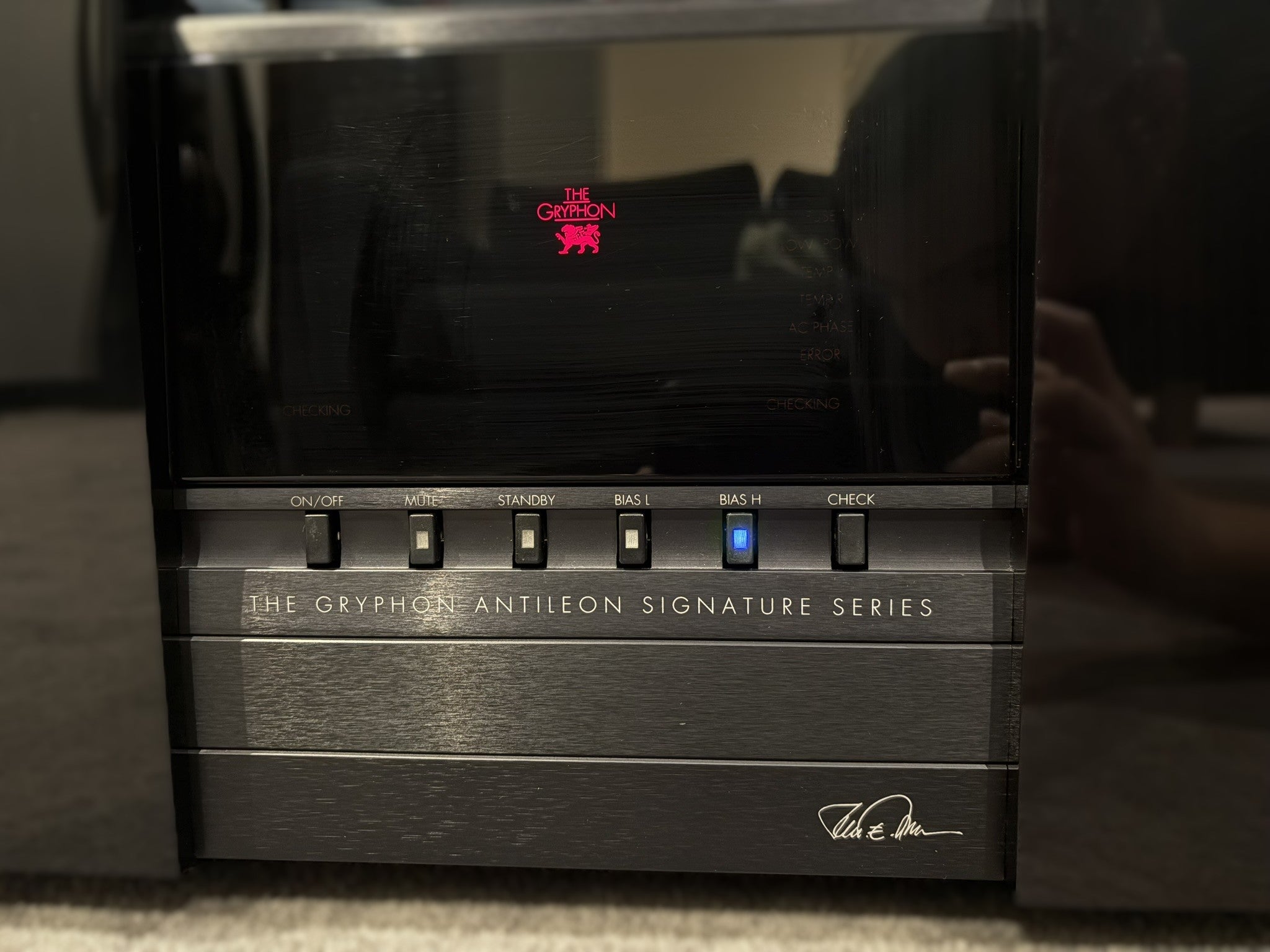

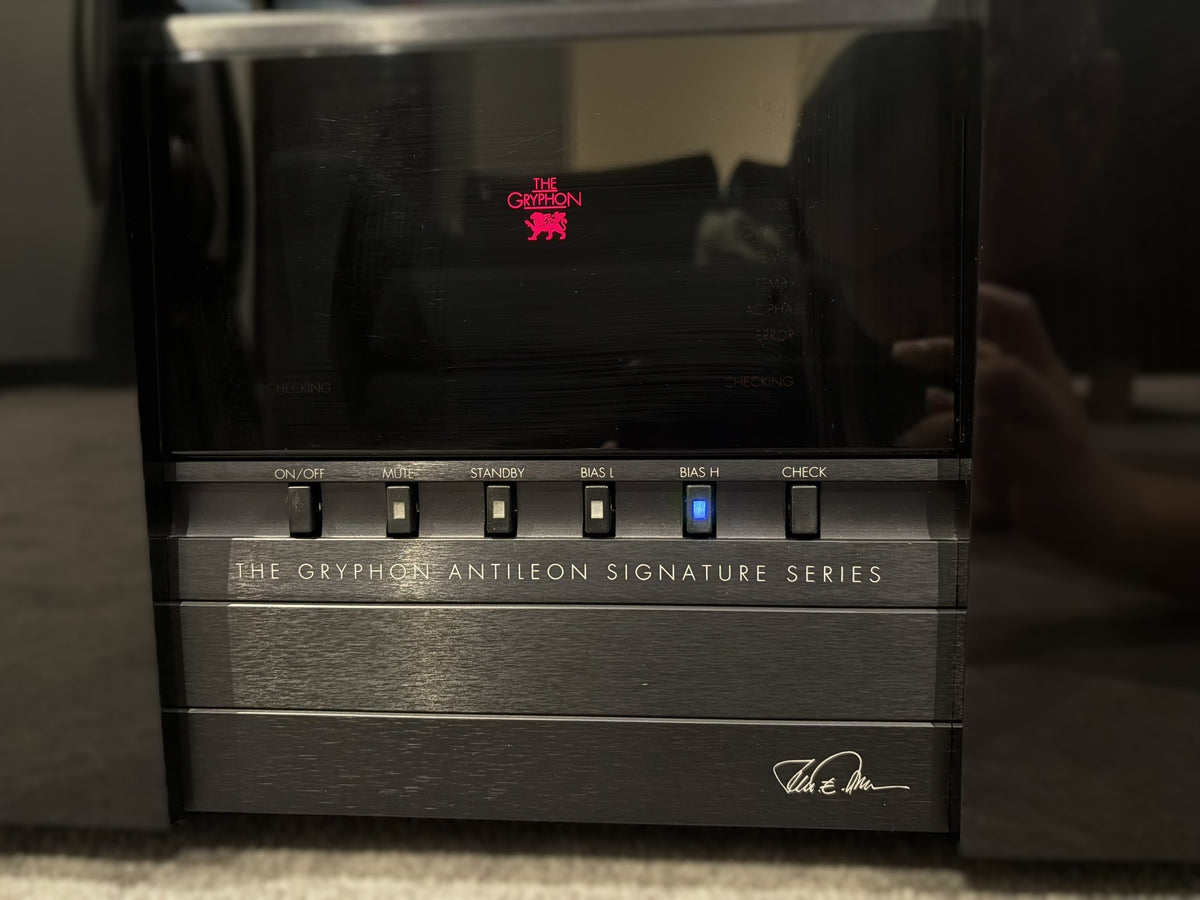

Automatic Green Class A bias setting or manual Low/High bias
AC power status display
AC polarity indicator
Rigid mechanical structure
Microprocessor-controlled non-invasive “smart” protection system
Double sealed, mil spec PCB with 105 µm copper traces
Upgradeable microprocessor software with integrated service log

Specification


Power output: 150 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 1%
Gain: 31 dB
Input sensitivity: 0.975V
Signal to noise ratio: 81dB
Dimensions: 570 x 260 x 600mm
Weight: 90kg
