Furman CN-3600S E 16A SmartSequencing Power Conditioner

Furman CN-3600S E 16A SmartSequencing Power Conditioner

Designed for Commercial A/V Installations in 220V-240V regions, the CN-3600 SE combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, and AC noise filtration.

The new CN-3600 SE is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.

In addition, the CN-3600 SE offers robust control options, equipped with RS-232 ports and command sets for integration with control systems.

• Surge Protection
  Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available
• Noise Filtration
  Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity
• Voltage Protection
  Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods
• SmartSequencing™
  SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key
• Diagnostic Lights
  Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator
• 16 Amp Output Current
  16 amp maximum current capacity with incorporated 16 amp thermal circuit breaker
• Remote Access (RS-232)
  RS-232 compatibility & command set provide integration with control systems, open source and control programming
• Nine Total Outlets
  The CN-3600 SE contains eight rear panel IEC C13 outlets and one front panel IEC C13 outlet

Specification

Family: Contractor Series 240V
Line Voltage: 240 Volts
AC Voltage Input Range: 180-270VAC, 50/60Hz
AC Cord: 1.5mm² x 3, 2.5m Long, black, IEC C19 Female to Schuko CEE 7/7 Male Plug

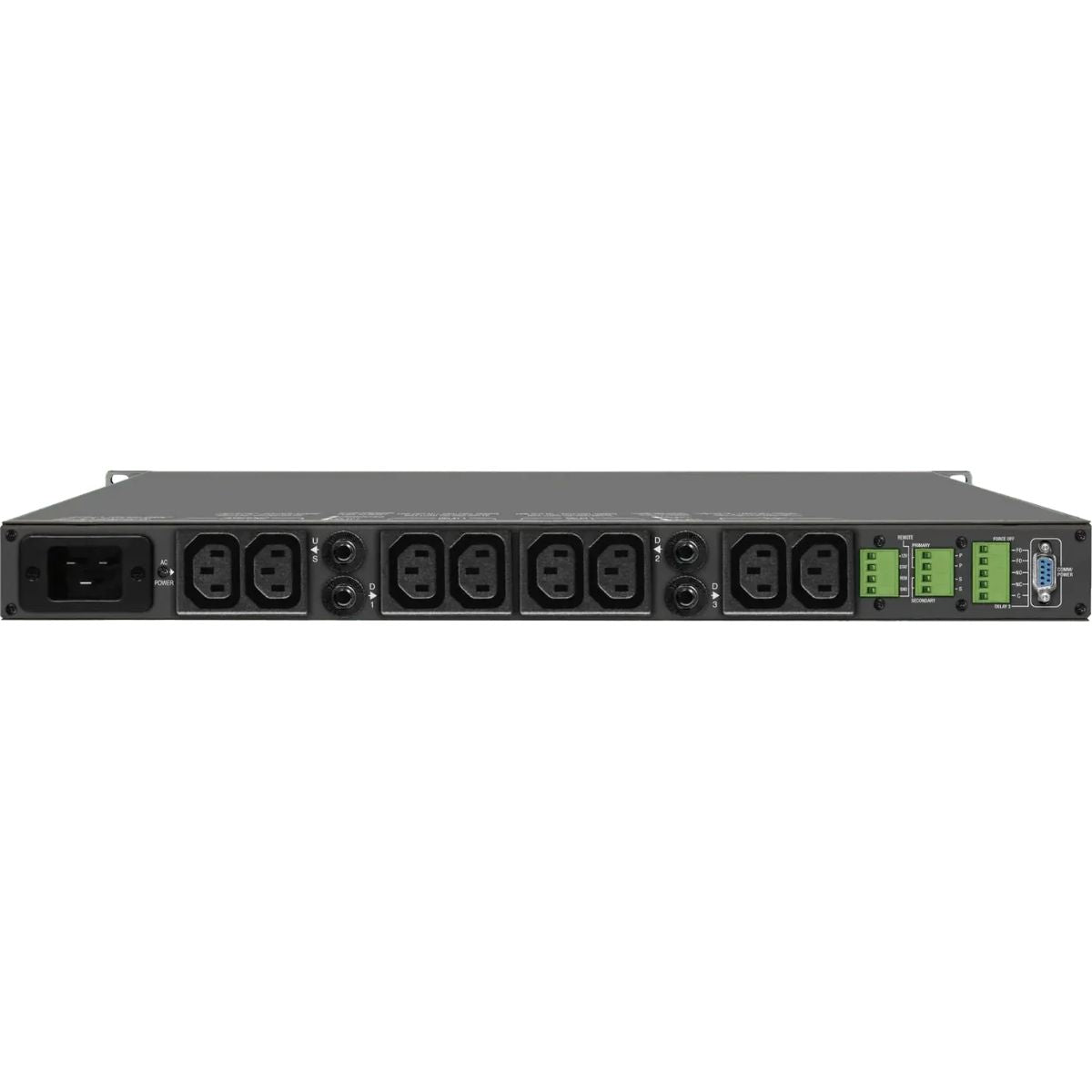

Rear Panel Outlets: 1 IEC C13 pair (Unswitched), 3 IEC C13 pairs (Sequenced, each pair controlled by separate relay)
Front Panel: 1 IEC C13 (Unswitched)
Surge/Under-Overvoltage Protection: AC Surge Protection Series Multi-Stage Protection SMP
Spike Protection Mode: Line to neutral, zero ground leakage
Spike Clamping Voltage: 375V peak @ 6,000 volts/3,000 amps
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 Amps
AC Undervoltage Protection: EVS, 175VAC±3VAC
AC Overvoltage Protection: EVS, 275VAC±5VAC
AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)
AC Filtering: LiFT
Noise Attenuation: Linear, 10dB @10KHz, 40dB @100KHz, 50dB @500KHz
Operating Temperature Range: 5°C (40°F) to 40°C (105°F)
Humidity Range: <90% rH (Relative Humidity)
Keyswitch: Front panel, 3-position keyswitch (On, Off, Remote)
Keys: Included, 1 pair
Pushbutton Switch: Front panel, hidden by security cover
Circuit Breaker: Front panel, pushbutton, 20A Thermal Breaker

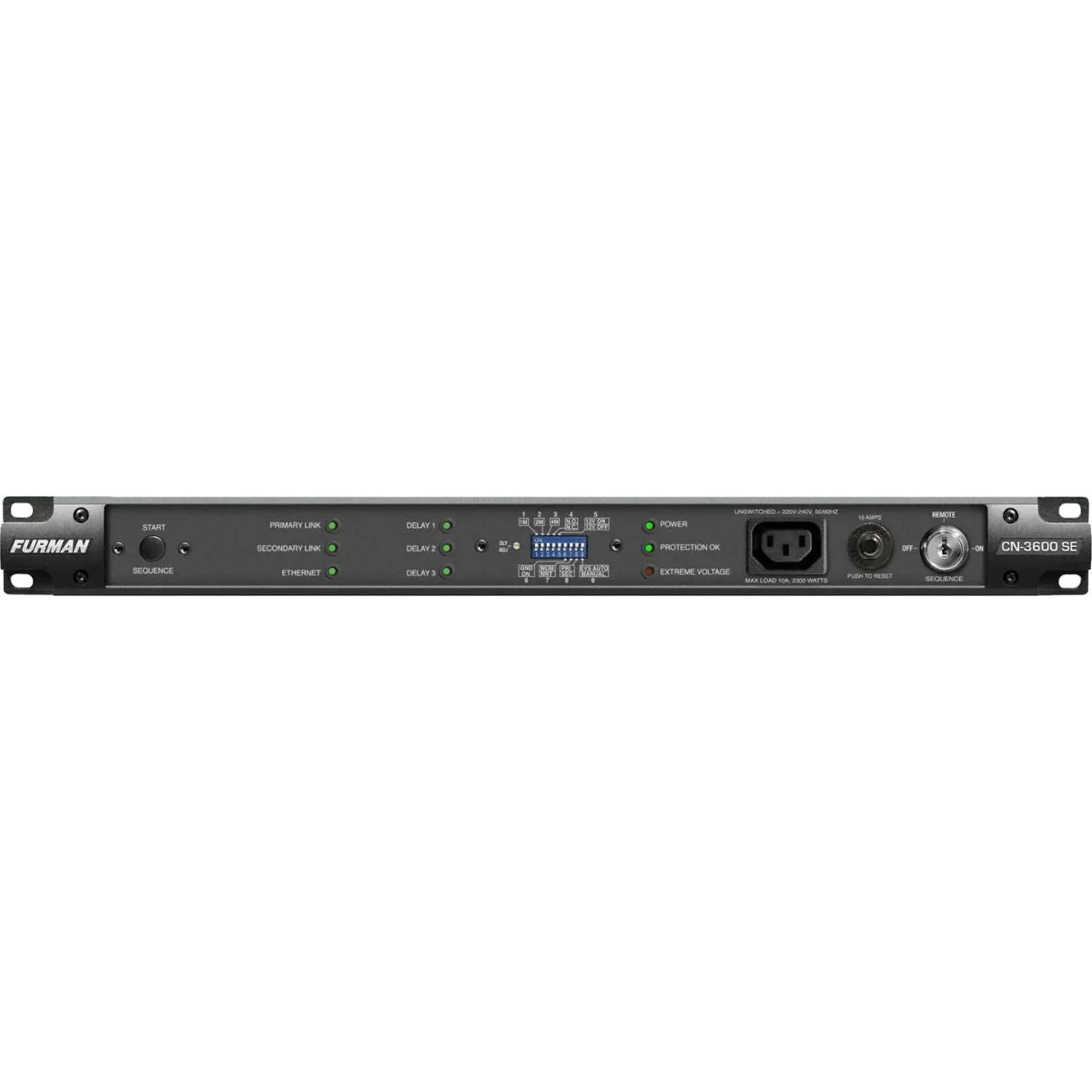

Front Panel Diagnostic Indicators: Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
Front Panel DIP Switches: Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off, BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
Potentiometer: Front panel, hidden by security cover, fine-tune delay adjust
Control/Status/Triggering (Rear Panel): Remote Terminal +5-30VDC In, 12VDC (12mA) Out
SmartSequencing: Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
Remote Terminal: Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
Force Off/Delay 3 Terminal: Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
RS-232 Compatible: Yes, DB-9 Connector
Voltmeter: Available with RS-232, ± 2VAC accuracy
Ammeter: Available with RS-232, ±1A accuracy
Power Consumption (No Load): 10 Watts
