ESOTERIC F05 Integrated Amplifier - As Traded
Condition: Excellent
Includes: Original Box and Remote Control

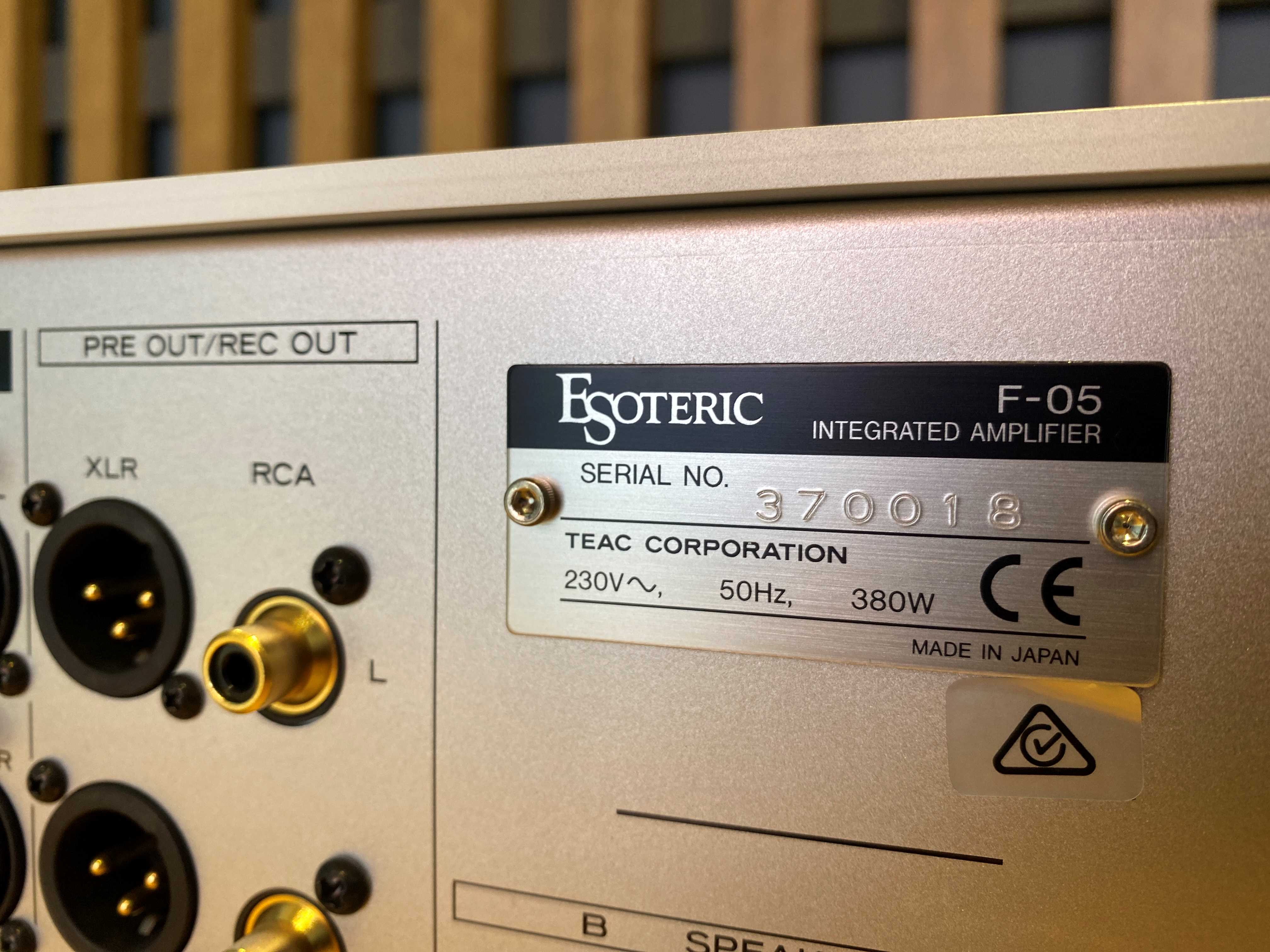

SN: 370018
Made In Japan
Overview
The F-05 serves as a foundational element within Esoteric's innovative F Series Integrated Amplifiers. Drawing from the esteemed Grandioso C1 for its fully balanced preamplifier section and directly inheriting high-powered amplifier modules from the Grandioso S1, this amplifier mirrors the acclaimed design of Esoteric's premier models.
Embracing a complete dual-monaural setup across all amplification stages, from initial preamplifier inputs to the conclusive power amplifier phases, the F-05 embodies a hallmark feature seen in Esoteric's top-tier offerings.
Catering to enthusiasts who cherish the profound emotional depth of music, the F-05 stands out by imparting the strength to dynamically expand any soundstage, delivering unparalleled performance. When paired with any of Esoteric's cutting-edge digital players, it consistently achieves exceptional levels of sonic expression.
Specifications
| Speaker output | |
| Rated output power | 120W + 120W (8Ω) 240W + 240W (4Ω) |
| Minimum compatible impedance | 4Ω |
| Damping factor | 370 |
| Speaker terminals | Screw type × 2 sets (L/R) |

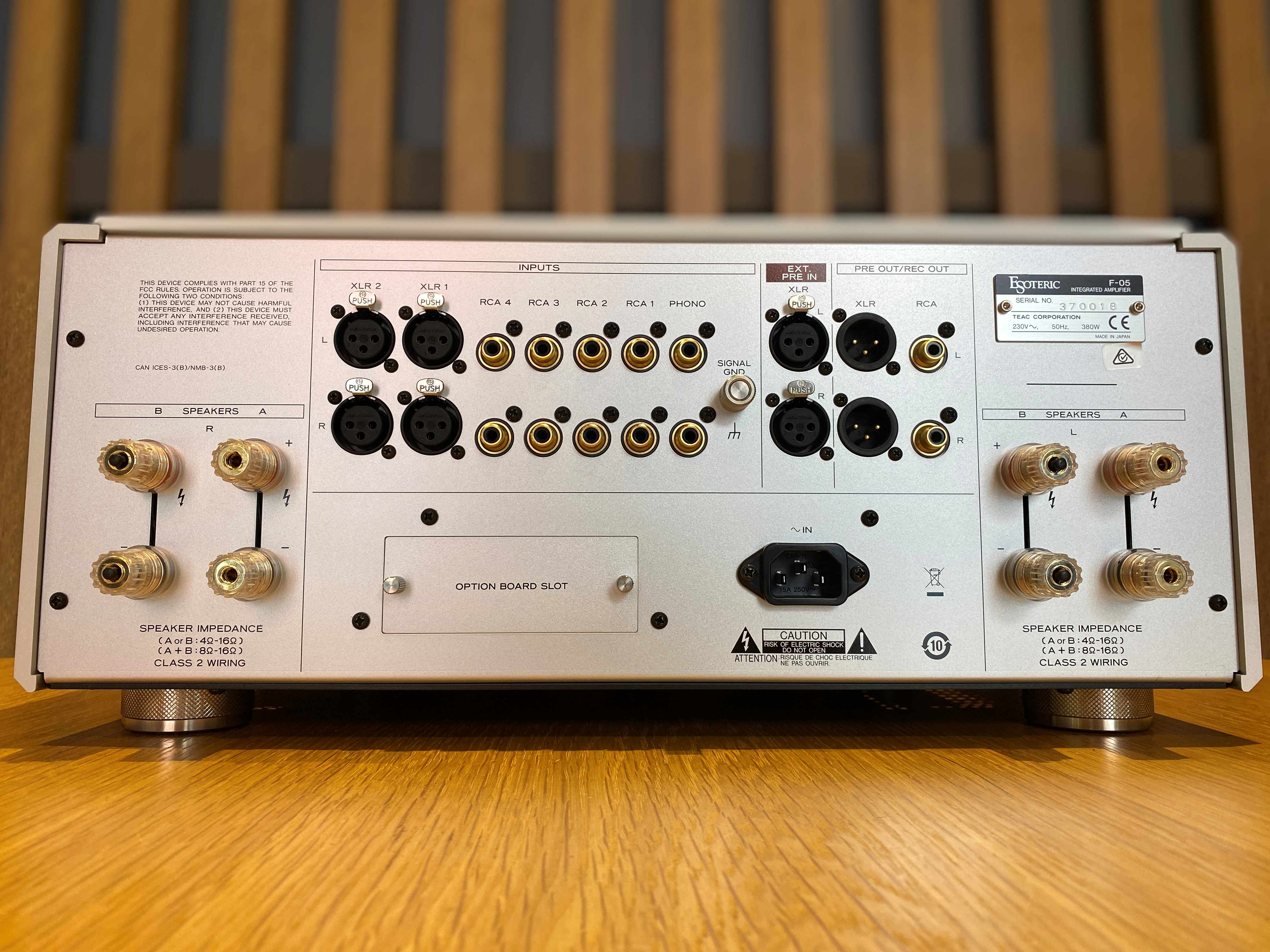

| Analog audio inputs | |
| XLR (LINE) | 2 pairs |
| Input impedance | 10kΩ |
| RCA (LINE) | 4 pairs |
| Input impedance | 10kΩ |
| RCA (PHONO) | 1 pair |
| Input impedance | |
| MC | 100Ω |
| MM | 47Ω |
| XLR (Pre-in) | 1 pair |
| Input impedance | 47Ω |
| RCA (Pre-in) | 1 pair |
| Input impedance | 47Ω |
| Analog audio outputs | |
| XLR (Pre-out) | 1 pair |
| Output impedance | 100Ω |
| Pre-out S/N ratio | |
| XLR, RCA入力 | 109dB (1V出力時) |
| PHONO MC IN | 75dB (1V output) |
| PHONO MM IN | 93dB (1V output) |
| RCA (Pre-out) | 1 pair |
| Output impedance | 100Ω |
| Pre-out S/N ratio | |
| XLR, RCA IN | 109dB (1V output) |
| PHONO MC IN | 75dB (1V output) |
| PHONO MM IN | 93dB (1V output) |
