Dynavector DV507 MkII Tonearm - Consignment

Dynavector DV507 MkII Tonearm - Consignment

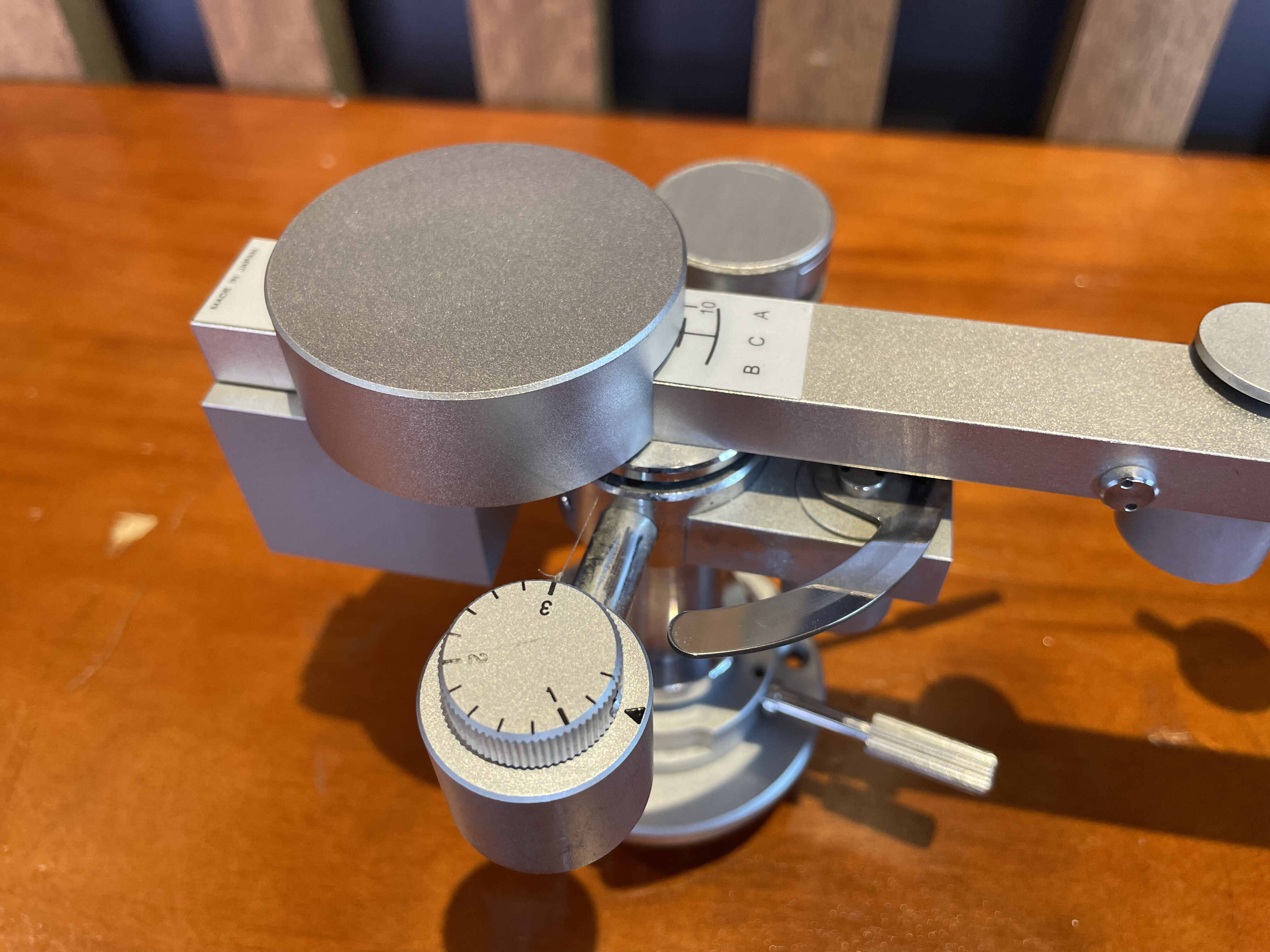

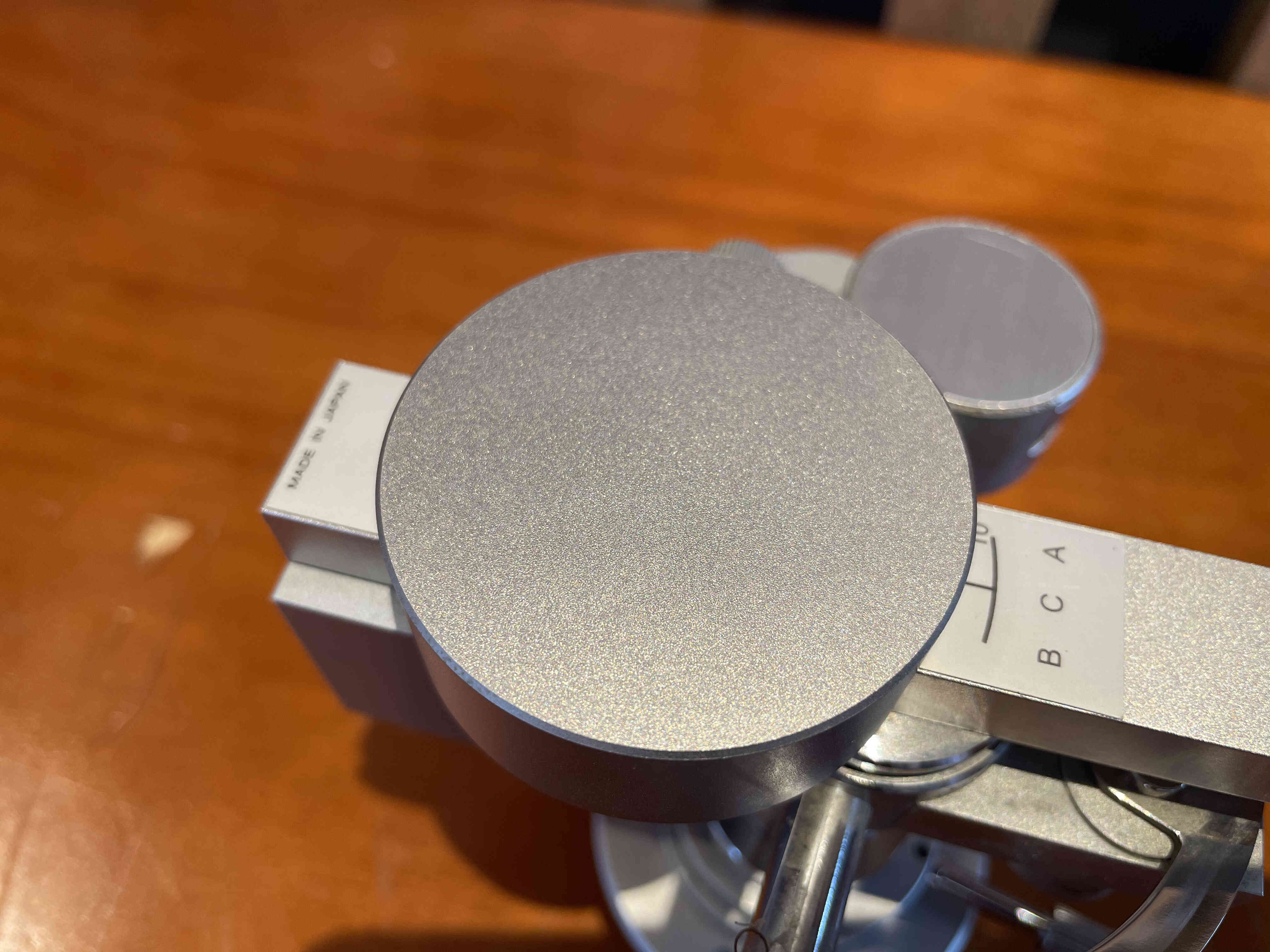

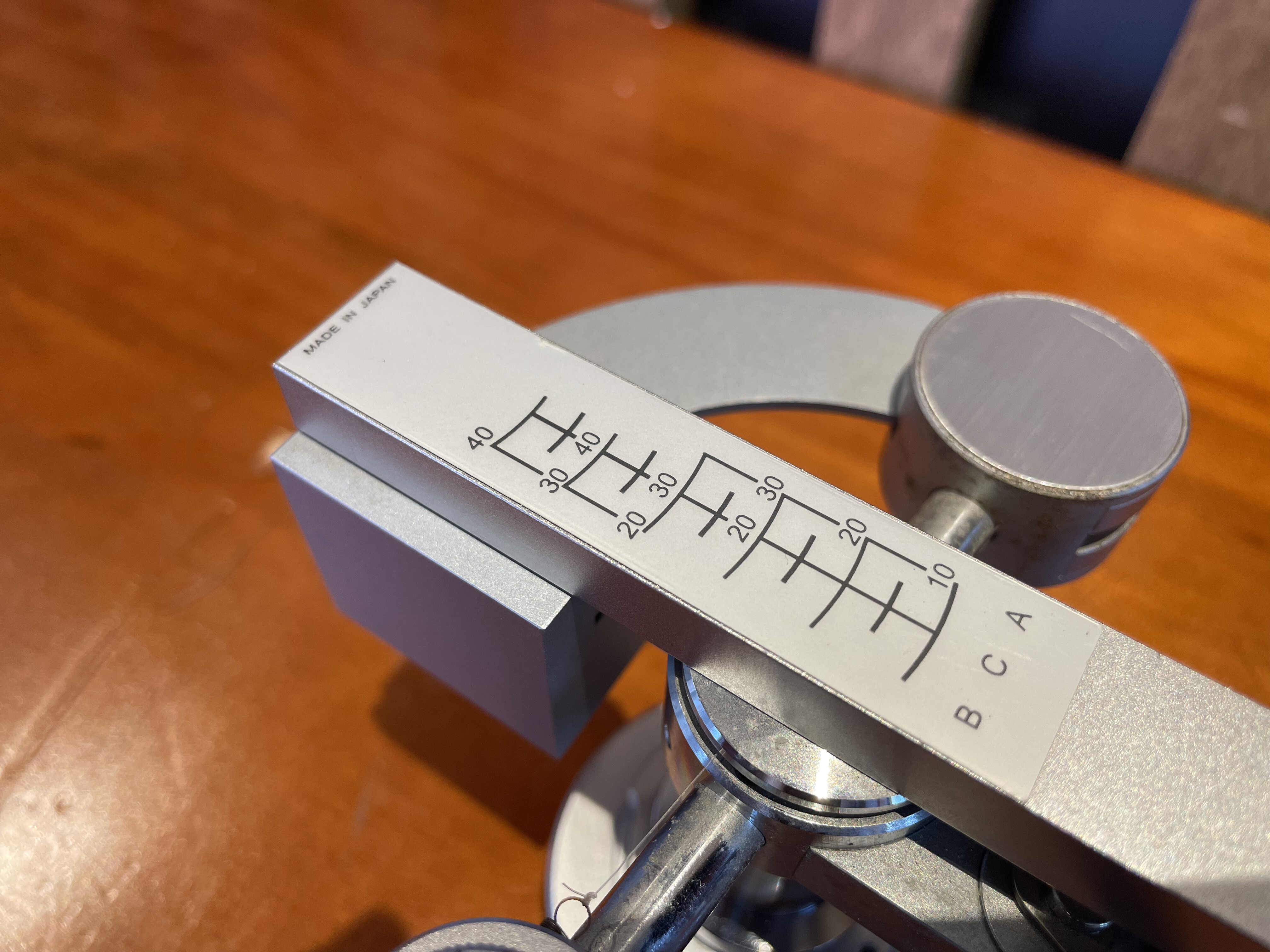

Please note : Missing two tonearm weights B & C, includes only weight A. Functions with weight range 15-23g only. Replacement weights can be purchased if required. See below.

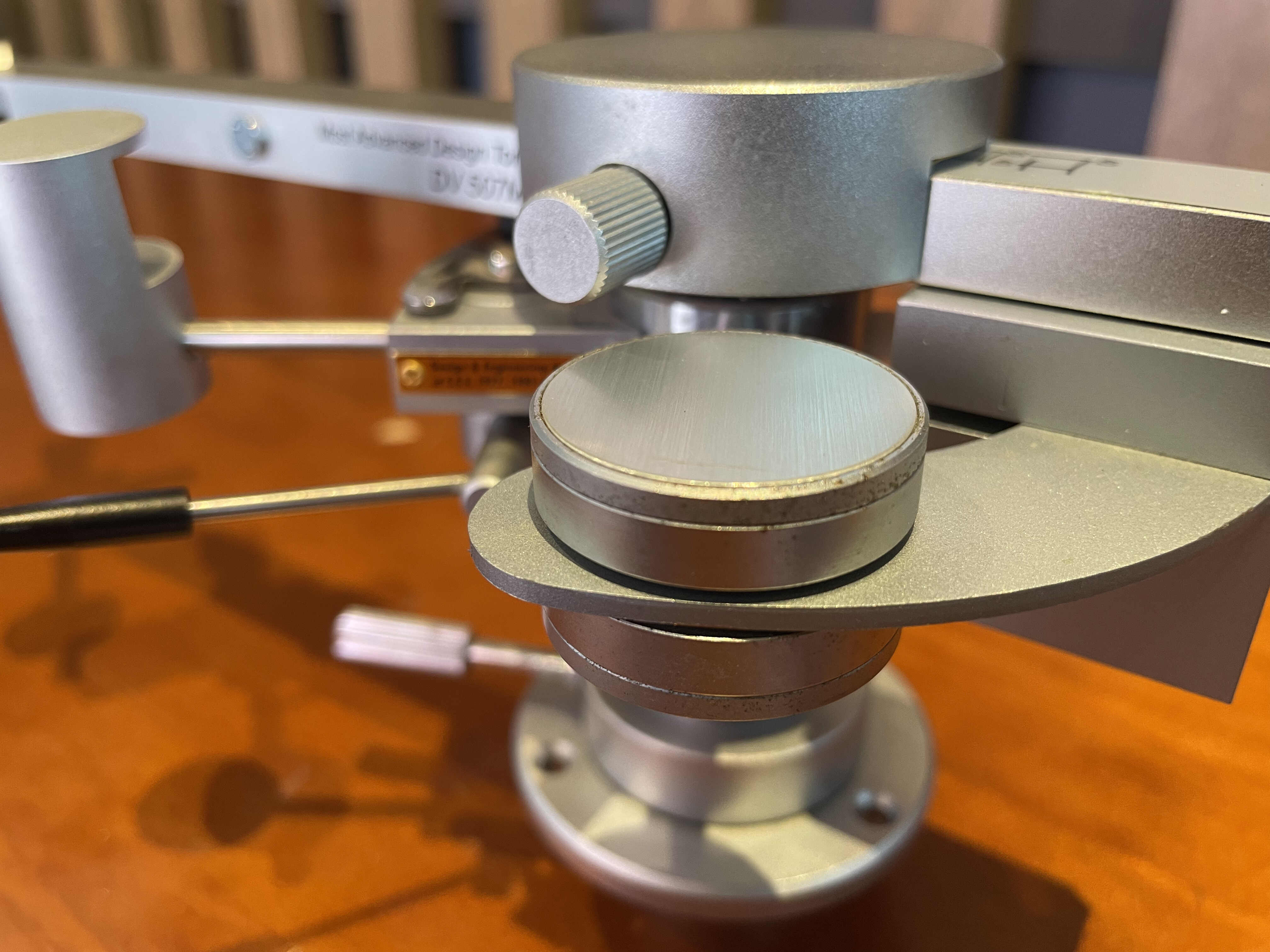

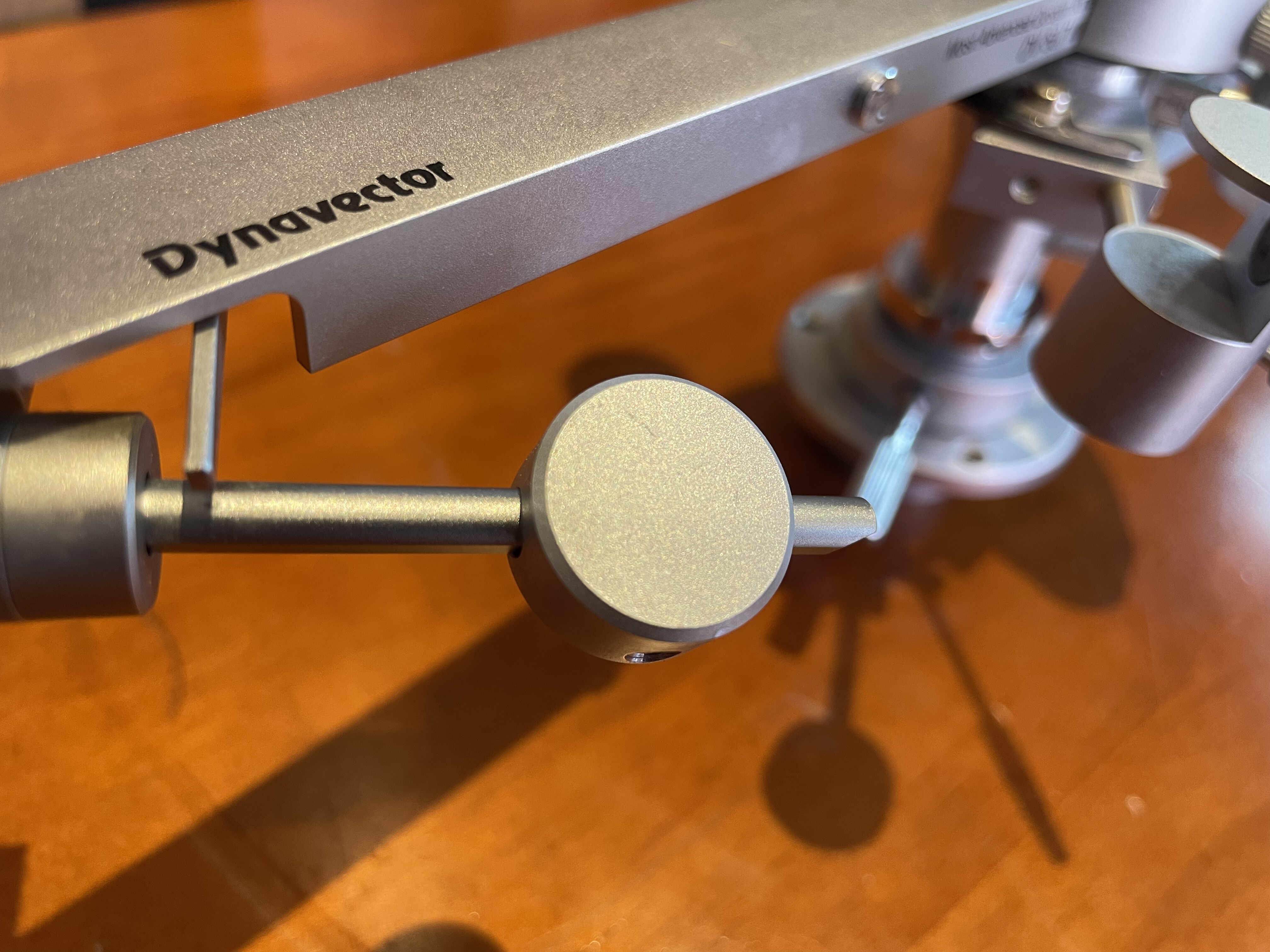

Condition: Good, some scratches and oxidation. Purchased March 2015.

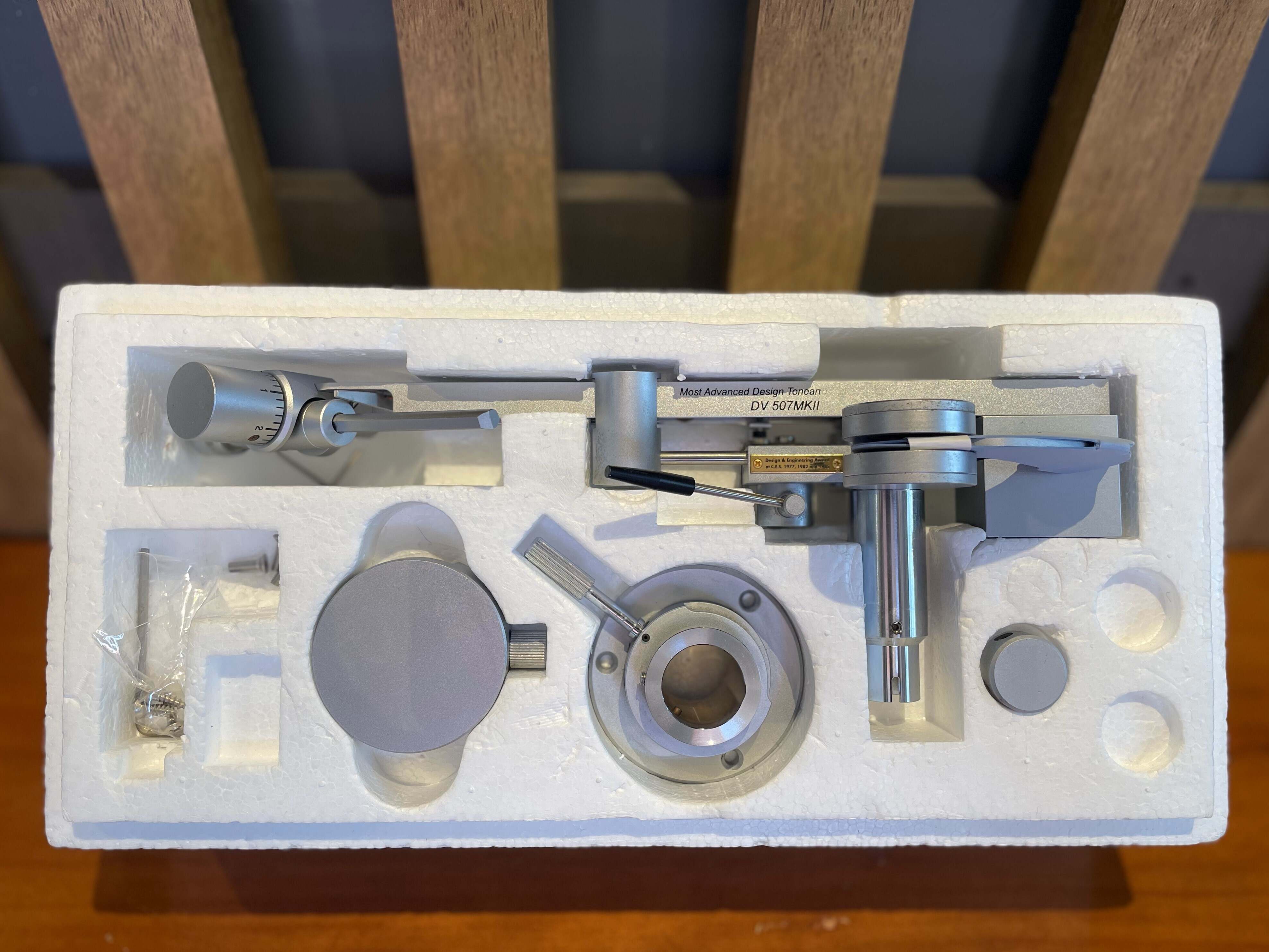

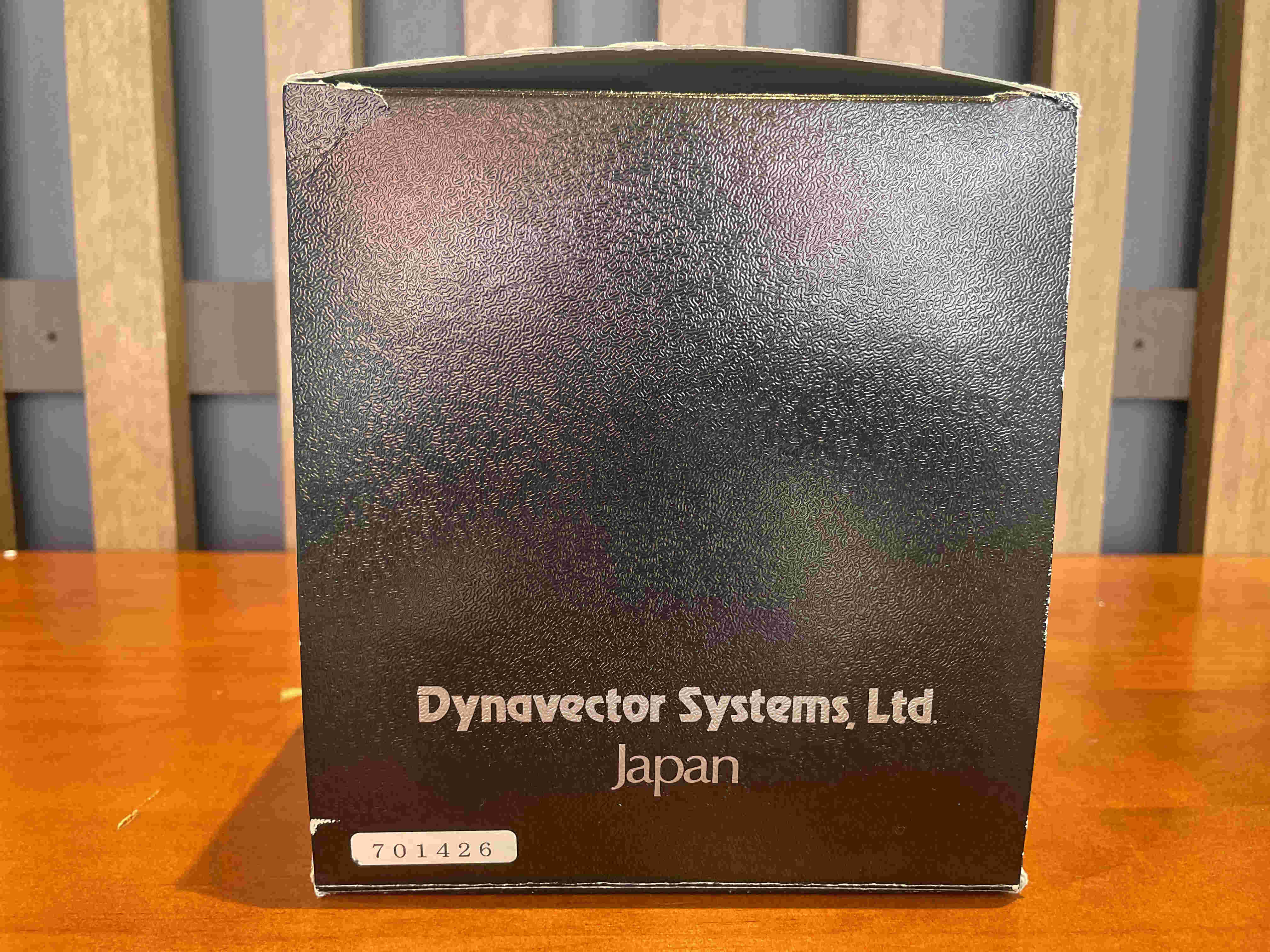

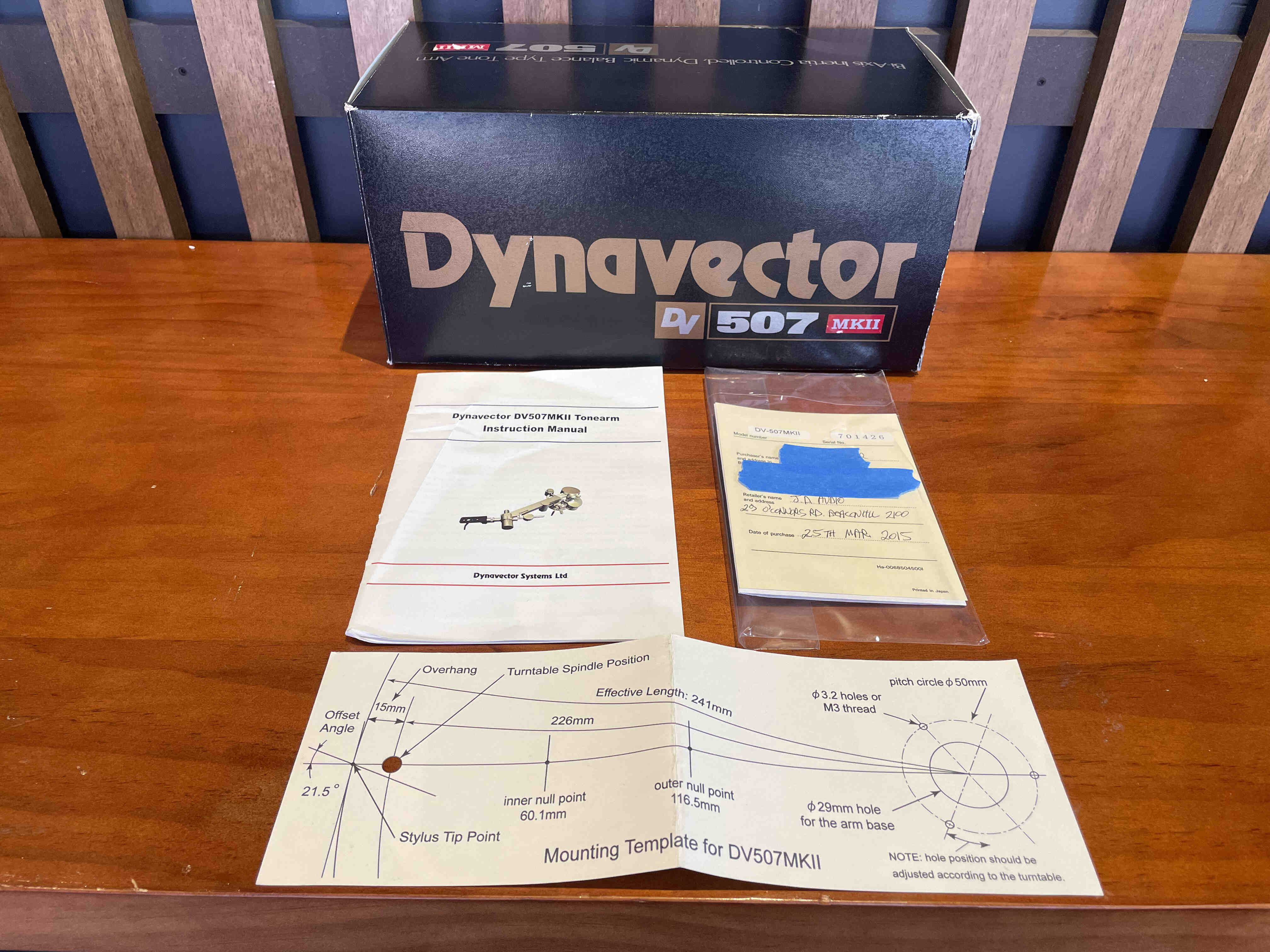

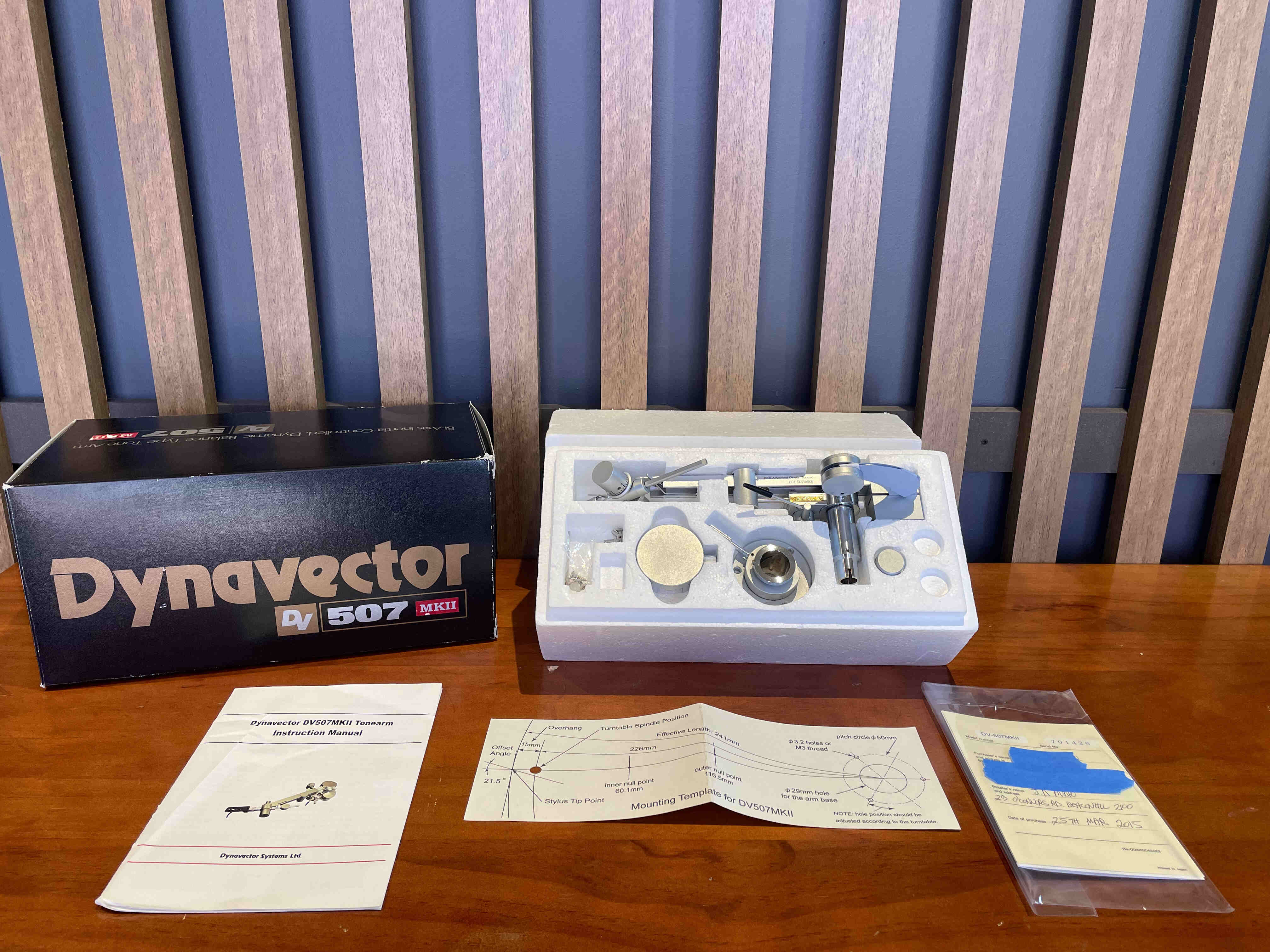

Includes: Original Packaging, Instruction Manual, Mounting Template, Original Receipt

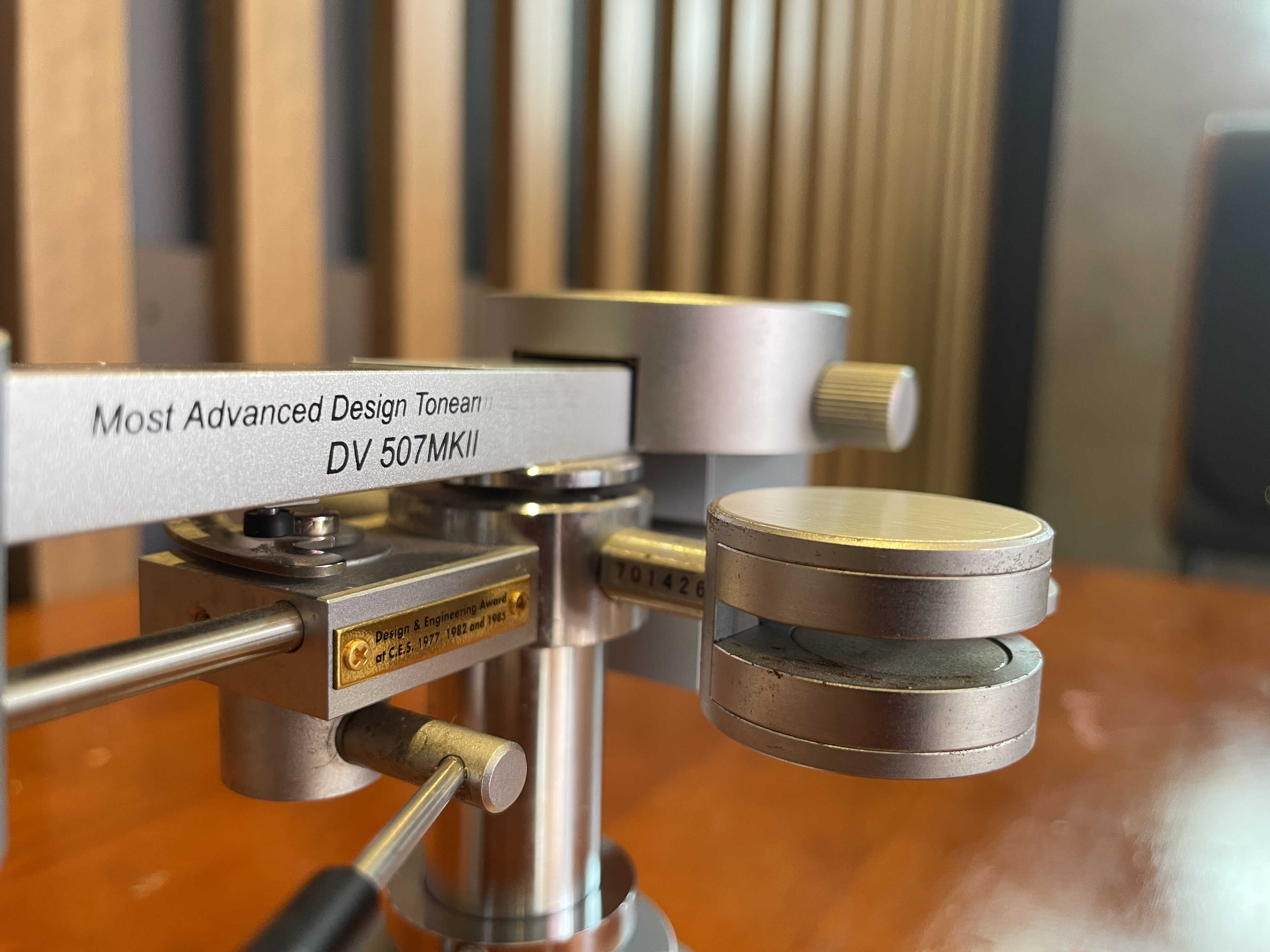

SN: 701426

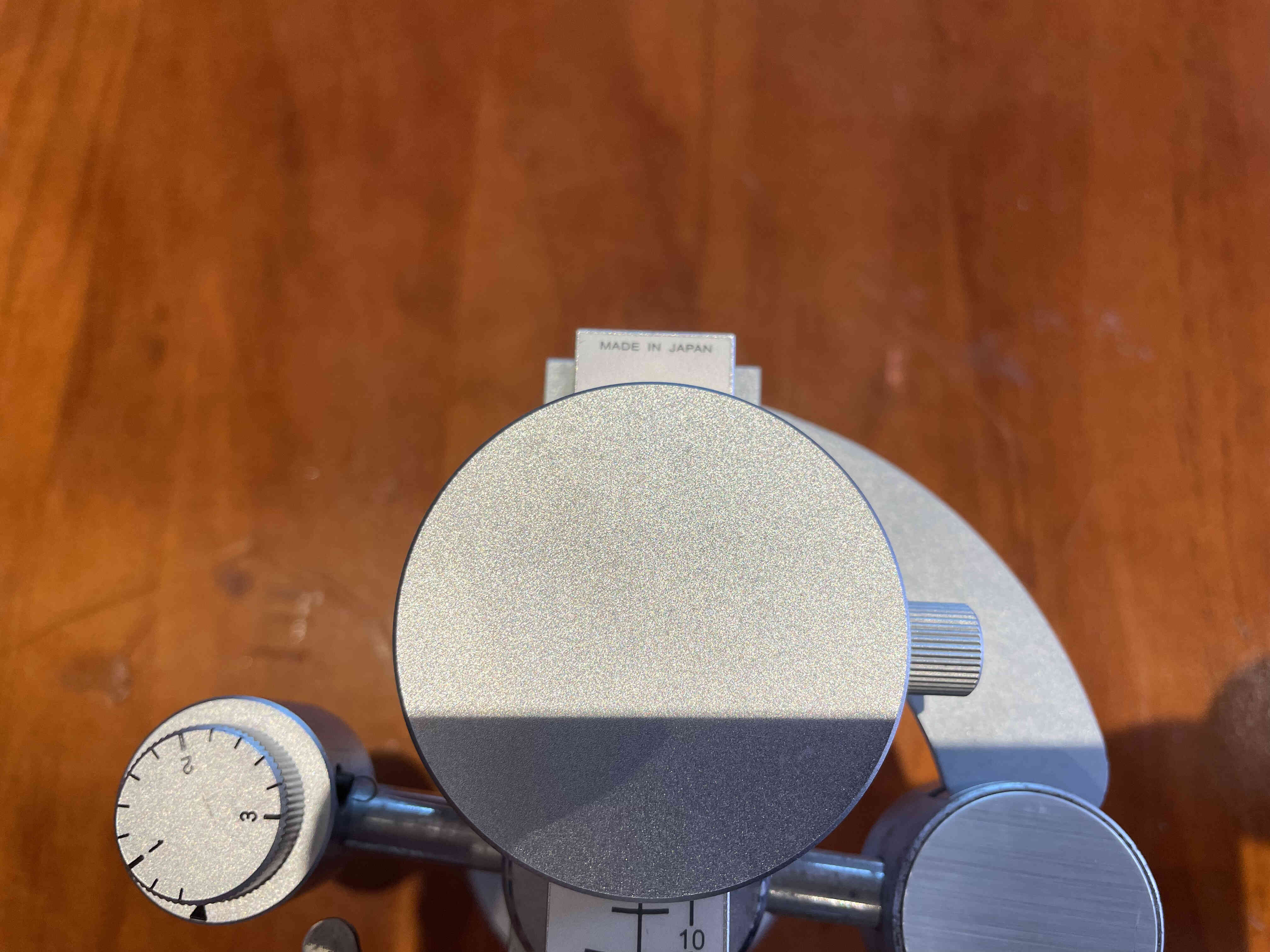

Made in Japan

Overview

Bi-Axis Controlled, Dynamic Balance Type Tone Arm

The MKII version of the Dynavector DV 507 tonearm builds upon the highly regarded original model, which has maintained its reputation among audiophiles since its debut in 1984. Featuring a bi-axis inertia-controlled design, the DV 507 MkII ensures precise groove tracking regardless of cartridge type while providing exceptional trackability even on warped records. The result is remarkable resolution and musical detail, making it a superior choice for high-fidelity vinyl playback.

Advanced Engineering and Key Features

The DV 507 MkII benefits from high-precision stainless steel bearings, delivering superb dynamic sensitivity and long-term tracking stability. A non-contact electro-magnetic damping system, powered by Neodymium magnets, effectively minimizes arm resonance, preventing signal distortion and improving overall performance. A redesigned headshell with an EIA-standard plug-in connector ensures excellent contact reliability, while pure 6N lead wires enhance signal purity. The high-quality arm cable employs a DIN-standard 5-pin connector and hybrid shielding for noise-free transmission. Additionally, an enlarged arm lift ensures smooth operation and prolonged durability.

Bi-Axis Inertia Control and Tracking Performance

Unlike conventional gimbal-type tonearms, which have equal inertia in both horizontal and vertical planes, the DV 507 MkII features a bi-axis inertia separation system. This design allows for high inertia in horizontal movement to stabilize low-frequency signals while maintaining low vertical inertia for precise tracking of warped records. By balancing these forces effectively, the tonearm ensures accurate signal reproduction and superior tracking ability. A dynamic damper further reduces unwanted resonances, particularly in the mid-low frequency range, enhancing clarity and sound fidelity.

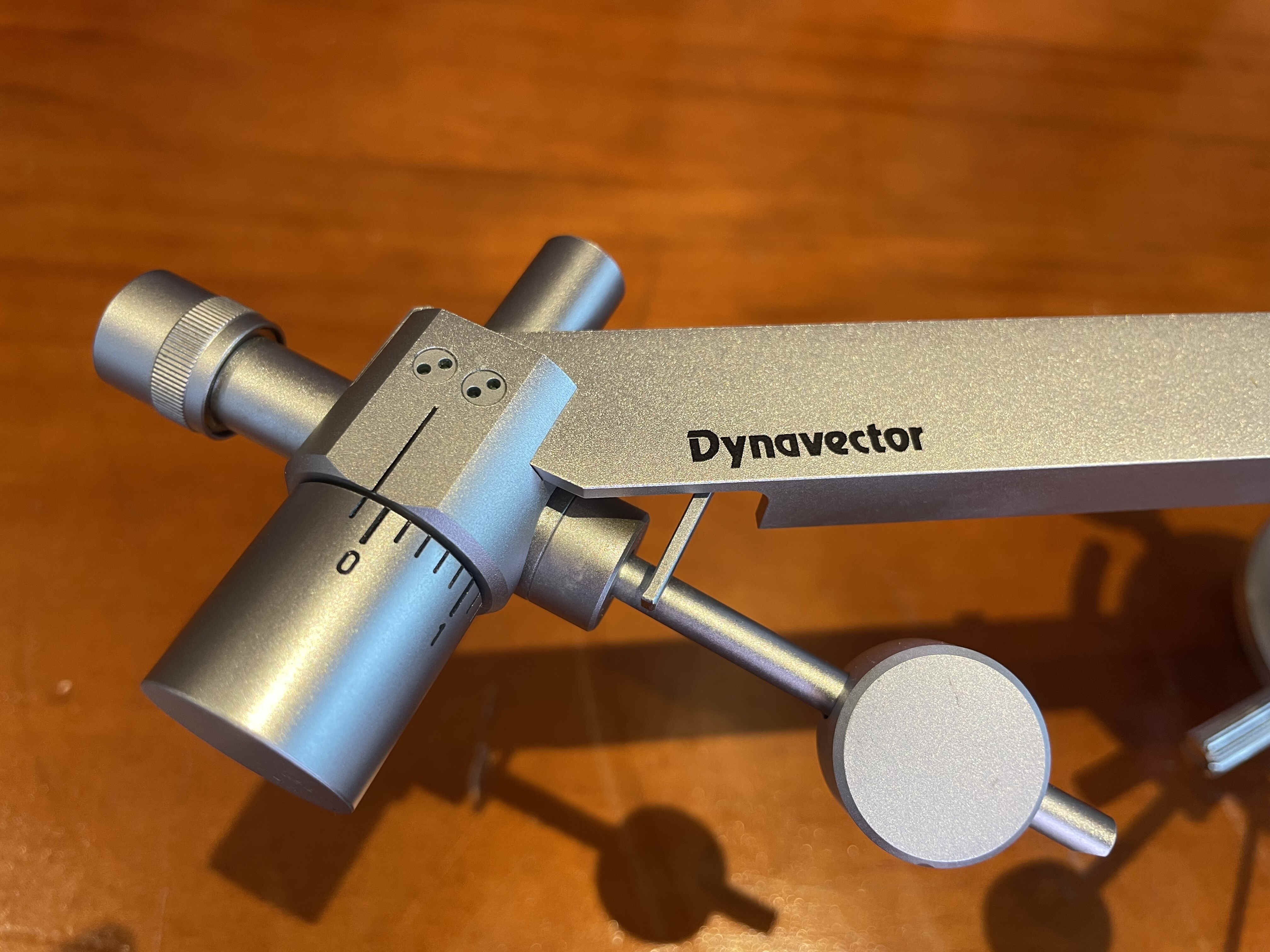

Precision Adjustments and Easy Installation

The DV 507 MkII offers user-friendly adjustments, including a height-adjusting lever for precise Vertical Tracking Angle (VTA) control and a calibrated dial for tracking force adjustments via a dynamic balance spiral spring mechanism. The anti-skating force is adjustable even during playback. Despite its advanced bi-axis design, the overall length of the DV 507 MkII has been reduced, making installation straightforward on most turntables. With its combination of cutting-edge engineering and refined usability, the DV 507 MkII continues Dynavector’s legacy of excellence in tonearm design

Please note : Missing two tonearm weights B & C, includes only weight A. Functions with weight range 15-23g only. Replacement weights can be purchased if required. See below.

Specification

Type: Bi-Axis inertia controlled Dynamic and Eddy Current Damping; Dynamic Balance type tone arm
Overall length: 306mm With head shell: max 326mm
Effective length: 241mm (i.e. tonearm pivot point to cartridge stylus point)
Overhang: 15mm
Offset angle: 21.5 degrees
Height: 59mm lifts up to 92mm
Height adjustment range: 39mm - 72mm at sub arm center
Depth: 36mm without connecting cable
Optimum cartridge weight: 15 - 35g, including headshell
Horizontal tracking angle error: -1.1 degrees - +2.2 degrees, 0 degrees at inner band of record, 2.2 degrees at outside
Tracking force adjustment range: 0-38g by 0.2g step
Sensitivity: Horizontal: less than 50mgrams, Vertical: less than 40mgrams
Net weight: 1,380g
Output connection: 5P connector

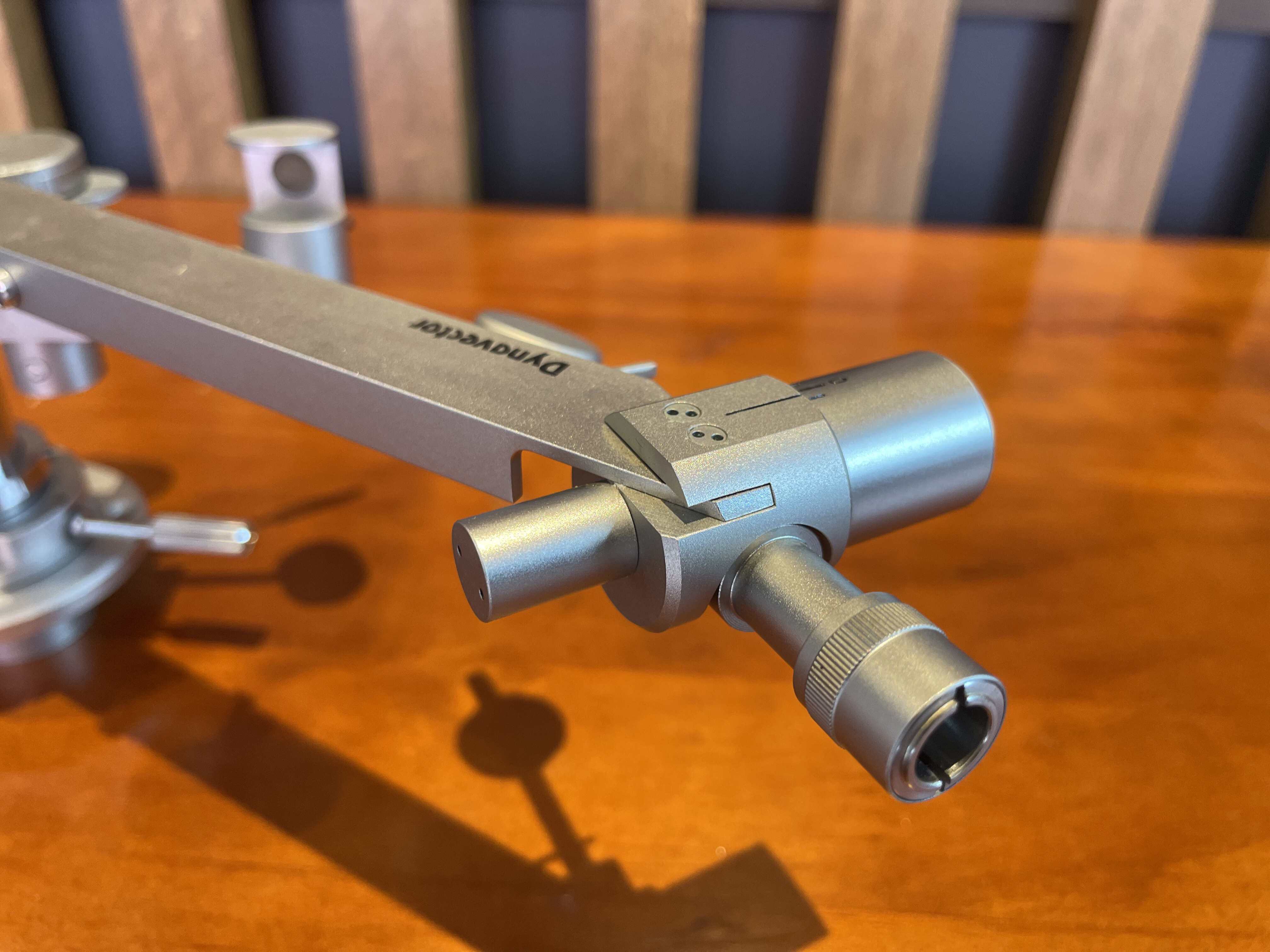

Headshell connection: EIA standards 4 Pin connector
Accessory: Low resistance (0.046 ohms/m, 54pF/m) high quality arm cable, milled aluminium headshell weight 15.4g, mounting template for the arm, overhang gauge for the headshell
