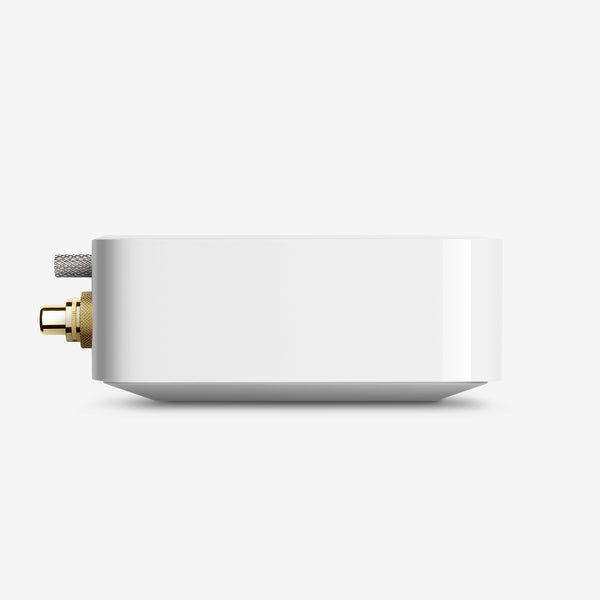

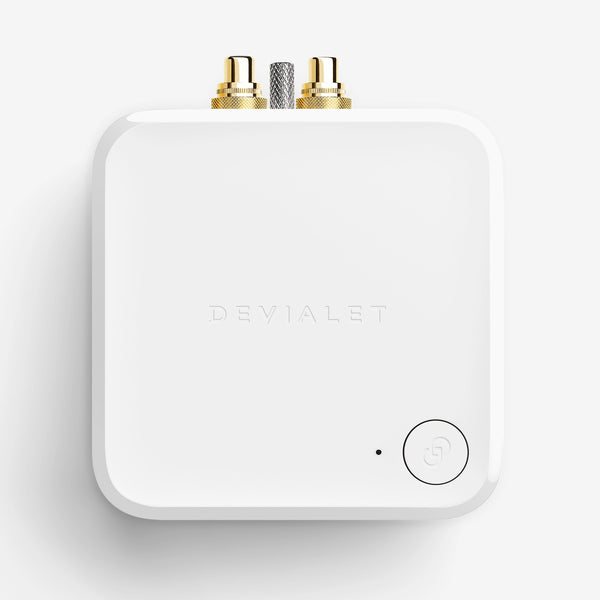

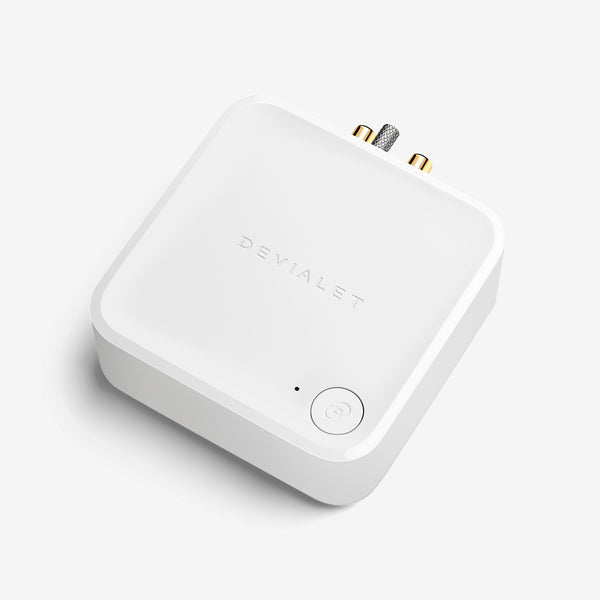

Devialet Arch Wireless Phono Stage - Ex Demo

Devialet Arch Wireless Phono Stage

Condition- Ex Demo Complete with Box and Accessories.

(Note: This device works with Phantom I and Phantom II speaker systems only.)

Not Compatible with new ULTIMATE Series

This clever device lets you connect a turntable, CD player, digital audio player, or other music source to your Devialet Phantom I or Phantom II system. You can have up to four Arch devices streaming to one system at any time, if you have a lot of devices you want to connect.

Maximum sources, minimum inputs

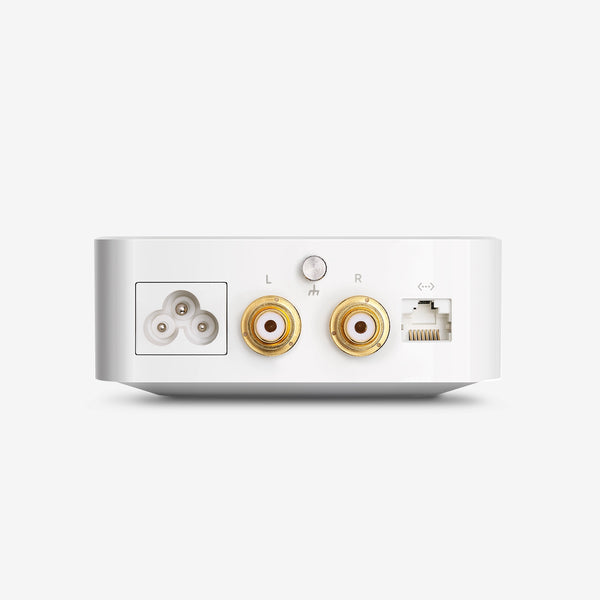

The Arch has but two RCA inputs that can be set (in the app) to one of three options:

• Turntable (MM or MC)
• Analog / Line-level
• Digital coaxial (up to 24bits/96kHz)

That means it can accommodate any device that outputs either two RCA (analog) or a single coaxial (digital), like a CD player, Blu-ray player or radio tuner.

Note: Make sure your turntable does NOT have a phono stage / pre-amp built in before selecting the turntable option. If it is in fact a low-level turntable output, then you'll also use the ground pin to earth your deck.

Make it bulletproof to Wi-Fi drop-out

The Arch includes an ethernet input so you can cable it directly to your home network, bypassing your Wi-Fi router and guaranteeing a consistent connection. (Note: For the full effect, your speaker must also be cabled via ethernet.)

Quick and easy setup

It's all done inside the Devialet app. Intuitive on-screen instructions walk you through the process. When asked, you'll simply touch the link button on the Arch to finalise setup.

Specifications

Works with Devialet Phantom and Phantom II speaker systems

Dimension: 11 x 11 x 3.7 cm
Weight: 0.4 kg
Network: Ethernet or Wi-Fi 2.4GHz/5GHz
Interface: Devialet app (for setup and settings)
Digital input: Up to 24bits/96kHz
Phono Stage: Standard (MM or MC)
Finish: Iconic White

→ User manual
→ Setup video
