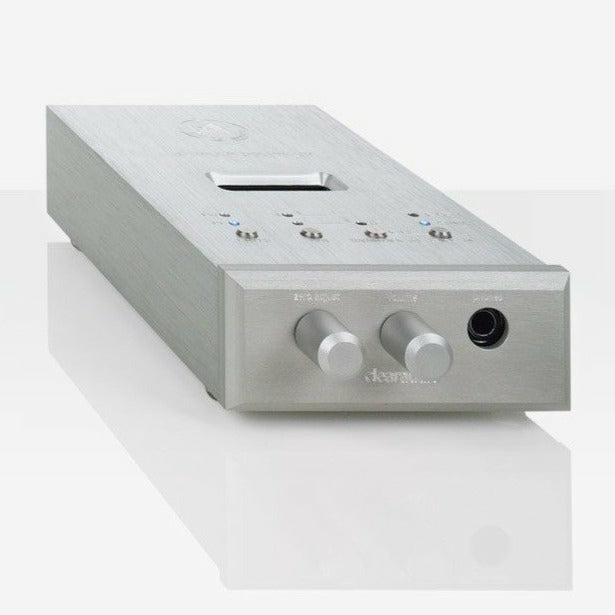

Clearaudio Azimuth Optimiser

High precision measuring device enables absolute accurate adjustment of the cartridge´s diamond azimuth angle. Build in Phono-preamplifier and integrated headphone-output enables mobile usage. 100-240 V, 47-63 Hz.

SPECIFICATIONS

Operating voltage  24 V DC stabilised with power supply. Input: 100 - 240 V ~ / 47 - 63 Hz

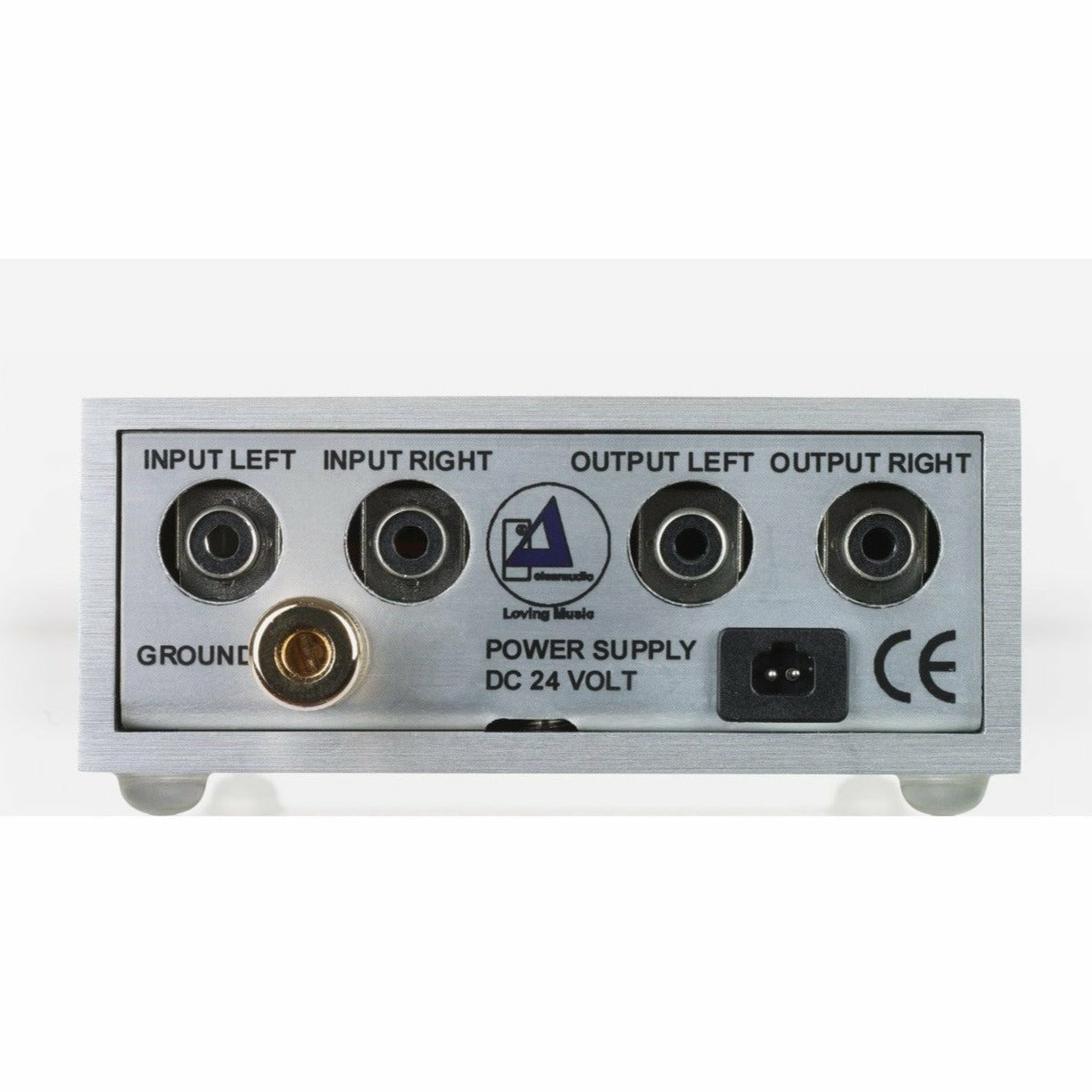

In- and outputs  RCA-sockets, unsymmetrically

PHONO-UNIT

Amplification  MM = 40 dB, MC = 60 dB
Channel separation  > 80 dB
Distortion factor (thd+n)  < 0,01% / 1 kHz
Einput impedance/capacity  MM = 47 kOhm / 220Pf, MC = 400 Ohm / 220pF
Output impedance  100 Ohms
Frequency response  20 Hz – 70 kHz / -3 dB
Riaa  RIAA ± 0.5 dB deviation

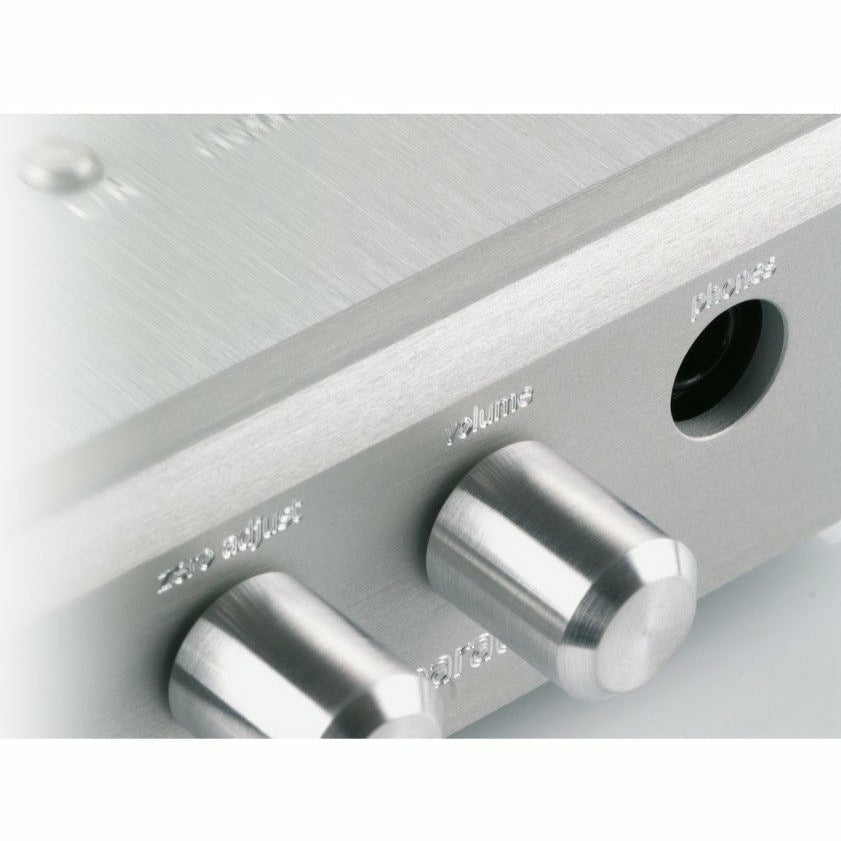

HEADPHONE OUTPUT

Amplification  10 dB
Headphone impedance  100 – 600 Ohm
Connection  6.3 mm-bushing

MEASUREMENT UNIT

Indication range  -50 till +6 dB, accuracy ±0,2dB. Gauge-measurement up to max. 19.99 mV
Noise filter  from 200 Hz / transconductance 12 dB per octave (valid only for right channel when unit is in measurement use)
Dimensions (W/D/H in mm)  approx. 47 × 102 x× 190
Weight  approx. 750 g (azimuth optimizer), 150 g (Power supply)
