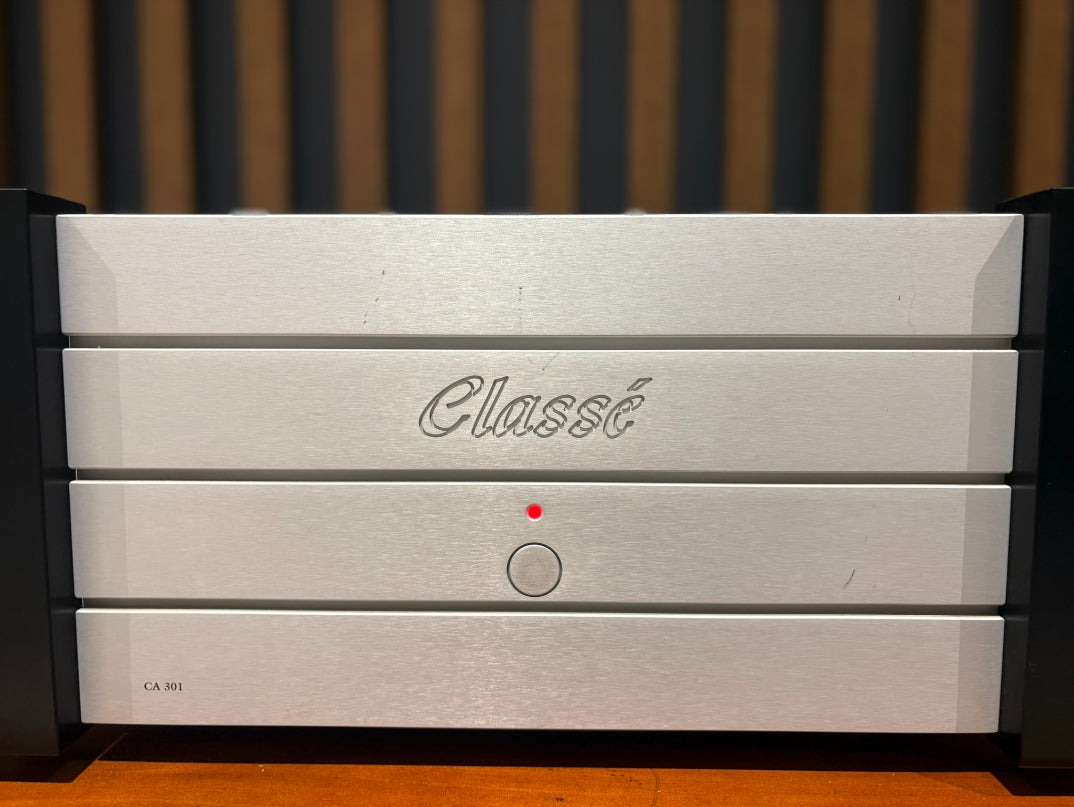

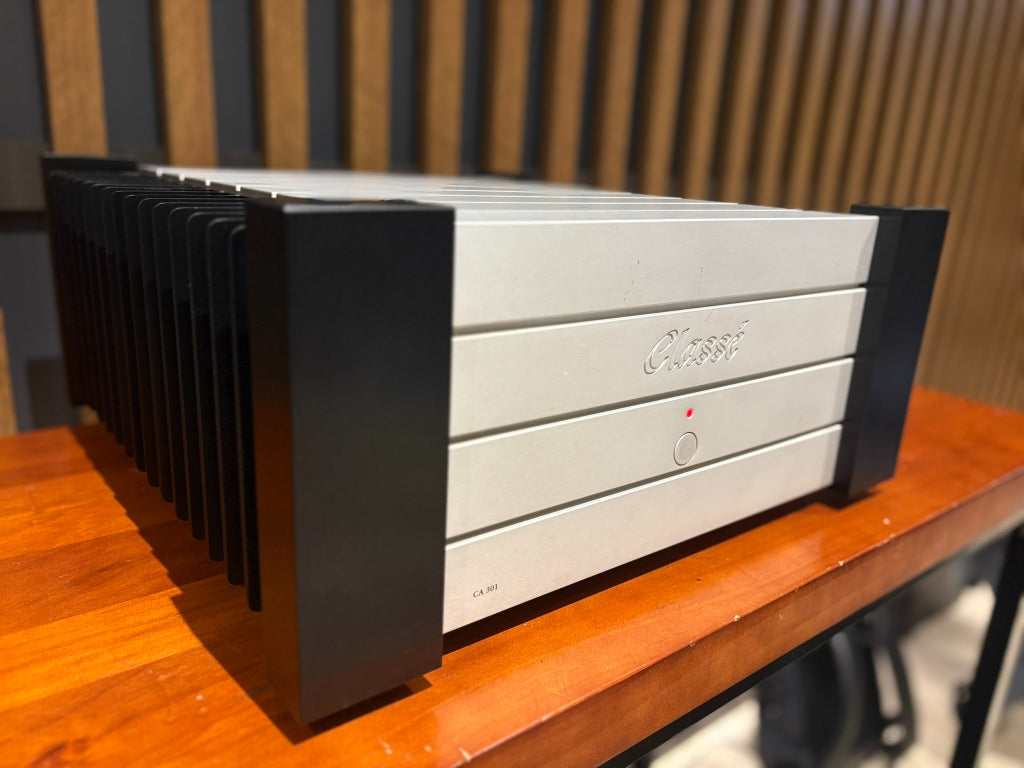

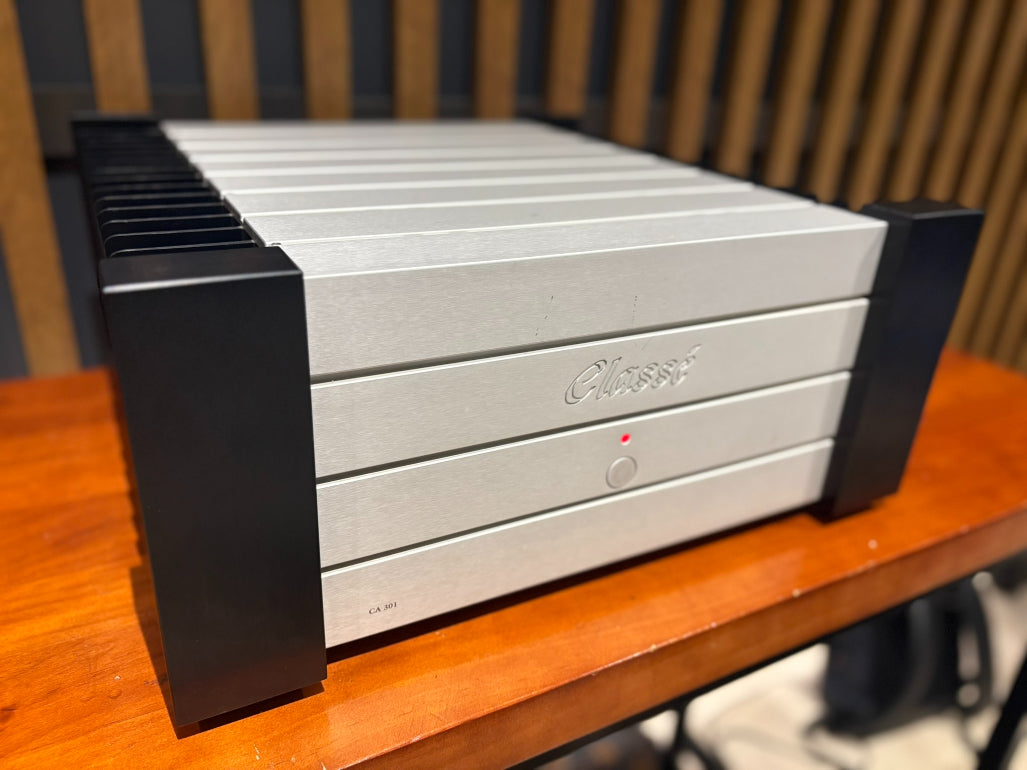

Classe CA-301 Stereo Power Amplifier - Consignment

Classe CA-301 Power Amplifier - Consignment

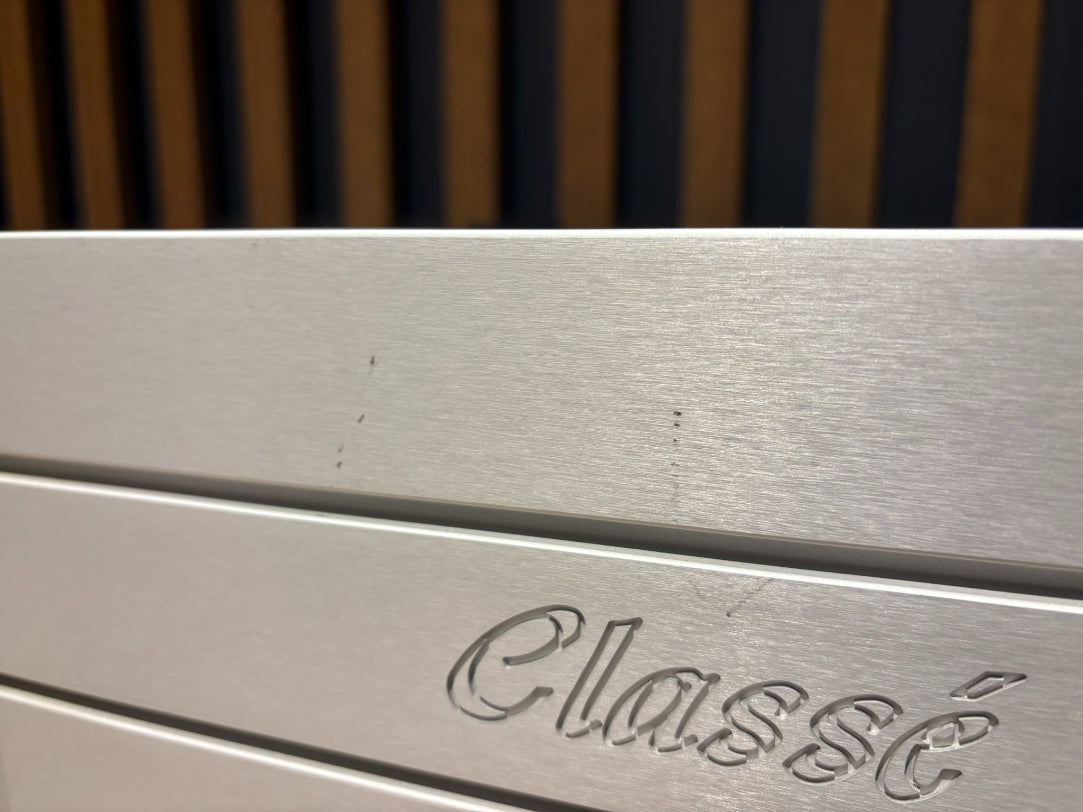

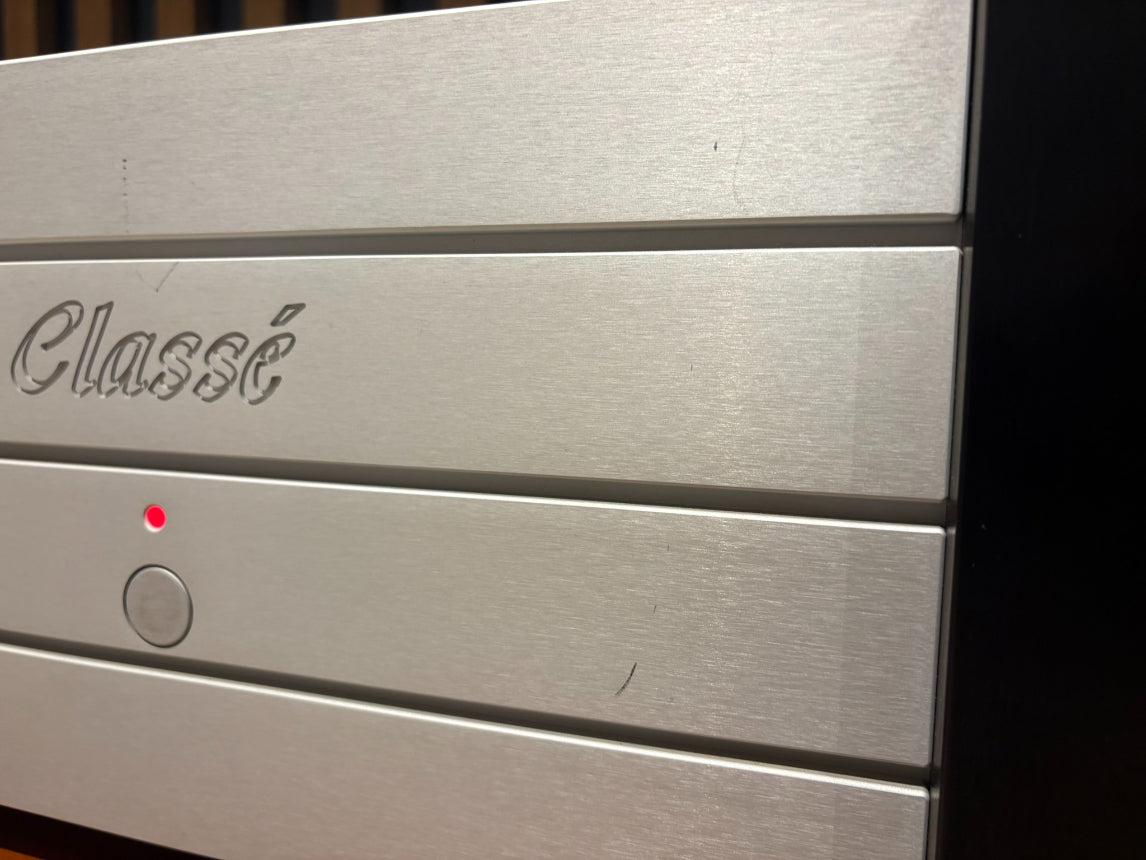

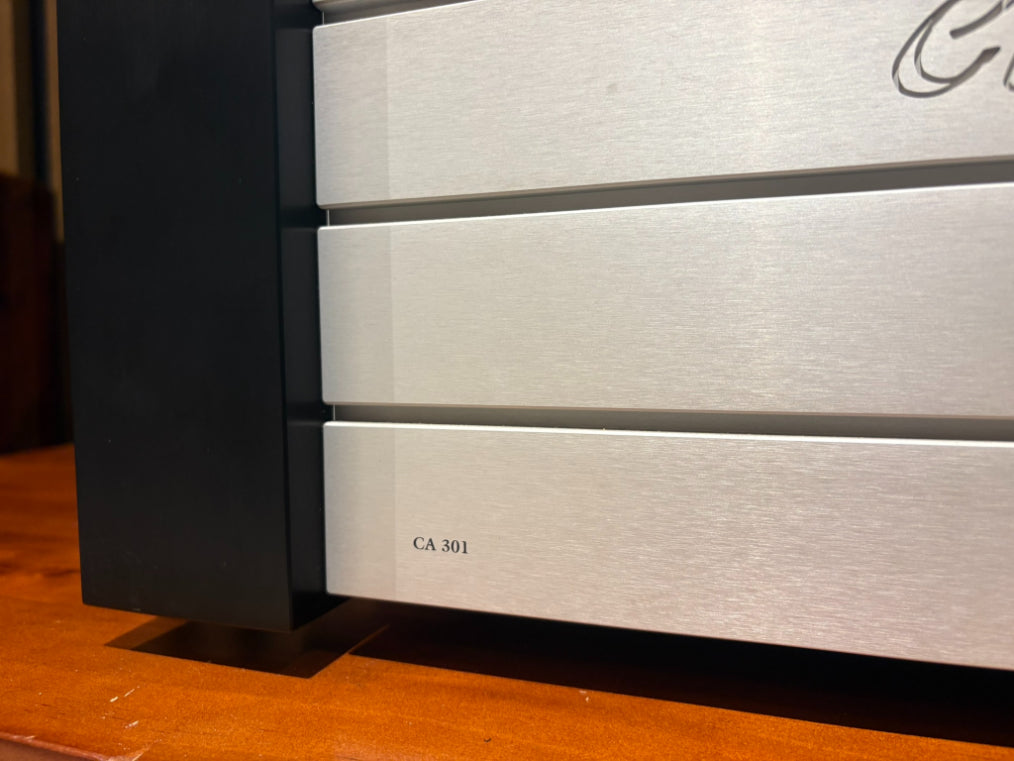

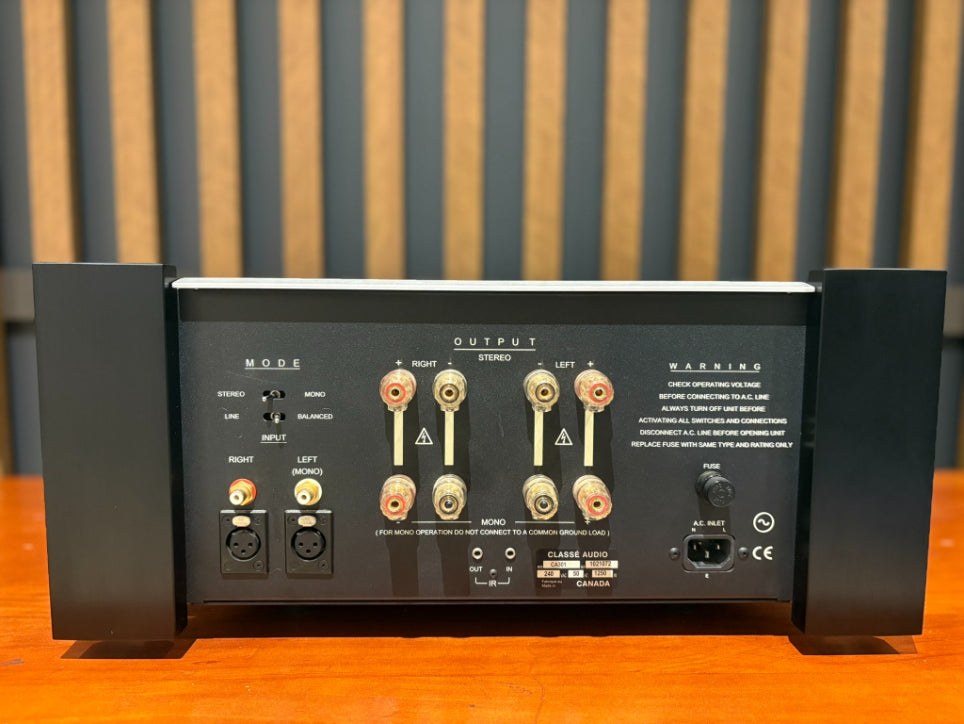

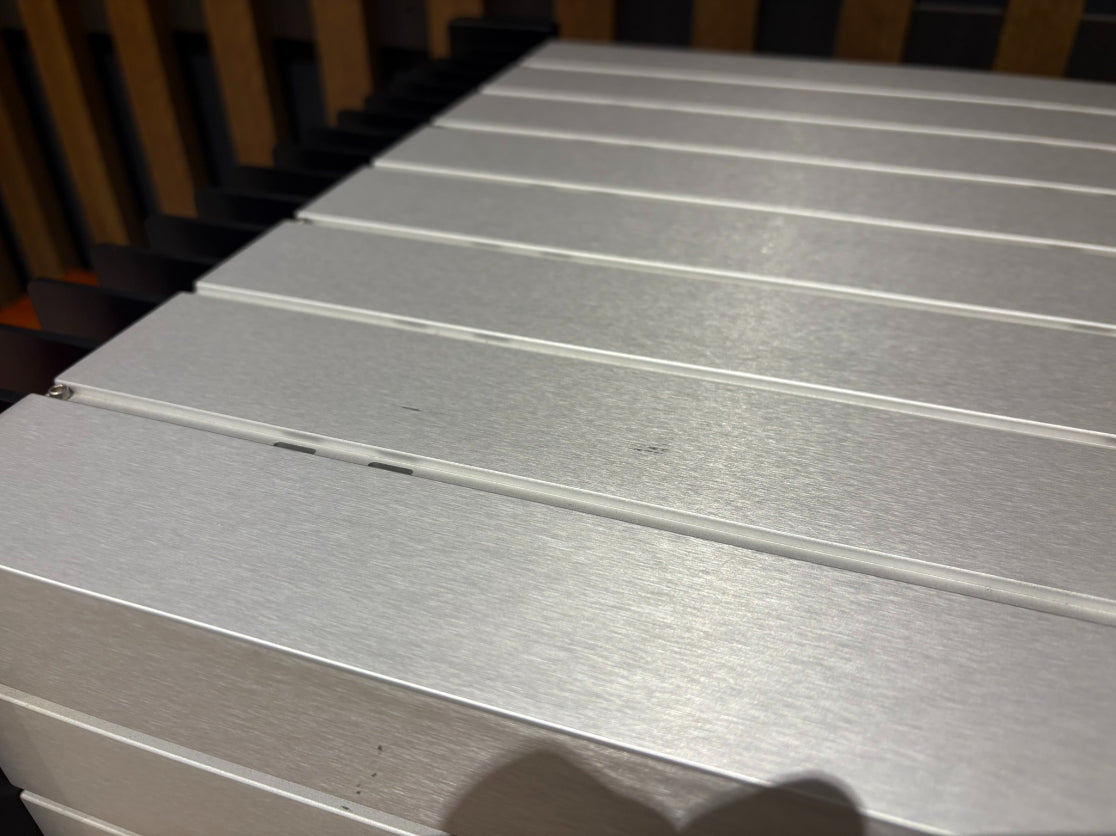

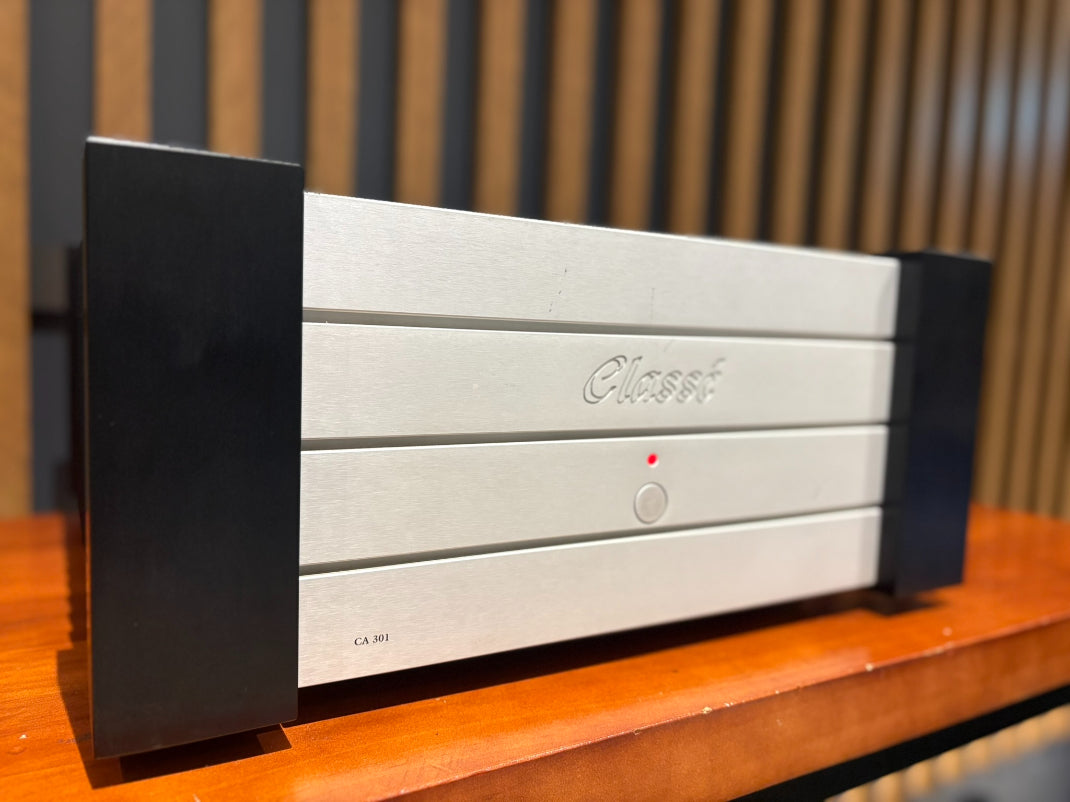

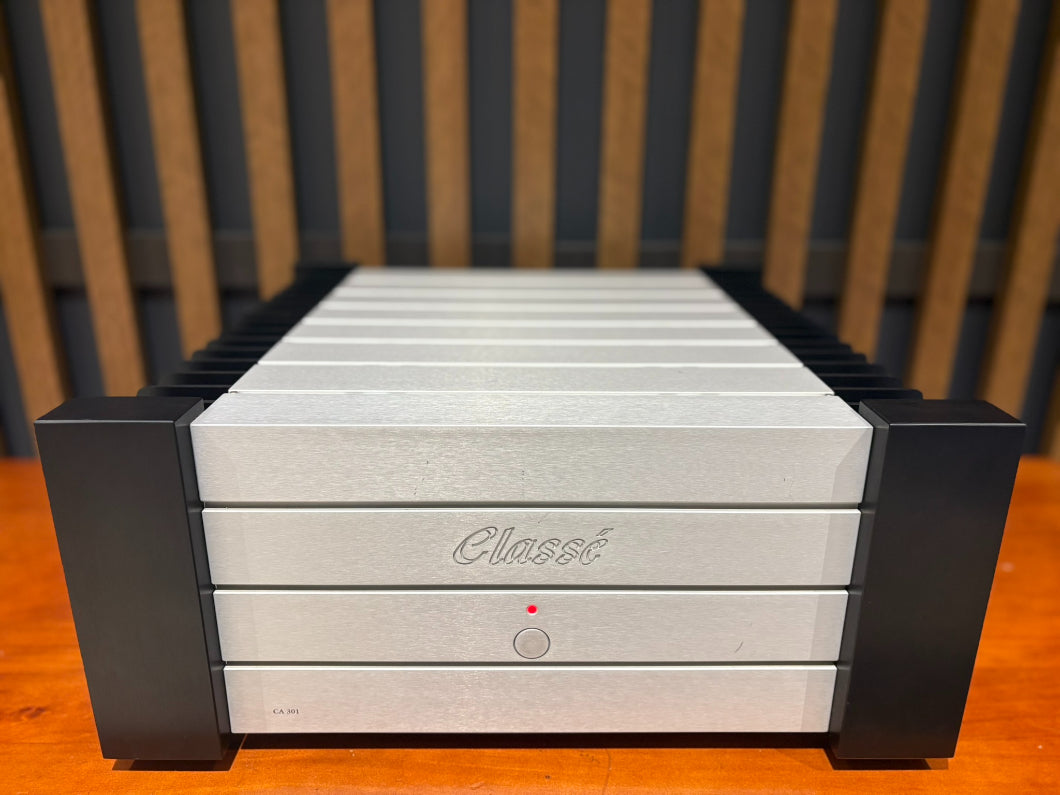

Condition: Good, some marks and scratches (See photos)

Accessories: Power Cable, Original Manual (No Box)

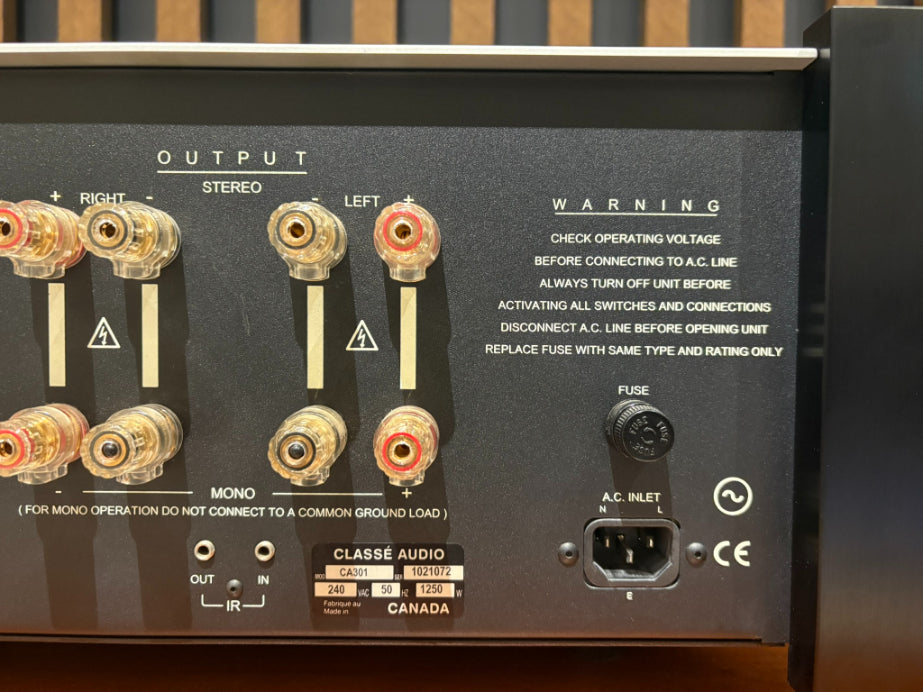

SN: 1021072

Overview

Based on trickle-down technology developed for the OMEGA series and using a fully balanced amplifier circuit configuration.

The power supply section uses a large sealed toroidal transformer totalizing 2 KVA that uses high-quality, small-capacity metalized polypropylene capacitors to provide the required power for all stages of the amplifier at high speed, and provides over 70000 µF storage capacity for each channel.

All signal carrying cables are shielded and have Litz-type configuration. All other wiring is oxygen free copper.

A special circuit continuously monitors the output audio signal to detect output overload, clipping or DC content.

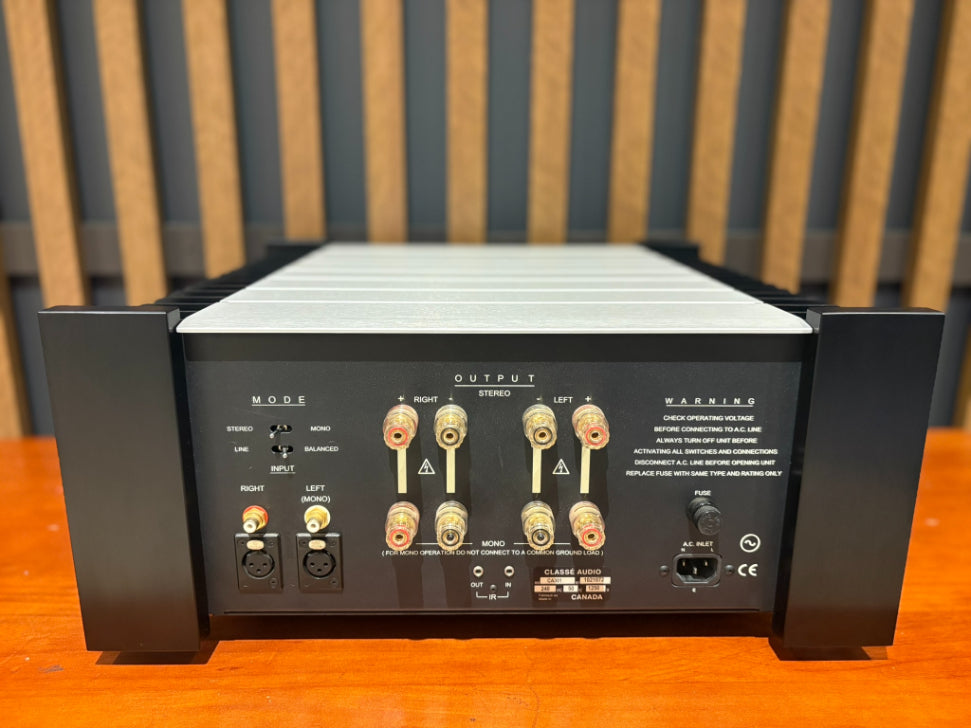

The amp can also be bridged for use as a monoblock amplifier.

Specification

Type    Stereo power amplifier
Rated output    300W + 300W (8 Ω), 600W + 600W (4 Ω)
1,100W (bridge connection, 8 Ω)
1,700W (bridge connection, 4 Ω)
Frequency characteristic    20 Hz to 20 kHz -0.1 dB
Input Sensitivity / Impedance    1.65 V (Rated Output) / 75k Ω
Output impedance    0.015 Ω
Signal-to-noise ratio    135dB
Harmonic distortion factor + noise    0.007%
Power consumption    250W (idle)
External dimensions    Width 483x Height 216x Depth 534 mm
Weight    48kg
