Chord ULTIMA PRE 3 - Five Input Preamplifier

Chord ULTIMA PRE 3 - Five Input Preamplifier

Built from the ground up, the UTLIMA PRE 3 takes advantage of the very latest developments in advanced low-distortion power supplies. These advanced devices offer exceptionally low noise and outstanding amplifier operation. Coupled with our latest design developments, the PRE 3 offers new levels of preamplifier performance.

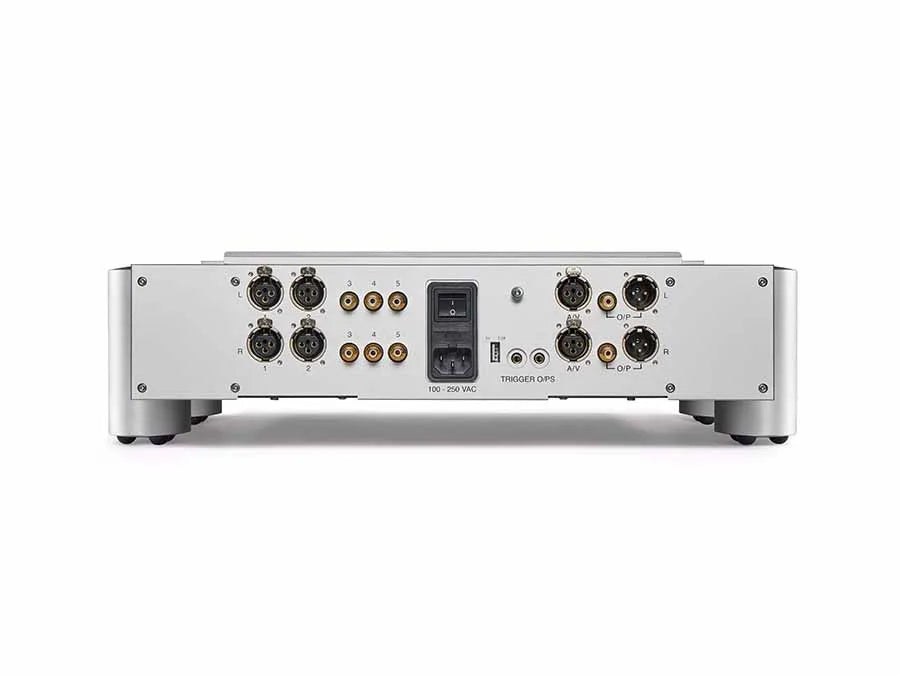

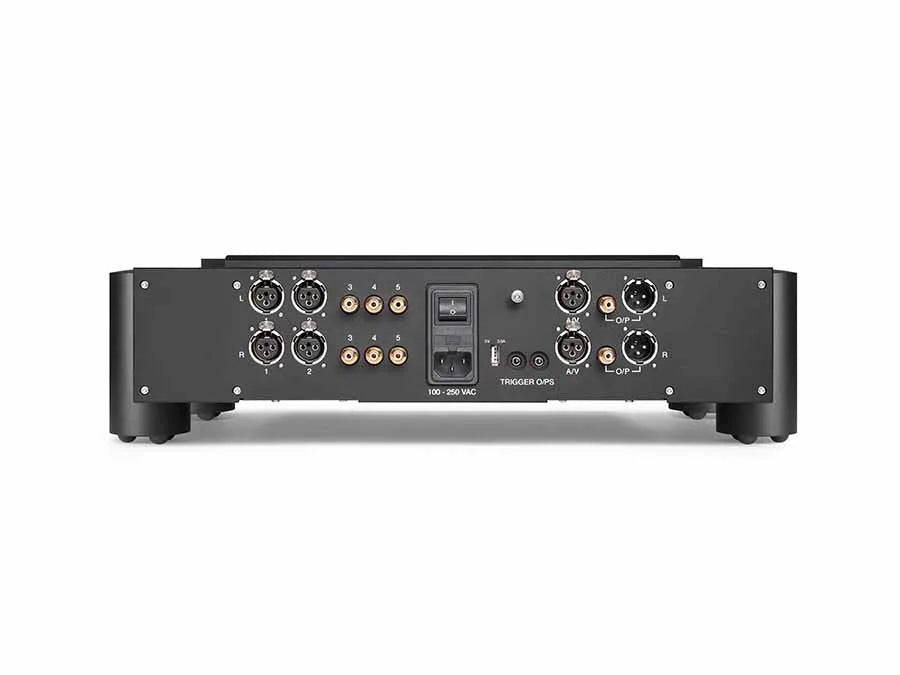

The UTLIMA PRE 3 is equipped with five analogue inputs (two balanced and three unbalanced) all of which benefit from individual buffering and are selectively filtered against potential ingress from radio frequency interference.

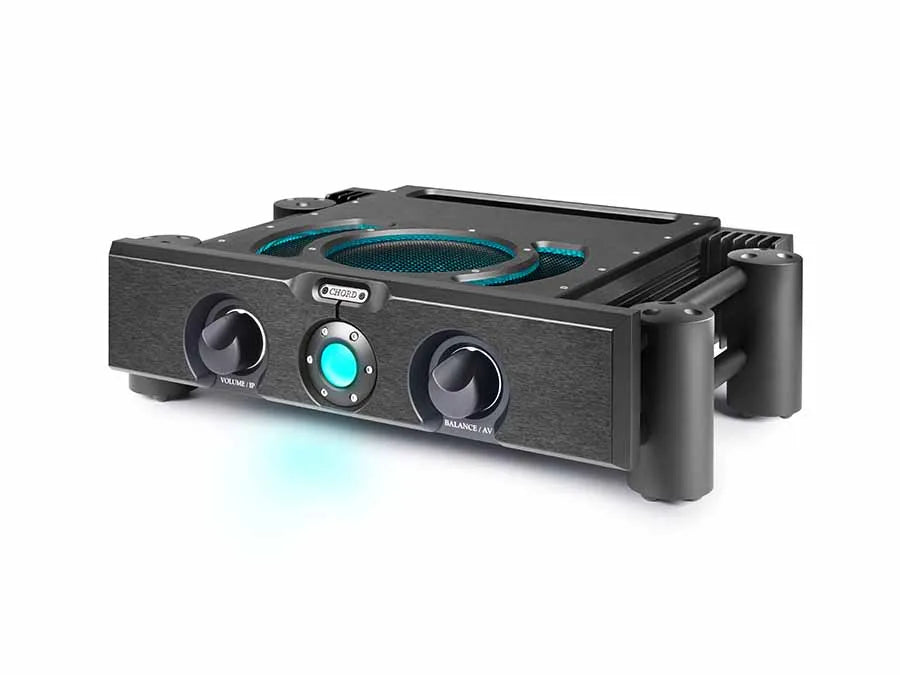

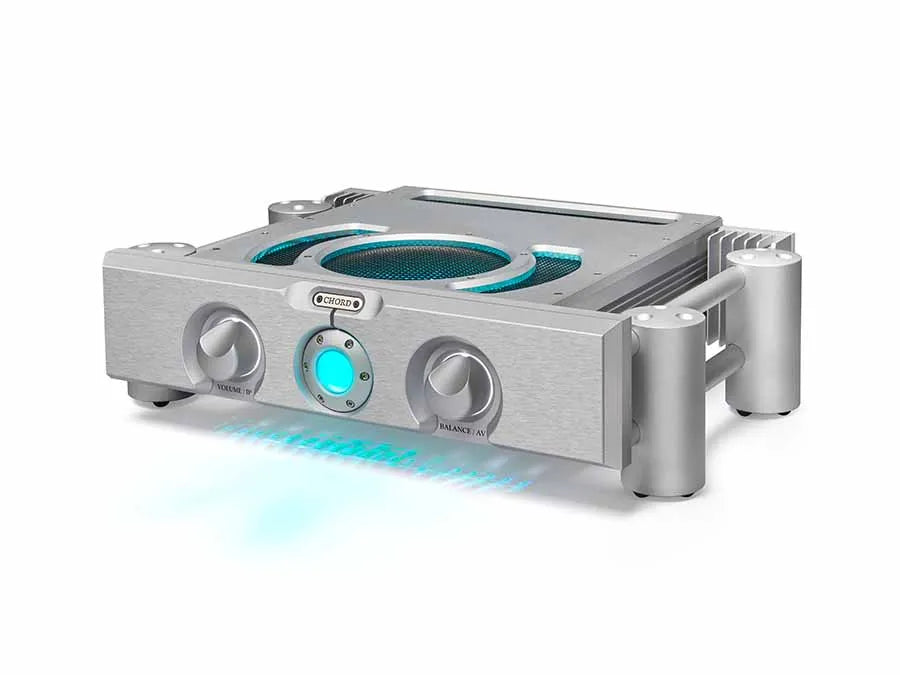

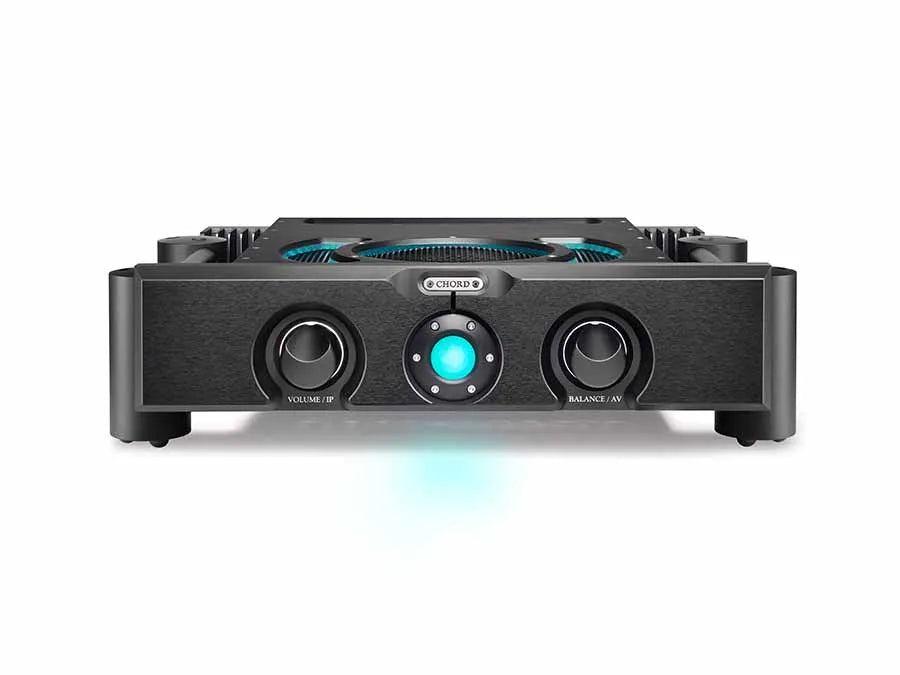

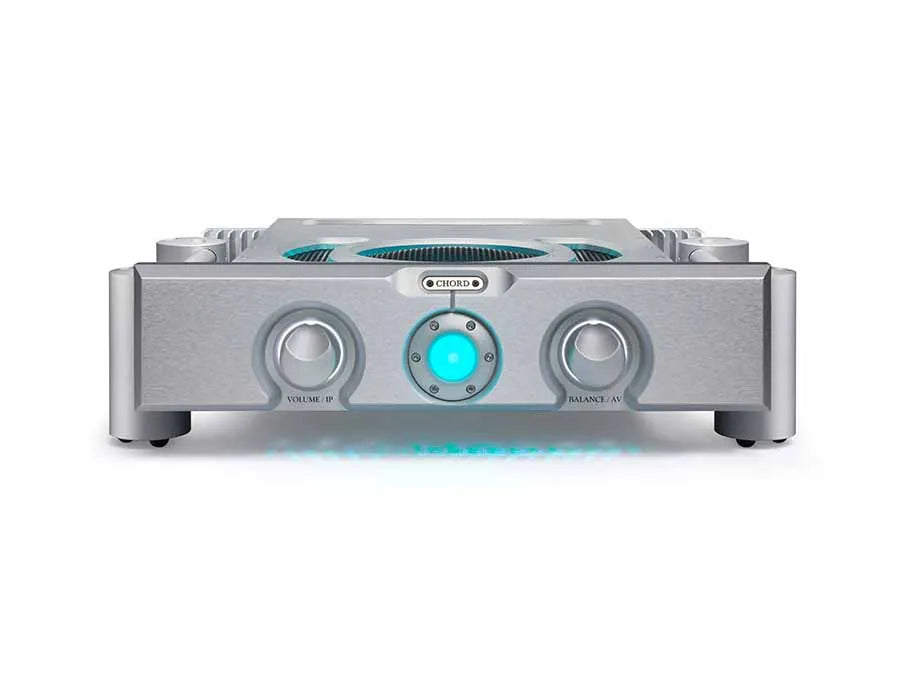

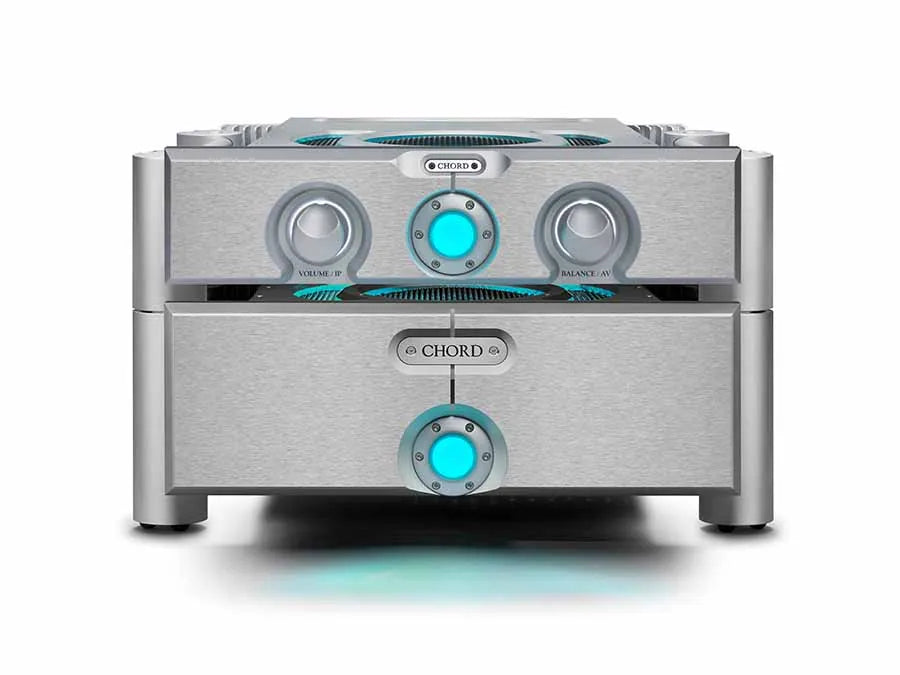

Externally, the PRE 3 benefits from a completely redesigned aesthetic with a central circular power sphere flanked by a new volume control and balance/AV bypass selector, both of which benefit from a new ergonomic knob design.

Additional features include an AV bypass, plus a 5 V charging USB Type-A port.

SPECIFICATIONS

Frequency response 10 Hz-200 kHz +/- 3 dB
THD 0.002 % 20Hz-20 kHz
Signal to noise ratio -105 dB on all inputs
Input impedance 100 kΩ
Output impedance 560 Ω
Input maximum voltage 10 V RMS
Output maximum voltage 17 V RMS
Gain x1
Channel separation 100 dB
Operation voltage 80-250 V AC auto-switching
Power consumption 40 W
Dimensions with included Integra legs: 13 cm(H) x 48 cm(W) x 34 cm(D)
Dimensions with optional side blocks (can not be stacked): 10 cm(H) x 42 cm(W) x 34 cm (D)
Weight: 12.7 kg
