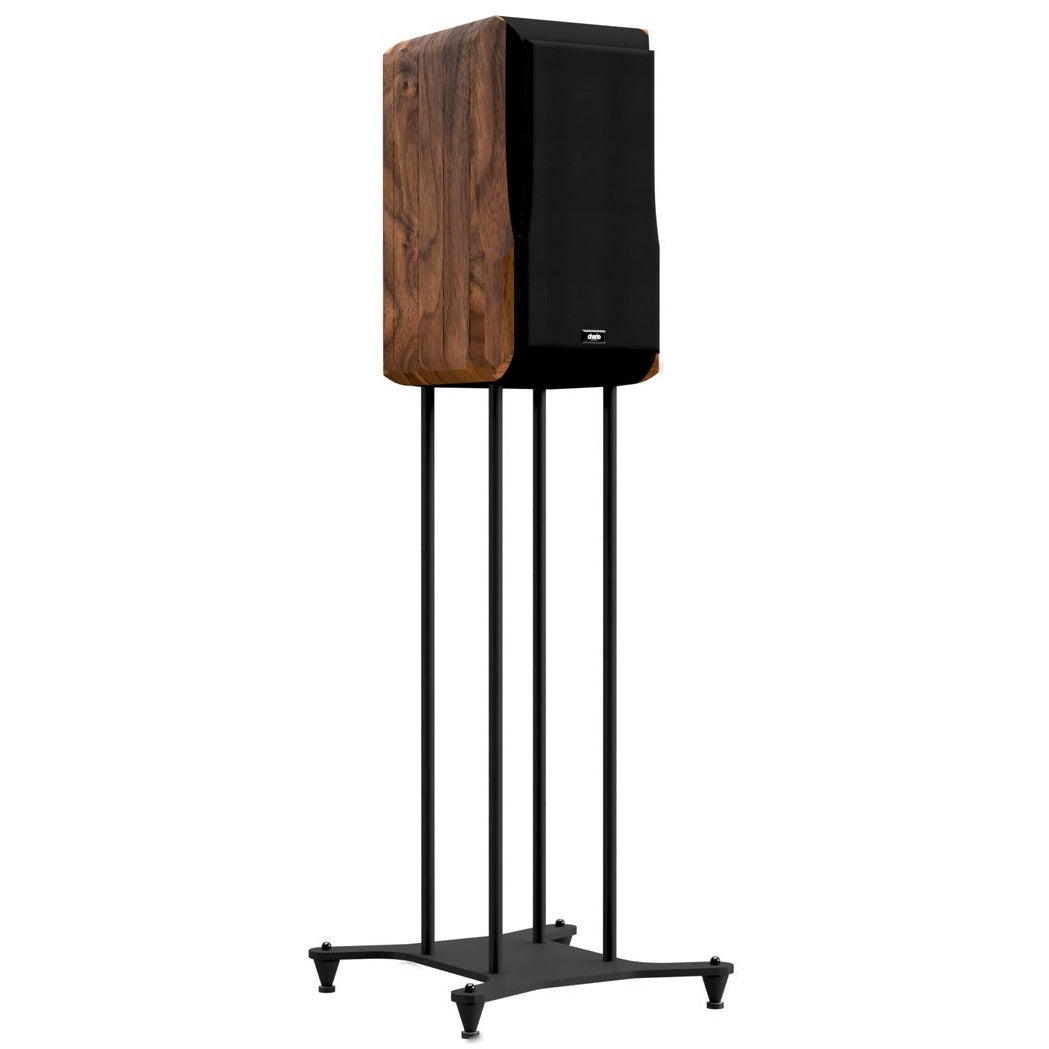

Chario Constellation MKII Lynx Bookshelf Speakers
The smallest bookshelf of the series, but with a capacity of extension that reaches 67 Hz. With a load volume of 1000cm3, the Lynx will out perform many other larger and pricier speakers . The Lynx has consistently reviewed better than its competitor s in terms of sound staging, reproductive fidelity, and musicality.
The dynamics surpass most limitations of the bookshelf standard, and is balanced and nuanced. The customized Lynx stands further dampen the vibrations of the cabinet structure, with a calibrated distance between stand and speaker ensuring the maximum efficiency of the bass reflex system.

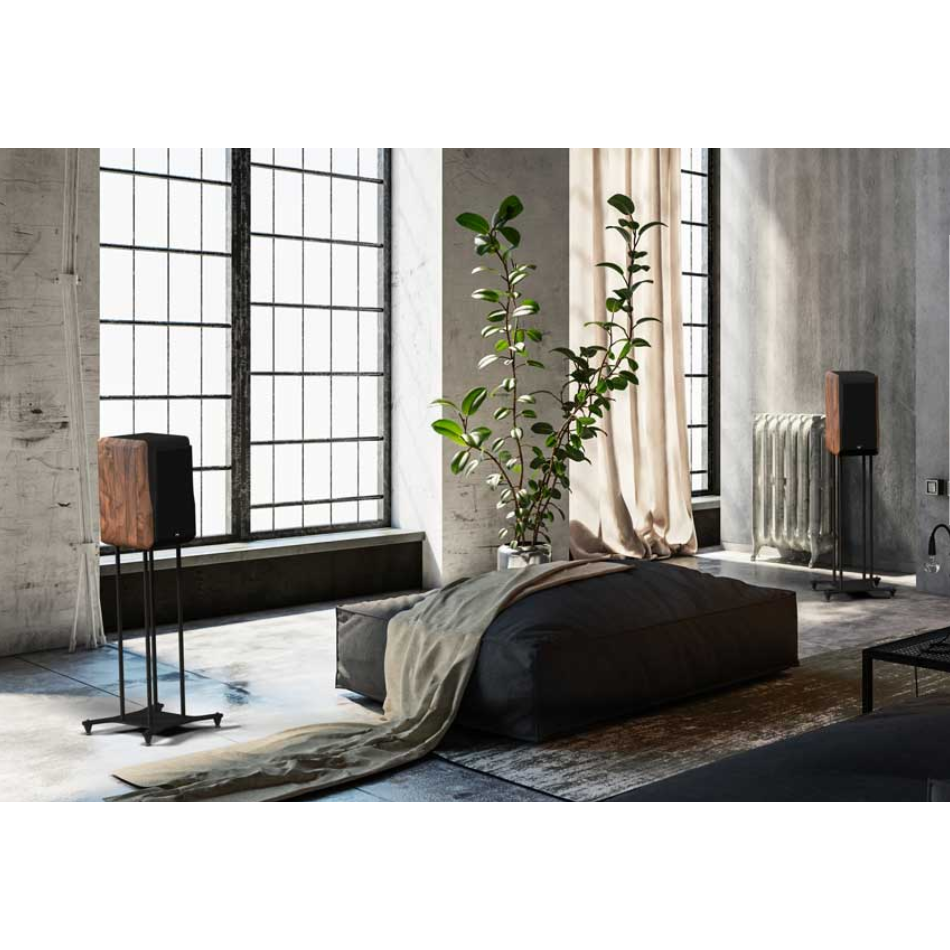

This loudspeaker is designed to produce excellent performance, even in normal domestic environments, where little to no acoustic consideration have been made.
The size of the ideal listening environment should not be less than than 6 square meters and not more than 14 square meters.
SPECIFICATIONSConfiguration 2 way Bookshelf
Drivers 1 Tweeter 38 mm Soft Dome, 1 Woofer 130 mm paper compound
Sensitivity 87 dB SPL normalized to 1 m/2.83 Vrms/de-correlated L/R pink noise in ITU-R BS 1116-1
Low Frequency Cut Off 67 Hz @ -3 dB referred to C4 WETS
Crossover Frequency 1500 Hz
Rated Impedance Modulus 4 Ω (min 5.8) Argument ±36°
Low Frequency Load Vented Subwoofer NRS 2π sr
Cabinet High Density Fiberboard and Massive Wood
Listening Layout A carpeted floor in front of the speakers is recommended
Cabinet Finishing Walnut
Size 360 x 200 x 200 mm (H x W x D)
Weight 10 Kg
Suggested Amplifier Up to 60 W / 4 Ω Average Power
Note Sizes and Weight referred to one speaker. Specs subject to change without notice. Average power calculated as V^2 rms/R. All quantities in SI Units.
