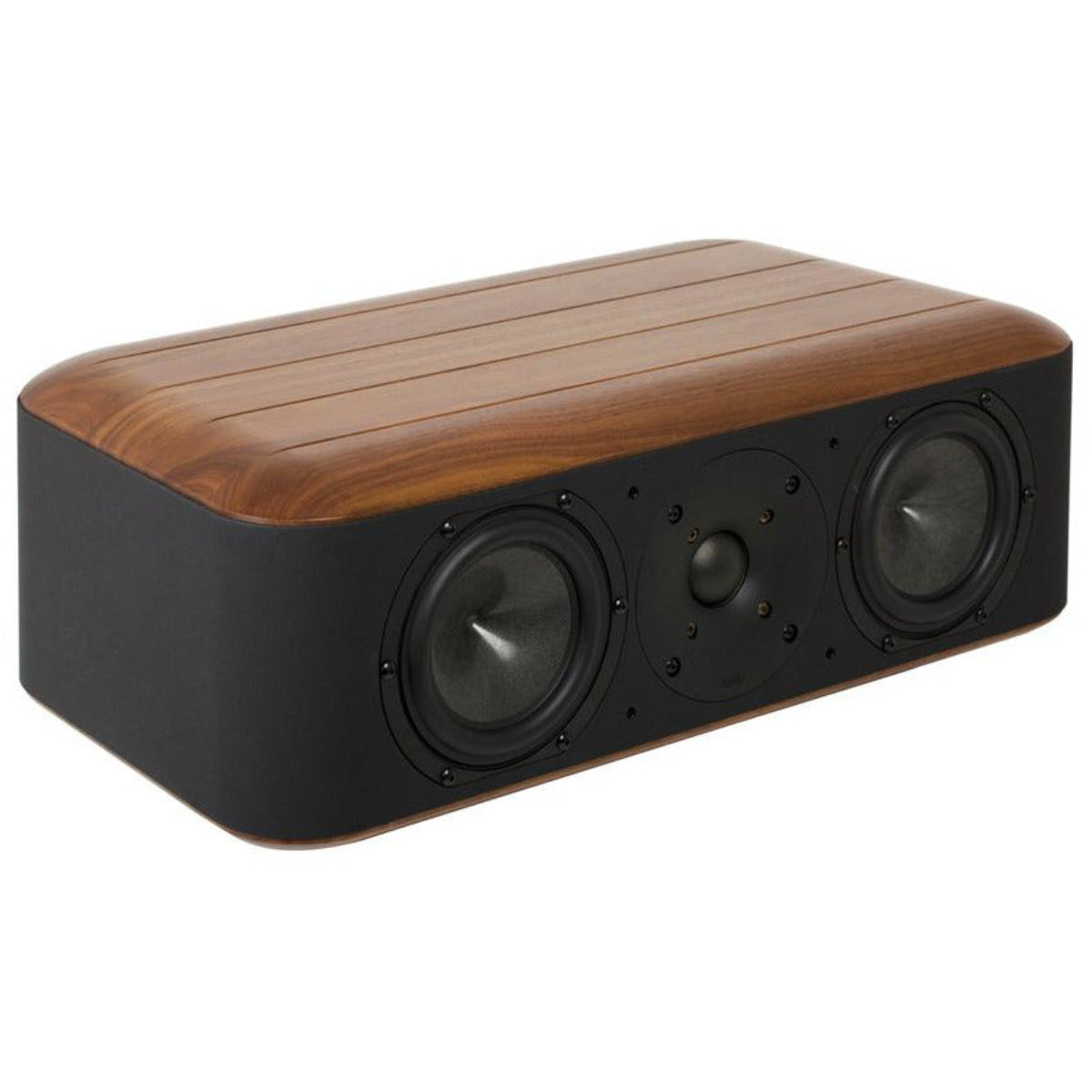

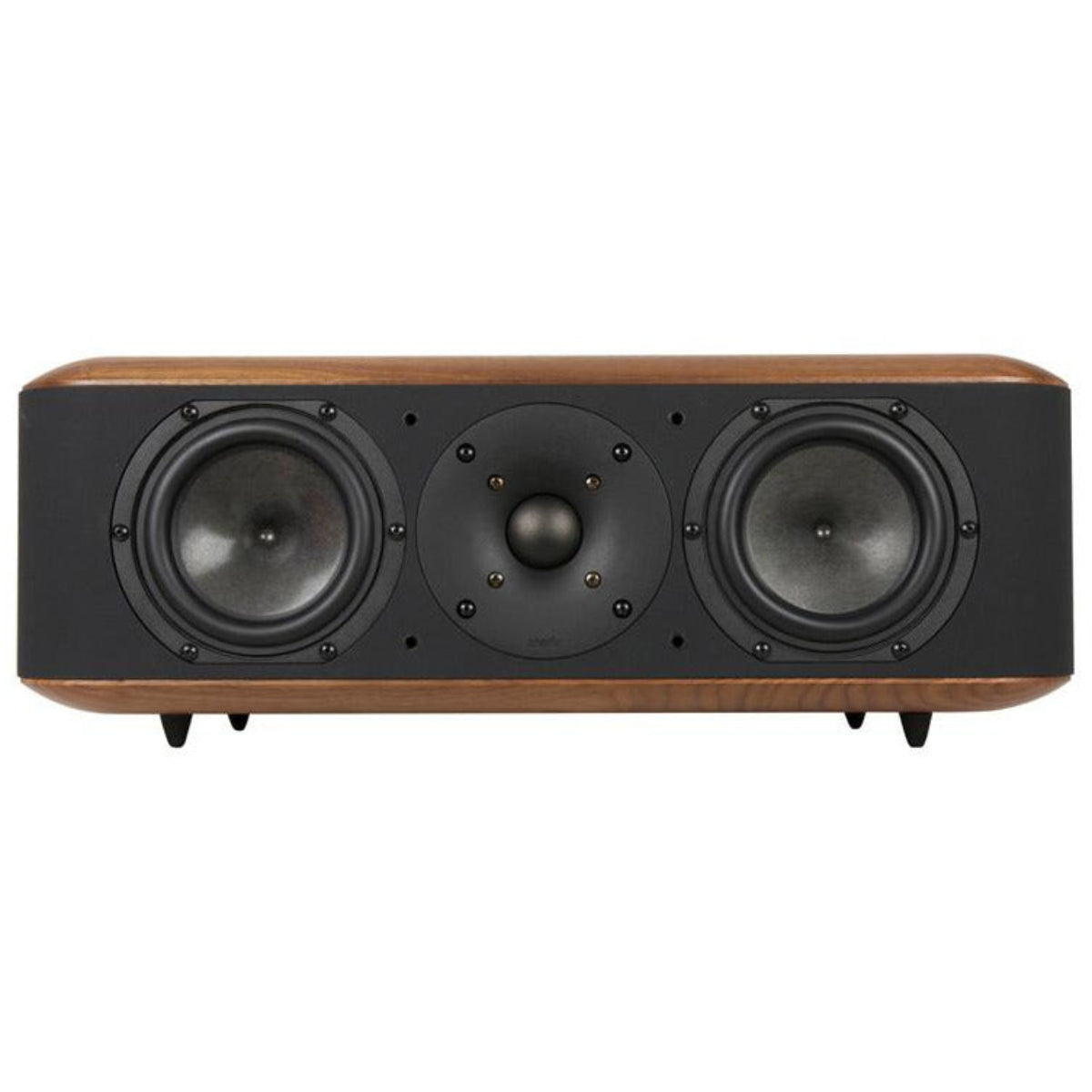

Chario Aviator Balbo Centre Speaker

Chario Aviator Balbo Centre Speaker

The Aviator line center speaker has been created to be a simple, elegant, and performing solution for the home systems. Versatile and powerful, Balbo speaker is able to perform the thumping bass of a movie, or the pristine mids and highs of a female vocalist. Born as a center speaker Balbo grant all the performances usually provided by a 3 way speaker, raising the level of your system and increasing the listening experience

TECHNICAL DATA

CONFIGURATION
3-way Reversed Array

DRIVERS
1 Tweeter 38mm T38Waveguide
2 Woofer 130 mm ROHACELL® Full-Apex™ Poly-Ring NdFeB motor

SENSITIVITY
90 dB SPL normalized to 1 m 2.83 Vrms de-correlated L R pink noise in ITU-R BS 1116-1 compliant listening room

LOW FREQUENCY CUT OFF
58 Hz @ -3 dB referred to C4 WETS

CROSSOVER FREQUENCIES
Midwoofer-Tweeter Crossover @ 1850Hz
Woofer-Tweeter Crossover @ 1300Hz
SUGGESTED AMPLIFIER
Up to 120W 4Ω Average Power

RATED IMPEDANCE
Modulus 4Ω (minimum 3.9Ω @185Hz) More than +36° (500-1200Hz)

LOW FREQUENCY LOAD

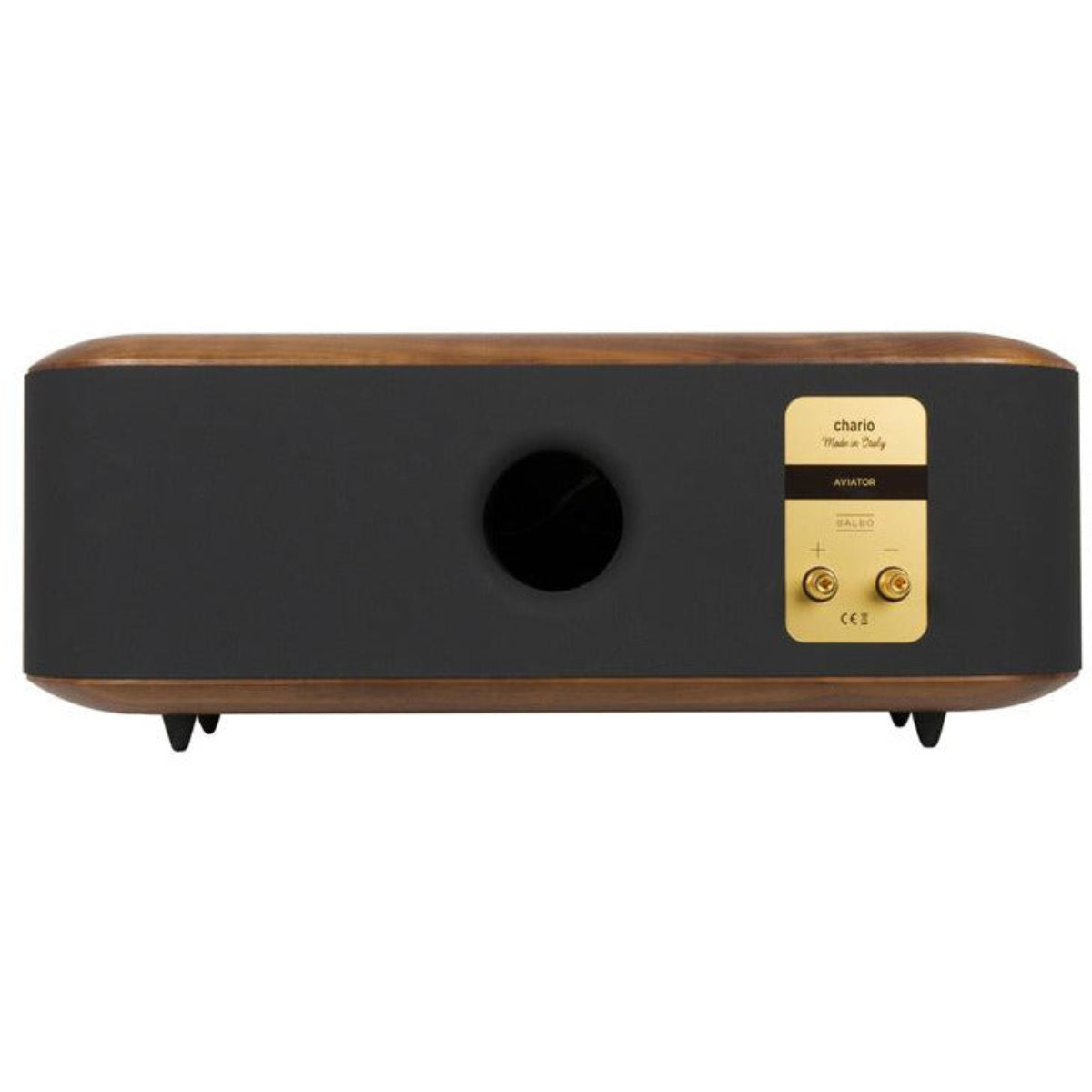

Back-Firing Vented

EAR LISTENING HEIGHT
Preferably on woofer axis

FINISHING
Solid walnut and hdf

SIZE
189 x 558 x 310 mm (H x W x D)

WEIGHT
12 Kg ( single piece )

SPEAKER ORIENTATION
Speakers should be titled inward facing the listener

LISTENING DISTANCE & LAYOUT
Minimum speaker-listener distance  2.0 m A carpeted floor in front of the speakers is recommended

WARRANTY
5 years Worldwide

SPARE PARTS AVAILABILITY
All the spare parts will be available for 15 years after the model will be discontinued.
