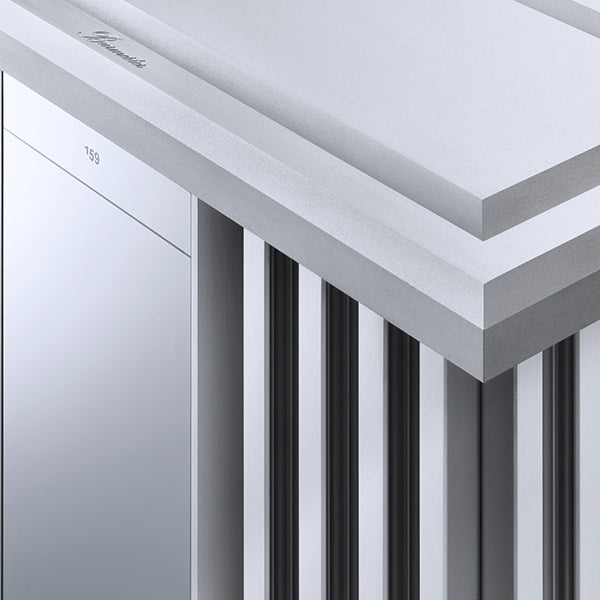

Burmester Signature Line - 159 Mono Power Amplifier
Burmester Signature Line - 159 Mono Power Amplifier
7 years in the making
Following their proprietary DNA, Burmester introduces the series production model of a superlative mono power amplifier. Visually taking its cue from the renowned amplifiers in the portfolio, the design of the 159 Mono Power Amplifier has been adapted to contemporary design ideas; its appearance demonstrating the progression of innovation that has taken place on the inside of the amplifier. After 7 years of development, power and control have reached previously unattainable levels of performance and measurement. The 159 benefits both from the wealth of experience evidenced by Burmester’s track record in power amplifier development and from the latest discoveries in analogue amplifier technology.
Design
In terms of the company’s history, the 159 Mono Power Amplifier crowns the success stories – especially with power amplifiers – by uniting traditional Burmester virtues with state-of-the-art technology. At the same time, it is the most powerful power amplifier that Burmester have ever created. This monumental amplifier is also absolutely uncompromising in its inner structure. All sound-relevant components originate from German manufacturers and were specially designed in accordance with the stipulations of the Burmester development team for this ambitious project. This extraordinary effort over a period of many years has made it possible to consistently implement the very peak of what is technically feasible.
To preserve the purist design, the control unit is hidden under the opulent aluminium cover. Pushing the cover to the rear allows access to the control console, with a concentrically positioned push lever and relevant information concerning the device, such as operating status or the damping factor display.
Handmade
The adjustable damping factor offers the customer the opportunity to adjust the amplifier to their personal sound preferences and to the respective requirements of the speaker. Adjustments are made by use of a rotary encoder on the rear of the housing and can be read via both the operator panel and on the scale of the rotary encoder. From the manually assembled circuit boards, to the selected transformers, to the computer-aided measuring station takes over 100 hours of production time. In addition, there are several days of trial runs and further intensive quality controls, including a detailed final listening test under real conditions. Each individual component receives a 100% inspection before installation, assuring the recognized Burmester quality standards. This extensive manufacturing process ultimately ensures that the customer is in receipt of an extraordinary product in every respect.
Specifications
Weight 169 kgWidth 523 mm
Height 415 mm
Depth 660 mm
Power output Mono (IEC 62368-1) at 4 Ω 1.200 W
Pulse power Mono (CEA) at 4 Ω 2.500 W
Continuous current 17 A
Peak current 70 A
THD+N (1 kHz, 50 W/4 Ω/22 kHz) 0,0009 %
Unweighted signal-to-noise ratio for 1 kHz at 1,200 W with 4Ω >116 dB
