Bowers and Wilkins 803 D3 Floorstanding Speakers - As Traded

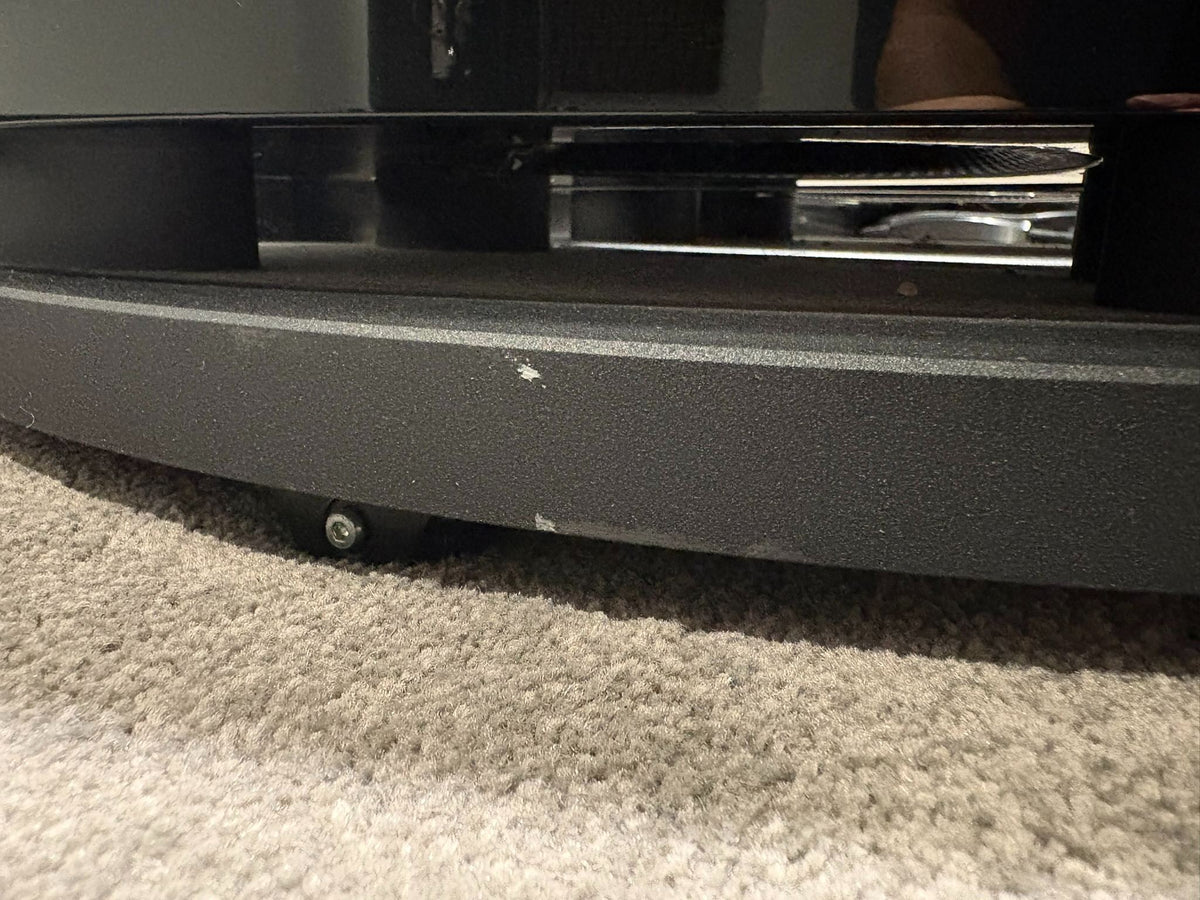

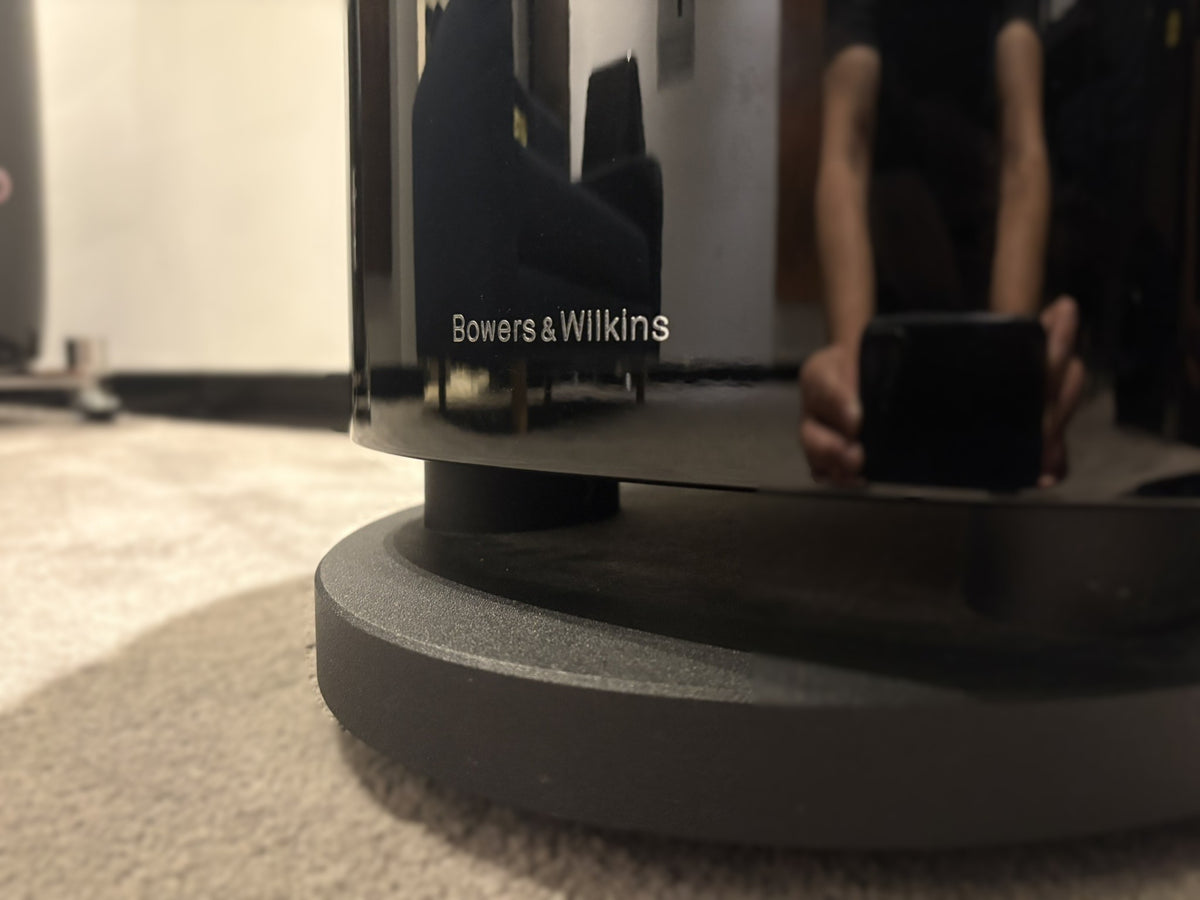

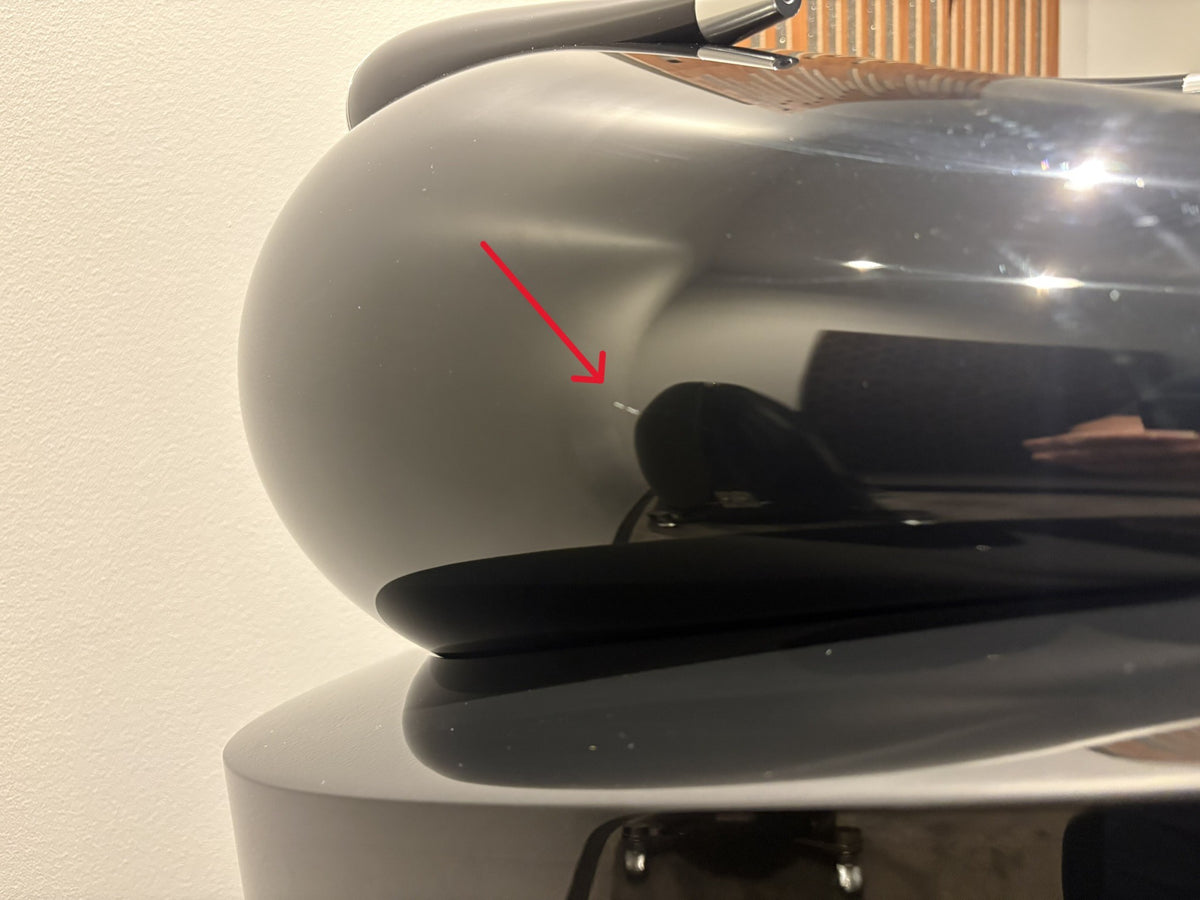

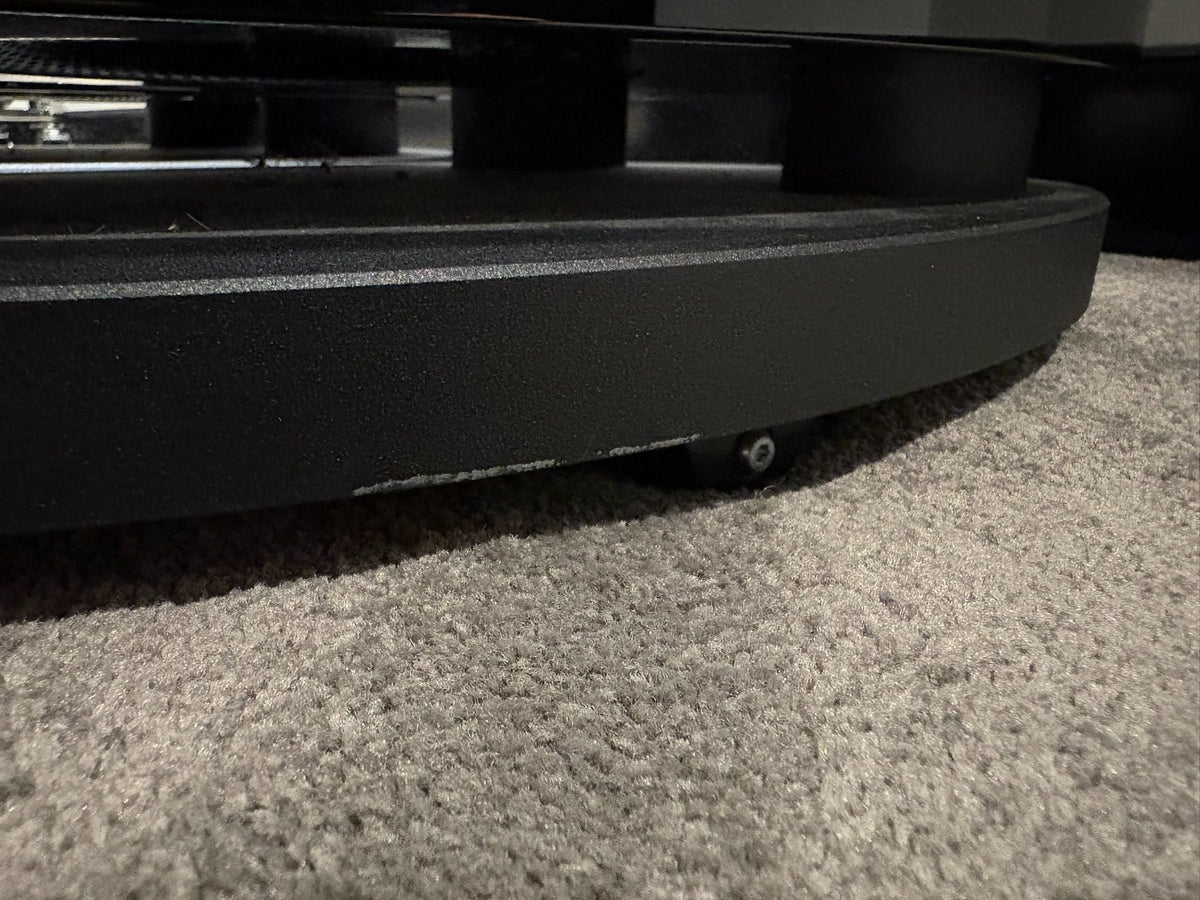

Condition: Used. Very good, scratch on tweeter, chips on bases (See photos)

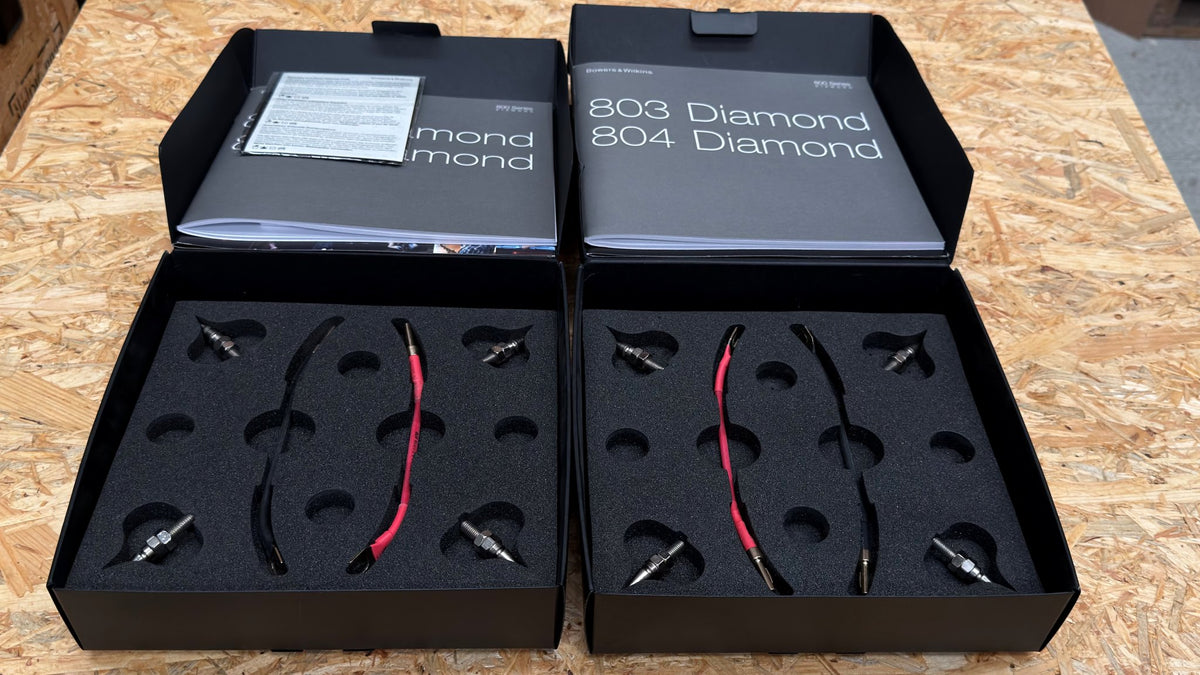

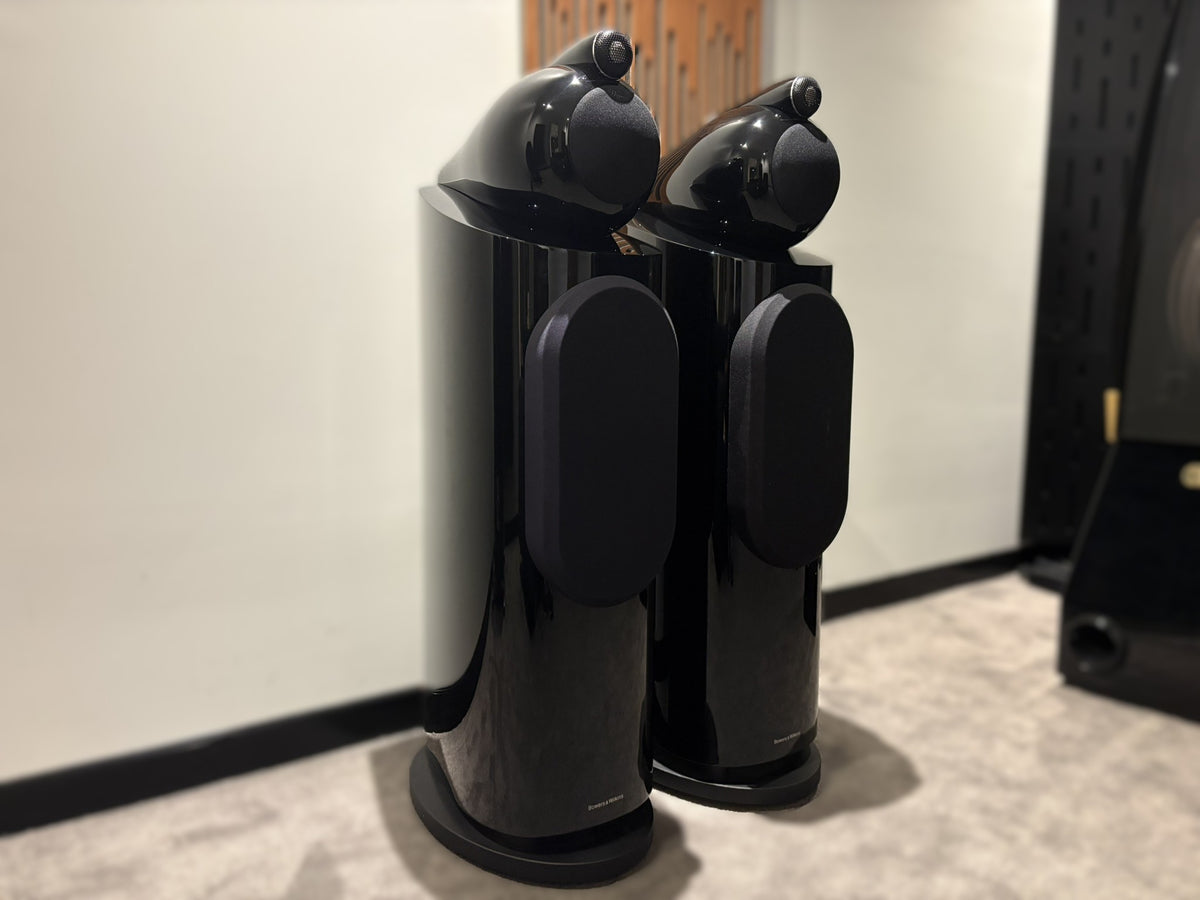

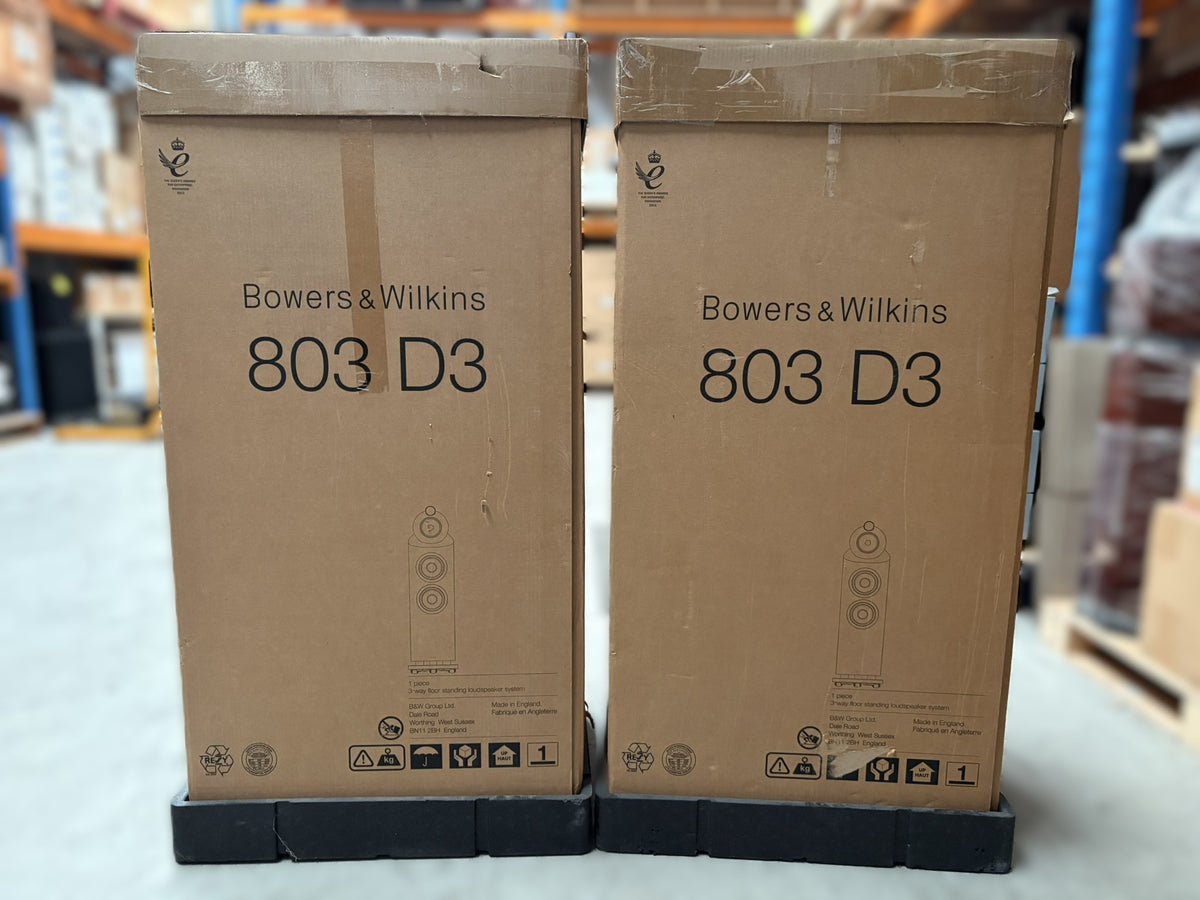

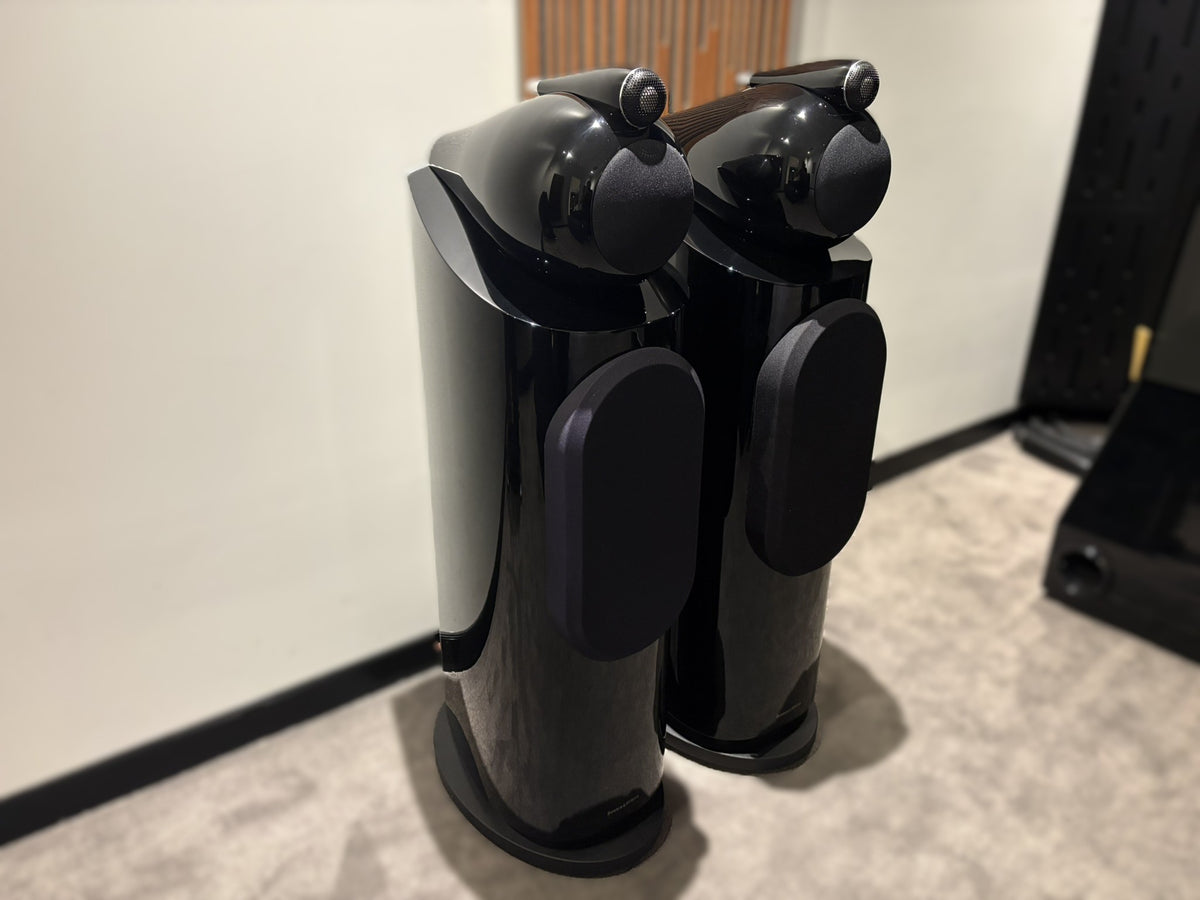

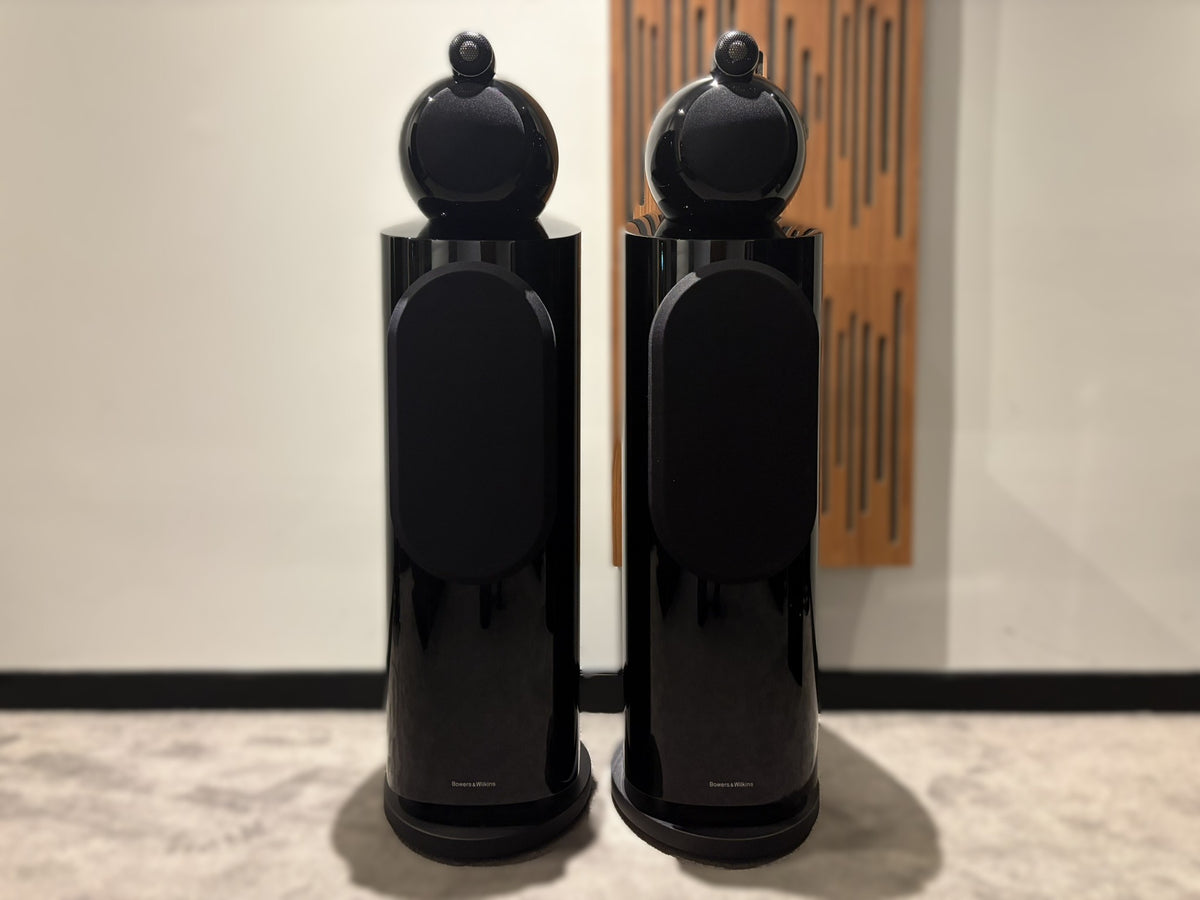

Includes: Original Shipping Crates, Grilles, Jumpers, Spikes
SN: 1512 0001725 / 1512 0001726
Local Sydney Metro Delivery Only - Contact for Freight Quote
Includes 90 day (3 month) warranty
Overview

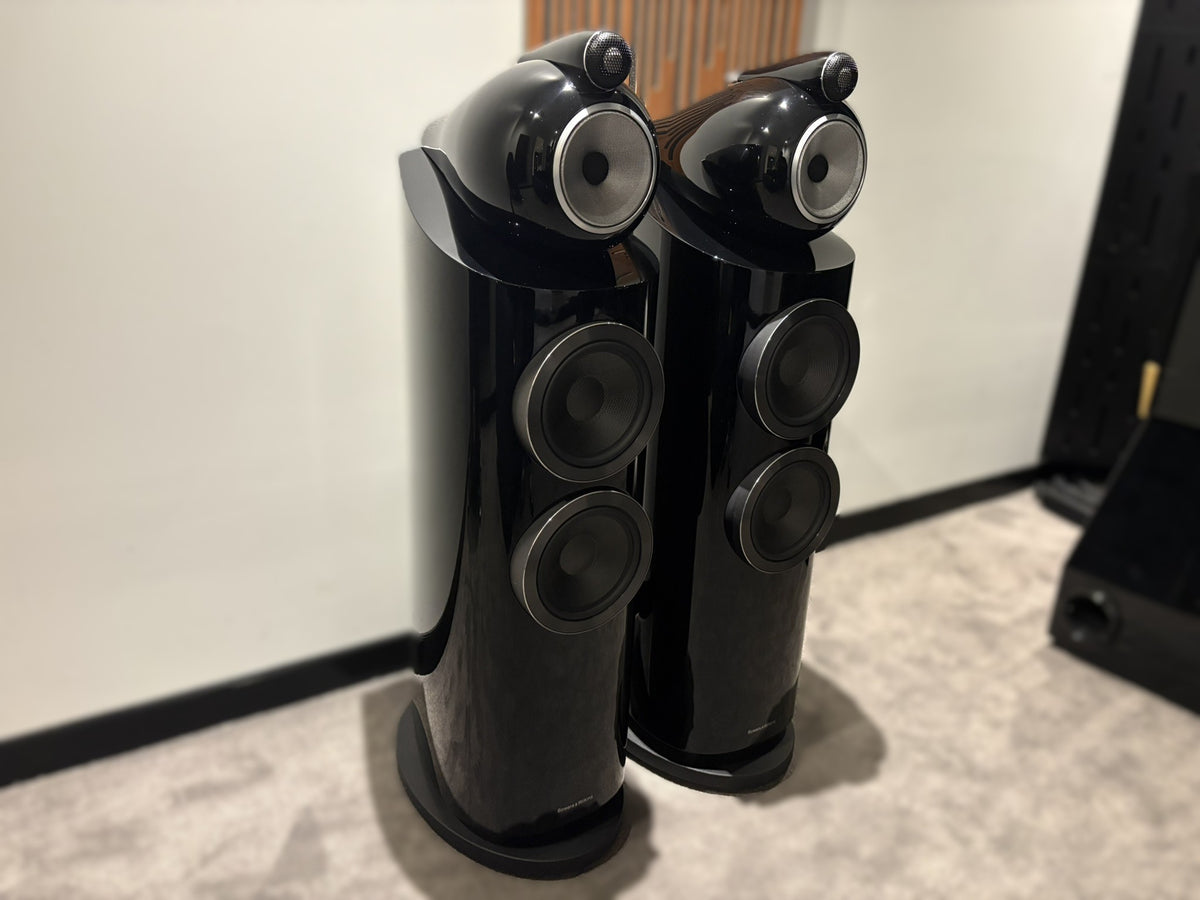

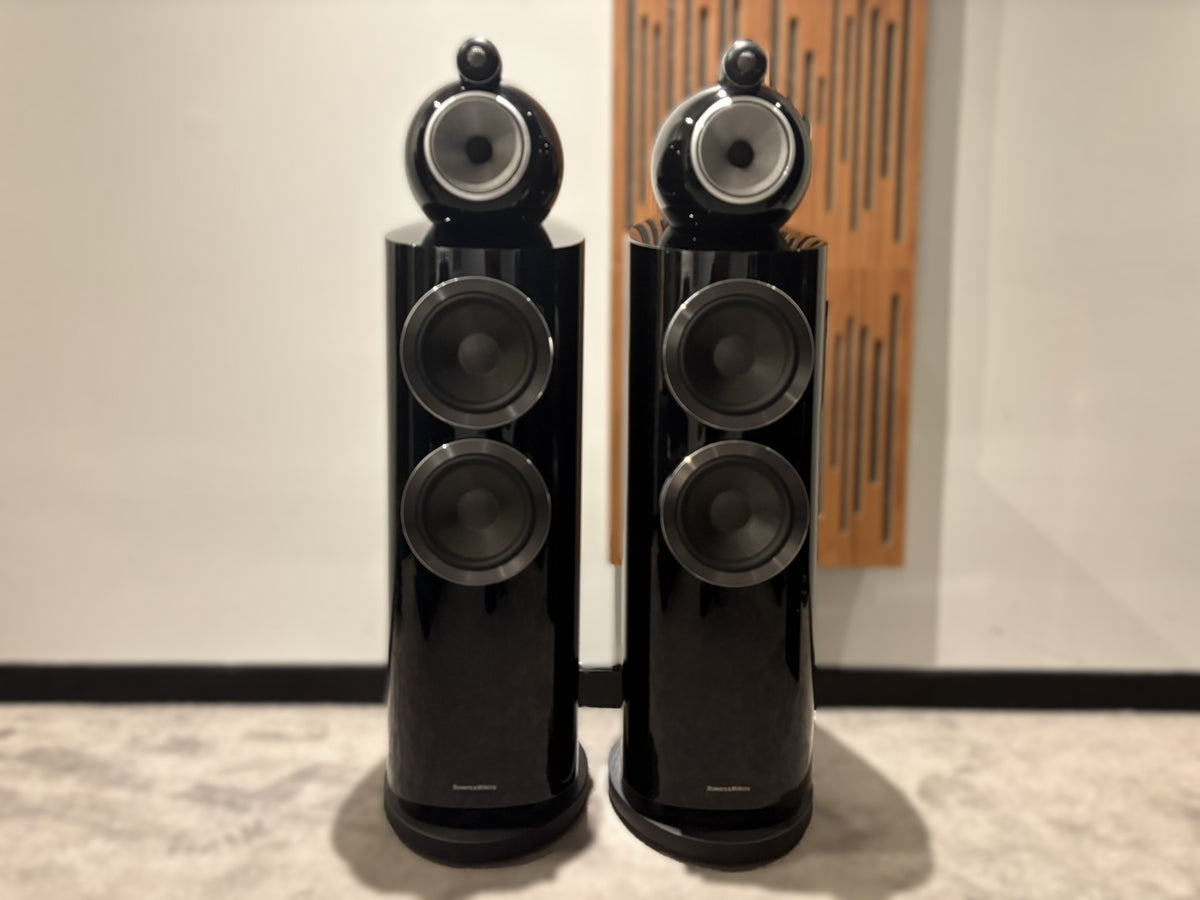

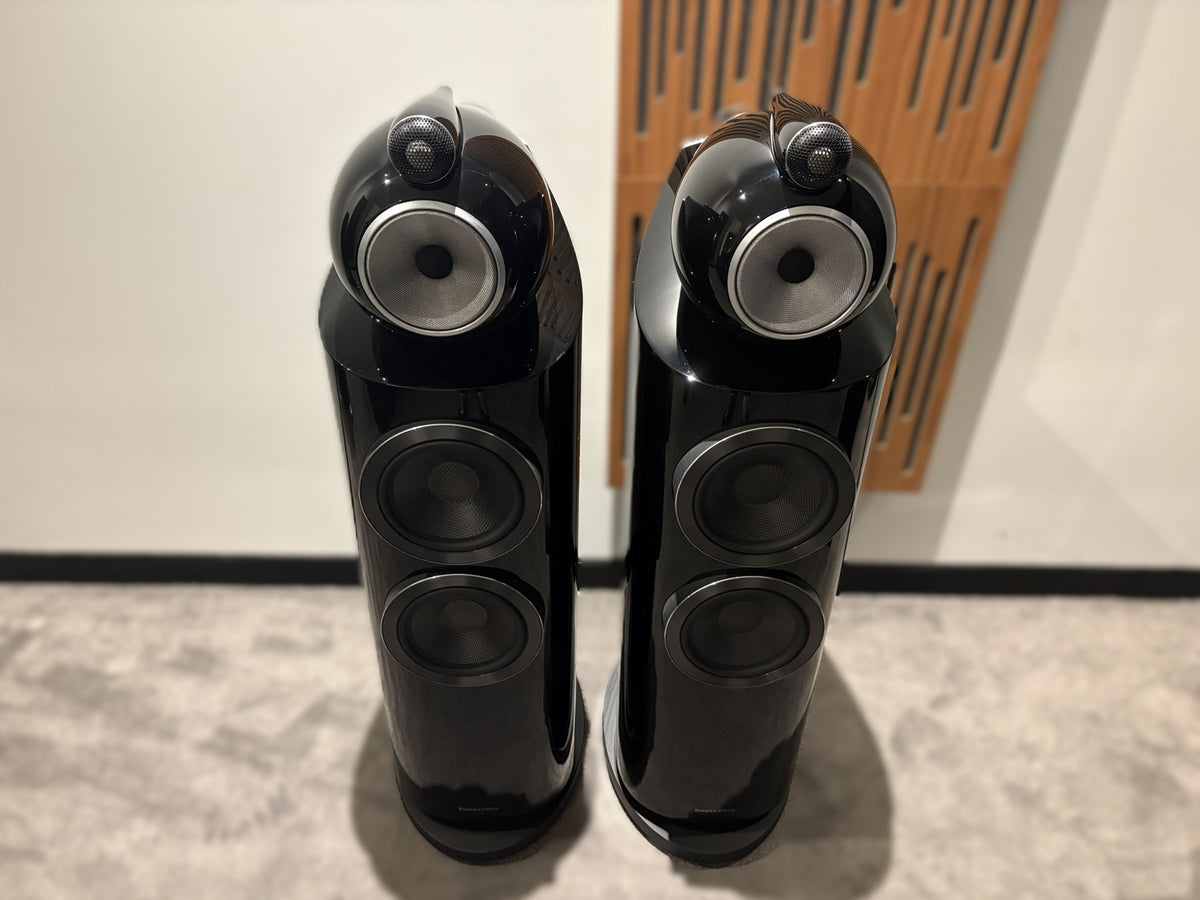

A three-way floorstanding loudspeaker offering the core technologies of Bowers and Wilkins' flagship 801D3 in a relatively compact headed enclosure.

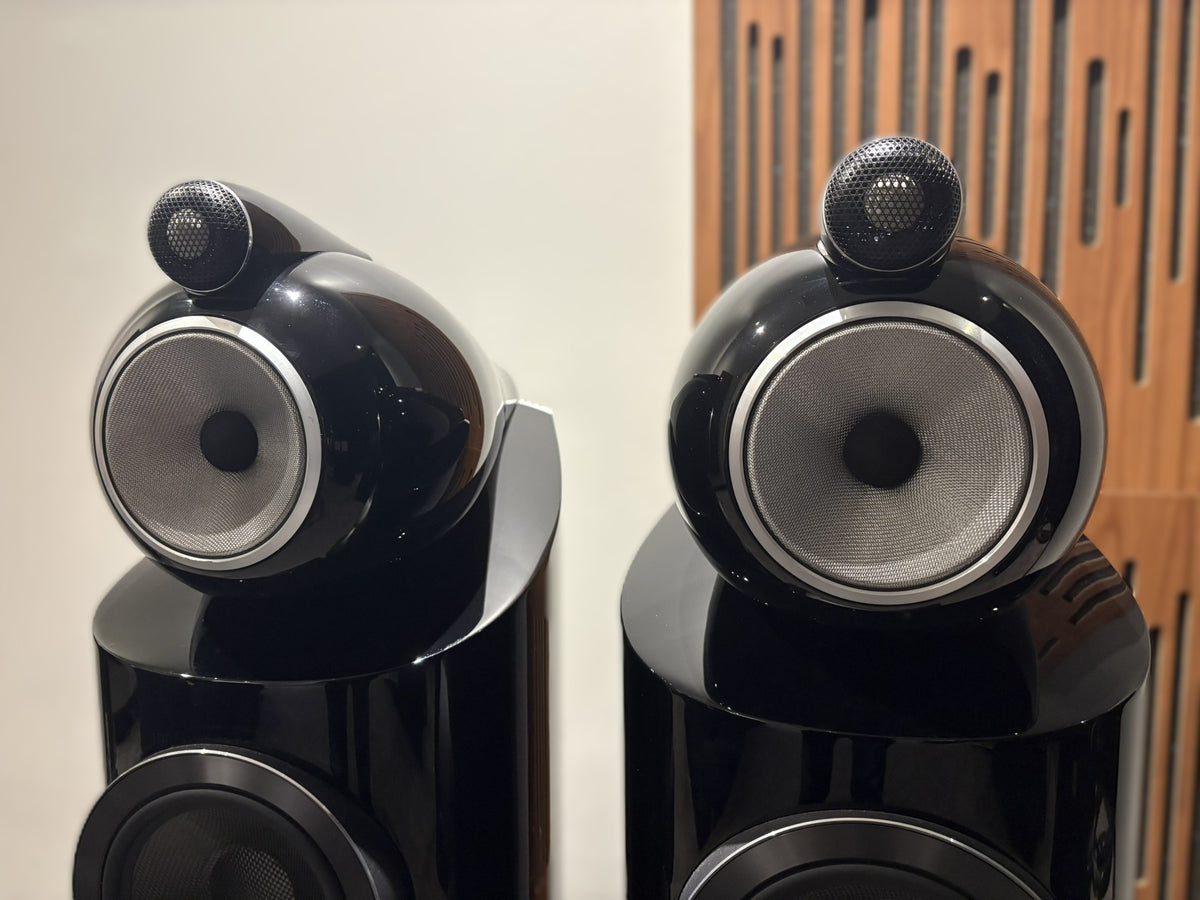

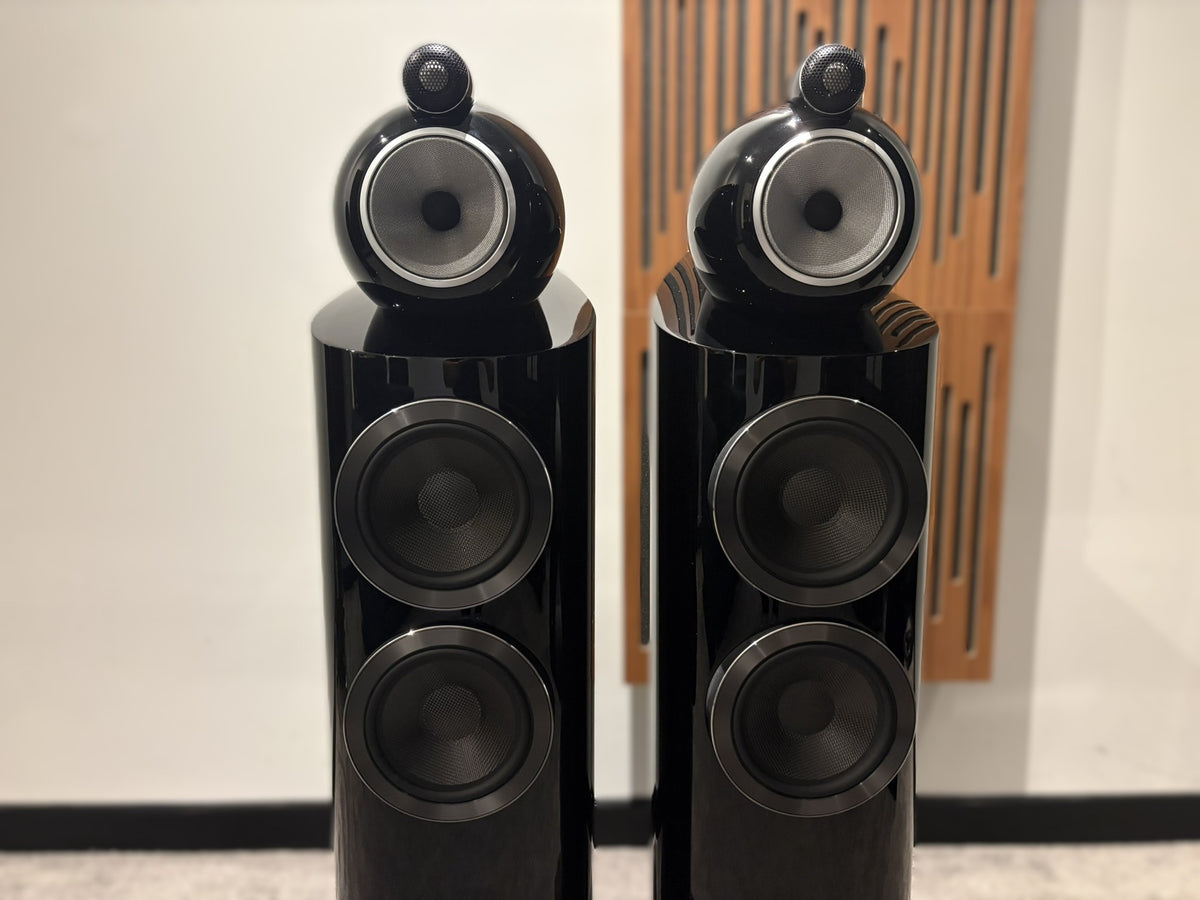

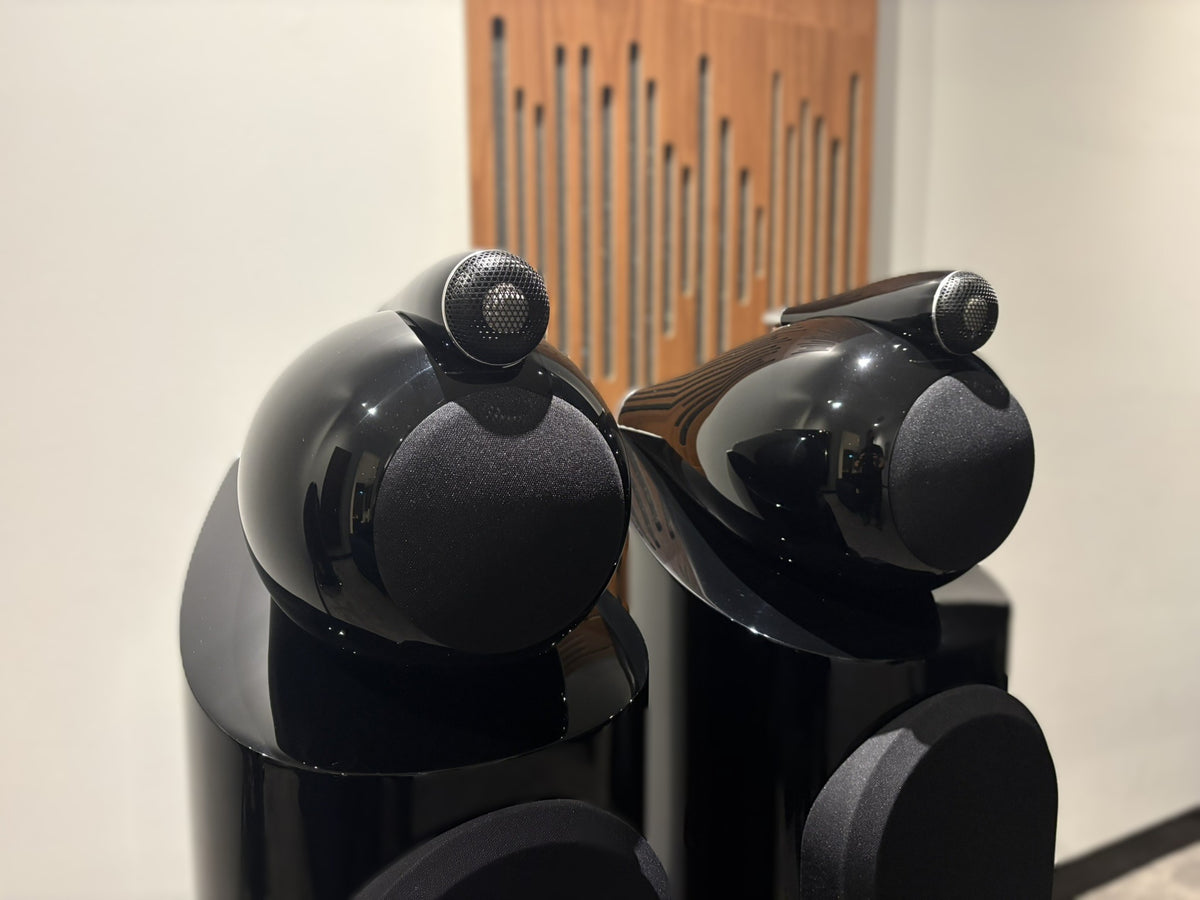

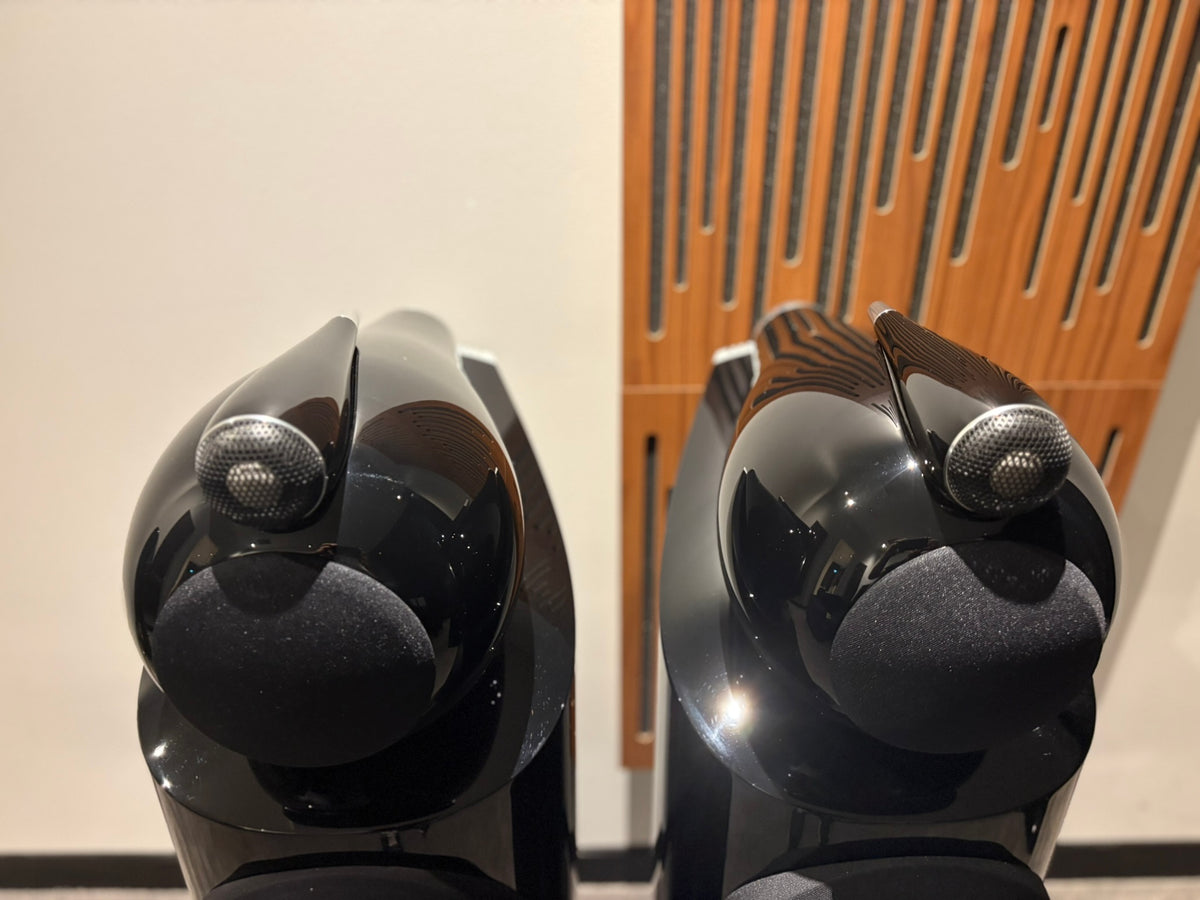

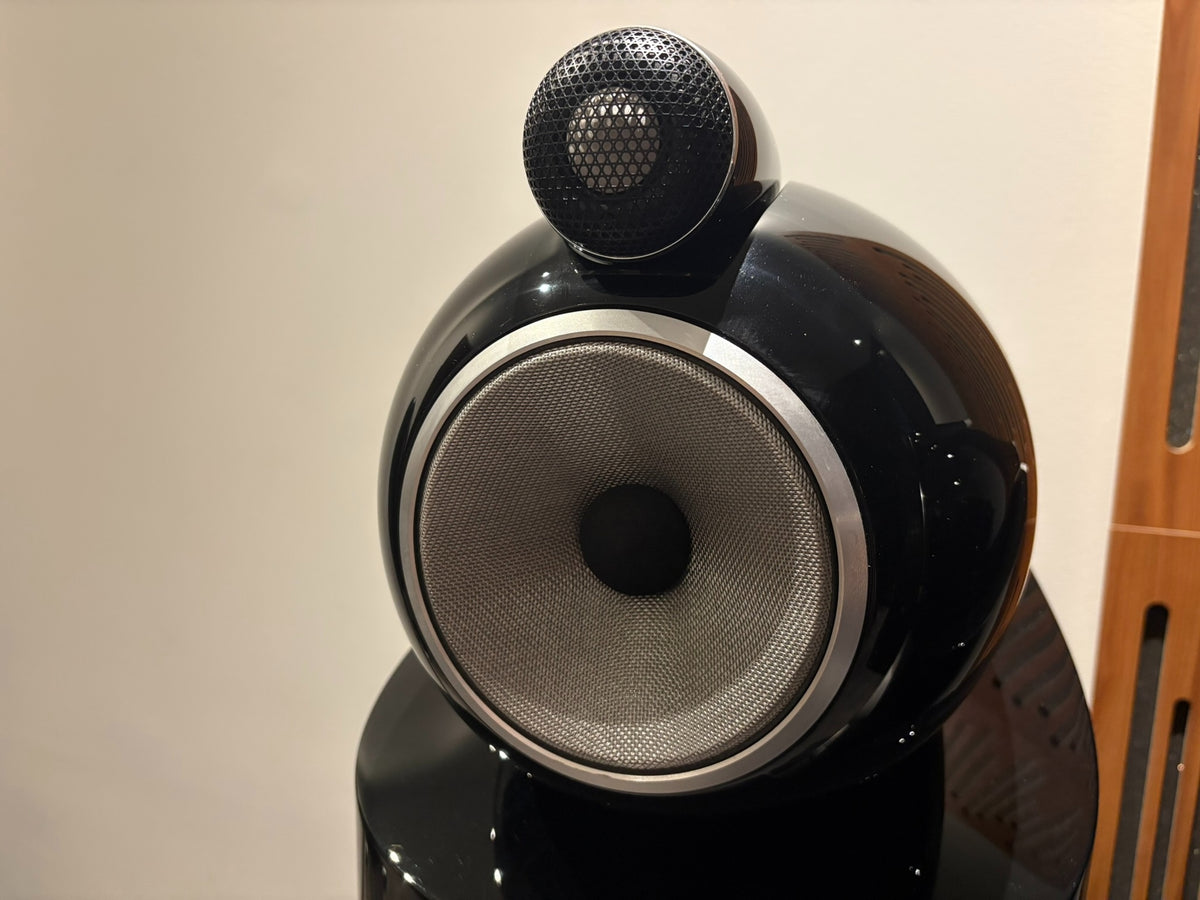

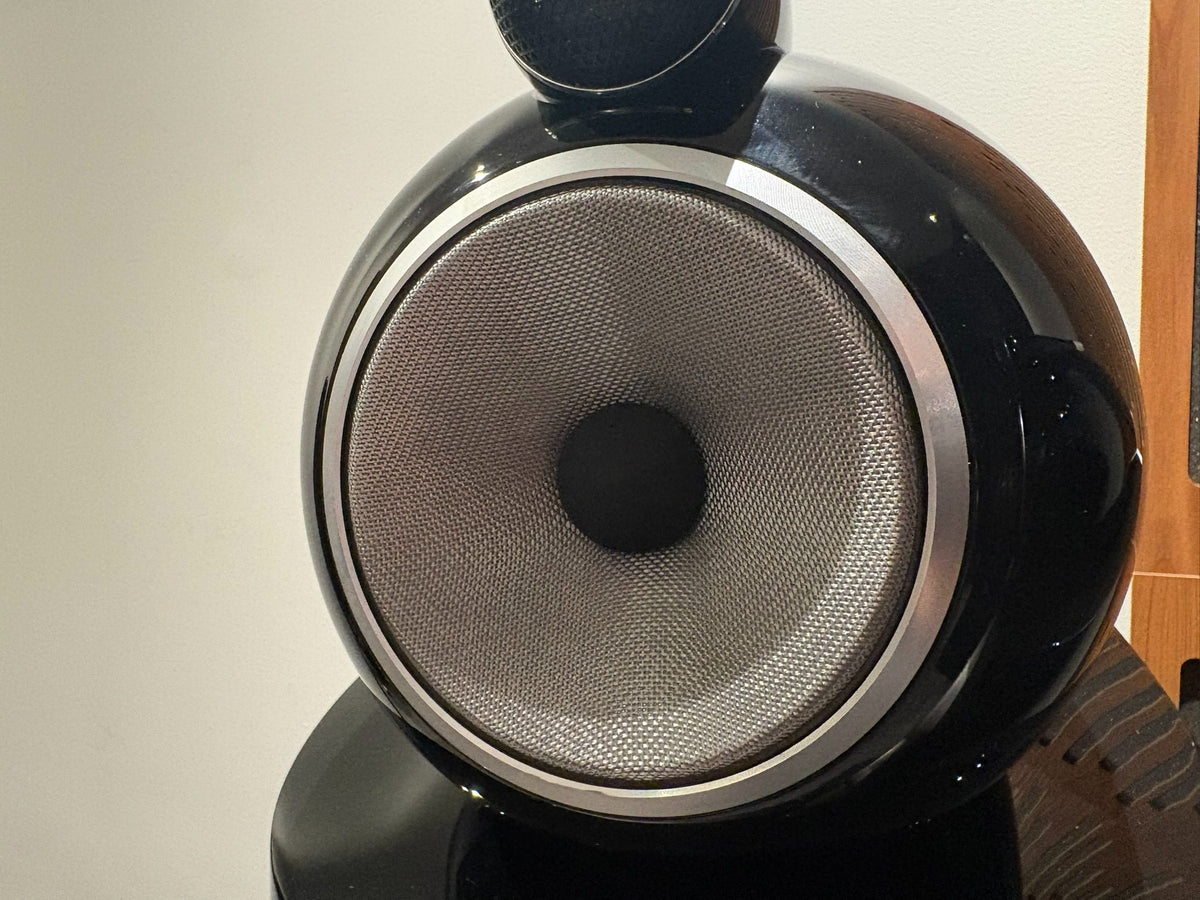

The 25mm diamond-dome tweeter capable of high-frequency response up to 35kHz is mounted in a solid-body Turbine Head, a 130mm Continuum-cone FST midrange driver in another Turbine head handles the critical vocal and instrumental region, and two 180mm Aerofoil-cone bass drivers manage the low end.

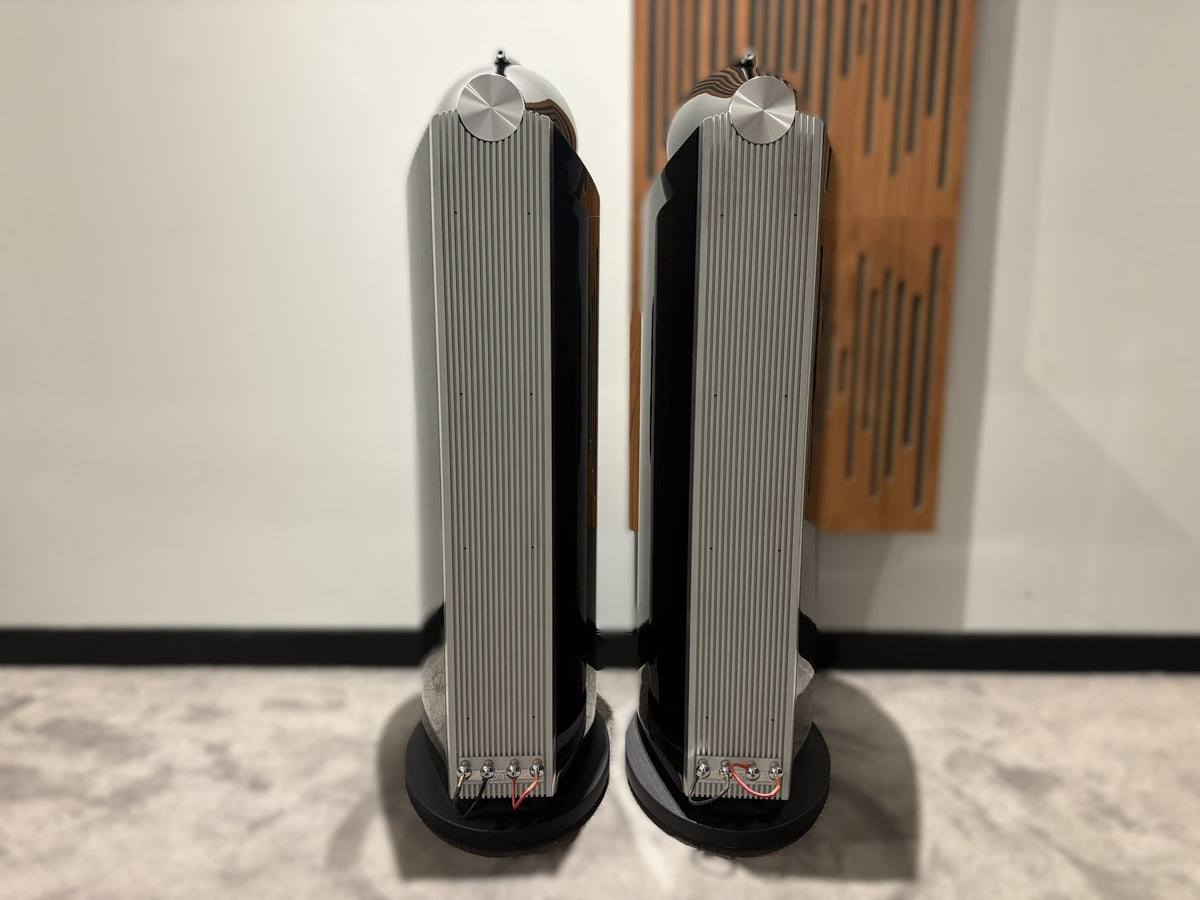

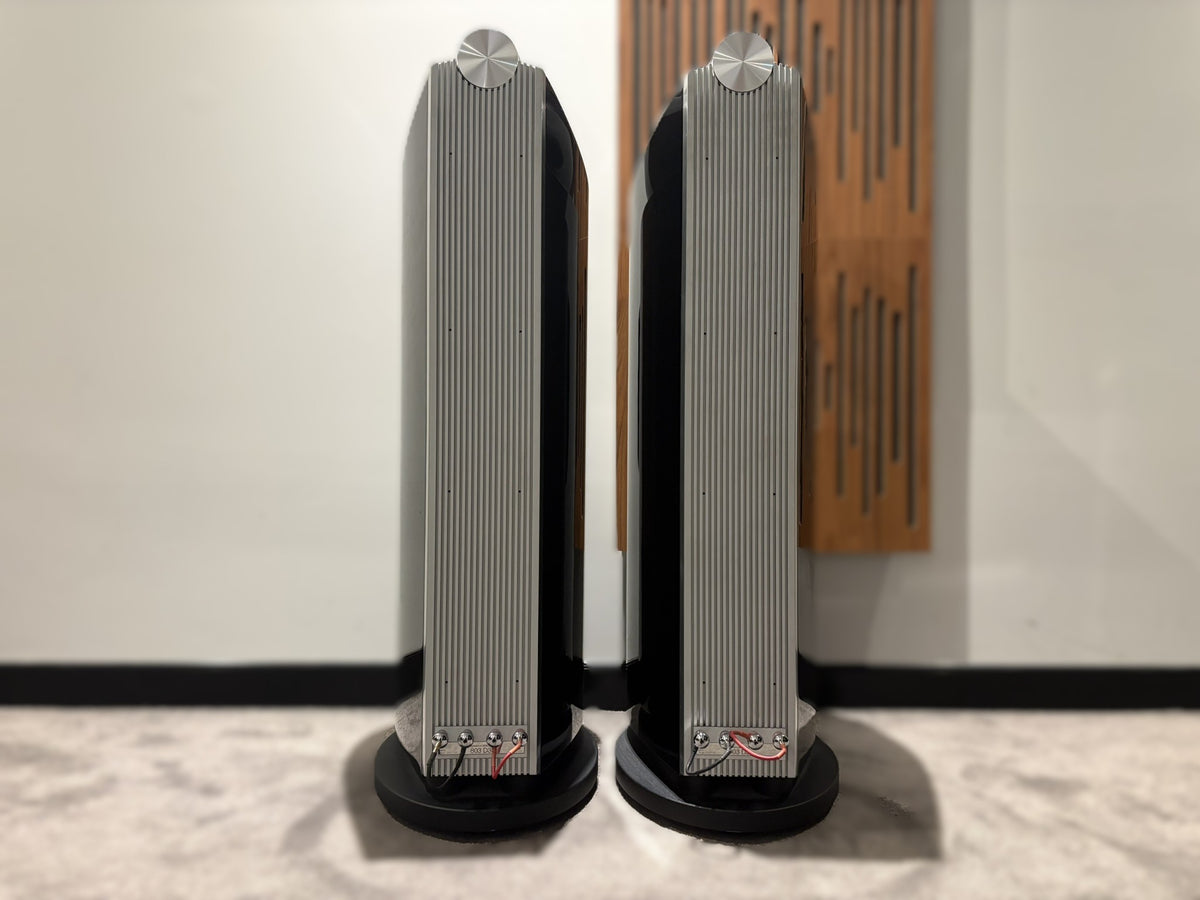

The separate tweeter enclosure and reverse-wrap cabinet architecture provide a rigid, mechanically controlled platform for the drive units, while the Optimised Matrix cabinet construction keeps low frequency output quick and tight.
B&W's Flowport system is incorporated into the vented enclosure, with the bass section using the Aerofoil profile to optimise the behaviour of the bass cones. An Anti-Resonance plug is also specified as part of the driver and cabinet design.
- Diamond Dome Tweeter: Delivers pristine highs up to 28 kHz for exceptional clarity
- Continuum Cone Midrange: Ensures smooth, accurate sound with minimal distortion

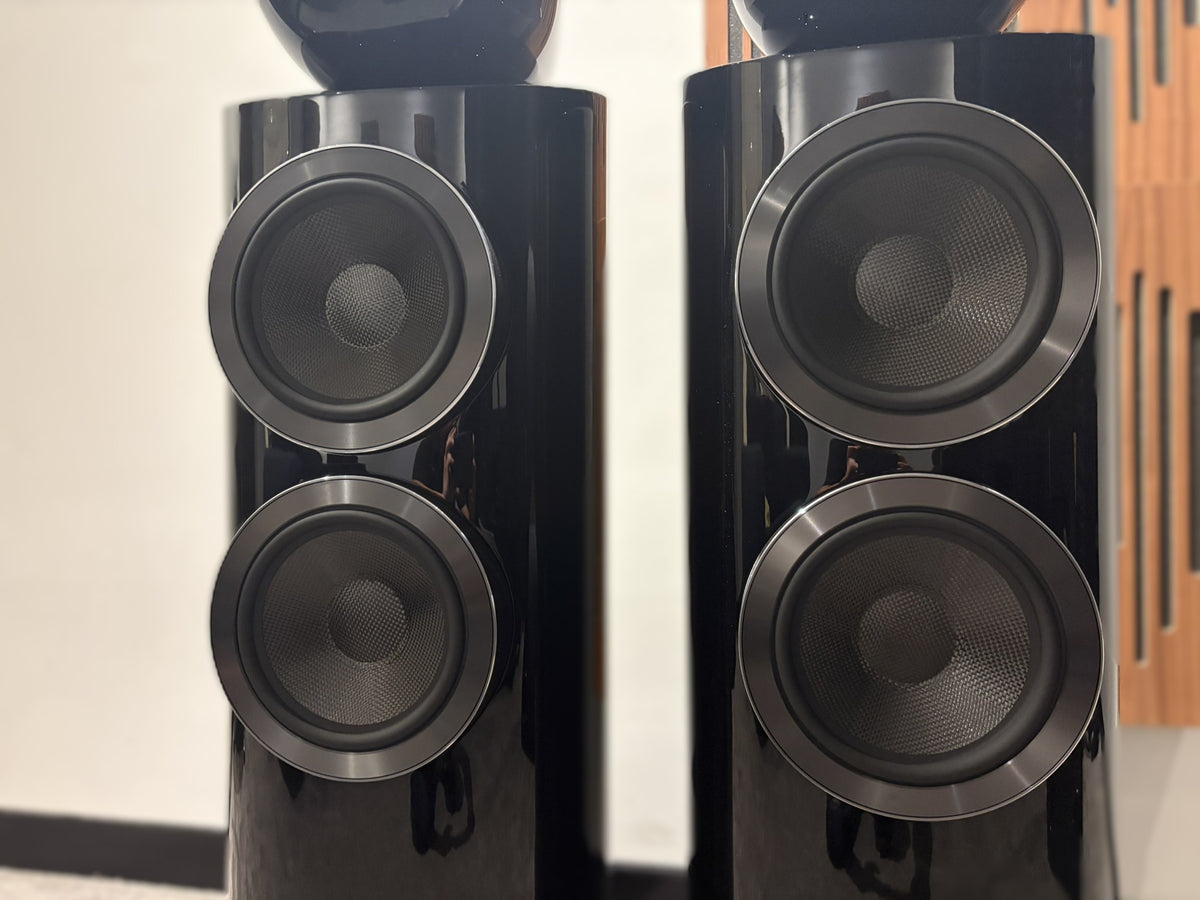

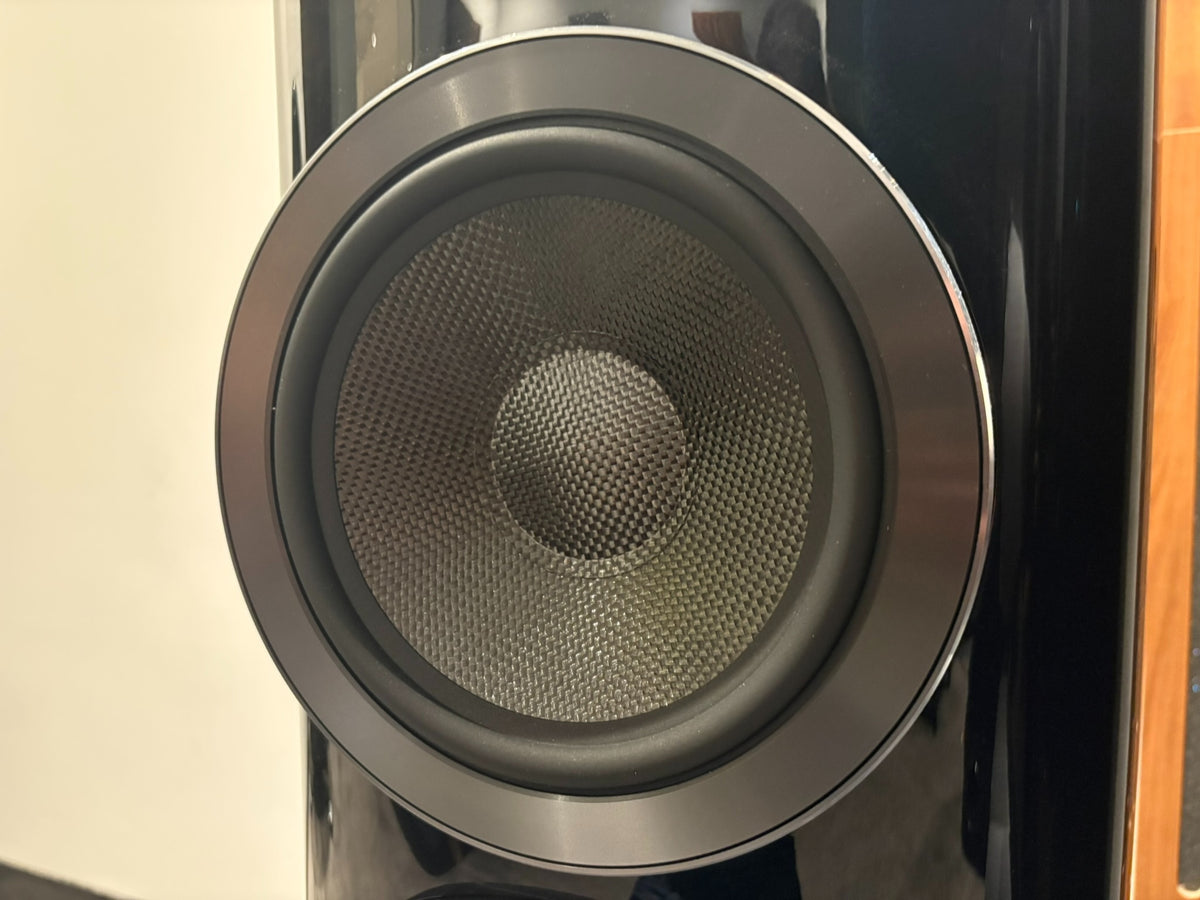

- Aerofoil Cone Bass: Provides deep, controlled bass with dual 7-inch drivers
- Turbine Head Design: Reduces resonance for a pure, immersive soundstage
Specification
Drive units
1x ø25mm (1 in) diamond dome high-frequency
1x ø130mm (5 in) Continuum cone FST midrange

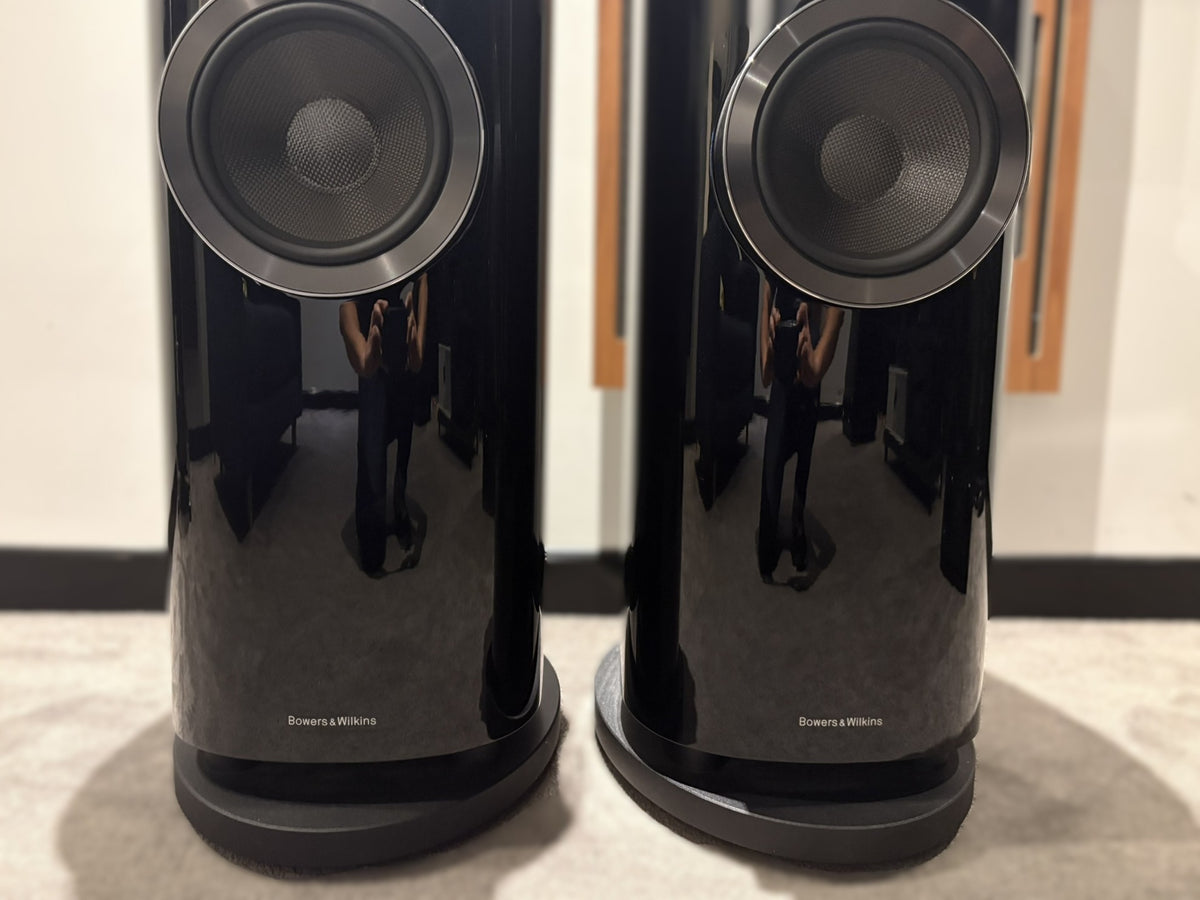

2x ø180mm (7 in) Aerofoil cone bass units
Frequency range: 16Hz to 35kHz
Frequency response (+/-3dB from reference axis): 19Hz to 28kHz
Sensitivity (on axis at 2.83Vrms): 90dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 70Hz - 20kHz
<0.3% 100Hz - 20kHz
Nominal impedance: 8Ω (minimum 3.0Ω)
Recommended amplifier power: 50W - 500W into 8Ω on unclipped programme
Max. recommended cable impedance: 0.1Ω
Dimensions Height: 1160mm Width: 334mm Depth: 498mm
Net weight Each: 65.5 kg
