Barco Njord Projector

Barco Njord Projector

Njord has a pleasing calm uniform image and is designed for large screens or high ambient light environments.

Njord inherits a lot from its predecessor Wodan, however, the light source and optical engine are completely redesigned, made smaller, more efficient, and most importantly optimized for perfect cinematic colours.

Njord not only offers a pleasing uniform image, it also has the power to illuminate large screens or high ambient light environments; like outdoor entertainment spaces and contemporary glass home designs. These environments will all benefit from an unbelievably bright and detailed image with spectacular colour fidelity for the most demanding clients.

Single Step Processing SSP™

Pulse is a hardware and software based platform that simplifies the signal allowing it to transmit from source to screen much faster and more efficiently. We use an advanced image processing technique to display the image on the screen without any artefacts and with the lowest possible processing lag (<20ms with all image processing), this is made possible by our Single Step Processing (SSP™).

State of the art electronics

All new Pulse electronics have been designed to process 4K with HDMI 2.0a and HDCP 2.2 and the optical engine utilises the very latest 0.9" DMD DLP chipset, delivering 5,120 x 2,160 pixels to screen.

Njord also features HDR, motorised lenses and Barco’s unique RealColor processing, enables simple and accurate calibration to any desired color standard or white point.

Building Blocks

Njord offers 4K UHD resolution for superb image quality. Thanks to its modular design Njord is easy to service. Njord is the most compact rugged projector that offers up to 12,500 lumens light output currently available. One of its most striking features is that as standard it’s equipped with a fully featured-on-demand option for flexible light output between 4,000-12,500 lumens.

Laser Light Source

Outstanding image quality also requires an exceptional light source which is why we designed Njord with a brand new laser engine, significantly improving image uniformity (95%) over its predecessor. Njord is also equipped with custom selected lasers to deliver a DCI/P3 color gamut.

Lasers last longer than traditional projector lamps, are not as fragile and offer nearly instant on/off.

Specifications

Resolution 3,840 x 2,160
Display technology DLP - 0.9” Three-Chip DMDTM
Housing Sealed DMDs and optical assembly
Input compatibility up to 4K UHD
Light output up to 12,500 lumens in DCI/P3 mode, up to 9,350 lumens in DCI/P3 @ 110V
Contrast 600:1 ANSI contrast / 20,000:1 Dynamic On/Off contrast
Color space DCI/P3
Light engine Laser Phosphor
Laser lifetime 20,000 hours
Lenses
TLD+ 0.41 : 1 Ultra short throw Fixed Lens
TLD+ 0.73 - 0.94 : 1 Ultra short throw Zoom Lens
TLD+ 0.92 - 1.33 : 1 Ultra short throw Zoom Lens
TLD+ 1,24 - 1.56 : 1 Wide Angle Lens
TLD+ 1.49 - 2.02 : 1 Wide Angle Lens
TLD+ 2.01 - 2.76 : 1 Standard Lens
TLD+ 2.69 - 4.41 : 1 Long Throw Lens
TLD+ 4.37 - 7.35 : 1 Extra Long Throw Lens
TLD+ 6.95 -10.83 :1 Very Long Throw Lens
Lens shift range Up to 73 shift up for some lenses, 57% down, 28% Horizontal

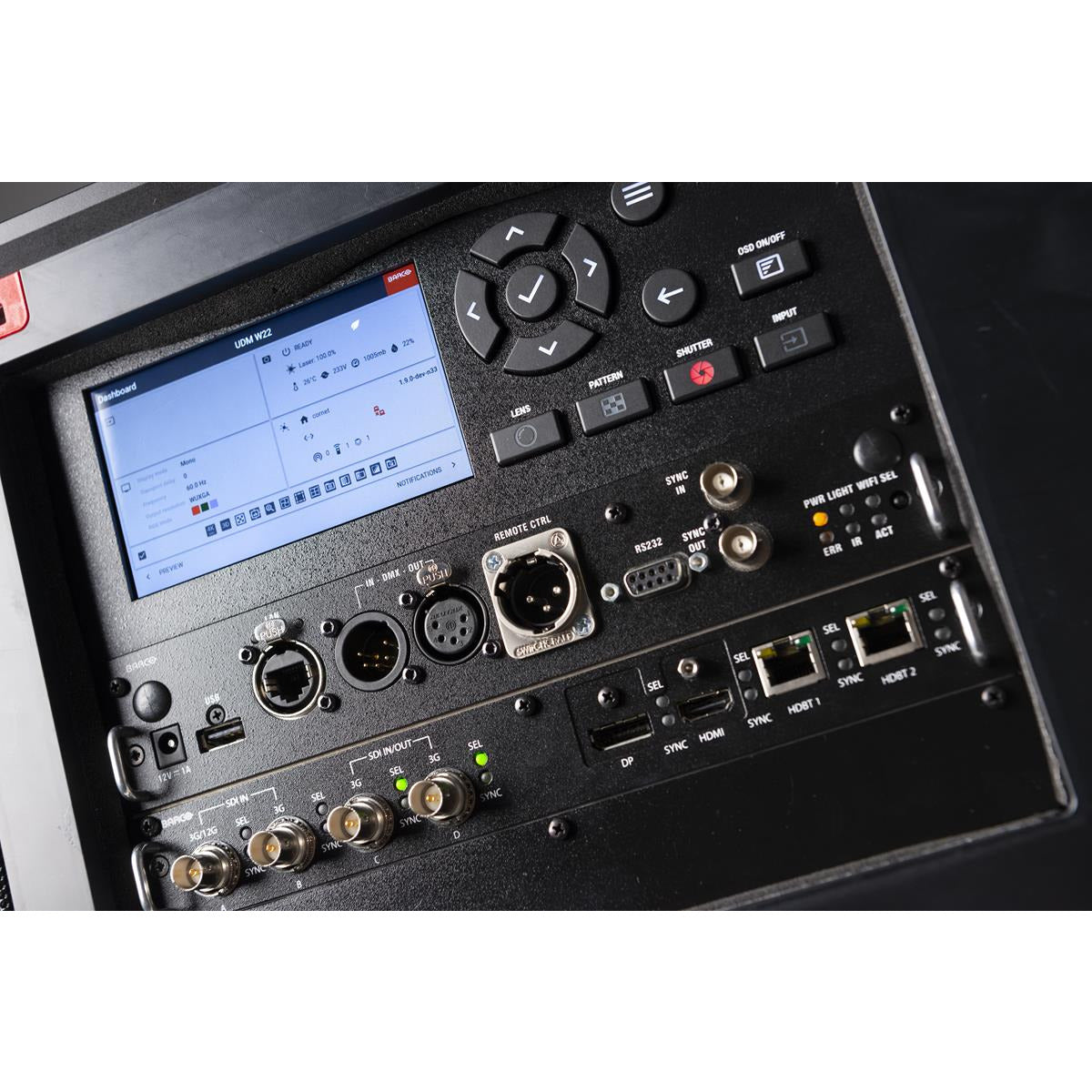

Inputs HDMI 2.0, HDBaseT 1.4, DP 1.2, Quad SDI/HDSDI/dual HDSDI/Quad 3G
HDSDI/BarcoLink
Control TCP/IP, RS232, RJ45
Control drivers Control4, Crestron, RTI and Savant
3D active eyewear (optional), passive Infitec (optional), passive circular
(optional), triple flash up to 200Hz
Dimensions (WxLxH) 540 x 725 x 355mm (including feet / excluding lens)
Weight 48kg
Power requirements 110-130V/200-240V, 50-60 Hz
Power consumption 230V: 1723W Max 20-25°C / 68-77°F
110V: 1,360W Max, measured in 20-25°C / 68-77°F
BTU per hour Max 5875 BTU/h @ 200-240V. Max 4811 BTU/h @ 110-130V
Noise level (typical at 25°C/77°F) 46 dB(A) (normal)
Operating temperature 0 ~ 40°C / 32 ~ 104°F
Operating humidity 0% - 80%
