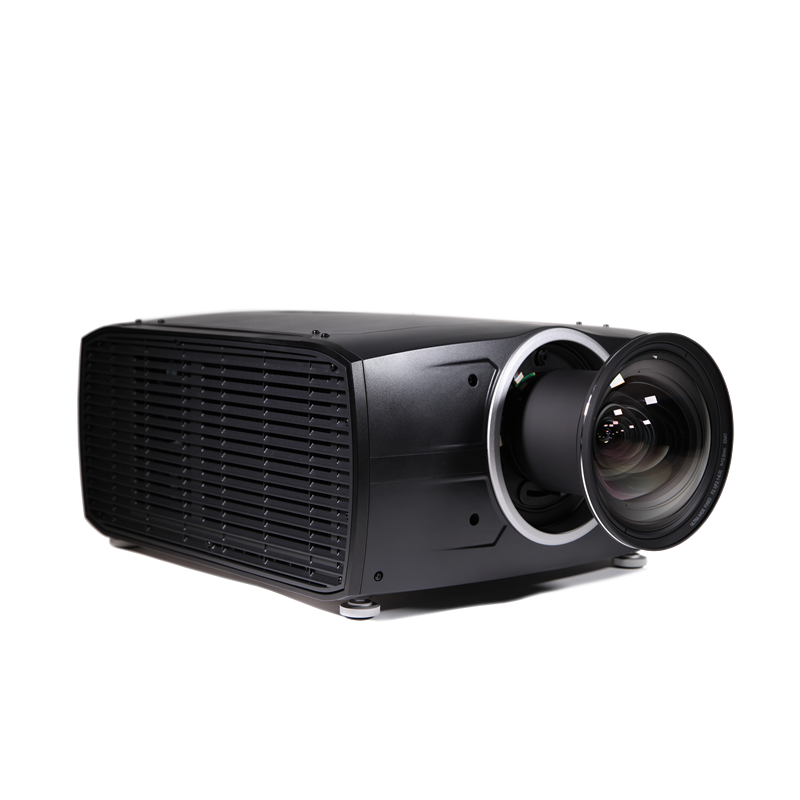

Barco Balder CinemaScope Projector

Model: T version 3500 Lumen
Lens: EN61 (1.7 - 2.5 : 1)

Pickup available at Audio Connection

Usually ready in 5+ days

Barco Balder CinemaScope Projector

Barco Balder CinemaScope Projector

T version 3500 Lumen / EN61 (1.7 - 2.5 : 1)

Audio Connection

Pickup available, usually ready in 5+ days

515 Parramatta Road
Leichhardt NSW 2040

  • Live Chat Support (8am - 8pm)
  • Free Australia Wide Shipping
  • 02 9561 0788. We speak English, Mandarin, Cantonese, Vietnamese


  • Split your payments over 2, 6, 12 or 18 months.
  • 0% on your purchase, zero fees.
  • No minimum spend.
  • All you need is a valid credit card (Visa, Mastercard, Amex).
  • Choose "More Payment Options" below and choose "Monthly credit card payments" on the checkout screen.

Need Help?

If you have any questions or need advice - give us a call on 02 9561 0788 during business hours or use our live chat service AEST 8am - 8pm everyday (you'll chat with a real person, not a bot!).

Krisflyer members earn 3 Krisflyer miles with every $1 spent at Audio Connection and 10% off. Checkout via the Kris+ App Only. Click here for more details.

Barco Balder CinemaScope Projector

The cornerstone of home cinema systems designed to deliver outstanding experiences in the world's finest homes.

Balder incorporates Barco's unique PULSE electronics platform, inhouse designed laser engine and the world’s finest optical components, fusing them together with the imaging device technology chosen by 9 out of 10 professional cinemas: DLP.

Professional grade optics

By basing Balder’s CinemaScope optical engine on it’s bigger brother Loki CinemaScope's architecture, custom designed aspherical glass elements and enhanced low dispersion glass lenses, image quality is in a class of its own. To top that, Balder CinemaScope’s frame and core is built in aluminium, 37kg of pure quality. The result is the best picture quality ever shown at this level.

State of the art electronics

All new “Pulse” electronics have been designed to process 4K with HDMI 2.0a and HDCP 2.2 and the optical engine is utilising the very latest 0.9" DMD DLP chipset, delivering 5,120 x 2,160 pixels on screen.


The Balder CinemaScope has a unique automatic aspect ratio detection function. It will look for cinemascope content and automatically scale the image to fit the 5,120 x 2,160 resolution and change back to 16:9 (3,840 x 2,160) if you have content in that format. It will also change aspect ratio when a cinemascope format movie has a menu outside the active picture frame. Alternatively, you can switch manually between the different formats.

Liquid cooling

Balder CinemaScope has departed from a pure fan based cooling system to a liquid cooling PID regulation system, allowing Balder to operate in any angle.


Resolution 5,120 x 2,160 px @ 60Hz
Display technology DLP - 0.9” Single Chip DMDTM
Housing Sealed DMDs and optical assembly
Input compatibility up to 4K UHD
Light output
T-version: up to 4,000 lumens
M-version: up to 5,600 lumens
Contrast 450 : 1 ANSI Contrast
Light engine Laser phosphor
Laser life 100% 20,000 hours -> 50% Brightness, 75% 60,000 hours -> 50% Brightness
0.30 : 1 (EN68)
0.41 : 1 (UST 90 degree lens)
0.65 : 1 (EN67)
0.80 - 1.21 : 1 (EN66)
0.90 - 1.30 : 1 (EN76)
1.21 - 1.70 : 1 (EN63)
1.70 - 2.50 : 1 (EN61)
2.50 - 4.60 : 1 (EN44)
6.50 - 9.10 : 1 (EN69)
Lens shift range Varies depending on lens, more then 100% with EN41 & EN43
Inputs HDMI 2.0, HDBaseT (1.4), DVI, DisplayPort, SDI, DMX
Control TCP/IP, RS232, IR, Keypad, 12v Trigger
Control drivers Control4, Crestron, RTI and Savant
3D active stereoscopic 3D Sync 3-pin DIN, BNC
Dimensions 475 x 588 x 286 mm (including feet / excluding lens)
Weight 37 kg
Power requirements 110 - 240 V / 50-60 Hz
Power consumption 1,100 W Max
BTU per Hour Max 4,000 BTU/h max
Noise level (typical at 25°C/77°F) 36 dB(A)
Operating temperature 10 - 45°C (sea level)
Operating humidity 20 - 80% RH
