AVID Hifi Ruby Cartridge
High-Fidelity Moving Coil Cartridge

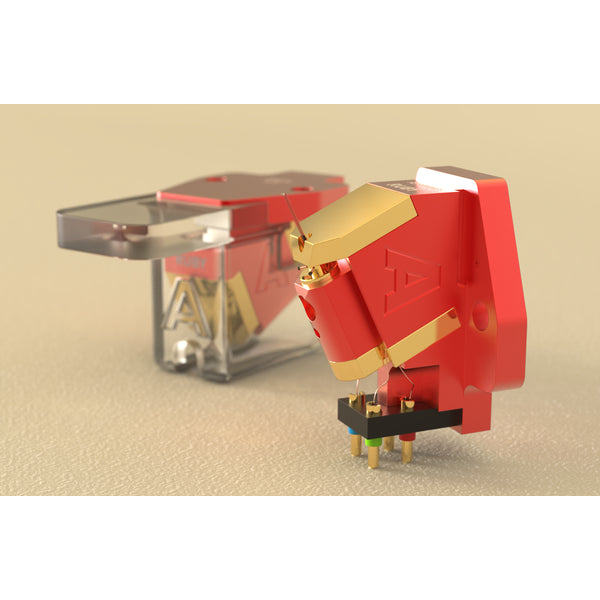

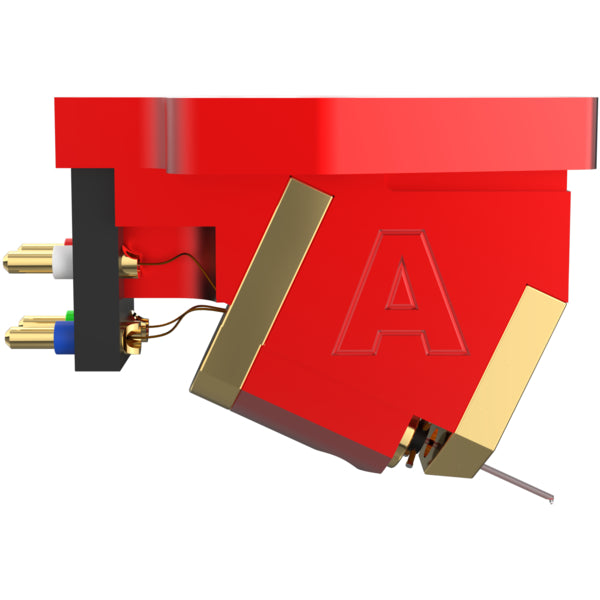

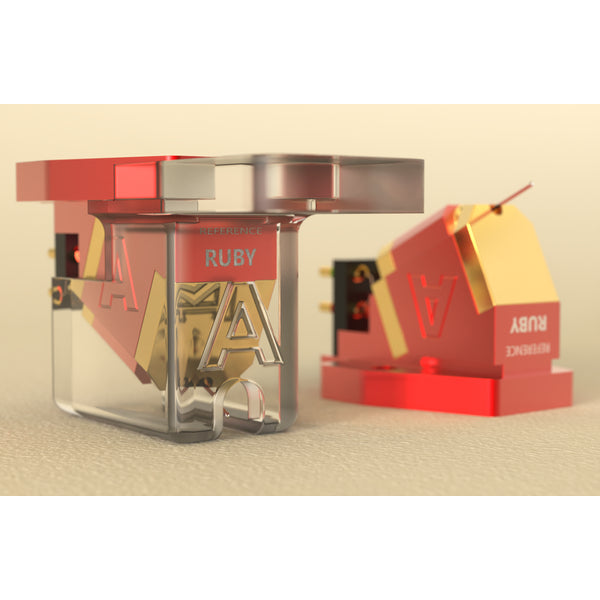

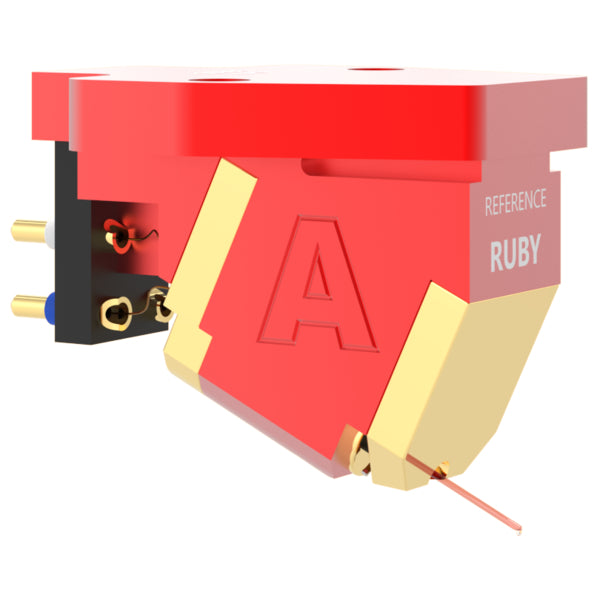

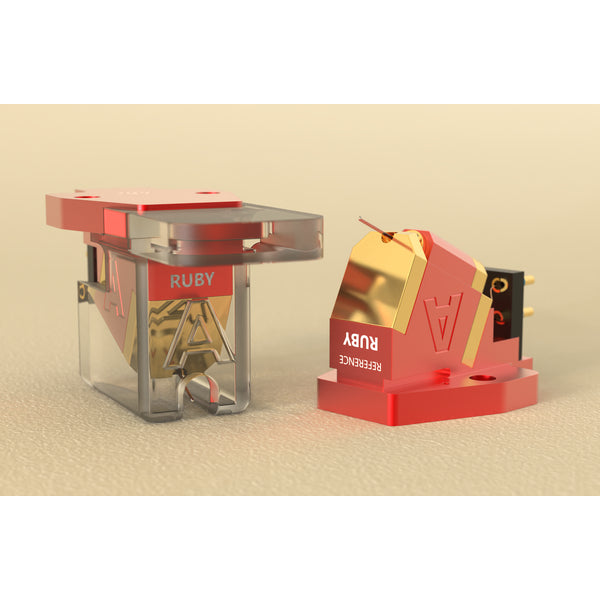

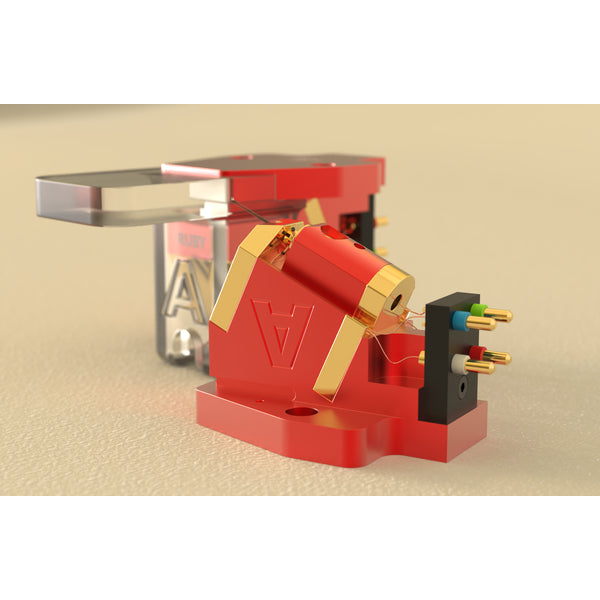

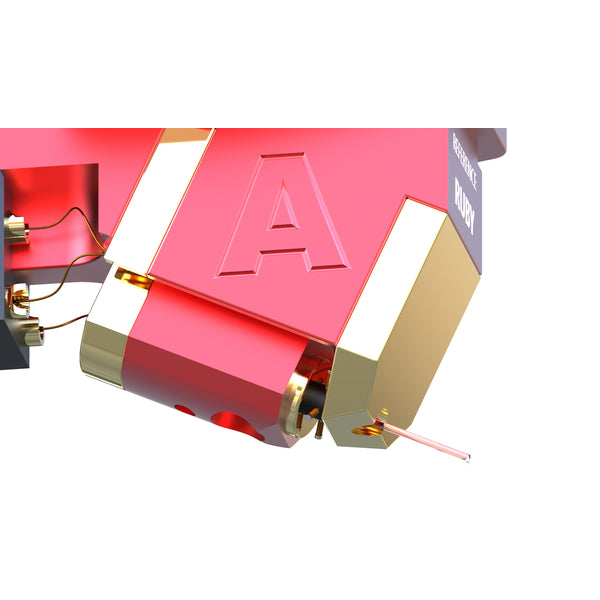

The AVID Reference Ruby Cartridge is a premium low-output moving coil (MC) cartridge designed to deliver unparalleled audio performance. Featuring a solid ruby cantilever and micro-ridge diamond stylus, it offers exceptional resolution, dynamics, and openness, captivating listeners with its breathtaking transparency and tight, controlled low frequencies.
Precision Engineering and Design
Meticulously crafted with a 5-axis precision-milled aerospace-grade aluminum body, the Reference Ruby ensures precise alignment and optimal sound reproduction. The extended cantilever allows for accurate track selection, while the purpose-designed stylus guard offers protection when not in use. This construction effectively channels vibrations away from the cantilever assembly, reducing unwanted resonance and enhancing overall sound quality.
The AVID Reference Ruby Cartridge combines advanced engineering and premium materials to provide audiophiles with a high-performance solution for exceptional vinyl playback.
Specification
Type: Moving Coil
Output Voltage: 0.32mV
Frequency Response: 10Hz-50kHz
Channel Separation: 29dB/1kHz
Channel Balance: 0.2dB/1kHz
Tracking Force: 2.0g (±0.2g)
Compliance: 9 x 10⁻⁶ cm/dyne
Internal Impedance: 4.8Ω/1kHz
Load Impedance: >100Ω
Cantilever Material: Solid Ruby
Stylus Profile: Micro-Ridge
Stylus Material: Solid Diamond
Contact Radius: 3µm x 70µm
Net Weight: 9.1g
Packaging Dimensions: 200 x 180 x 60mm
Shipping Weight: 1.0kg
