Audio Technica VM670SP Dual Moving Magnet Cartridge

Audio Technica VM670SP Dual Moving Magnet Cartridge

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is designed for playing 78 RPM records.

Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM670SP is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras.

Includes mounting hardware.

Specification

Frequency Response      20 - 20,000Hz
Vertical Tracking Angle 23˚
Stylus Construction     Bonded Round Shank
Recommended Load Impedance    47,000Ω
Coil Impedance    1,400Ω (1kHz)
Output Voltage    3.0mV (1kHz, 5cm/sec.)
Stylus Shape      Conical Bonded (3mil)
Cantilever  Aluminium Pipe
Static Compliance 15 x 10-6 cm/dyne
Dynamic Compliance      2.0 x 10-6 cm/dyne (100Hz)
Mounting    1/2” centres
Dimensions  17.3 (H) x 17.0 (W) x 28.2 (L) mm

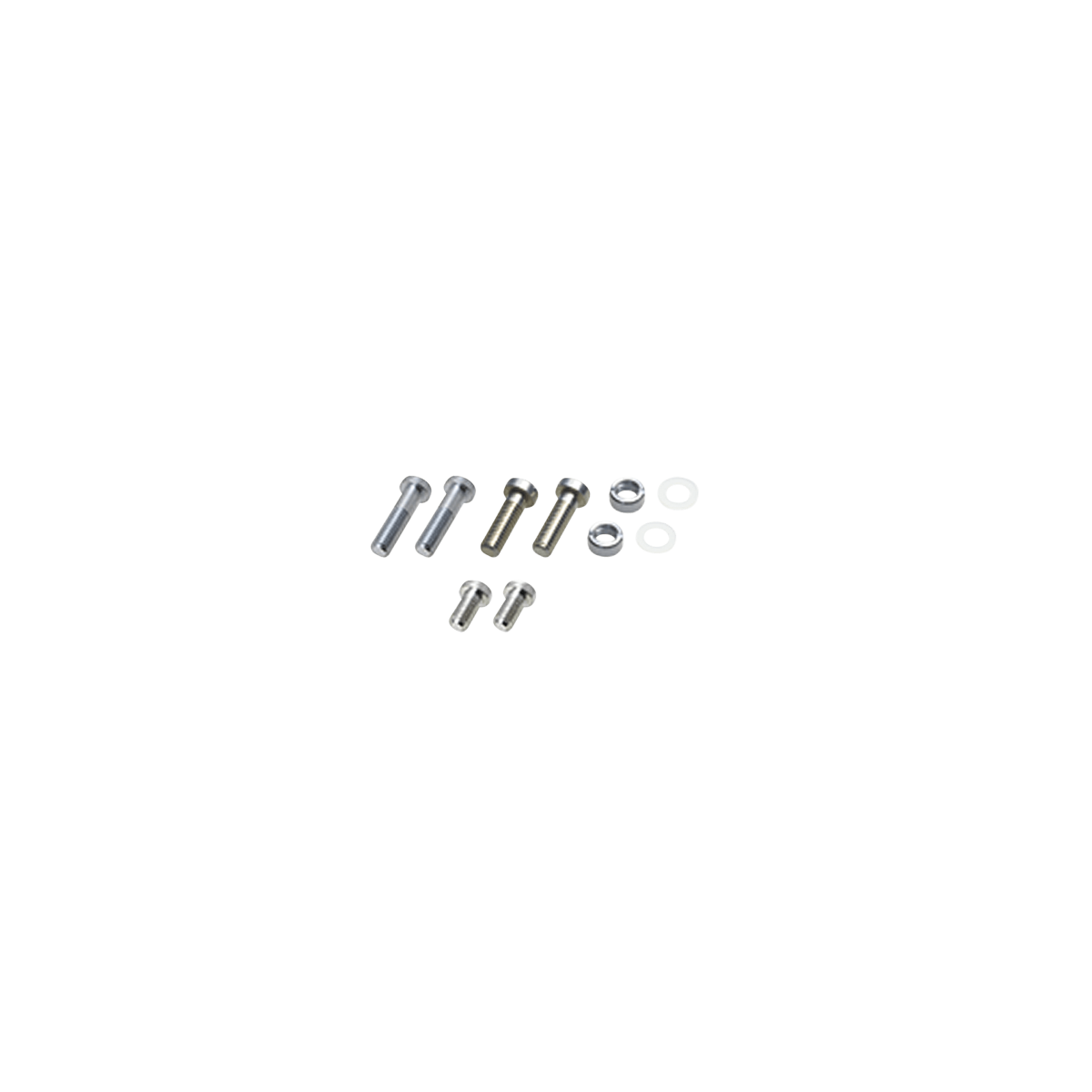

Accessories Included    Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance  100 – 200pF
Replacement Stylus      VMN70SP
Stylus Size 3.0 mil
Type  VM Type
Weight      6.4g
