Audio Technica VM520xEB/H Cartridge (With Headshell)
Headshell/Cartridge Combo Kit

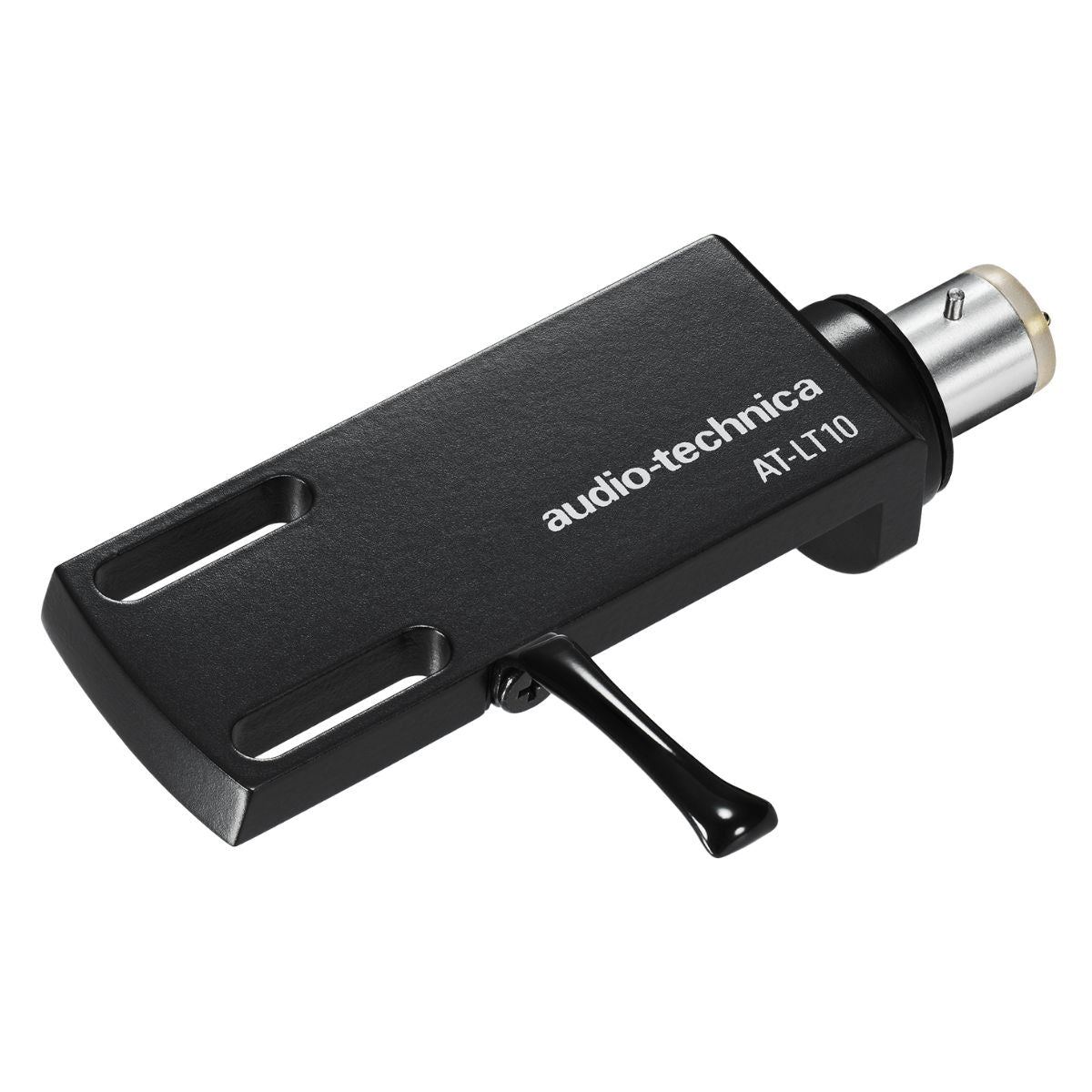

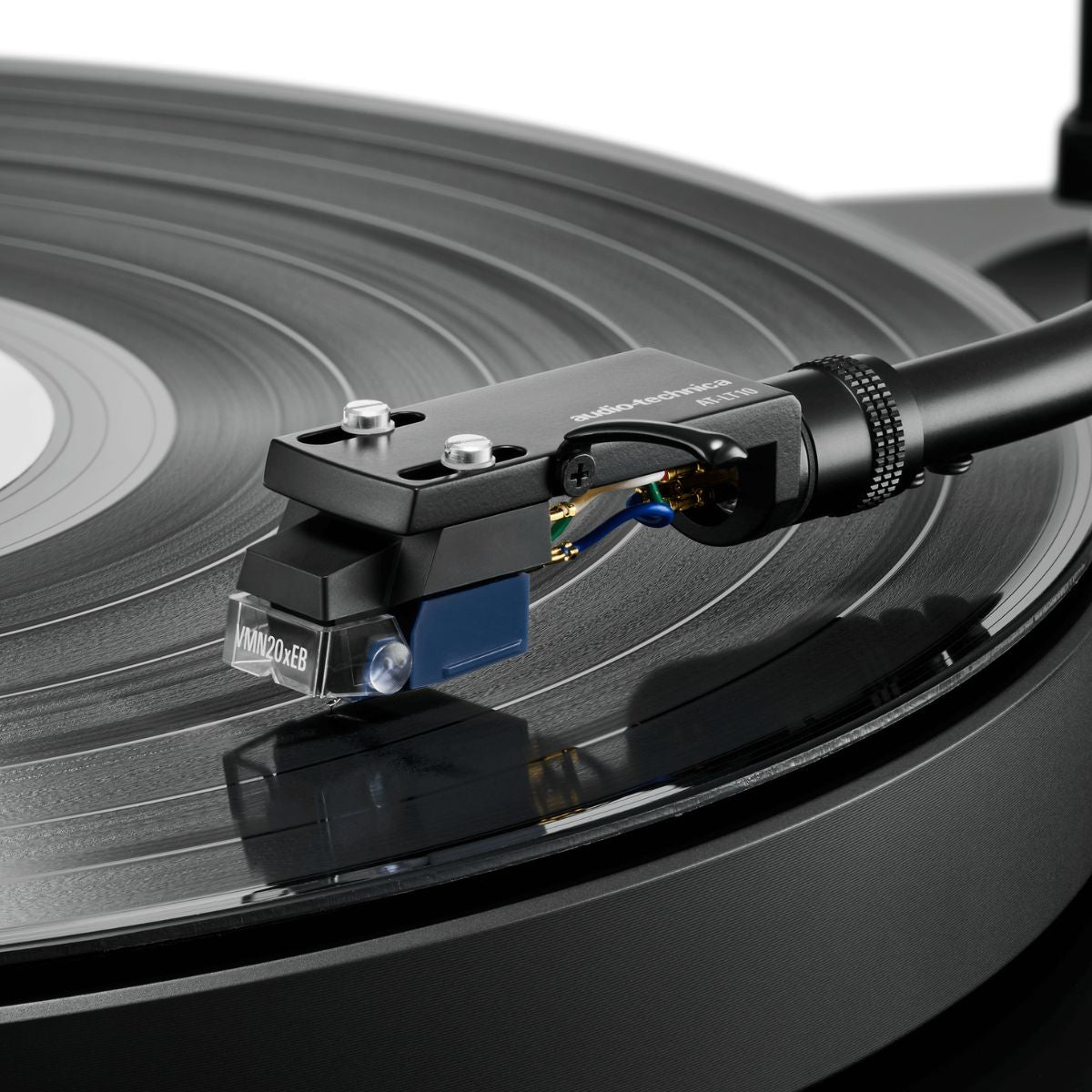

The AT-VM520xEB/H combo kit includes the AT-VM520xEB elliptical bonded dual moving magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM520xEB is part of the updated AT-VMx series, which introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

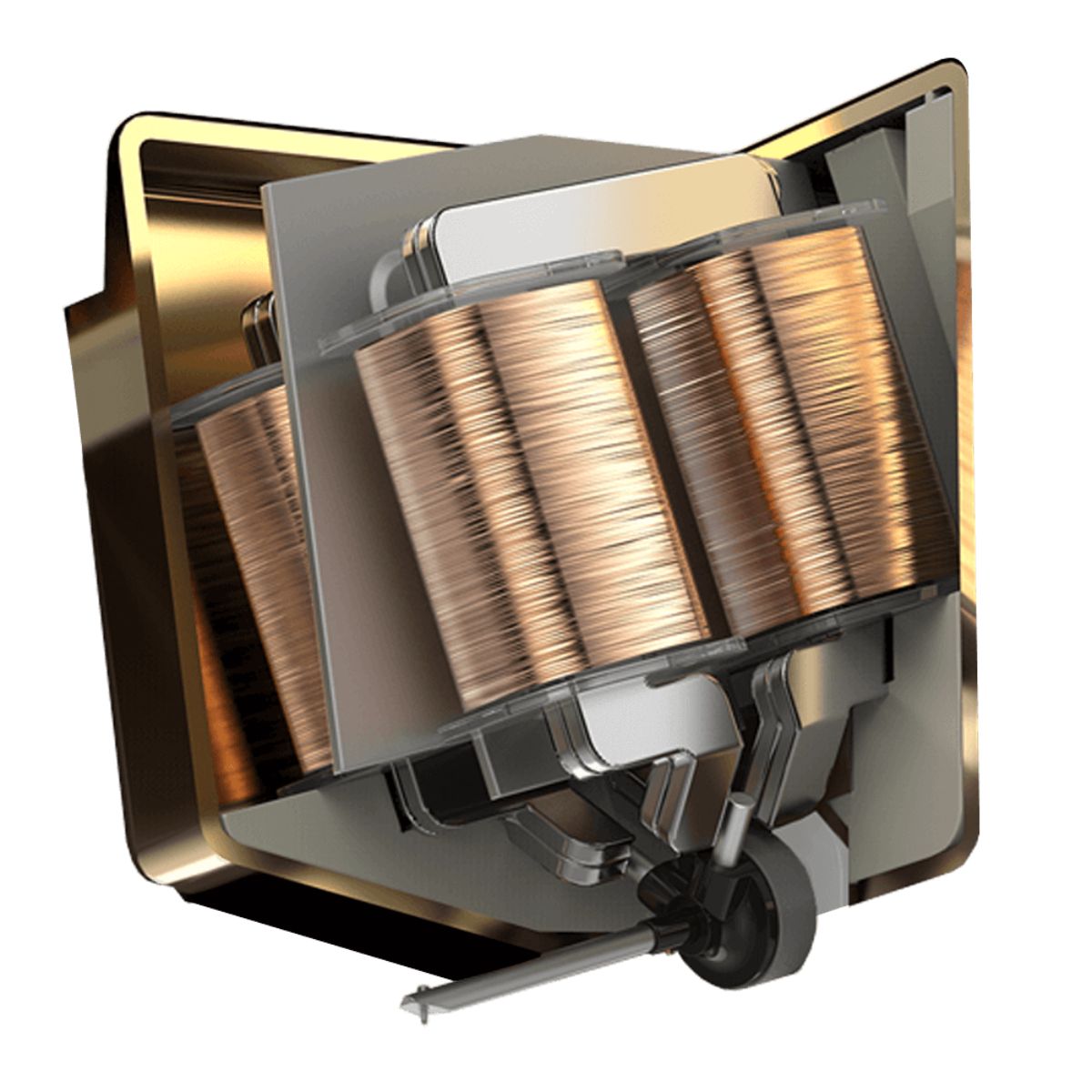

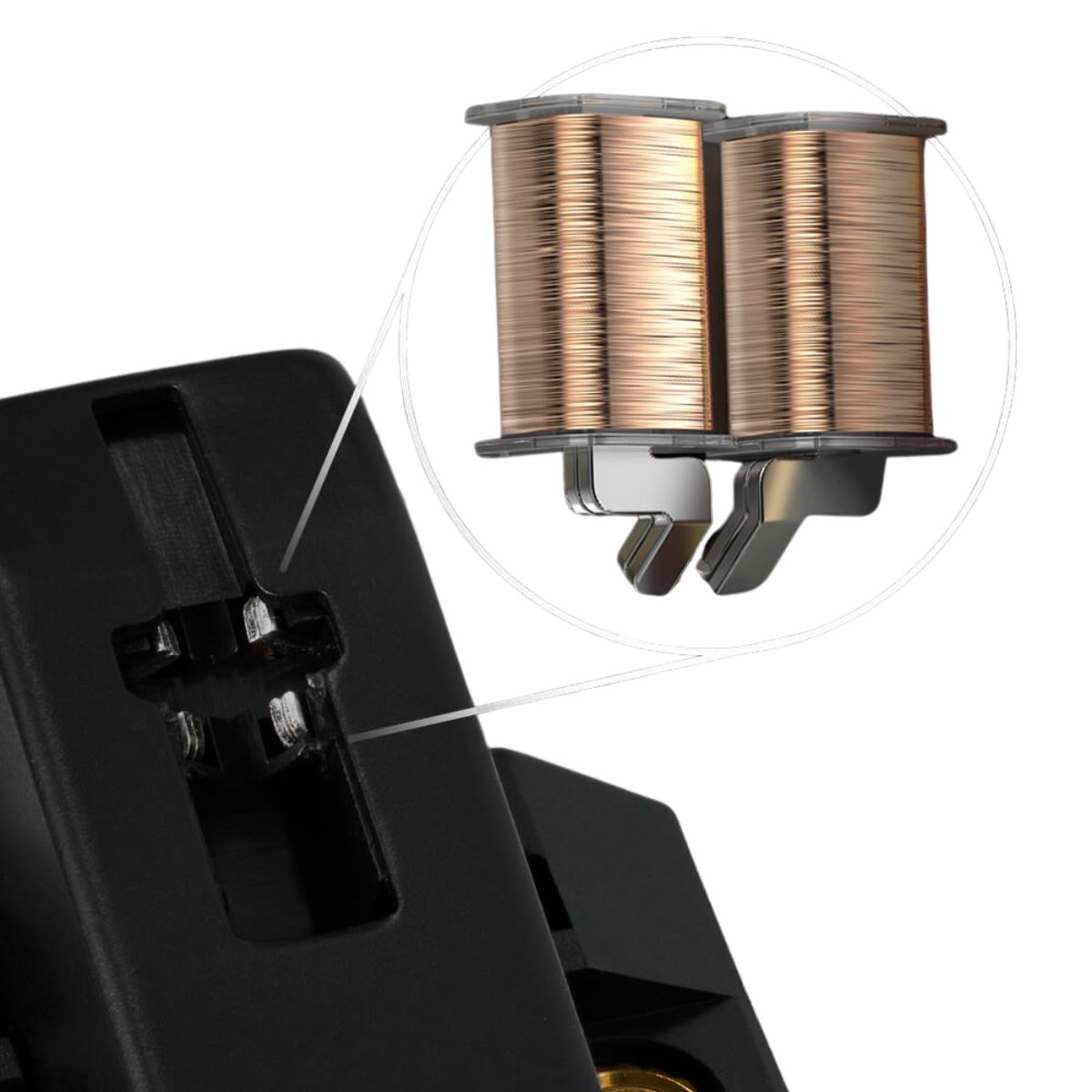

The paratoroidal coil construction of the cartridge’s generator – two PCUHD coils per channel, one stacked behind the other – greatly improves electromagnetic performance, while a slight reduction in coil turns* enhances transient response for clean, lifelike sound.
Since all AT-VMx and VM Series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx or VMN replacement stylus* with any VMx or VM cartridge for easy experimentation with sound characteristics.
Specification
Frequency Response 20 to 20,000 Hz
Channel Separation 24 dB (1 kHz)
Vertical Tracking Angle 20°
Tracking Force 1.8 to 2.2 g (2.0 g standard)

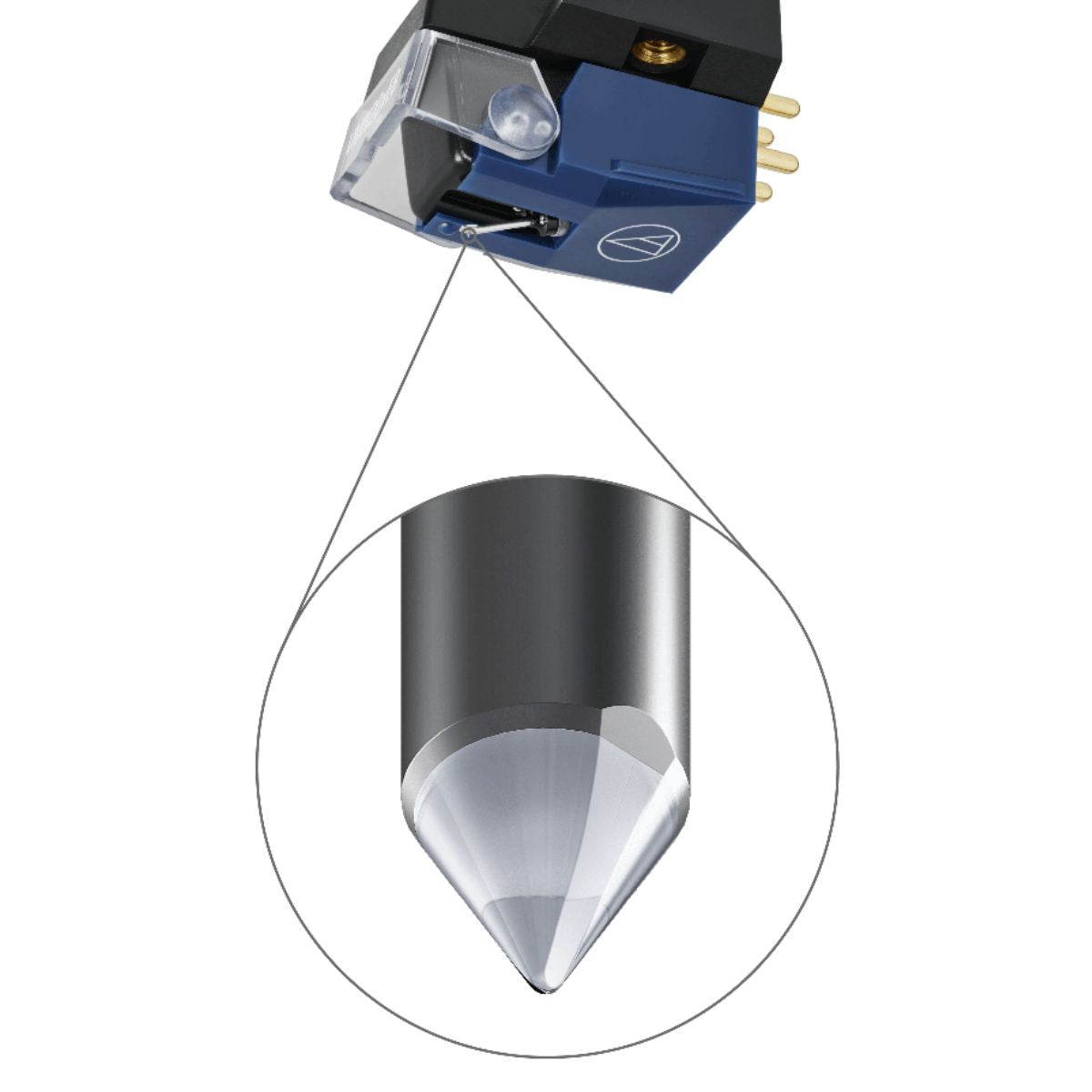

Stylus Construction Elliptical bonded
Recommended Load Impedance 47 k ohms
Coil Impedance 3.2 k ohms (1 kHz)
DC Resistance 750 ohms
Coil Inductance 480 mH (1 kHz)
Output Voltage 5.0 mV (1 kHz, 5 cm/sec.)
Output Balance 1.5 dB (1 kHz)
Cantilever Aluminum pipe
Static Compliance 23 × 10-6 cm/dyne
Dynamic Compliance 7 × 10-6 cm/dyne (100 Hz)
Dimensions 67.4 mm (2.7”) × 18.5 mm (0.73”) × 21.5 mm (0.85”) (H × W × D)
Recommended Load Capacitance 150 to 250 pF
Replacement Stylus AT-VMN20xEB* (sold separately)
Stylus Curvature Radius 0.3 × 0.7 mil
Weight 18.3 g
Notes *The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.
For product improvement, the product is subject to modification without notice.
