Audio Technica VM520EB/H Cartridge (With Headshell)

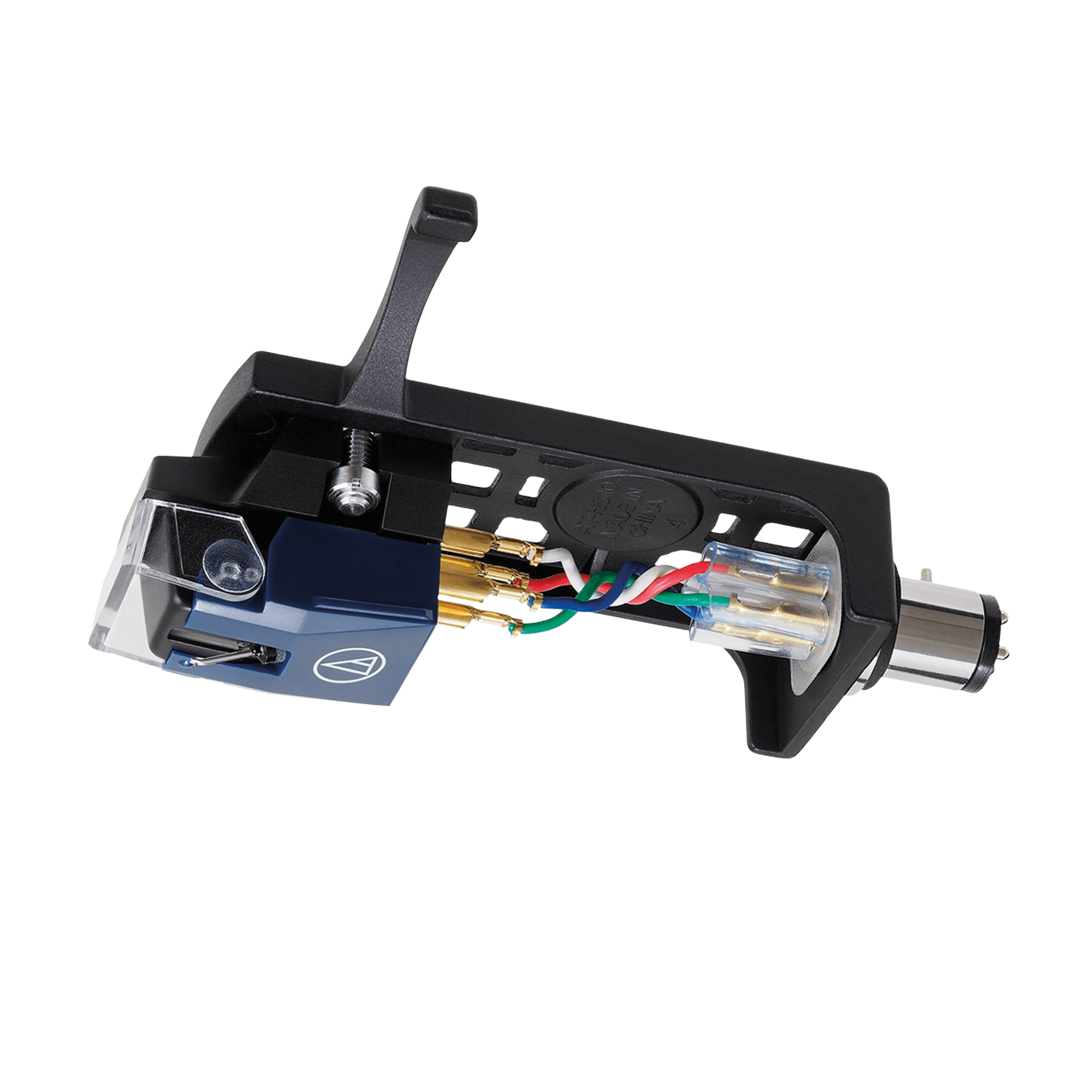

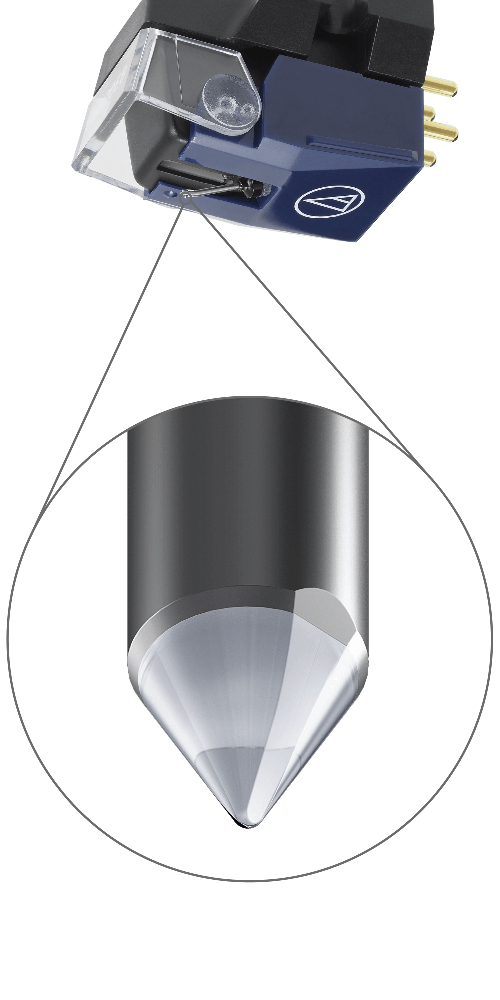

The VM520EB/H combo kit includes the VM520EB elliptical bonded dual moving magnet cartridge premounted on the AT-HS10BK universal 1/2"-mount headshell. The VM520EB is part of the 500 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 23,000Hz |
| Channel Separation | 27dB (1kHz) |
| Vertical Tracking Angle | 23˚ |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000Ω |
| Coil Impedance | 2,700Ω (1kHz) |
| Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
| Output Channel Balance | 1.5dB (1kHz) |
| Stylus Shape | Elliptical Bonded |
| Cantilever | Aluminium Pipe |
| Static Compliance | 35 x 10-6 cm/dyne |
| Dynamic Compliance | 8 x 10-6 cm/dyne (100Hz) |
| Mounting | 1/2” centres |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
| Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2 |
| Recommended Load Capacitance | 100 – 200pF |
| Replacement Stylus | VMN20EB |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Type |
| Weight | 16.8g |
