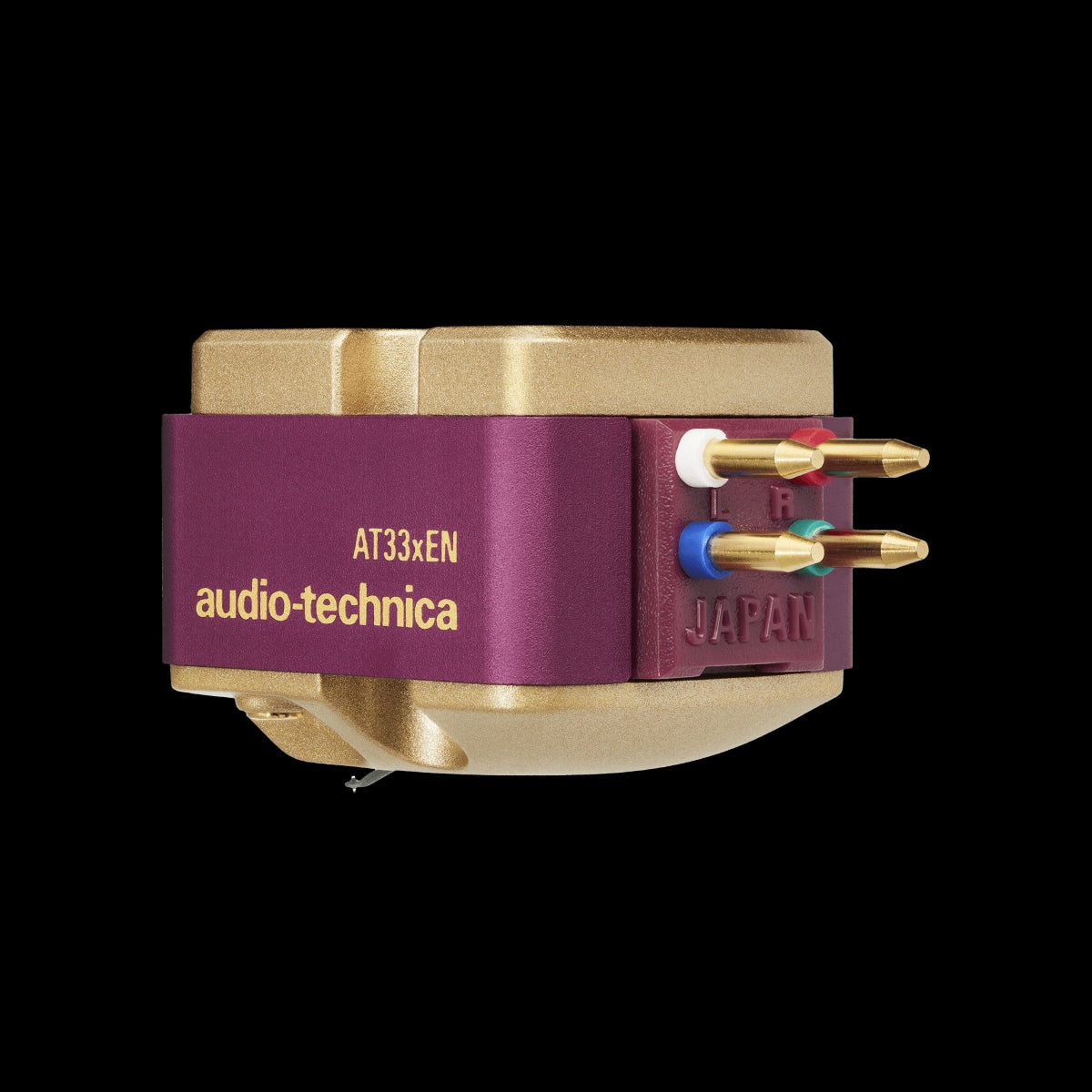

Audio Technica AT33xEN Dual Moving Coil Stereo Cartridge
Pickup available at Audio Connection
Usually ready in 5+ days
Audio Technica AT33xEN Dual Moving Coil Stereo Cartridge
Audio Connection
515 Parramatta Road
Leichhardt NSW 2040
Australia
- Live Online Chat Support (8am - 8pm) or give us a call on 02 9561 0788 during business hours
- Free Australia Wide Shipping
- We speak English, Mandarin, Cantonese & Vietnamese
- Earn 10 KrisFlyer miles per $1 spent with Kris+ by Singapore Airlines
BUY NOW PAY LATER | INTEREST-FREE PAYMENT PLANS
- Split your payments over 2, 6, 12 or 18 months & 0% on your purchase, zero fees.
- Choose "More Payment Options" below and choose "Monthly credit card payments" on the checkout screen.
Audio Technica AT33xEN Dual Moving Coil Stereo Cartridge
The latest update to the venerable AT33 Series – the first extensive overhaul in years – brings new warmth and fullness to your favorite music. Incorporating technological and material improvements, including our first use of die-cast zinc at the base of the cartridge to ward off unwanted resonance and improve expressiveness in the mid to low frequencies, the AT33x Series cartridges let you hear the finest details across the audio spectrum.
The AT33xEN is an excellent all-around cartridge choice, delivering warm, full-bodied audio reproduction. It features a 0.3 x 0.7 mil elliptical nude stylus attached to a hard duralumin tapered pipe cantilever to provide excellent tracking of the record groove with enhanced high-frequency control. Our newly developed suspension mechanism uses piano wire for even better tracking accuracy, lowering the dynamic compliance slightly for more substantial audio, particularly in the mid-low range.

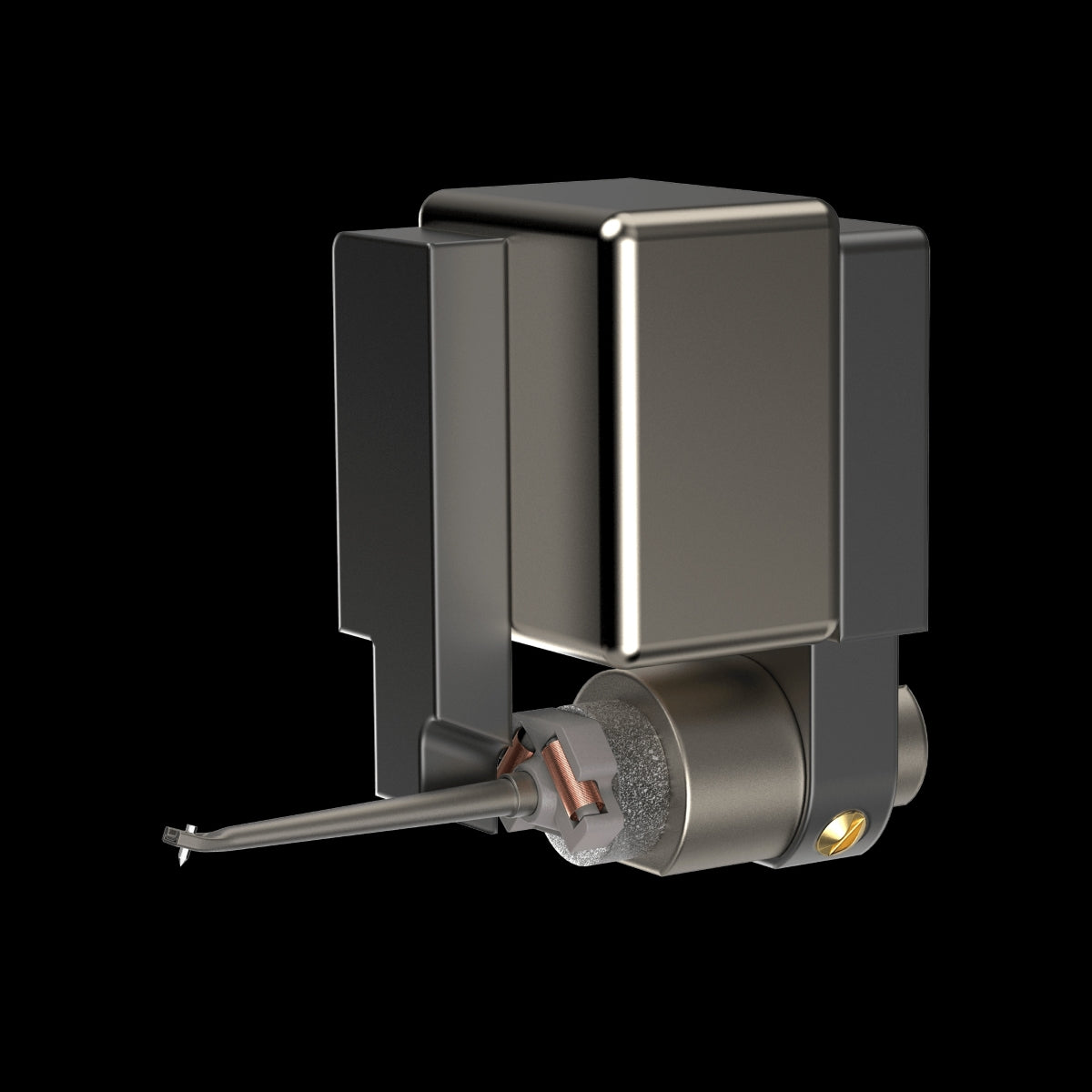

The AT33xEN’s rigid duralumin pipe cantilever, which tapers toward the elliptical stylus tip for improved response, is linked with a firm suspension mechanism, slightly lowering the dynamic compliance. Two independent PCOCC coils are positioned at the cantilever’s fulcrum to ensure pure signal transmission for each channel.
Each AT33x Series cartridge body is constructed of three distinct materials – die-cast zinc, aluminum, and high-rigidity polymer – optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.
The redesigned AT33x Series cartridges deliver that classic analog sound, rich in detail across the audio spectrum with lifelike expressiveness in the mid to low frequencies.
- AT33x Series dual moving coil stereo cartridge with 0.3 x 0.7 mil elliptical nude stylus
- Full, warm sound is suitable for a wide variety of recordings
- Dual moving coil design, featuring independent left and right coils, provides outstanding channel separation
- PCOCC (Pure Copper by Ohno Continuous Casting) coils provide pure, smooth signal transmission
- Neodymium magnet and permendur yoke maximize energy efficiency for high-resolution, responsive playback
- Composite cartridge body (die-cast zinc, aluminum, and high-rigidity polymer) reduces resonance throughout the body for balanced, natural sound reproduction
- Highly rigid and dense die-cast zinc material is used at the base of the cartridge to suppress unwanted vibrations and improve the expressiveness of the mid-to-low frequency range
- Threaded mounting holes make it easier to mount the cartridge to a headshell, especially one integrated into a tonearm
- 0.3 x 0.7 mil elliptical nude stylus tracks the record groove with accuracy for outstanding audio reproduction
- High-hardness duralumin tapered pipe cantilever enhances high-frequency control
- Newly developed suspension mechanism and rubber damper design (with lower dynamic compliance than other A-T cartridges) enable the cartridge to be used with a variety of tonearms
- Thick gold plating on the terminal pins reduces contact resistance and enhances sound quality
- Crafted and hand-finished by artisans in Japan
Please Note: AT33xEN’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge
Specification
Frequency Response 20 to 40,000 Hz
Channel Separation 27 dB (1 kHz)
Vertical Tracking Angle 19°
Tracking Force 1.8 to 2.2 g (2.0 g standard)
Recommended Load Impedance ≥ 100 ohms (when head amplifier connected)
Coil Impedance 12 ohms (1 kHz)
DC Resistance 12 ohms
Coil Inductance 26 μH (1 kHz)
Output Voltage 0.4 mV (1 kHz, 5 cm/sec.)
Output Balance 1.0 dB (1 kHz)
Stylus Shape Nude Elliptical
Cantilever Duralumin tapered pipe
Static Compliance 21 × 10-6 cm/dyne
Dynamic Compliance 6 × 10-6 cm/dyne (100 Hz)
Dimensions 16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)

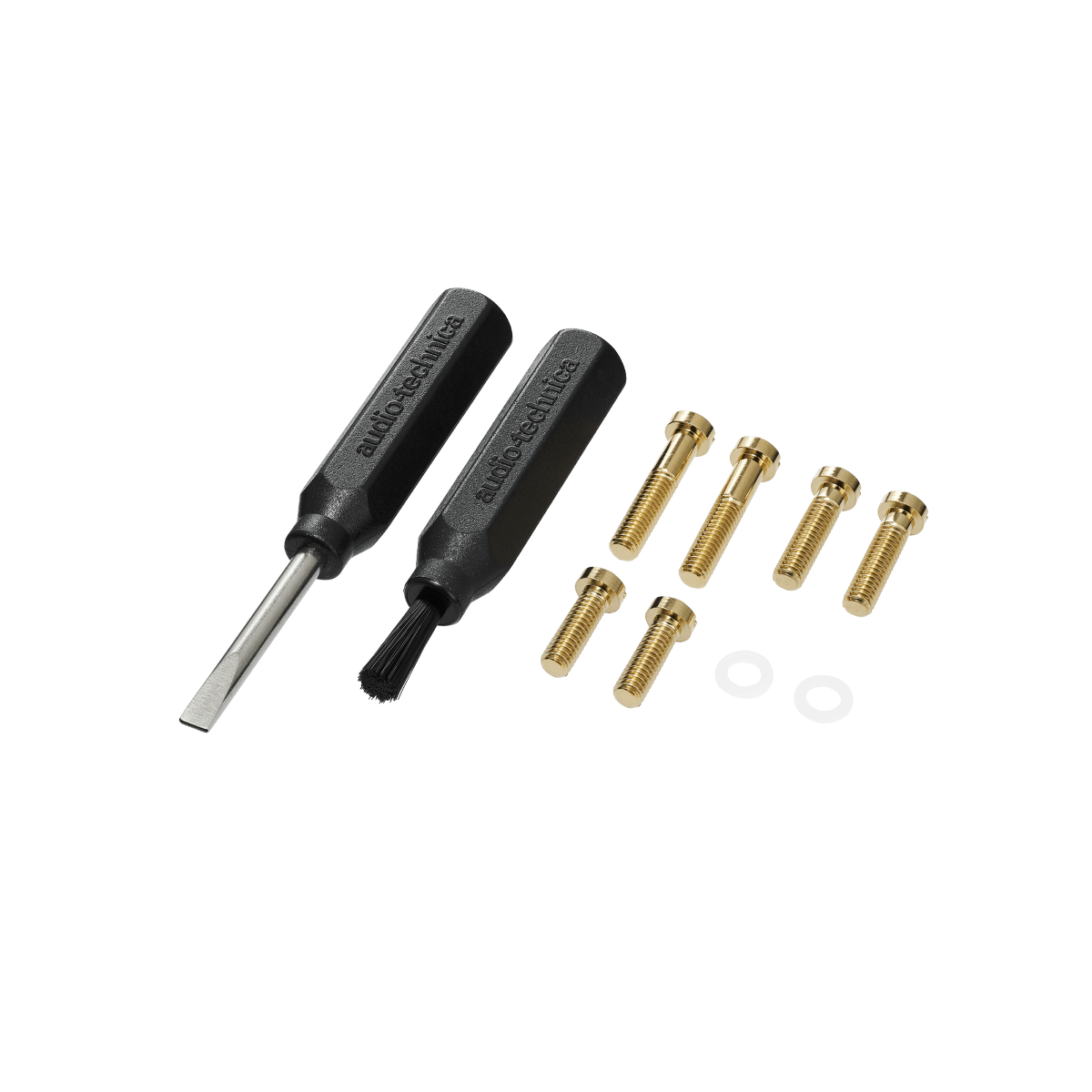

Accessories Included Non-magnetic screwdriver; Brush; Washer* × 2; Cartridge installation screws* (M2.6) (8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2, 13.0 mm (0.51”) × 2); Protector
Threaded Hole M2.6 × 2
Stylus Curvature Radius 0.3 × 0.7 mil
Type MC
Weight 10.1 g
