Audio Technica AT-VM670xSP Dual Moving Magnet Mono Cartridge

Audio Technica AT-VM670xSP Dual Moving Magnet Mono Cartridge

The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail. This latest renewal of the line introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

The AT-VM670xSP cartridge is designed for playing 78 RPM monaural records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide.

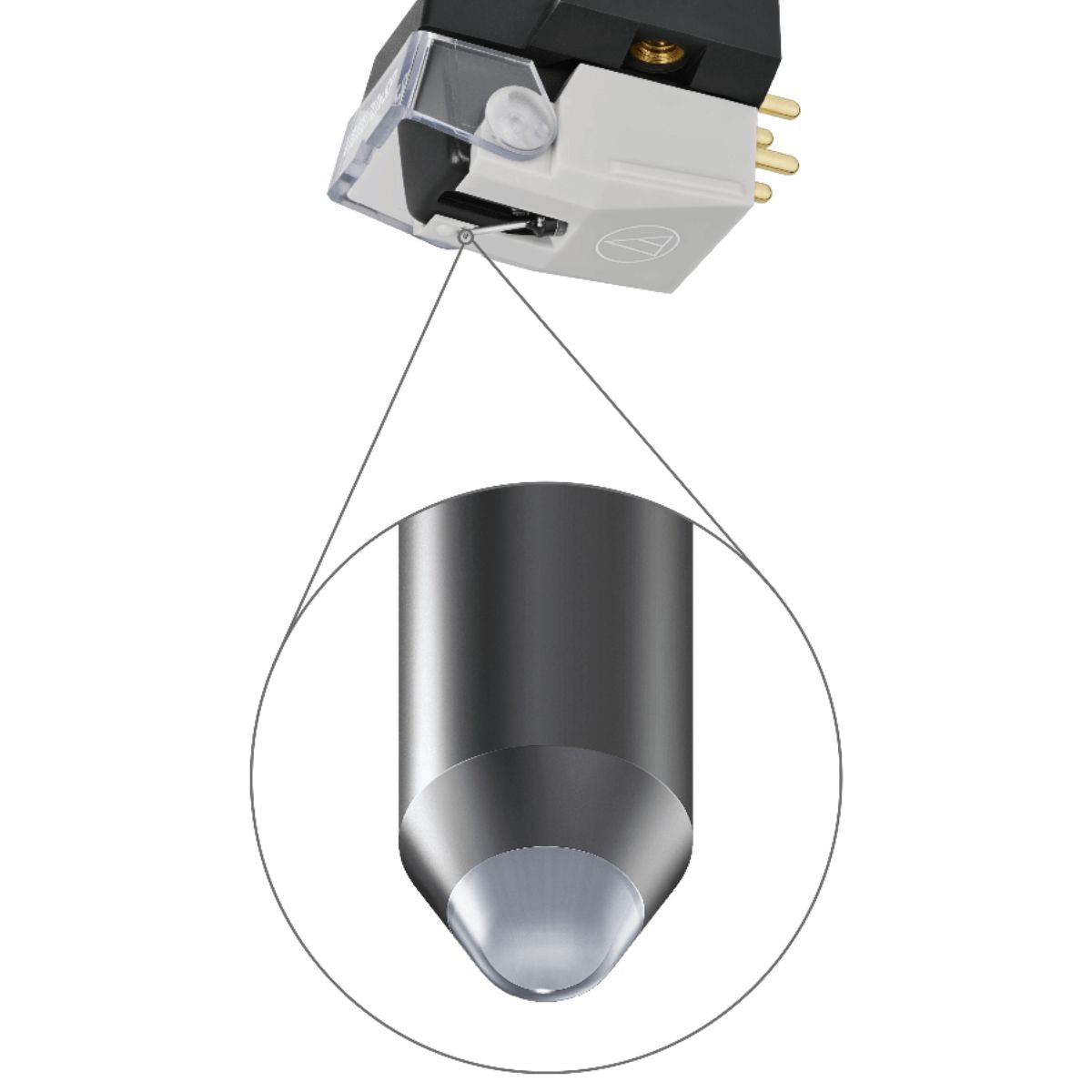

Like all VMx cartridges, the AT-VM670xSP features PCUHD® (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from many different eras.

We’ve also added threaded inserts to the body of each VMx cartridge, making it easier to mount (just two screws required), especially to the integrated tonearms common on high-end turntables. And a new V-cut in the stylus’s flip-up protector provides quick reference of the stylus position, serving as a guide when lowering the stylus onto a record.

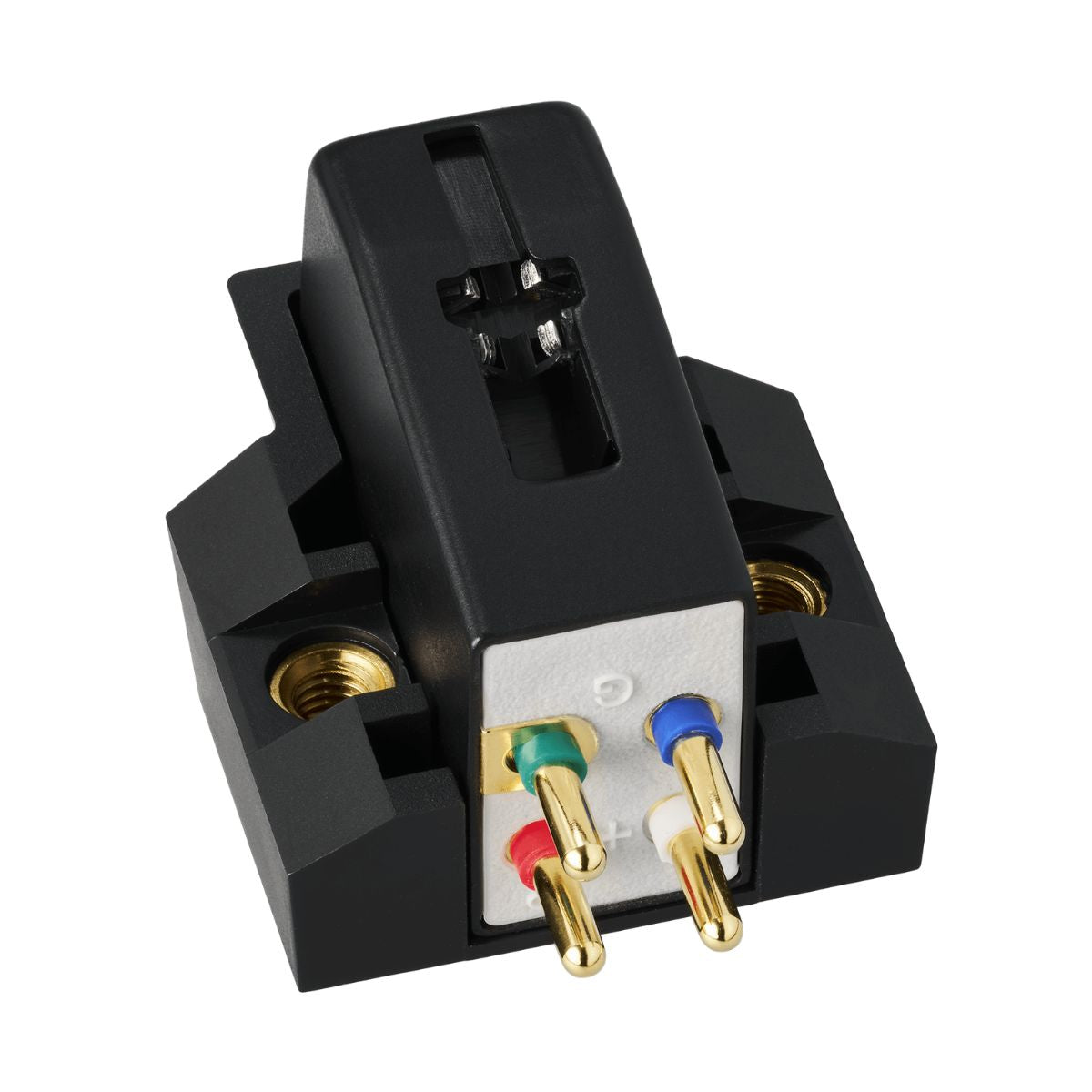

Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.

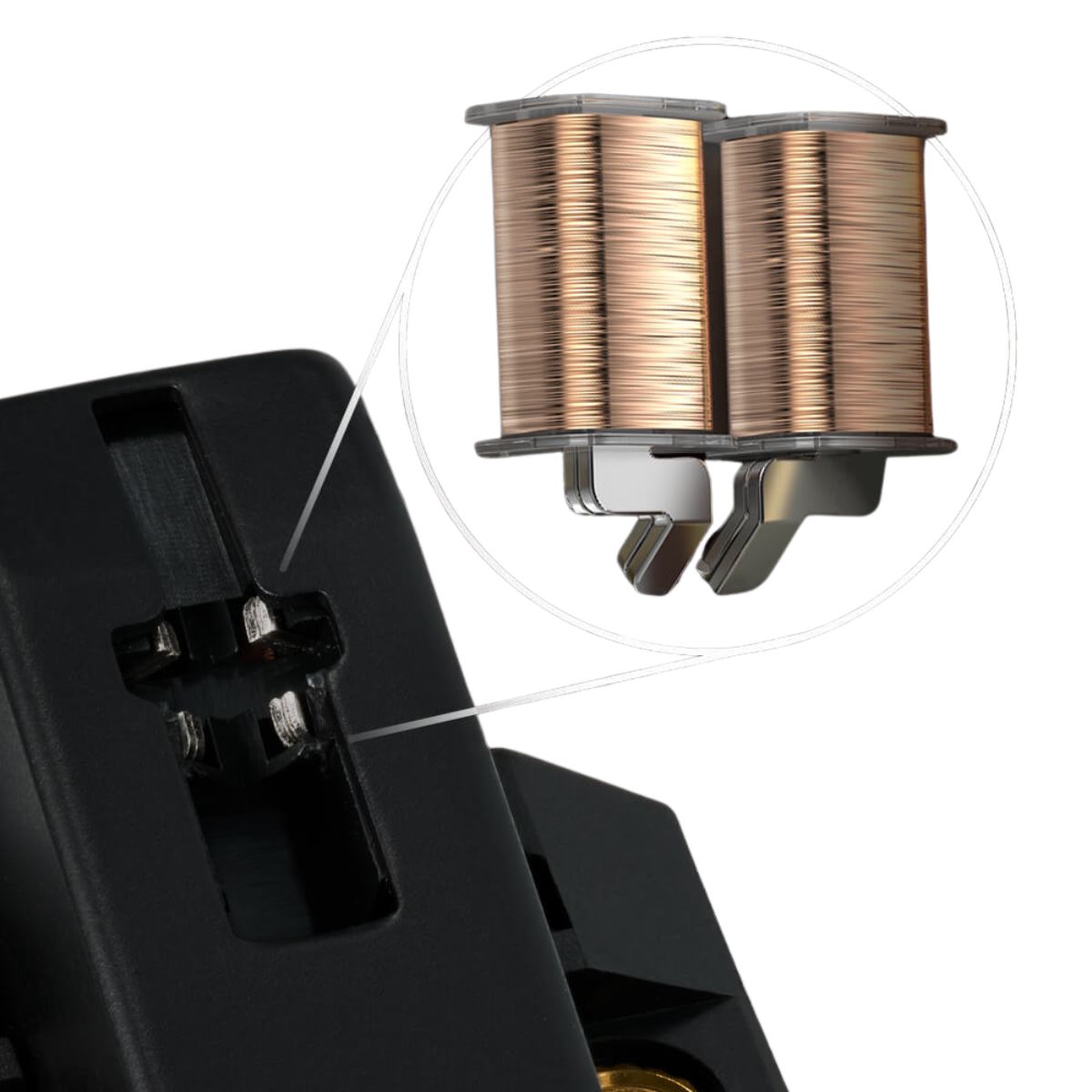

The paratoroidal coil construction of the cartridge’s generator – two PCUHD coils per channel, one stacked behind the other – greatly improves electromagnetic performance, while a slight reduction in coil turns* enhances transient response for clean, lifelike sound.

Since all AT-VMx and VM Series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx or VMN replacement stylus* with any VMx or VM cartridge for easy experimentation with sound characteristics.

Specification

Frequency Response      20 to 20,000 Hz
Vertical Tracking Angle 20°
Tracking Force    4.5 to 5.5 g (5.0 g standard)
Stylus Construction     Conical bonded (3.0 mil)
Recommended Load Impedance    47 k ohms
Coil Impedance    1.6 k ohms (1 kHz)
DC Resistance     375 ohms
Coil Inductance   240 mH (1 kHz)
Output Voltage    4.7 mV (1 kHz, 5 cm/sec.)
Horizontal/Vertical Output Ratio    20 dB (1 kHz)
Cantilever  Aluminum pipe
Static Compliance 23 × 10-6 cm/dyne
Dimensions  28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H × W × D)
Accessories Included    Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), washer × 2
Threaded Hole     M2.6 × 2
Recommended Load Capacitance  150 to 250 pF
Replacement Stylus      AT-VMN70xSP* (sold separately)
Stylus Curvature Radius 3.0 mil
Weight      7.2 g (0.25 oz)
Notes *The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.
**Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.
For product improvement, the product is subject to modification without notice.
