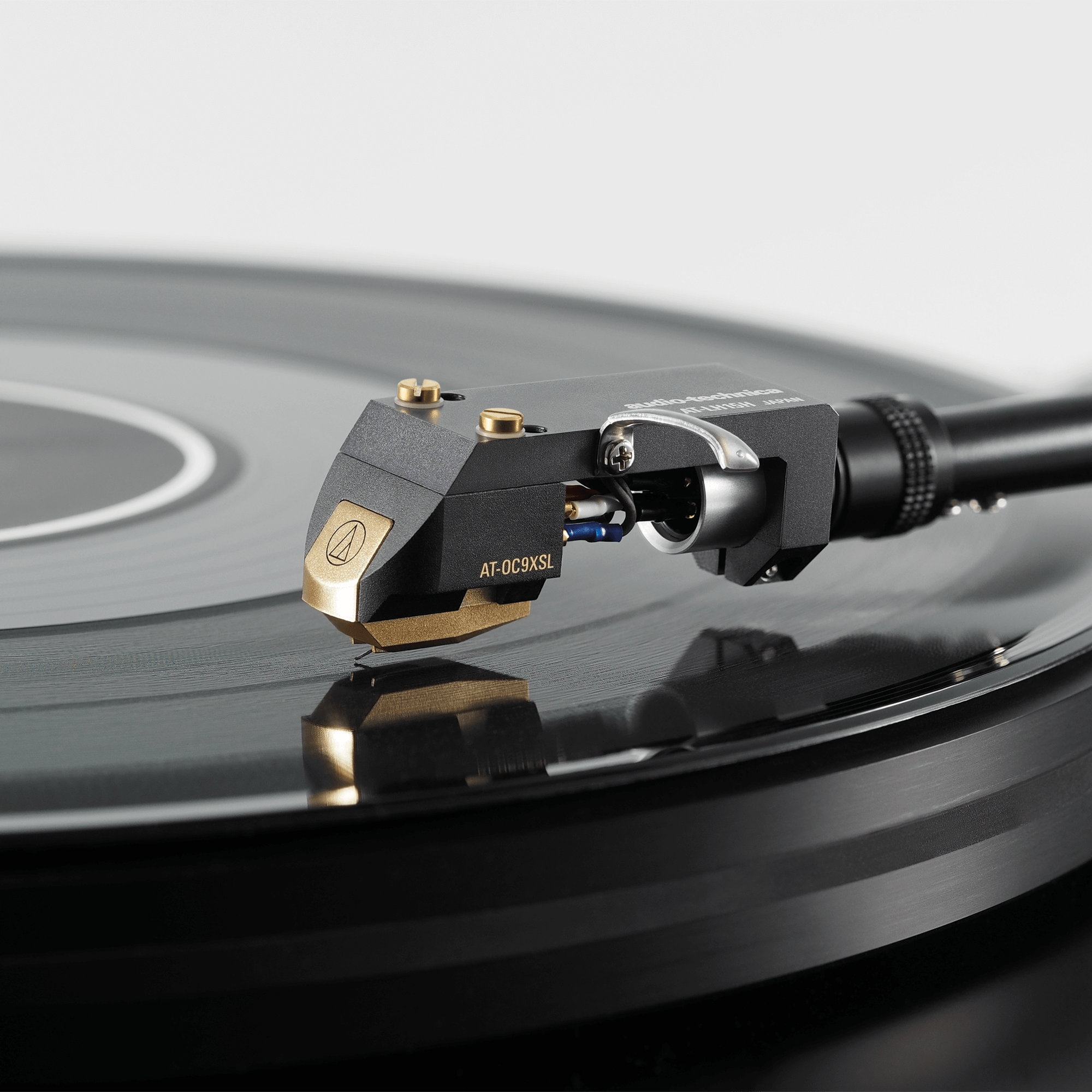

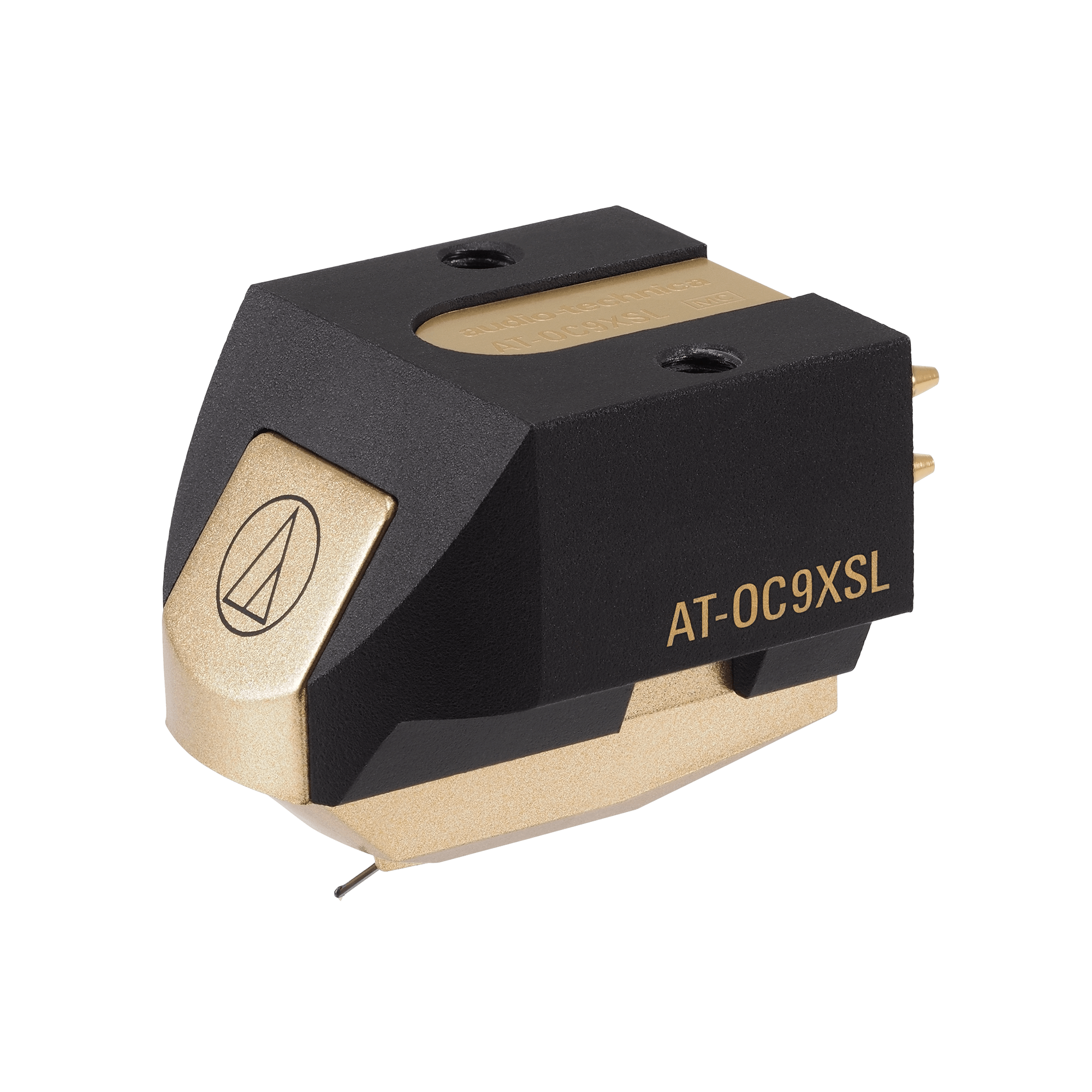

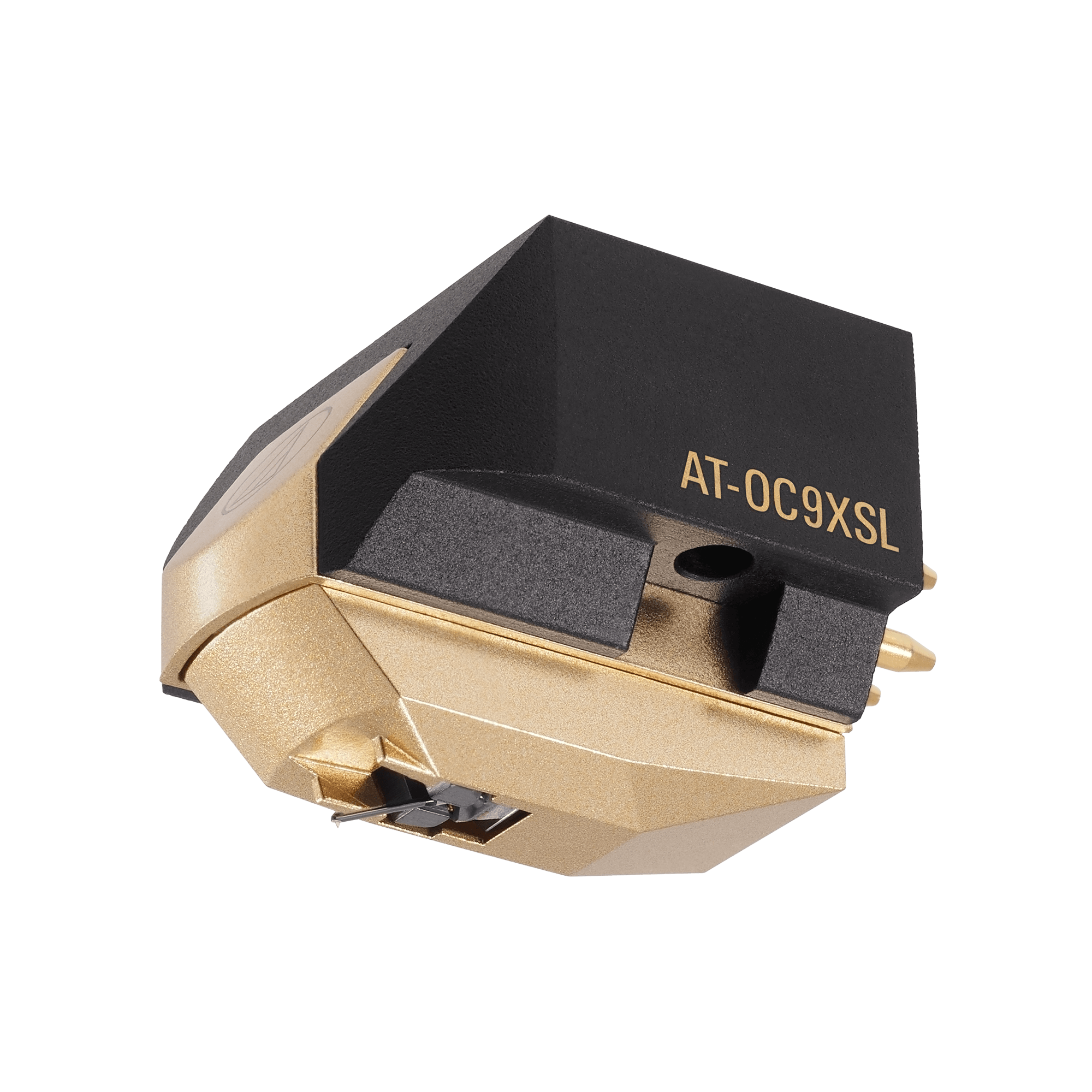

Audio Technica AT-OC9XSL Moving Coil Cartridge
The AT-OC9XSL Dual Moving Coil cartridge with special line contact stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion. Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and premium permendur yoke that dramatically increase the magnetic energy, and the nude special line contact stylus on a boron cantilever that tracks the record groove with ultimate accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 47,000 Hz |
| Channel Separation | 27 dB (1 kHz) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | Min 100 Ohms |
| Coil Impedance | 12 Ohms (1 kHz) |
| DC Resistance | 12 Ohms |
| Coil Inductance | 25 μH (1 kHz) |
| Output Voltage | 0.4 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Stylus Shape | Shibata |
| Cantilever | 0.28 mm Ø nude boron |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 16 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centers / Threaded inserts |
| Cartridge Weight | 7.6 g |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |
| Accessories Included | 1 non magnetic screw driver 1 brush 2 washers 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector |
| Body Material | Aluminium |
| Model | AT-OC9XSH |
| Stylus Size | 2.7 x 0.26 mil |
| Terminal Pins | Brass |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process.) |
