Audio Technica AT-OC9XEB Dual Moving Coil cartridge
The AT-OC9XEB Dual Moving Coil cartridge with bonded elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion.
Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the bonded elliptical stylus on an aluminium cantilever that accurately tracks the record groove.
The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
Specification
Frequency Response 20 - 30,000 Hz
Channel Separation 25 dB (1 kHz)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction Bonded round shank
Recommended Load Impedance Min 100 Ohms
Coil Impedance 12 Ohms (1 kHz)
DC Resistance 12 Ohms
Coil Inductance 25 μH (1 kHz)
Output Voltage 0.32 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape Elliptical Bonded
Cantilever Aluminium pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
Mounting 1/2” centers / Threaded inserts
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

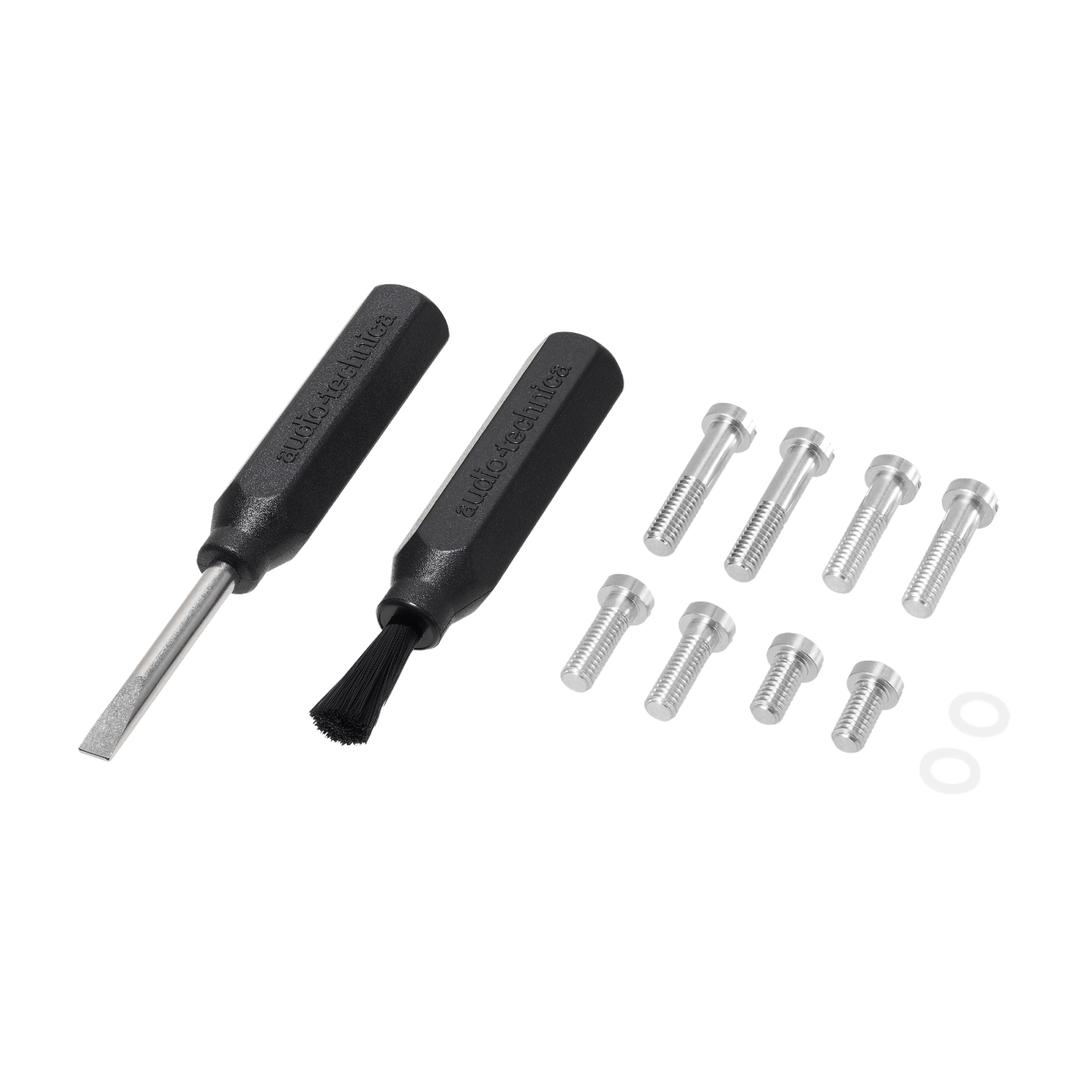

Accessories Included 1 non magnetic screw driver,
1 brush; 2 washers,
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body Material Aluminium
Model AT-OC9XEB
Stylus Size 0.3 x 0.7 mil
Terminal Pins Brass
Weight 7.6 g
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
