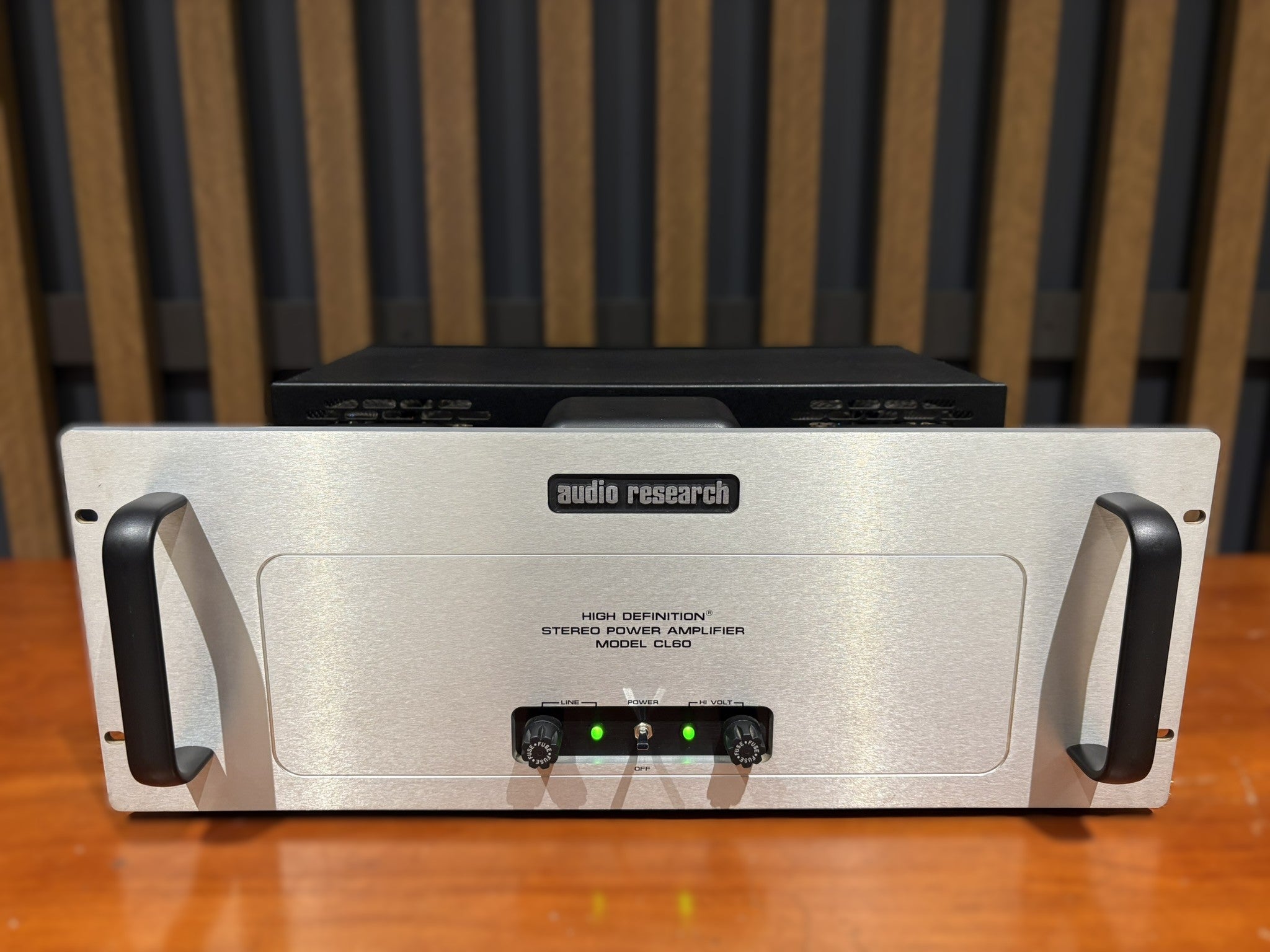

Audio Research Classic 60 (CL-60) Power Amplifier - Consignment

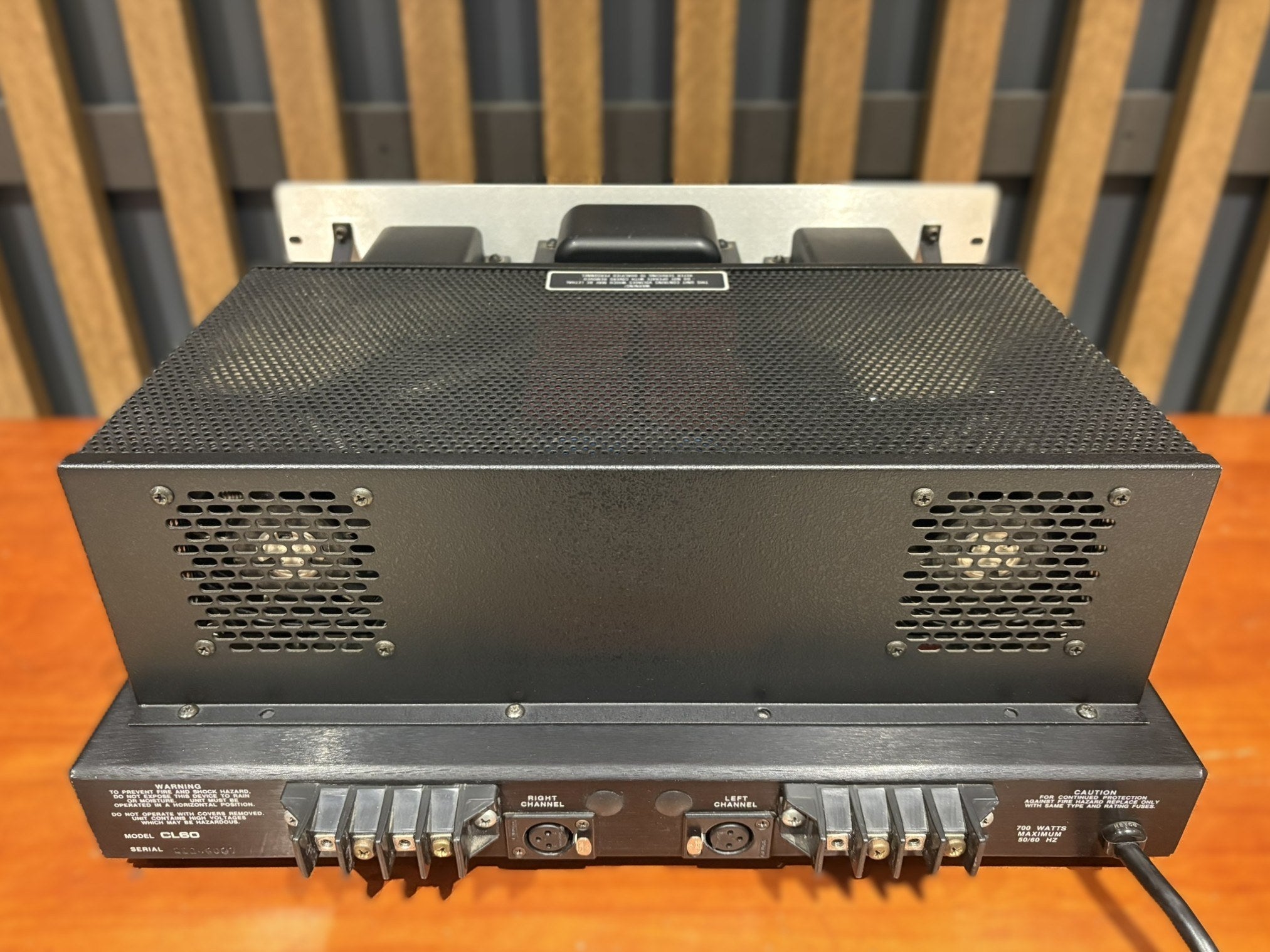

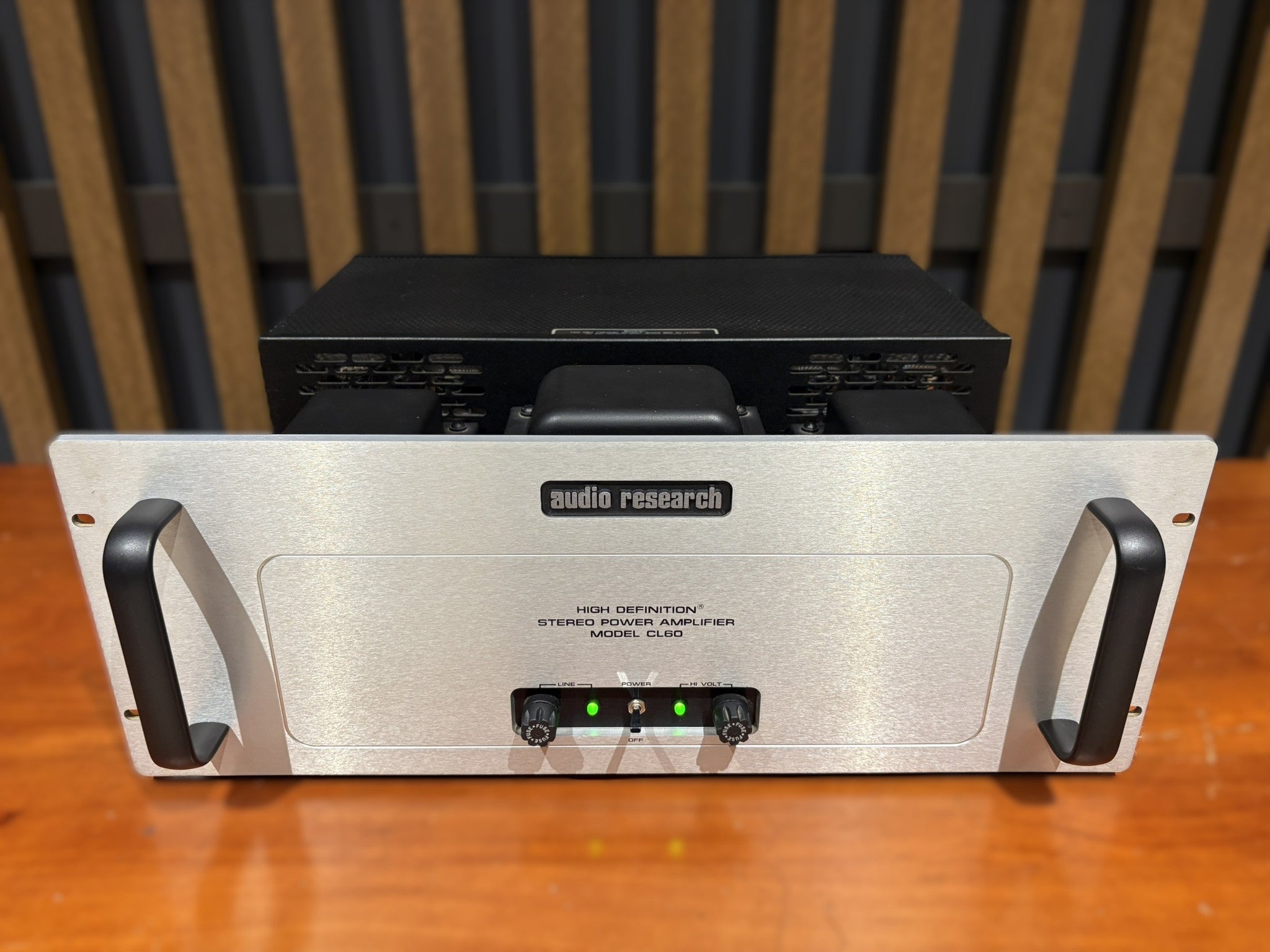

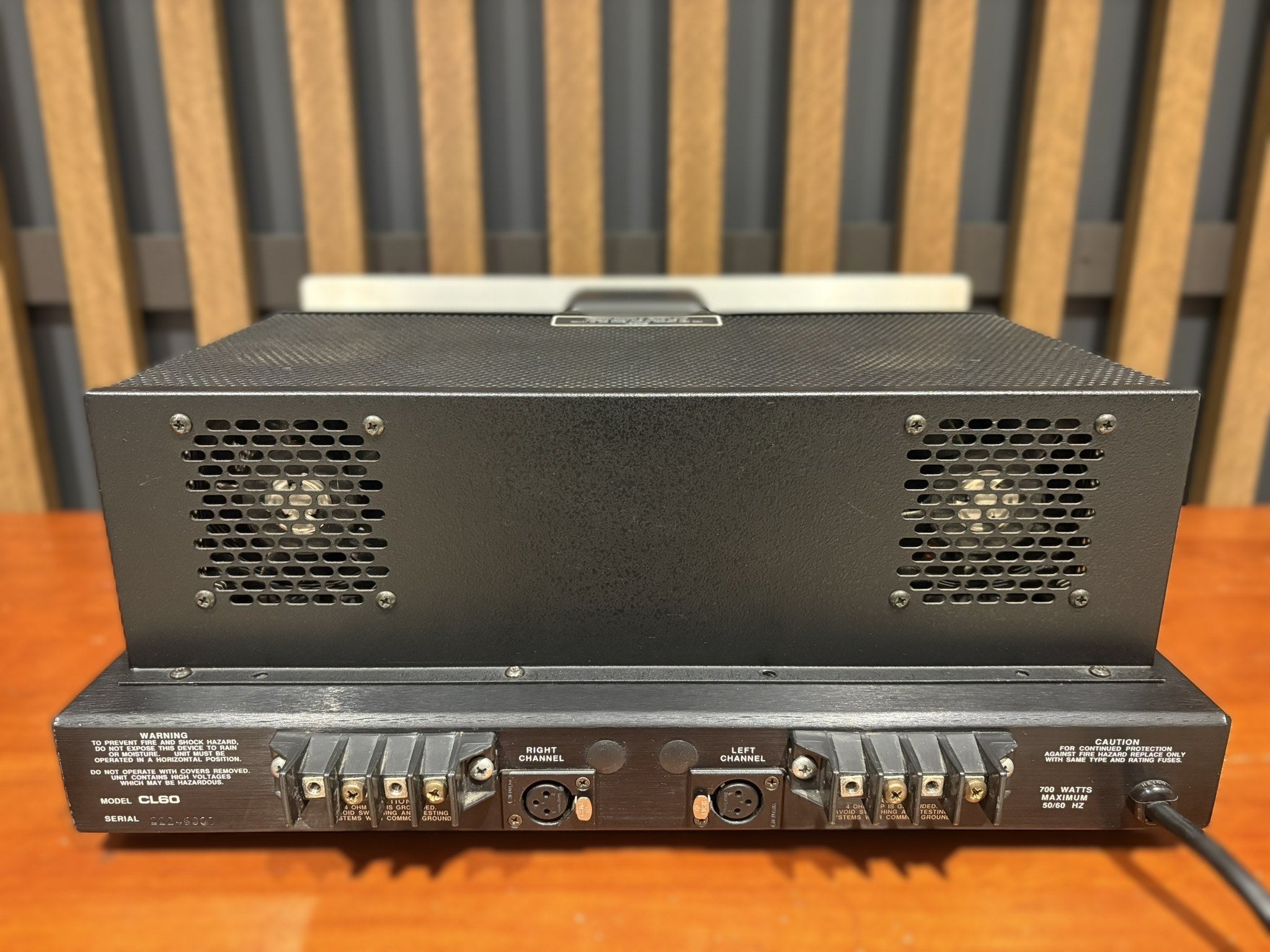

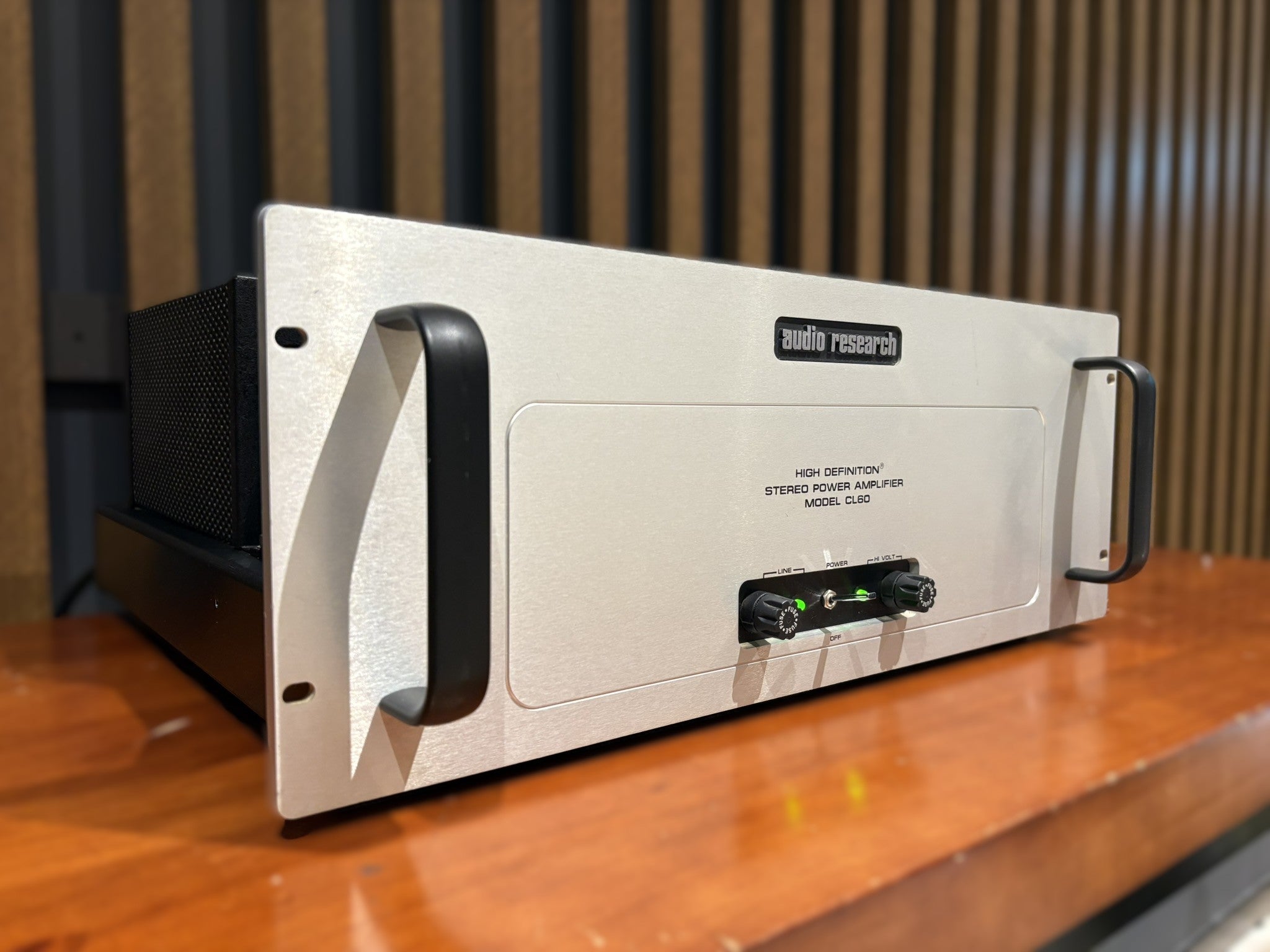

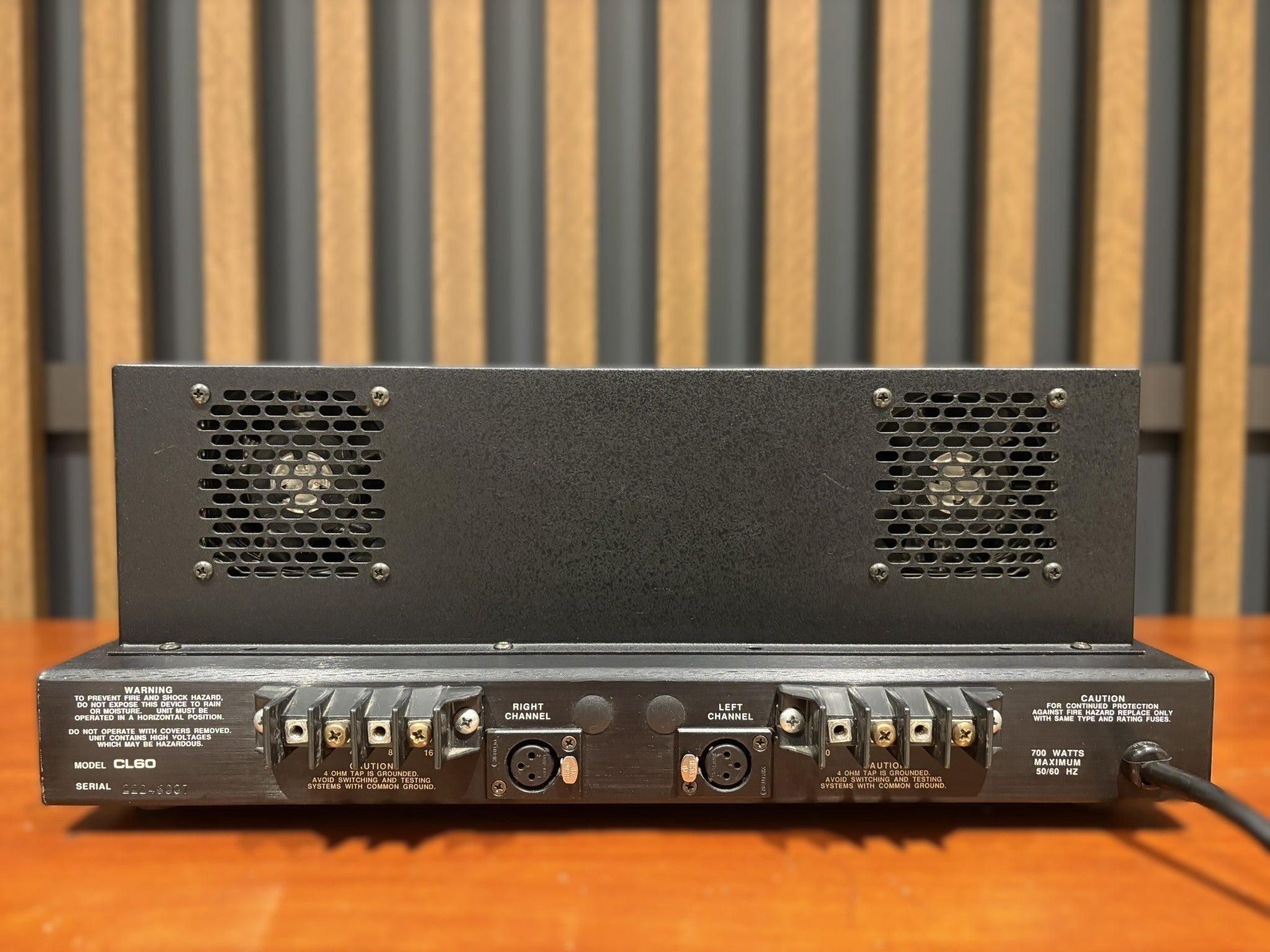

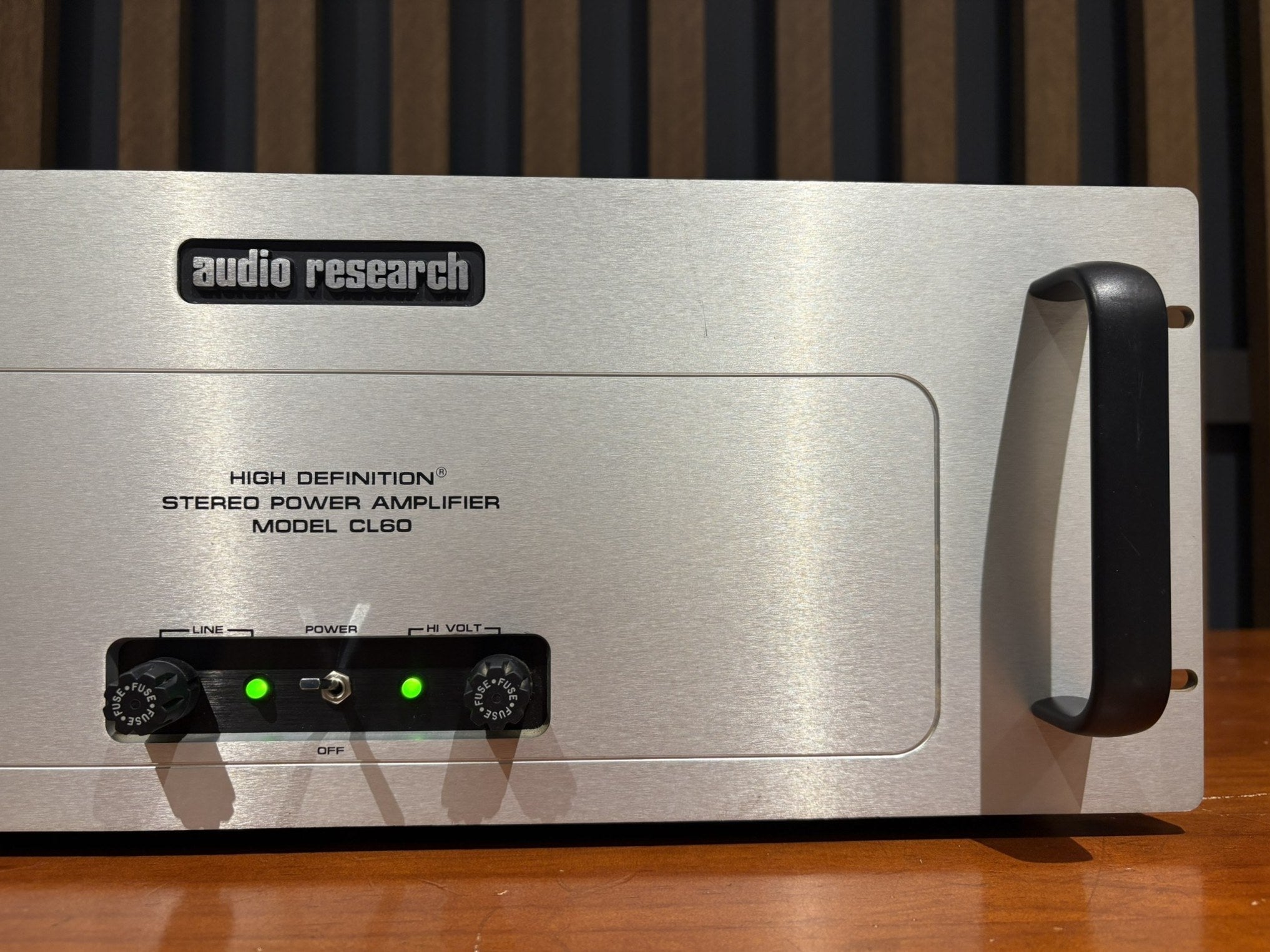

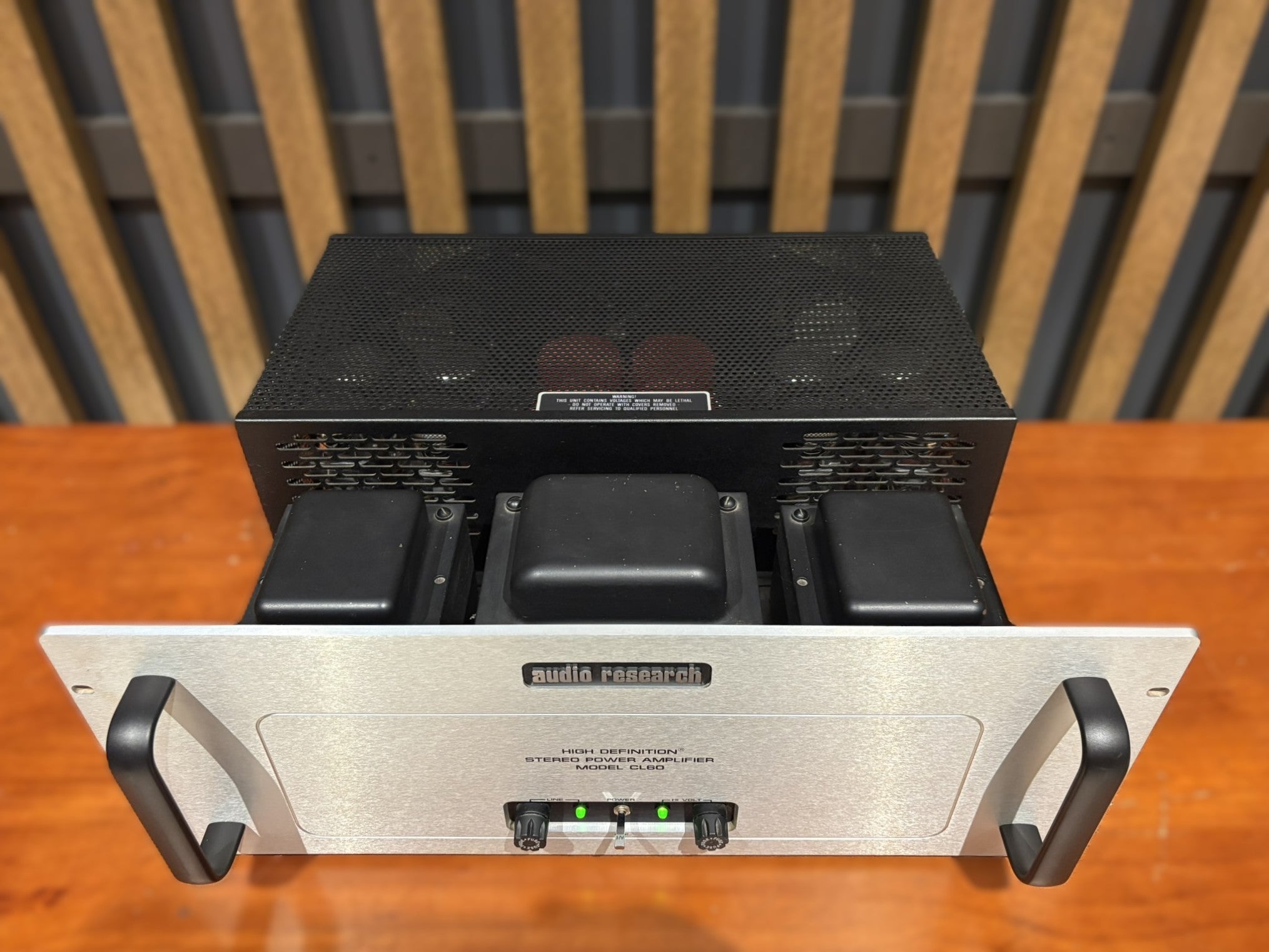

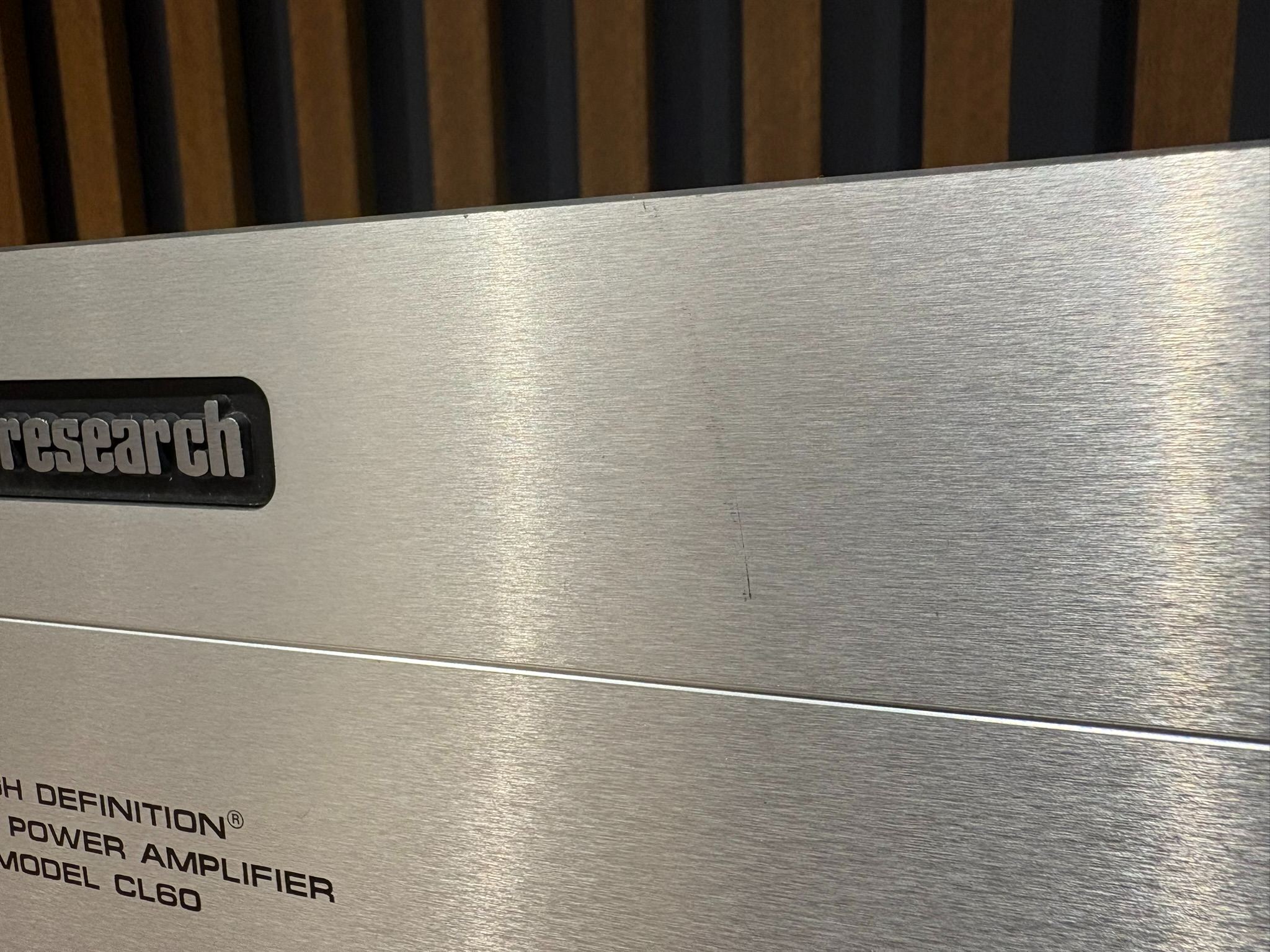

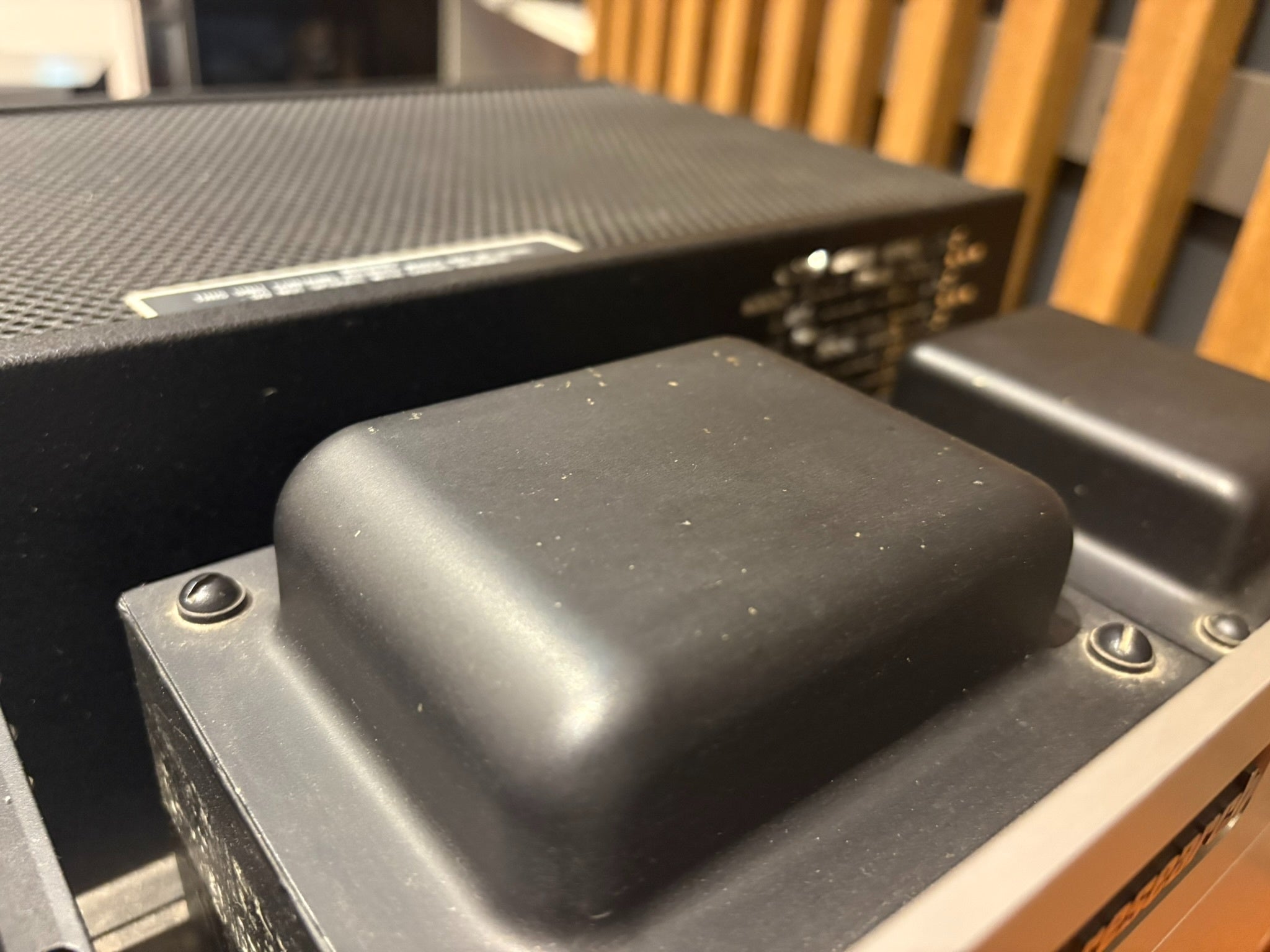

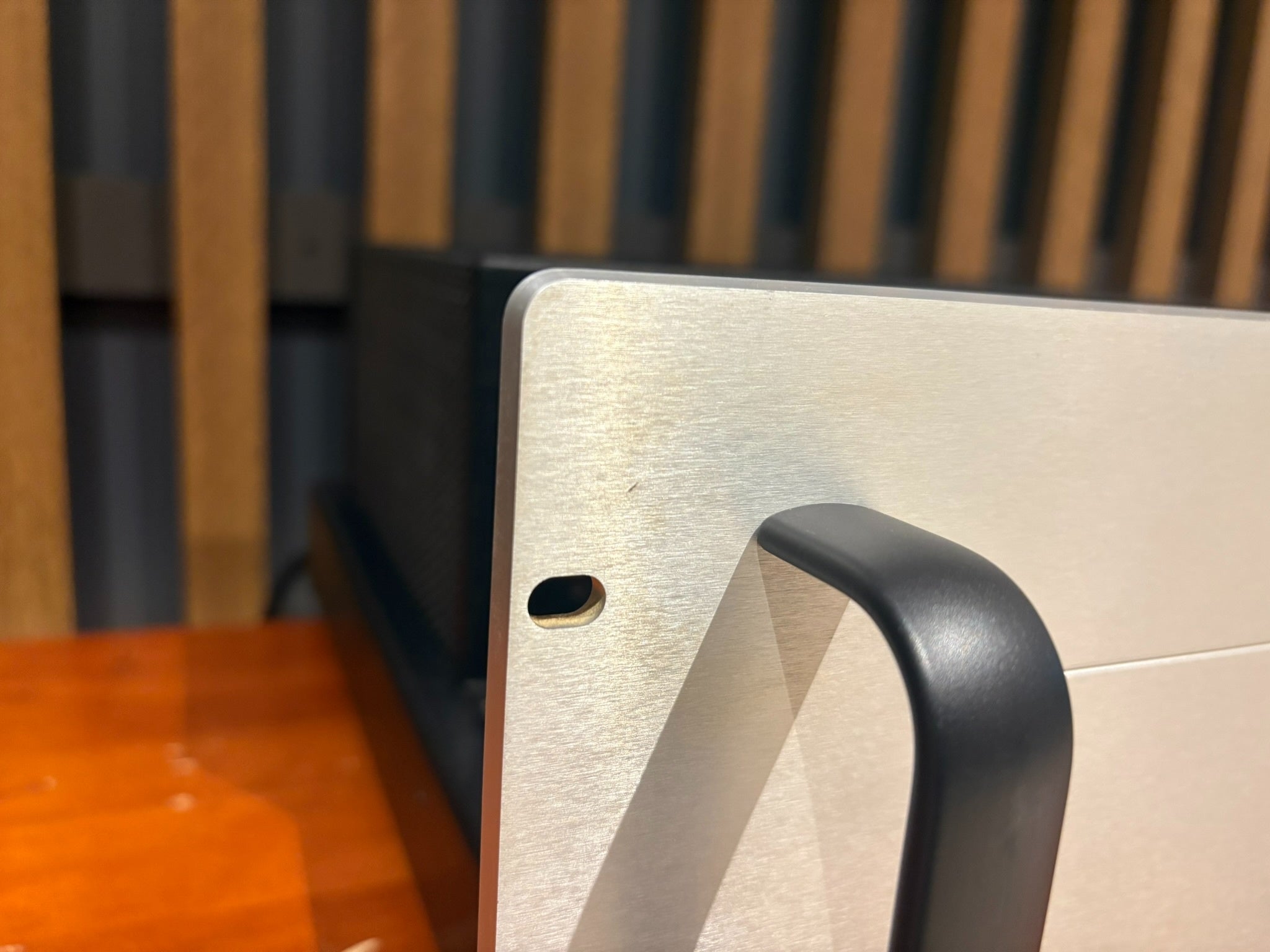

Condition: Used. Some marks and scratches (See photos)

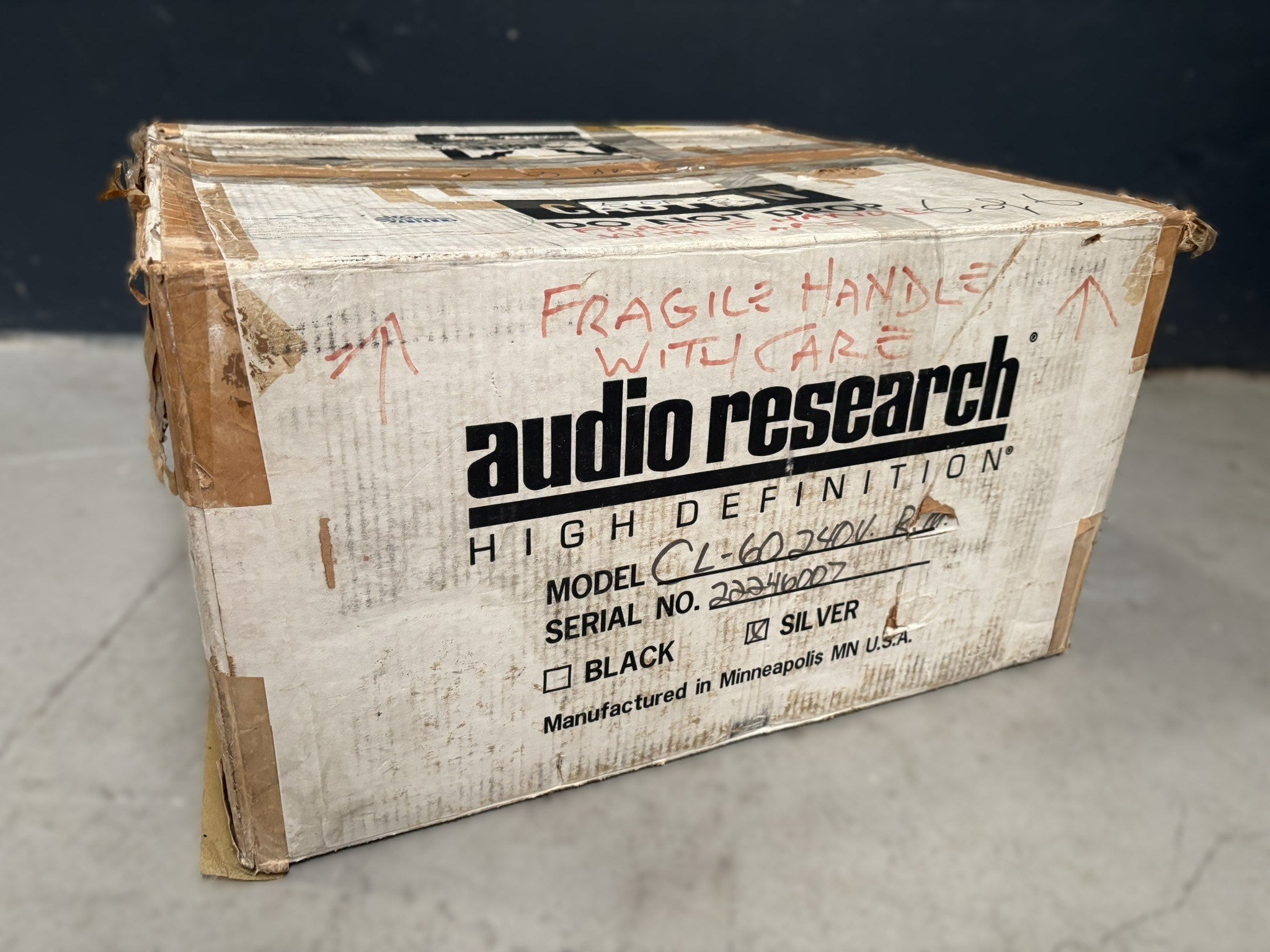

Includes: Original box only
SN: 22246007
Includes 7 day warranty
Overview
The Audio Research CLASSIC 60 features a triode-configured output stage while retaining the partial cathode coupling that Audio Research is famous for.

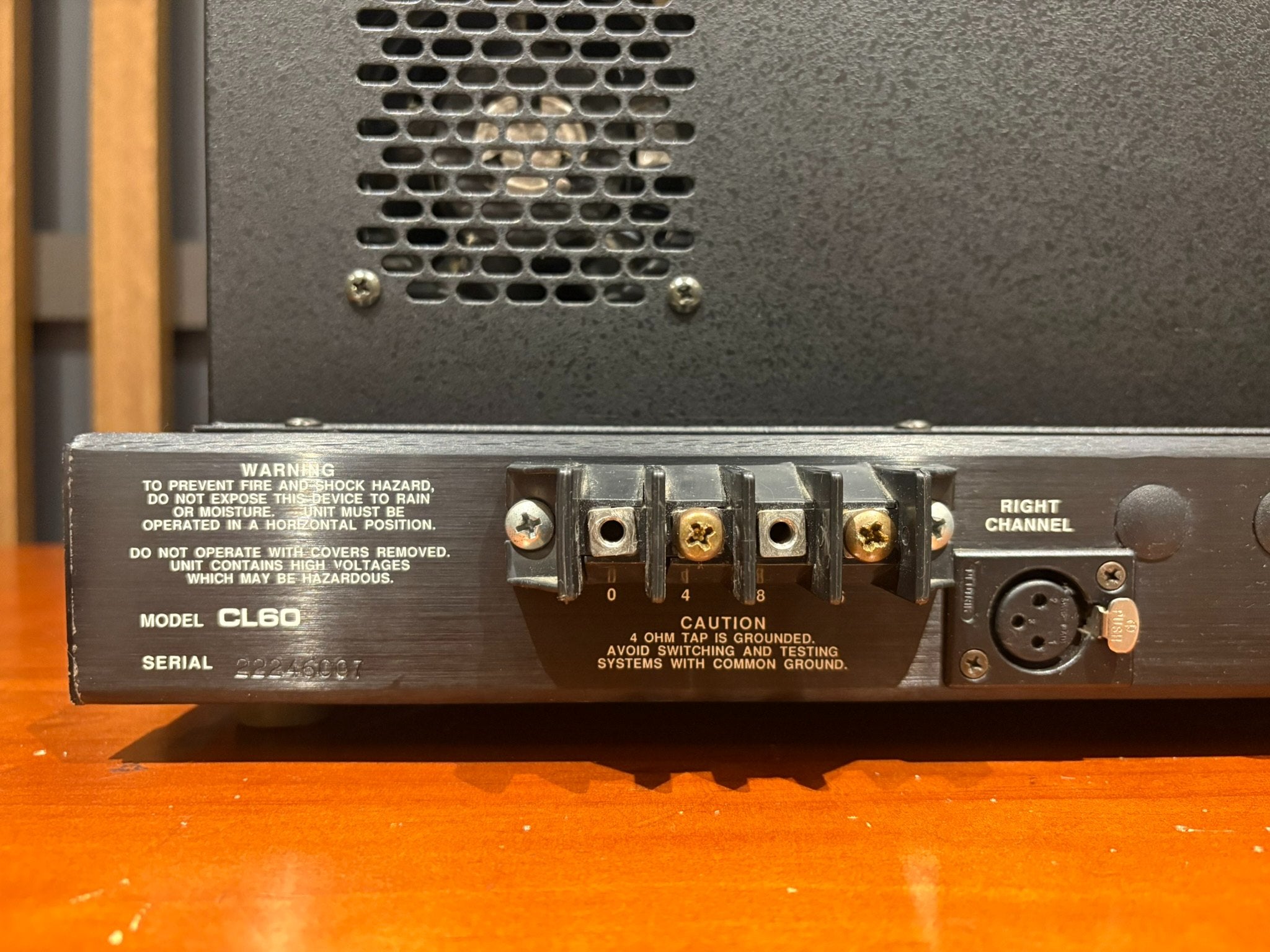

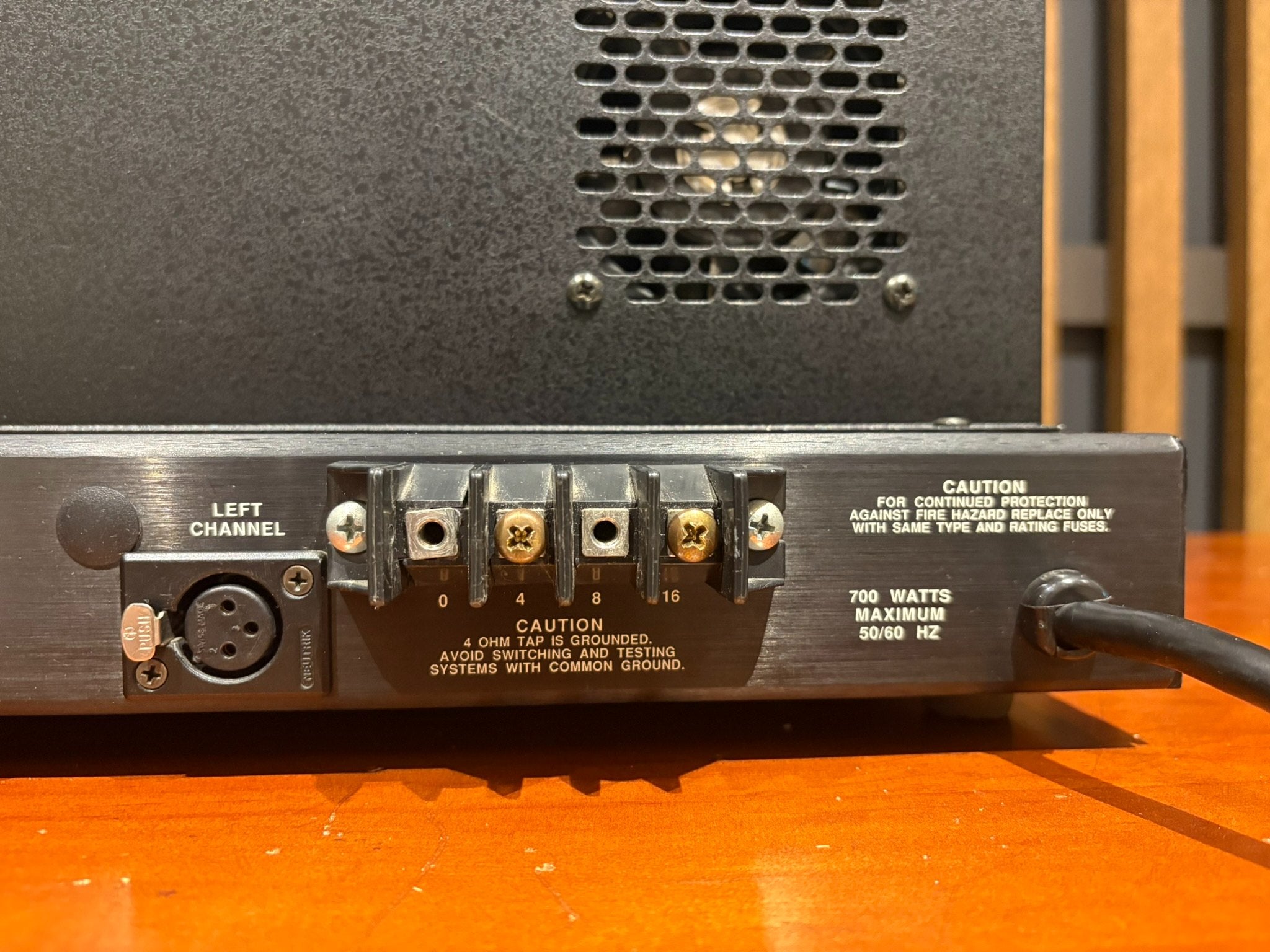

The suggested 60w output is conservative, offering separate terminals to drive 4, 8 or 16 ohm loads.
CL-60 is a hybrid design, using precision semiconductors in the input stage along with two 6FQ7 driver tubes in each channel. 2 matched pairs of 6550's are the driving force.
The internal circuitry readjusts the tube bias regulator automatically for power line voltage changes, avoiding concern about whether the bias is set correctly for your line voltage. A sophisticated servo circuit continuously monitors and maintains DC balance in each pair of output tubes in each channel.
The CL-60 is cleaner and more articulate than it's appearance, age or topology would suggest.
Specification
Power Bandwidth: (-3dB Points) 12Hz to 40kHz
Input Sensitivity: .55V RMS for rated output
Input Impedance: 100K ohms, nominal
Output Regulation: Approximately 0.3dB 16 ohm load to open circuit (Damping factor approximately 30)
Negative Feedback: 20dB
Slew Rate: 20 volts/microsecond
Rise Time: 2.0 microseconds
Hum & Noise: Less than 2.OmV RMS - 84dB below rated output (20kHz bandwidth unweighted, inputs shorted)
Power Supply Energy Storage: Approximately 280 joules
Power Requirements: 105-125VAC 60Hz (210-250VAC 50Hz) 500 watts at rated output, 700 watts maximum, 370 watts at "idle"
Dimensions: 48 cm) W (standard rack panel) x 18 cm H x 40 cm D (front panel back).
Handles extend 4.1 cm forward of the front panel.
Output connectors extend 2.54cm behind rear panel.
Weight: 28.64 kg
Tubes Required:
4- Matched pair 6550 (low gas) - Power Output
4- 6FQ7/6CG7 - Drivers
