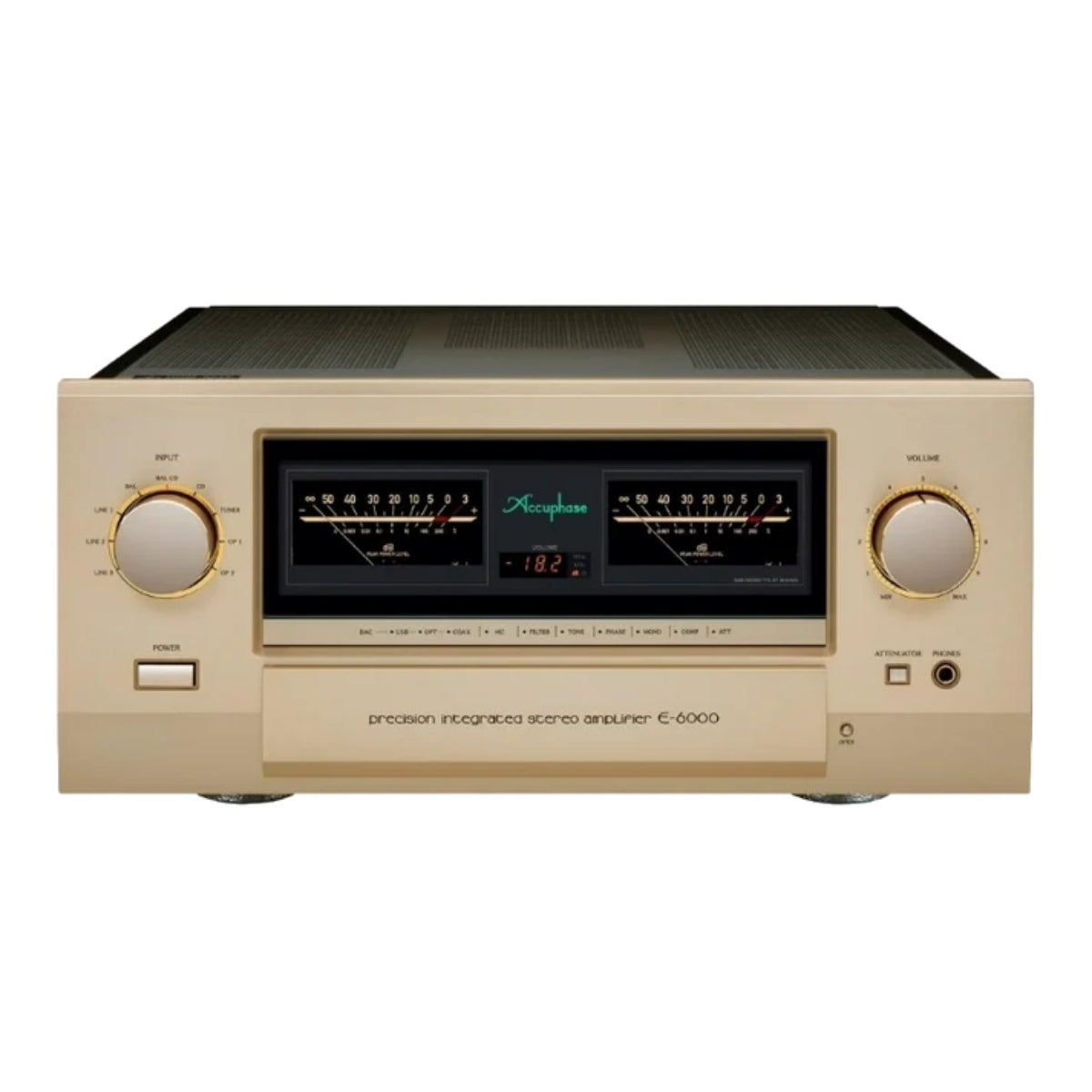

Accuphase E-6000 Integrated Stereo Amplifier

Accuphase E-6000 Integrated Stereo Amplifier

Stock expected December 2026

The Accuphase E-6000 is a new flagship integrated stereo amplifier developed from more than five decades of Accuphase amplifier technology. Combining a Balanced AAVA preamplifier with a high-power Class AB output stage, the E-6000 is designed to provide the performance and driving capability associated with separate preamplifier and power amplifier systems in a single chassis.

The Balanced AAVA volume-control system is derived from Accuphase’s separate preamplifier models and incorporates ANCC in the IV conversion amplifier section. Compared with the E-5000, the E-6000 improves its rated signal-to-noise ratio by 1 dB, with noise performance in the actual volume-use range improved by 14%. The internal component and grounding layouts have also been optimised.

The Class AB power amplifier uses a current-feedback circuit, a cascode bootstrap circuit in the voltage amplification stage and six parallel audio bipolar transistors. Output power is rated at 260 watts per channel into 8 ohms and 350 watts per channel into 4 ohms. A newly designed extra-large toroidal transformer and a dedicated 47,000 μF filter capacitor provide the power supply capacity required by the high-output design. A high damping factor of 1000 is achieved using an ultra-low on-resistance MOSFET in the speaker protection circuit.

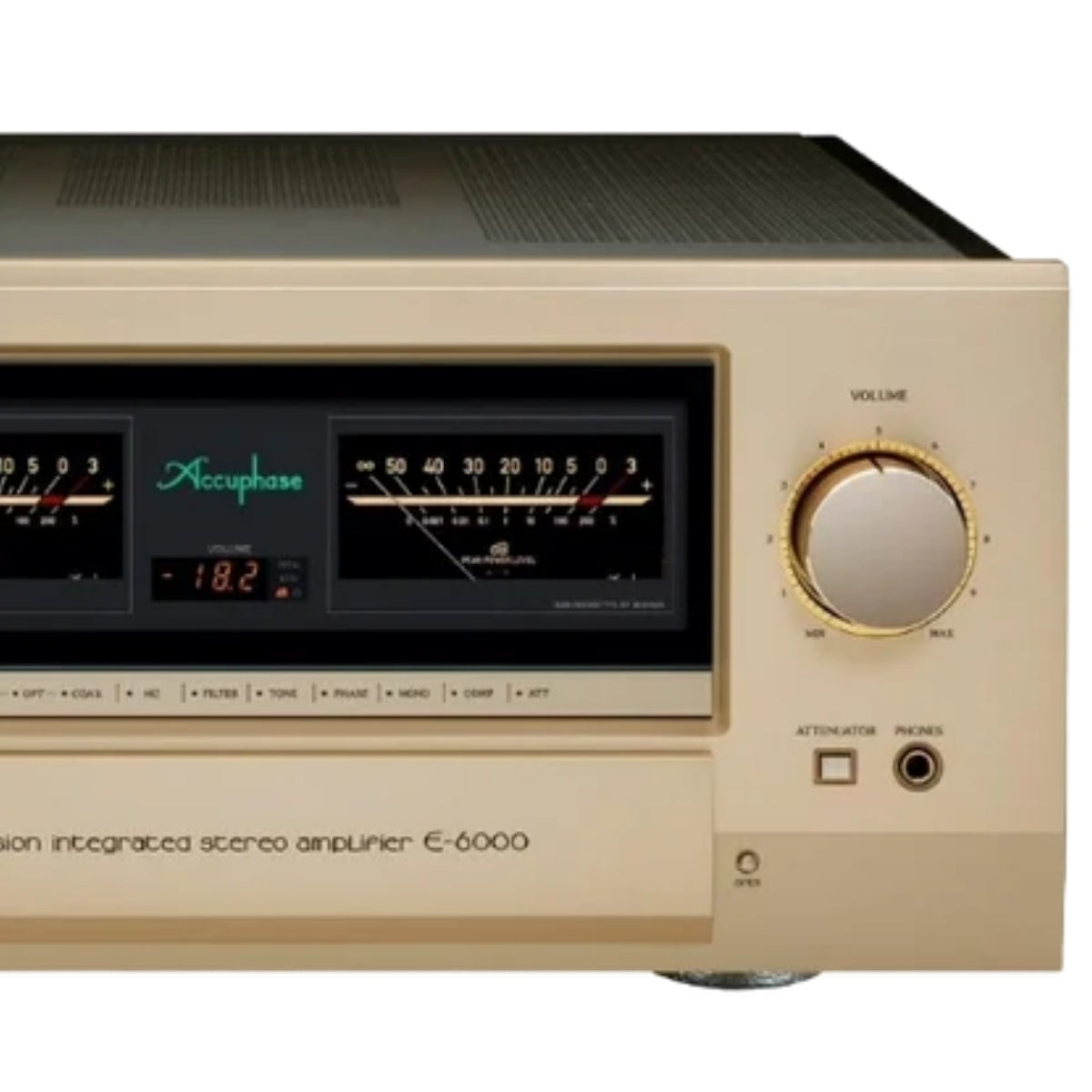

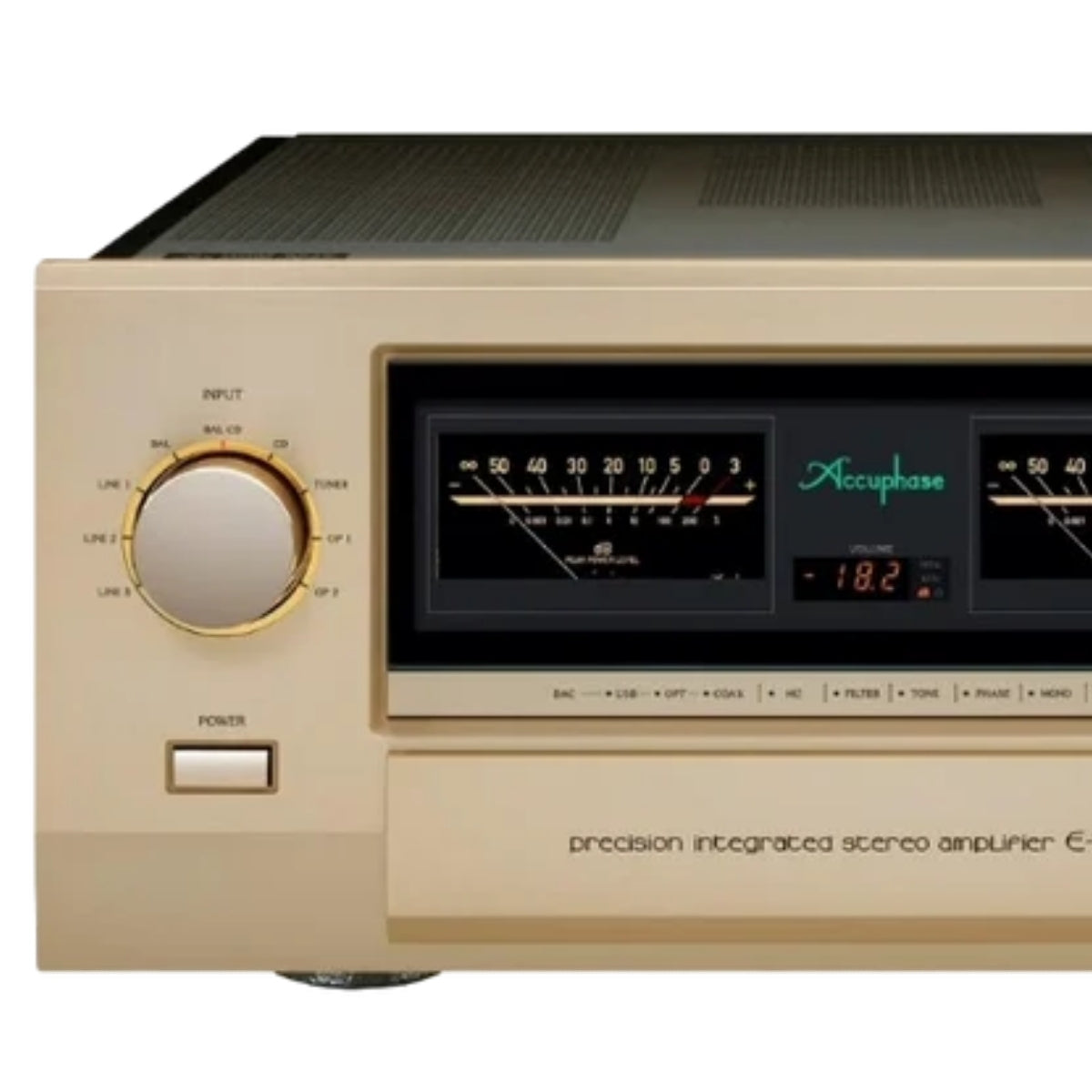

The E-6000 incorporates output short-circuit, abnormal-temperature and output-DC detection for operational safety. Its chassis features a large analogue power meter, satin-finished aluminium position indicators, gold-plated bases for the input selector and volume knob, and a high-rigidity input selector with a carefully engineered tactile feel. The amplifier includes the RC-260 remote.

Specification

Amplifier Class    Class AB Integrated Stereo Amplifier
Rated Output Power    260 W/ch into 8 Ω; 350 W/ch into 4 Ω
THD    0.05% (2 Ω); 0.03% (4–16 Ω)
Intermodulation Distortion    0.01%
Damping Factor    1000 (guaranteed minimum at 8 Ω / 50 Hz)
Preamplifier Circuitry    Fully Balanced AAVA with ANCC Noise Cancellation
Output Configuration    6-Parallel Push-Pull Bipolar Transistors per Channel
Power Supply Capacitance    2 × 47,000 µF / 100 V Custom Accuphase Capacitors
MOS-FET Switch On-Resistance    0.84 mΩ
Analogue Inputs    5 × Line RCA; 2 × Balanced XLR with Phase Selection
Pre/Power Separation    MAIN IN (RCA/XLR) and PRE OUT (RCA/XLR)
Expansion Slots    2 × Rear Option Slots for Accuphase DAC-60 or AD-60 Boards
Protection    Short-Circuit, Over-Temperature and DC-Offset Detection
Dimensions (W × H × D)    465 × 221 × 502 mm
Net Weight    38.6 kg
