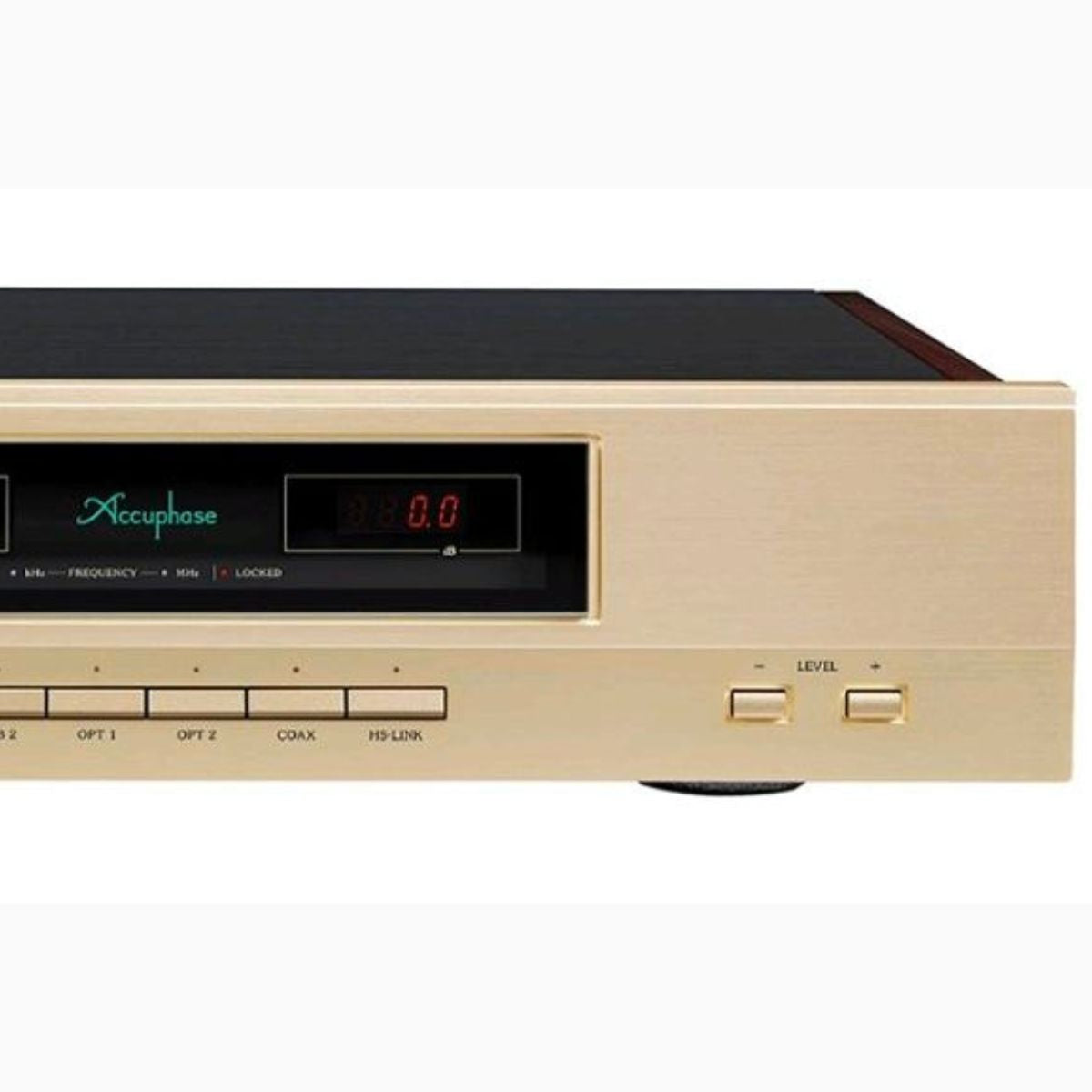

Accuphase DC-500 MDSD Digital Processor

Accuphase DC-500 MDSD Digital Processor

Stock expected June 2026

The new DC-500 is a digital processor that packs Accuphase's latest DA conversion technology  into a compact chassis, ideally converting any digital source into analog signals. It delivers the ultimate musical experience through the fusion of a high-performance DAC and proprietary technology.

High-precision D/A conversion processing utilizing technology cultivated through the
development of top models
ANCC adopted for filter amplifier, achieving low distortion and low noise
ES9028PRO 8-channel parallel operation
DSD playback by MDSD (Multiple Double Speed DSD)

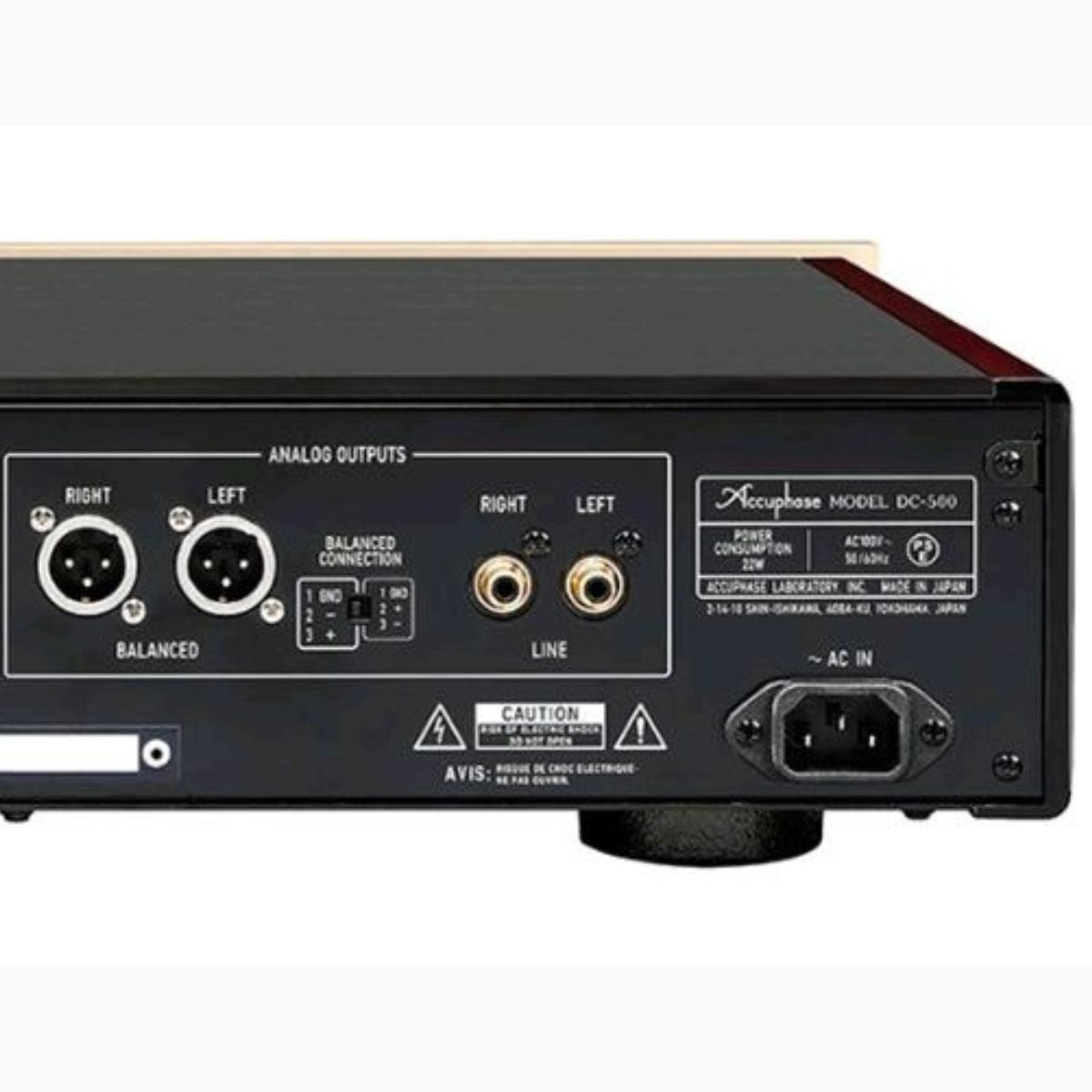

Outputs employ a direct balanced filter with independent circuits to prevent mutual
interference

Equipped with two USB (Type-B) inputs
Simultaneous connection of two USB devices, such as PCs or network players, is possible.
Supports DSD 22.5MHz (11.2MHz for DoP when using ASIO)

Powerful power supply circuit
Separate digital/analog transformer-isolated power supply circuits
Custom made filter capacitor with a total capacity of 120,000μF

Specification

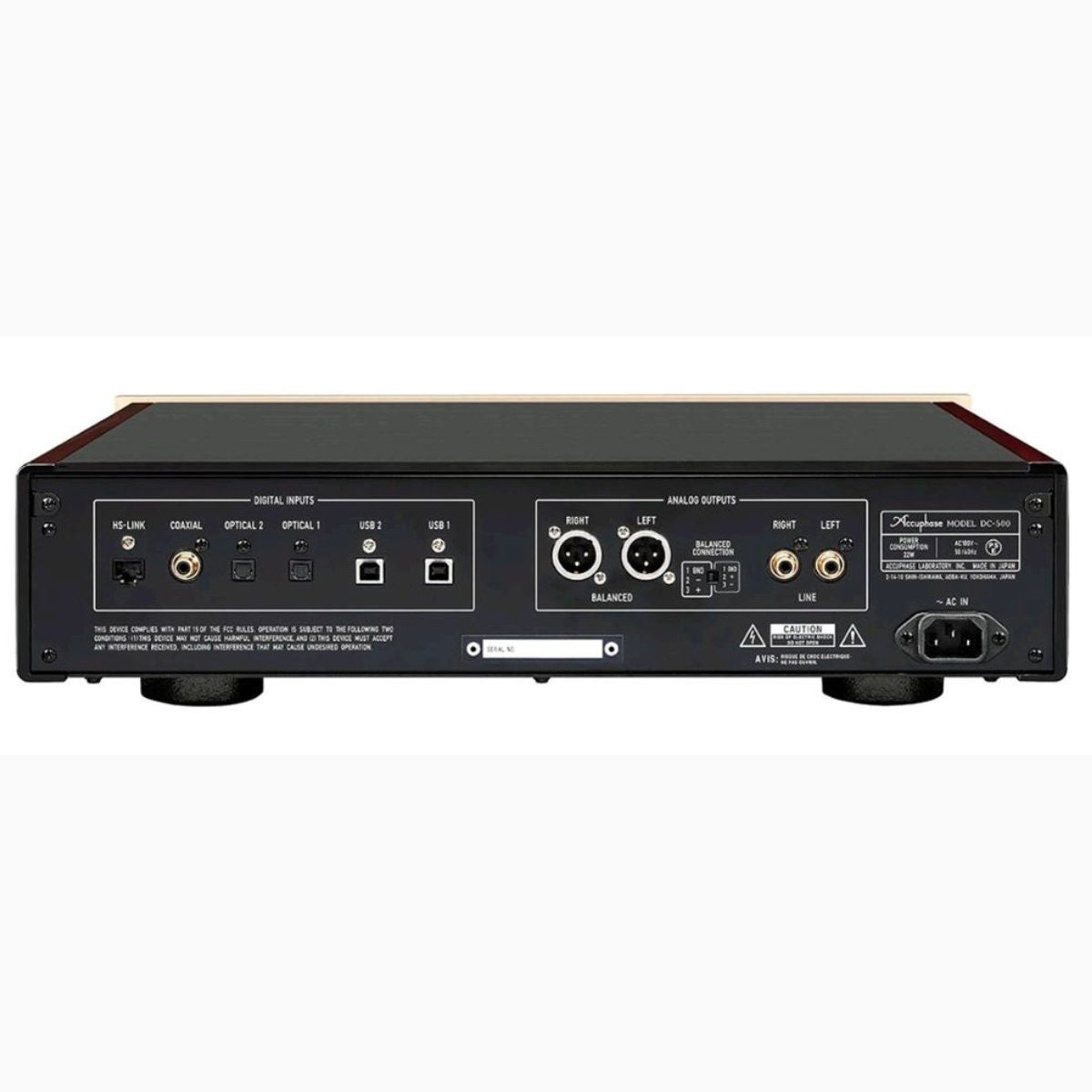

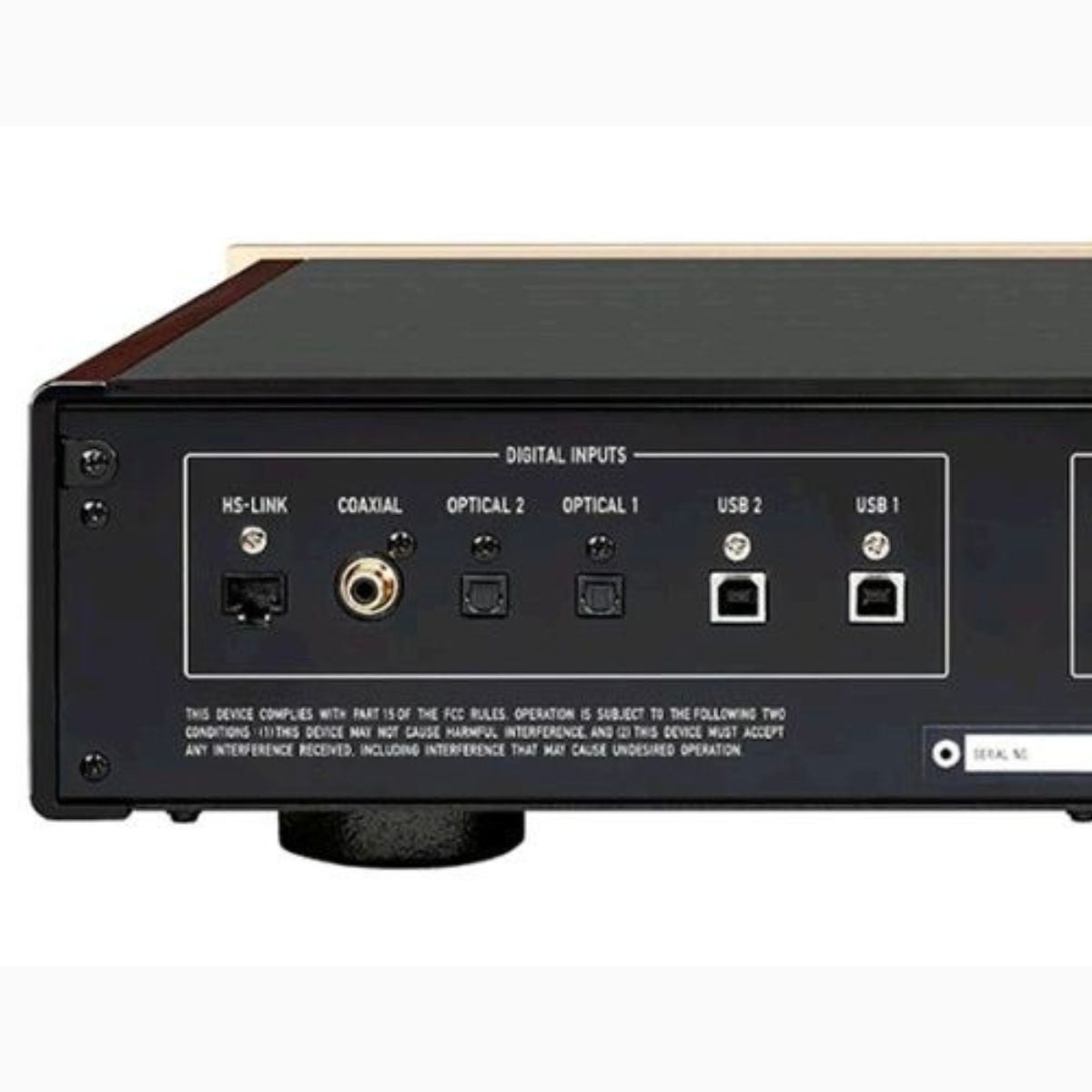

Digital Input / Output: HS-LINK, COAXIAL, OPTICAL x 2, USB x 2
Sampling Frequency: HS-LINK Version1:192k/24bit, 2.822MHz/1bit, HS-LINK Version2: 384kHz/32bit, 5.6448MHz/1bit, Coaxial: 192kHz/24bit, Optical: 96kHz/24bit
Dimensions: Width 465mm x Height 114mm x Depth 393mm
Mass: 15.6kg
