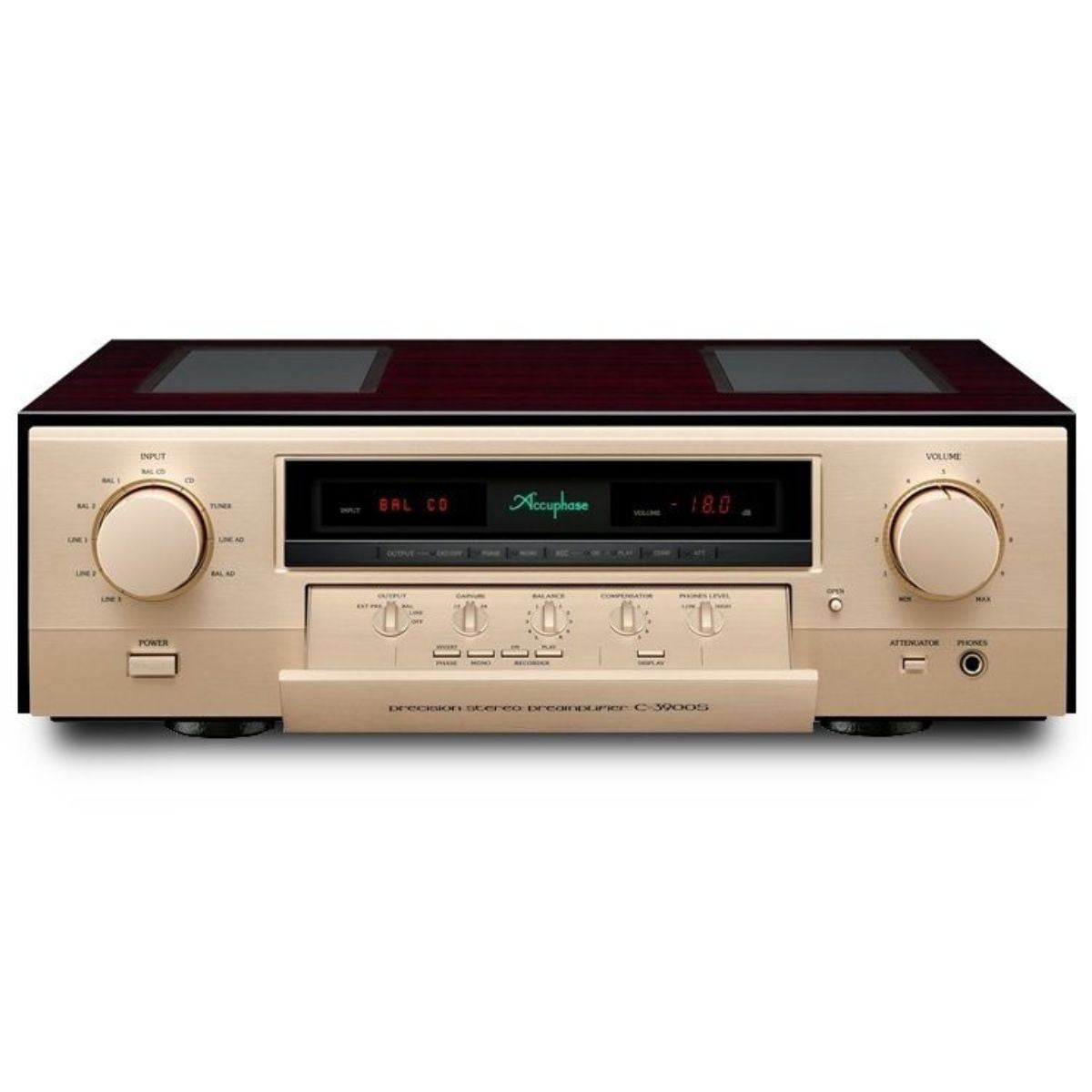

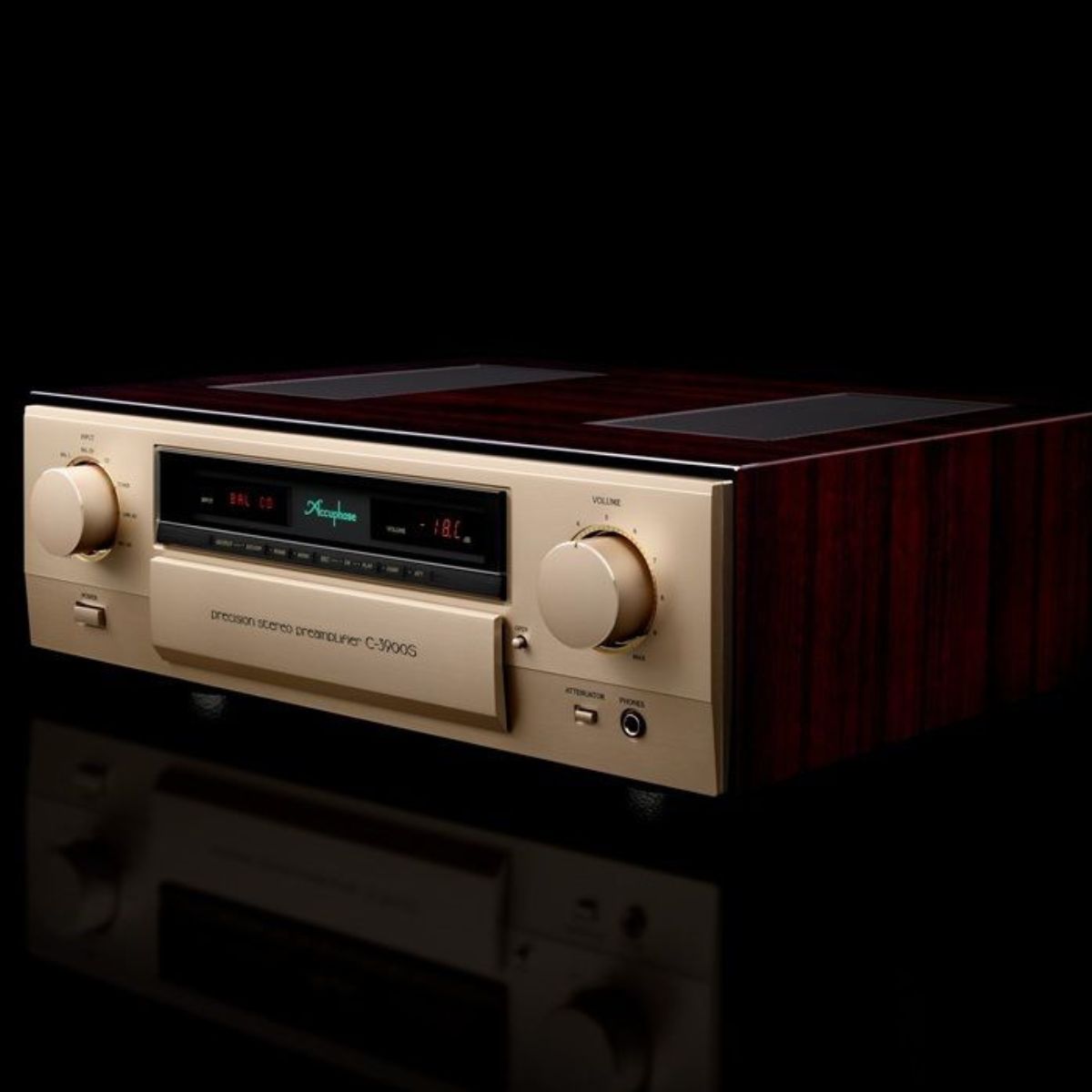

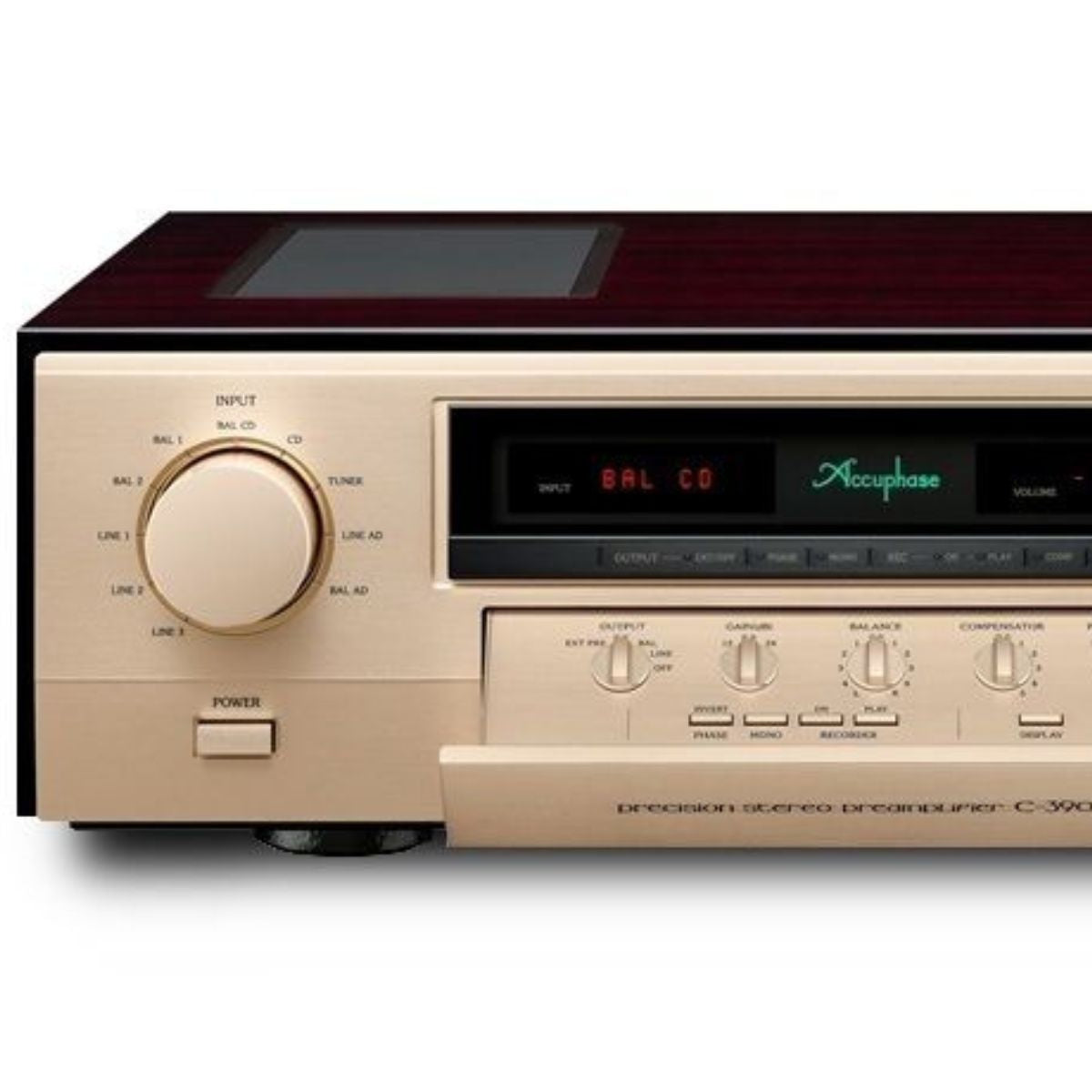

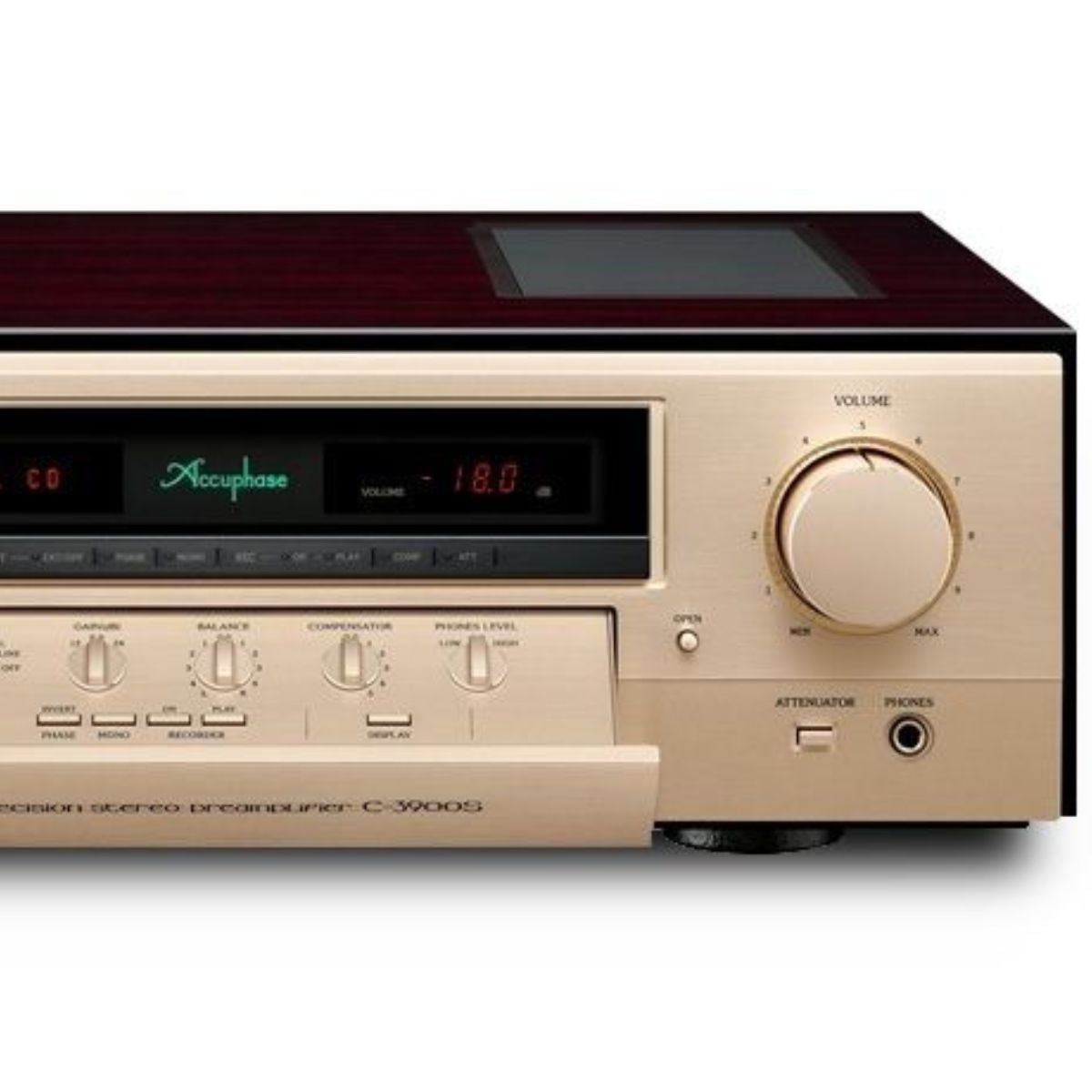

Accuphase C-3900S Precision Stereo Preamplifier

Accuphase C-3900S Precision Stereo Preamplifier

The C-3900S inherits all of the know-how from the C-3900 and improves signal-to-noise ratio, distortion, and other characteristics to create a flagship preamplifier. This unit combines traditional Accuphase craftsmanship with cutting-edge circuitry and mechanical quality and the latest technology to achieve world-class performance and sound quality, capturing every musical detail.

Accuphase pioneered the revolutionary AAVA volume control, which revolutionized analog preamplifiers. The latest model, the C-3900S, achieves even lower noise levels by increasing the number of parallel output amplifiers, thereby improving the signal-to-noise ratio at normal volume settings.

The entire signal system, from input to output, is balanced, and the entire circuitry has been completely redesigned, including the IV conversion amplifier, which uses ANCC, which achieves both high precision and low noise. This has significantly improved characteristics such as the signal-to-noise ratio and distortion rate, enabling signal transmission of even higher purity.

• The Ultimate in Low-noise: Guaranteed EIA S/N: 113dB (C-3900 : 112dB)
• High-performance Headphone Amplifier Built-In
• Ultra-smooth operation: Proprietary Volume Sensor and Input Selector
• The number of Compensator steps is increased to 5 steps. (C-3900: 3 steps)
• Dual Balanced AAVA volume circuit with eight AAVA circuits (positive and negative) for left and right channels
• High-gain discrete current feedback input amplifier
• Employs ANCC (Accuphase Noise and Distortion Cancelling Circuit) technology to reduce noise and distortion
• High-quality headphone amplifier featuring a power transistor parallel push-pull output stage
• Logic relay control signal switching system for high sound quality and excellent long-term stability
• The printed circuit board for the signal transmission circuit uses a low dielectric constant, low loss "glass cloth fluororesin substrate"

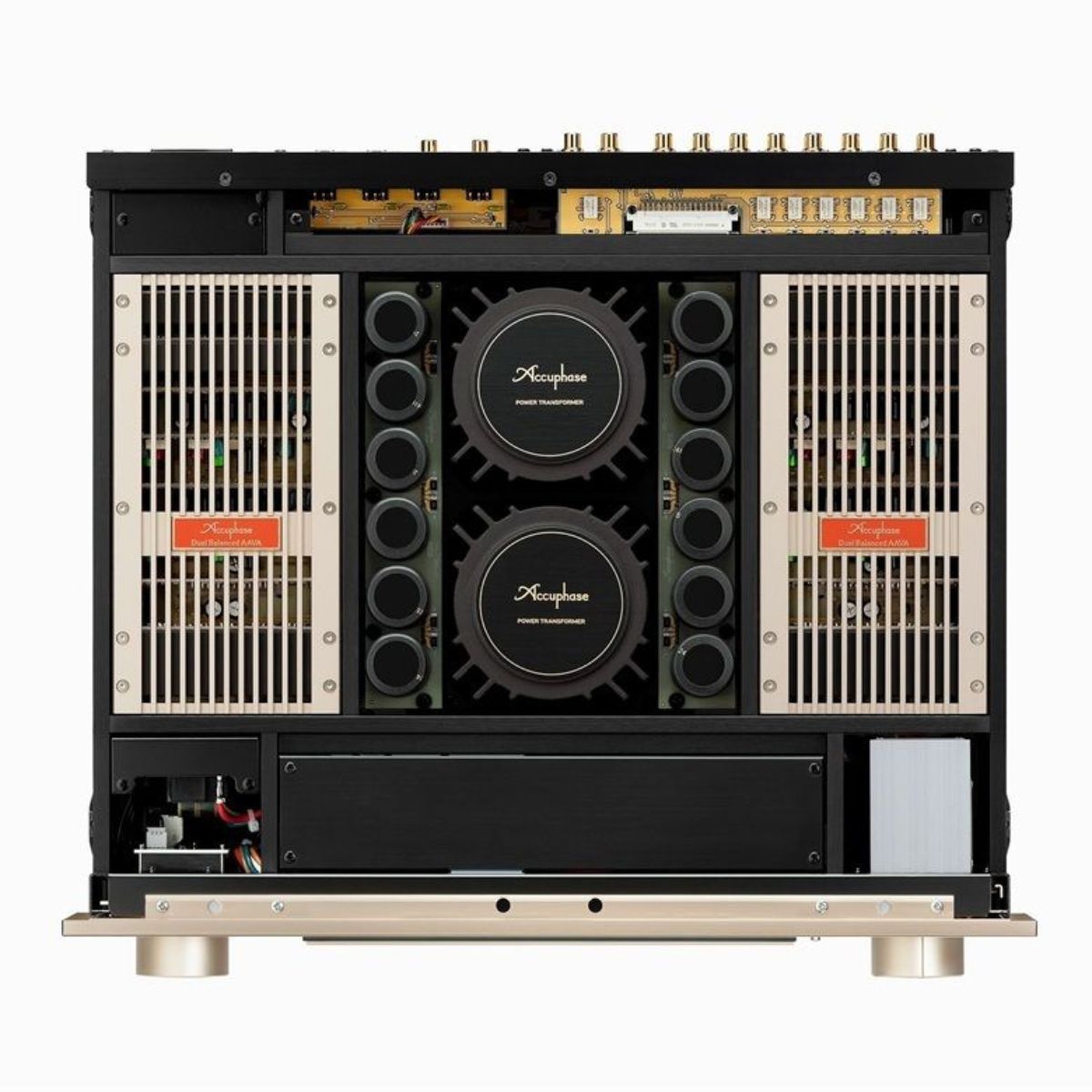

• Independent power supply circuitry with toroidal transformers and filter capacitors (10,000 μF x 12)
• Newly developed volume sensor mechanism for quiet and smooth operation
• Left/right balance adjustment with increased number of steps for finer adjustment
• 5-stage switching "Compensator"

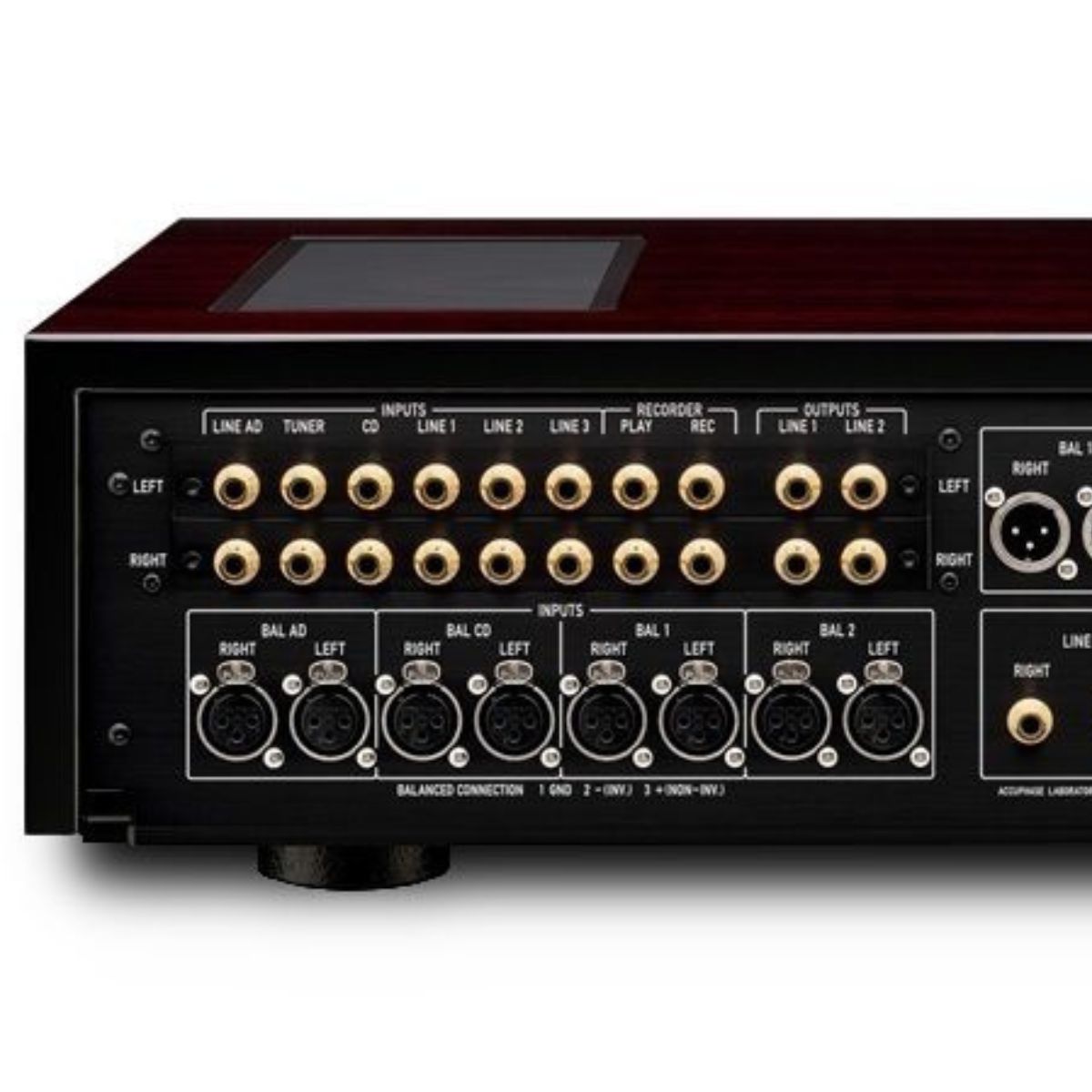

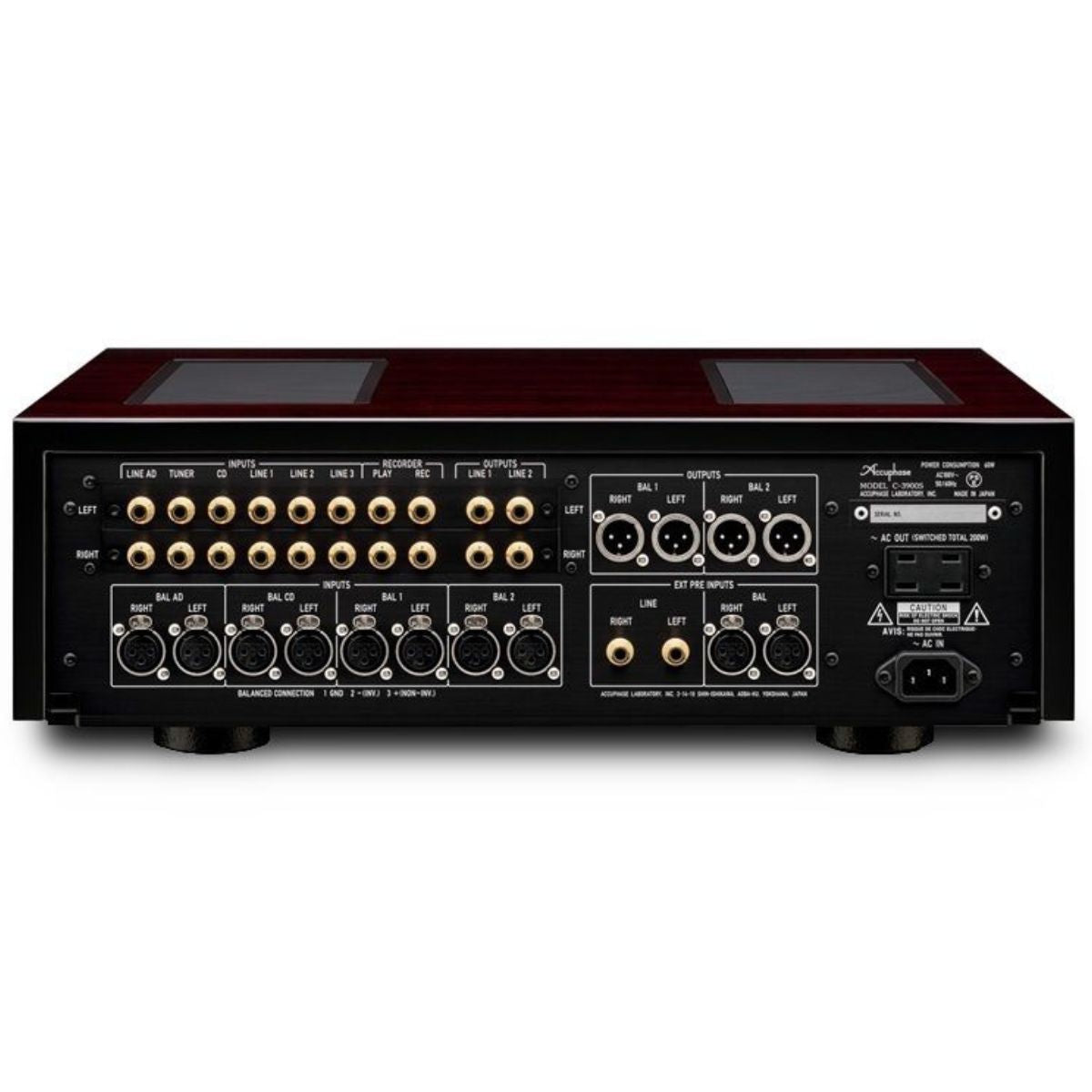

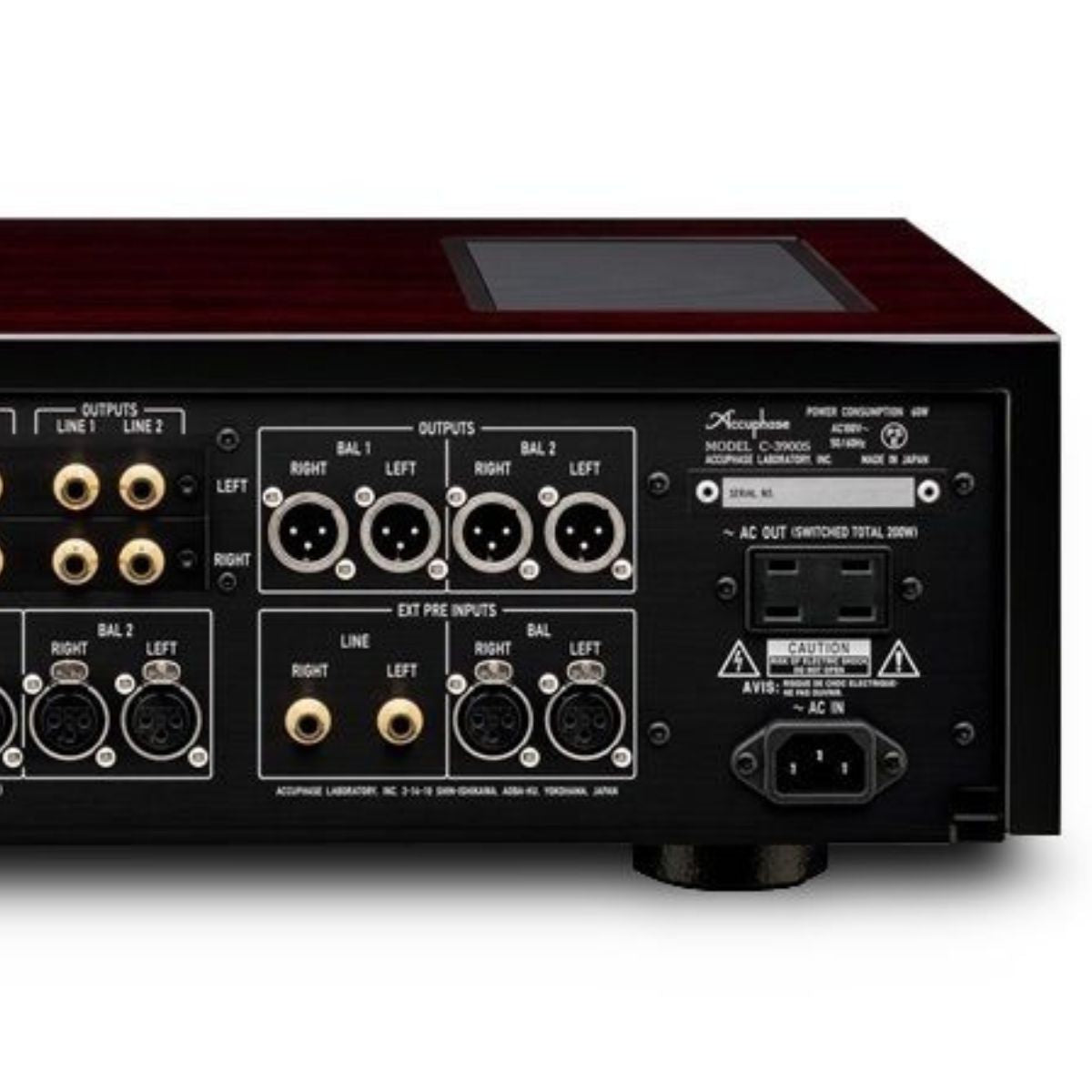

• Extensive input/output terminals (7 line inputs, 4 balanced inputs, 2 line outputs, 2 balanced outputs)
• Line input/output terminals for connecting a recorder
• "EXT PRE" line/balanced input terminal for connection to an external preamplifier
• Phase can be set for each input terminal
• Gain switch function (12dB, 18dB, 24dB) to adjust the total gain
• Stereo signals can be converted to monophonic signals
• -20dB "attenuator"
• Input display that can be turned on/off and highly visible volume display
• Champagne gold front panel and solid natural wood grain finish wood case
• Advanced high-carbon cast iron insulator with excellent vibration damping properties
• Supports analog disc playback with the optional C-57 phono equalizer
