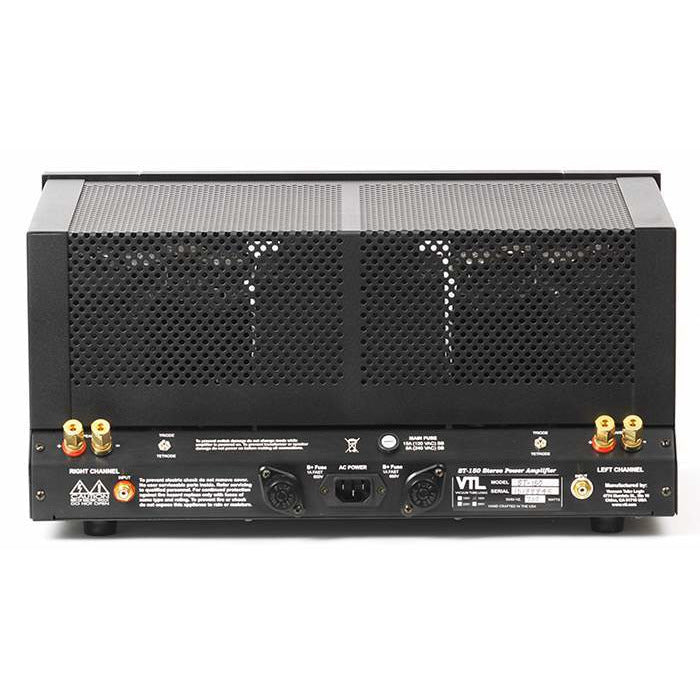

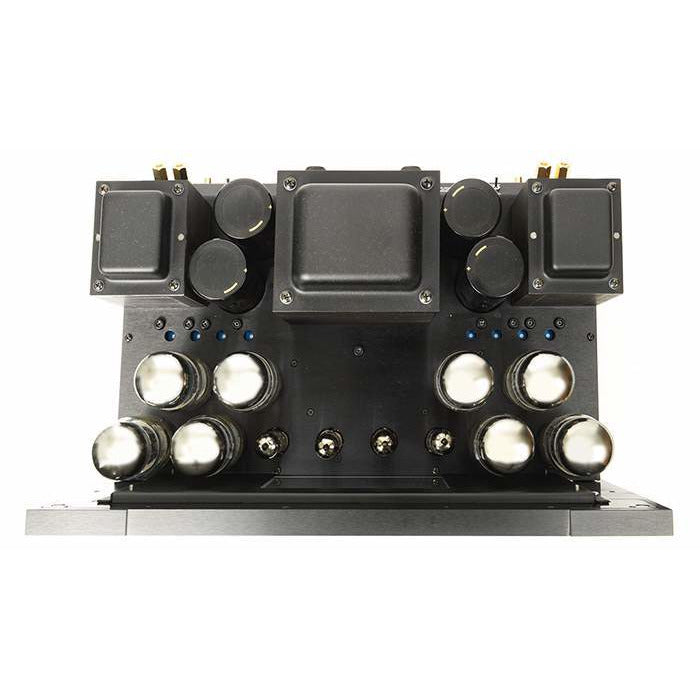

VTL ST-150 Performance Stereo Amplifier
- High energy storage power supply >200 joules
- VTL proprietary output transformer
- Very low-noise floor with specially designed grounding scheme
- Tetrode/Triode Switchable
- 150 watts per channel in tetrode
- 70 watts per channel in triode
- 4 6550 tubes per channel with individual bias setting for each tube
- Audiophile grade film and foil caps used in the signal path
- Extruded aluminium front panel with luxurious, modern look — black and silver options available
Output power: Tetrode: 120W, Triode: 60W
20Hz – 20kHz <3% THD: Into 5Ω
Input sensitivity: @ 150W 100V = 0.880V; 120/240 = 1.0V
input impedance: 130KΩ
Output Load Range: 2Ω – 8Ω
S/N Ratio: -95dB, 120Hz
Power Consumption: Idle = 240W, Full Power = 800W
Primary Mains Fuse Rating: 100V = 15A Ceramic Slo Blo, 120V = 15A Ceramic Slo Blo, 220/240V = 8A Ceramic Slo Blo
B+ Fuse Rating: 1A fast acting ceramic 600V
Dimensions: (W x D x H) 19 x 12 x 9 inches (48 x 30 x 23 cm)
Weight: 85lbs (38.6Kg), 110lb (50Kg) packed
