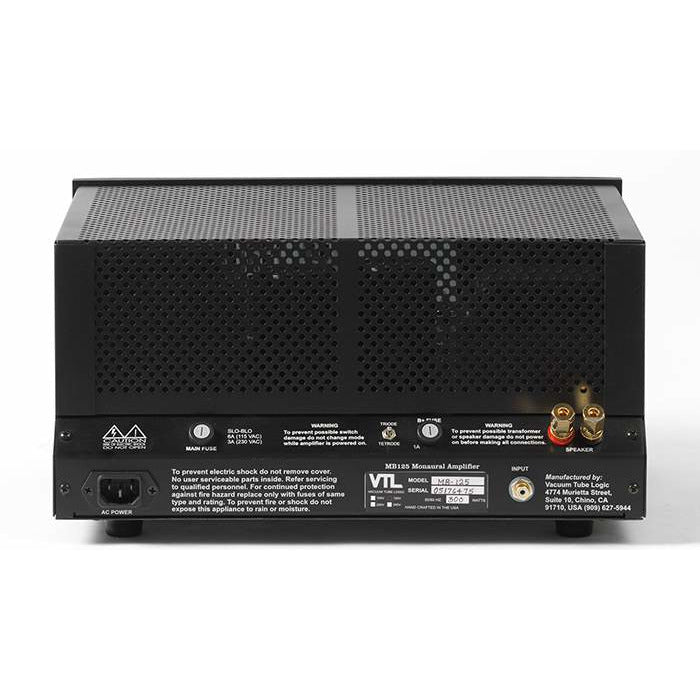

VTL MB-125 Performance Monoblock Amplifier
Years of refinement have produced an amplifier of unparalleled clarity and musicality at its price. These space efficient monoblocks, sold in single monoblocks or in pairs, are an excellent choice for the two-channel as well as home theatre systems. Using EL34 tubes that are known for their sweet top end and rich midrange, these monoblocks are best suited for planar and electrostatic speakers as well as highly efficient floor standing dynamic speakers.
FEATURES
- High energy storage power supply >200 joules.
- VTL proprietary output transformer
- Tetrode/Triode Switchable
- 100 watts per channel in tetrode
- 50 watts per channel in triode
- 4 EL34 tubes per channel with individual bias setting for each tube
- Extruded aluminium front panel with luxurious, modern look – black and silver options available
- Front panel comes with a window of thick smoked glass where you can see the glow of tubes
SPECIFICATIONS
Vacuum Tube Complement: 4 x EL34, 2 x 12AT7
Output power: Tetrode: 100W, Triode: 50W
20Hz – 20kHz <3%: Into 5Ω
Input sensitivity: 700mV
Input impedance: 145kΩ
Optimum load range: 2Ω – 8Ω
S/N Ratio -95dB, 120Hz @ 100W Tetrode or 50W Triode
Power consumption: Idle = 100W, Full power = 300W
Primary mains fuse ratings: 100/120V = 6A Ceramic Slo Blo, 220/240V = 3A Ceramic Slo Blo
B+ fuse ratings 0.75A Fast Acting Ceramic
Dimensions: W x D x H 16 x 12 x 7 inches (40 x 30 x 18 cm)
Weight per monoblock: 42lbs (22Kg) unpacked, 45lbs (25Kg) packed
Output power: Tetrode: 100W, Triode: 50W
20Hz – 20kHz <3%: Into 5Ω
Input sensitivity: 700mV
Input impedance: 145kΩ
Optimum load range: 2Ω – 8Ω
S/N Ratio -95dB, 120Hz @ 100W Tetrode or 50W Triode
Power consumption: Idle = 100W, Full power = 300W
Primary mains fuse ratings: 100/120V = 6A Ceramic Slo Blo, 220/240V = 3A Ceramic Slo Blo
B+ fuse ratings 0.75A Fast Acting Ceramic
Dimensions: W x D x H 16 x 12 x 7 inches (40 x 30 x 18 cm)
Weight per monoblock: 42lbs (22Kg) unpacked, 45lbs (25Kg) packed
