Melco N10 Music Library

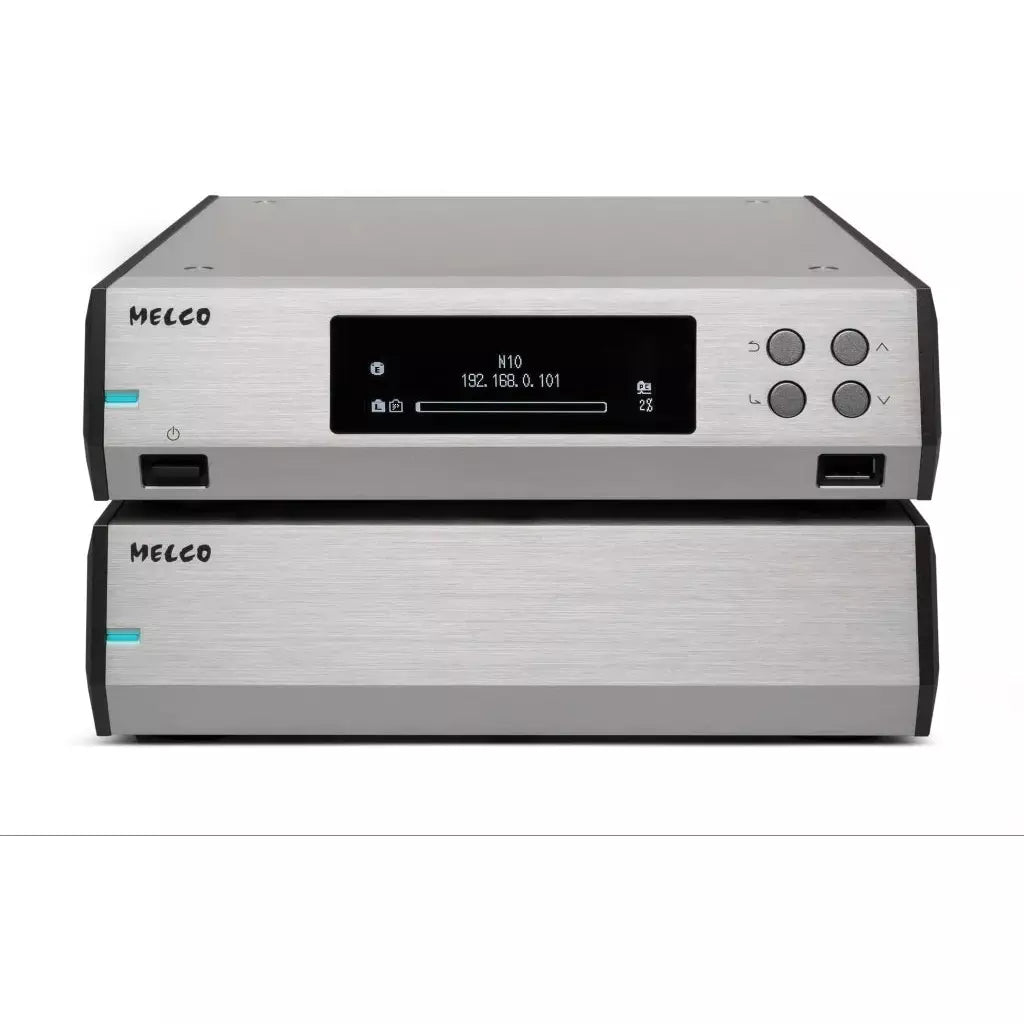

N10 is a two box solution designed to improve sound quality by separating power supply and the head unit. Compact half-size head unit has selected 3TB 2.5” SFF HDD with all signal processing and connectivity, while the separate linear power supply is totally isolated from the head unit. The elegant solid aluminium casework has the familiar Melco OLED display and simple 4 button interface for delightfully simple operation and setup.

• 215mm width half-sized components, solid aluminium case for mechanical integrity;
• Full function control interface from front panel;
• Front USB port, dual rear USB ports for HDD expansion or CD loader connectivity;
• Unique to MELCO, Dual Gigabit Ethernet for separate Network and Streamer connectivity;
• Dedicated 5-pin cable to connect PSU to head unit;
• Linear PSU includes large toroidal transformer and extensive filtering;
• Isolating feet from TOAC, renowned Japanese isolation brand;
• Informative OLED display, showing file name, data format and connected devices

Specifications

Model  N10P-H30-E (Silver), N10P-H30B-E(Black)
Capacity  N10P-H30-E (Silver) : 3TB, N10P-H30B-E(Black) : 3TB
Size  Head unit 215x61x269 mm, Power supply unit 215x61x273 mm
Weight  Head unit appx 3.5kg, Power supply unit appx 5.0kg

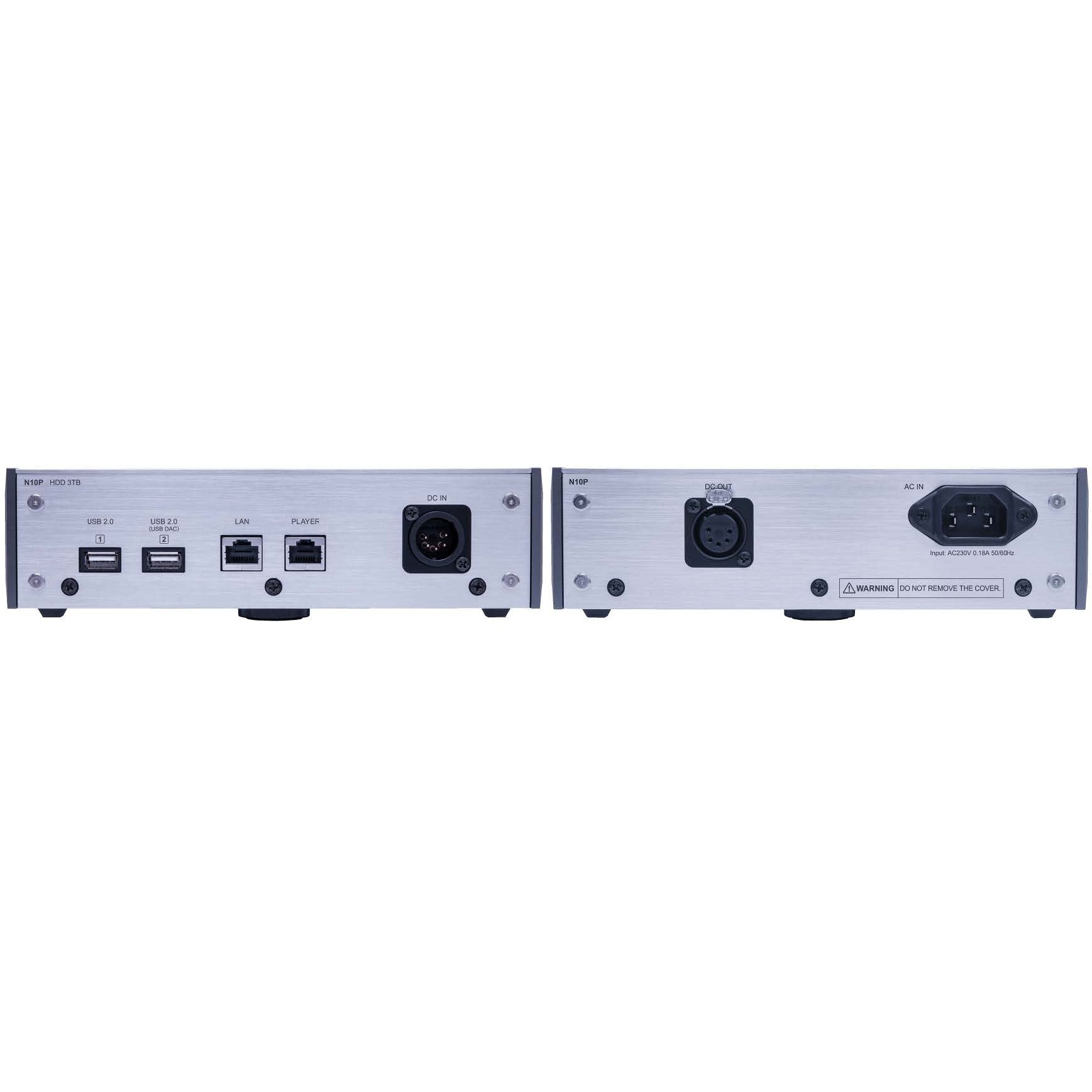

Terminals  USB2.0 type A Front x1, Rear x2, Gigabit Ethernet port x2
Power Supply  Dedicated liner power supply unit, Input 240V
Support file (Server)  DSF, DFF, FLAC, WAV, ALAC, AIFF, AAC, MP3, WMA, OGG, LPCM
Support file (Player)  DSF, DFF, FLAC, WAV, ALAC, AIFF, AAC
Sampling rate (Server)  44.1K, 48K, 88.2K, 96K, 176K, 192K, 384K, 2.8M, 5.6M, 11.3M
Sampling rate (Player)  44.1K, 48K, 88.2K, 96K, 176K, 192K, 384K, 2.8M, 5.6M, 11.3M
Bit rate 16-32bit (PCM), 1bit (DSD)
