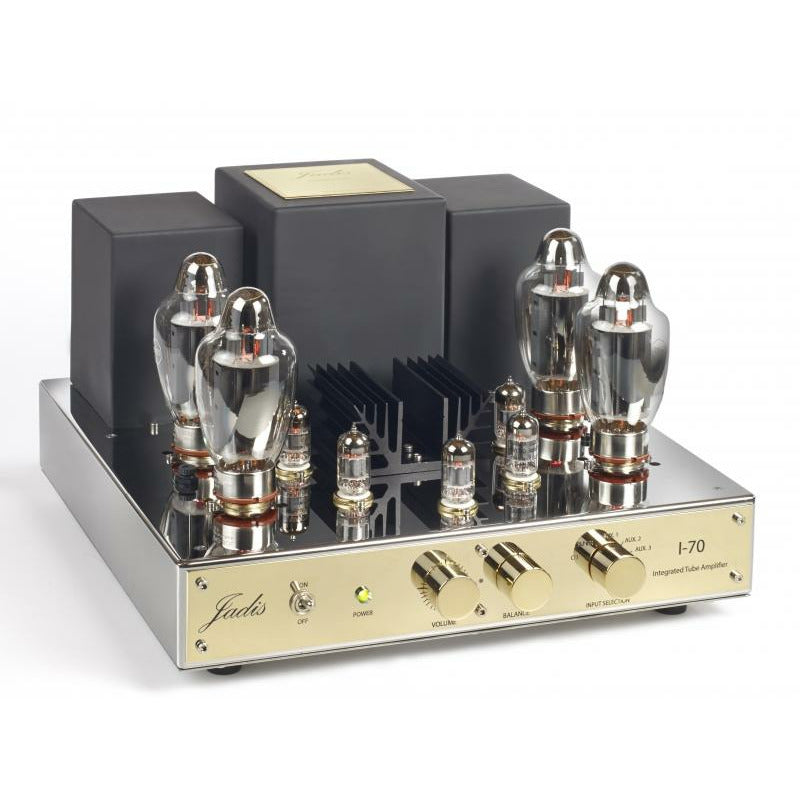

Jadis I70 Tube Integrated Amplifier

For a long time now , we’ve been thinking about developing a new reference mixing compact design  and increased performances…and KT170 tube comes, giving the starting signal of  I-70 project.

This integrated amp is not only  designed in the pure tradition with point to point wiring and hand made transformer, it’s the first to integrate several features from Jadis mono- block technology.

From power supply point of view, power stage has a full separated supply makes it totally independent. Driver and power stage separated  means a power stage not influenced by the other one, so 100 available.  Stabilized filament voltage eliminating inducted noise.

Huge power transformer has been designed to bring dynamic and pulse power. Due to its fully new designed output transformer I-70 works in a single push-pull ultra linear with triple load configuration and  then equipped with two KT170 per channel.

KT170 is a powerful tube but we prefer to take advantage of its feature to reduce distortion instead of simply   focusing on its power, by choosing a functioning point different than usual.

I-70 is rich in sensation and full of emotions. Each register shows details, accuracy and depth. This integrated will move you by its shimmering tones and structured soundstage.

SPECIFICATIONS

Type  Integrated Amplifier With Remote Control
Bias  Automatic
Power  50 W
Input type  5 lines, 1 Bypass output, 2 speaker output ( for bi-wiring)
Bandwidth  10Hz à 36KHz
Sensibility  150 mV
Number of blocks  1
Tubes list  4xKT170, 2xECC83, 3xECC82
Dimensions  40 x 40 x 25.5 cm
Weight  40 KG
Consumption  500 VA
