Dan D'Agostino Pendulum Integrated Amplifier

Sale price$29,995.00

Optional Modules: Standard

Dan D'Agostino Pendulum Integrated Amplifier

Pre-Order Now !

Overview

At the heart of the Pendulum Integrated Amplifier is the ingeniously re-engineered JFET input circuit topology, derived from the acclaimed Momentum C4 Preamplifier. This innovative technology enhances the performance and precision of the entire platform, guaranteeing an immersive listening experience that transcends expectations for a component of its size.

Driven by a custom toroidal transformer rated at 750VA and complemented by a nearly 25,000 μF capacitor bank, the Pendulum Integrated Amplifier delivers robust power output within a compact design. This advanced power supply ensures stable performance and minimizes distortion, allowing the amplifier to effortlessly drive challenging loudspeakers to their full potential.

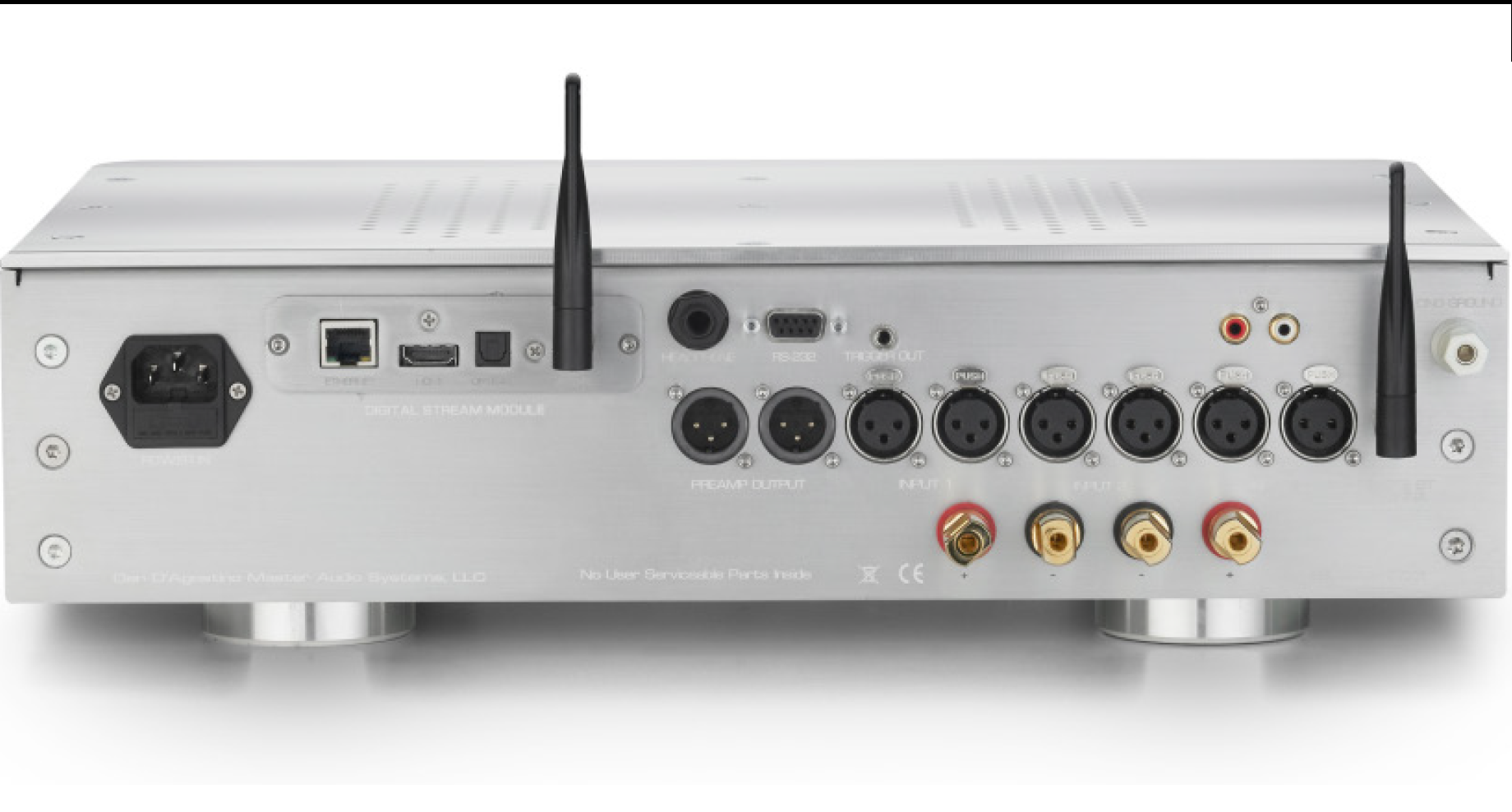

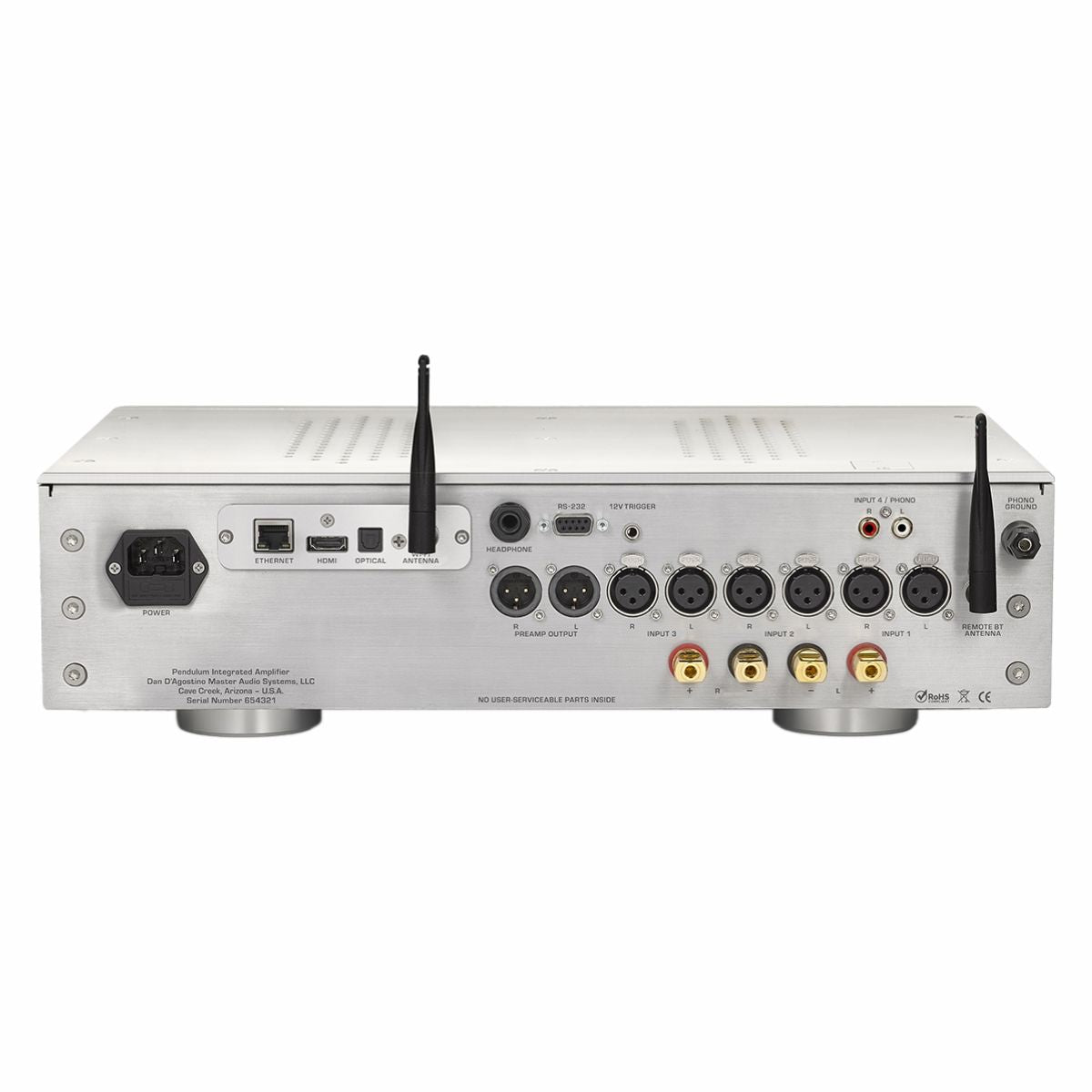

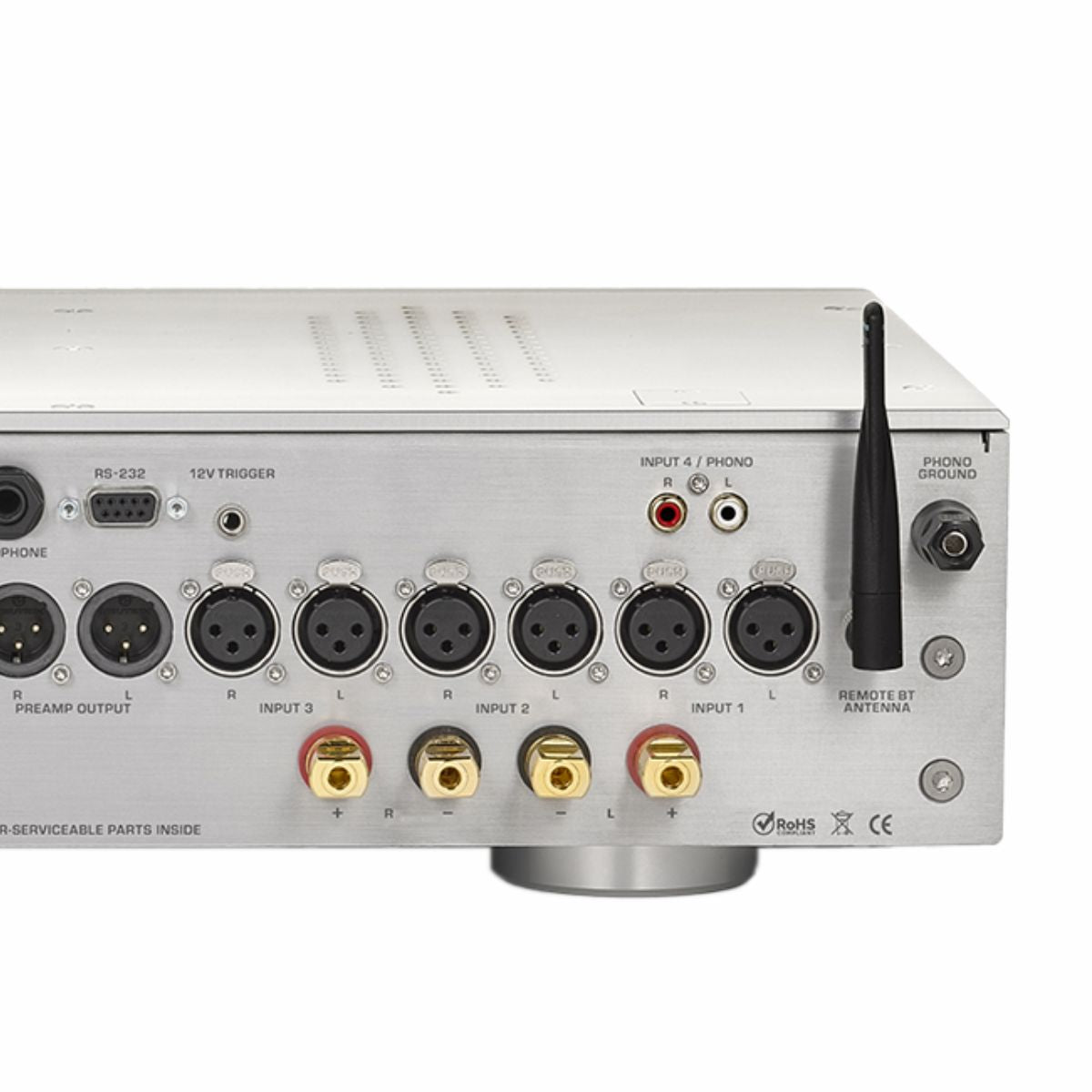

Seamless integration with various audio sources is key to the Pendulum’s versatility. Analog connections include one single-ended input for turntable use and three balanced inputs, one with theater pass-through. Balanced preamplifier outputs allow for effortless integration of subwoofers, providing maximum flexibility to tailor your sound experience. Additionally, a moving-coil phono module accommodates turntable playback, catering to vinyl enthusiasts with exceptional performance.

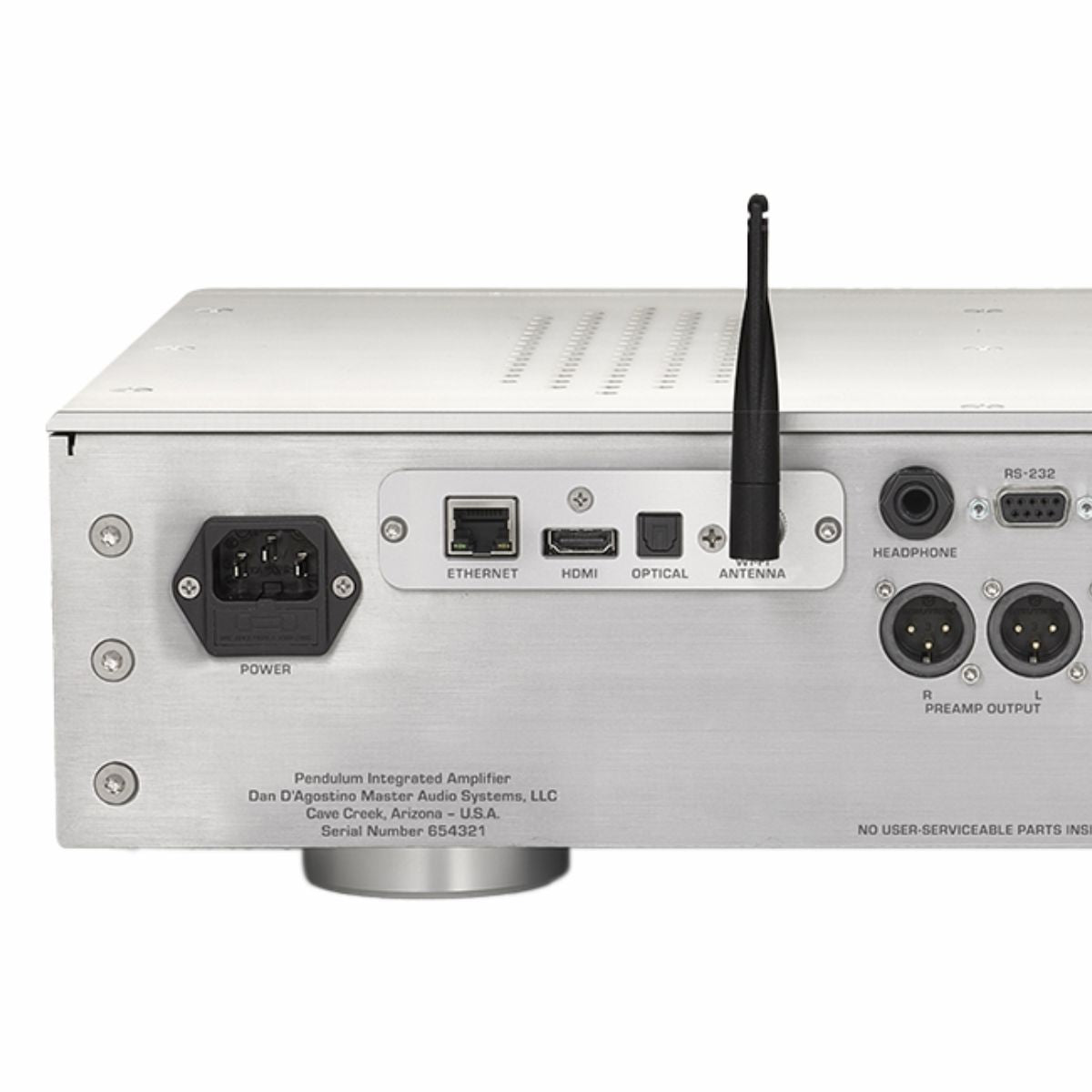

The Pendulum Integrated Amplifier is equipped with a comprehensive suite of digital connections, ensuring seamless integration with modern audio sources and systems. Featuring optical and both RJ45 and Wi-Fi network connections, it offers unparalleled connectivity options. Notably, it is the first D’Agostino component to include an HDMI input with eARC functionality, simplifying integration into home entertainment systems.

With a Bluetooth-enabled remote control housed in Delrin®, the Pendulum Integrated Amplifier offers intuitive control over unit functions and settings. The remote’s ergonomic design and LCD screen mirror the information displayed on the component’s front panel.

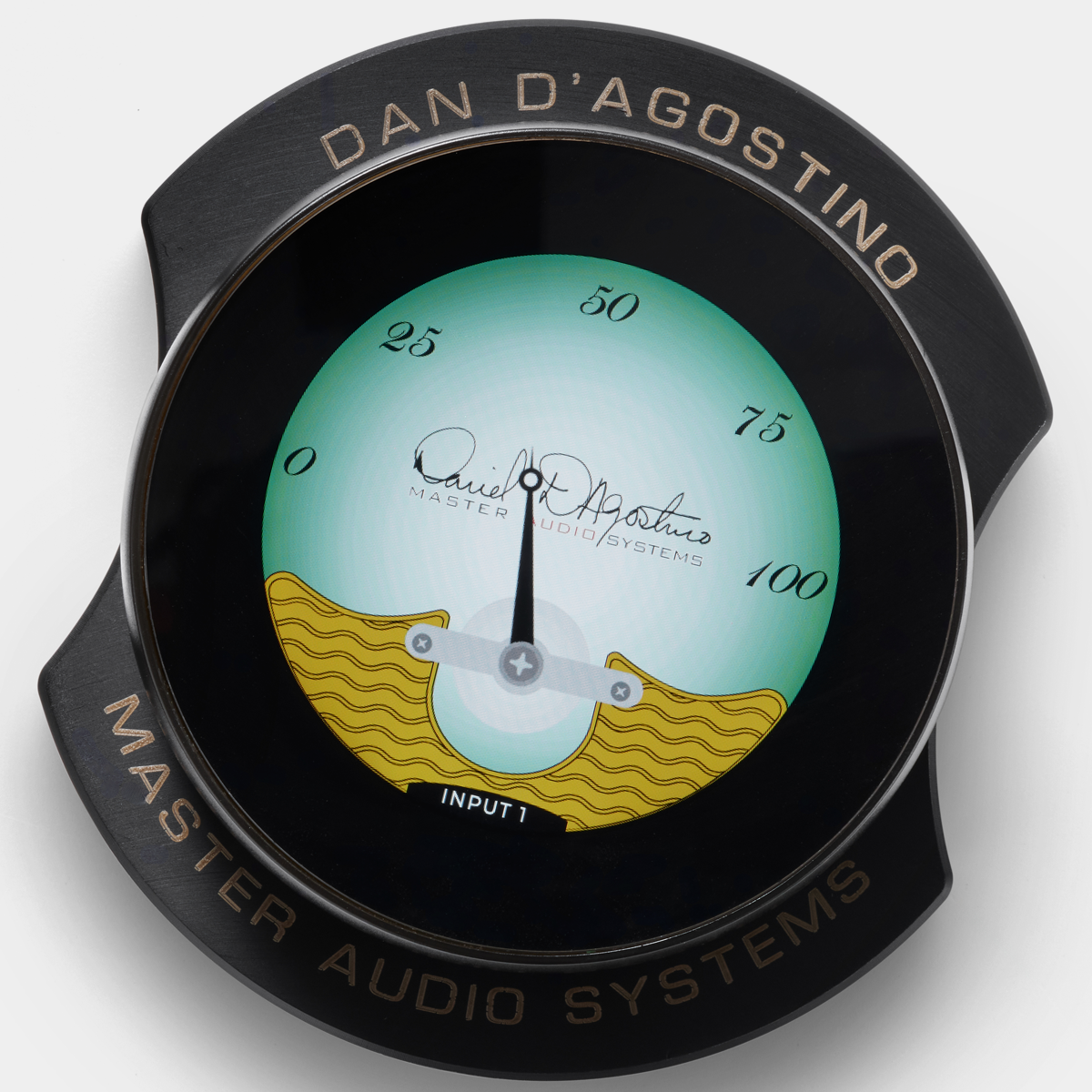

Highlighting its aesthetic appeal, the Pendulum Integrated Amplifier features an LCD display inspired by Swiss watch design, offering real-time updates on unit status, functions, and metadata. This refined detail adds a touch of sophistication to any audio setup.

Specification

Frequency Response: 1 Hz to 80kHz, -0.5dB / 20 Hz to 20 kHz, +-0.01 dB
Signal-to-Noise Ratio: 100 dB, unweighted; 95 db A-weighted
Finish: Silver / Black
Input Impedance: 1 MΩ
Output Power: 120 W @ 8 Ω / 240 W @ 4 Ω
Output Impedance: .1Ω
Distortion (Full output): 120 W @ 8Ω / .015% @ 1kHz
Outputs: 1 pr balanced XLR stereo; 5-way speaker binding posts; ¼-inch headphone
Dimensions: 43.2 x 11.8 x 35.6 cm (w x h x d)
Weight: 15.9 kg
Analog Inputs: 3 pr balanced XLR stereo; 1 pr unbalanced RCA stereo
Digital Inputs (w/DAC Module Installed): 1 ea optical; RJ45; Wi-Fi; HDMI with eARC
Control: RS-232
