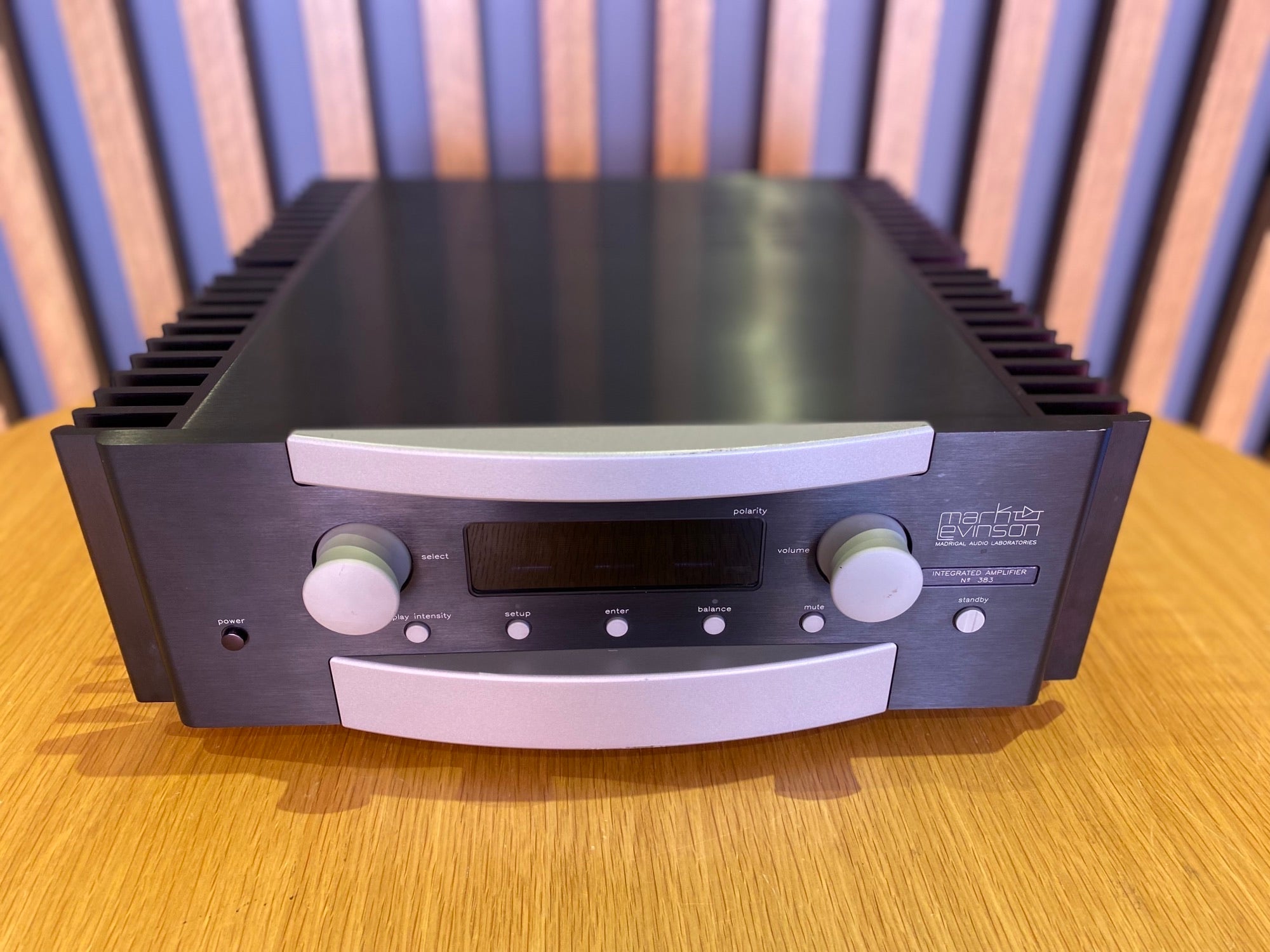

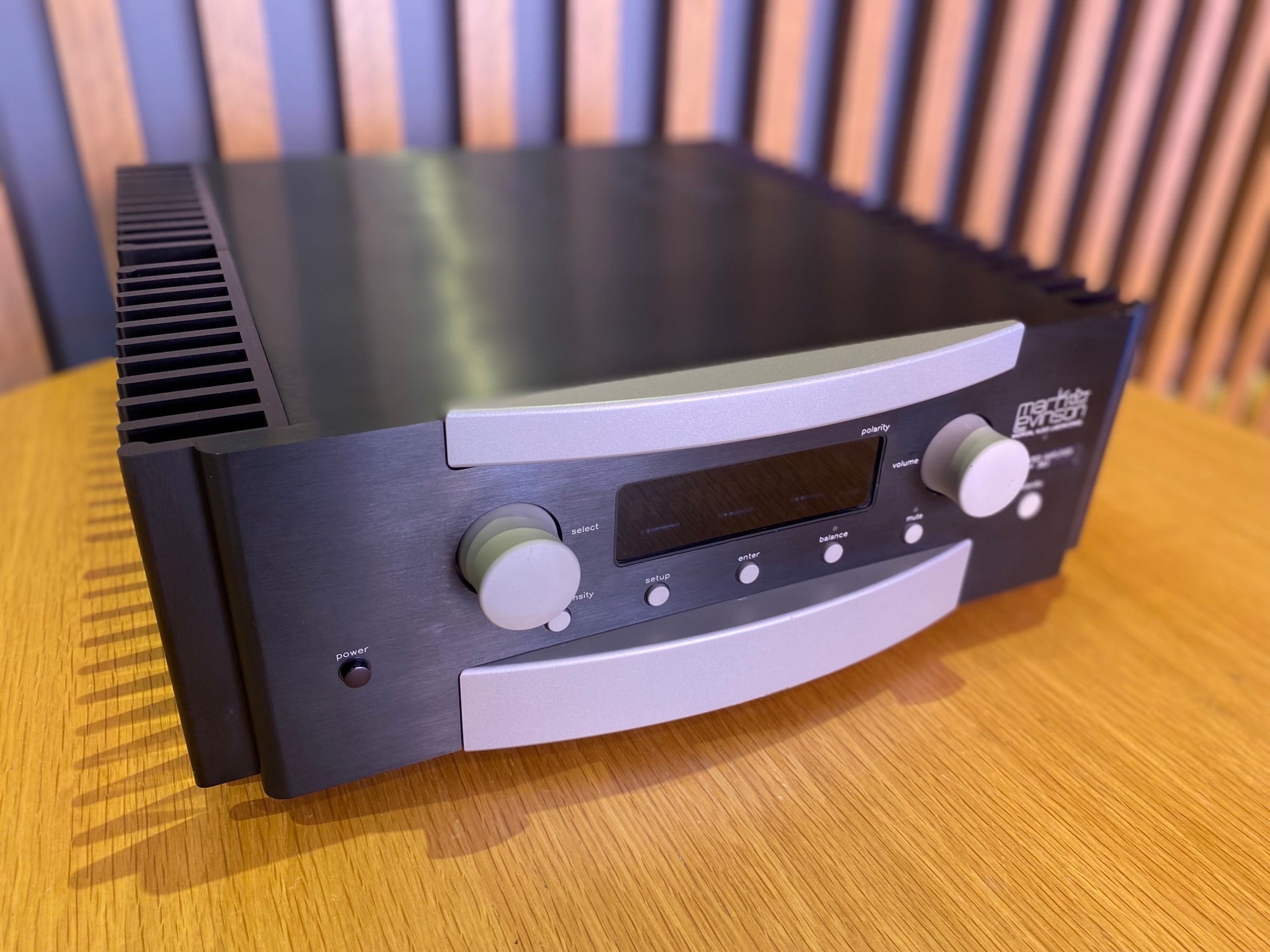

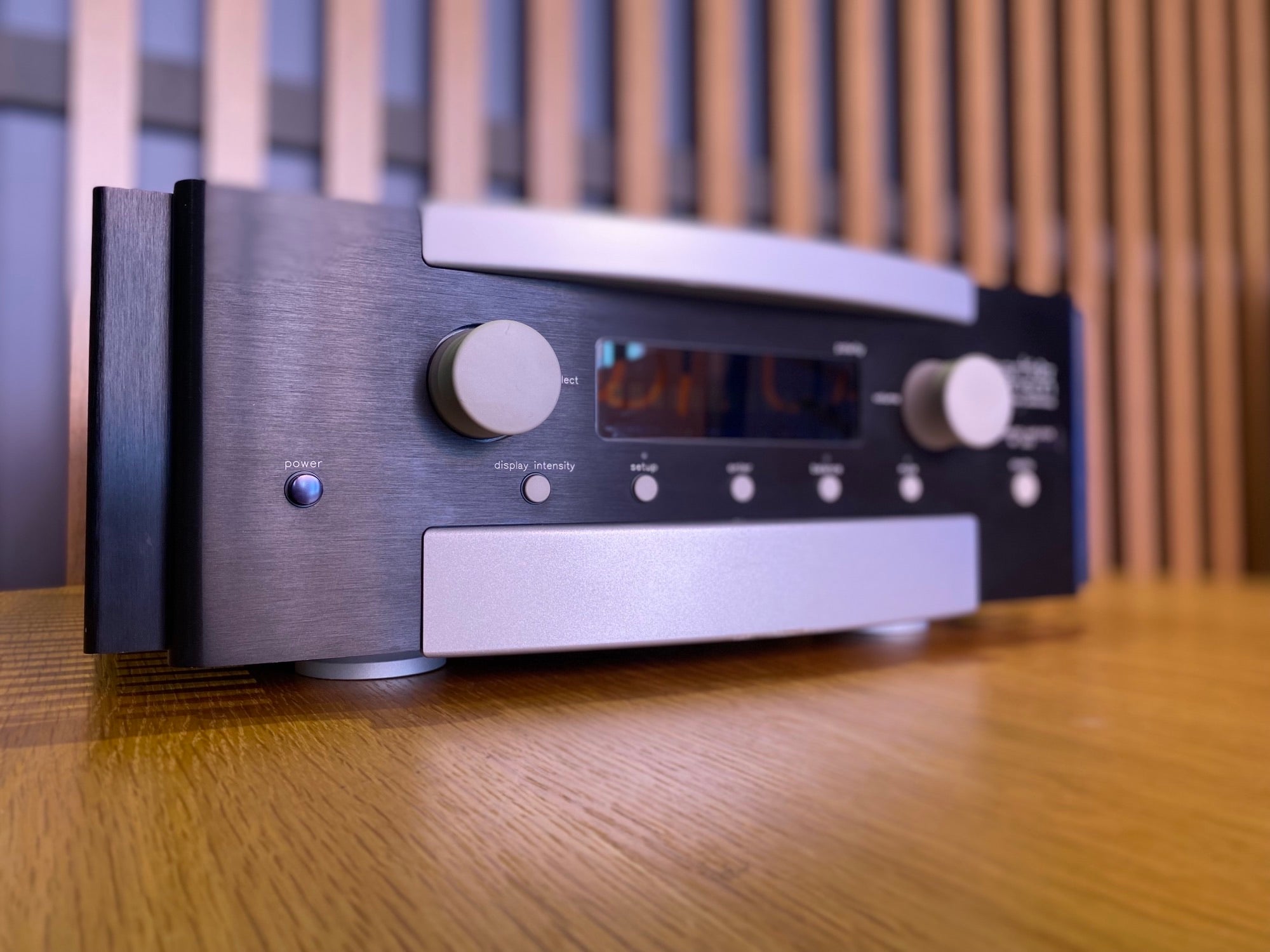

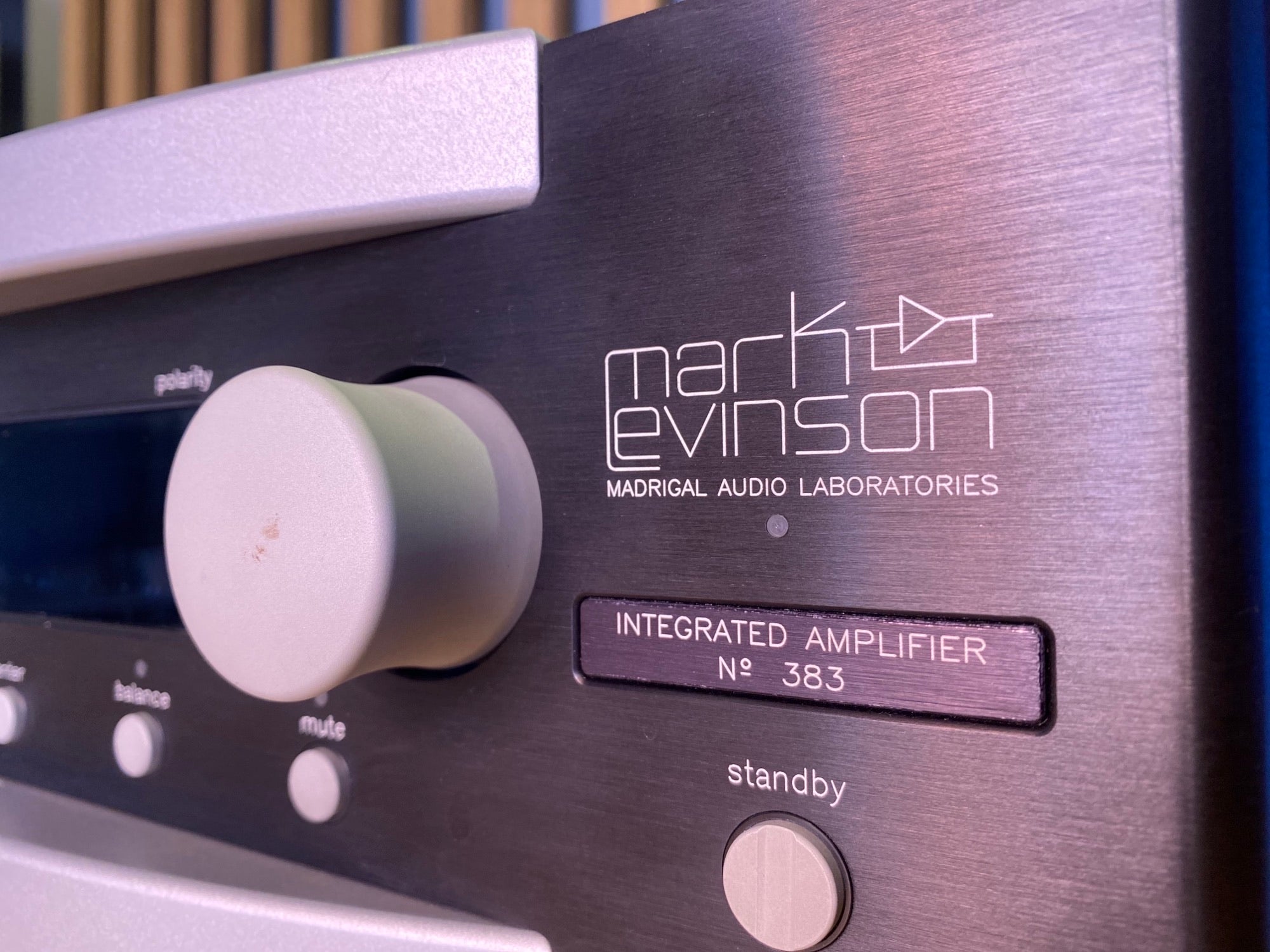

Mark Levinson No.383 Integrated Amplifier - As Traded

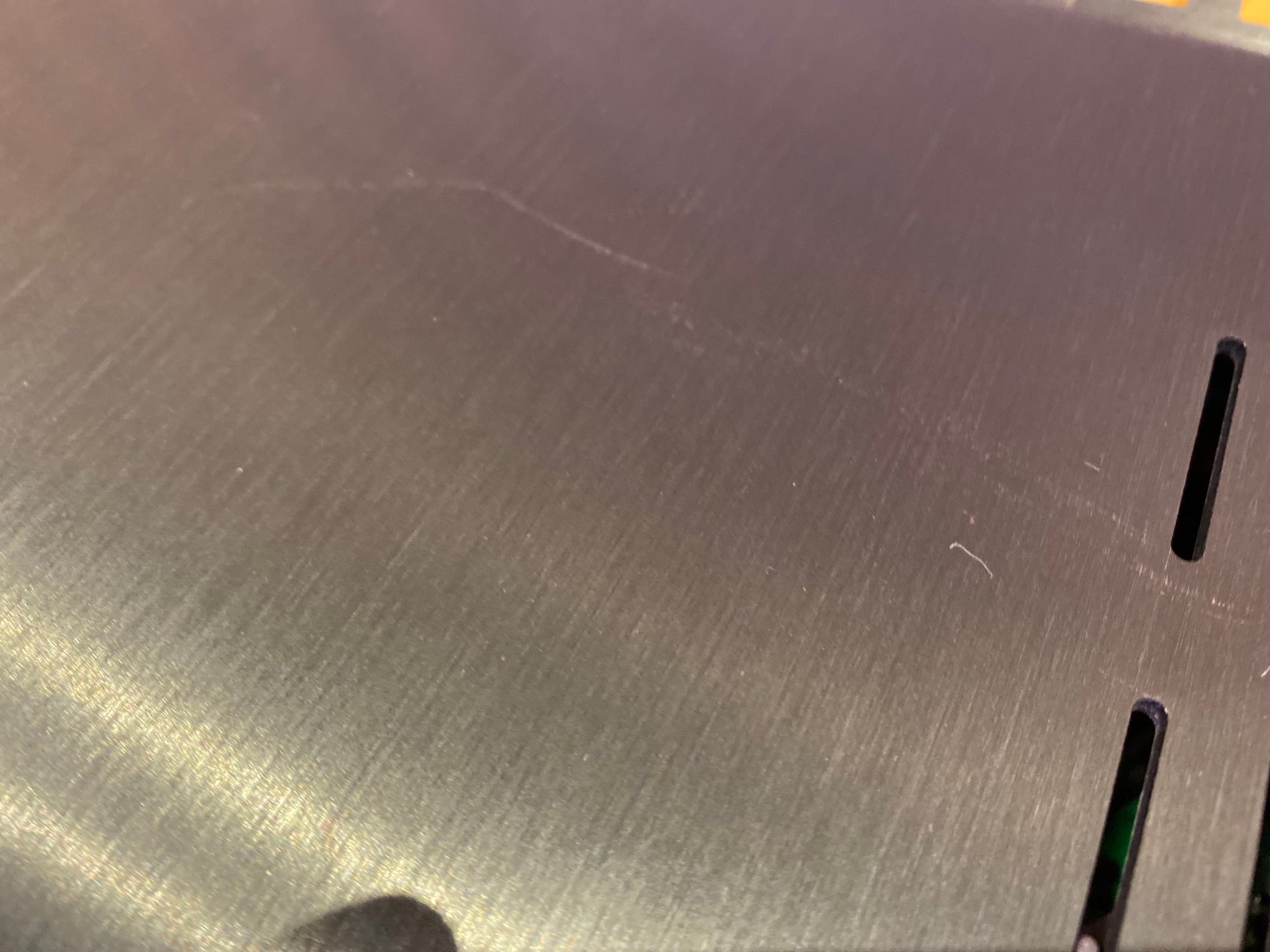

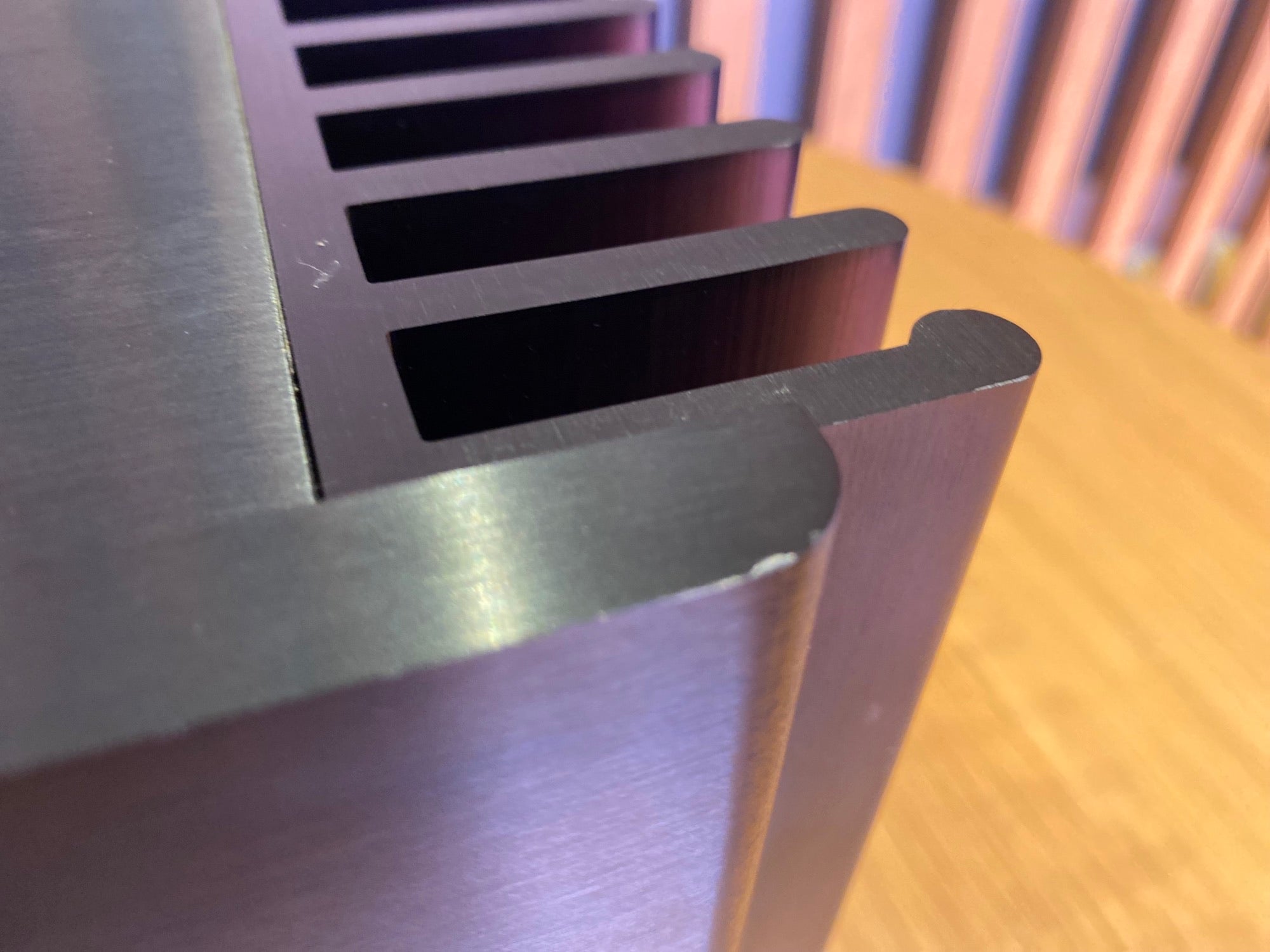

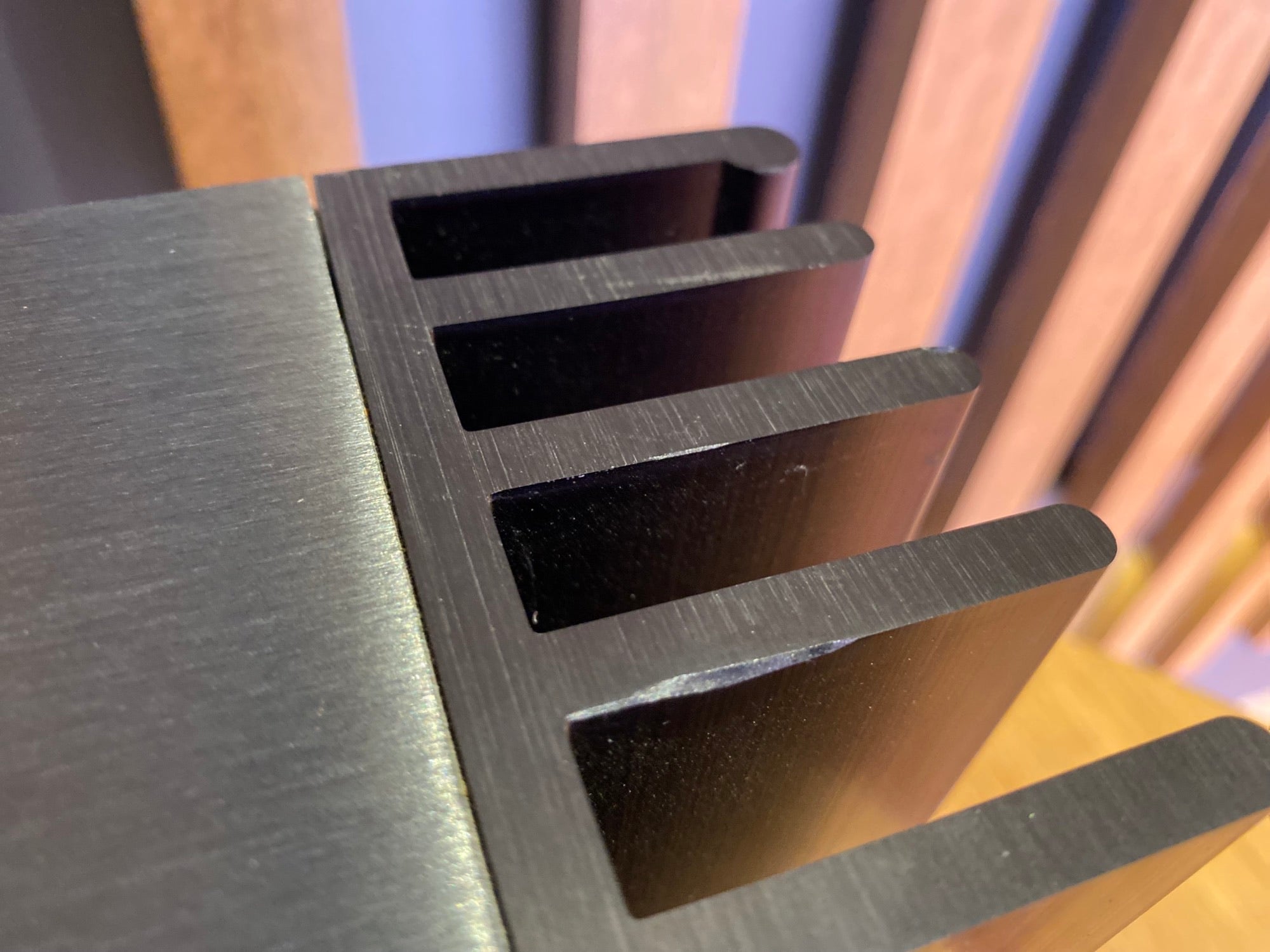

Condition: Good (Fully Tested) -See Photos

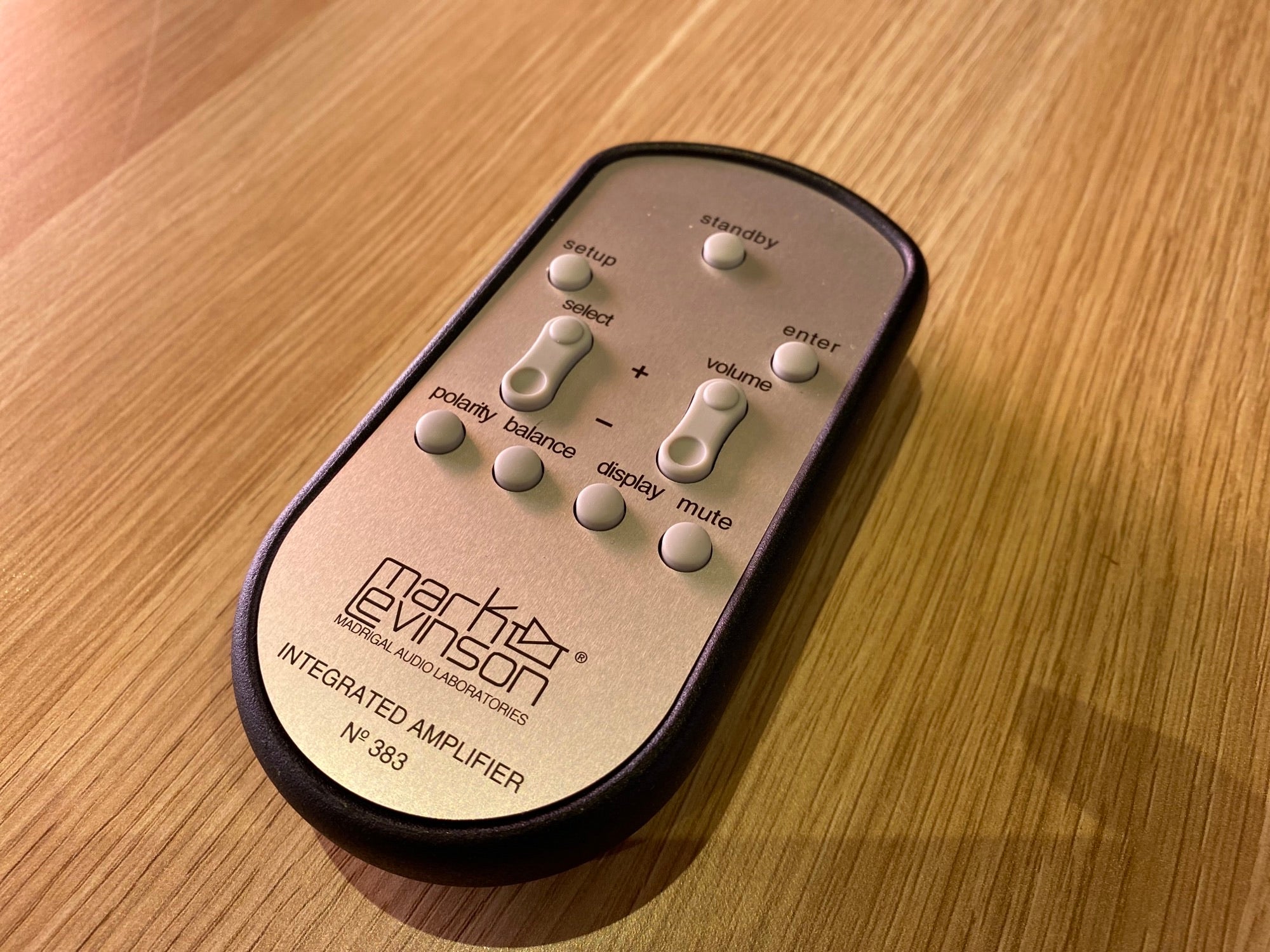

Includes : Remote Control, No Box

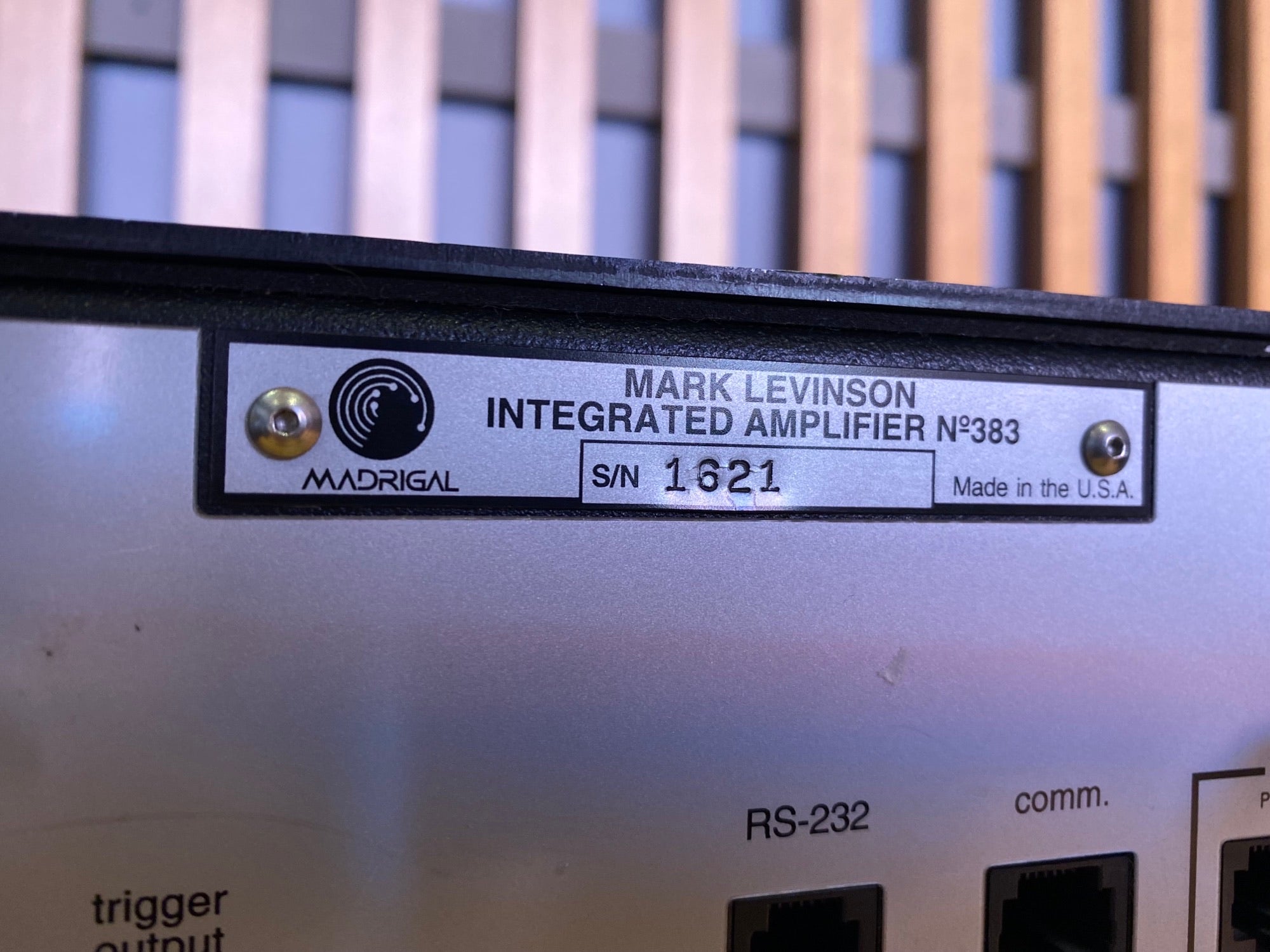

SN: 1621
The Audio Connection Certified stamp guarantees your next pre-owned product comes with:
✔️ Comprehensive three month warranty*
✔️ Passed our checks for functionality
✔️ A full inspection noting for any defects
✔️ A full completeness check for all included parts and accessories
Description: Solid-state integrated stereo amplifier.

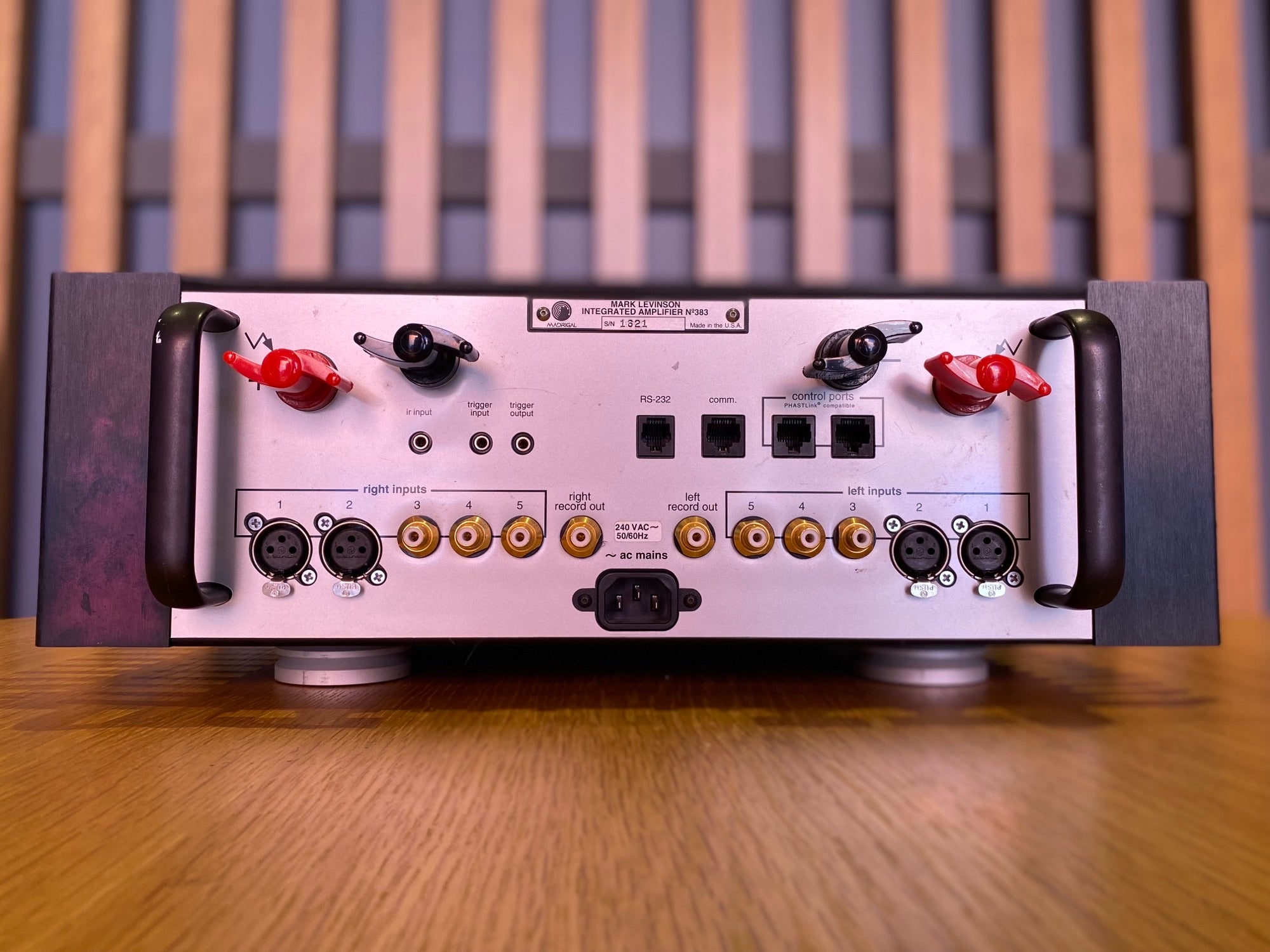

Preamplifier section: Line-level inputs: two pairs balanced (XLR), three pairs single-ended (RCA, optional). Outputs: one pair record outputs (RCA), one IEC AC mains receptacle, one ground terminal. Controller connections: three 3.5mm mini-jacks (IR input, DC trigger out/in), one Mark Levinson Link communications connector, one 6-pin RJ-11 RS-232 port, two 8-pin RJ-45 control ports (PHASTLink-compatible).
Voltage gain: 0, 6, 12, or 18dB in line stage (26.9dB in amplifier stage).
Volume control range: 72.2dB. Gain resolution: 0.1dB steps above 38.5 in display (-34.7dB). Input overload: 4V on XLR, 2V on RCA (gain set to +12dB); 16V on XLR, 8V on RCA (gain set to 0dB).
Frequency response: 10Hz-40kHz, ±1.0dB. Input impedance: 100k ohms. THD+noise: ±0.3%.
Mains voltage: 100V, 120V, 220V, 230V, or 240VAC at 50 or 60Hz (factory set). Power consumption: typically 100W at standby, 200W at idle, 1200W at 4 ohms at rated output.
Amplifier section:
Rated output power: 100Wpc into 8 ohms (20dBW), 20Hz-20kHz, less than 0.3% THD (FTC):
200W minimum continuous into 4 ohms (20dBW). Frequency response: 20Hz-20kHz, ±0.1dB. Output impedance: ±0.05 ohms, 20Hz-20kHz.
Damping factor: greater than 800, 20Hz-20kHz into 8 ohms.
Speaker connections: one pair Madrigal-designed speaker binding posts.
Dimensions: 446mm W x 166mm) H x 495.3mm D.
Shipping weight: 36 kg
