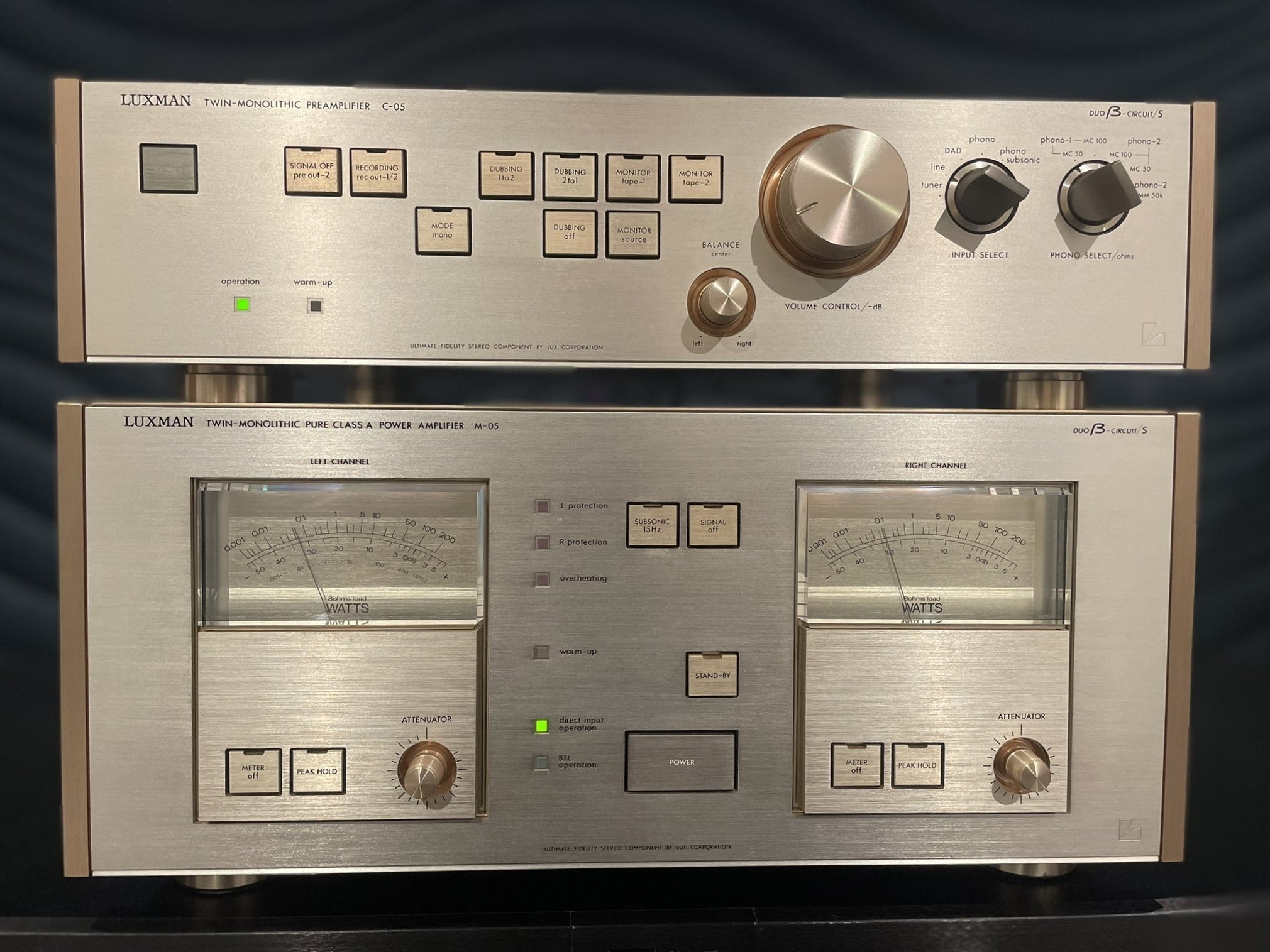

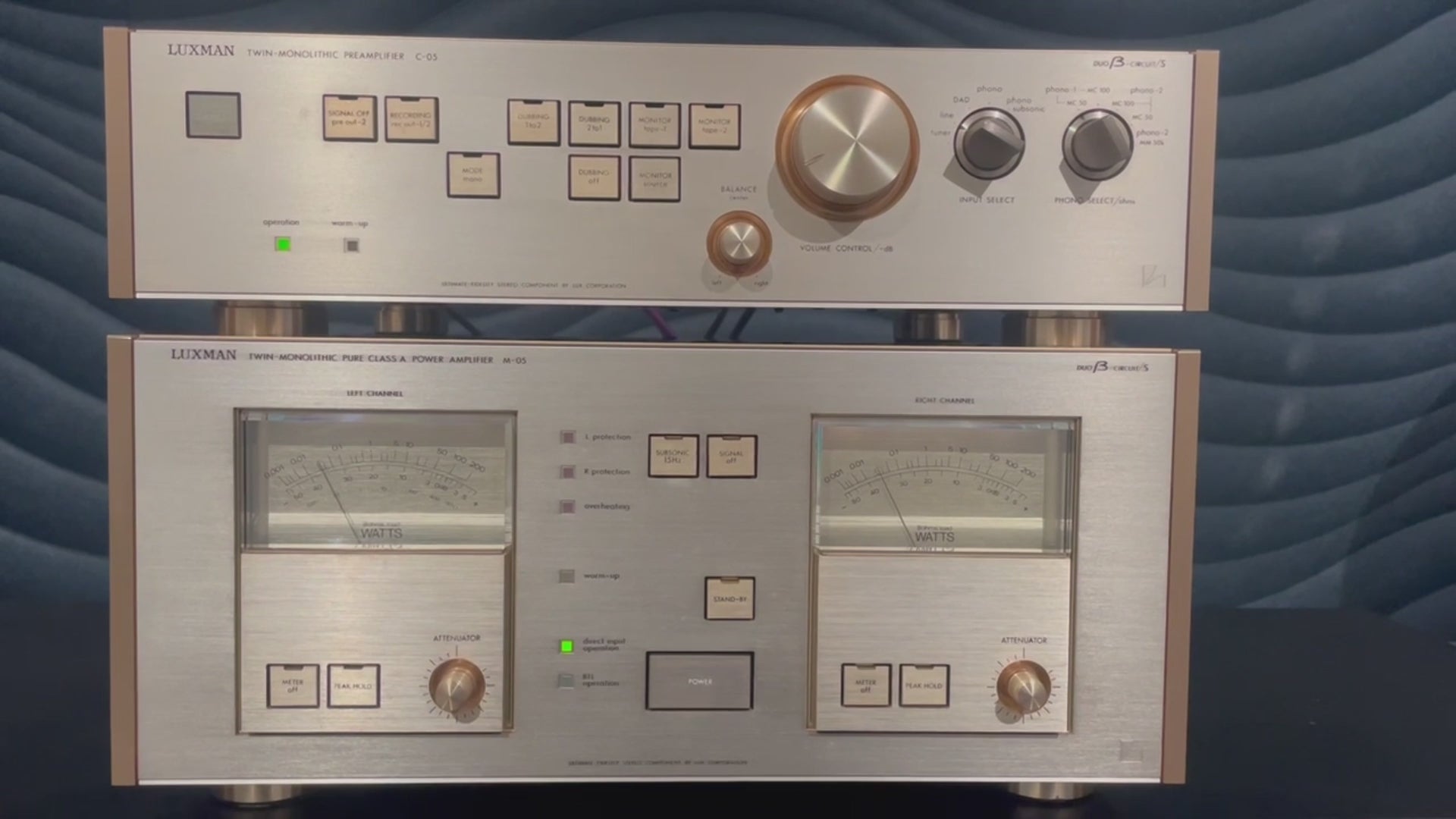

Luxman C-05 Preamplifier and M-05 Stereo Power Amplifier Combo - Consignment

Luxman C-05 Preamplifier and M-05 Stereo Power Amplifier Combo - Consignment

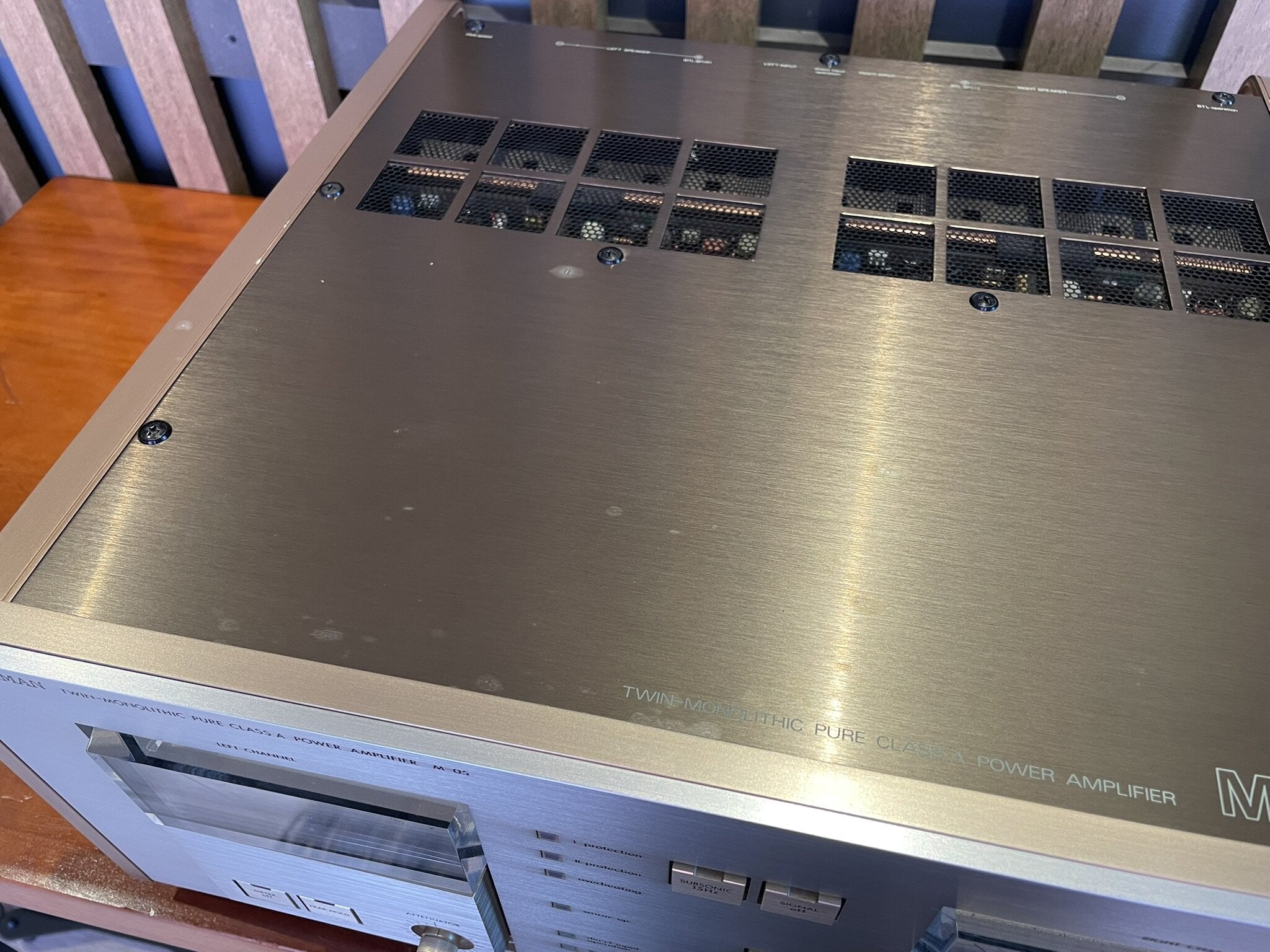

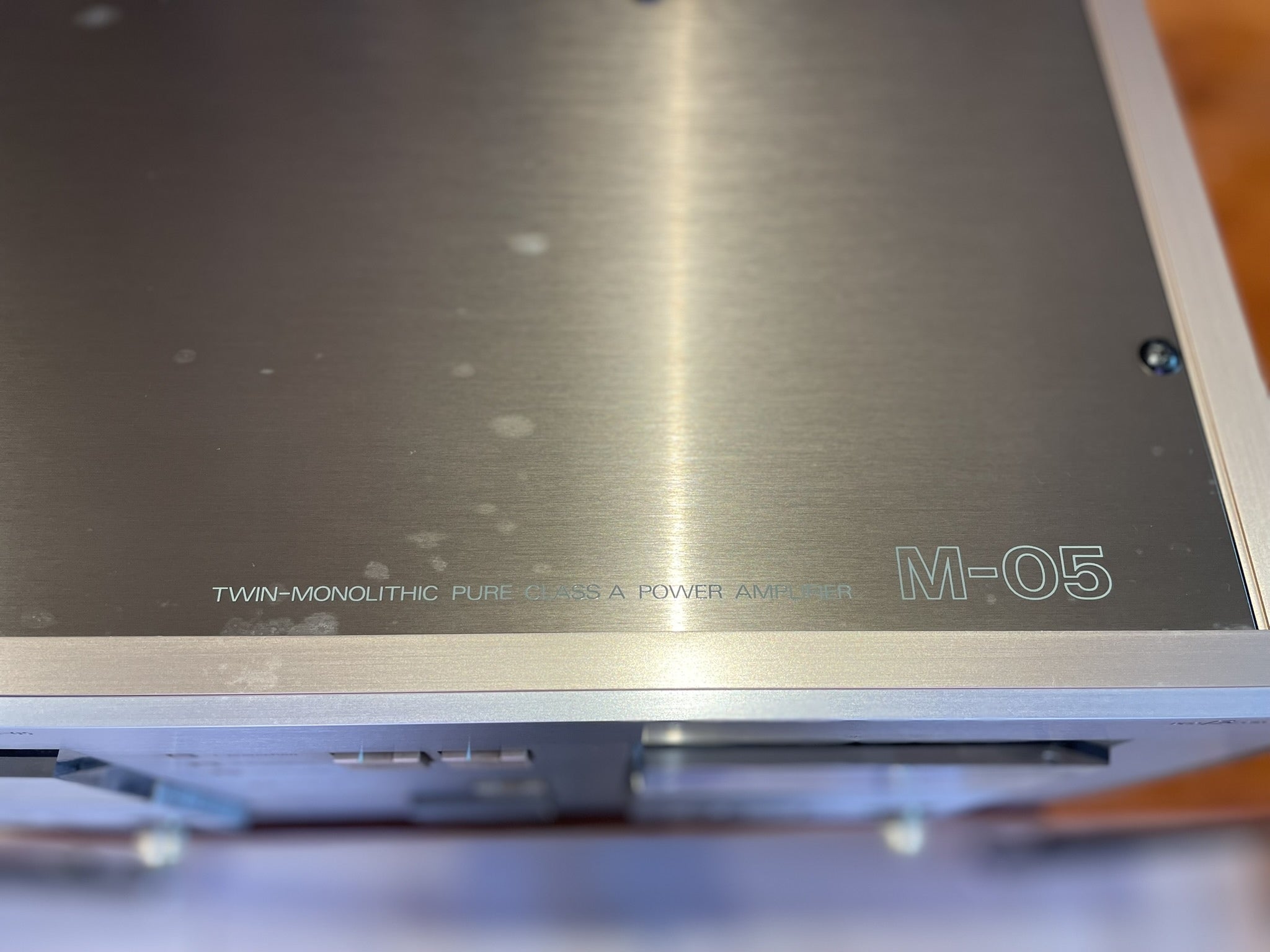

Condition: Very Good, some marks and scratches. Power amp serviced November 2024.

Includes: Power Cables only

SN: C-05 40910781 / M-05 40910447

Overview

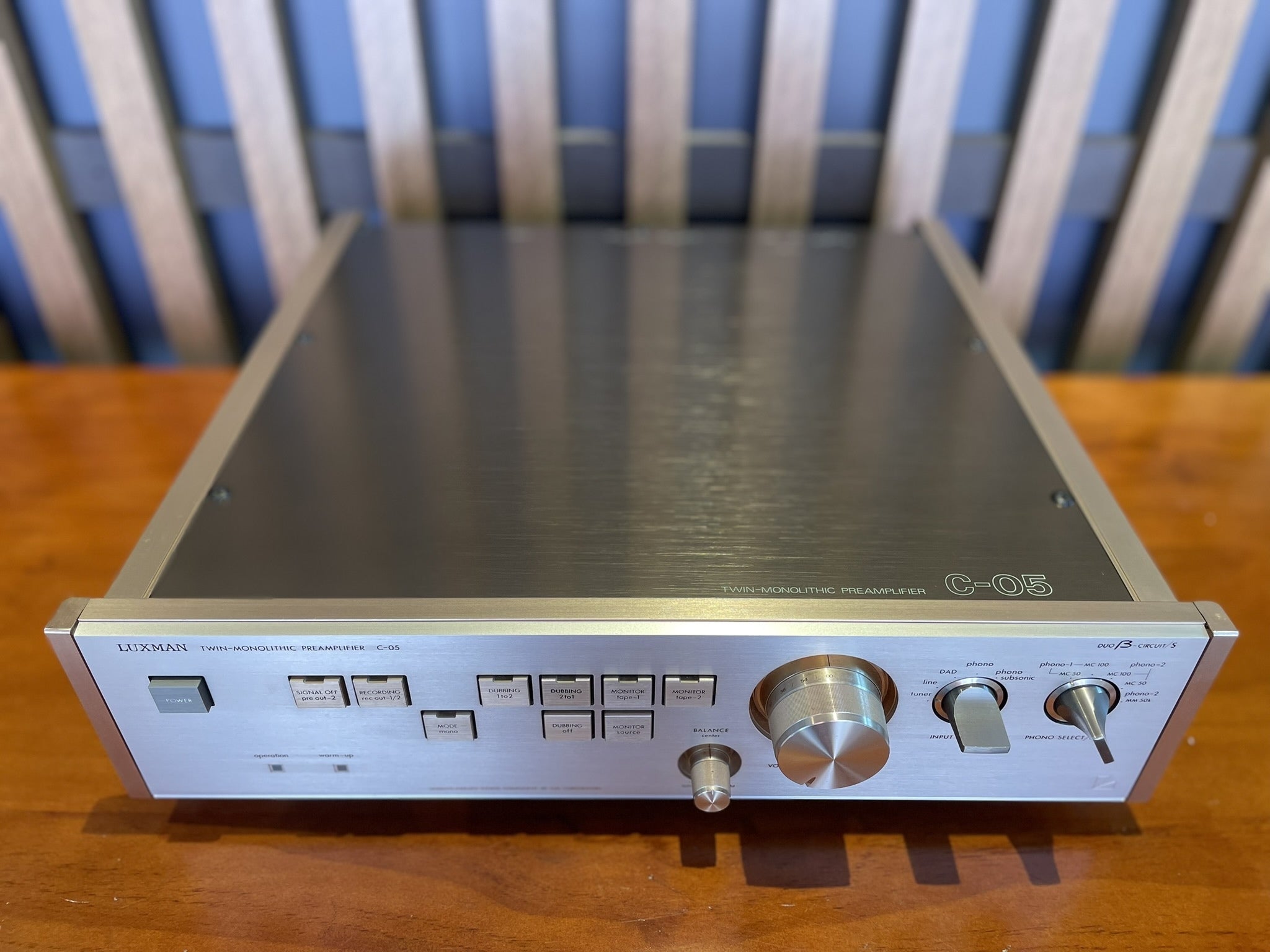

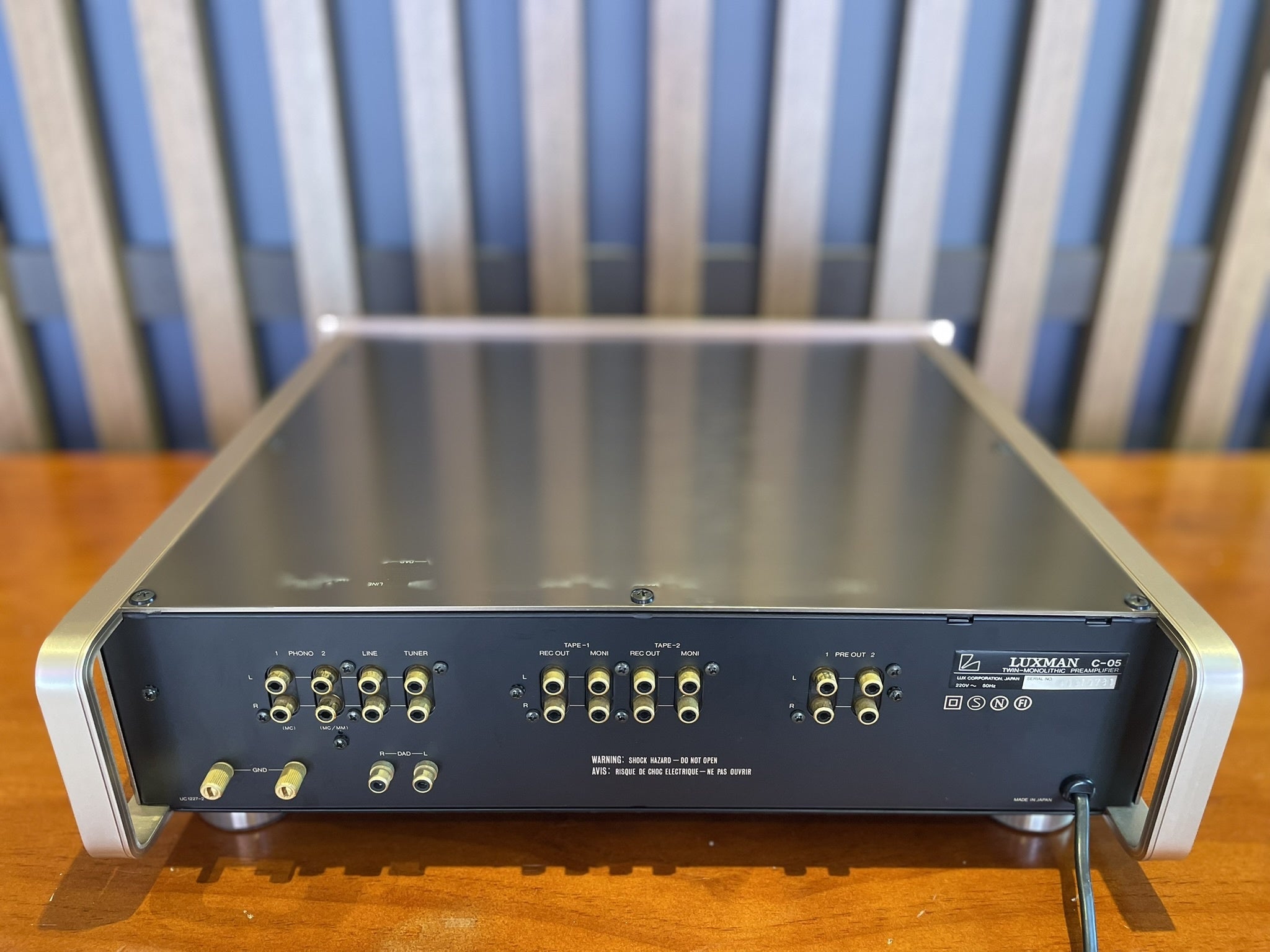

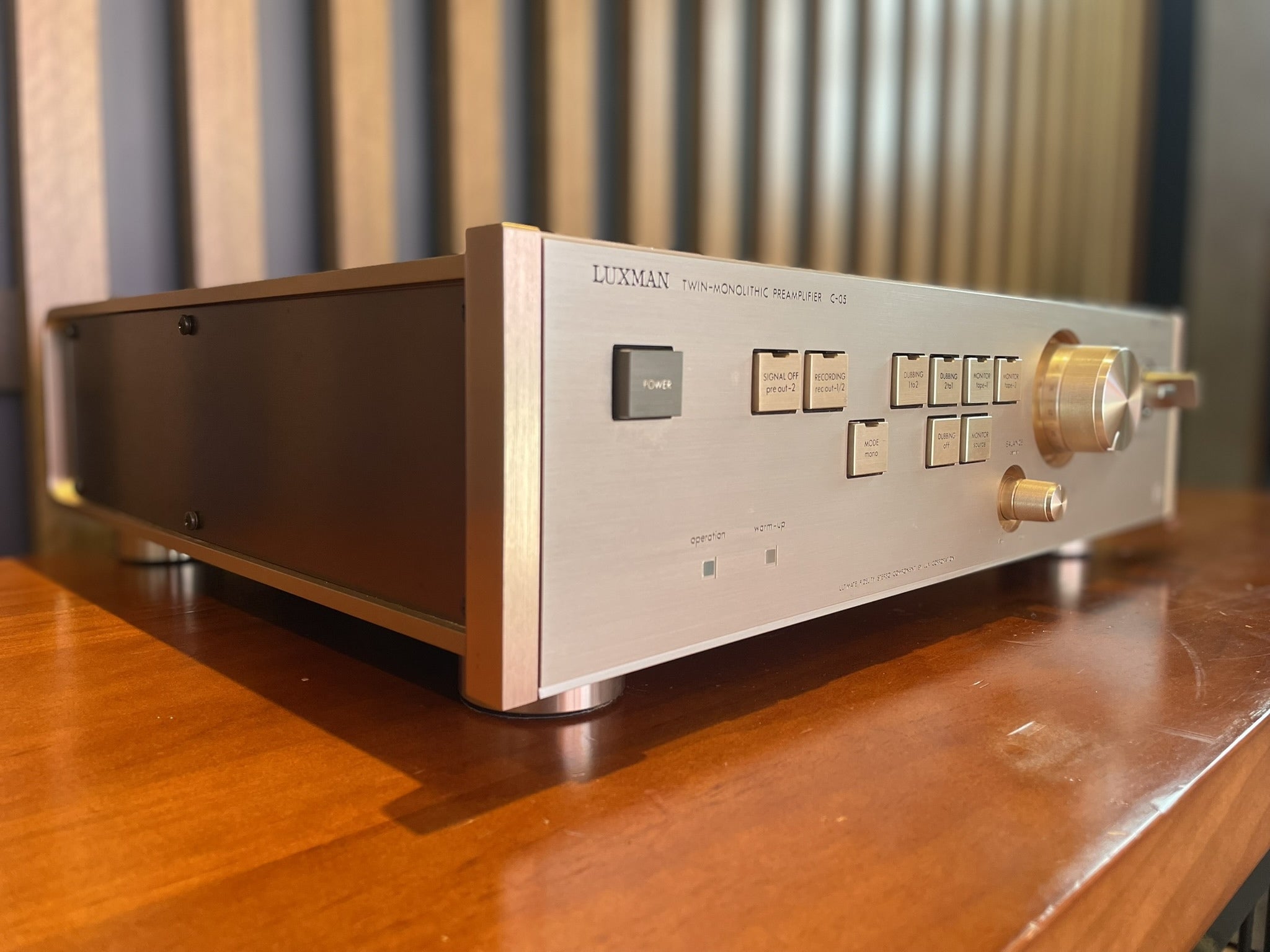

C-05 Preamplifier

The C-05 preamplifier, designed to complement the M-05, features an innovative single-stage amplifier circuit utilizing Luxman's proprietary duo-beta technology. This approach balances an optimized amount of NFB (negative feedback) for enhanced sound quality with a DC servo to tighten the sound image beyond the audible spectrum. By simplifying the circuit to a single-stage design, the C-05 eliminates the need for a second-stage amplifier, ensuring stable open-loop characteristics and minimizing modulation and noise introduced by power supply fluctuations. This design also avoids interference from staggered frequency corrections common in multi-stage amplification, preserving the purity and freshness of the music.

The head amplifier employs a single-stage differential cascode design with low-noise transistors, while the equalizer and flat amplifiers use a symmetrical differential double-cascode push-pull circuit. This configuration delivers low distortion, high signal-to-noise performance, and faithful music reproduction. The C-05 further enhances sound integrity by eliminating output capacitors, avoiding coloration between stages. The power supply section features an independent supply for the head amplifier and servo circuit, a compact circular transformer for stable voltage, and high-quality electrolytic capacitors to ensure low leakage and distortion.

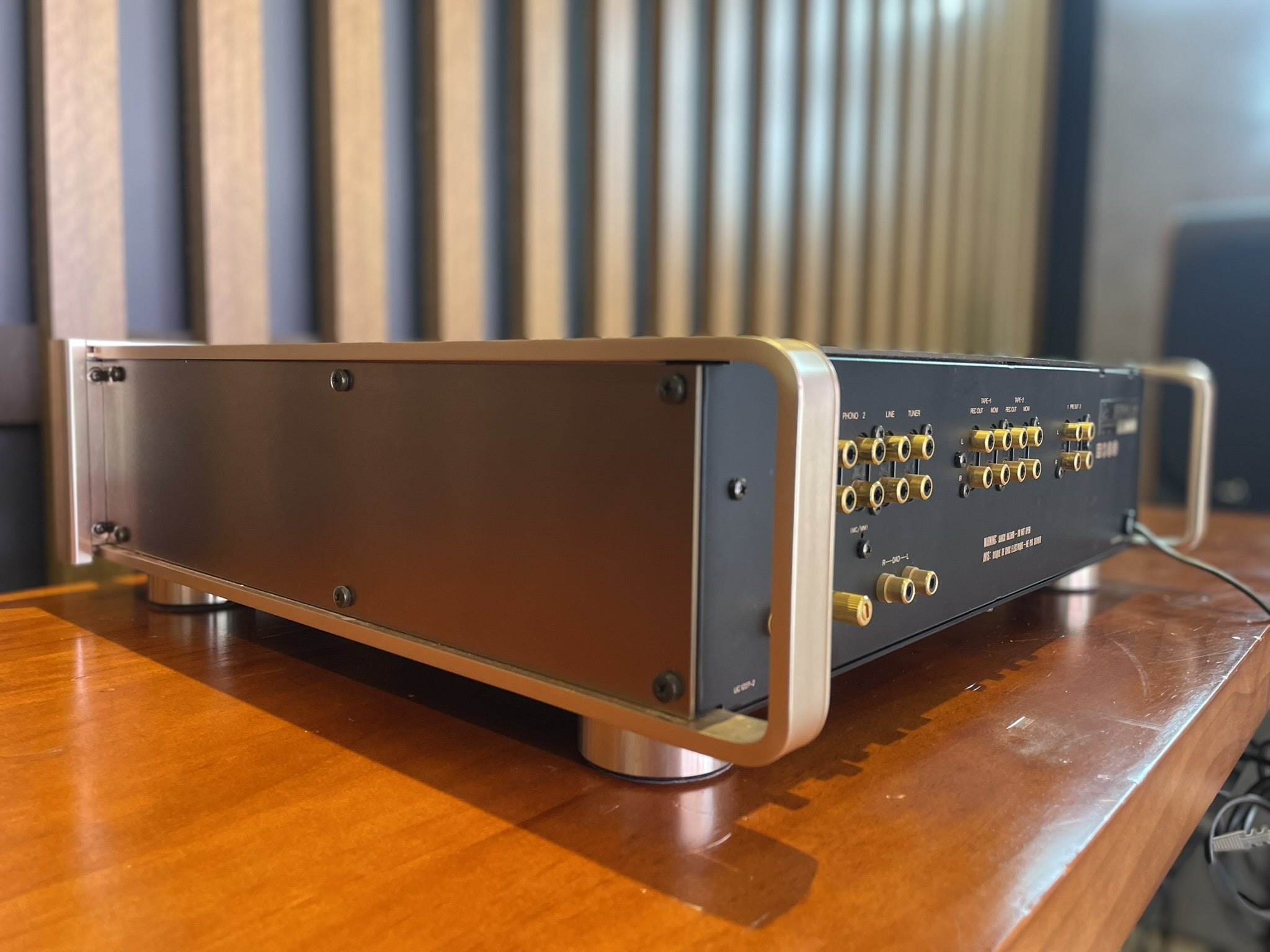

Built with meticulous attention to detail, the C-05 uses aluminum and copper chassis construction to suppress vibrations, oxygen-free copper wiring, and gold-plated connectors to maintain signal integrity. A precision detent volume attenuator ensures linear control and excellent sound quality, while non-polar film capacitors are selected for superior performance. This thoughtful engineering reflects Luxman’s dedication to delivering an uncompromising listening experience with the C-05.

M-05 Stereo Power Amplifier

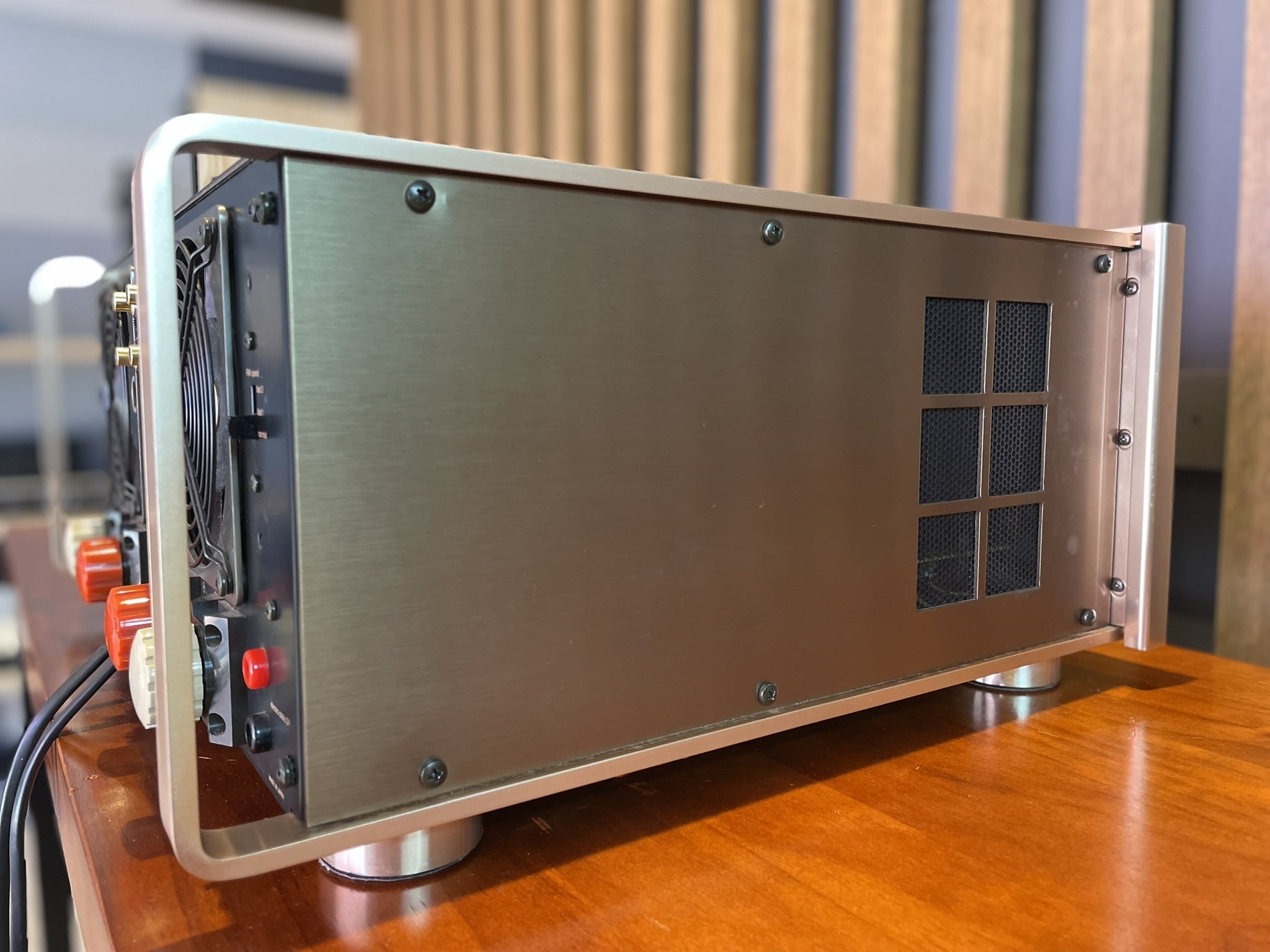

The M-05 stereo power amplifier features a twin monaural configuration and operates in true Class A mode using a direct bias current method. It delivers an impressive output of 105W + 105W, supported by a large custom-designed heat sink and low-noise fan, ensuring high-quality power delivery with ample headroom. For added versatility, the amplifier can function as a 400W monaural power amplifier in BTL mode, maintaining high fidelity through a dedicated inverter with an inverting input amplifier.

At the core of the M-05 is Luxman's duo-beta technology, which combines a precisely controlled amount of NFB (negative feedback) for sound quality with a DC servo that tightens sound imaging beyond the audible range. This design eliminates the need for high open-loop gain, enabling a simplified single-stage amplifier configuration without the drawbacks of conventional multi-stage designs. This architecture eliminates power supply modulation and high-frequency interference, preserving the clarity and freshness of the music.

The power supply system incorporates a custom-designed transformer hardened with silica sand to reduce heat and vibration, along with large-capacity electrolytic capacitors for stable and instantaneous power delivery. Anti-magnetostriction measures and carefully selected materials, including oxygen-free copper wiring and precision components, further enhance sound quality. With a meticulous grounding system and optimized chassis design, the M-05 ensures minimal noise and distortion, delivering an unparalleled listening experience.

Specification

C-05 Preamplifier

Type: Control amplifier

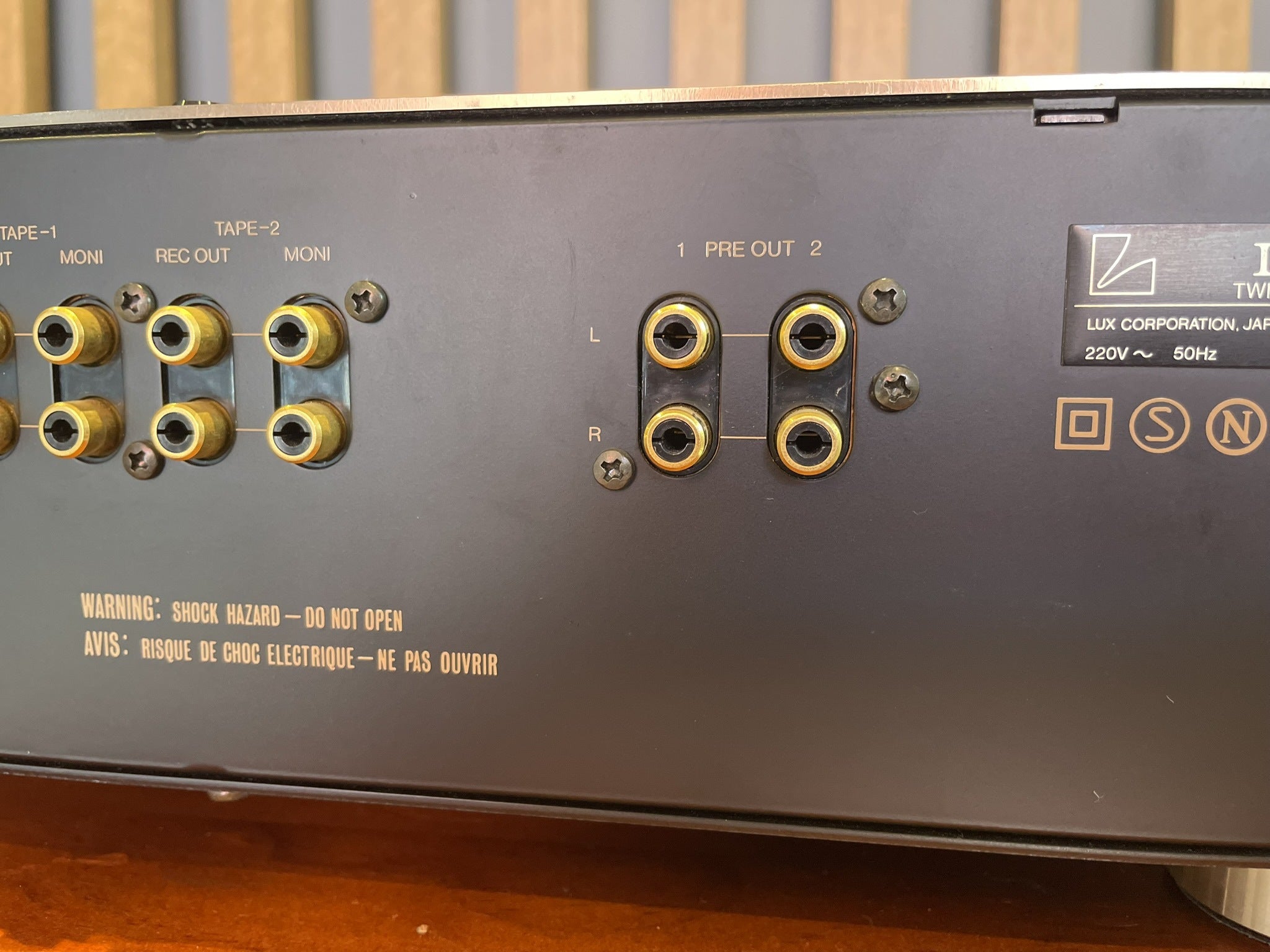

Output Voltage: Pre Out: 1V (rated), 12V or more (maximum)
Output Impedance: Pre Out: 47Ω
Total Harmonic Distortion Factor:
Phono1, 2: 0.03% or less (Rec Out: 2V, 1kHz)
DAD, Monitor1, 2: 0.05% or less (Pre Out: 2V, 1kHz)
Tuner, Line: 0.002% or less (Pre Out: 2V, 1kHz)
Frequency Characteristic:
Phono1, 2: 20Hz to 20kHz ±0.2dB
DAD, Monitor1, 2: 1Hz to 50kHz ±0.5dB
Tuner, Line1, 2: 1Hz to 50kHz ±0.5dB
Input Sensitivity (Output 1V):
Phono MM: 2mV
Phono MC: 100μV
DAD, Monitor1, 2: 150mV
Tuner: 150mV (with input level set)
Line: 150mV
Input Impedance:

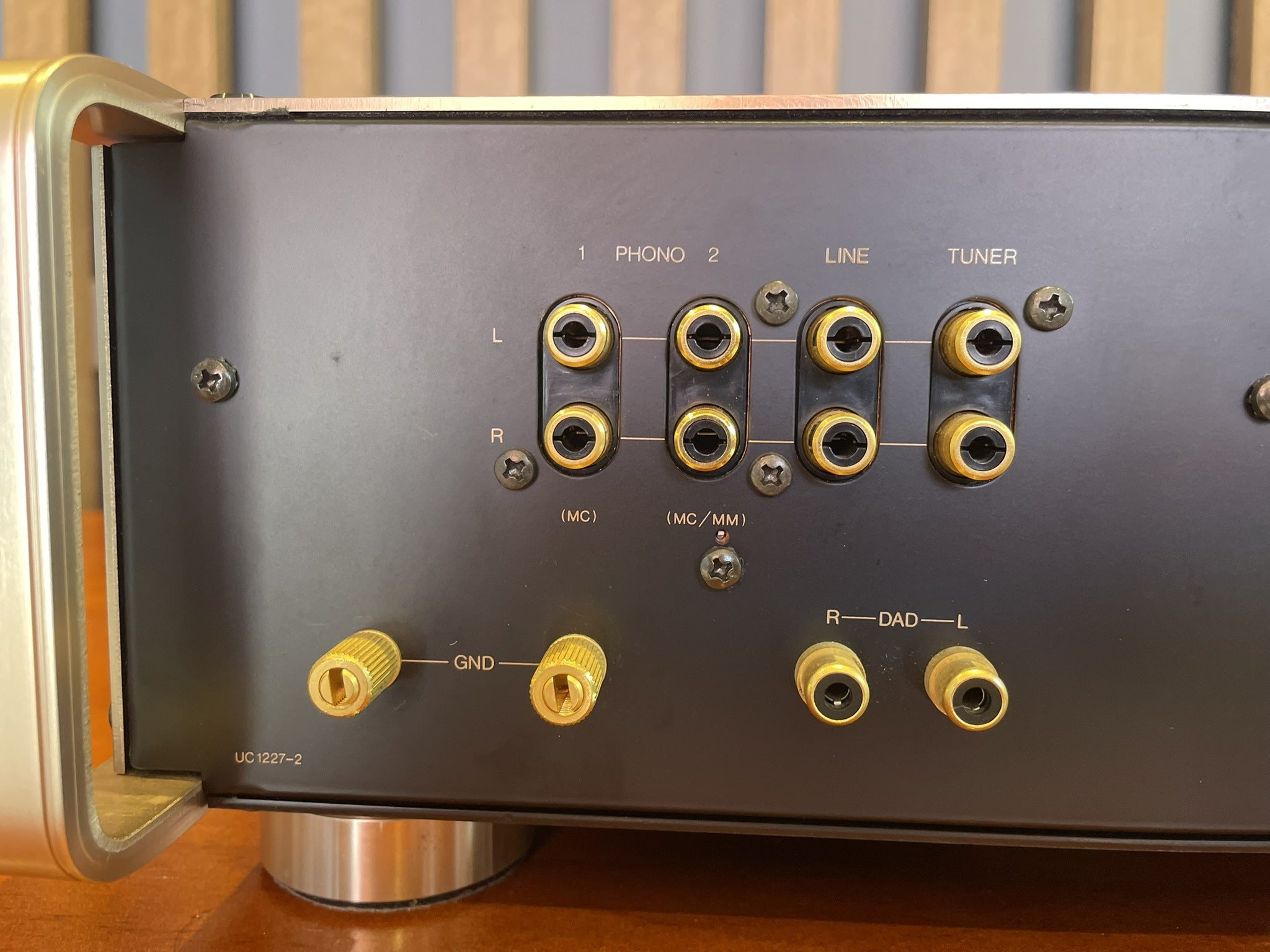

Phono1, 2: 50kΩ, 100kΩ
DAD, Monitor1, 2: 100kΩ
Tuner: 50kΩ
Line: 100kΩ
Signal-to-Noise Ratio (IHF-A corrected):
Phono1, 2: 90dB or more
DAD, Monitor1, 2: 110dB or higher
Tuner, Line: 110dB or higher

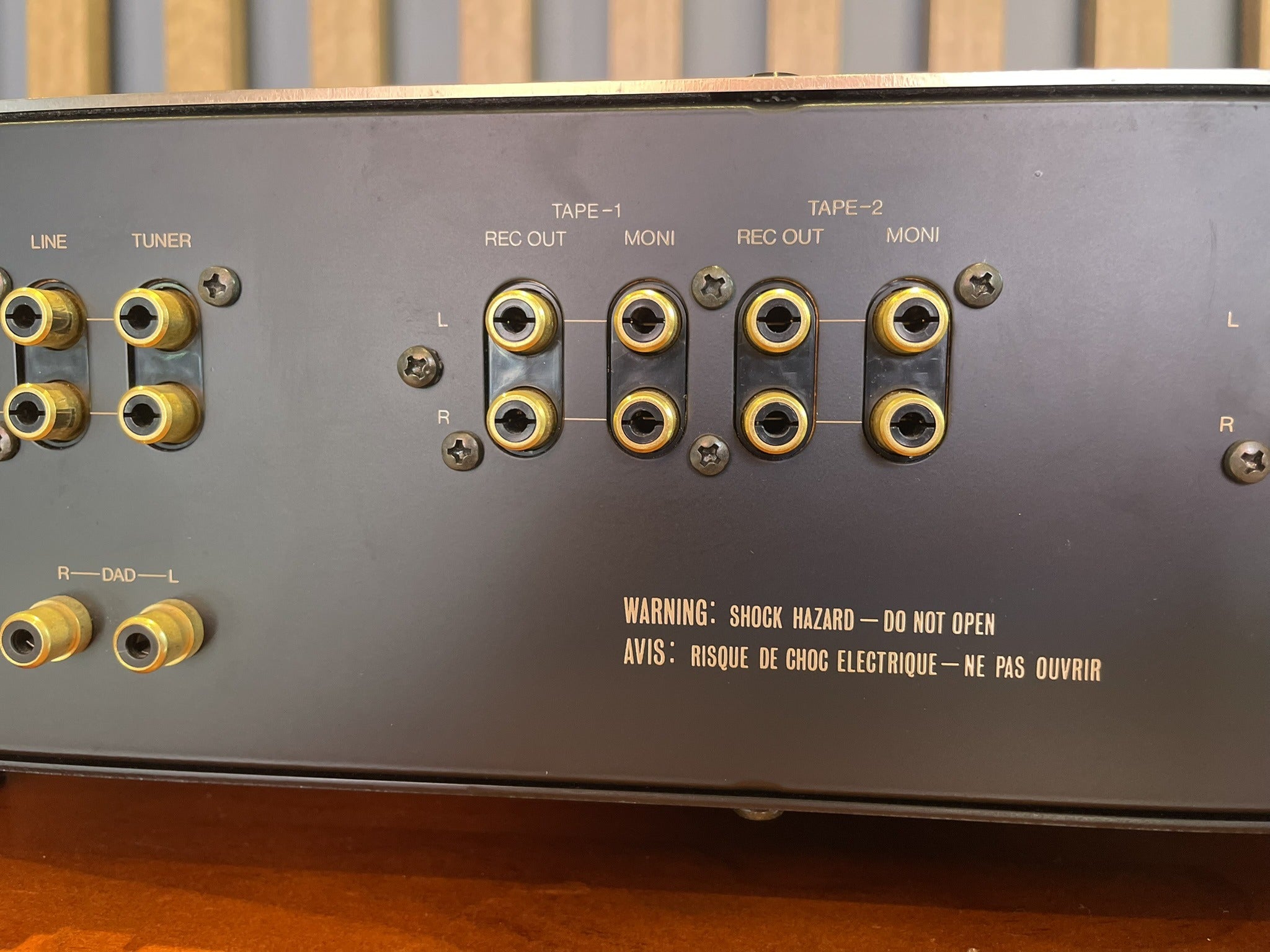

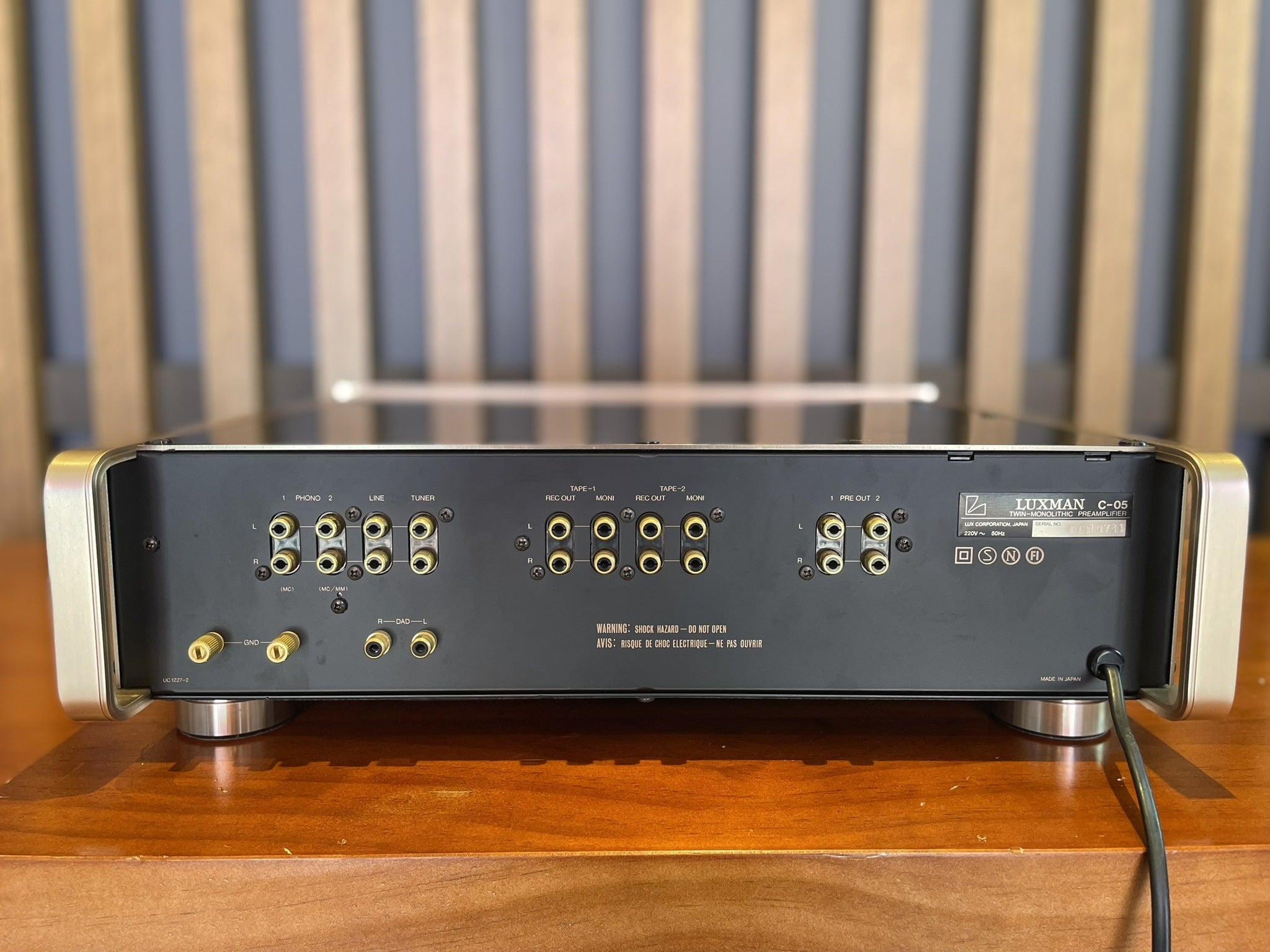

Attachment:

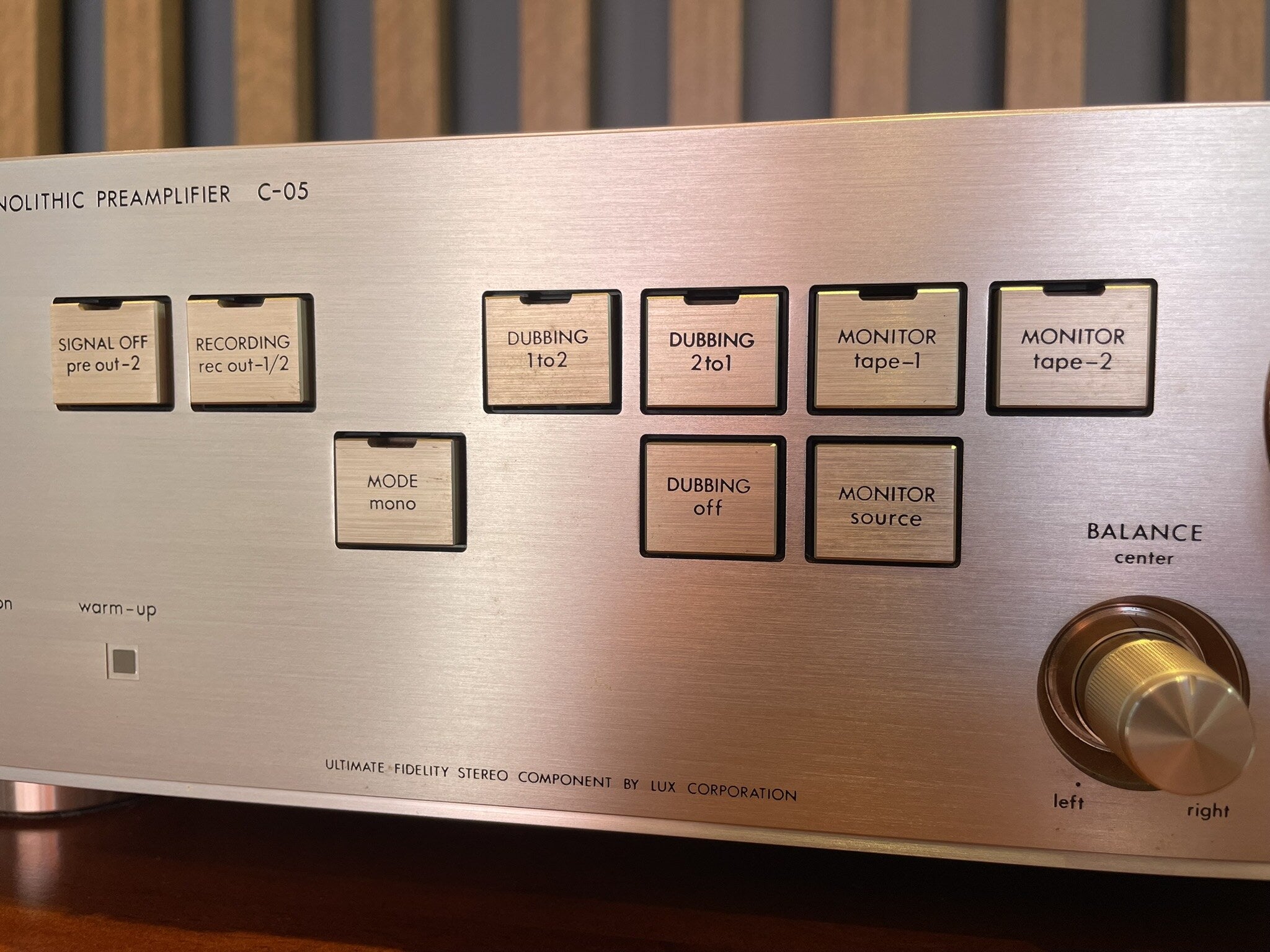

Monitor switches (Tape1, Tape2)
Tape dubbing switch (1 to 2, 2 to 1)
Recording switch
Phono function switches (Phono1, Phono2)
Signal off switch
Line phase sensor
Power Supply Voltage: 100VAC, 50Hz/60Hz
Power Consumption: 40W (Electrical Appliance and Material Control Law)
External Dimensions: Width 460 x Height 135 x Depth 442mm
Weight: 11.0kg

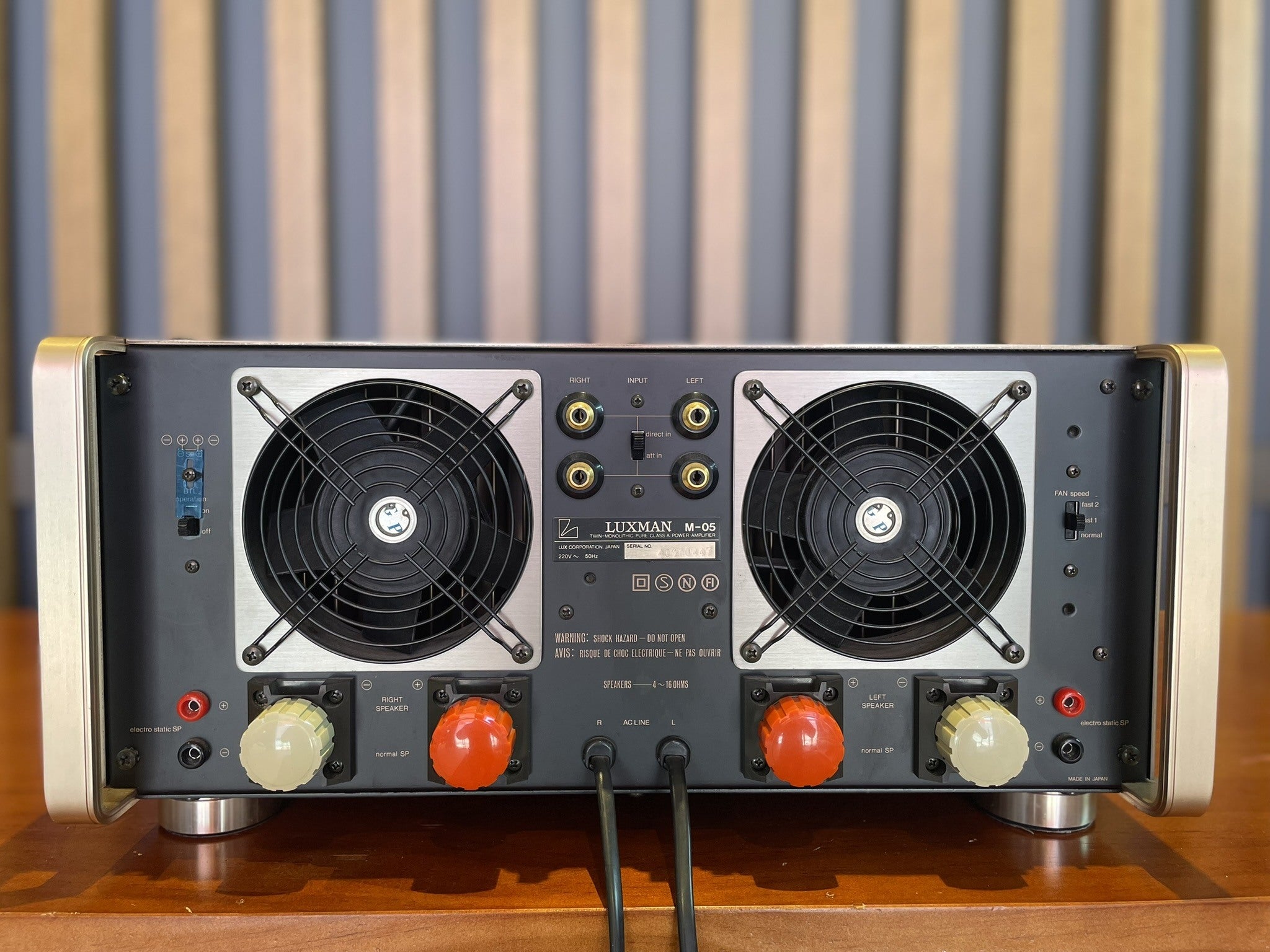

M-05 Stereo Power Amplifier

Type: Stereo power amplifier
Effective Power: Class A: 105W + 105W (8Ω, 20Hz to 20kHz, both channel operation); When BTL is connected (AB class): 400W (Class A up to 105W, 8Ω, 20Hz to 20kHz)
Total Harmonic Distortion Factor: 0.008% or less (8Ω, both channel operation); 0.01% (4Ω, both channel operation)
Cross Modulation Distortion Factor: 0.008% or less (8Ω, 60Hz: 7kHz = 4:1)
Frequency Characteristic: 10Hz to 100kHz (-0.5dB)
Input Sensitivity: 750mV
Input Impedance: Direct In: 300kΩ; ATT In: 45kΩ
Signal-to-Noise Ratio (IHF-A corrected): 120dB

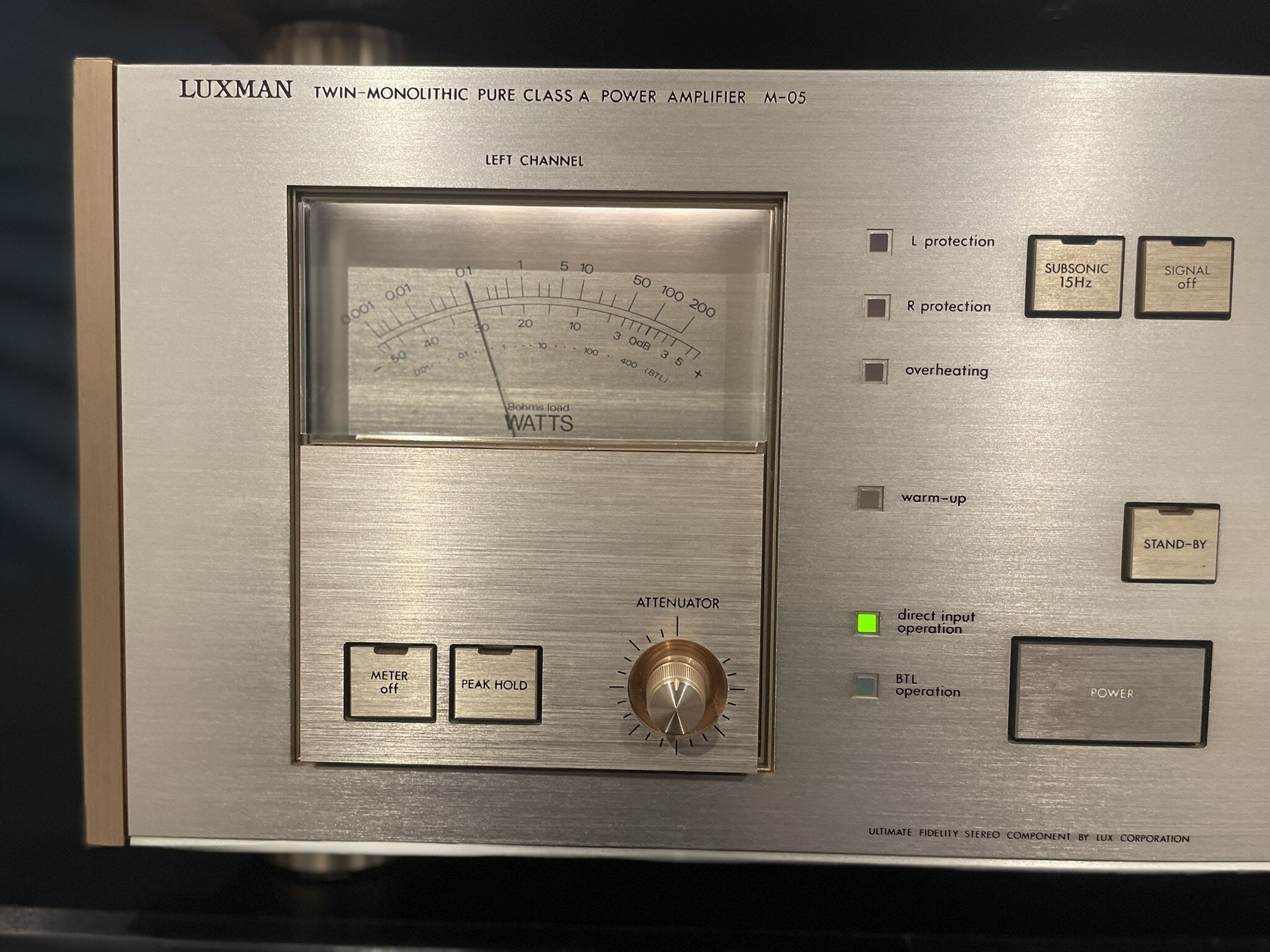

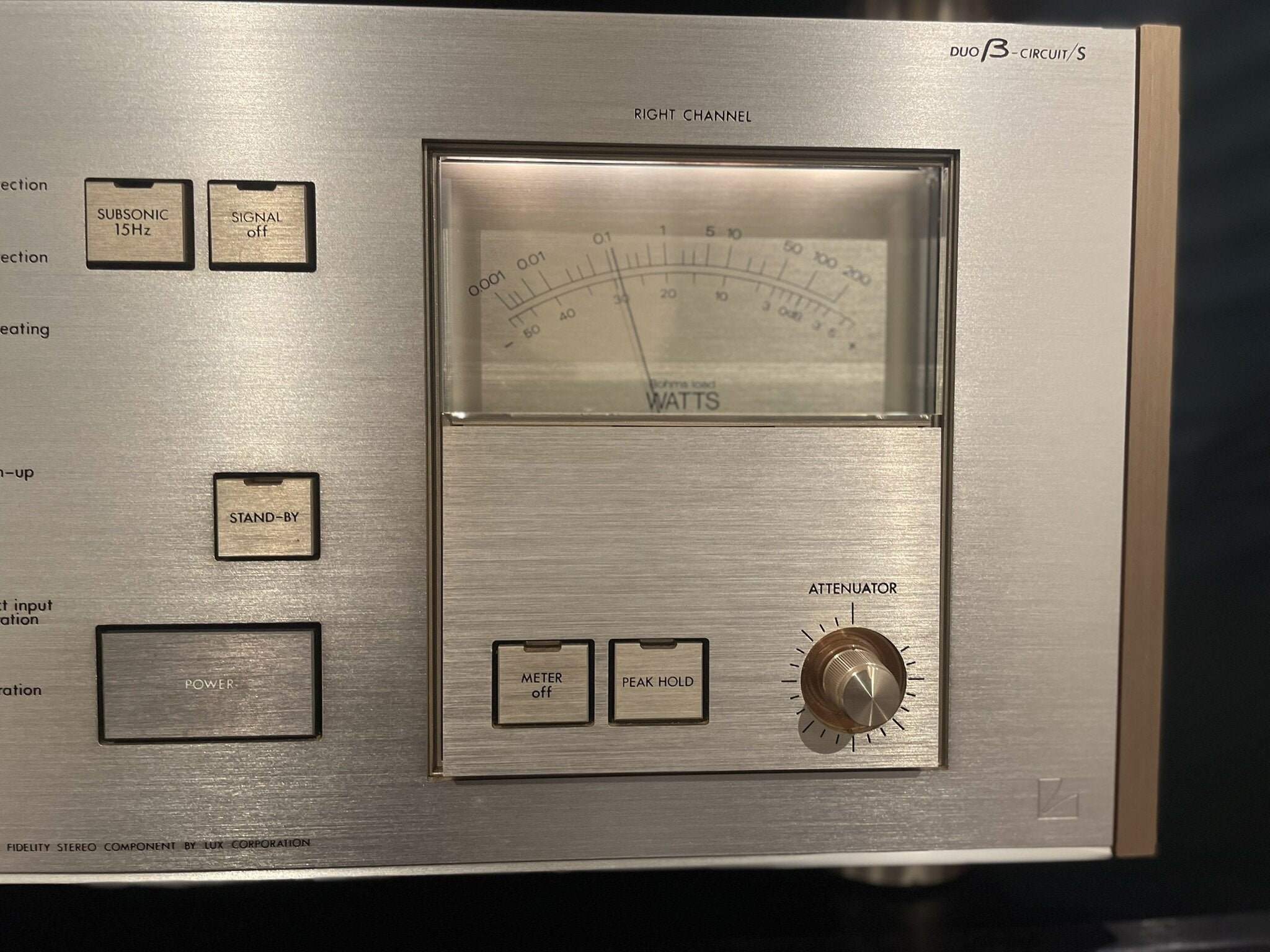

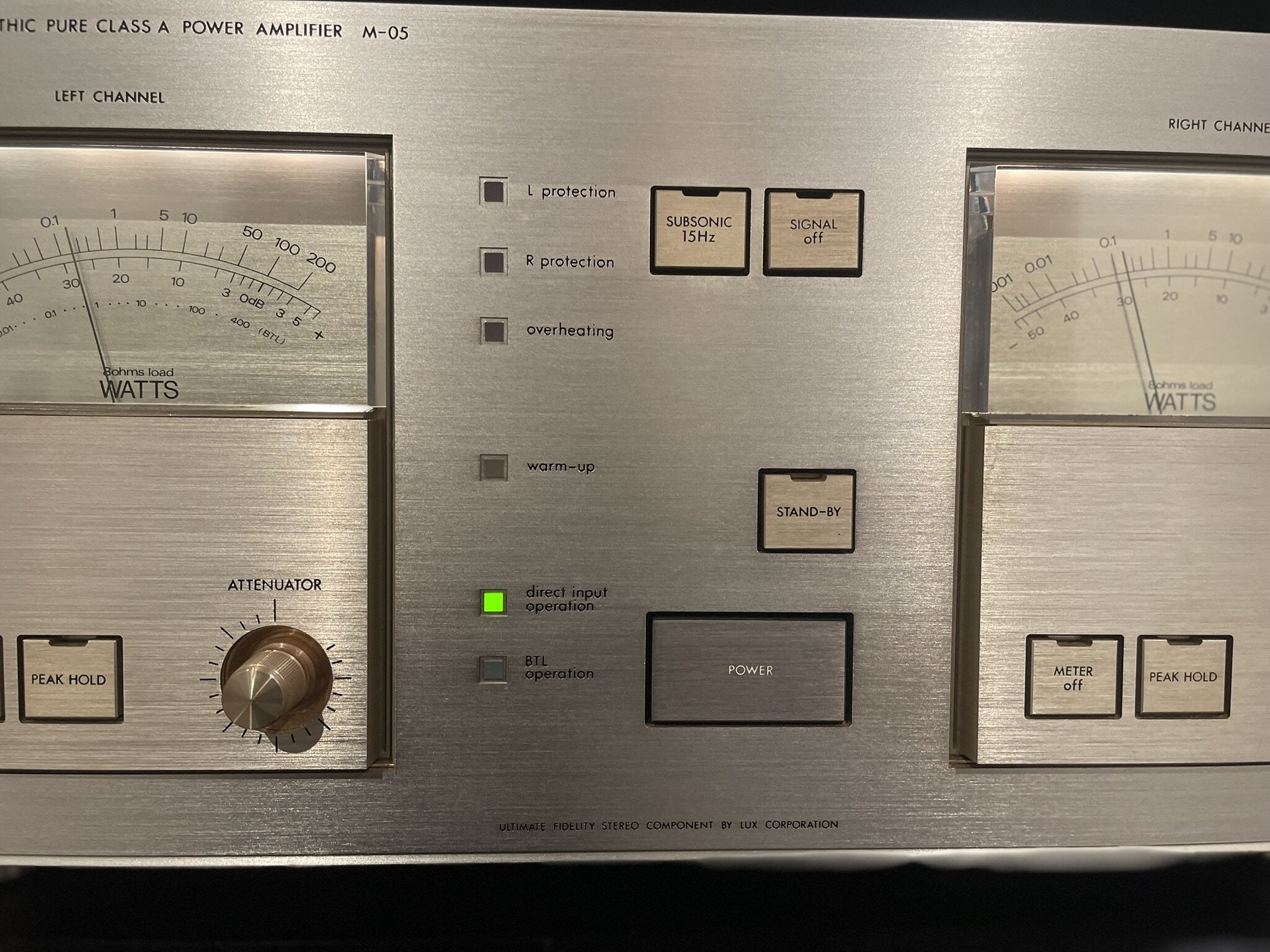

Attachment: Peak meter with peak hold (with meter OFF SW); Electro Static Speaker Connector; Signal OFF switch; 3-stage FAN switch; Line phase sensor; BTL connection switch; Subsonic Filter (15Hz, -6dB/oct.); Input attenuator; Warm-up mechanism; Preheat mechanism
Protection Circuit: DC drift detection speaker protection circuit; Overcurrent detection amplifier protection circuit; Temperature detection amplifier protection circuit
Power: 100VAC, 50Hz/60Hz
Power Consumption: 540W (Electrical Appliance and Material Control Law)
External Dimensions: Width 460 x Height 210 x Depth 437mm
Weight: 40kg
