Clearaudio Nano Phono V2
Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges.
The nano phono headphone V2 additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.
| AMPLIFICATION | 34 dB (MM mode) 54 dB (MC mode) |

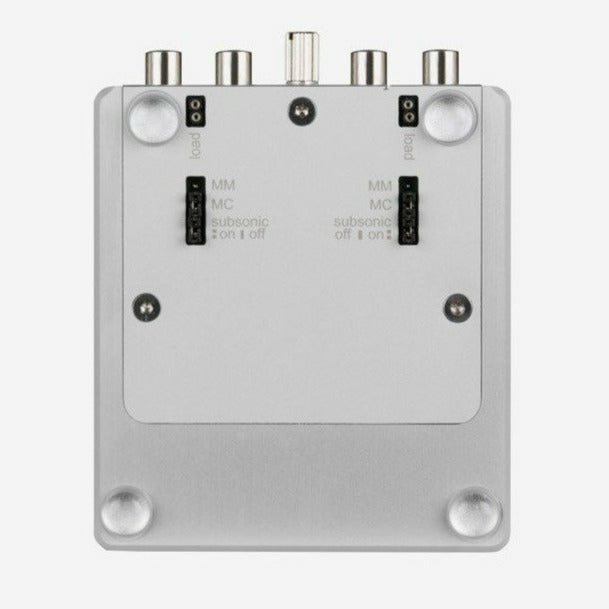

| INPUT LOAD | 47 kOhm / 220 pF / MM mode User MC mode |
| MM / MC INPUT | switchable (at bottom) |
| SUBSONIC FILTER | switchable (at bottom) |
| RIAA | Nach RIAA (Zeitkonst.: 75 μs / 318 μs / 3180 μs) |
| RIAA ACCURACY | ± 0.4dB @ 20Hz-50kHz |
| THD | < 0,04% |
| HEADROOM | 18 dB / MC |
| SIGNAL TO NOISE RATIO | 81 dB (A) (MM – Mode) 70 dB (A) (MC – Mode) |
| CHANNEL SEPARATION | > 80dB @ 1kHz |
| MAX. OUTPUT VOLTAGE | 10V eff. (1kHz) |
| POWER CONSUMPTION | Max. consumption: 2.3 Watt in operation: 2.3 Watt Standby mode: < 0.3 Watt Off mode: 0.0 Watt |
| POWER SUPPLY | ±18V DC / 300mA (external power supply) |

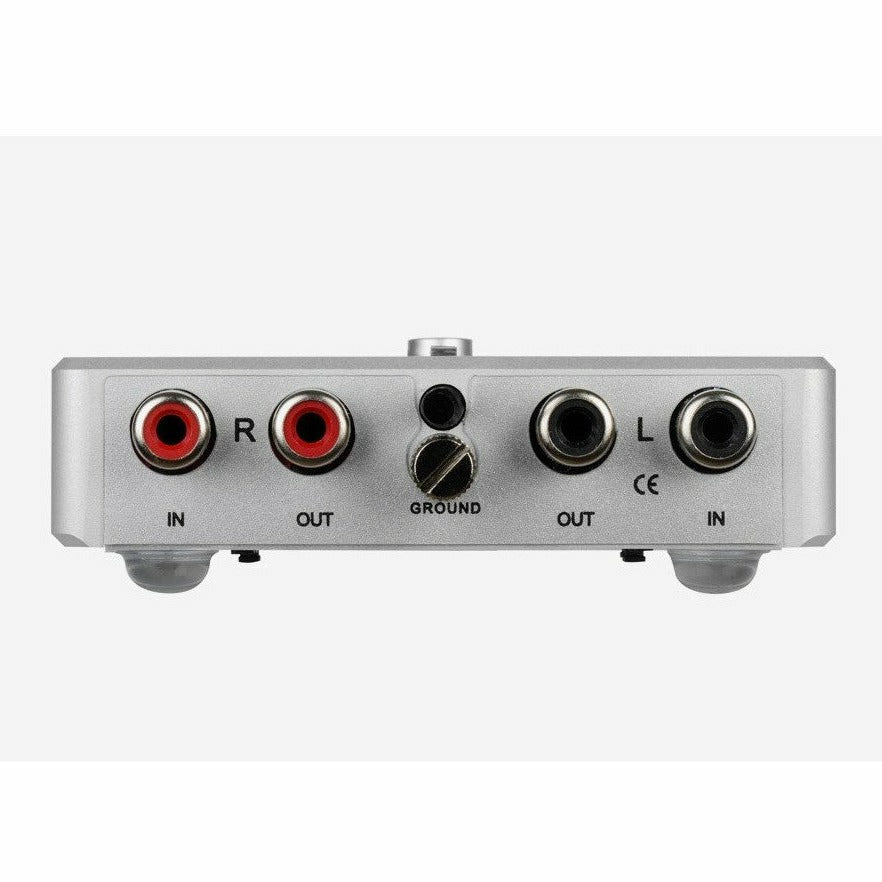

| OUTPUTS | unbalanced (RCA) |
| WEIGHT | Approx. 500 g (preamp and power supply) |
| DIMENSIONS (W/D/H in inches) | 3.35 x 4.17 x 0.98 |
| DIMENSIONS (W/D/H in mm) | 85 x 106 x 25 |
