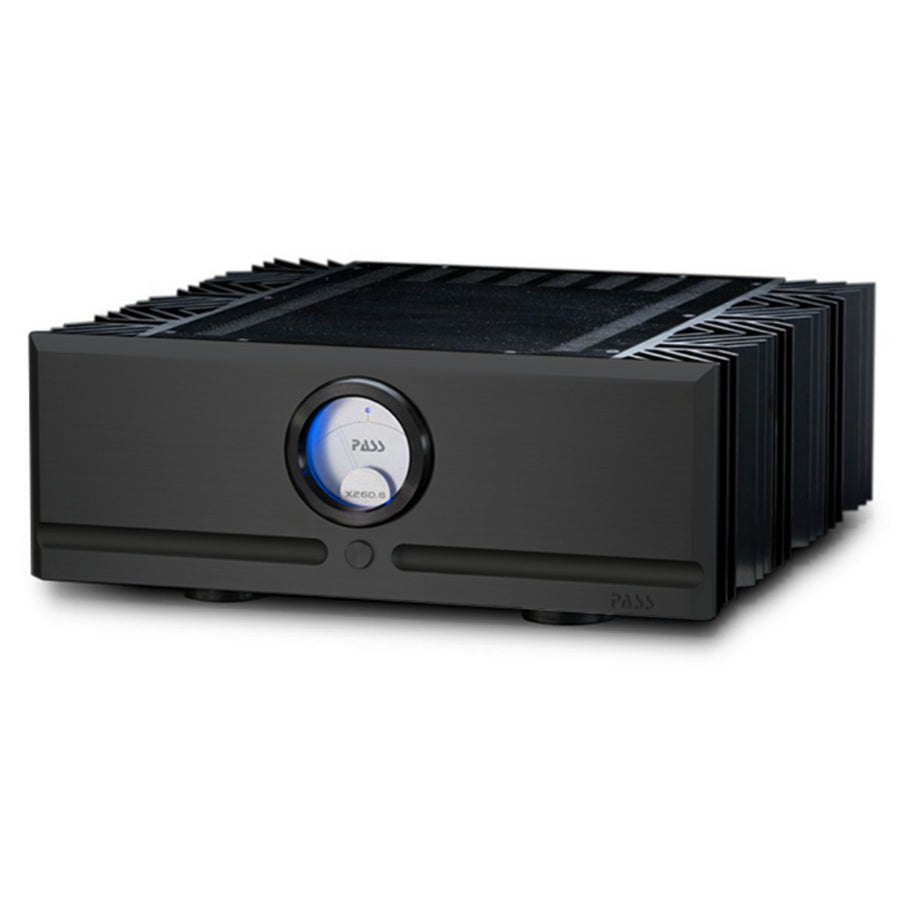

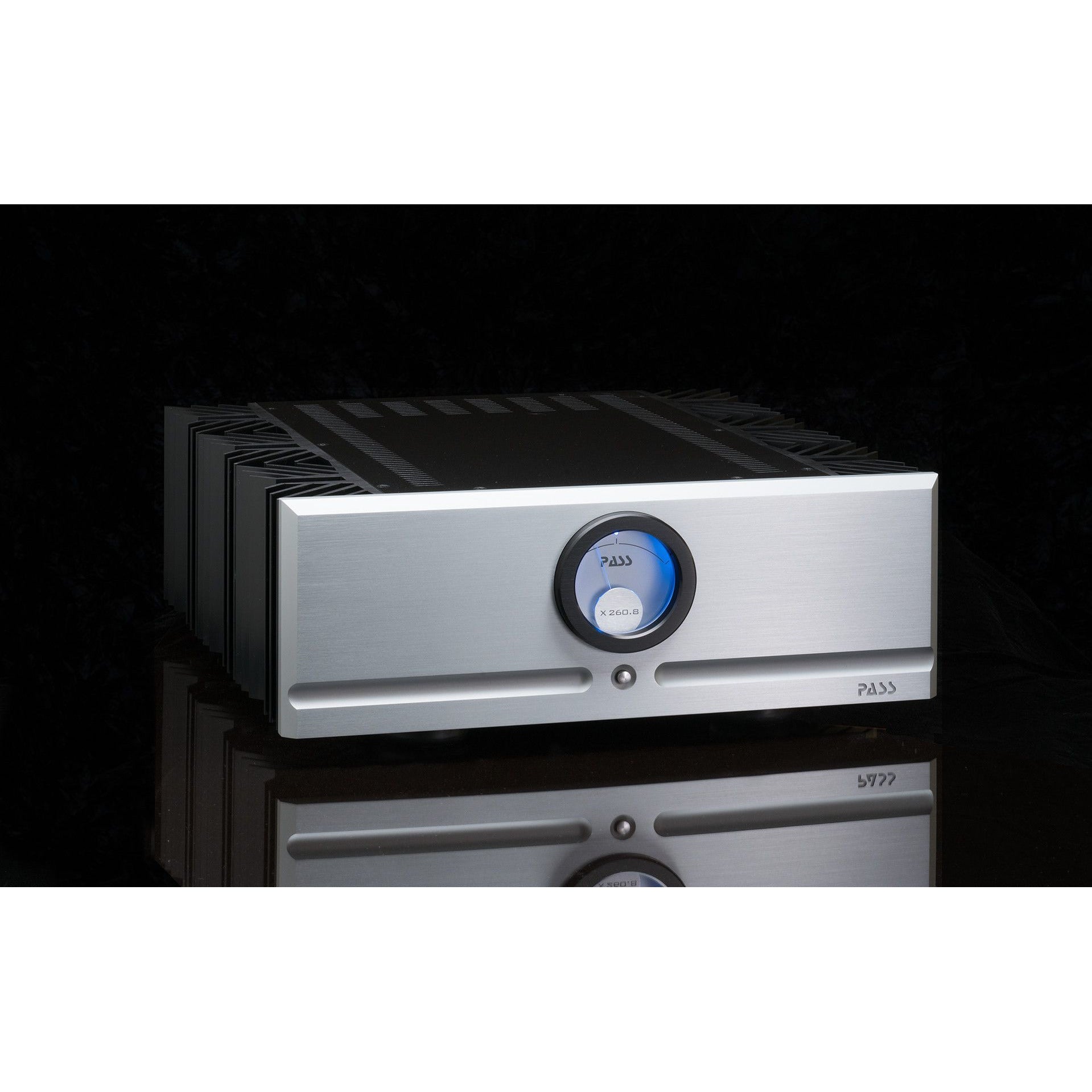

Passlabs X260.8

  • Sale
  • Regular price $24,995.00


The X260.8 is a refined musical instrument delivering 260 watts into 8 ohms, and combines power and finesse with all the benefits of mono-block performance. Itäó»s measured performance - distortion, bandwidth, noise, and resolution is beyond reproach. Like all of the class A/B .8's, this amplifier has some class A bias, rewarding its listeners with a whole new zenith of sound quality.

Class ξ- AB
Type -ξMono
Gain (dB) -ξ26
Full Pwr @ 26 dB gain (V) -ξ2.2
Low Frequency Response -ξ1.5 Hz
High Frequency Response -ξ100 KHz
Power Output /ch (8 ohm) -ξ260
Distortion (1 KHz, full power) -ξ1%
Input Impedance (SE & BAL Kohms) -ξ50/100
Damping Factor -ξ150
Output Noise (uV) -ξ200
Current Draw @ Idle (Amps) -ξ3.1
Power Consumption (Watts) - 375
Temperature (deg C.) -ξ53
Number of Chassis -ξ1
Unit Dimensions (W x D x H) (In.) -ξ19 x 21.25 x 7.5
Unit Weight (LBS) -ξ88
